IKEA TILLREDA User manual

GB
TILLREDA
Design and Quality
IKEA of Sweden
DE
FR

ENGLISH 4
DEUTSCH 33
FRENCH 64

Thank you for choosing this product.
This User Manual contains important information on safety and instructions intended
to assist you in the operation and maintenance of your appliance.
Please take the time to read this User Manual before using your appliance and keep
this book for future reference.
Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT / NOTE Operating the system correctly

CONTENTS
1.SAFETY INSTRUCTIONS ................................................................................................1
1.1. General Safety Warnings ..................................................................................................1
1.2. Installation Warnings....................................................................................................... 2
1.3. During Use........................................................................................................................3
2.INSTALLATION ..............................................................................................................5
2.1. Machine Positioning .......................................................................................................5
2.2. Water Connection............................................................................................................5
2.3. Water Inlet Hose .............................................................................................................. 5
2.4. Drain Hose........................................................................................................................6
2.5. Electrical Connection ......................................................................................................6
3.TECHNICAL SPECIFICATIONS........................................................................................7
3.1. General Appearance ........................................................................................................ 7
3.2. Technical Specifications .................................................................................................. 7
4.BEFORE USING THE APPLIANCE ..................................................................................9
4.1. Preparing your dishwasher for first use ....................................................................... 9
4.2. Salt usage (IF AVAILABLE)................................................................................................ 9
4.3. Fill the salt (IF AVAILABLE)............................................................................................... 9
4.4. Test Strip ....................................................................................................................... 10
4.5. Water Hardness Table................................................................................................... 10
4.6. Water Softener System ................................................................................................. 10
4.7. Setting ....................................................................................................................... 10
4.8. Detergent usage............................................................................................................ 10
4.9. Filling the detergent.......................................................................................................11
4.10. Using combined detergents........................................................................................11
4.11. Rinse-aid usage..............................................................................................................11
4.12. Filling the rinse-aid and setting................................................................................... 11
5.LOADING YOUR DISHWASHER...................................................................................13
5.1. Recommendations......................................................................................................... 13
5.2. Alternative Basket Loads .............................................................................................. 16
6.PROGRAMME TABLE...................................................................................................17
7.THE CONTROL PANEL .................................................................................................19
7.1. Changing a Programme ................................................................................................20
7.2. Cancelling a Programme ..............................................................................................20
7.3. Switching the Machine Off ...........................................................................................20

8.CLEANING AND MAINTENANCE................................................................................22
8.1. Cleaning the Machine and Filters ................................................................................22
8.2. Spray Arms .....................................................................................................................22
9.TROUBLESHOOTING...................................................................................................24

1.SAFETY INSTRUCTIONS
1.1. General Safety Warnings
• Read these instructions carefully before using
your appliance and keep this manual for future
reference.
Please check the packaging of your machine
before installation and the outer surface of the
machine once the packaging has been removed.
Do not operate the machine if it appears damaged
or if the packaging has been opened.
• Packaging materials protect your machine
from any damage that might occur during
transportation. The packaging materials are
environmentally friendly as they are recyclable.
Use of recycled material reduces raw material
consumption and decreases waste production.
This appliance can be used by children aged
from 8 years and above, and by persons with
reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been
given supervision or instruction concerning the use
of the appliance in a safe way and understand
hazards involved. Children should not be allowed
to play with the appliance.
Remove packaging and keep it out of reach of
children.
Keep children away from detergents and rinse
aids.
There may be some residue left in the machine
after washing. Keep children away from the
GB - 1

GB - 2
machine when it is open.
1.2. Installation Warnings
• Choose a suitable and safe place to install your
machine.
• Only original spare parts should be used with the
machine.
Unplug the machine before installation.
Your machine must only be installed by an
authorised service agent. Installation by anyone
other than an authorised agent may cause your
warranty to be void.
Check that the indoor electrical fuse system is
connected in line with safety regulations.
All electrical connections must match the values
on the plate.
Ensure the machine does not stand on the
electrical supply cable.
Never use an extension cord or a multiple socket
connection.
The plug should be accessible after the machine
is installed.
• After installation, run your machine unloaded for
the first time.
The machine must not be plugged in during
positioning.
Always use the coated plug supplied with your
machine.
If the electrical cable is damaged, it should

GB - 3
only be replaced by a qualified electrician.
•Connect the hose directly to the water inlet tap.
The pressure supplied by the tap should be a
minimum of 0.03 MPa and a maximum of 1 MPa.
If the pressure exceeds 1 MPa, a pressure relief
valve must be fitted between the connection.
1.3. During Usage
• This machine is for domestic use only; do not use
it for other purposes. Commercial use will void
the guarantee.
Do not stand, sit or place loads on the open door
the dishwasher.
Only use detergents and rinse aids produced
specifically for dishwashers. Our company is not
responsible for any damage that may occur due to
misuse.
Do not drink water from the machine.
Due to the danger of explosion, do not place
any chemical dissolving agents into the machine’s
washing section.
• Check the heat-resistance of plastic items before
washing them in the machine.
Only put items in the machine which are suitable
for dishwashing, and take care not to overfill the
baskets.
Do not open the door while the machine is in
operation, hot water may spill out. Safety devices

ensure the machine stops if the door is opened.
The machine door should not be left open. It
may cause accidents.
Place knives and other sharp objects in the
cutlery basket in a blade-down position.
For models with the automatic door-opening
system, when the EnergySave option is active, the
door will open at the end of a program. To prevent
damage to your dishwasher, do not attempt to
close the door for one minute after it has opened.
For effective drying, keep the door open for 30
minutes after a programme has ended. Do not
stand in front of the door after the auto-open
signal sounds.
In the case of a malfunction, repair should only
be performed by an authorised service company,
otherwise the warranty will be void.
Before repair work, the machine should be
disconnected from the mains. Do not pull the cable
to unplug the machine. Switch off the water tap.
Operation at a low voltage will cause a decline in
performance levels.
For safety, disconnect the plug once a program
has finished.
To avoid an electric shock, do not unplug the
machine with wet hands.
Pull the plug to disconnect the machine from
the mains, never pull on the cord.
GB - 4

GB - 5
2. INSTALLATION
2.1. Machine positioning
When positioning the machine, place
it in an area where dishes can be easily
loaded and unloaded. Do not put the
machine in an area where the ambient
temperature falls below 0°C.
Read all warnings located on the
packaging before removing the
packaging and positioning the machine.
Place the machine close to a water tap
and drain. Take into consideration that
the connections will not be altered once
the machine is in position.
Do not hold the machine by its door or
panel.
Leave an adequate distance around the
machine to allow ease of movement
when cleaning.
Ensure the water inlet and outlet
hoses are not squeezed or trapped
and that the machine does not stand on
the electrical cable while positioning.
Adjust the feet so the machine is level
and balanced. The machine should be
placed on flat ground otherwise it will be
unstable and the door of the machine
will not close properly.
2.2. Water connection
We recommend fitting a filter to your
water inlet supply in order to prevent
damage to your machine due to
contamination (sand, rust, etc.) from
indoor plumbing. This will also help
prevent yellowing and deposit formation
after washing.
Note printing on the water inlet hose!
If models are marked with 25°, the water
temperature may be max. 25 °C (cold
water).
For all other models:
Cold water preferred; hot water max.
temperature 60 °C.
2.3. Water inlet hose
WARNING: Use the new water inlet
hose supplied with your machine, do not
use an old machine’s hose.
WARNING: Run water through the
new hose before connecting.
WARNING: Connect the hose
directly to the water inlet tap. The pressure
supplied by the tap should be a minimum
of 0.03 MPa and a maximum of 1 MPa. If
the pressure exceeds 1 MPa, a pressure
relief valve must be fitted between the
connection.
WARNING: After the connections are
made, turn the tap on fully and check
for water leaks. Always turn off the
water inlet tap after a wash program has
finished.
An Aquastop water spout is available
with some models. Do not damage it
or allow it to become kinked or
twisted.

GB - 6
2.4. Drain hose
Connect the water drain hose directly to
water drain hole or to the sink outlet spigot
by means of clamp. This connection
should be minimum 50 cm and maximum
110 cm from floor that dishwasher is
placed.
earthing installation. In the case of use
without earthing installed, we will not be
responsible for any loss of use that may
occur.
The plug on this appliance may
incorporate 10A fuse.
2.5. Electrical connection
WARNING: Your machine is set to
operate at 220-240 V. If the mains voltage
supply to your machine is 110 V, connect
a transformer of 110/220 V and 3000 W
between the electrical connection.
Connect the product to a
grounded outlet protected by a fuse
complying with the values in the
“Technical Specifications” table”.
The earthed plug of the
machine must be connected
to an earthed outlet supplied by
suitable voltage and current.
In the absence of earthing
installation, an authorised
electrician should carry out an
IMPORTANT: Items will not wash
properly if a drain hose longer than 4 m
is used.

GB - 7

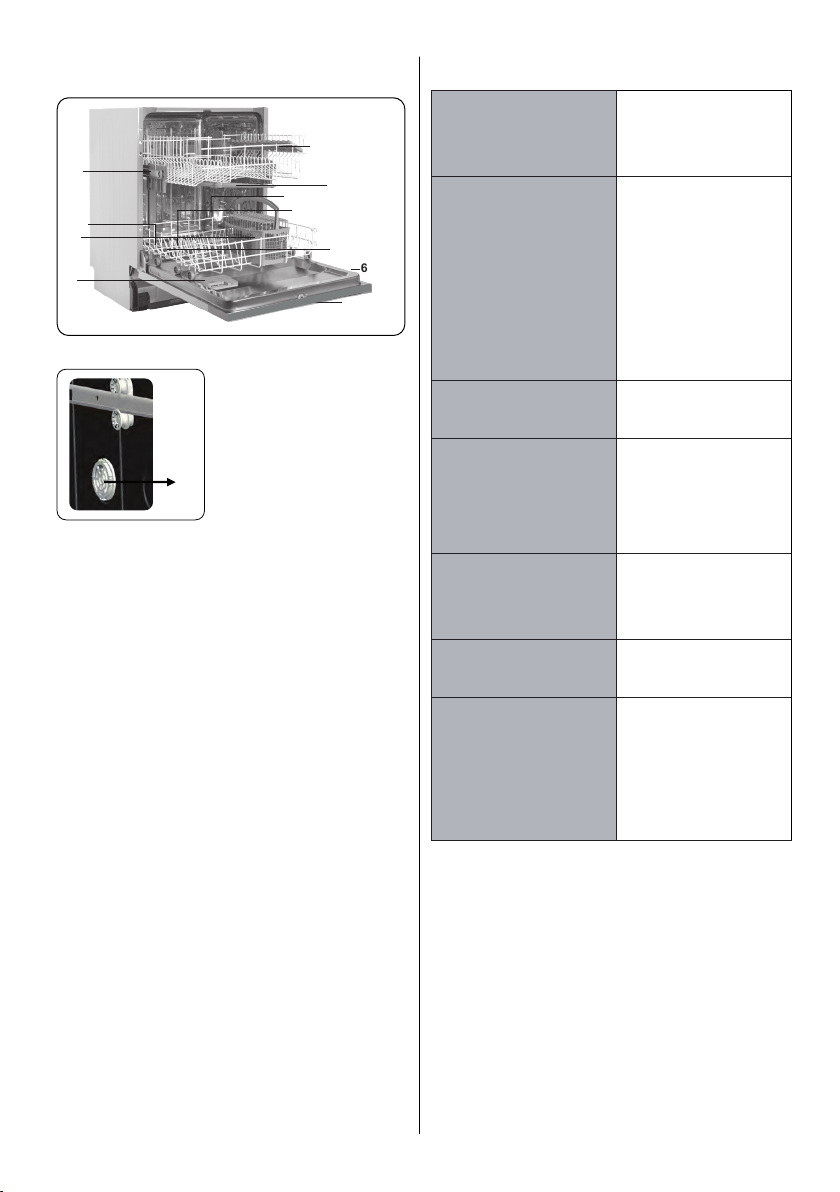

3. TECHNICAL SPECIFICATIONS
12
3.2. tEchnical spEcifications
Capacity 13place
settings
Dimensions
Height
Width
Depth
860-
910(mm)
598(mm)
570(mm)
Net weight 39 kg
Operating
voltage /
frequency
220-240V
50 Hz,
Total
current 10(A)
Total power 1900(W)
Water
supply
pressure
Maximum:
1 (Mpa)
Minimum:
0.03 (Mpa)
6
1
2
3
4
5
7
8
9
11
10
3.1. General Appearance
1. Upper basket with racks
2. Upper spray arm
3. Lower basket
4. Lower spray arm
5. Filters
6. Rating plate
7. Control panel
8. Detergent and rinse-aid dispenser
9. Cutlery basket
10. Salt dispenser
11. Upper basket track latch
12. Active Drying Unit: This system
provides better drying performance for
your dishes.

GB - 8
rEcYclinG
• Some machine components and
packaging consist of recyclable
materials.
• Plastics are marked with the
international abbreviations:(>PE<,
>PP<, etc. )
• The cardboard parts consist of
recycled paper. They can be put into
waste paper containers for recycling.
• Material unsuitable for domestic
waste must be disposed of at
recycling centres.
• Contact a relevant recycling centre to
obtain information about disposal of
different materials.
pacKaGinG anD thE EnVironMEnt
• Packaging materials protect your
machine from damage that may occur
during transportation. The packaging
materials are environmentally
friendly as they are recyclable. The
use of recycled material reduces raw
material consumption and therefore
decreases waste production.
cE DEclaration of conforMitY
We declare that our products meet the
applicable European Directives, Decisions
and Regulations and the requirements
listed in the standards referenced.
Disposal of Your olD MachinE
The symbol on the product
or on its packaging indicates
that this product may not
be treated as household
waste. Instead, it shall be
handed over to the applicable
collection point for the
recycling of electrical and electronic
equipment. By ensuring this product
is disposed of correctly, you will help
prevent potential negative consequences
for the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product. For more detailed information
about recycling of this product, please
contact your local city office, your
household waste disposal service or the
shop where the product was purchased.
This appliance is marked according to
the European Directive 2012/19/EU on
Waste Electrical and Electronic Equip-
ment (WEEE). This guideline is the
frame of a Europeanwide validity of
return and recycling on Waste Electrical
and Electronic Equipment

GB - 9
4. BEFORE USING
THE APPLIANCE
4.1. Preparing your
dishwasher for first use
•Make sure the electricity and supply
water specifications match the
values indicated in the installation
instructions for the machine.
• Remove all packaging material inside
the machine.
• Set the water softener level.
• Fill the rinse aid compartment.
4.2 Salt usage (IF AVAILABLE)
For a good washing function, the
dishwasher needs soft, i.e. less
calcareous water. Otherwise, White
lime residues will remain on the dishes
and the interior equipment. This will
negatively affect your machine’s washing,
drying and shining performance. When
water flows through the softener system,
the ions forming the hardness are
removed from the water and the water
reaches the softness required to obtain
the best washing result. Depending on
the level of hardness of the inflowing
water, these ions that harden the
water accumulate rapidly inside the
softener system. Therefore, the softener
system has to be refreshed so that it
operates with the same performance
also during the next wash. For this
purpose, dishwasher salt is used.
Machine can only be used by special
dishwasher salt to soften the water.
Do not use any small grained or
powdered type of salts which can
easily soluble. Using any other type
of salt can damage your machine.
4.3. Fill the salt (IF AVAILABLE)
To add softener salt, open the salt
compartment cap by turning it counter
clockwise. (1) (2) At first use, fill the
compartment with 1 kg salt and water (3)
until it is almost overflowing. If available,
using a funnel (4) will make filling easier.
Replace the cap and close it. After every
20-30 Cycles add salt into your machine
until it fills up (approx. 1 kg).
3 4
1 2
SALT
Only add water to the salt
compartment on first use.
Use softener salt specifically produced
for use in dishwashers.
When you start your dishwasher, the
salt compartment is filled with water,
therefore put the softener salt in prior to
starting your machine.
If the softener salt has overflowed
and you do not start the machine
immediately, run a short washing
program to protect your machine against
corrosion.

4.4. Test Strip
Run water
through
the tap
(1min.)
Keep the
strip in the
water (1sec)
Shake the
strip. Wait (1min.) Set the hardness level of your machine.
1
2
3
4
5
6
NOTE: The level is set to 3 as default. If the water is well water or has a hardness level
above 90 dF, we recommend that you use filter and refinement devices.
4.5. Water Hardness Table
4.6. Water Softener System
The dishwasher is equipped with a water softener which reduces the hardness in the
mains water supply. To find out the hardness level of your tap water, contact your
water company or use a test strip (if available).
4.7. Setting
In order to change the salt level, follow the below steps:
•Open the door of the machine.
•Turn on the machine, and press the Programme button as soon as the machine is
turned on.
•Hold down the Programme button until “SL” disappears.
•The machine will display the last setting.
•Set the level by pressing the Programme button.
•Turn off the machine to save the setting.
4.8. Detergent usage
Only use detergents specifically designed for domestic dishwashers. Keep your
detergents in cool, dry places out of reach of children.
Add the proper detergent for the selected program to ensure the best performance.
The amount of detergent needed depends on the cycle, load size, and soil level of
dishes. GB - 10
Level German dH French dF British dE Indicator
1 0-5 0-9 0-6 L1 is shown on the display.
2 6-11 10-20 7-14 L2 is shown on the display.
3 12-17 21-30 15-21 L3 is shown on the display.
4 18-22 31-40 22-28 L4 is shown on the display.
5 23-34 41-60 29-42 L5 is shown on the display.
6 35-50 61-90 43-63 L6 is shown on the display.

GB - 11
Do not fill detergent into the detergent
compartment more than required;
otherwise you can see whitish streaks
or bluish layers on glass and dishes and
may cause glass corrosion. Continued
use of too much detergent may cause
machine damage.
Using little detergent can result in
poor cleaning and you can see whitish
streaksin hard water.
See the detergent manufacturer’s
instructions for a further information.
4.9. Filling the detergent
Push the latch to open the dispenser and
pour in the detergent.
Close the lid and press it until it locks in
place. The dispenser should be refilled
just before the start of each programme.
If the dishes are heavily soiled, place
additional detergent in the pre-wash
detergent chamber.
DETERGENT
4.10. Using combined detergents
These products should be used according
to the manufacturer’s instructions.
Never put combined detergents into the
interior section or the cutlery basket.
Combined detergents contain not only
the detergent but also rinse-aid, salt
replacement substances and additional
components depending on the
combination.
We recommend you do not use
combined detergents in short
programmes. Please use powder
detergents in such programmes.
If you encounter problems when using
combined detergents, please contact the
detergent manufacturer.
When you stop using combined
detergents, make sure that water
hardness and rinse aid settings are set to
the correct level.
4.11. Rinse-aid usage
The rinse aid helps to dry the dishes
without streaks and stains. Rinse-aid is
required for stain-free utensils and clear
glasses. The rinse aid is automatically
released during the hot rinse phase. If
rinse aid dosage setting set too low,
whitish stains remains on dishes and
dishes do not dry and washed clean.
If rinse aid dosage setting set too height,
you can see bluish layers on glass and
dishes.
4.12. Filling the rinse-aid and setting
To fill the rinse aid compartment, open
the rinse-aid compartment cap. Fill the
compartment with rinse aid to the MAX
level and then close the cap. Be careful
not to overfill the rinse aid compartment
and wipe up any spills.
In order to change the rinse aid
level, follow the below steps
before turning on the machine:
•Open the door of the machine.
•Turn on the machine, and press the
Programme button as soon as the
machine is turned on.
•Hold down the Programme button
until “rA” disappears. Rinse aid setting
follows water hardness setting.
•The machine will display the last
setting.
•Change the level by pressing the
programme button.
•Turn off the machine to save the
setting.
The factory setting is “4”.
If the dishes are not drying properly or
are spotted, increase the level. If blue
stains form on your dishes, decrease the
level.

GB - 12
Level Brightener
Dose Indicator
1 Rinse-aid not
dispensed r1 is shown on the display.
2 1 dose is
dispensed r2 is shown on the display.
3 2 doses are
dispensed r3 is shown on the display.
4 3 doses are
dispensed r4 is shown on the display.
5 4 doses are
dispensed r5 is shown on the display.

GB - 13
5. LOADING YOUR DISHWASHER
For best results, follow these loading
guidelines.
Loading the household dishwasher
up to the capacity indicated by the
manufacturer will contribute to energy
and water savings.
Manual pre-rinsing of tableware items
leads to increased water and energy
consumption and is not recommended

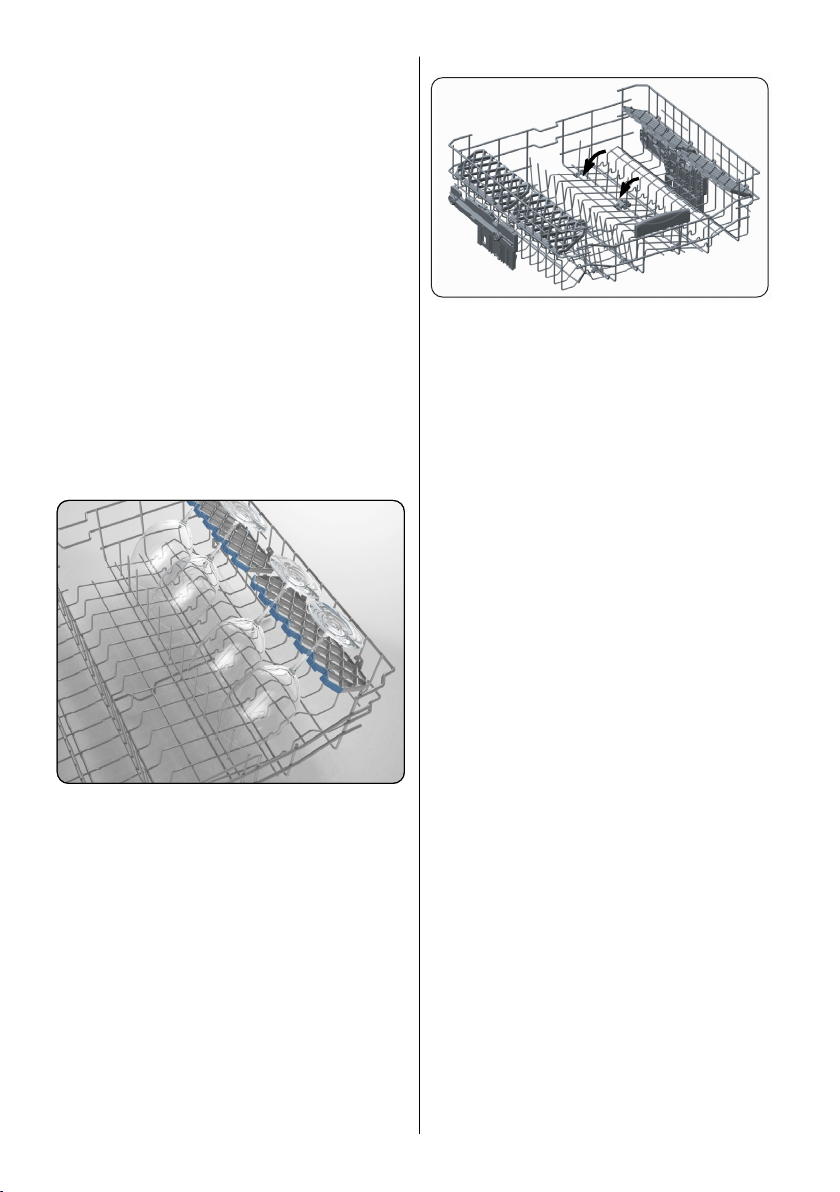

You can place cups, glasses, stemware,
small plates, bowls, etc. in upper basket.
Do not lean long glasses against one
another or they cannot remain steady
and may receive damage.
When placing long stem glasses and
goblets, lean them against the basket
edge or rack and not against other items.
Place all containers such as cups, glasses
and pots into the dishwasher with the
opening facing downwards otherwise
water can collect on items.
If there is cutlery basket in machine, you
are recommended to use the cutlery grid
in order to obtain the best result. Place
all large (pots, pans, lids, plates, bowls
etc.) and very dirty items in the lower
rack.
Dishes and cutlery should not be placed
above each other.
WARNING: Take care not to
obstruct the rotation of spray arms.
WARNING: Make sure after loading
the dishes do not prevent opening the
detergent dispenser.
5.1. Recommendations
Remove any coarse residue on dishes
before placing the dishes in the machine.
Start the machine with full load.
Do not overload the drawers or
place dishes in the wrong basket.
WARNING: To avoid any possible
injuries, place long-handle and sharp-
pointed knives with their sharp points
facing down or horizontally on the
baskets.

GB - 14
Upper Basket
Height adjustment
Turn the Rail Stop Clips, at the ends of the
rails, to the sides to open them (as shown in
the image below), then pull out and remove
the basket. Change the position of the
wheels, then reinstall the basket to the rail,
making sure to close the Rail Stop Clips.
When the upper basket is in the higher
position, large items such as pans can be
placed on the lower basket.

GB - 15
SOFT TOUCH
Top basket
Height Adjustable Rack
These racks are designed to increase
the capacity of the top basket. You can
place your glasses and cups on the racks.
You can adjust the height of these racks.
Thanks to this feature, you can place
dierent sizes of glasses under
these racks.
Thanks to height adjustment plastics
mounted on the basket, you can use your
racks in 2 dierent heights. In addition,
you can place long forks, knives and spo-
ons on these racks laterally, so that they
do not block the revolution of propeller.
The soft touch feature on the racks ser-
ves to place the ne stemmed glass.
The wineglass is placed in the area
shown at the picture.
Foldable racks
Foldable racks on the upper basket are
designed in order to let you place big
items easier such as pots, pans, etc.
If requested, each part can be folded
separately, or all of them can be folded
and larger spaces can be obtained. You
can use foldable racks by raising them
upwards,or by folding down.
