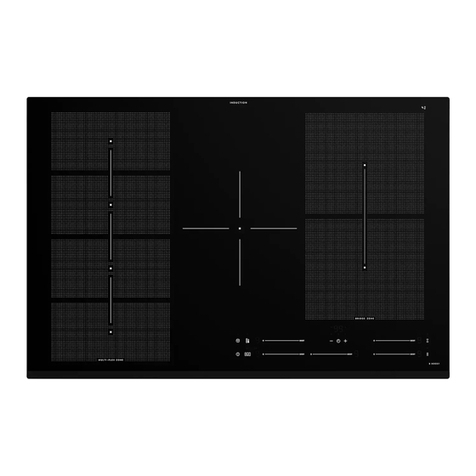

IKEA BLIXTSNABB User manual

BLIXTSNABB
GB
DE

ENGLISH
Please refer to the last page of this manual for the full list of
IKEA appointed After Sales Service Provider and relative
national phone numbers.
DEUTSCH
Auf der letzten Seite dieser Broschüre finden Sie eine
vollständige Liste der offiziellen IKEA After-Sales-Dienstleister
mit den jeweiligen nationalen Telefonnummern.

ENGLISH 4
DEUTSCH 28

Contents
Safety information 4
Safety instructions 6
Installation 8
Electrical connection 9
Product description 11
Daily use 13
Flexible induction cooking area 15
Cookware guidance 19
Care and cleaning 20
Troubleshooting 20
Technical data 24
Energy efficiency 24
Environmental concerns 25
IKEA guarantee 25
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
if an incorrect installation and use causes injuries and
damage. Always keep the instructions with the appliance for
future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
•Children between 3 and 8 years of age and persons with
very extensive and complex disabilities shall be kept away
from the appliance unless continuously supervised.
•Children of less than 3 years of age should be kept away
from the appliance unless continuously supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
ENGLISH 4

•Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts may
become hot during use.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
General Safety
•WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements.
•Do not operate the appliance by means of an external timer
or separate remote-control system.
•WARNING: Unattended cooking on a hob with fat or oil can
be dangerous and may result in fire.
•NEVER try to extinguish a fire with water, but switch off the
appliance and then cover flame e.g. with a lid or a fire
blanket.
•CAUTION: The cooking process has to be supervised. A short
term cooking process has to be supervised continuously.
•WARNING: Danger of fire: Do not store items on the cooking
surfaces.
•Metallic objects such as knives, forks, spoons and lids should
not be placed on the hob surface since they can get hot.
•Do not use the appliance before installing it in the built-in
structure.
•Disconnect the appliance from the electrical supply before
maintenance.
•Do not use a steam cleaner to clean the appliance.
•After use, switch off the hob element by its control and do
not rely on the pan detector.
ENGLISH 5

•If the glass ceramic surface / glass surface is cracked, switch
off the appliance and unplug it from the mains. In case the
appliance is connected to the mains directly using junction
box, remove the fuse to disconnect the appliance from
power supply. In either case contact the Authorised Service
Centre.
•If the supply cord is damaged, it must be replaced by the
manufacturer, the Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
•WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance or indicated by the
manufacturer of the appliance in the instructions for use as
suitable or hob guards incorporated in the appliance. The
use of inappropriate guards can cause accidents.
Safety instructions
Installation
Warning! The appliance must be
installed by the authorised
installer.
Follow the Assembly instructions
supplied with the appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Keep the minimum distance from other
appliances and units.
• Always take care when moving the
appliance as it is heavy. Always use safety
gloves and enclosed footwear.
• Seal the cut surfaces with a sealant to
prevent moisture to cause swelling.
• Protect the bottom of the appliance from
steam and moisture.
• Do not install the appliance adjacent to a
door or under a window. This prevents
hot cookware falling from the appliance
when the door or the window is opened.
• Make sure that the space underneath the
hob is sufficient for air circulation.
• The bottom of the appliance can get hot.
If the appliance is installed above the
drawers, make sure to install a non-
combustible separation panel under the
appliances to prevent access to the
bottom.
Electrical Connection
Warning! Risk of fire and electric
shock.
• All electrical connections should be made
by the authorised installer.
• The appliance must be earthed.
• Before carrying out any operation make
sure that the appliance is disconnected
from the power supply.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Make sure the appliance is installed
correctly. Loose and incorrect electricity
ENGLISH 6

mains cable or plug (if applicable) can
make the terminal become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable
tangle.
• Make sure that a shock protection is
installed.
• Use the strain relief clamp on the cable.
• Make sure the mains cable or plug (if
applicable) does not touch the hot
appliance or hot cookware, when you
connect the appliance to the near
sockets.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug (if applicable) or to the mains
cable. Contact our Authorised Service
Centre or an electrician to change a
damaged mains cable.
• The shock protection of live and insulated
parts must be fastened in such a way that
it cannot be removed without tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
Use
Warning! Risk of injury, burns
and electric shock.
• Remove all the packaging, labelling and
protective film (if applicable) before first
use.
• This appliance is for household use only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Set the cooking zone to “off” after each
use.
• Do not rely on the pan detector.
• Do not put cutlery or saucepan lids on the
cooking zones. They can become hot.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not use the appliance as a work
surface or as a storage surface.
• If the surface of the appliance is cracked,
disconnect immediately the appliance
from the power supply. This to prevent an
electrical shock.
• Users with a pacemaker must keep a
distance of minimum 30 cm from the
induction cooking zones when the
appliance is in operation.
• When you place food into hot oil, it may
splash.
Warning! Risk of fire and
explosion
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and oils
when you cook with them.
• The vapours that very hot oil releases can
cause spontaneous combustion.
• Used oil, that can contain food remnants,
can cause fire at a lower temperature
than oil used for the first time.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
Warning! Risk of damage to the
appliance.
• Do not keep hot cookware on the control
panel.
• Do not put a hot pan cover on the glass
surface of the hob.
• Do not let cookware boil dry.
• Be careful not to let objects or cookware
fall on the appliance. The surface can be
damaged.
ENGLISH 7

• Do not activate the cooking zones with
empty cookware or without cookware.
• Do not put aluminium foil on the
appliance.
• Cookware made of cast iron, aluminium
or with a damaged bottom can cause
scratches on the glass / glass ceramic.
Always lift these objects up when you
have to move them on the cooking
surface.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
Care and cleaning
• Clean the appliance regularly to prevent
the deterioration of the surface material.
• Switch off the appliance and let it cool
down before cleaning.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do not
use abrasive products, abrasive cleaning
pads, solvents or metal objects.
Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
Disposal
Warning! Risk of injury or
suffocation.
• Contact your municipal authority for
information on how to discard the
appliance correctly.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
Installation
General information
min.
28 mm
min.
500 mm
min.
28 mm
min. 50 mm
max.
R 5 mm
490±1
mm
750±1
mm
520 mm
780 mm
55 mm
min.
5 mm
ENGLISH 8

Installation process must follow
the laws, ordinances, directives
and standards (electrical safety
rules and regulations, proper
recycling in accordance with the
regulations, etc.) in force in the
country of use!
• For further information on the installation
refer to the Assembly Instruction.
• If there is no oven beneath the hob,
install a separation panel under the
appliance according to the Assembly
Instruction.
• Do not use silicon sealant between the
appliance and the worktop.
Electrical connection
Warning! Refer to Safety
chapters.
Warning! All electrical
connections must be made by an
authorised installer.
Electrical connection
• Before connecting, check if the nominal
voltage of the appliance, provided on the
rating plate, corresponds to the available
supply voltage. The rating plate is located
on the lower casing of the hob.
• Follow the connection diagram (it is
located on the underneath surface of the
casing of the hob).
• Use only original spare parts provided by
spare parts service.
• The appliance is not provided with a
mains cable. Buy the right one from a
specialized dealer. Single phase or two-
phase connection requires a mains cable
of minimum 70°C temperature stability.
Cable needs mandatory end sleeves.
According to IEC regulations use for one-
phase connection: mains cable 3 x 4mm²
and for two-phase connection: mains
cable 4 x 2.5mm². Please respect specific
national regulations in the first priority.
• You must have the means for
disconnection incorporated in the fixed
wiring.
• You must have the connection and the
connecting links carried out as shown in
the connection diagram.
• The earth lead is connected to terminal
and must be longer than leads carrying
electric current.
• Secure the connecting cable with cable
clips or clamps.
ENGLISH 9

Connection diagram
220V-240V
N N
220V-240V
220V-240V
PE
L L
220V-240V 1N
220V-240V
N PE
L
400V 2N
220V-240V
220V-240V
N
L1 L2 PE
Insert the shunts between the
screws as shown.
Main power connection 1-
phase
Main power connection 2-
phase Main power connection 2-
phase
L N
L1 L2 L3 N
L L N N
Wiring colours: Wiring colours: Wiring colours:
Yellow / green Yellow / green Yellow / green
N Blue N Blue N Blue
L Black or brown L1 Black N Blue
L2 Brown L Black
L Brown
Tighten the terminal screws
securely!
Once you connect the hob to the mains,
check if all the cooking zones are ready to
use. Place a pot with some water on a
cooking zone and set the power setting for
each zone to the maximum level for a short
time.
If or symbol comes on
the display after you switch on
the hob for the first time, refer to
"Troubleshooting".
ENGLISH 10
