Safety information
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
if an incorrect installation and use causes injuries and
damage. Always keep the instructions with the appliance for
future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved. Children of less than 8 years of age and
persons with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
•Children should be supervised to ensure that they do not
play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
ENGLISH 4

•WARNING: Keep children and pets away from the appliance
when it operates or when it cools down. Accessible parts
become hot during use.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
General Safety
•Only a qualied person must install this appliance and
replace the cable.
•WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements.
•Always use oven gloves to remove or put in accessories or
ovenware.
•Before any maintenance, cut the power supply.
•WARNING: Ensure that the appliance is switched o before
replacing the lamp to avoid the possibility of electric shock.
•Do not use the appliance before installing it in the built-in
structure.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door since they can scratch the surface,
which may result in shattering of the glass.
•If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualied persons to avoid an electrical hazard.
Safety instructions
Installation
Warning! Only a qualied person
must install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
ENGLISH 5

• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use safety
gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• Install the appliance in a safe and suitable
place that meets installation
requirements.
• Keep the minimum distance from other
appliances and units.
• Before mounting the appliance, check if
the oven door opens without restraint.
Cabinet minimum
height (Cabinet under
the worktop mini‐
mum height)
580 (600) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of
the appliance
589 mm
Height of the back of
the appliance
570 mm
Width of the front of
the appliance
594 mm
Width of the back of
the appliance
558 mm
Depth of the appli‐
ance
561 mm
Built in depth of the
appliance
540 mm
Depth with open door 1007 mm
Ventilation opening
minimum size. Open‐
ing placed on the bot‐
tom rear side
560x20 mm
Mains supply cable
length. Cable is
placed in the right
corner of the back
side
1100 mm
Mounting screws 2x25 mm
Electrical connection
Warning! Risk of re and electric
shock.
• All electrical connections should be made
by a qualied electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Do not let mains cables touch or come
near the appliance door or the niche
below the appliance, especially when it
operates or the door is hot.
• The shock protection of live and insulated
parts must be fastened in such a way that
it cannot be removed without tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
ENGLISH 6

Use
Warning! Risk of injury, burns
and electric shock or explosion.
• This appliance is for household (indoors)
use only.
• Do not change the specication of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation.
Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can cause
a mixture of alcohol and air.
• Do not let sparks or open ames to come
in contact with the appliance when you
open the door.
• Do not put ammable products or items
that are wet with ammable products in,
near or on the appliance.
Warning! Risk of damage to the
appliance.
• To prevent damage or discoloration to the
enamel:
– do not put ovenware or other objects
in the appliance directly on the
bottom.
– do not put aluminium foil directly on
the bottom of cavity of the appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in
the appliance after you nish the
cooking.
– be careful when you remove or install
the accessories.
• Discoloration of the enamel or stainless
steel has no eect on the performance of
the appliance.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
• Always cook with the oven door closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make sure
the door is never closed when the
appliance operates. Heat and moisture
can build up behind a closed furniture
panel and cause subsequent damage to
the appliance, the housing unit or the
oor. Do not close the furniture panel
until the appliance has cooled down
completely after use.
Care and Cleaning
Warning! Risk of injury, re, or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains plug
from the mains socket.
• Make sure the appliance is cold. There is a
risk that the glass panels can break.
• Replace immediately the door glass
panels when they are damaged. Contact
the Authorised Service Centre.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Fat and food remaining in the appliance
can cause re.
• If you use an oven spray, obey the safety
instructions on the packaging.
• Do not remove the knobs from the
appliance.
Internal lighting
Warning! Risk of electric shock.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended to
withstand extreme physical conditions in
household appliances, such as
temperature, vibration, humidity, or are
intended to signal information about the
operational status of the appliance. They
ENGLISH 7

are not intended to be used in other
applications and are not suitable for
household room illumination.
• Use only lamps with the same
specications.
Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
Disposal
Warning! Risk of injury or
suocation.
• Disconnect the appliance from the mains
supply.
• Cut o the mains electrical cable close to
the appliance and dispose of it.
• Remove the door to prevent children and
pets to get closed in the appliance.
•Packaging material:
The packaging material is recyclable.
Plastic parts are marked with
international abbreviations such as PE,
PS, etc. Dispose of the packaging material
in the containers provided for this
purpose at your local waste management
facility.
Installation
Warning! Refer to Safety
chapters.
Assembly
Refer to the Assembly
Instructions for the installation.
Electrical installation
Warning! Only a qualied person
must do the electrical installation.
The manufacturer is not
responsible if you do not follow
the safety precautions from the
Safety chapters.
This oven is only supplied with a main cable.
ENGLISH 8

Product description
General overview
1
2 3 4
5
7
8
9
1
2
3
4
6
1Control panel
2Knob for the heating functions
3Control knob
4Temperature indicator
5Air vents for the cooling fan
6Grill
7Lamp
8Rating plate
9Shelf positions
Accessories
•Wire shelf x 1
For cookware, cake tins, roasts.
•Baking tray x 1
For cakes and biscuits.
Before rst use
Warning! Refer to Safety
chapters.
Initial Cleaning
Remove all accessories from the oven.
Refer to "Care and cleaning"
chapter.
Clean the oven and the accessories before
rst use.
Put the accessories back to their initial
position.
Preheating
1. Set the function and the maximum
temperature.
2. Let the oven operate for 1 hour.
3. Set the function and set the
maximum temperature.
4. Let the oven operate for 15 minutes.
5. Turn o the oven and let it cool down.
Accessories can become hotter than usual.
The oven can emit an odour and smoke.
Make sure that the airow in the room is
sucient.
Using the Mechanical child lock
The oven has the child lock installed. It is on
the right side of the oven, below the control
panel.
To open the oven door with the child lock:

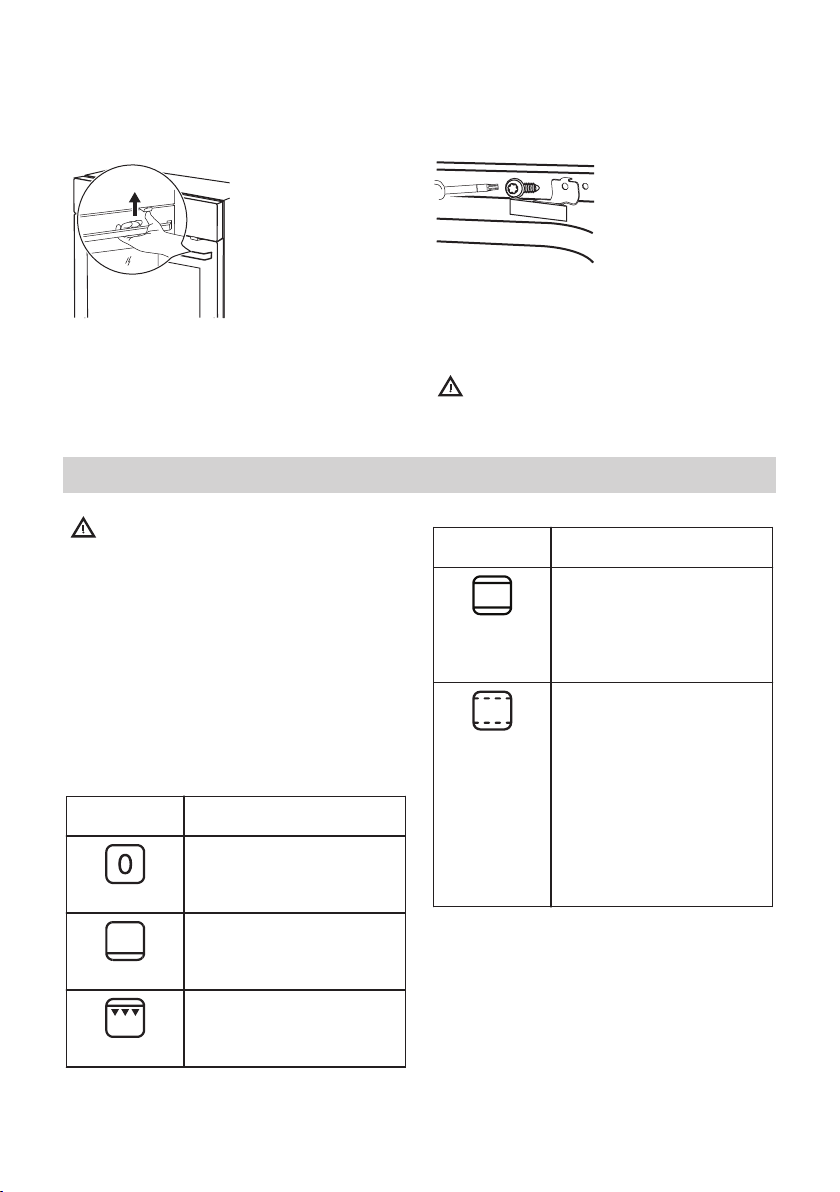

1. Pull and hold the child lock handle up as
shown in the picture.
ENGLISH 9

2. Open the door.
Close the oven door without pulling the child
lock.
To remove the child lock, open the oven door
and remove the child lock with the torx key.
The torx key is in the oven tting bag.
Screw back the screw into the hole after
removing the child lock.
Warning! Be careful not to
scratch the control panel.
Daily use
Warning! Refer to Safety
chapters.
Setting a heating function
1. Turn the knob for the heating functions
to select a heating function.
2. Turn the control knob to select the
temperature.
The lamp turns on when the oven operates.
3. To turn o the oven, turn the knobs to
the o position.
Heating functions
Heating func‐
tion
Application
O position
The oven is o.
Bottom Heat
To bake cakes with crispy
bottom and to preserve
food.
Fast Grilling
To grill thin pieces of food
in large quantities and to
toast bread.
Heating func‐
tion
Application
Conventional
(Top and Bot‐
tom Heat)
To bake and roast food on
one shelf position.
ECO Cooking
This function is designed to
save energy during cook‐
ing. When you use this
function, the temperature
in the cavity may dier
from the set temperature.
The heating power may be
reduced. For more informa‐
tion refer to "Daily Use"
chapter, Notes on: ECO
Cooking.
Notes on: ECO Cooking
This function was used to comply with the
energy eciency class and ecodesign
requirements. Tests according to BS EN
60350-1.
The oven door should be closed during
cooking so that the function is not
interrupted and the oven operates with the
highest energy eciency possible.
ENGLISH 10

When you use this function the lamp
automatically turns o.
Using the accessories
Warning! Refer to Safety
chapters.
Inserting the accessories
Wire shelf:
Push the shelf between the guide bars of the
shelf support .
Baking tray:
Push the baking tray between the guide bars
of the shelf support.
Additional functions
Cooling fan
When the oven operates, the cooling fan
turns on automatically to keep the surfaces
of the oven cool. If you turn o the oven, the
cooling fan stops.
Safety thermostat
Incorrect operation of the oven or defective
components can cause dangerous
overheating. To prevent this, the oven has a
safety thermostat which interrupts the
power supply. The oven turns on again
automatically when the temperature drops.
Hints and tips
Cooking recommendations
Whenever preheating, remove the wire
shelves and trays from the cavity to have the
fastest performance.
The oven has four shelf positions. Count the
shelf positions from the bottom of the cavity.
Moisture can condense in the oven or on the
door glass panels during cooking. Always
stand back from the oven when you open
the oven door.
When the oven cools down, clean the cavity
with a soft cloth.
Baking cakes
Do not open the oven door before 3/4 of the
set cooking time is up.
Cooking meat and sh
Leave the meat for approximately 15
minutes before carving so that the juice does
not seep out.
ENGLISH 11

To prevent too much smoke in the oven
during roasting, add some water into the
deep pan. To prevent the smoke
condensation, add water each time after it
dries up.
Cooking times
Cooking times depend on the type of food,
its consistency, and volume.
Initially, monitor the performance when you
cook. Find the best settings (heat setting,
cooking time, etc.) for your cookware,
recipes and quantities when you use this
appliance.
Cooking table
Quantity
(kg)
Food Function Shelf posi‐
tion
Temperature
(°C)
Time (min)
1 Pork / Lamb 2 180 110 - 130
1 Veal / Beef 2 190 70 - 100
1.2 Chicken / Rabbit 2 190 70 - 80
1.5 Duck 1 160 120 - 150
3 Goose 1 160 150 - 200
4 Turkey 1 180 210 - 240
1 Fish 2 190 30 - 40
1Stued pepperoni to‐
matoes / Roasted pota‐
toes
2 190 50 - 70
- Instant cakes 2 160 45 - 55
1 Pies 2 170 80 - 100
- Biscuits 3 140 25 - 35
2 Lasagne 2 180 45 - 60
1 White bread 2 190, preheat
for 10 minutes
50 - 60
1 Pizza 1 190, preheat
for 10 minutes
25 - 35
ENGLISH 12

ECO Cooking
For best results follow
suggestions listed in the table
below.
Food Accessories Temperature
(°C)
Shelf posi‐
tion
Time (min)
Sweet rolls, 12
pieces
baking tray or dripping
pan
180 2 35 - 40
Rolls, 9 pieces baking tray or dripping
pan
180 2 35 - 40
Pizza, frozen,
0.35 kg
wire shelf 220 2 35 - 40
Swiss roll baking tray or dripping
pan
170 2 30 - 40
Brownie baking tray or dripping
pan
180 2 30 - 40
Souè, 6 pieces ceramic ramekins on wire
shelf
200 3 30 - 40
Sponge an
base
an base tin on wire shelf 170 2 20 - 30
Victoria Sand‐
wich
baking dish on wire shelf 170 2 35 - 45
Poached sh, 0.3
kg
baking tray or dripping
pan
180 3 35 - 45
Whole sh, 0.2
kg
baking tray or dripping
pan
180 3 35 - 45
Fish llet, 0.3 kg pizza pan on wire shelf 180 3 35 - 45
Pouched meat,
0.25 kg
baking tray or dripping
pan
200 3 40 - 50
Shashlik, 0.5 kg baking tray or dripping
pan
200 3 25 - 35
Cookies, 16
pieces
baking tray or dripping
pan
180 2 20 - 30
Macaroons, 20
pieces
baking tray or dripping
pan
180 2 40 - 45
ENGLISH 13

Food Accessories Temperature
(°C)
Shelf posi‐
tion
Time (min)
Muns, 12
pieces
baking tray or dripping
pan
170 2 30 - 40
Savory pastry, 16
pieces
baking tray or dripping
pan
170 2 35 - 45
Short crust bis‐
cuits, 20 pieces
baking tray or dripping
pan
150 2 40 - 50
Tartlets, 8 pieces baking tray or dripping
pan
170 2 20 - 30
Poached vegeta‐
bles, 0.4 kg
baking tray or dripping
pan
180 3 35 - 40
Vegetarian ome‐
lette
pizza pan on wire shelf 200 3 30 - 45
Vegetables,
mediterrean 0.7
kg
baking tray or dripping
pan
180 4 35 - 40
ECO Cooking - recommended
accessories
Use the dark and non-reective tins and
containers. They have better heat absorption
than the light colour and reective dishes.
Accessories Size Picture
Pizza pan, dark, non-reec‐
tive
28 cm diameter
Baking dish, dark, non-re‐
ective
26 cm diameter
Ramekins, ceramic 8 cm diameter, 5 cm
height
ENGLISH 14

Accessories Size Picture
Flan base tin, dark, non-re‐
ective
28 cm diameter
Information for test institutes
Tests according to IEC 60350-1.
Food Function Accesso‐
ries
Shelf
posi‐
tion
Temper‐
ature
(°C)
Time (min) Comments
Small cake Convention‐
al (Top and
Bottom
Heat)
Baking
tray
3 170 20 - 30 Put 20 small cakes
per one baking
tray.
Apple pie Convention‐
al (Top and
Bottom
Heat)
Wire shelf 1 170 80 - 120 Use 2 tins (20 cm
diameter), diago‐
nally shifted.
Sponge
cake
Convention‐
al (Top and
Bottom
Heat)
Wire shelf 2 170 35 - 45 Use a cake mould
(26 cm diameter).
Short
bread
Convention‐
al (Top and
Bottom
Heat)
Baking
tray
3 150 20 - 35 Preheat the oven
for 10 minutes.
Toast
4 - 6
pieces
Grilling Wire shelf 3 max. 2 - 4 minutes
rst side; 2 - 3
minutes sec‐
ond side
Preheat the oven
for 3 minutes.
ENGLISH 15

Food Function Accesso‐
ries
Shelf
posi‐
tion
Temper‐
ature
(°C)
Time (min) Comments
Beef bur‐
ger
6 pieces,
0.6 kg
Grilling Wire shelf
and drip‐
ping pan
3 max. 20 - 30 Put the wire shelf
on the third level
and the dripping
pan on the second
level of the oven.
Turn the food
halfway through
the cooking time.
Preheat the oven
for 3 minutes.
Care and cleaning
Warning! Refer to Safety
chapters.
Notes on cleaning
Clean the front of the oven with a soft cloth
with warm water and a mild cleaning agent.
To clean metal surfaces, use a dedicated
cleaning agent.
Clean the oven interior after each use. Fat
accumulation or other food remains may
result in a re.
Clean all accessories after each use and let
them dry. Use a soft cloth with warm water
and a cleaning agent. Do not clean the
accessories in the dishwasher.
Clean stubborn dirt with a special oven
cleaner.
If you have nonstick accessories, do not
clean them using aggressive agents, sharp-
edged objects or a dishwasher. It can cause
damage to the nonstick coating.
Moisture can condense in the oven or on the
door glass panels. To decrease the
condensation, operate the oven for 10
minutes before cooking. Clean the moisture
from the cavity after each use.
Stainless steel or aluminium ovens
Clean the oven door with a damp cloth or
sponge only. Dry it with a soft cloth.
Do not use steel wool, acids or abrasive
materials as they can damage the oven
surface. Clean the oven control panel with
the same precautions.
Cleaning the door gasket
Regularly do a check of the door gasket. The
door gasket is around the frame of the oven
cavity. Do not use the oven if the door gasket
is damaged. Contact an Authorised Service
Centre.
To clean the door gasket, refer to the
general information about cleaning.
Cleaning the oven door
The oven door has two glass panels. You can
remove the oven door and the internal glass
panel to clean it.
The oven door can close if you try
to remove the internal glass panel
before you remove the oven door.
Caution! Do not use the
appliance without the internal
glass panel.
ENGLISH 16

1
Open the door fully
and hold the two
door hinges.
2
Lift and turn the
levers on the two
hinges with a
screwdriver.
3
Close the oven door
halfway to the rst
opening position.
Then pull forward
and remove the
door from its seat.
4
Put the door on a
soft cloth on a stable
surface.
5
90°
Release the locking
system to remove
the internal glass
panel. Turn the two
fasteners by 90°.
6
Remove the
fasteners from their
seats.
7
2
1
First lift carefully and
then remove the
glass panel.
Pull the door trim to the front to remove it
Clean the glass panel with water and soap.
Dry the glass panel carefully.
When the cleaning is completed, install the
glass panel and the oven door. Do the above
steps in the opposite sequence.
Make sure that you install the internal glass
panel in the seats correctly and in the correct
sequence. The inner glass panel has a
symbol printed in the corner on one side.
The symbol must face the outside of the
door and the external glass panel.
Replacing the lamp
Put a cloth on the bottom of the interior of
the oven. It prevents damage to the lamp
glass cover and the cavity.
ENGLISH 17

Warning! Danger of
electrocution! Disconnect the fuse
before you replace the lamp.
The lamp and the lamp glass
cover can be hot.
1. Turn o the oven.
2. Remove the fuses from the fuse box or
turn o the circuit breaker.
3. Turn the lamp glass cover
counterclockwise to remove it.
4. Clean the glass cover.
5. Replace the oven light bulb with a 25 W,
230 V (50 Hz), 300 °C heat resistant oven
light bulb (connection type: E14).
6. Install the glass cover.
Troubleshooting
Warning! Refer to Safety
chapters.
What to do if...
Problem Possible cause Remedy
The oven does not heat up. The oven is deactivated. Activate the oven.
The oven does not heat up. The fuse is blown. Make sure that the fuse is
the cause of the malfunction.
If the fuse is blown again and
again, contact a qualied
electrician.
The lamp does not operate. The lamp is defective. Replace the lamp.
Steam and condensation set‐
tle on the food and in the
cavity of the oven.
You left the dish in the oven
for too long.
Do not leave the dishes in
the oven for longer than 15 -
20 minutes after the cooking
process ends.
The lamp is turned o. The ECO Cooking function is
turned on.
Normal behaviour of the ECO
Cooking function. Refer to
"Daily Use" chapter, Heating
Functions.
Service data
If you cannot nd a solution to the problem
yourself, contact an Authorised Service
Centre.
The necessary data for the service centre is
on the rating plate. The rating plate is on the
front frame of the oven cavity. Do not
remove the rating plate from the oven cavity.
We recommend that you write the data here:
Model (MOD.) .........................................
Product number (PNC) .........................................
ENGLISH 18

We recommend that you write the data here:
Serial number (S.N.) .........................................
Technical data
Technical data
Dimensions (internal)
Width
Height
Depth
408 mm
329 mm
417 mm
Area of baking tray 1140 cm²
Top heating element 800 W
Bottom heating element 1000 W
Grill 1650 W
Total rating 2500 W
Voltage 220 - 240 V
Frequency 50 - 60 Hz
Number of functions 4
Energy eciency
Product Information Sheet according to UK Ecodesign and Energy Labelling
Regulations
Supplier's name IKEA
Model identication LAGAN 505.178.78
Energy Eciency Index 94.9
Energy eciency class A
Energy consumption with a standard load, convention‐
al mode
0.75 kWh/cycle
Number of cavities 1
Heat source Electricity
Volume 56 l
Type of oven Built-In Oven
ENGLISH 19

Mass 24.1 kg
BS EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens
and grills - Methods for measuring performance.
Energy saving
The oven contains features which
help you save energy during
everyday cooking.
General hints
Make sure that the oven door is closed
properly when the oven operates. Do not
open the door too often during cooking.
Keep the door gasket clean and make sure it
is well xed in its position.
Use metal dishes to improve energy saving.
When possible, do not preheat the oven
before you put the food inside.
When the cooking duration is longer than 30
minutes, reduce the oven temperature to
minimum 3 - 10 minutes before the end of
the cooking time, depending on the duration
of the cooking. The residual heat inside the
oven will continue to cook.
Use the residual heat to warm up other
dishes.
Keep breaks between baking as short as
possible when you prepare few dishes at one
time.
Keep food warm
Choose the lowest possible temperature
setting to use residual heat and keep a meal
warm.
ECO Cooking
Function designed to save energy during
cooking.
When you use this function the lamp
automatically turns o.
Environmental concerns
Recycle materials with the symbol . Put
the packaging in relevant containers to
recycle it. Help protect the environment and
human health by recycling waste of electrical
and electronic appliances. Do not dispose of
appliances marked with the symbol with
the household waste. Return the product to
your local recycling facility or contact your
municipal oce.
IKEA guarantee
Do you need extra help?
For any additional questions not related to
After Sales of your appliances, like
clarications on installation of the IKEA
appliance in the dedicated IKEA kitchen
furniture or for clarication on functions of
the IKEA appliances, please contact your
nearest IKEA Customer Support Centre, the
number is available on www.IKEA.com. We
recommend you read the appliance
documentation carefully before contacting
us.
Read about our guarantee terms on
www.ikea.com
For requests under this guarantee, do not
hesitate to contact the IKEA appointed
Authorized Service Centre. See the relative
ENGLISH 20
