IKEA SMAKSAK User manual

SMAKSAK GB
DE

ENGLISH
Please refer to the last page of this manual for the full list of IKEA
appointed After Sales Service Provider and relative national phone
numbers.
DEUTSCH
Auf der letzten Seite dieser Broschüre finden Sie eine vollständige
Liste der offiziellen IKEA After-Sales-Dienstleister mit den
jeweiligen nationalen Telefonnummern.

ENGLISH 4
DEUTSCH 32

Contents
Safety information 4
Safety instructions 6
Installation 8
Product description 9
Control panel 9
Before first use 10
Daily use 11
Clock functions 13
Using the accessories 15
Additional functions 16

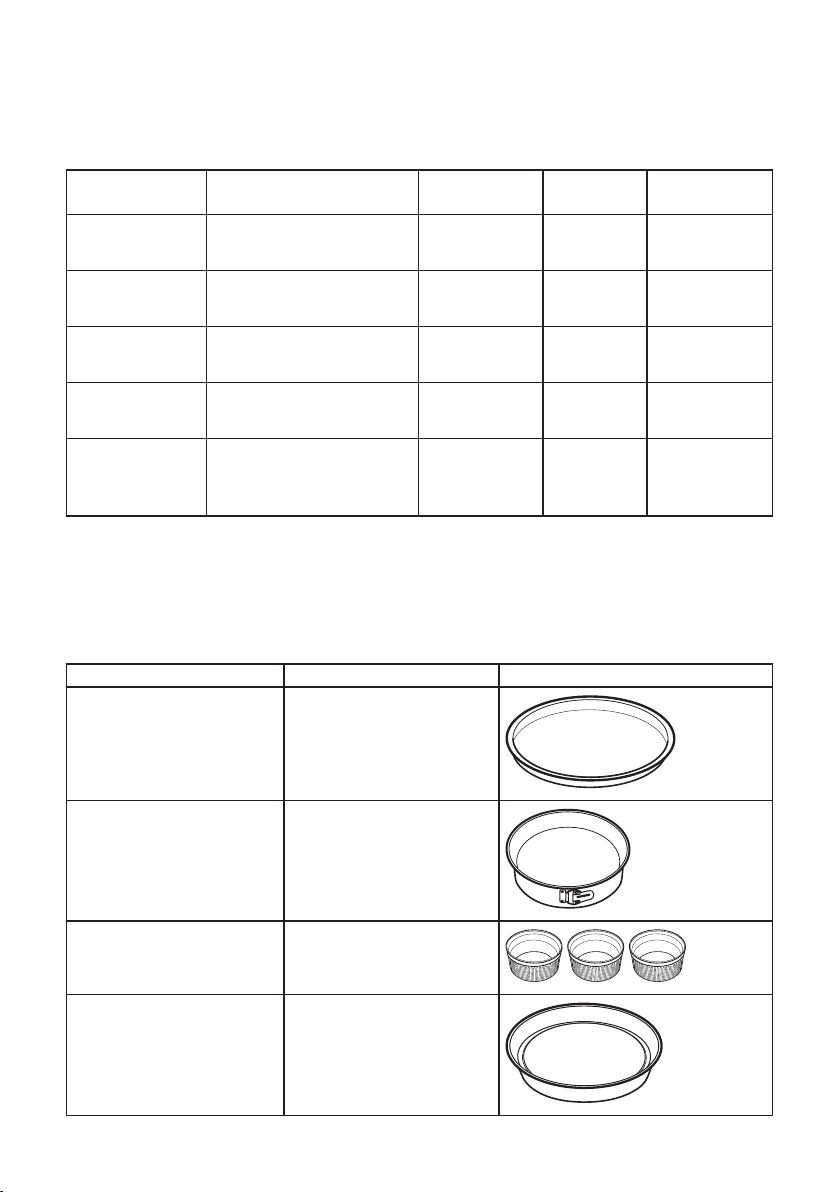

Hints and tips 17
Care and cleaning 21
Troubleshooting 24
Technical data 26
Energy efficiency 27
Environmental concerns 28
IKEA guarantee 28
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible if
an incorrect installation and use causes injuries and damages.
Always keep the instructions with the appliance for future
reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
•Children between 3 and 8 years of age and persons with
very extensive and complex disabilities shall be kept away
unless continuously supervised.
•Children of less than 3 years of age should be kept away
unless continuously supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
ENGLISH 4

•Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are hot.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user maintenance of
the appliance without supervision.
General Safety
•Only a qualified person must install this appliance and
replace the cable.
•WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements.
•Always use oven gloves to remove or put in accessories or
ovenware.
•Before maintenance cut the power supply.
•Ensure that the appliance is switched off before replacing the
lamp to avoid the possibility of electric shock.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door since they can scratch the surface,
which may result in shattering of the glass.
•If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
•To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls.
Install the shelf supports in the opposite sequence.
ENGLISH 5

Safety instructions
Installation
Warning! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• Keep the minimum distance from other
appliances and units.
• Install the appliance in a safe and
suitable place that meets installation
requirements.
Electrical connection
Warning! Risk of fire and electric
shock.
• All electrical connections should be made
by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Do not let mains cables touch or come
near the appliance door, especially
when the door is hot.
• The shock protection of live and
insulated parts must be fastened in such
a way that it cannot be removed without
tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
• This appliance complies with the E.E.C.
Directives.
Use
Warning! Risk of injury, burns
and electric shock or explosion.
• This appliance is for household use only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation.
Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work
surface or as a storage surface.
ENGLISH 6

• Open the appliance door carefully. The
use of ingredients with alcohol can cause
a mixture of alcohol and air.
• Do not let sparks or open flames to come
in contact with the appliance when you
open the door.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
Warning! Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other objects
in the appliance directly on the
bottom.
– do not put aluminium foil directly on
the bottom of cavity of the
appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in
the appliance after you finish the
cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel or stainless
steel has no effect on the performance of
the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
• Always cook with the oven door closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make sure
the door is never closed when the
appliance is in operation. Heat and
moisture can build up behind a closed
furniture panel and cause subsequent
damage to the appliance, the housing
unit or the floor. Do not close the
furniture panel until the appliance has
cooled down completely after use.
Care and Cleaning
Warning! Risk of injury, fire, or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains plug
from the mains socket.
• Make sure the appliance is cold. There is
a risk that the glass panels can break.
• Replace immediately the door glass
panels when they are damaged. Contact
the Authorised Service Centre.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Fat and food remaining in the appliance
can cause fire.
• If you use an oven spray, obey the safety
instructions on the packaging.
• Do not remove the knobs from the
appliance.
Internal lighting
Warning! Risk of electric shock.
• The type of light bulb or halogen lamp
used for this appliance is for household
appliances only. Do not use it for house
lighting.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
Disposal
Warning! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
ENGLISH 7

• Cut off the mains electrical cable close to
the appliance and dispose of it.
• Remove the door to prevent children and
pets to get closed in the appliance.
•Packaging material:
The packaging material is recyclable.
Plastic parts are marked with
international abbreviations such as PE,
PS, etc. Dispose of the packaging
material in the containers provided for
this purpose at your local waste
management facility.
Installation
Warning! Refer to Safety
chapters.
Assembly
Refer to the Assembly Instructions
for the installation.
Electrical installation
Warning! Only a qualified
person must do the electrical
installation.
The manufacturer is not
responsible if you do not follow
the safety precautions from the
Safety chapters.
This oven is only supplied with a main
cable.
Cable
Cable types applicable for installation or
replacement:
H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F,
H05 V2V2-F (T90), H05 BB-F
For the section of the cable refer to the total
power on the rating plate. You can also
refer to the table:
Total power (W) Section of the cable
(mm²)
maximum 1380 3 x 0.75
maximum 2300 3 x 1
maximum 3680 3 x 1.5
The earth cord (green / yellow cable) must
be 2 cm longer than phase and neutral
cables (blue and brown cables).
ENGLISH 8

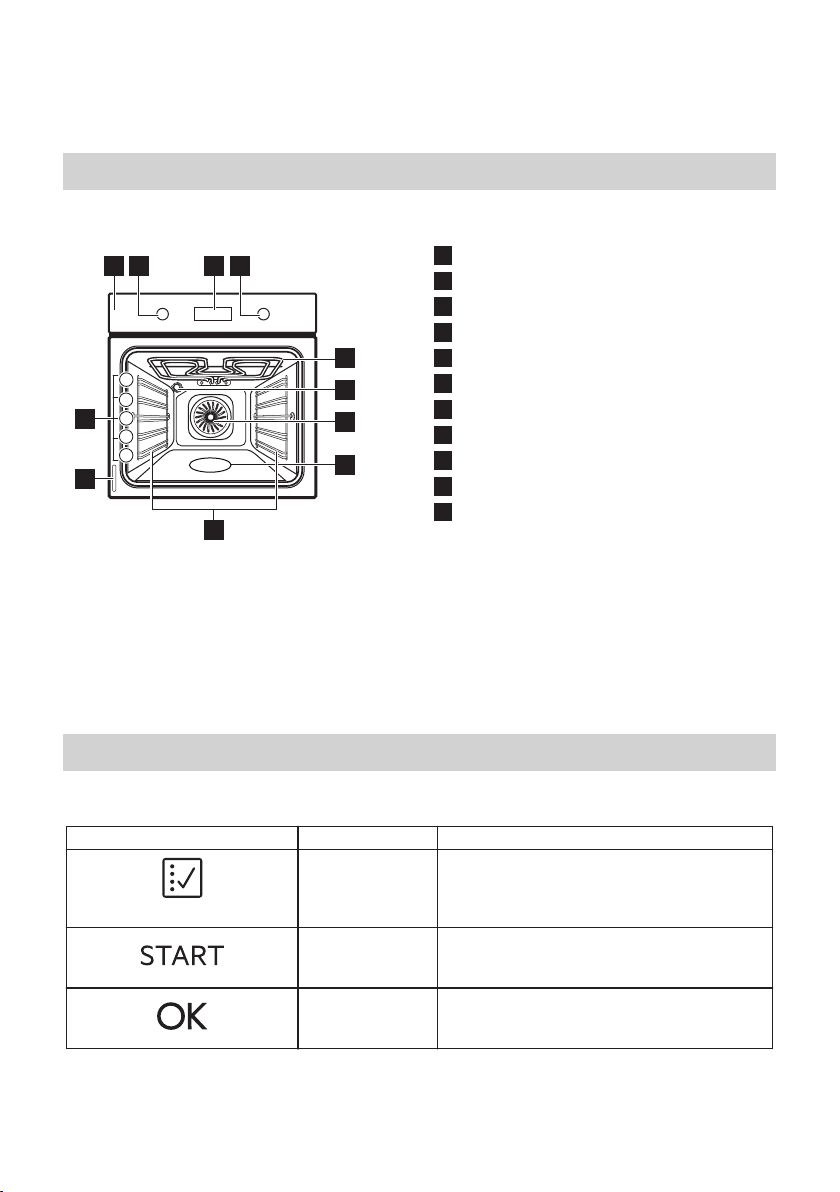

Product description
General overview
6
5
11
10
7
8
9
5
4
1
2
3
31 42
1Control panel
2Knob for the heating functions
3Display
4Control knob
5Heating element
6Lamp
7Fan
8Cavity embossment
9Shelf support, removable
10 Rating plate
11 Shelf positions
Accessories
•Wire shelf x 1
For cookware, cake tins, roasts.
•Baking tray x 1
For cakes and biscuits.
•Grill- / Roasting pan x 1
To bake and roast or as pan to collect
fat.
•Telescopic runners x 1 set
For shelves and trays.
Control panel
Buttons
Sensor field / Button Function Description
OPTIONS To set the clock functions. To check the
oven temperature. Use only while a heat-
ing function operates.
START To start a heating function.
OK To confirm.
ENGLISH 9

Display
A B
DG EF C
A. Timer / Temperature
B. Heat-up and residual heat indicator
C. Core temperature sensor (selected
models only)
D. Door lock (selected models only)
E. Hours / minutes
F. Demo mode (selected models only)
G. Clock functions

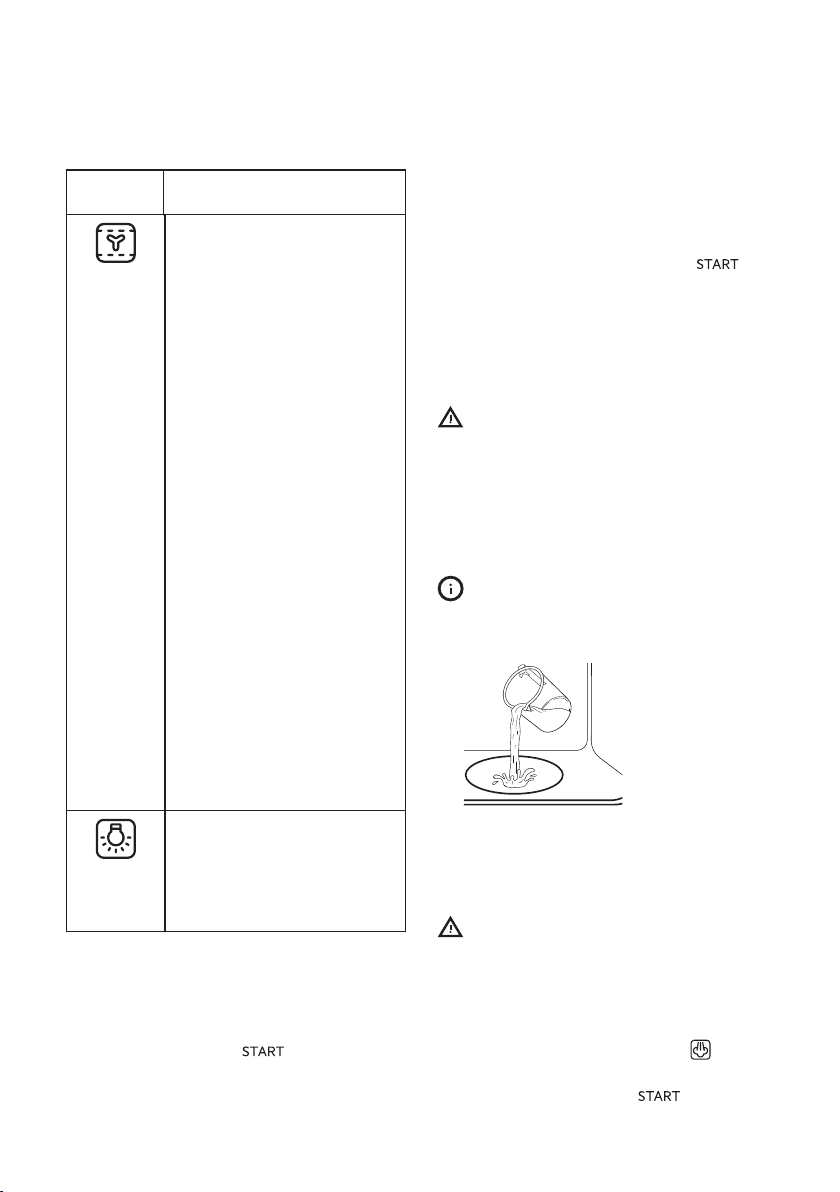

Before first use
Warning! Refer to Safety
chapters.
To set the Time of day refer to
"Clock functions" chapter.
Initial Cleaning
Remove all accessories and removable shelf
supports from the oven.
Refer to "Care and cleaning"
chapter.
Clean the oven and the accessories before
first use.
Put the accessories and the removable shelf
supports back to their initial position.
Preheating
Preheat the empty oven before first use.
For function: Direct Steam refer
to "Daily use" chapter, Setting
the function: Direct Steam".
1. Set the function and the maximum
temperature.
2. Let the oven operate for 1 hour.
3. Set the function and set the maximum
temperature.
4. Let the oven operate for 15 minutes.
5. Turn off the oven and let it cool down.
Accessories can become hotter than usual.
The oven can emit an odour and smoke.
Make sure that the airflow in the room is
sufficient.
Using the Mechanical child lock
The oven has the child lock installed. It is on
the right side of the oven, below the control
panel.
To open the oven door with the child lock:
1. Pull and hold the child lock handle up as
shown in the picture.
2. Open the door.
Close the oven door without pulling the
child lock.
To remove the child lock, open the oven
door and remove the child lock with the torx
key. The torx key is in the oven fitting bag.
ENGLISH 10
