SIIG AV-GM08K3-S1K User manual

Professional Quad-View Video Processor
with Keyboard & Mouse Control
P/N: AV-GM08K3-S1K

Safety and Notice
The AV-GM08K3-S1K Professional Quad-View Video Processor with Keyboard & Mouse
Control has been tested for conformity to safety regulations and requirements, and has been
certified for international use. However, like all electronic equipments, the AV-GM08K3-S1K
should be used with care. Please read and follow the safety instructions to protect yourself from
possible injury and to minimize the risk of damage to the unit.
Follow all instructions and warnings marked on this unit.
Do not attempt to service this unit yourself, except where explained in this manual.
Provide proper ventilation and air circulation and do not use near water.
Keep objects that might damage the device and assure that the placement of this unit is on
a stable surface.
Use only the power adapter and power cords and connection cables designed for this unit.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.

1
Chapter 1 Introduction
General
Features
Specifications
Package Contents
Inputs and Outputs
Control Panel and VFD Menu
IR Remote Control
Chapter 2 Hardware Installation
Safety Precautions
Installation Procedure
Chapter 3 Operation Software
System Requirement and Precautions
Instruction of Software Connection
Definitions of Menu Buttons and Icons
The firmware update process
Chapter 4 Troubleshooting
Warranty
Appendix Supported Resolution
Hotkey Definition
Table of Contents

2
General
The AV-GM08K3-S1K Professional Quad-View Video Processor with Keyboard & Mouse
Control is an advanced video processor for multimedia presentations. It is an ideal solution for
applications where up to four video signals must be displayed on a single display. It supports up
to 16 video inputs, of which four can be outputted simultaneously with the desired display layout
through software control. The advanced video processor allows you to manipulate output
images, wherever positions and whatever sizes you want for viewing two computers or two video
signals or a combination. In addition to typical 4 channel video processor, AV-GM08K3-S1K is also
equipped with PS2-IN-USB-OUT keyboard and mouse control board. With this feature, users can
switch K/M control among 2 to 4 PC sources.
The embedded scaler converts signals from input sources to match the native resolution of
monitors, flat panel displays, projectors as well as user-selectable output settings up to WUXGA
(1920x1200). Dual outputs are provided in both analog (VGA) and digital (DVI) format, one is
connected to remote display and the other is connected to on-site display for real time
monitoring.
Figure 1: Configuration Diagram
Introduction

3
Features
Support six most popular video formats: four VGA, four DVI/HDMI, four component, four
S-Video and four composite inputs!
Input resolution support from 640x480 to 1920x1200, interlaced or progressive.
DVI 1.0
Support HDCP 1.1
Dual outputs (DVI / VGA), 640x480 to 1920x1200.
4 port KVM control with PS/2 input and USB outputs
Video background available.
Adjustable size& position through software.
Dynamic transition for video sizing and positioning
Titles, borders and colored backgrounds.
Resize, position, zoom& pan and blend output video.
Image parameters and layouts are automatically saved in flash memory and can be recalled
for later use.
Several Image parameters and layouts can be saved in computers and can be loaded for
later use.
Video parameters adjustable (brightness, contrast, color temperature, etc.).
User-selectable output settings, up to 1920x1200.
Perfectly as a video screen splitter, a video converter and a video switcher.
Firmware upgradable for support of new features and technology enhancements.
Software control through RS-232/RS-485 over Cat-5.
Can be cascaded to obtain more images using RS-485 control path
Control protocol available for customer proprietary design
1U size.

4
Specifications
Model Name
AV-GM08K3-S1K
AV-GM08K3-S1PF
Technical
Role of usage
Multiplexer / video processor
Dual output support
Yes [DVI & VGA]
Background video input
Yes
HDCP compliance
Yes
Video bandwidth
DVI/HDMI[Single-link 4.95Gbps] VGA[165MHz] Component [30MHz]
Composite [13.5MHz] S-Video [13.5MHz]
Input Video support
480i / 480p / 720p / 1080i / 1080p60 / 1920x1200@75 / 1600x1200@60
Audio support
No
KVM support
Yes
NO
Control
RS-232 and RS-485
Embedded video mixer
Yes
Cascadable
Yes
Input TMDS signal
1.2 Volts [peak-to-peak]
ESD protection
Human body model —±19kV [air-gap discharge] & ±12kV [contact discharge]
PCB stack-up
6-layer board [impedance control —differential 100; single 50]
Input
4x VGA + 4x DVI + 4x component +
4x composite + 4x S-Video +
1x RS-232 + 1x RS-485 + 2xPS/2 + 4 x
USB
4x VGA + 4x DVI + 4x component +
4x composite + 4x S-Video +
1x RS-232 + 1x RS-485
Output
1x DVI + 1x VGA
DVI connector
DVI-I [femal,29-pin]
S-Video connector
9 pin
VGA connector
HD-15 [15-pin D-sub female]
RS-232 connector
DE-9 [9-pin D-sub female]
USB connector
Type A
PS/2 connector
Mini DIN-6
RCA connector
75female
RJ-45 connector
WE/SS 8P8C with 2 LED indicators
Mechanical
Housing
Metal enclosure
Dimensions
(L x W x H)
Model
300 x 440 x 44mm [11.8”x1’5.3”x1.7”]
Package
310 x 525 x 155mm [1’0.2”x1’8.7”x6.1”]
Carton
570 x 580 x 260mm [1’10.5”x1’10.9”x10.2”]
Weight
Model
3.8kg [8.4 lbs]
2.9kg [6.4 lbs]
Package
5.9kg [13.0 lbs]
5kg [11.1 lbs]
Fixedness
1U rack-mount with ears
Power supply
AC Power 100-240V
Power consumption
35 Watts [max]

5
Operation temperature
0~40C [32~104F]
Storage temperature
-20~60C [-4~140F]
Relative humidity
20~90% RH [no condensation]
Package Contents
1x AV-GM08K3-S1K or 1x AV-GM08K3-S1PF
1x Remote Control
4x DVI to DVI&VGA breakout cable
4x VGA to component breakout cable
4x DVI to VGA adapter
1x USB to RS-232 cable
2x 1U rack mounting-ear
1x Installation software CD
1x UL AC power cord & 1x User Manual
Package Contents
1. AV-GM08K3-S1K
2. DVI to DVI&VGA Breakout Cable
(DDVY01)
3.VGA to Component Breakout
Cable (VYPBA01)
4. DVI to VGA Adapter (DVA01)

6
5. S-Video & CVBS breakout cable
6. UL AC Power Cord
7. RS-232 to USB Adapter
8.IR Remote
Control
8. 1U Rack Mounting-Ear
9. Installation Software CD
10. User Manual

7
Inputs and Outputs
The AV-GM08K3-S1K has 16 inputs and accepts both graphics and video signals, which come
from computers (DVI or VGA), composite, and component video sources respectively. You can
pick up four of the ten inputs and then display four of them simultaneously on the same screen.
Figure 2 shows the rear panel connectors of a AV-GM08K3-S1K and Table 1 illustrates how you
can connect video devices and display to the AV-GM08K3-S1K.
Figure 2: Rear Panel
* Default: Turn on the AV-GM08K3-S1K then switch the circled DIP switche
simultaneously up and down to factory default mode.
* These IO ports support various resolution from 640x480 up to 1920x1200, for more
detail of the supported modes, please refer to the Appendix –Supported Resolution.
Table 1: Input/Output Connectors
Input Connector
Video Source
DVI-x
YPbPr-x/VGA-x
CVBS-x
S-Video-x
[x = 1~4]
[1] DVI
[2] VGA —with a DVI-to-VGA adapter (DVA01)
[3] Component (YPbPr) —with a DVI-to-VGA adapter (DVA01) and a
VGA-to-component breakout cable (VYPBA01)
[4] CVBS
[5] S-Video
Output Connector
Display
DVI-I OUT
[1] DVI display
[2] VGA display —with a DVI-to-VGA adapter (DVA01)
[3] 1x DVI display + 1x VGA display —with a DVI to DVI&VGA breakout cable
(DDVY01)

8
2
3
4
5
7
8
9
11
10
12
13
15
6
14
1
15
14
7
6
9
1
2
3
4
5
10
11
12
13
8
KVM Connector
Keyboard & Mouse Control
KVM I/O
[1] PS/2 compatible Keyboard and mouse
[2] USB outputs connected up to 4 PC

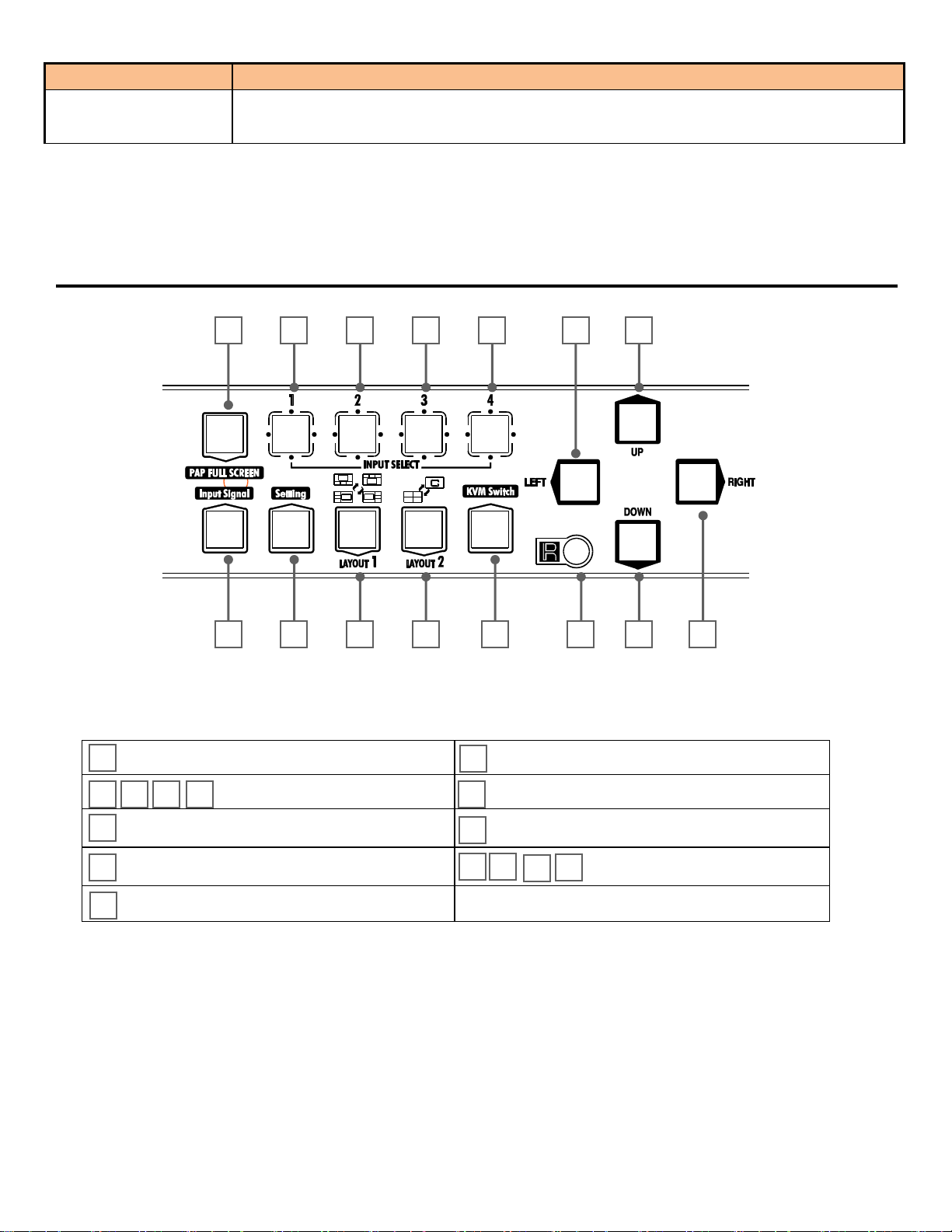

Control Panel and VFD Menu
PAP Full Screen
Function key: Layout 2
Input Select
Function key: N/A
Function key: Input Signal
Infrared Sensor
Function key: Setting
Navigation
Function key: Layout 1
Selecting PIP Window Arrangement
[Main Window with 3 triple sub-windows aside]
You can choose one of the following window arrangement from 4 presets

9
To cancel the operation, press [ LAYOUT 1] again
To cancel the operation, press [ LAYOUT
2] again
[Quad Windows in crisscross + 3 user-defined custom]
1.
2.
1.
2.
select a type by pressing according button
while VFD
B_top: press UP
B_btm: press DOWN
B_left: press LEFT
B_right: press RIGHT
select a type by pressing according button
while VFD
display prompts
B_top : press UP
B_btm : press DOWN
B_left : press LEFT
B_right : press RIGHT

10
IR Remote Control
AV-GM08K3-S1K ships with a compact remote control that allows for direct access to most commands used to
control the video processor.
IR Remote Button Define
1. Power Button
Power ON/OFF the device
2. Cross-Layout
Set PAP layout to default layout (cross
type )
3. Side-Bar Layout
Set PAP layout to default layout
(Side-Bar type )
4. Input CH2
Set channel 2 to be focus channel
5. Right Button
Menu button
6. Input CH4
Set channel 4 to be focus channel
7. Up Button
Menu button
Figure 3: VFD Menu

11
8. PAP Full Screen
Move to the left titles
9. Down Button
Menu button
10. Input CH1
Set channel 1 to be focus channel
11. Left Button
Menu button
12. Input CH3
Set channel 3 to be focus channel
13. Custom Layout4
Set PAP layout to custom position and
size
14. Custom Layout8
Set PAP layout to custom position and
size
15. Custom Layout3
Set PAP layout to custom position and
size
16. Custom Layout7
Set PAP layout to custom position and
size
17. Custom Layout2
Set PAP layout to custom position and
size
18. Custom Layout6
Set PAP layout to custom position and
size
19. Custom Layout1
Set PAP layout to custom position and
size
20. Custom Layout5
Set PAP layout to custom position and
size
21. CH4 Source
Change channel 4 input source
22. CH3 Source
Change channel 3 input source
23. CH2 Source
Change channel 2 input source
24. CH1 Source
Change channel 1 input source
25. D Button
Switch KVM to port4
26. C Button
Switch KVM to port3
27. B Button
Switch KVM to port2
28. A Button
Switch KVM to port1
OPERATION SOFTWARE
System Requirement and Precautions

12
1. The AV-GM08K3-S1PF provides a software control program, Quartet, which runs under Microsoft
Windows 98, 2000, XP, Vista through the interface of RS-232 serial control.
2. Before you click on the icon of the software, make sure you have secured the connection between
your computer COM port and the AV-GM08K3-S1PF and switched on the AV-GM08K3-S1PF with green
LED light.
Instruction of Software Connection
1. Power up the AV-GM08K3-S1PF and you can see VFD on the front panel blink. Make sure the serial
port mode is right for your setting. RS-232 mode: , RS-485 mode: or .
2. The first step after running the software is to automatically link (By last COM port setting) if the device
responses correctly through RS-232, it will start application normally, otherwise the dialog will show
up. You can click the “scan” button to get detail information. The information will help you choose the
correct COM port and Device ID. After set the correct COM port and ID, you can select “Linkage” and
click “Execute” button. When the AV-GM08K3-S1PF is correctly connected, you can close the Linkage
dialog. If the serial connection is well established, you can see work main control console as below.
.

13

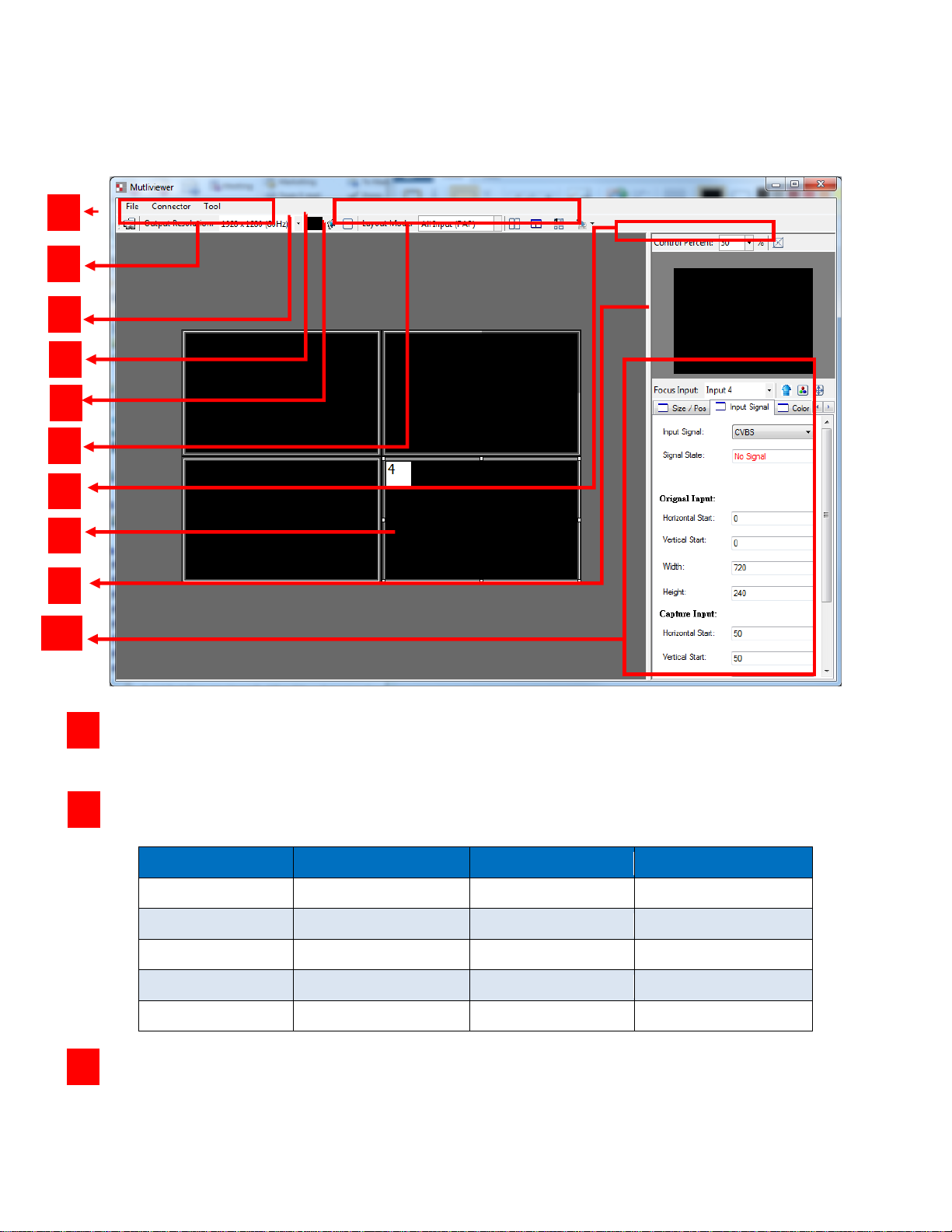

Definitions of Menu Buttons and Icons
The software has following menu options available:
Fast Linkage
This button will update software GUI for device state
Output Resolution
Supported Mode
Resolution
Supported Mode
Resolution
HDTV 720p
1280x720 @ 60Hz
VESA
1280x768 @ 60Hz
HDTV 1080p
1920x1080 @ 60Hz
VESA
1366x768 @ 60Hz
VESA
800x600 @ 60Hz
VESA
1400x1050 @ 60Hz
VESA
1024x768 @ 60Hz
VESA
1600x1200 @ 60Hz
VESA
1280x1024 @ 60Hz
VESA
1920x1200 @ 60Hz
Background Color
Clicking on this button will show the color dialog for background color adjustment.
2
3
4
5
7
8
1
6
1
2
3
9
10

14
Background Setting
MPV-104 offers the video background to make this advanced unit actually working like 5 channel
video mixer! The default background video must work as full screen! Users can choose between
color and video background through the following control window. Click on this button will show
the dialog for output resolution, background color and background channel setting.
We recommend not changing Serial Resolutions.
Only INPUT 4 can be used as “Background Channel”
Border Settings
Allows you to enable Border and enter Custom Text for Labels each Input Source.
4
5

15
Display / Layout Mode
Set signal channel full screen or all channel Notice that the input sources will not be changed in
Software.
Default Layouts
There are 5 pre-configured layouts available from Control Software, IR Remote Control or Front
Panel Buttons.
-Panel Cross
-Panel Right –Type
-Panel Left –Type
-Panel Top –Type
-Panel Bottom - Type
6

16
Panel Cross
Panel Right –Type

17
Panel Left –Type
Panel Top –Type
Panel Bottom –Type

18
Focus Input
Select which Input Source should stay in focus when “Layouts” are selected
Save and Set Custom Layouts
Save up to 8 Custom Layouts and Set them using Control Software, Front Panel or IR Remote Control.
Layout Control Size
Set layout control size in Software by percent.
If you enable Fixed Stretch, Aspect Ratios are kept with each Input layout is changed.
Layout Control
Create different Layouts by Drag and Drop. You can use “Fixed Aspect Ratio” as described above to
retain Aspect Ratio of source image.
Preview Window
Shows preview Window of Layouts
Input Channel Selection and Customization
7
8
10
9
