IKIS SL AIR STRIKE 2020 UV-C User manual

AIR STRIKE 2020 UV-C
1
AIR STRIKE W 2020 UV-C

With care for your health, please read carefully the instructions before use.
The non-compliance may seriously damage your health and damage the device.
It is important to keep the instructions, for future references at all times about the
technical characteristics and exploitation of the device.
In case of sale, transfer or relocation, make sure that the operation instructions is a part of
the package of the device.
2
------------------------------- CONTENTS ---------------------------------
I. WARNING SYMBOLS....................................................................................................3
II. GENERAL INSTRUCTIONS.............................................................................................4
III. UNPACKING AND CONTAINS.......................................................................................5
IV. PRINCIPLE OF THE UV-C DISINFECTION.......................................................................6
V. TECHNICAL PARAMETERS............................................................................................7
VI. OPERATION INSTRUCTIONS ………………………………………………......................................9
VII. INSTRUCTIONS FOR SAFETY AND MAINTENANCE.....................................................14
VIII. WARRANTY CONDITIONS..........................................................................................16
INSTRUCTIONS FOR INSTALLATION, EXPLOITATION, CONTROL,
MAINTENANCE, SAFETY AND WARRANTY CONDITIONS FOR UV-C
DISINFECTION DEVICES AIR STRIKE 2020

3
I. WARNING SYMBOLS
ATTENTION! DANGER WARNING!
ATTENTION! UV-C RADIATION
ATTENTION! HIGH VOLTAGE
ATTENTION! TOXIC
DO NOT DISPOSE TOGETHER WITH HOUSEHOLD WASTE
DO NOT DISPOSE IN THE SEWERAGE
IMPORTANT! PAY ATTENTION!
PERSONAL PROTECTIVE AND PROTECTIVE EQUIPMENT
USE A PROTECTIVE GLOVES
USE A SAFETY GLASSES
USE A FACE MASK
USE A PROTECTIVE FACE SHIELD
USE A PROTECTIVE LAB COAT
USE A HAZARDOUS WASTE CONTAINER

4
II. GENERAL INSTRUCTIONS
1. Read carefully and follow all exploitation and safety instructions.
2. The device is intended for indoor use only.
3. The device must not be exposed to moisture, condensation, water vapor or
vibration.
4. The device must only be used and stored in dry rooms with a temperature
range of 10 °to 40 °.
5. The device contains UV-C emitter sources.
6. Always use personal protective equipment (PPE) when servicing the
appliance in operation.
7. Before using the disinfection device, make sure that there are no transport
defects on it - damaged packaging, broken light sources, hit metal housing,
torn or broken cable. In the event of such circumstances, contact the
supplier immediately. Do not take any action to resolve the issue. Do not
use the appliance before troubleshooting.
8. Don’t cover the device and place any objects on it in the operating mode.
9. Don’t change the design and construction of the device.
10. Don’t use the device for any purposes, which differ of those intended in this
instruction.
11. Don’t remove signposts or warning signs or stickers from the device.
12. UV-C light source should be cleaned carefully only with a cotton cloth and
alcohol.
13. The repair of the device or replacement of the electrical consummative
must be executed only from the supplier company or authorized service
center by it.

5
III. UNPACKING
The set includes:
•UV-C disinfection device AIR STRIKE 2020 or
AIR STRIKE W 2020 (with additional decorative opening for
indication for operational mode of the lighting sources)
•UV-C T8 36W PHILIPS 2 pcs.
•User manual
Optional: power cable 3m length with plug for shuko socket
Optional: remote control
•Remove the disinfection device from the box.
•Before disposing of the packaging in the defined areas, carefully check that
all parts and accessories are available.
•Before using the disinfection device, make sure that there are no transport
defects on it - damaged packaging, broken light sources, impacted metal
housing, torn or broken cable. In the event of such circumstances, contact
the supplier immediately. Do not take any action to fix the issue. Do not use
the device before troubleshooting.

6
IV. PRINCIPLE OF THE UV-C DISINFECTION WITH INDIRECT RADIATION
AIR STRIKE 2020 is an air disinfection device. The germicidal UV-C lamps integrated in it emit a light
with wavelength of 254 nanometers (nm) and effectively destroy microorganisms, including viruses,
bacteria and spores that are carried in the air.
Due to the four fans, the air is forced into the disinfection chamber. The two light sources of UV-C
light are installed in it, which perform the disinfection. The camera has built-in protection. Two
metal shields prevent UV-C radiation outside the device.
The model AIR STRIKE 2020 UV-C is equipped with PHILIPS TUV 2x36W T8 UV-C 254nm OZONE FREE.
It is intended for use in hospital rooms, surgery rooms, clinics, laboratories, pharmaceutical and food
industry, offices, retail outlets, schools, kindergartens and etc.

7
V. TECHNICAL PARAMETERS
• HOUSING: POWDER COATED STEEL
• OPTIONALLY: REMOTE CONTROL
• OPTIONALY: CABLE 3M LENGTH WITH PLUG FOR SCHUKO SOCKET
• MODEL AIR STRIKE W 2020 UV-C: with additional decorative opening for indication for operational mode of
the lighting sources
• Certified by the standards :
EN 55015:2013+A1:2015
EN 60598-1:15+AC:15+AC:16+А1:18
Model
: AIR STRIKE 2020
Power
supply voltage 220-240V
Frequency
50/60Hz
Weight
14 kg
Nominal
power 72W
Protection
class IP20
Maximal disinfected
volume per hour 120м³/h
Noise level
53 dB
Operating ambient temperature:
от 10°до 40°
Dimensions:
Length
:148.1 cm
Width
:21.2 cm
High
:11.2 cm
Data for lighting
sources
:
Модел:
T8 36W UV-C
Quantity
: 2
Power
consumption: 82W
Wavelength
: 254 nm
Average effective life
:6300 hours

8

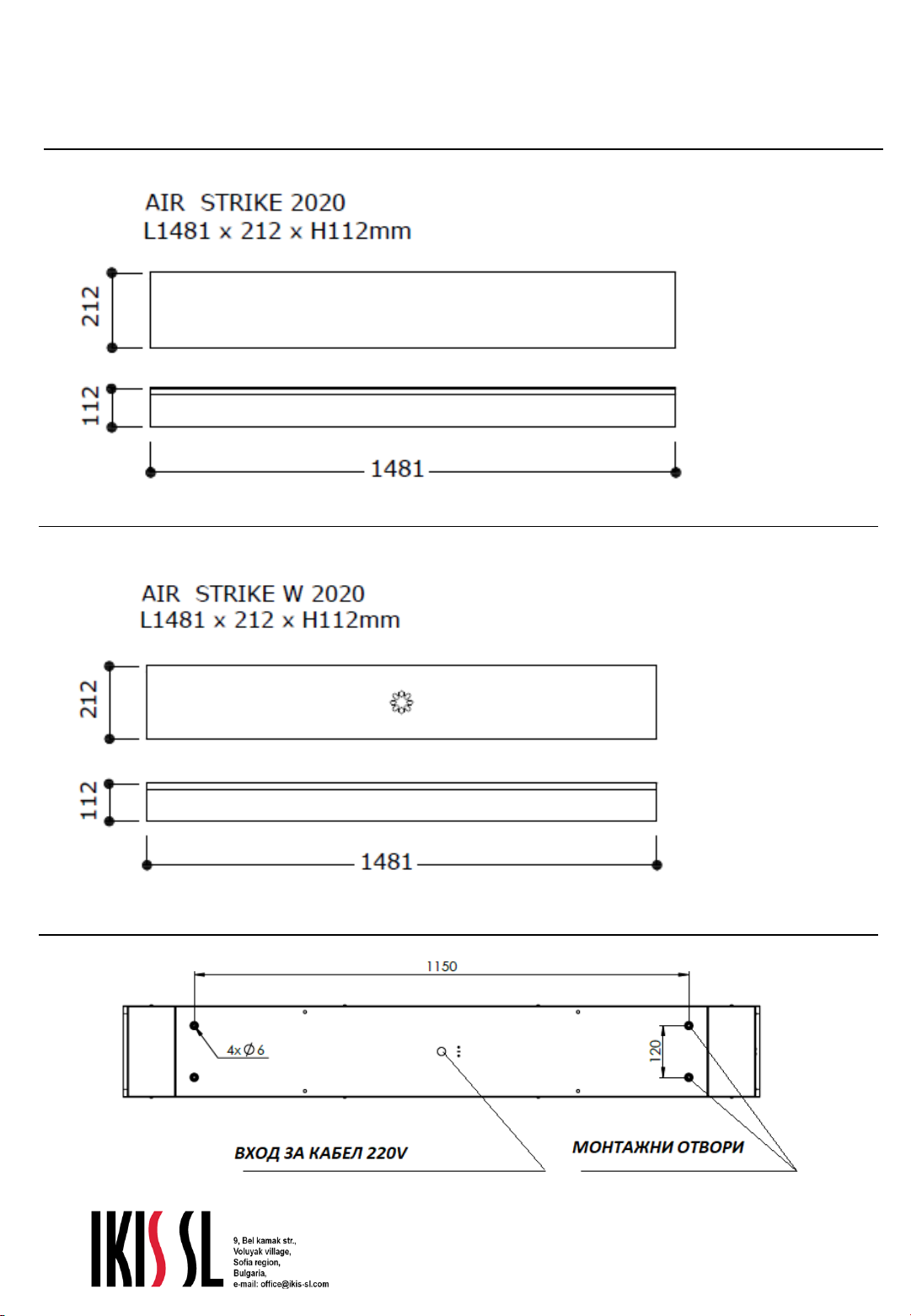

DIMENSIONS IN MM

For effective disinfection of the air AIR STRIKE 2020 COULD NOT be
installed in the rooms with cubic volume no greater of 160м³.
DO NOT install near the floor or corners of the room. There is no need to control
the access of people and animals to the room while the device is operating. The
protective shields of AIR STRIKE 2020 limit the penetration of ultraviolet
radiation into the room, protecting the occupants of the room from direct
exposure to UV-C radiation.
When mounting on a wall, DO NOT install the device at a distance of less
than 30 cm from the ceiling and less than 50 cm from the perpendicular wall.
To ensure safe and proper use, make sure that the area:
• There is a properly grounded, electrical socket 220V on the wall or ceiling
through a switch.
• There is a vertical, secure wall for standard wall mounting.
THE INSTALLATION OF THE DEVICE AND THE
REPLACEMENT OF UV-C LIGHT SOURCES SHOULD BE PERFORMED ONLY BY
QUALIFIED PERSONNEL! THE INSTALLATION MUST BE DONE BY TWO PERSONS!
9
VI. INSTALLATION INSTRUCTIONS
NECESSARY TOOLS AND ACCESSORIES FOR QUALITY INSTALLATION
- Pencil
- Tape measure
- Level (instrument)
- Drill
- Cross bladed (PZ) screwdriver
- Wrench size 7
- soft and clean lint-free cloth
- denatured alcohol
- use M6 fasteners (dowels), which must comply with the construction of the wall
or ceiling on which the device is mounted

10
STEP 2
After unscrewing the screws, lift and pull
the cover to open the device.
STEP 1
Remove the device from the box and
place it on a stable base. Unscrew the
screws on both sides of the front cover (8
pcs) with a star screwdriver.
STEP 3
Unscrew 3-4 turns, but not completely,
the two screws on each of the side metal
shields, then pull them up to release them
from the assembly.
Remove both metal shields located at both
ends of the appliance.
STEP 4
CAREFULLY disassemble the two UV-C tubes,
turning them clockwise and removing them
from the sockets. Place them in a place
where there is no danger risk for break of the
light sources.

11
STEP 6
Lift the base with the sockets and the
driver for the UV-C light sources and
remove it from the base for mounting
the device. Do not disconnect it
completely so as not to break the
electrical connection.
STEP 7
Using a second person to hold the metal
base with the sockets, place the back of the
at the mounting location of your choice and
mark with a pencil the four holes for the
wall or ceiling fasteners.
STEP 5
Use a wrench size 7, unscrew the four
nuts on the base with the sockets and
driver for the UV-C light sources so that
you can separate it from the base of the
device.
STEP 8

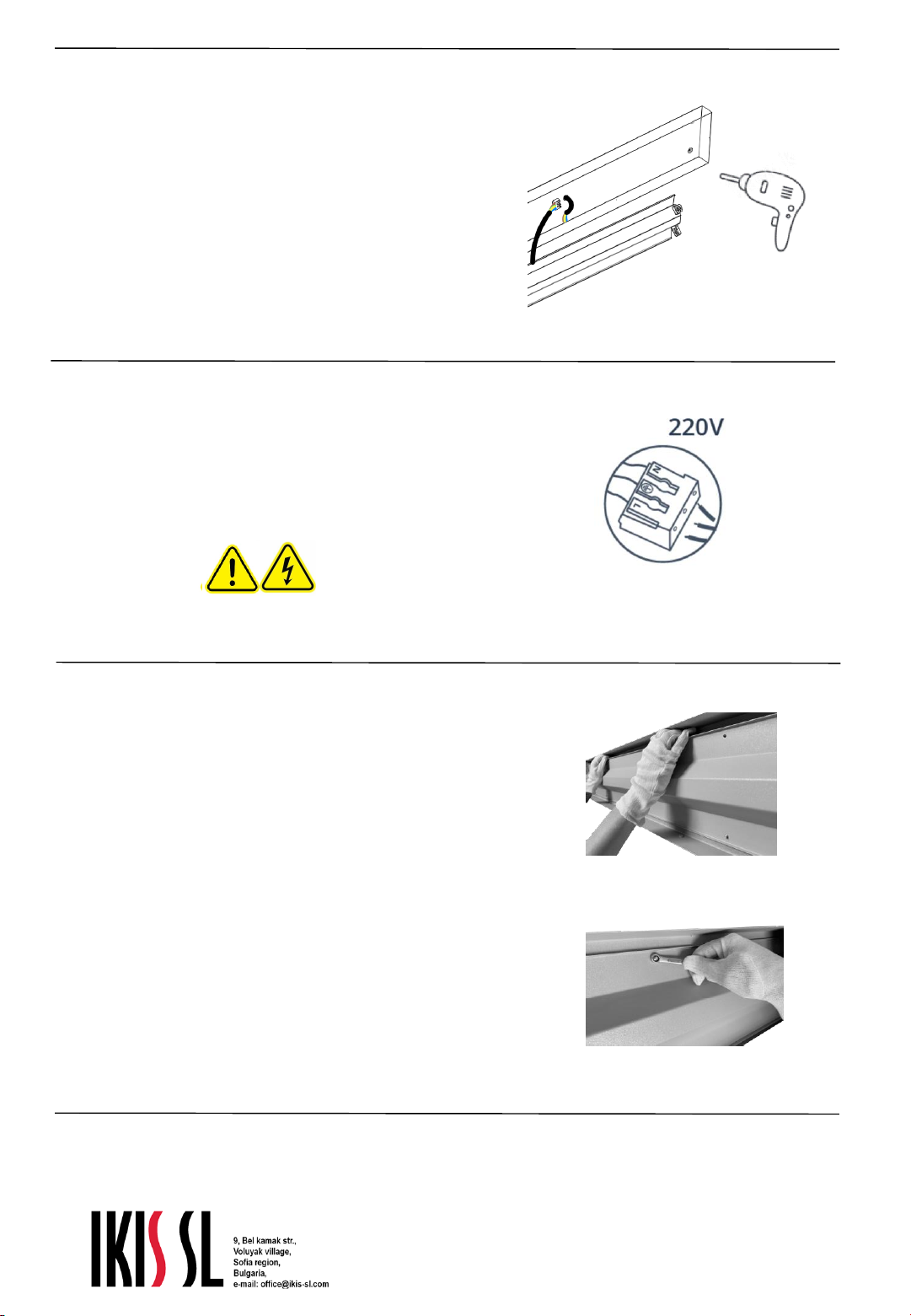

Insert the 220V power cable from the
plug cable or from the available wall or
ceiling outlet into the designated
opening positioned centrally on the
back of the device.

12
STEP 11
Proceed to assembling the base with the
sockets and the driver for the UV-C light
sources back to the already installed
base of the device. The four openings in
the cover must match the four studs on
the base. Screw back the four nuts and
tighten them with a wrench size 7.
STEP 10
Make an electrical connection of the
device. If you use an available power
outlet, make sure the power is off.
STEP 9
Fix the back of the device to the wall or
ceiling using suitable fasteners. A
second person must hold the metal
base with the sockets

13
STEP 14
Place the top cover of the disinfection
device and tighten the eight screws with a
cross bladed (PZ) screwdriver.
STEP 12
CAREFULLY install the UV-C lamps by
inserting the pins at both ends into
the sockets, then turn to lock the
tubes in the sockets. You should hear
a click.
STEP 13
Replace the metal shields at both ends of
the device and tighten the screws with a
cross bladed (PZ) screwdriver.
STEP 15
If the installation has a electrical outlet,
switch on the power supply from the fuse
and switch on the appliance via the
switch.
If you use a cable with a plug to power
the appliance, plug into a schuko socket.

14
VII. INSTRUCTIONS FOR SAFETY AND MAINTENANCE
The light sources of PHILIPS UV-C T8 36W, with which
AIR STRIKE 2020 is equipped, according to the
manufacturer, have an average effective life of 6300
hours. The lamps can last longer than their estimated
effective service life of up to 9,000 hours, but
reducing ultraviolet radiation will make their use
ineffective for disinfection. For maximum efficiency,
the lamps must be replaced every 6300 hours of
operation.
The appliance should not work more than 17 hours a
day per one year.
Contact the supplier:
[email protected]
If it is necessary to open the protective cover of the
device, while it is in the operating mode, you may
be exposed to UV-C radiation, ALWAYS use
appropriate personal protective equipment, namely
UV protective shield for the face, gloves and if
possible a protective suit. If you do not have a
protective suit, make sure you do not have areas of
exposed skin.
Always unplug the power supply before performing
any activities related to moving the device, cleaning
or replacing consumables.
A regular cleaning cycle of the disinfection device
must be established and carefully maintained. The
frequency of cleaning will vary depending on the
conditions of use. It is recommended to clean the
appliance at least once every three months.
Cleaning should be done with a cotton cloth and
alcohol.

15
ATTENTION!
UV-C light sources contain a small amount of
mercury - avoid breakage! If you break a lamp,
ventilate the room where the breakage
occurred.
If a UV-C light source breaks, take the
usual precautions to collect broken glass, but
MANDATORY with gloves, mask and glasses.
Clean with a mercury vacuum cleaner or other
suitable means that avoid the formation of dust and
mercury vapors, such as a towel or syringe, which
are also discarded after use, as well as personal
protective equipment. NEVER use an ordinary
vacuum cleaner.
Place the collected waste in a closed container.
NEVER dispose of with household
waste or sewage. This is hazardous waste and
contact the local branch of the Ministry of
Environment and Water for proper disposal.
If the remote control does not turn on the device,
replace the battery first! If, after replacement, the
remote control does not work again, contact the
supplier.

16
VIII. WARRANTY CONDITIONS
1. Warranty periods.
The warranty periods start from the date of issuance of the warranty card and are
valid for the period marked for each product in the WARRANTY field. The
warranty card is kept by the Buyer until the expiration of the warranty period.
Each complaint must be submitted with an original warranty card.
2. Complaints.
2.1. The customer lodges a complaint during the warranty period immediately
after noticing the damage.
2.2. The complaint is submitted in the office of the MANUFACTURER every
working day during working hours at the address: 9 Bel Kamak Str., Voluyak
village, Sofia region, Bulgaria, after prior notification by email:
[e-mail]
2.3. The defective product has to be deliver on the site or send it with a courier
company, together with the warranty card to the address 9 Bel Kamak Str.,
Voluyak village, Sofia region, Bulgaria.
2.4. The transportation of the defective product to the office of the SUPPLIER is
at the expense of the Client. Deliveries with courier companies of defective
products that have been released at our expense will not be accepted and will be
returned to the Customer at his expense.
2.5. The repair of a defective product is carried out within the legal period of up
to 30 days. Usually the repair takes 5-6 days.

17
3. Operation, transport, storage and installation conditions:
3.1. For transporting of the devices, follow the rules prescribed on the packaging
by the manufacturer.
3.2. After transportation, switch on the device only after at least 1 hour for an
acclimatization in the room.
3.3. The normal operating temperature of the devices is different and is noted in
the accompanying documentation.
3.4. The devices are connected to the electrical grid only by safe and grounded
Shucko socket.
3.5. The supply voltage must be 230V ±10% with a frequency of 50 Hz, in
accordance with the IEC 60038 standard.
3.6. It is not allowed to be placed objects on or around the devices, which would
impede their ventilation and cooling.
3.7. The devices must be unplugged from the electrical grid during the thunder
storm.
3.8. The devices must be protected from hits and shocks.
3.9. The devices, which are not moisture and waterproof should be installed in
rooms with a humidity of not more than 85% RH.
3.10. The device must no be is connected to a power strip with other large power
consumers, such as electric radiators, stoves, air conditioners, etc.

18
4. Warranty void. The customer loses his right to warranty in the following
cases:
4.1. In the absence, deletion or damage of an identification / serial number or
warranty, warning or information sticker.
4.2. In case of damage caused by improper transportation, relocation, storage and
installation.
4.3. In case of damage caused by thunderstorms, lightning, fire, flood and all
other natural disasters.
4.4. In case of malfunction or large fluctuations in the electrical network, including
instantaneous starting overvoltage / electric shock /.
4.5. In case of an attempt to eliminate a defect by an incompetent and
unauthorized person from the SUPPLIER.
4.6. If the power cable is cut or damaged.
5. The warranty period is 24-months and applies to the disinfection device
only. The sources of UV-C radiation (lamps) have a guarantee of 6300 working
hours or 12 months for maximum operating 17 hours per day.
6. Unrepairable defects.
6.1. In case of an unrepairable defect during the warranty period, the SUPPLIER
replaces the defective product with a new one within 30 days after the
establishment of the unrepairable defect.
6.2. Replacing a defective product with a new one is done with the same model. If
at the moment, the given model is no longer available for sale by the SUPPLIER, it
is replaced with its new analogous model, without the customer having to pay for
it.
For damages caused by non-fulfillment of items 3 and 4 of this warranty card or
circumstances independent of the SUPPLIER, the same is NOT responsible, the
warranty is void and the elimination of damages is only for a fee.
