IKUSI STC 200 User manual

User manual
STC
200
REF. 4466

4 General safety instructions
4 Types of notices
5 Basic safety instructions
6 Introduction
6 General description
7 General use of the headend
8 Basic installation and configuration
8 Assembly, connection of signals and power supply
9 Description of the user interface
10 IKUNET bus configuration
15 Configuration of general parameters
16 Module configuration
22 Service Management
25 Advanced functions
25 Save/Restore Function
25 Internet Access
26 Network functions
27 Advanced global transport processing
28 Reports
32 CE Certificate
32 STC-201
Contents

4
General safety instructions
JRead all of this user manual carefully before plugging in the unit.
JAlways have these instructions to hand during installation.
JFollow all of the instructions and safety notices regarding unit handling.
Types of notices
The meaning of the safety notices used in this manual are described below.
DANGER OF DEATH OR INJURY
This safety notice indicates a possible danger for the life and health of people.
Not following these instructions may lead to serious consequences to health and
may even cause fatal injuries.
RISK OF DAMAGE TO THE UNIT
This safety notice indicates a possible dangerous situation. Not following these
instructions may lead to the unit being damaged.
NOTE
This type of notice is a note containing applicable advice and useful information
for optimum use of the unit.
HANDLING THE INSIDE OF THE UNIT IS FORBIDDEN
This notice forbids any work that may affect the working order of the unit or its
warranty.
DO NOT DISPOSE OF AS URBAN WASTE
This type of notice indicates that the unit must not be disposed of as unselected
urban waste.
DANGER
ATTENTION

General safety instructions/Basic safety instructions
5
General safety instructions/Basic safety instructions
Basic safety instructions
DANGER OF DEATH OR INJURY
JDo not install the unit during an electrical storm. This could lead to electro-
static discharge from lightning.
JDo not open the unit. There is a risk of electrostatic discharge.
RISK OF DAMAGE TO THE UNIT
JThe unit must be appropriately ventilated. Install the unit in a dust-free
location. Do not place the unit in a location where the ventilation slots are
covered or blocked. Install the unit in a location with at least 20 cm around it
free of other objects.
JDo not expose the unit to rain or moisture. Install the equipment in a dry lo-
cation with no inltration or condensation of water. Should a liquid enter the
unit, disconnect it immediately from the mains.
JKeep the unit away from ammable objects, candles and anything that may
cause a re.
JConnect the unit to an easily accessible power socket. In the event of an
emergency, it will then be possible to quickly unplug the unit.
JDo not expose the unit to sources of heat (sun, heating, etc.).
DANGER
ATTENTION
EN

Introduction/General description
6
Introduction
JTo ensure the correct use and installation of the headend, it is necessary to read the
user and troubleshooting procedure manuals corresponding to the complete solution
and to each of the individual modules.
JIKUSI reserves the right to modify the contents of this manual without prior warning.
General description
The headend described in this manual is made up of the following modules:
JSTC-200 (Ref. 4466): DVB-S/S2 to DVB-T transmodulator (QPSK/8PSK to COFDM).
JCFP-507 (Ref. 4439): power supply +12 V/+24 V.
5
6
7
8
1
2
3
4
9
10
11
12
13
14
15
16
STC-200
KEY
A STC-200 module
B CFP-700 module
C CFP-507 module
1 Input 1 DVB-S/S2 channel
2 Input 2 DVB-S/S2 channel or loop output
3 LNB remote power supply
4 Slot for CAM
5 DB-9 port
6 DC power supply
7 RJ-45 ports for IKUNET bus
8 Coupling loop DVB-T output
9 Output +12 V (5 A)
10 Output +24 V (60 mA)
11 Output +18 V/22 kHz (300mA)
12 Output +13 V/22 kHz (300mA)
13 Output +18 V/0 kHz (300mA)
14 Output +13 V/0 kHz (300mA)
15 Output +12 V (7 A)
16 Output +24 V (60 mA)

7
Introduction/General use of the headend
7
JCFP-700 (Ref. 4401): power supply +12 V/+24 V for selection of polarisation.
JBAS-900 (Ref. 4411): base-support with capacity for 9 modules (dimensions:
563x257x24 mm).
JMS-0504 (Ref. 1023): stand-alone multiswitch (4 SAT inputs and 4 outputs).
NOTE
Please read the detailed information in the manuals for the modules included in
their respective packaging.
General use of the headend
This headend is designed for the emission of DVB-T (COFDM) signals from the input of free
or encrypted DVB-S/S2 signals (QPSK/8PSK to COFDM).
NOTE
The DVB-T (COFDM) output signal requires a trunk amplier for the correct distri-
bution in installations for a large number of sockets.
ENEN

Basic installation and configuration/Assembly, connection of signals and power supply
8
Basic installation and configuration
NOTE
A PC with an Ethernet network card and a CAT-5E Ethernet crossover cable are
required for communication with the headend.
NOTE
To display the graphics provided in the headend conguration program correctly,
we recommend installing the Mozilla Firefox web browser (www.mozilla.com) in
the control PC.
Assembly, connection of signals and power supply
1) Attach the modules to the base one by one following the instructions given in the
manuals for each module.
NOTE
IKUSI recommends the modules are assembled in the order shown in the above
gure:
JRight: CFP-700/CFP-507 power supplies.
JLeft: STC-200 transmodulators
JLast STC-200 on the right: Master STC-200 with the DVB-T output signal.
13
2
654
KEY
1 DVB-S/S2 signal input
2 DVB-T signal output
3 Bridging line in loop mode
4 Power supply bridges
5 IKUNET
6 CAM + SmartCard + protection with safety
screws

9
Basic installation and configuration/Description of the user interface
2) Connect the input and output signal connections in accordance with the instructions
for the module manuals and the diagram shown in the previous gure.
3) Distribute the headend power supply as symmetrically as possible (see example in
above gure).
Description of the user interface
The interface permits the user to communicate easily and comfortably with the headend.
The layout of the menus and submenus of the interface is shown in the following diagram:
The upper part of the interface displays messages about the communication status with the
headend. Each message is colour-coded:
FGreen: noties that the instruction has been carried out.
FRed: indicates that the instruction could not be performed and gives the reason.
KEY
1 Exit button
2 Information button
3 Print button
4 Main menu
5 Submenus
6 Tabs
7 Status message
8 Work area
EN

10
Basic installation and configuration/IKUNET bus configuration
IKUNET bus configuration
The IKUNET bus is an Ethernet communication bus between the headend modules. The
IKUNET bus is installed using Ethernet pigtails supplied with the modules. If n is the
number of station modules, n-1 Ethernet pigtails are required.
Definition of the master module
NOTE
JRemember the PC conguration prior to the connection with the IKUNET
bus.
JThe denition of the master module must be made with an STC-200 module.
NOTE
In mixed STC and MTC congurations, an STC module may never be an MTC
module master. In these cases, the master module must be an MTC module and
the STC modules are reserved for conguration as slave modules.
1) Start the conguration of the IKUNET bus for
the headend with the modules disconnected
from each other.
2) Connect the selected module ( A ) to the PC ( B
) via its Ethernet connection and using an RJ-45
cable ( C ).
3) In the PC (Windows XP) go to 



.
4) Select the 
 checkbox. Enter the following IP
conguration parameters:
F: 10.254.254.2
F: 255.255.255.0
F: 10.254.254.1
5) Click on the  button.

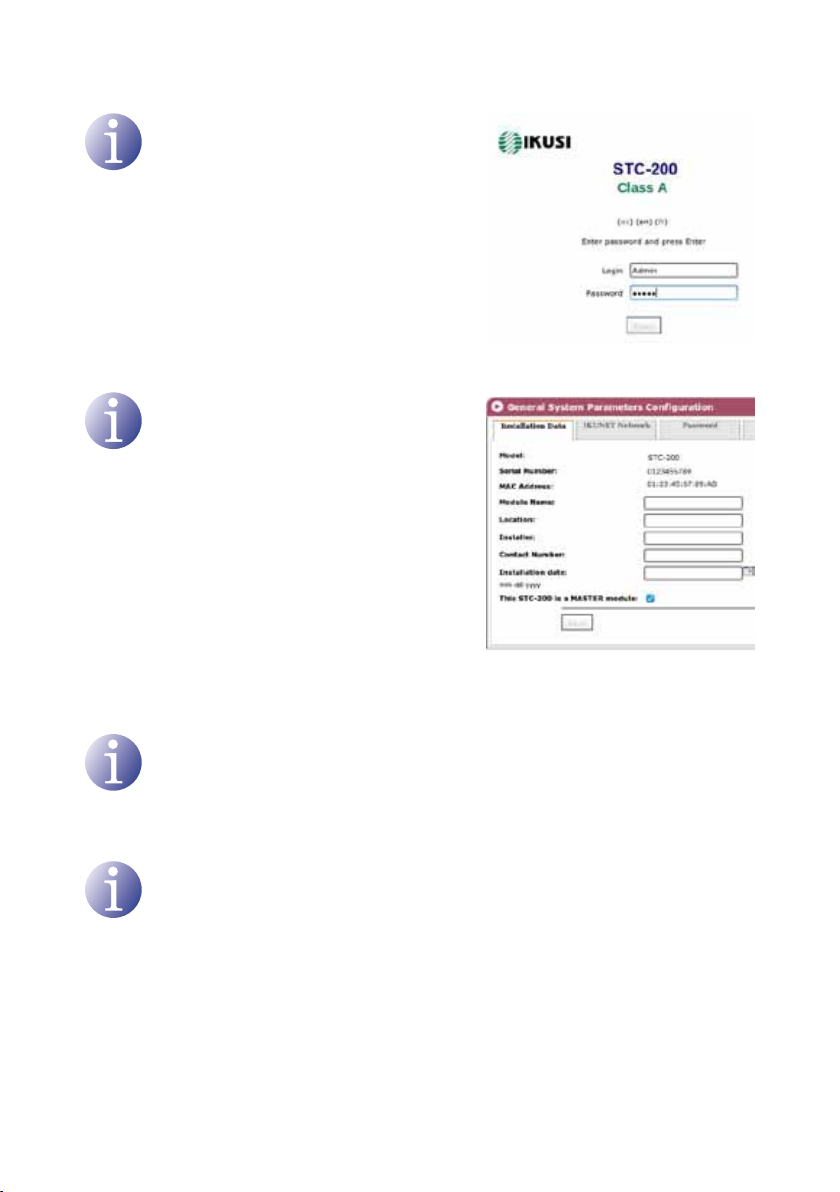

6) Enter the IP address http://10.254.254.254 in the web browser. This takes you to the
home page of the connected module.
7) In the home page of the selected module, “Admin” appears by default in the 
eld. Enter the word “admin” in the  eld and click on .
8) The main management window for the STC-200
module as slave module is displayed.
STC-200 STC-200

11
Basic installation and configuration/IKUNET bus configuration
NOTE
The module with which you have con-
nected the PC disconnects automatically
after 15 minutes without interaction.
9) In the main menu, click on 
. The 
 
window is displayed, with the 
 tab.
10) Enter the name of the module in the 
 eld.
NOTE
IKUSI recommends you give a description
to the module according to its position
in the headend in order to identify the
modules logically and physically. For ex-
ample, for a conguration identical to that
proposed in the assembly section, include
the following identications (on the base,
from right to left: and
).
11) To activate the module as master of the
headend, click on the 
 checkbox. The module
will be congured as master once the window
has been saved.
CAUTION
If the background of the eld is red, this means that the data has been modi-
ed but has not yet been saved. Before changing to another window or tab, any
modied data must be saved (click on ). Otherwise, the modied data will
be lost and the previous information state will be maintained in the headend.
NOTE
If the IKUNET bus is connected to another Ethernet bus, we recommend you limit
the IP range to the number of slave modules in the IKUNET bus, so that these
can be identied more easily.
12) Click on  in the main screen (top right corner).
Name of slave modules
Continue without connecting the IKUNET bus.
Follow the steps below for each of the remaining modules of the headend (slave modules).
IKUNET bus configuration
The IKUNET bus is an Ethernet communication bus between the headend modules. The
IKUNET bus is installed using Ethernet pigtails supplied with the modules. If n is the
number of station modules, n-1 Ethernet pigtails are required.
Definition of the master module
NOTE
JRemember the PC conguration prior to the connection with the IKUNET
bus.
JThe denition of the master module must be made with an STC-200 module.
NOTE
In mixed STC and MTC congurations, an STC module may never be an MTC
module master. In these cases, the master module must be an MTC module and
the STC modules are reserved for conguration as slave modules.
1) Start the conguration of the IKUNET bus for
the headend with the modules disconnected
from each other.
2) Connect the selected module ( A ) to the PC ( B
) via its Ethernet connection and using an RJ-45
cable ( C ).
3) In the PC (Windows XP) go to 



.
4) Select the 
 checkbox. Enter the following IP
conguration parameters:
F: 10.254.254.2
F: 255.255.255.0
F: 10.254.254.1
5) Click on the  button.
6) Enter the IP address http://10.254.254.254 in the web browser. This takes you to the
home page of the connected module.
7) In the home page of the selected module, “Admin” appears by default in the 
eld. Enter the word “admin” in the  eld and click on .
8) The main management window for the STC-200
module as slave module is displayed.
STC-200 STC-200
EN

12
Basic installation and configuration/IKUNET bus configuration
1) Connect the selected module ( A ) to the PC
(B) via its Ethernet connection and using an
RJ-45 cable ( C ).
2) Enter the IP address http://10.254.254.254 in
the web browser. This takes you to the home
page of the connected module.
3) In the home page of the selected module,
“Admin” appears by default in the  eld.
Enter the word “admin” in the  eld
and click on .
4) Enter the name of the module in the 
) eld.
CAUTION
The checkbox must be left un-
marked for the slave modules
5) Click on 
6) Click on  in the main screen (top right corner).
General configuration of the headend
When the master module for the headend has been dened, access to the headend is via
the master module. To access the master module it is necessary to congure the IP access
of the PC and enter another IP address in the web browser.
1) Connect the IKUNET bus for the headend with the Ethernet pigtails supplied together
with each module (see example in the gure in the General description section).
2) In the PC, modify the IP address, following the same steps as in Definition of the
master module, but including the following parameters:
F: it should follow the root of the IP address for the master module of
the headend, but be out of its range. The address recommended by IKUSI for the
default conguration of the master module is 192.168.1.2.
F: 255.255.255.0
F: 192.168.1.1
3) Click on the  button.
4) In the web browser, enter the IP address of
the master module. The default address is
http://192.168.1.5. This takes you to the home
page of the headend master module.
5) In the home page of the selected module, enter
the word “Admin” in the  eld.
STC-200 STC-200

13
Basic installation and configuration/IKUNET bus configuration
6) Click on . To enter the main screen
of the master module user interface use the


window.
Module registry and name
Proceed as follows to register the modules:
1) Go to the menu 
The list of modules connected
to the IKUNET bus should appear on the
screen. Each row corresponds to a module. The
recognition status in IKUNET and the module
registry in the conguration of the headend can
be distinguished by the colour of each row:
FBlue: the module has been recognised
in the IKUNET bus but has not yet been
registered.
FRed: the module is not recognised in the
IKUNET bus and has been registered previ-
ously.
FLight green: the module is recognised in the IKUNET bus and has been registered.
2) To register the identied modules, select the checkbox in the  column for
all the modules which form part of the headend and click on . To delete the
registry of a module which is part of the headend, click on ( ).
3) Name the modules ( column in the list of modules). Proceed as follows, module
by module:
EN

14
Basic installation and configuration/Configuration of general parameters
a) Search for the module to be named. Follow
a logical order with respect to the selected
assembly order. Example: follow the mod-
ules tted from right to left: “STC-1” and
“STC-2”.
NOTE
To identify a module, in the 
table click on the
cell corresponding to the MAC address of
the module. The cell will change to a uo-
rescent green colour and the  and
 control LEDs for the selected
module ash together.
b) Click on the magnifying glass icon of the
module to be named.
c) In the main window of the user interface go
to the 
menu
d) Enter the name of the module in the  eld.
CAUTION
If the background of the eld is red, this means that the data has been modied
but has not yet been saved. Before changing the window or tab, the modied
data must be saved (click on ). Otherwise the modied data will be lost and
the headend will remain in the same state as before.
STC-200 STC-200

15
Basic installation and configuration/Configuration of general parameters
Configuration of general parameters
Permits the modication of the basic identication, network and access parameters and of
the headend rmware.
To access from the main menu, click on 
J
Fshows the name of the module
model.
Fshows the hardware
identication code.
Fshows the number which
identies the unit for network connection.
Fenter the module name.
Fallows the name of the city in
which the unit is installed to be entered.
Fallows the name of the per-
son installing the equipment to be entered.
Fallows the phone number of the installing company to be
entered.
Fallows the date on which the unit is installed to be
entered.
Fclick on the checkbox on the right to select the module as
master.
F: click on the button to save the changes.
J:
Fshows the number which
identies the unit for network connection.
Fshows the number of the IP
address.
Fshows the network
mask code.
Fshows the Gateway
IP address.
Fallows the number
of the rst IP address in the range of IPs to
be included to be entered.
Fallows the number of the last IP address in the range of IPs
to be included to be entered.
Fclick on the button to save the changes.
Fclick on the button to omit the changes.
EN

16
Basic installation and configuration/Module configuration
J
Fenter the current pass-
word for the home page.
Fenter the new pass-
word.
Fenter the
new password again.
Fclick on the button to save the changes.
Fclick on the button to omit the changes.
J
Freboots the module
in the event of blocking.
J
Fshows
the number of the current rmware version.
Flist of imported rmware version
numbers.
Fclick on the button to select the
route for the rmware le to be imported.
Fclick on the button to
import the selected rmware le.
Module configuration
Permits the modication of the operating parameters for the multiswitch, the inputs and the
output of the module. To access from the main menu, click on 

NOTE
To start the headend conguration, rst dene the master module and the identi-
cation of the slave modules for the headend, as described in the section Basic
installation and configuration.
J
Fclick on the icon to access the module con-
guration.
Fclick on the icon ( ) to display: 
of the module inputs and the 
Fshows the name of each module.
Fshows the family name of each module.
Fshows the name of the module model.
Fclick on the buttonto identify all the modules.
F: shows the IP address of each module.

17
Basic installation and configuration/Module configuration
Findicates the operating status of the module. If it is operating correctly,
the icon ( ) is displayed, otherwise the icon ( ) is displayed.
Fthis indicates whether there is an operating alarm in the module.
FTo register the modules identied, select the checkbox in the 
 column for all the modules which form part of the headend and click on
. To delete the registry of a module which is part of the headend, click
on ( ).
Fclick on the buttonto update the information on the screen.
Configuration of master STC module
Description of the multiswitch
This permits the modication of the multiswitch operating parameters for the master STC
module. To enter from , click on the magnifying
glass icon of the master module. Go to 
J
allows to enter the local oscillator
frequency value for the low band and inform
the master STC module of the presence and
characteristics of the multiswitch.
J
allows to enter the local oscillator
frequency value for the high band and inform
the master STC module of the presence and
characteristics of the multiswitch.
Jclick on the dropdown menu to select the number of inputs
for the master module:
FFor a connection without multiswitch, select the “0” value for the master module
inputs.
FFor a connection with multiswitch, select the value corresponding to the number of
multiswitch inputs. Next open the dropdown menu 
Ì: name of the input signal to the multiswitch for identication in
subsequent congurations. IKUSI recommends you identify the type of satel-
lite, polarity and the bandwidth of the signal.
Ìnoties of the multiswitch input being de-
scribed.
Ìclick on the dropdown menu to select the polarity: 
or
Ì: for each polarity select once and  once.
Jclick on the button to save the changes.
EN

18
Basic installation and configuration/Module configuration
Configuration of inputs
This permits the modication of the operating parameters for inputs 1 and 2 of the master
STC module. To enter from , click on the magni-
fying glass icon of the master module. Go to  .
J
Fclick on the
dropdown menu to select one of the follow-
ing options:
ÌFor a connection with multiswitch se-
lect the input for the multiswitch to be
connected to the STC.
ÌFor a connection without multiswitch
select .
Fclick on the dropdown menu to
select the intermediate satellite band type.
F
permits the frequency value to be selected
for the transponder to be received.
Fpermits the required intermediate frequency value to be
selected.
Fpermits modication of the input speed value.
Fshows whether there is a signal in input 1.
Fshows the rate of incorrectly received bits at input 1.
Fshows the noise level in the input
signal.
Fshows the percentage
power of the input signal with respect to the
maximum possible.
Jto access from 
, click on the right-hand tab 
Fclick on the right-hand check-
box to set the input to Standby.
Fclick on the dropdown
menu to select two independent inputs or
one single input with loop.
Fclick on the
dropdown menu to select one of the follow-
ing options:
ÌFor a connection with multiswitch se-
lect the input for the multiswitch to be
connected to the STC.
ÌFor a connection without multiswitch select .
Fclick on the dropdown menu to select the intermediate satellite band
type.

19
Basic installation and configuration/Module configuration
Fpermits the frequency value to be se-
lected for the transponder to be received.
Fpermits the required intermediate frequency value to be
selected.
Fpermits modication of the input speed value.
Fshows whether there is a signal in input 2.
Fshows the rate of incorrectly received bits at input 2.
Fshows the noise level in the input signal.
Fshows the percentage power of the input signal with respect to
the maximum possible.
F click on the button to save the changes.
Output configuration
This permits the modication of the operating
parametersfor the master STC module output. To
enter from 
, click on the magnifying glass icon of the
master module. Go to .
J
F: permits the value of
the output frequency to be modied.
F : click on the dropdown
menu to select the OFDM transmission
parameter.
F click on the drop
down menu to select the band width value for the output signal.
F: click on the dropdown menu to select the guard interval for
the OFDM signal.
F: click on the dropdown menu to select the digital constellation
layout.
F: click on the dropdown menu to select the FEC coding convolution
code
F: click on the displacement bar to modify the output level of
the signal.
NOTE
The advanced parameters may only be
modied in special cases, in the majority
of installations the factory settings should
not be changed.
J: click on the
right-hand checkbox to display the 
 menu.
EN

20
Basic installation and configuration/Module configuration
Fclick on the dropdown menu to select the form (or
) of the I-Q output channel spectrum.
NOTE
To modify the value of the remember that when the band-
width of the COFDM output is reduced, the interference from the adjacent chan-
nel is reduced, but the efciency of the guard interval is reduced proportionally
and may prevent the tuning of the receivers.
Fclick on the horizontal displacement bar to modify the band
width of the COFDM channel output.
Fclick on the horizontal displacement bar to modify the number of cells
to be allocated to the COFDM channel output.
Fclick on the dropdown menu to activate or deactivate the error
correction protocol: This permits errors in the DVB-H transmission to be detected
and corrected.
Fclick on the dropdown menu to activate or deactivate the
timeslicing: If timeslicing is on, the receiver switches off during inactive periods
and consumption for transmission in DVB-H is reduced.
Fclick on the dropdown menu to activate or deactivate
the bit interlacing for the correction of transmission code errors in DVB-H.
Jclick on the button to save the changes.
Jclick on the button to cancel the changes.
Jshows the module temperature.
Jshows the maximum ow of the output signal.
Jshows the percentage of packages received
without information.
Jshows the theoretical signal/noise ratio re-
quired at the base of the socket so that the television receives the signal correctly.
Configuration of slave STC module
NOTE
The operating parameters for the slave STC module inputs and output follow the
same conguration method as the inputs and output of the master STC module.
Configuration of inputs
This permits the modication of the operating parameters for inputs 1 and 2 of the slave
STC module. To enter from , click on the magni-
fying glass icon of the slave STC module. Go to  .
For a description of the operating parameters of the slave STC module inputs in this
manual, please go to the section Configuration of the inputs.
