iLive IJBS90 User manual

Karaoke Singing Stand
User’s Guide for Model IJBS90 v2380-01
For the most up-to-date version of this User’s Guide, go to: www.iLiveElectronics.com
IJBS90-2380-01-IB.indd 1 21/08/2019 10:04:52 AM

2
Safety Instructions & Warnings
Important Safety Instructions
• ReadtheseInstructions.
• KeeptheseInstructions.
• HeedallWarnings.
• Followallinstructions.
• Donotusethisapparatusnearwater.
• Cleanonlywithadrycloth.
• Donotblockanyventilationopenings.Installinaccordance
withthemanufacturer’sinstructions.
• Donotinstallnearanyheatsourcessuchasradiators,heat
registers,stoves,orotherapparatus(includingampliers)
thatproduceheat.
• Donotdefeatthesafetypurposeofthepolarizedor
grounding-typeplug.Apolarizedplughastwobladeswith
onewiderthantheother.Agroundingtypeplughastwo
bladesandathirdgroundingprong.ewidebladeorthe
thirdprongareprovidedforyoursafety.Whentheprovided
plugdoesnottintoyouroutlet,consultanelectricianfor
replacementoftheobsoleteoutlet.
• Protectthepowercordfrombeingwalkedonorpinched
particularlyatplugs,conveniencereceptacles,andthepoint
wheretheyexitfromtheapparatus.
• Onlyuseattachments/accessoriesspeciedbythe
manufacturer.
• Unplugthisapparatusduringlightningstormsorwhen
unusedforlongperiodsoftime.
• Referallservicingtoqualiedservicepersonnel.Servicing
isrequiredwhentheapparatushasbeendamagedinany
way,suchaspower-supplycordorplugisdamaged,liquid
hasbeenspilledorobjectshavefallenintotheapparatus,the
apparatushasbeenexposedtorainormoisture,doesnot
operatenormally,orhasbeendropped.
• Useonlywithacart,stand,tripod,bracket,
ortablespeciedbythemanufacturer,or
soldwiththeapparatus.Whenacartisused,
usecautionwhenmovingthecart/apparatus
combinationtoavoidinjuryfromtip-over.
WARNING: To reduce the risk of electric
shock, do not remove cover (or back). No
user-serviceable parts inside. Refer servicing
to qualied service personnel.
ATTENTION
RISQUE D' ÉLECTROCUTION
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
This symbol indicates that this product
incorporates double insulation between
hazardous mains voltage and user accessible
parts.
The lightning ash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufcient magnitude
to constitute a risk of electric shock to persons.
WARNING: DO NOT INGEST BATTERY,
CHEMICAL BURN HAZARD.
WARNING : This product can expose you
to chemicals including lead, which is known
to the State of California to cause cancer and
birth defects or other reproductive harm. For
more information go to www.P65Warnings.
ca.gov. This product meets and complies
with all Federal regulations.
IJBS90-2380-01-IB.indd 2 21/08/2019 10:04:52 AM

3
FCC Warnings
Warning: Changes or modications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmentintoanoutletonacircuitdierent
fromthattowhichthereceiverisconnected.
• Consultthedealeroranexperiencedradio/TVtechnician
forhelp.
FCC Radiation Exposure Statement
This equipment complied with FCC radiation exposure
limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
Additional Warnings and Precautions
• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
• Mains plug is used as disconnect device and it should remain
readily operable during intended use. In order to disconnect
the apparatus from the mains completely, the mains plug
should be disconnected form the mains socket outlet
completely.
• WARNING: Shock hazard - Do Not Open.
• Caution and marking information is located at the rear or
bottom of the apparatus.
• WARNING: To reduce the risk of re or electric shock,
do not expose this apparatus to rain, moisture, dripping,
or splashing.
• Objects lled with liquids, such as vases, shall not be placed
on the apparatus.
• CAUTION: Use of controls or adjustments or performance
of procedures other than those specied may result in
hazardous radiation exposure.
• WARNING: Changes or modications to this unit not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment
• WARNING: Do not place this unit directly onto furniture
surfaces with any type of soft, porous, or sensitive nish.
As with any rubber compound made with oils, the feet
could cause marks or staining where the feet reside. We
recommend using a protective barrier such as a cloth or a
piece of glass between the unit and the surface to reduce the
risk of damage and/or staining.
IJBS90-2380-01-IB.indd 3 21/08/2019 10:04:53 AM

4
Table of Contents
Setup
Features & Specications - 5
Includes - 5
Assembly
Step 1 - 6
Step 2 - 6
Step 3 - 7
Assembly Complete - 7
Overview
Layout - 8
Controls - 9
Inputs - 9
Setup
Power - 10
Initial Bluetooth Connection and Playing Audio - 10
Previously Connected Devices - 10
Troubleshooting - 10
Aux In with Smartphone or Tablet - 11
Aux In with CD/CD+G player - 11
Microphones & Guitar - 11
Company Information
Contact Information - 12
International Support - 12
Warranty - 12
IJBS90-2380-01-IB.indd 4 21/08/2019 10:04:53 AM

5
Features & Specifications
• Built-in speakers
• Adjustable overall height from 33" to 48"
• Supports Bluetooth 5.0, range: 60 ft.
• Music reactive LED disco ball
• Voice effects: high pitch, low pitch
• Sound effects: air horn, cheering, DJ scratch,
applause
• Automatic Voice Control (AVC)
• Microphone volume control
• Echo control
• 2 microphone inputs (¼" input
• Aux In (3.5mm audio input)
• Guitar input
Includes
• 1 Microphone
• Adjustable microphone stand/media device holder
• 2 microphone holders
• Speaker base
• AC/DC power adapter
Setup
IJBS90-2380-01-IB.indd 5 21/08/2019 10:04:53 AM

6

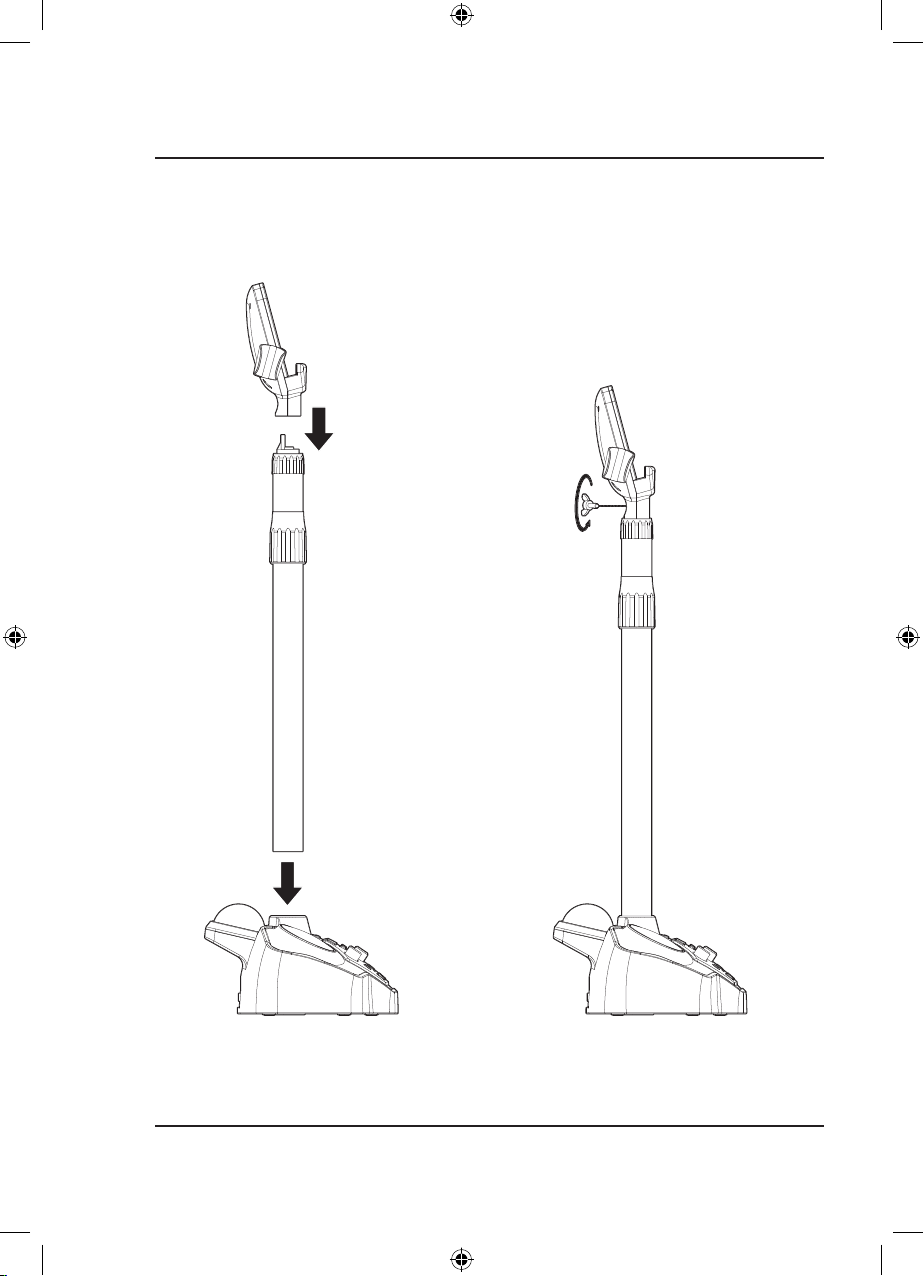

Step 1
Connect the pole to the speaker
base, and the microphone stand
to the top of the pole.
Step 2
Insert and tighten the wing nut
into the microphone stand to
secure it to the pole.
Assembly
IJBS90-2380-01-IB.indd 6 21/08/2019 10:04:53 AM

7

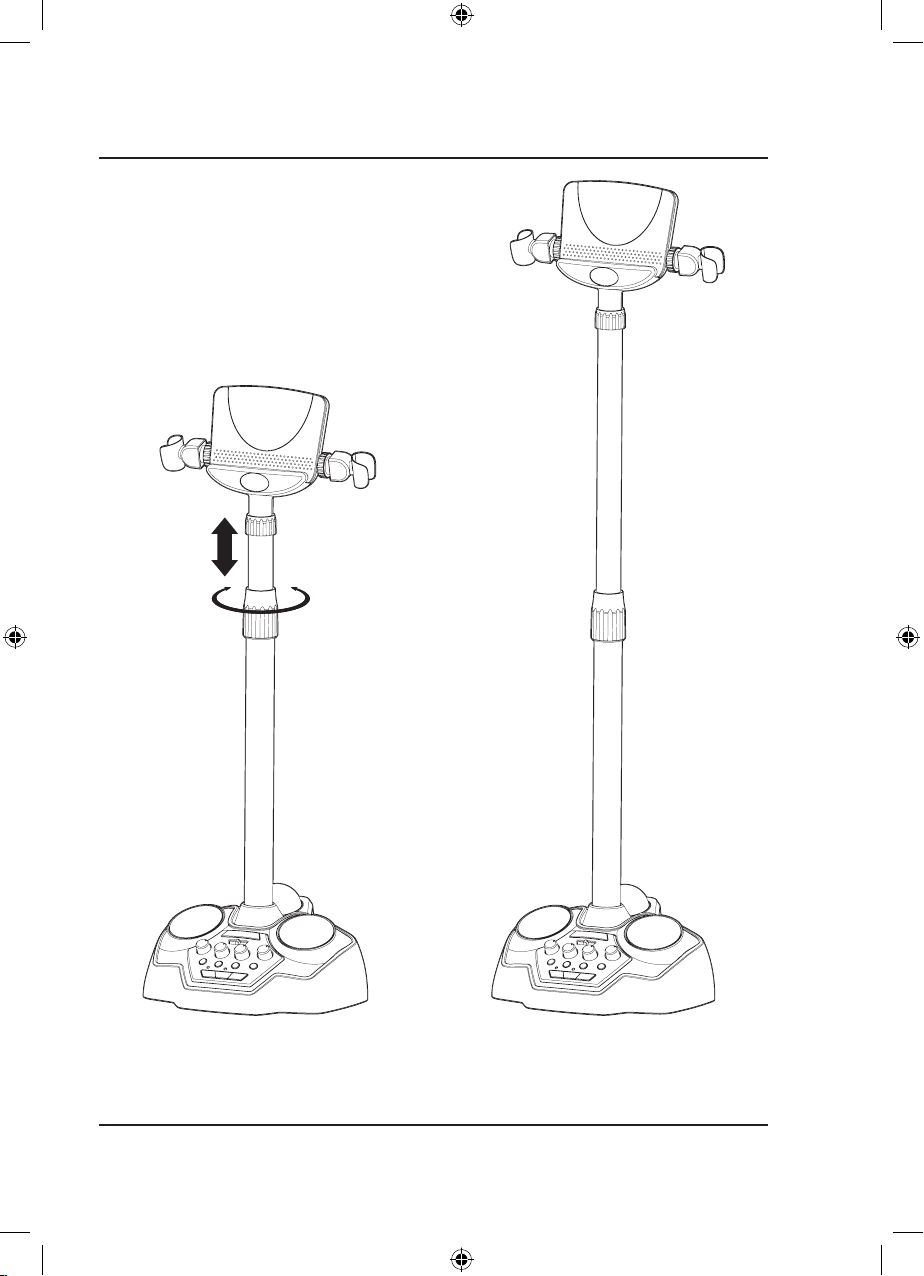

Step 3
Loosen the locking collar on the
pole to adjust the height of the
microphone stand.
Assembly Complete
IJBS90-2380-01-IB.indd 7 21/08/2019 10:04:54 AM

8
Overview
1. Mobile Device Holder
2. Microphone Holder
3. Stand Locking Collar
4. Disco Light
5. Speakers
6. Inputs (Rear)
7. Controls
1
3
5
7
2
4
6
Layout
IJBS90-2380-01-IB.indd 8 21/08/2019 10:04:55 AM

9
LIGHTS
AVC
ECHO
VOICE CHANGER
MIC VOL
VOLUME
LO
HIOFF
MIN MAX
MIN MAX MIN MAX
MIN MAX
AIR HORN
CHEERING DJ
APPLAUSE
PAIR
POWER
DC IN
DC IN
GUITAR IN
1. Voice Changer
2. Automatic Voice Control
Adjustment
3. Master Volume
4. Echo Effect Adjustment
5. Microphone Volume
6. Sound Effects-Air Horn,
Cheering, DJ Scratch,
Applause
7. Power ON/OFF
8. Play/Pause/Pair Bluetooth
9. Disco Lights ON/OFF
10. Microphone Input 1, 2
11. Aux In (3.5mm audio input)
12. Guitar Input
13. DC Power Input
1
2 3
6
7
4 5
9
8
10 11 12 13
Controls
Inputs
IJBS90-2380-01-IB.indd 9 21/08/2019 10:04:55 AM

10
Initial Bluetooth Connection and Playing Audio
1. Power ON the karaoke machine by pressing the Power button. A voice will say, “Bluetooth is connecting,” and
the LED indicator will slowly flash blue. When pairing, remain within 3 feet of the Bluetooth device.
2. Using the controls on your Bluetooth device, select IJBS90 in the Bluetooth Settings to pair. If need be, refer to
the user’s manual of your specific device for more information.
3. When successfully paired, a voice will announce, “Bluetooth is connected,” and the LED indicator will turn solid
blue. Audio from the connected Bluetooth device will now be heard through the speaker.
4. Use the controls on the connected Bluetooth device to select and play audio. Use the speaker controls or the
connected Bluetooth device to play, pause, and adjust the volume level.
5. After initial pairing, anytime the speaker powers ON it will automatically connect to the last Bluetooth device
used. Note: If your device should become unpaired or you find it is unable to connect, press & hold the Play/
Pause/Pair button to enter to Pairing Mode. A voice will announce, “Bluetooth is connecting,” and you can
connect to the speaker manually.
Previously Connected Devices
• The karaoke machine can remember multiple Bluetooth devices and will always try to reconnect to the last
device used.
• To reconnect to a different device, turn off Bluetooth on unwanted devices, then access the Bluetooth settings
menu on the device you wish to use and select IJBS90.
Troubleshooting
If the karaoke machine should become unpaired or will not connect normally, follow these steps in your
device’s Bluetooth Settings Menu.
• Delete the karaoke machine (“Forget This Device”).
• Turn Bluetooth OFF, then ON again, and repeat the Initial Bluetooth Connection steps.
Setup
Power
Plug the power adapter for the
karaoke machine into the DC
input on the back of the unit
and a standard wall outlet.
DC IN
DC IN
GUITAR IN
IJBS90-2380-01-IB.indd 10 21/08/2019 10:04:56 AM

11
Microphones & Guitar
Requires a microphone with a ¼" audio cable or ¼" adapter (not included).
This karaoke system comes with a single microphone only. For duet singing, connect another microphone
(not included) with a ¼" plug into the other microphone input on the unit.
1. Connect a microphone to either of the Microphone Inputs on the unit. If connecting a guitar, use the guitar
input. The speaker will play audio from a microphone or guitar as long as it is connected.
2. Use the Microphone Volume to adjust the volume of connected microphone or guitar. Use the Echo dials to
adjust the Automatic Voice Control and Echo effects.
Aux In with Smartphone or Tablet
Requires a 3.5mm audio cable
(not included).
1. Connect a 3.5mm audio
cable to the Aux In on
the unit and the audio
output/headphone input
on an audio device.
2. Power ON the karaoke
machine. When the Aux
In is in use, the Bluetooth
indicator will turn off.
3. Place the device on the
stand and use the controls
on the connected device
to select and play audio.
Be sure the volume on
your connected device is
turned on/up when you begin playing.
Aux In with CD/CD+G player
To use an external CD/CD+G player with the karaoke machine, connect a 3.5mm audio output on the player to
the Aux In on the karaoke machine. Use the master volume on the karaoke machine to adjust the volume level
for both units.
Note: Automatic Voice Control only works when an audio source is connected to the Aux In. When connected,
the AVC effect will mute the vocals on a multiplex (CD/CD+G) when singing is detected through the
microphone on the karaoke machine. Use the AVC dial to adjust the strength of the effect.
DC IN
DC IN
GUITAR IN
DC IN
DC IN
GUITAR IN
IJBS90-2380-01-IB.indd 11 21/08/2019 10:04:56 AM

12
International Support
To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked
questions, visit the support section at: www.iLiveElectronics.com
Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas
frecuentes, visite la sección de apoyo en: www.iLiveElectronics.com
Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des
questions fréquemment posées, consultez la rubrique d’assistance sur: www.iLiveElectronics.com
Contact Information
Website: www.iLiveElectronics.com
Email Support: [email protected]
Email Parts: [email protected]
Phone Support: 1-888-999-4215
Warranty
For Warranty Information and the most up-to-date
version of this User’s Guide, go to:
www.iLiveElectronics.com
Copyright © 2019 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the
property of their respective owners. Specifications are subject to change without notice.
Protect for Today
Sustain for Tomorrow
Made
Green
Company Information
IJBS90-2380-01-IB.indd 12 21/08/2019 10:04:56 AM
