Illuminous EV-12V-4000-60D User manual

Version 2.3
LOW VOLTAGE CONSTANT VOLTAGE LED DRIVERS
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
LEAVE A COPY FOR THE USER / MAINTENANCE ENGINEER FOR FUTURE REFERENCE
Installation should be carried out in accordance with the latest edition of the NEC Wiring Regulations.
For use with illuminous constant voltage LED products.
IMPORTANT.
Constant VOLTAGE LED Fittings MUST be wired in PARALLEL ensuring correct polarity. Failure to do so can cause
permanent luminaire and/or driver failure.
PLEASE NOTE: 12V DC Output –correct polarity must be observed in order for the Constant Voltage LED to operate

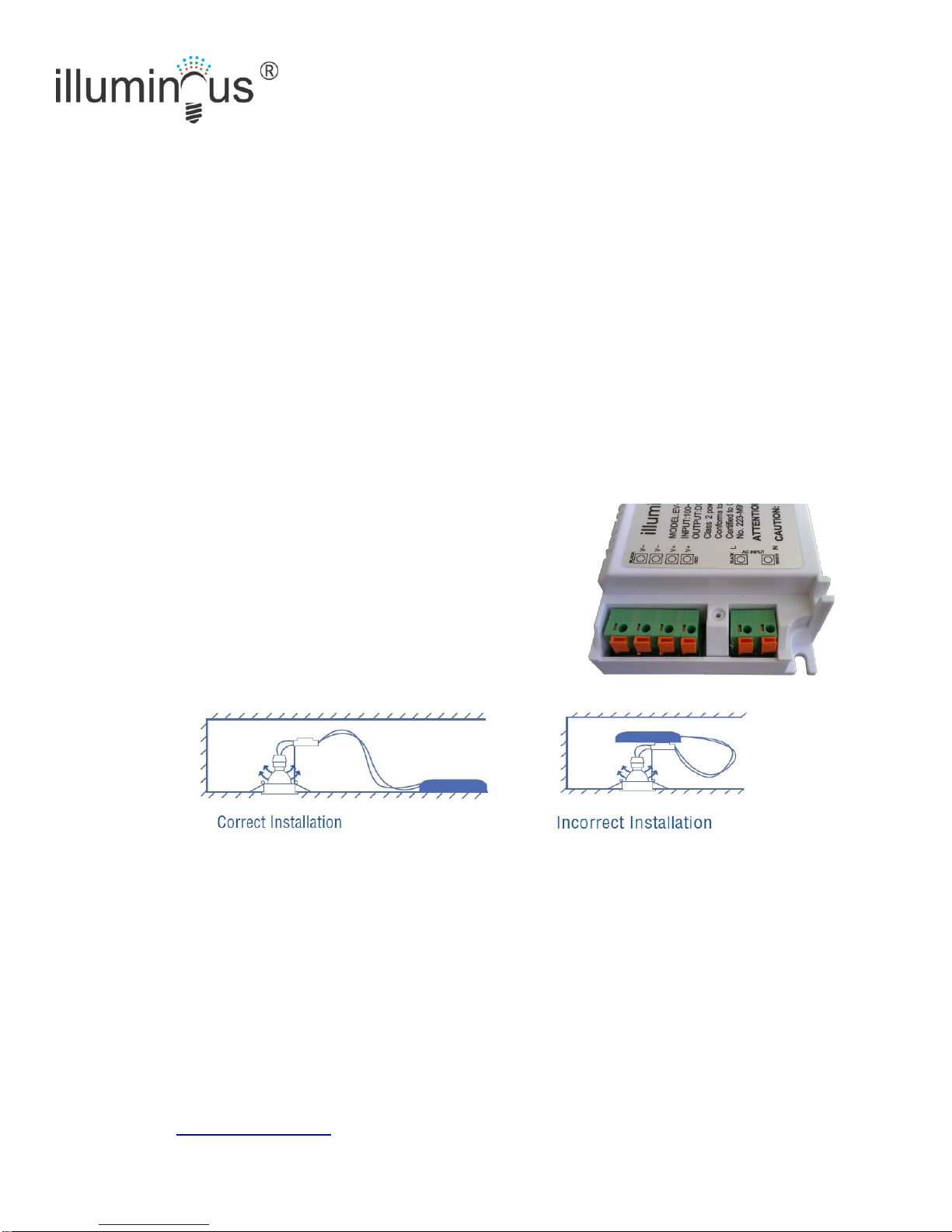

INSTALLATION INSTRUCTIONS
Before commencing installation or maintenance,
Keep the LED Driver away from direct sources of heat such as Low Voltage lamps.
Ensure that ALL electrical connections are tight with no loose strands.
Suitable for direct mounting on or in cabinets or furniture
Do not fit the LED driver above the luminaire
Ensure that the Driver is not covered with insulation material and has an air gap of 50mm around the driver
Connect the mains cable to the mains supply.
Undo the cover screw. AC input is the 3 screw terminal as marked:
•Live / Hot = BLACK
•Neutral = WHITE
Connect the outputs to the DC LED lamp
Undo the cover screw. DC output is the 2 screw terminal as marked:
•V+ = Positive
•V- = Negative
Environmental Protection (W.E.E.E.) –illuminous’s WEEE
Waste Electrical & Electronic Equipment Regulations (WEEE) requires that any of our products showing this marking (left) must not be
disposed of with other household or commercial waste. illuminous does not levy any WEEE disposal charges to its customers for
affected WEEE related products. To prevent possible harm to the environment or human health from uncontrolled waste disposal,
please separate any such product from other waste types and recycle it responsibly at your local facilities. Check with your Local
Authority, Recycling Centre or retailer for recycling advice. If, when you purchased any illuminous product, your supplier included a
WEEE disposal fee, you should then contact your supplier for advice on his takeback of the product for the correct disposal.
GUARANTEE
This product is guaranteed in the USA for a period of 2 years from the date of purchase, unless otherwise stated in current company
literature. The guarantee is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label, installation in an
improper working environment or installation not according to the current edition of the National Electrical Code --- Work must be
completed by a qualified electrician. Should this product fail during the guarantee period, it will be replaced free of charge, subject to
correct installation and return of the faulty unit. illuminous LLC. or any subsidiary company of illuminous LLC. does not accept
responsibility for any installation costs associated with the replacement of this product. Your statutory rights are not affected. illuminous
reserves the right to alter specifications without prior notice.
illuminous LLC, www.illuminous.com, (727) 489 8334

Version 2.3
91% Load 74% Load
Flex Lux Power Flex Lux Power
Type Driver Length Min Dim Min Dim Length Min Dim Min Dim
Insteon Swithlinc 2477D L,C 12W 59 7% 4% 31 7% 3%
GE Z-Wave Wireless 12724 L,I,C 12W 59 5% 3% 31 7% 4%
Leviton Decora Sureslide 6631 I12W 59 11% 6% 31 14% 7%
Lutron Lumea LG-600H I 12W 59 11% 6% 31 14% 8%
Lutron Diva DV-600PR I 12W 59 12% 7% 31 15% 8%
Leviton Decora DSL06-1TW L,I,C 12W 59 12% 7% 31 16% 9%
Skylark Skylink Home WR-318 I,C 12W 59 13% 8% 31 18% 10%
Leviton Decora Vizia VPI06-1LZ I 12W 59 15% 9% 31 20% 11%
Aspire 9530AW I,H,M 12W 59 16% 10% 31 20% 11%
Lutron Skylark SCL-153PR L,I,C 12W 59 16% 9% 31 20% 11%
Lutron Diva DVLV-600PH M 12W 59 15% 9% 31 21% 12%
Leviton Decora iLLumaTech IPL06 L,I,C 12W 59 15% 9% 31 25% 12%
Lutro Diva DVWCL-153PH-WH L,I,C 12W 59 16% 10% 31 21% 12%
Lutron Skylark SLV-603P M 12W 59 16% 10% 31 22% 12%
Lutron Maestro MACL-153Mx-xx L,I,C 12W 59 16% 10% 31 22% 12%
Lutron Caseta Wireless PD-6WCL, P-PKG1W-WH-R L,I,C 12W 59 19% 12% 31 23% 13%
Leviton Decora Sureslide 6674-P I,L,C 12W 59 18% 11% 31 24% 14%
Lutron Diva DVCL-153PR L,I,C 12W 59 19% 11% 31 25% 14%
Leviton Decora Sureslide 6672 L,I,C 12W 59 26% 17% 31 32% 20%
Leviton Tabletop TBL03 L,I,C 12W 59 26% 16% 31 33% 21%
Lutron Lumea LGCL-153PLH I,C 12W 59 33% 23% 31 43% 29%
Lutron Skylark Contour CTCL-153PDH-WH L,I,C 12W 59 41% 30% 31 52% 39%
92% Load 62% Load
Flex Lux Power Flex Lux Power
Type Driver Length Min Dim Min Dim Length Min Dim Min Dim
GE Z-Wave Wireless 12724 L,I,C 26W 120 6% 3% 59 10% 5%
Insteon Swithlinc 2477D L,C 26W 120 14% 9% 59 10% 5%
Leviton Decora Sureslide 6631 I26W 120 7% 4% 59 11% 6%
Lutron Diva DV-600PR I 26W 120 10% 6% 59 17% 9%
Skylark Skylink Home WR-318 I,C 26W 120 13% 8% 59 20% 11%
Lutron Lumea LG-600H I 26W 120 13% 8% 59 20% 12%
Leviton Decora Vizia VPI06-1LZ I 26W 120 15% 9% 59 23% 13%
Leviton Decora DSL06-1TW L,I,C 26W 120 16% 9% 59 25% 14%
Lutro Diva DVWCL-153PH-WH L,I,C 26W 120 17% 10% 59 26% 15%
Lutron Maestro MACL-153Mx-xx L,I,C 26W 120 17% 10% 59 26% 15%
Aspire 9530AW I,H,M 26W 120 16% 10% 59 27% 16%
Lutron Caseta Wireless PD-6WCL, P-PKG1W-WH-R L,I,C 26W 120 18% 11% 59 27% 16%
Lutron Diva DVLV-600PH M 26W 120 18% 11% 59 27% 16%
Lutron Skylark SCL-153PR L,I,C 26W 120 18% 11% 59 29% 17%
Leviton Decora iLLumaTech IPL06 L,I,C 26W 120 19% 11% 59 29% 17%
Lutron Skylark SLV-603P M 26W 120 19% 11% 59 29% 17%
Lutron Diva DVCL-153PR L,I,C 26W 120 21% 13% 59 33% 20%
Leviton Decora Sureslide 6674-P I,L,C 26W 120 22% 13% 59 33% 20%
Leviton Tabletop TBL03 L,I,C 26W 120 26% 17% 59 40% 26%
Leviton Decora Sureslide 6672 L,I,C 26W 120 27% 18% 59 42% 28%
Lutron Lumea LGCL-153PLH I,C 26W 120 33% 22% 59 48% 33%
Lutron Skylark Contour CTCL-153PDH-WH L,I,C 26W 120 39% 27% 59 56% 42%
68% Load 35% Load
Flex Lux Power Flex Lux Power
Type Driver Length Min Dim Min Dim Length Min Dim Min Dim
Leviton Decora Sureslide 6631 I48W 196 10% 5% 59 10% 5%
GE Z-Wave Wireless 12724 L,I,C 48W 196 7% 5% 59 17% 9%
Insteon Swithlinc 2477D L,C 48W 196 12% 7% 59 17% 9%
Lutron Diva DV-600PR I 48W 196 8% 5% 59 18% 10%
Lutron Lumea LG-600H I 48W 196 12% 8% 59 26% 15%
Aspire 9530AW I,H,M 48W 196 16% 10% 59 26% 15%
Leviton Decora DSL06-1TW L,I,C 48W 196 14% 9% 59 30% 18%
Skylark Skylink Home WR-318 I,C 48W 196 15% 10% 59 32% 20%
Leviton Decora Vizia VPI06-1LZ I 48W 196 17% 11% 59 35% 22%
Leviton Decora iLLumaTech IPL06 L,I,C 48W 196 18% 11% 59 37% 23%
Lutro Diva DVWCL-153PH-WH L,I,C 48W 196 19% 12% 59 38% 25%
Lutron Caseta Wireless PD-6WCL, P-PKG1W-WH-R L,I,C 48W 196 19% 12% 59 40% 26%
Leviton Decora Sureslide 6674-P I,L,C 48W 196 21% 14% 59 43% 29%
Lutron Skylark SCL-153PR L,I,C 48W 196 22% 14% 59 45% 30%
Lutron Diva DVLV-600PH M 48W 196 22% 14% 59 45% 31%
Lutron Skylark SLV-603P M 48W 196 23% 15% 59 45% 31%
Lutron Maestro MACL-153Mx-xx L,I,C 48W 196 23% 15% 59 46% 32%
Lutron Diva DVCL-153PR L,I,C 48W 196 26% 17% 59 51% 37%
Leviton Tabletop TBL03 L,I,C 48W 196 29% 20% 59 56% 42%
Leviton Decora Sureslide 6672 L,I,C 48W 196 31% 21% 59 58% 43%
Lutron Lumea LGCL-153PLH I,C 48W 196 37% 26% 59 69% 55%
Lutron Skylark Contour CTCL-153PDH-WH L,I,C 48W 196 51% 39% 59 89% 82%
Note: Best Dimmers: Leviton Decora Sureslide 6631, Lutron Diva DV-600PR, Insteon Switchlinc 2477D, GE Z-Wave Wireless 12724. Lutron LG-600H
Note: Actual LIGHT (LUX) dimming level achieved is less than POWER dimming level, and a better indicator of real-life performance.
Flex Strip (EV-ST-NWP-WHT) Test with 12W Driver (EV-12V-2200-33D)
Flex Strip (EV-ST-NWP-WHT) Test with 26W Driver (EV-12V-2200-33D)
Flex Strip (EV-ST-NWP-WHT) Test with 48W Driver (EV-12V-4000-60D)

Version 2.3
90% Load 64% Load
Qty of Lux Power Qty of Lux Power
Type Driver MR16 Min Dim Min Dim MR16 Min Dim Min Dim
GE Z-Wave Wireless 12724 L,I,C 12W 24% 3% 17% 4%
Insteon Swithlinc 2477D L,C 12W 26% 4% 111% 7%
Leviton Decora Sureslide 6631 I12W 29% 0% 113% 8%
Lutron Diva DV-600PR I 12W 28% 6% 113% 8%
Leviton Decora DSL06-1TW L,I,C 12W 211% 7% 116% 10%
Lutron Lumea LG-600H I 12W 211% 7% 116% 10%
Skylark Skylink Home WR-318 I,C 12W 210% 8% 117% 11%
Leviton Decora iLLumaTech IPL06 L,I,C 12W 214% 9% 120% 13%
Leviton Decora Vizia VPI06-1LZ I 12W 214% 9% 121% 13%
Aspire Cooper 9530AW I,H,M 12W 215% 10% 122% 14%
Lutron Diva DVLV-600PH M 12W 215% 10% 122% 14%
Lutro Diva DVWCL-153PH-WH L,I,C 12W 215% 10% 122% 15%
Lutron Maestro MACL-153Mx-xx L,I,C 12W 215% 10% 123% 15%
Lutron Skylark SLV-603P M 12W 216% 10% 123% 15%
Lutron Skylark SCL-153PR L,I,C 12W 216% 10% 123% 15%
Lutron Caseta Wireless PD-6WCL, P-PKG1W-WH-R L,I,C 12W 215% 10% 124% 16%
Leviton Decora Sureslide 6674-P I,L,C 12W 216% 11% 124% 16%
Lutron Diva DVCL-153PR L,I,C 12W 218% 13% 127% 18%
Leviton Tabletop TBL03 L,I,C 12W 222% 15% 132% 21%
Leviton Decora Sureslide 6672 L,I,C 12W 223% 16% 133% 23%
Lutron Lumea LGCL-153PLH I,C 12W 232% 23% 146% 34%
Lutron Skylark Contour CTCL-153PDH-WH L,I,C 12W 240% 30% 156% 44%
94% Load 57% Load
Qty of Lux Power Qty of Lux Power
Type Driver MR16 Min Dim Min Dim MR16 Min Dim Min Dim
GE Z-Wave Wireless 12724 L,I,C 26W 45% 3% 29% 5%
Leviton Decora Sureslide 6631 I26W 46% 4% 210% 6%
Insteon Swithlinc 2477D L,C 26W 48% 5% 214% 9%
Lutron Diva DV-600PR I 26W 49% 6% 215% 10%
Lutron Lumea LG-600H I 26W 412% 8% 220% 12%
Leviton Decora Vizia VPI06-1LZ I 26W 414% 9% 223% 15%
Skylark Skylink Home WR-318 I,C 26W 413% 8% 221% 15%
Leviton Decora DSL06-1TW L,I,C 26W 414% 9% 224% 16%
Lutro Diva DVWCL-153PH-WH L,I,C 26W 415% 10% 225% 17%
Aspire Cooper 9530AW I,H,M 26W 416% 10% 226% 17%
Lutron Maestro MACL-153Mx-xx L,I,C 26W 416% 11% 226% 17%
Leviton Decora iLLumaTech IPL06 L,I,C 26W 417% 11% 228% 19%
Lutron Skylark SCL-153PR L,I,C 26W 418% 12% 230% 20%
Lutron Diva DVLV-600PH M 26W 419% 12% 231% 21%
Lutron Skylark SLV-603P M 26W 419% 13% 232% 22%
Leviton Decora Sureslide 6674-P I,L,C 26W 420% 13% 233% 22%
Lutron Diva DVCL-153PR L,I,C 26W 422% 14% 235% 24%
Leviton Tabletop TBL03 L,I,C 26W 424% 16% 240% 28%
Leviton Decora Sureslide 6672 L,I,C 26W 425% 17% 240% 28%
Lutron Caseta Wireless PD-6WCL, P-PKG1W-WH-R L,I,C 26W 417% 11% 242% 30%
Lutron Lumea LGCL-153PLH I,C 26W 431% 21% 249% 37%
Lutron Skylark Contour CTCL-153PDH-WH L,I,C 26W 438% 27% 259% 46%
85% Load 62% Load
Qty of Lux Power Qty of Lux Power
Type Driver MR16 Min Dim Min Dim MR16 Min Dim Min Dim
Insteon Swithlinc 2477D L,C 48W 66% 4% 48% 5%
GE Z-Wave Wireless 12724 L,I,C 48W 66% 4% 48% 5%
Leviton Decora Sureslide 6631 I48W 67% 4% 49% 6%
Lutron Diva DV-600PR I 48W 610% 7% 414% 9%
Lutron Lumea LG-600H I 48W 615% 10% 421% 13%
Skylark Skylink Home WR-318 I,C 48W 615% 10% 421% 13%
Leviton Decora Vizia VPI06-1LZ I 48W 618% 11% 426% 15%
Leviton Decora DSL06-1TW L,I,C 48W 617% 11% 425% 16%
Aspire Cooper 9530AW I,H,M 48W 618% 12% 425% 16%
Lutro Diva DVWCL-153PH-WH L,I,C 48W 619% 13% 426% 17%
Lutron Maestro MACL-153Mx-xx L,I,C 48W 619% 12% 426% 17%
Lutron Skylark SCL-153PR L,I,C 48W 619% 13% 426% 17%
Lutron Caseta Wireless PD-6WCL, P-PKG1W-WH-R L,I,C 48W 620% 13% 428% 18%
Lutron Skylark SLV-603P M 48W 620% 13% 427% 18%
Leviton Decora iLLumaTech IPL06 L,I,C 48W 621% 14% 429% 19%
Lutron Diva DVCL-153PR L,I,C 48W 622% 15% 431% 21%
Lutron Diva DVLV-600PH M 48W 619% 13% 433% 22%
Leviton Decora Sureslide 6674-P I,L,C 48W 625% 16% 434% 23%
Leviton Tabletop TBL03 L,I,C 48W 630% 20% 440% 28%
Leviton Decora Sureslide 6672 L,I,C 48W 632% 22% 443% 30%
Lutron Lumea LGCL-153PLH I,C 48W 638% 27% 452% 38%
Lutron Skylark Contour CTCL-153PDH-WH L,I,C 48W 648% 36% 464% 50%
MR16 (EV-LED-MR16COB5W) Test with 12W Driver (EV-12V-2200-33D)
MR16 (EV-LED-MR16COB5W) Test with 26W Driver (EV-12V-2200-33D)
MR16 (EV-LED-MR16COB5W) Test with 48W Driver (EV-12V-4000-60D)
Note: Best Dimmers: Leviton Decora Sureslide 6631, Lutron Diva DV-600PR, Insteon Switchlinc 2477D, GE Z-Wave Wireless 12724. Lutron LG-600H
Note: Actual LIGHT (LUX) dimming level achieved is less than POWER dimming level, and a better indicator of real-life performance.
Popular Control Unit manuals by other brands

Evco
Evco C-PRO 3 CLIMA sistema+ Installer manual

Leonard
Leonard TM-1520B-2P INSTALLATION ADJUSTMENT SERVICE

Bimba
Bimba STP-10-EIP quick start guide

Kessel
Kessel EUROFIX Clausio Installation and operating instructions

Interlogix
Interlogix ITI SuperBus 2000 installation instructions

KMT
KMT MTP-STG-V3 user manual

Panduit
Panduit VeriSafe VS2-NET user guide

ATI Technologies
ATI Technologies UA8 Installation and operation manual

Linear Technology
Linear Technology DC1930A Demo Manual

Armstrong
Armstrong OB-2000PT Integral Assembly instructions

Texas Instruments
Texas Instruments bq2022A user guide

Dust Networks
Dust Networks D2120 quick start guide
