Feig Electronic ID ISC.LRM1002-E Use and care manual

INTEGRATION
final –public (B)
2019-06-05 –M21110-3e-ID-B.docx

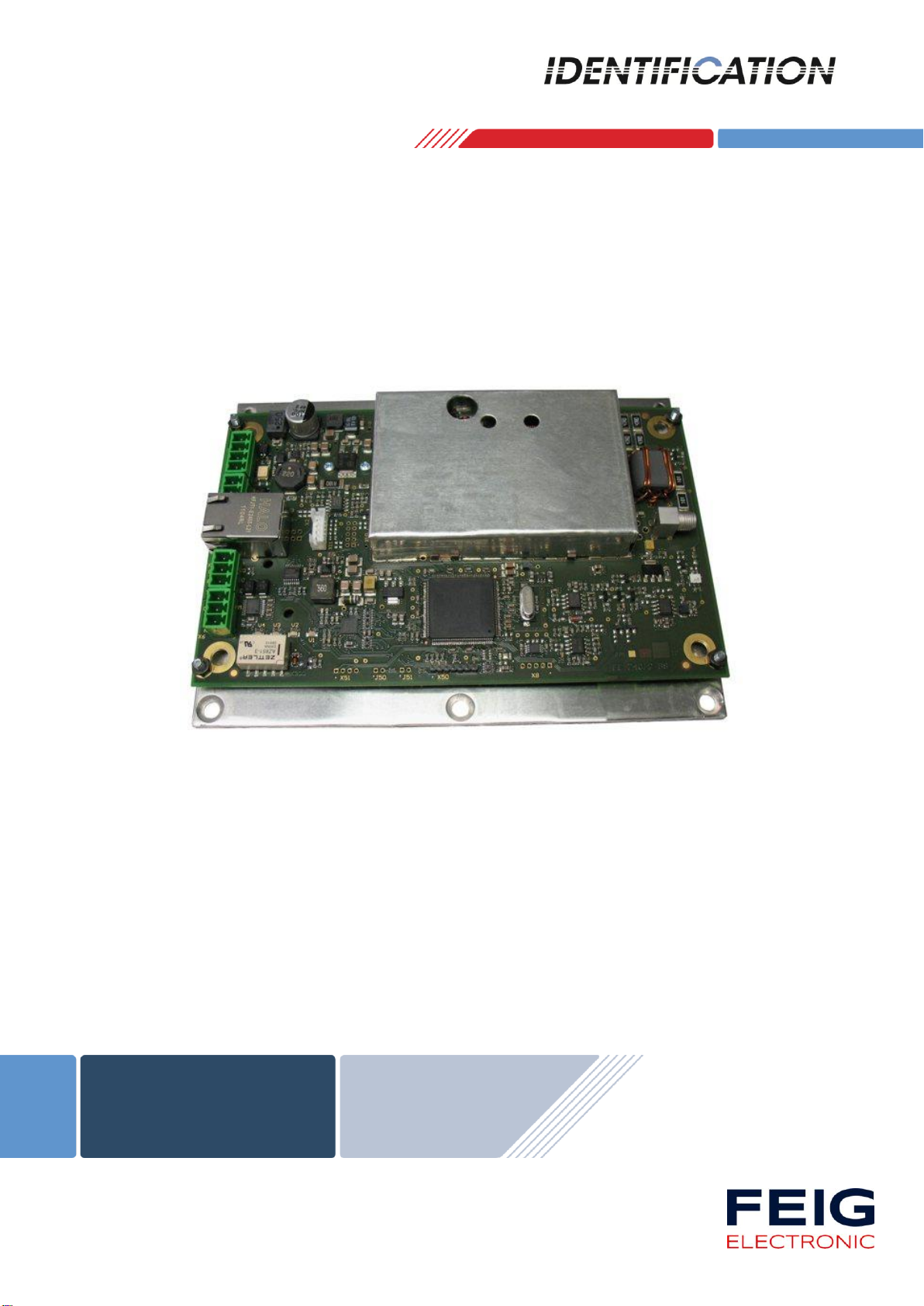

ID ISC.LRM1002-E
Long Range Reader Modul
(English)

Identification
Integration Manual
ID ISC.LRM1002-E
FEIG ELECTRONIC GmbH
Page 2 from 23
M21110-3e-ID-B.docx
Note
Copyright 2012-2019 by
FEIG ELECTRONIC GmbH
Lange Strasse 4
D-35781 Weilburg-Waldhausen
Tel.: [phone]
http://www.feig.de
With the edition of this document, all previous editions become void. Indications made in this manual may be
changed without previous notice.
Copying of this document, and giving it to others and the use or communication of the contents thereof are
forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved
in the event of the grant of a patent or the registration of a utility model or design.
Composition of the information in this document has been done to the best of our knowledge. FEIG
ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this
manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,
despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.
The instructions given in this manual are based on advantageous boundary conditions. FEIG ELECTRONIC
GmbH does not give any guarantee promise for perfect function in cross environments.
FEIG call explicit attention that devices which are subject of this document are not designed with compo-
nents and testing methods for a level of reliability suitable for use in or in connection with surgical implants or
as critical components in any life support systems whose failure to perform can reasonably be expected to
cause significant injury to a human. To avoid damage, injury, or death, the user or application designer must
take reasonably prudent steps to protect against system failures.
FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this docu-
ment and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH does
not convey any license under its patent rights nor the rights of others.

Identification
Integration Manual
ID ISC.LRM1002-E
FEIG ELECTRONIC GmbH
Page 3 from 23
M21110-3e-ID-B.docx
Content
1Safety Instructions / Warning - Read before start-up ! 4
2Performance Features of Reader Family ID ISC.LRM1002 5
2.1 Performance Features................................................................................................ 5
2.2 Available Reader Types..............................................................................................5
3Installation and mounting 6
3.1 Mounting ID ISC.LRM1002-E......................................................................................6
3.2 Terminals.....................................................................................................................7
3.2.1 Antenna connection .................................................................................................8
3.2.1.1 Connection of a ID ISC.DAT (Dynamic Antenna Tuning Board) .....................9
3.2.2 Supply voltage........................................................................................................10
3.2.3 OptocouplerInputs (X5 / IN1)..................................................................................11

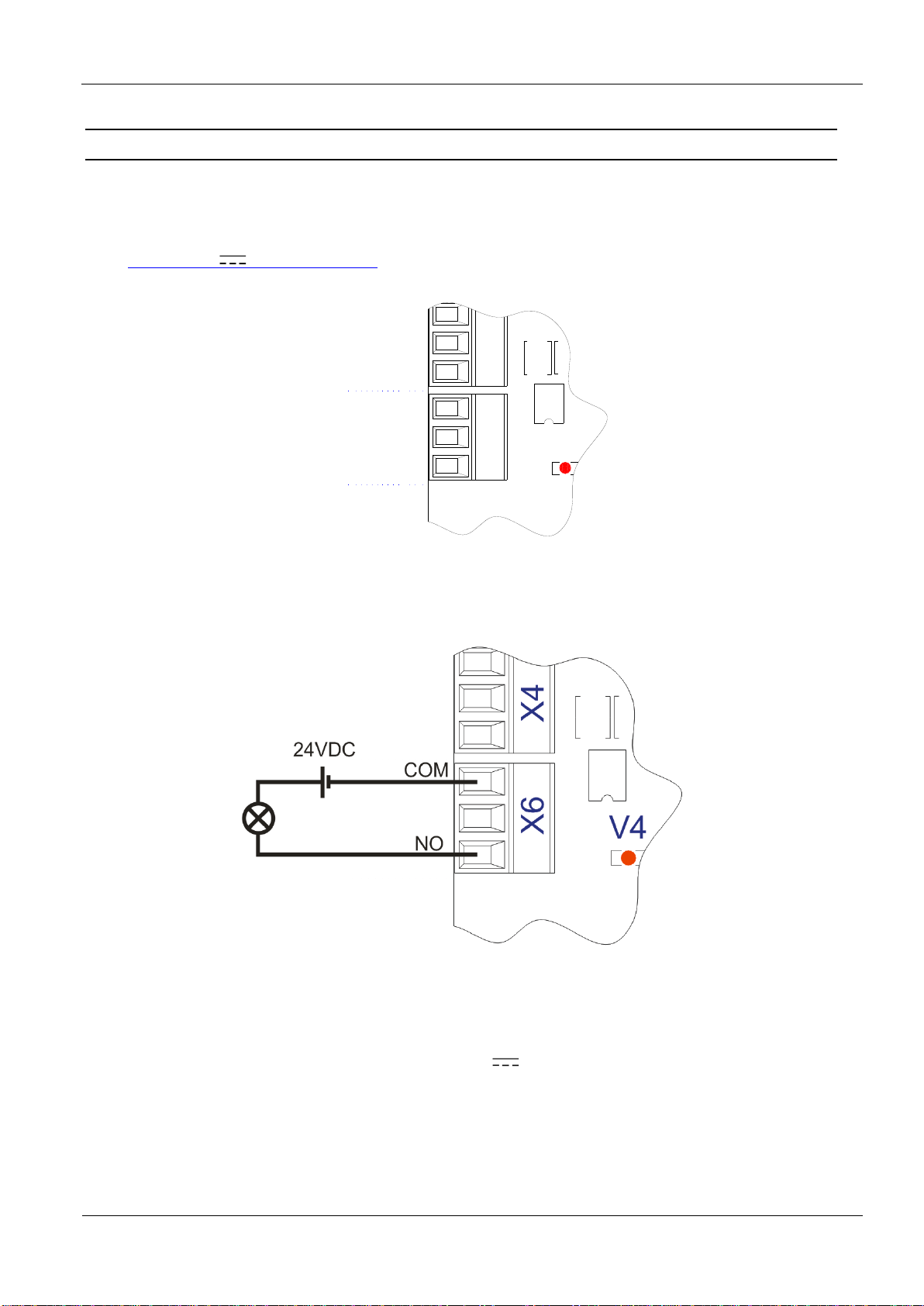

3.3 Relay (X6 / REL1)...................................................................................................... 13
3.3.1 Output 24V (X5 / VIN, GND)...........................................................................14
3.4 Interfaces...................................................................................................................15
3.4.1 RS232-Interface X4................................................................................................15
3.4.2 USB –Interface X11 (Host Communication) ..........................................................16
3.4.3 Ethernet-Interface on X3 (10/100 Base-T)..............................................................17
4Operating and Display Elements 18
4.1 LEDs.......................................................................................................................... 18
5Radio Approvals 19
5.1 Europe (CE)...............................................................................................................19
5.2 USA (FCC) and Canada (IC) ..................................................................................... 20
5.2.1 Label Information Reader Modul ID ISC.LRM1002-E.............................................21
5.2.2 USA (FCC) and Canada (IC) approved antennas...................................................21
6Technical Data 22

Identification
Integration Manual
ID ISC.LRM1002-E
FEIG ELECTRONIC GmbH
Page 4 from 23
M21110-3e-ID-B.docx
1 Safety Instructions / Warning - Read before start-up !
The device may only be used for the purpose intended by the manufacturer.
The operation manual should be kept readily available at all times for each user.
Unauthorized changes and the use of spare parts and additional devices which have not been
sold or recommended by the manufacturer may cause fire, electric shocks or injuries. Such
unauthorized measures shall exclude the manufacturer from any liability.
The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid
for the device. The manufacturer shall not be held legally responsible for inaccuracies, errors,
or omissions in the manual or automatically set parameters for a device or for an incorrect
application of a device.
Repairs may only be undertaken by the manufacturer.
Installation, operation, and maintenance procedures should only be carried out by qualified
personnel.
Use of the device and its installation must be in accordance with national legal requirements
and local electrical codes .
When working on devices the valid safety regulations must be observed.
Before touching the device, the power supply must always be interrupted. Make sure that the
device is without voltage by measuring. The fading of an operation control (LED) is no indicator
for an interrupted power supply or the device being out of voltage!
Special advice for wearers of cardiac pacemakers:
Although this device doesn't exceed the valid limits for electromagnetic fields you should keep
a minimum distance of 25 cm between the device and your cardiac pacemaker and not stay in
the immediate proximity of the device’s antenna for any length of time.

Identification
Integration Manual
ID ISC.LRM1002-E
FEIG ELECTRONIC GmbH
Page 5 from 23
M21110-3e-ID-B.docx
2 Performance Features of Reader Family ID ISC.LRM1002
2.1 Performance Features
The Reader has been developed for reading passive data carriers, so-called „Smart Labels“, using
an operating frequency of 13.56 MHz. For the operation it is necessary to connect a appropriate
external antenna to the connector ANT1.
2.2 Available Reader Types
The following Reader type’s are currently available:
Reader type
Description
ID ISC.LRM1002-E
Module version with RS232 / USB / LAN-Interface
ID ISC.LR1002-E
Housing version with RS232 / USB / LAN-Interface
Table 1: Available Reader types

Identification
Integration Manual
ID ISC.LRM1002-E
FEIG ELECTRONIC GmbH
Page 6 from 23
M21110-3e-ID-B.docx
3 Installation and mounting
3.1 Mounting ID ISC.LRM1002-E
The Reader Module is designed for installation on a heat sink. Mounting is accomplished using the
4.5 mm holes located on the base plate (see: Figure 1).
120 110
ø 4,5 mm*
160
155 80
ø 4,5 mm* ø 4,5 mm*
5
ø 4,5 mm
155
ø 4,5 mm
5
4
29
V3 V2 V1
V4
NO
NC
COM
TxD
RxD
GND
GND
VIN
GND
VIN
IN -
IN +
X1 X5
X4
X6
X11
X3
ANT1

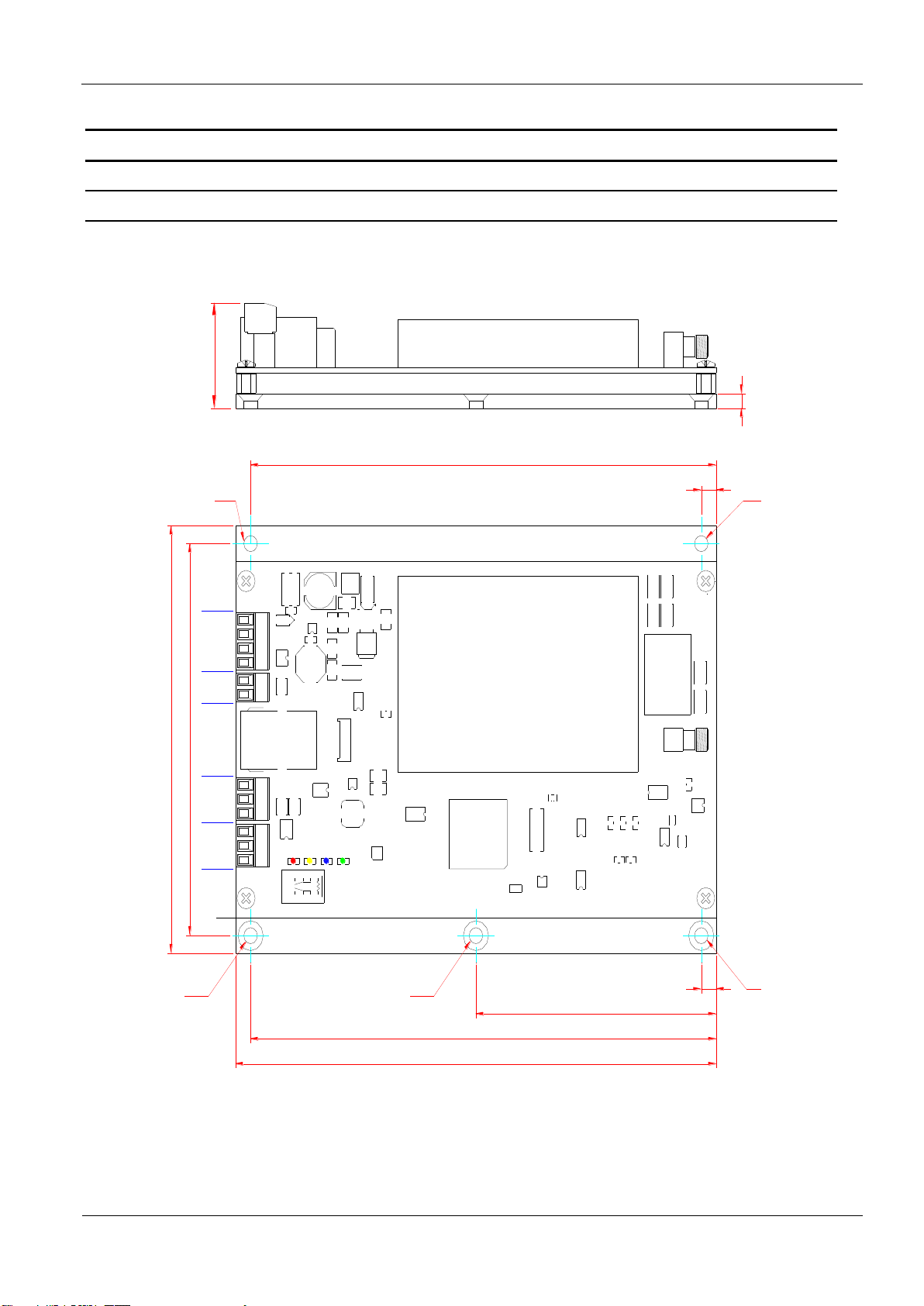

Figure 1: Scale drawing oft the Reader module ID ISC.LRM1002-E with mounting plate

Identification
Integration Manual
ID ISC.LRM1002-E
FEIG ELECTRONIC GmbH
Page 7 from 23
M21110-3e-ID-B.docx
To fully exploit the performance of the Reader Module, the heat sink should have a thermal re-
sistance RThK of max. 2 K/W. When attaching the Reader Module to the heat sink you should strive
for a little heat transfer resistance between the base plate and the heat sink as possible. The use
of heat sink compound is recommended.
If the antenna is properly tuned and there is sufficient air convection along the mounting plate, the
ID ISC.LRM1002-E can be operated without an additional heat sink at up to 2W of power. Note
here however that detuning of the antenna can result in additional heating of the Reader. In such
cases the Reader regulates its output power down until the upper temperature limit of its final stage
fallen down again.
3.2 Terminals

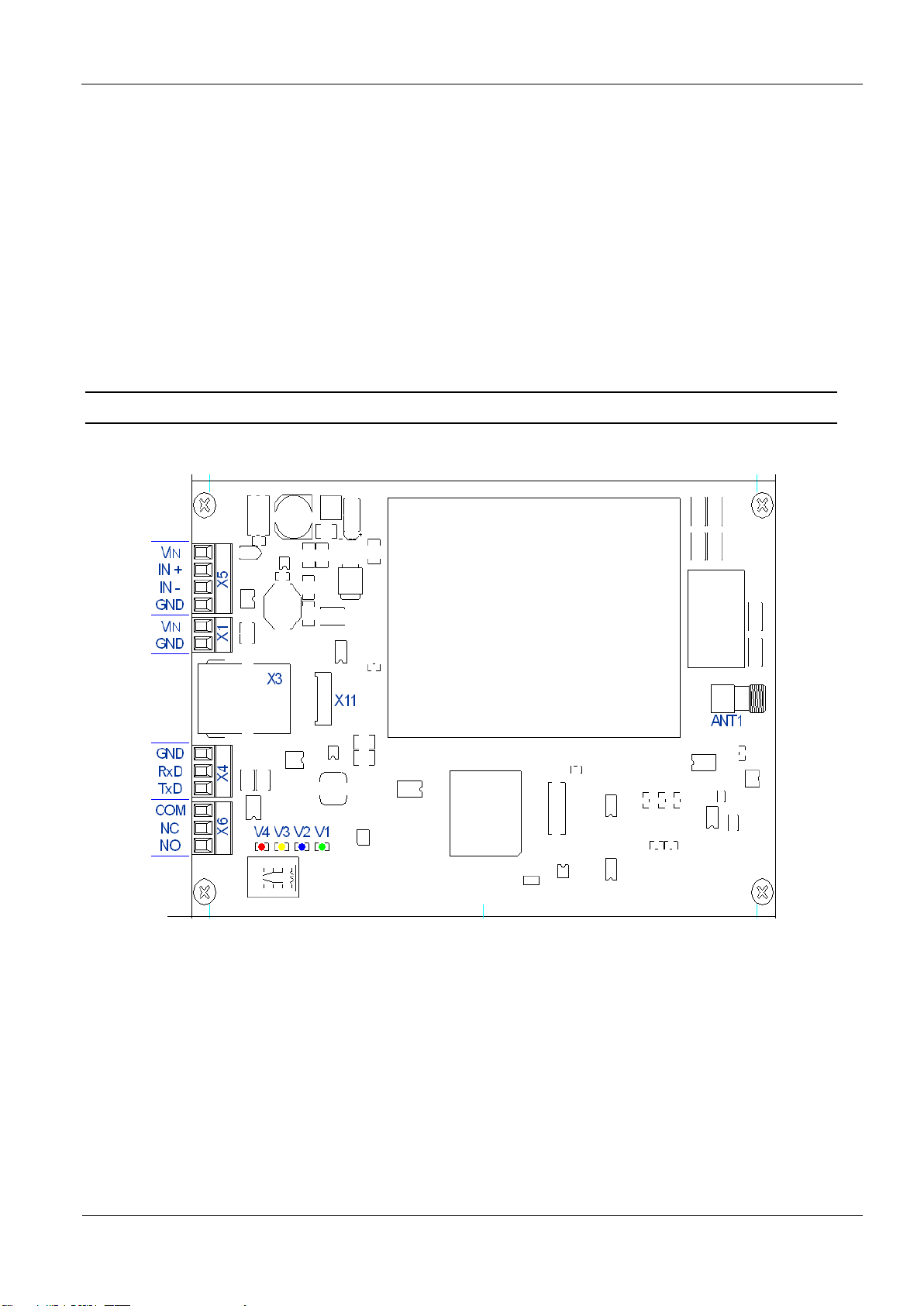

Figure 2 shows the terminals and control elements of the ID ISC.LR(M)1002-E
Figure 2: Reader terminals

Identification
Integration Manual
ID ISC.LRM1002-E
FEIG ELECTRONIC GmbH
Page 8 from 23
M21110-3e-ID-B.docx
3.2.1 Antenna connection
The SMA socket „ANT1“ is located on the circuit board for connecting the antenna to the ID
ISC.LRM1002.
A external LED can also be supplied with 6,5 V through the antenna terminal.
This can be controlled by software. The maximum current draw is then not allowed to exceed
20mA.
The voltage is not sufficient to support the dynamic antenna tuning board ID ISC.DAT
See: Connection of a ID ISC.DAT (Dynamic Antenna Tuning Board)
The maximum tightening torque for the SMA socket is 0.45 Nm (4.0 lbf in).
Attention:
Exceeding the tightening torque will destroy the socket.
Terminal
Description
ANT1
For connecting the antenna
(Input Impedance 50)
Table 2: Antenna jack
The standing wave ratio VSWR for the antenna should not exceed a value of 1,3.
For reaching optimal read ranges the coaxial cables between readers and antenna must
have defined lengths. For all antennas of the company FEIG ELECTRONICS GmbH and
for all antennas which with the tuning boards (e.g. ID ISC.DAT, ID ISC.MAT b and ID
ISC.MAT s) of FEIG ELECTRONICS GmbH is made the optimal length of the coaxial ca-
ble is 1.35 m (Article No. 1654.004.00.00, Name ID ISC.ANT.C-B). See also Mounting
Manual Power Splitter ID ISC.ANT.PS-B and ID ISC.ANT.MUX.
The optimum operating Q factor of the antenna should be in a range of Qoper = 10...30. To
determine the operating Q the antenna must be supplied with a 50 Ohm source such as
a network analyzer or frequency generator.
To prevent external coupled noise, the antenna cable must be fitted with a EMC ferrite
ring core 28 mm x 20 mm. The antenna line must be wound around the ring core for at
least 4 turns. The distance between the Reader termination and the ring core should be
maximum 10 cm (see Figure 3).
When connecting an antenna, ensure that it does not exceed the permissible limits pre-
scribed by the national regulations for radio frequency devices.

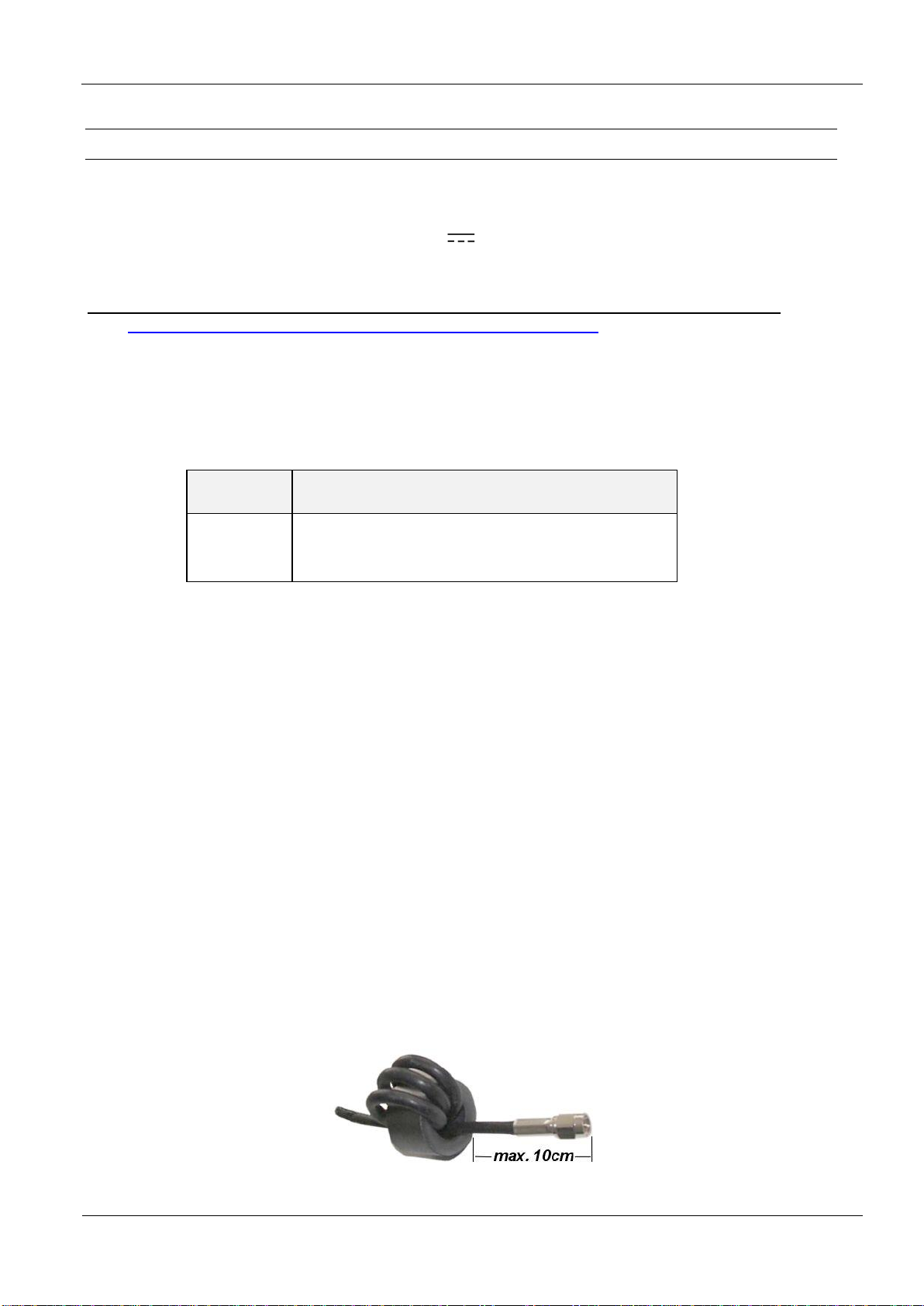

Figure 3: Antenna line with EMC ring cores

Identification
Integration Manual
ID ISC.LRM1002-E
FEIG ELECTRONIC GmbH
Page 9 from 23
M21110-3e-ID-B.docx
3.2.1.1 Connection of a ID ISC.DAT (Dynamic Antenna Tuning Board)
For tuning a ID ISC.DAT tuning board a DC voltage is required. This DC voltage must be provided
via a power splitter (ID ISC.ANT.PS-B) or a antenna multiplexer (ID ISC.ANT.MUX)

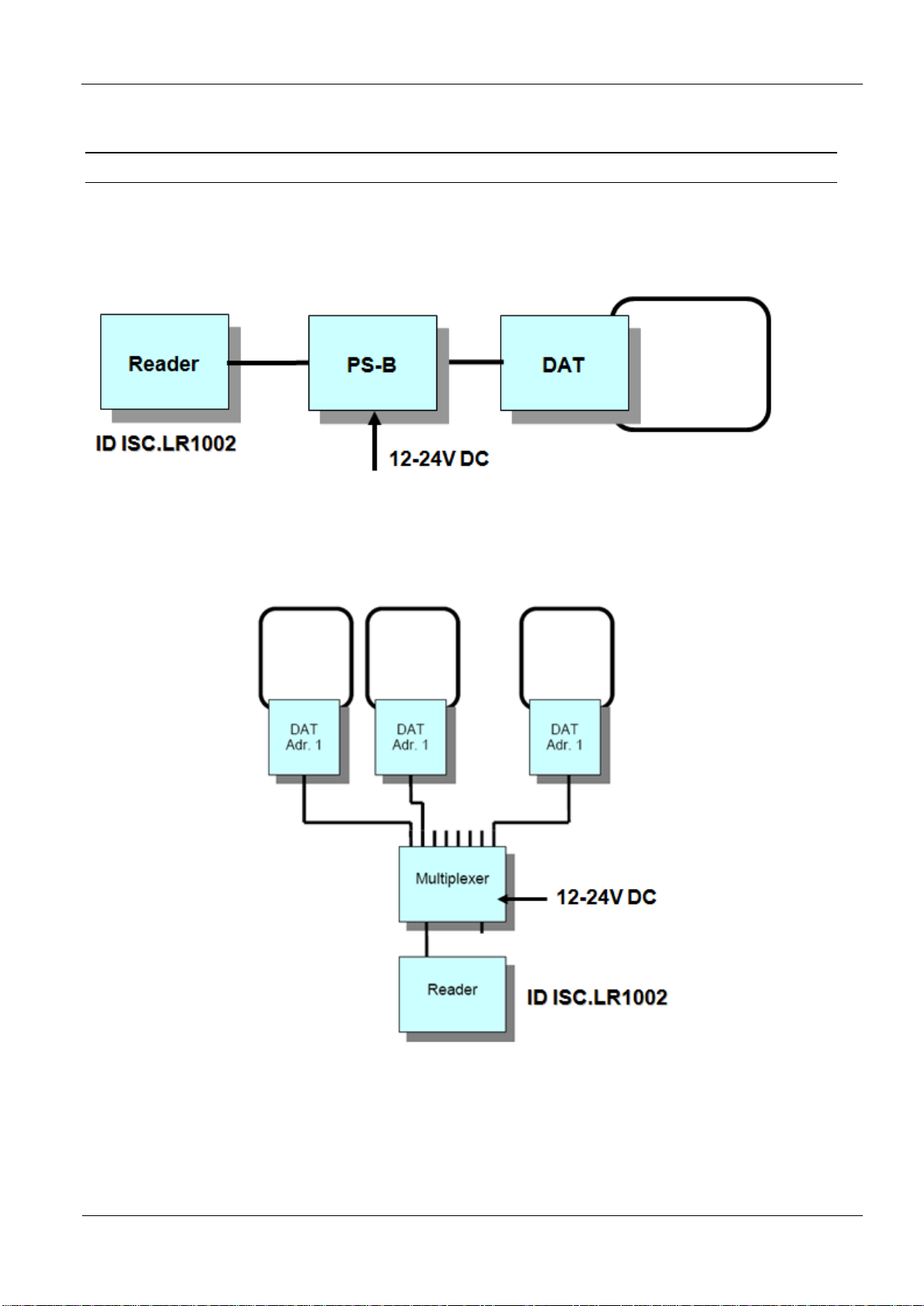

Figure 4 shows the DC supply of the ID ISC.DAT with a power splitter.
Figure 4: DC supply of a ID ISC.DAT using a power splitter ID ISC.ANT-PS-B
Figure 5 shows the DC supply of the ID ISC.DAT with a Antenna Multiplexer.
Figure 5: DC supply of a ID ISC.DAT using a ID ISC.ANT.MUX.

Identification
Integration Manual
ID ISC.LRM1002-E
FEIG ELECTRONIC GmbH
Page 10 from 23
M21110-3e-ID-B.docx
3.2.2 Supply voltage
The reader has to supplied by a limited power supply (e.g. NEC Class 2/LPS power supply) ac-
cording IEC EN 60950, only.
The supply voltage of 24 V is connected to Terminal X1.
Terminal
Abbreviation
Description
X1
VIN
Vcc –supply voltage + 24 V
X1
GND
Ground –supply voltage
Table 3: Pin-outs for supply voltage on X1
GND
VIN
X1 X5

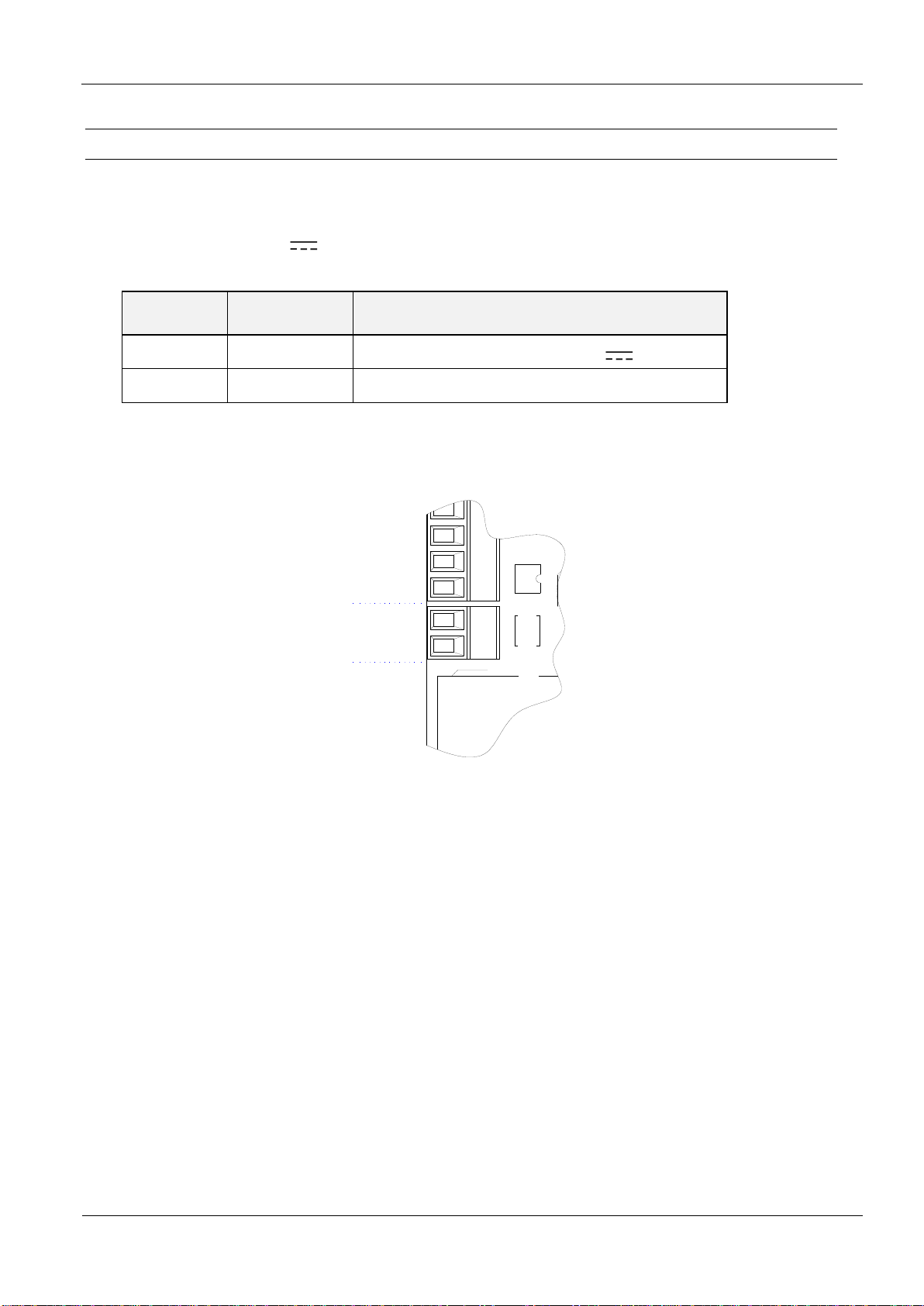

Figure 6: Position oft he connector X1 for the power supply
Note:
Reversing the supply voltage polarity may destroy the device.
For reducing the noise the power supply line can be fitted with one EMC ring cores 28
mm x 20 mm. The power supply line must be wound around the ring core for at least 5
turns. The distance between the Reader termination and the ring core should be maxi-
mum 10 cm.

Identification
Integration Manual
ID ISC.LRM1002-E
FEIG ELECTRONIC GmbH
Page 11 from 23
M21110-3e-ID-B.docx
3.2.3 OptocouplerInputs (X5 / IN1)
The optocoupler input is available on Terminal X5.
GND
VIN
IN -
IN +
X5

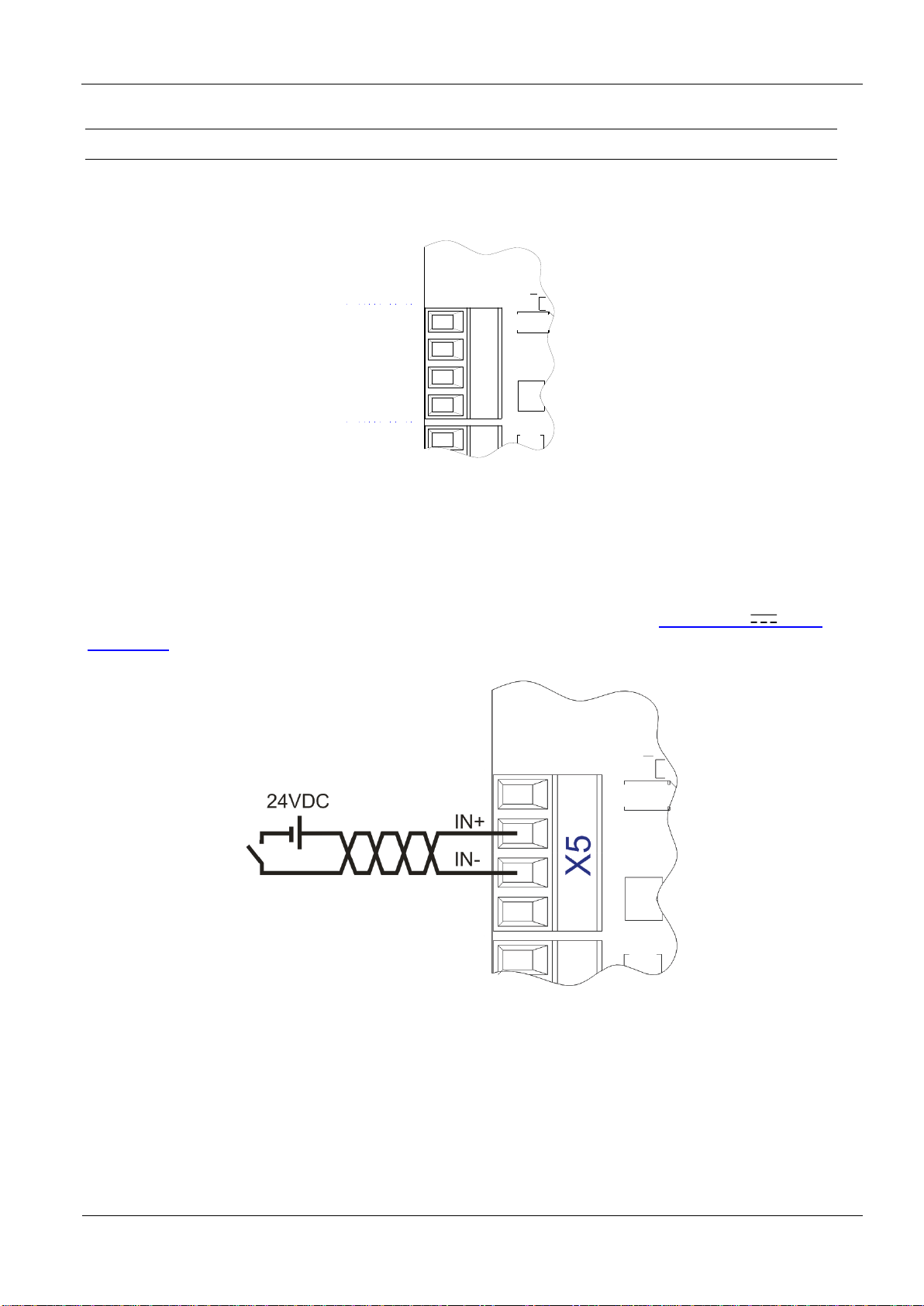

Figure 7: Optocoupler pin-outs on terminal X5
The optocoupler on terminal strips X5 is galvanically isolated from the Reader electronics and
must therefore be powered externally. The external VCC voltage and GND (Ground) may however
be provided by the connector VIN (24VDC) and GND from the reader. See: Output 24V (X5 /
VIN, GND)
Figure 8: External power supply for the optocouplers

Identification
Integration Manual
ID ISC.LRM1002-E
FEIG ELECTRONIC GmbH
Page 12 from 23
M21110-3e-ID-B.docx
Figure 9: Possible internal power supply for the optocouplers
The input LED for the optocoupler is internally connected to a series resistor of 3,74kand is
limited to an input current of max. 6mA.
Note:
The input is configured for a maximum input voltage of 24 V and an input current
of maximum 6mA.
Reversing the polarity or overloading the input can destroy the device.
Using internal and external voltage at the same time can destroy the reader.

Identification
Integration Manual
ID ISC.LRM1002-E
FEIG ELECTRONIC GmbH
Page 13 from 23
M21110-3e-ID-B.docx
3.3 Relay (X6 / REL1)
The relay output has a changeover contact. These outputs, which are located on terminals X6, is
galvanically isolated from the Reader electronics and must therefore be externally supplied. The
external voltage may however be provided by the reader from connector X5 VIN and GND.
See: Output 24V (X5 / VIN, GND)
V4
NO
NC
COM
X4
X6
Figure 10: Relay Outputs on terminal X6
Figure 11: External wiring of the relay output’s with external voltage
Notes:
The relay output is configured for max. 24 V / 1 A.
The relay output is intended for switching resistive loads only. If an inductive load is
connected, the relay contacts must be protected by means of an external protection
circuit.
Using internal and external voltage at the same time can destroy the reader.

Identification
Integration Manual
ID ISC.LRM1002-E
FEIG ELECTRONIC GmbH
Page 14 from 23
M21110-3e-ID-B.docx
3.3.1 Output 24V (X5 / VIN, GND)
The output VIN/GND can be used to power the optional external circuitry of the digital inputs or
relay. The maximum current consumption must not exceed 1A.
GND
VIN
IN -
IN +
X5
Figure 12: Optional 24V external voltage supply
Note:
For the dimensioning oft the power supply the power consumption for the external
output circuitry must be additional considered to the typical reader power consump-
tion.
The internal 24V voltage on X5 is not protected by a fuse.

Identification
Integration Manual
ID ISC.LRM1002-E
FEIG ELECTRONIC GmbH
Page 15 from 23
M21110-3e-ID-B.docx
3.4 Interfaces

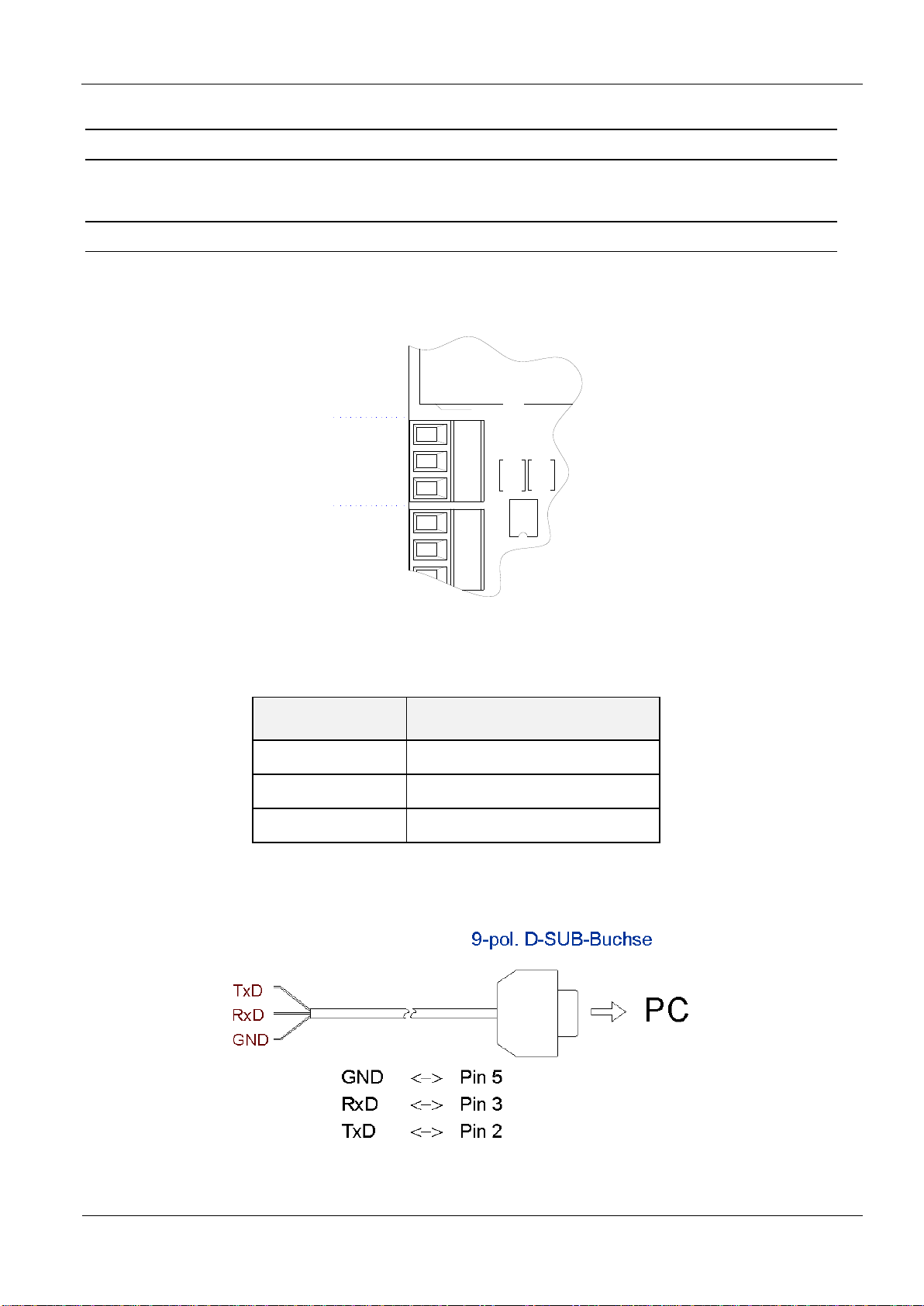

3.4.1 RS232-Interface X4
The RS232 interface is connected on X4. The transmission parameters can be configured by
means of software protocol.
TxD
RxD
GND
X4
X6
Figure 13: RS232 interface pin-outs on X4
Kurzzeichen
Description
TxD
RS232 –(Transmit)
RxD
RS232 –(Receive)
GND
RS232 –(Ground)
Table 4: Pin assignment of the RS232-Interface
Figure 14: Wiring example for connecting the RS232 interface

Identification
Integration Manual
ID ISC.LRM1002-E
FEIG ELECTRONIC GmbH
Page 16 from 23
M21110-3e-ID-B.docx

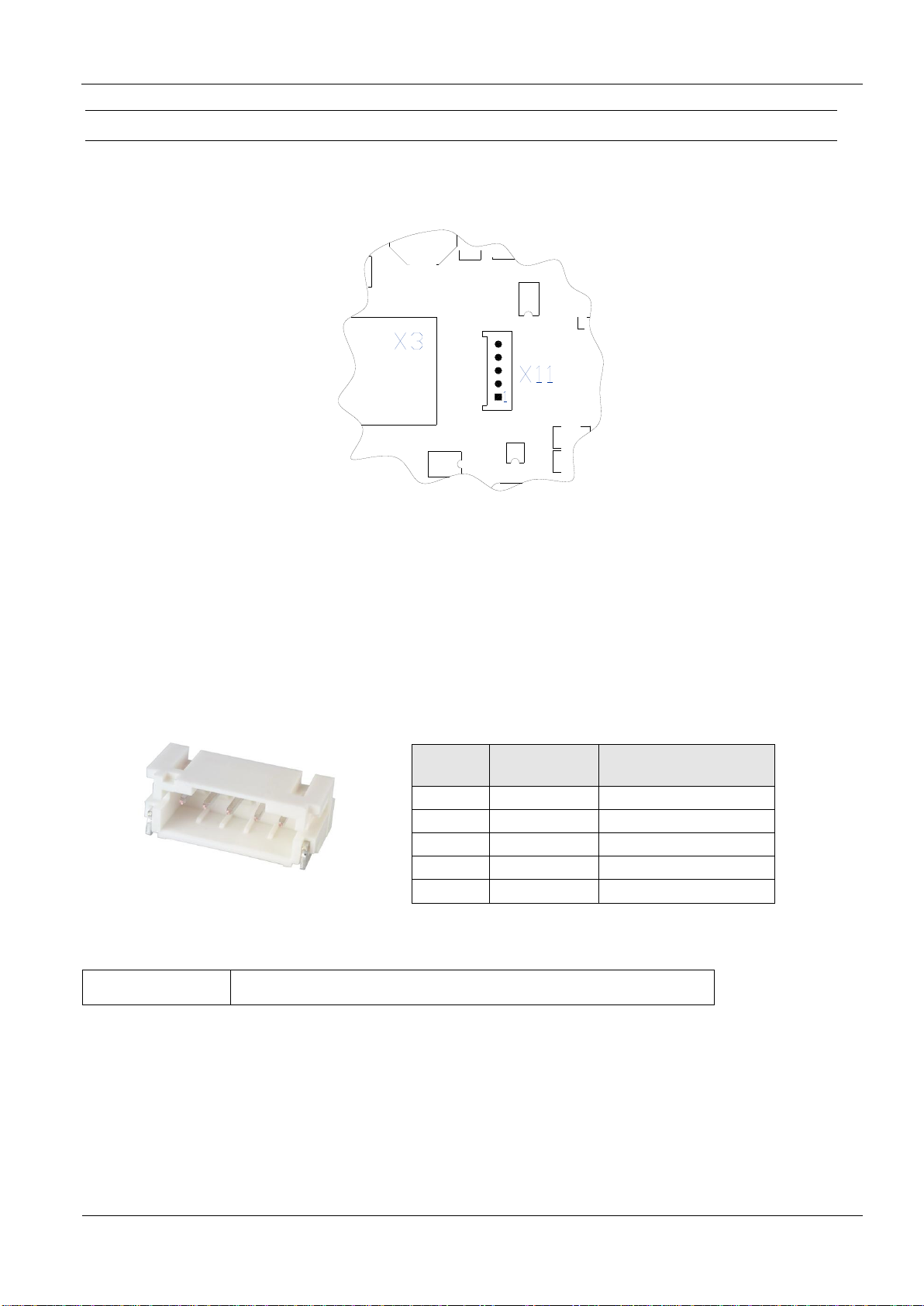

3.4.2 USB –Interface X11 (Host Communication)
The USB socket on the board is terminal X11. The data rate is reduced to 12 Mbit (USB full
speed). A standard USB-cable can be used.
The Figure 16 and table shows the connection of connector X11 (5pol.) type “JST PH” RM 2 mm
(vertical).
X2
Pin-No.
1
Shielding
USB cable - shielding
2
GND
3
USB-D PLUS
4
USB-D MINUS
5
VCC
+ 5 V DC 5 %
Optional the following USB cable can be ordered:
3541.000.00
ID CAB.USB-B Cable for Interface USB/JST PH
Note:
The length of the USB-cable can be a max. of 5m (200 inch). It is not allowed to use longer
cables.
Figure 15: USB-Interface for host communication
Figure 16: Connector „JST PH“

Identification
Integration Manual
ID ISC.LRM1002-E
FEIG ELECTRONIC GmbH
Page 17 from 23
M21110-3e-ID-B.docx
3.4.3 Ethernet-Interface on X3 (10/100 Base-T)
The Reader has an integrated 10 / 100 Base-T network port for an RJ-45. Connection is made on
X3 and has an automatic “Crossover Detection” according to the 1000 Base-T Standard.
The prerequisite for using TCP/IP protocol is that each device has a unique address on the net-
work. All Readers have a factory set IP address.
Network
Address
IP-Adresse
192.168.10.10
Subnet-Mask
255.255.255.0
Port
10001
DHCP
OFF
Table 5 Standard factory configuration of the Ethernet connection
Note:
The Reader TCP/IP interface has a DHCP option.
With structured cabling STP CAT 5 cables must be used. This ensures a reliable op-
eration at 10 Mbps or 100 Mbps.
X3
Figure 17: LAN interface for host communication

Identification
Integration Manual
ID ISC.LRM1002-E
FEIG ELECTRONIC GmbH
Page 18 from 23
M21110-3e-ID-B.docx
4 Operating and Display Elements
4.1 LEDs
Table 6 shows the LED configuration.
Abbreviation
Description
LED V1 (green)
"RUN-LED 1"
-Indicates proper running of the internal Reader software (DSP)
-Comes on during Reader initialization after power-on or after a
reset.
LED V2 (blue)
Diagnostic 1: RF communication / EEPROM status
-Short flashing indicates errorless communication with a
transponder on the RF interface
-Flashes alternately with V1 after a reset following a software
update
-Flashes alternately with V1 in case of a data error when
reading the parameters after a reset
LED V3 (yellow)
Diagnostic 2: Host communication
- Short flashing indicates sending of a protocol to the host on the
RS232/USB and LAN-Interface
LED V4 (red)
Diagnostic 4: RF warning
-Comes on when there is an error in the RF section of the
Reader. The error type can be read out via software over the
RS232/USB and LAN-Interface
Table 6: LED configuration

Identification
Integration Manual
ID ISC.LRM1002-E
FEIG ELECTRONIC GmbH
Page 19 from 23
M21110-3e-ID-B.docx
5 Radio Approvals
5.1 Europe (CE)
Hereby, FEIG ELECTRONIC GmbH declares that the radio equipment type ID ISC.LRM1002-E is
in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
http://www.feig.de/en/downloads-support/declarations-of-conformity.html
Performance Classification according to ETSI EN 301 489: Class 2

Identification
Integration Manual
ID ISC.LRM1002-E
FEIG ELECTRONIC GmbH
Page 20 from 23
M21110-3e-ID-B.docx
5.2 USA (FCC) and Canada (IC)
Product name:
ID ISC.LRM1002-E
Reader name:
ID ISC.LRM1002-E
FCC ID:
IC:
PJMLRM1002
6633A-LRM1002
Notice for USA and
Canada
This device complies with Part 15 of the FCC Rules and with
RSS-210 of Industry Canada.
Operation is subject to the following two conditions.
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Unauthorized modifications may void the authority granted under
Federal communications Commission Rules permitting the operation
of this device.
This equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Le présent appareil est conforme aux CNR d'Industrie Canada appli-
cables aux appareils radio exempts de licence. L'exploitation est auto-
risée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le fonc-
tionnement.
Warning: Changes or modification made to this equipment not expressly approved by
FEIG ELECTRONIC GmbH may void the FCC authorization to operate this equipment.
Installation with FCC / IC Approval:
FCC-/IC-NOTICE: To comply with FCC Part 15 Rules in the United States / with IC Radio Stand-
ards in Canada, the system must be professionally installed to ensure compliance with the Part 15
certification / IC certification. It is the responsibility of the operator and professional installer to en-
sure that only certified systems are deployed in the United States / Canada.
