Illumra E9T-OBP User manual
The ILLUMRA®PIR Motion Sensor detects motion and links directly to controllers such as the
ILLUMRA®LED Dimmer, ILLUMRA®ON/OFF Controllers, etc. The ILLUMRA®PIR Motion Sensor
offers hands-free convenience by turning lights On when entering closets, bathrooms, and
other areas and saves energy by automatically turning lights OFF after an adjustable timeout
when no motion is detected. An integrated light sensor can be congured to keep lights off
when natural light is available.

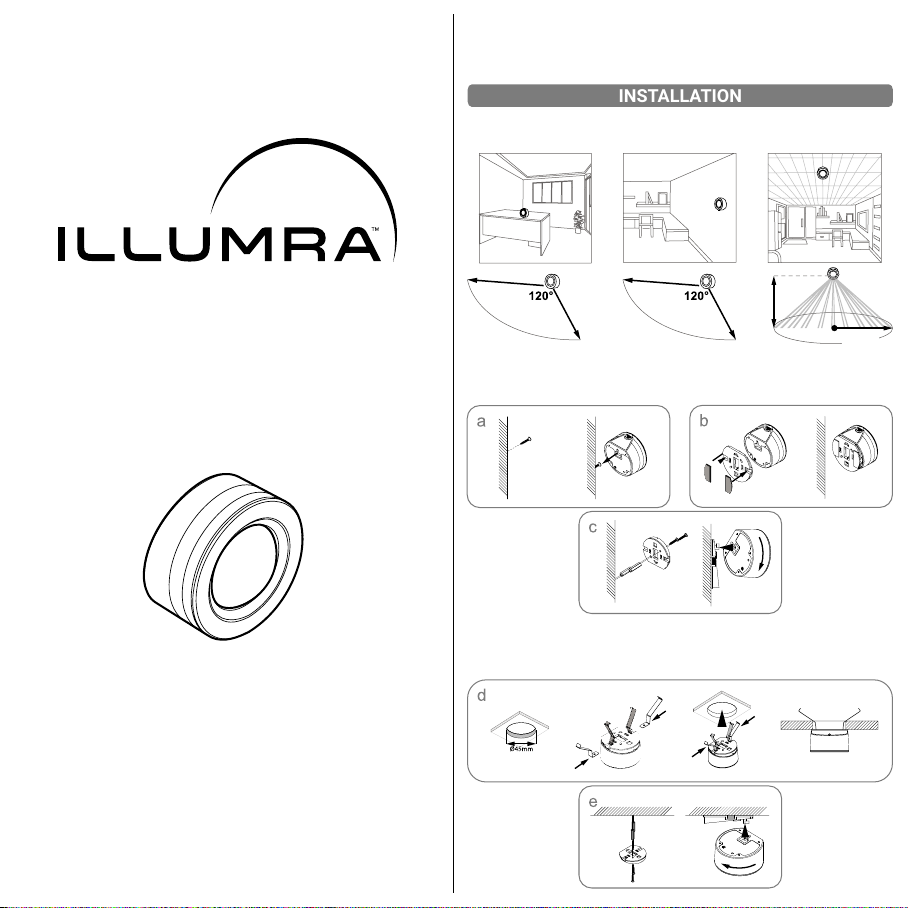

INSTALLATION
Thanks to its shape and the included accessories, you can install your PIR Motion Sensor
anywhere in your house.
On your desk On your wall On your ceiling
ON YOUR WALL
aUse a screw to hang your sensor on the wall.
b Stick your sensor on the wall with the double sided tape.
c Screw the support on the wall to mount your sensor on it.
ON YOUR CEILING
dDrill a 45mm diameter hole in thin ceiling to insert the included fastening hooks and mount
the support in them.
e Mount your sensor into the support.
Part Number: E9T-OBP
Power supply: battery CR123A 3V
Lifetime: 5 years
Radio frequency: 902 MHz
RF power Max: +3dBm
Wireless range: Up to 30 meters
Detection range: Up to 5 meters
Lux sensing: 0 to 1000Lux
Operational temperature: -10°C / 45°C
EEP (Prol EnOcean®): A5-07-03
Dimensions: 65 mm (l) x 65 mm (L) x 39 mm (h)
Weight: 54 g
Warranty: 2 years
USER GUIDE
PIR - MOTION SENSOR
3m
(10ft)
5m (16ft) 5m (16ft)
5m
(16ft)
5m
(16ft)
2.3m
(8ft)
REPLACING THE BATTERY
In order to replace the battery, open the product following the below instructions.
Please, make sure you don’t touch the sensing part located in the middle of the circuit board.
SETTINGS
The ILLUMRA PIR Motion Sensor has several user selectable options.
WALK TEST MODE
When the product is powered-up for the rst time (of after removing the battery), the sensor enters
into «Walk Test Mode». During 3 minutes, the LED will ash every time a motion is detected.
Use this feature to nd the perfect location, and its efciency, for your sensor.
LIGHT SENSITIVITY
The ILLUMRA®PIR Motion Sensor embeds an
ambient light sensor, allowing to only detect
movement under a luminosity level:
If the ambient light is below the limit dened by
the potentiometer, an ON or OFF frame will be
sent when motion is detected. The feature can
be deactivated by placing the potentiometer on
position OFF.
Default position: OFF.
PAIRING PROCEDURE
The ILLUMRA PIR Motion Sensor links directly
with receivers such as the ILLUMRA LED Dimmer,
ILLUMRA On/Off controlers, gateways, etc. and
transmits occupied signals upon motion detection
and un-occupied signals after a period of no
motion.
AUTO OFF-TIME SETTING
When linked to a compatible receiver, the ILLUMRA® PIR Motion Sensor is capable of switching
the receiver ON when Motion is detected and OFF after a timeout with no motion detected.
Please note that the auto-off timer is reset every time motion is detected.
To adjust the Auto-Off Time, long press on the « Pairing » button for 3 seconds until the LED
indicator illuminates the lens to indicate the sensor is in the « Setting Mode ».
While in the « Setting Mode », press the button to cycle to the desired Auto-Off Time.
With each press, the LED will blink a certain number of blinks to conrm the current setting
(See table below for details)
Auto off-time 30sec 5min 15min 30min
Number of press after
glowing
1st
press
2nd
press
3rd
press
4th
press
LED blinks 1 2 3 4
« Setting » Mode will automatically exit and the setting saved, after no action on the button for
5sec. By default, the Auto-Off time is set on 30sec.
Best Practice
In a hallway, or location place where people spend less time, set up the Auto-Off time to a small
value, to automatically switch OFF the light as fast as possible (and save energy).
In a meeting room or location where people will be present with less motion, set up the Auto-
Off time to a longer value, to avoid the light switching OFF while the room is still occupied.
After the Auto-Off timer elapses with no motion detected, the light will automatically turn OFF.
LOW BATTERY INDICATOR
The LED will ash twice every 10sec when the battery need to be replaced.
HEARTBEAT SETTING
The Heartbeat is an automatically triggered frame, and is sent every 30min. It contains
information from the sensor, such as current Lux level, battery level and current sensor state
(Movement / No Movement). By default the Heartbeat is activated.
To deactivate (or activate) the Heartbeat, press 3 times on the « Pairing » button.
If the LED glows 1 time, the Heartbeat will be set OFF.
If the LED glows 2 times, the Heartbeat will be set ON.
If you want to change this parameter, press again 3 times on the « Pairing » button.
PICTOGRAM
CONTACT
AFTER SALES
Manufacturer & Importer :
ILLUMRA
Lindon, UT 84042
Made in China
www.ILLUMRA.com
ID:WWWWWWWW
FCC ID:2A6NW-E9T-OBP
SN- 8888888888888
Part Number:E9T-OBP
Radio frequency:902 MHz
RF power Max: +3dBm
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Note: The Grantee is not responsible for any changes or modications not expressly
approved by the party responsible focompliance. such modications could void the user’s
authority to operate the equipment.
The device has been evaluated to meet general RF exposure requirement.
To maintain compliance with FCC’s RF exposure guidelines, the distance must be at
least 20 cm between the radiator and your body, and fully supported by the operating and
installation congurations of the transmitter and its antenna(s).
This product must be used indoor only.
When sorting your waste, please observe the disposal regulations in force. Please place
your waste in the facilities provided for that purpose and with all due respect for the
environment.
This product is compliant with EnOcean® radio protocol.
E9T-OBP_UG-V1_2_c
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
