ILVE PRO-LINE Manual

EN
cod. EI33960020000EN
18/2018
PRO-LINE
GAS COOKTOP & ELECTRIC OVEN
FREESTANDING COOKERS OPERATING
& INSTALLATION MANUAL

Although we encourage you to dive right in, as the owner of a brand new ILVE oven we’d also
like to invite you to attend a complimentary 2 hour masterclass. As part of the class you’ll
learn how to prepare and cook a number of delicious signature ILVE dishes, not to mention
our top tips for getting the most out of your ILVE oven. From improving cooking results to
general maintenance information, we know you’ll enjoy this comprehensive, fun masterclass.
Simply go to ilve.com.au/bookings or Phone 1300 MY ILVE (694 583)
YOUR FREE MASTERCLASS
ilve.com.au
Congratulations, you are now the proud owner of an ILVE cooking appliance. Thank you for
purchasing ILVE and welcome to the exciting world of cooking the ILVE way.
This instruction manual has been specially created to inform you of the full range of features your
ILVE appliance has to offer and serves as an introduction to the wonderful benefits of ILVE’s dynamic
cooking systems.
We present detailed information on each of the advanced cooking systems built into ILVE appliances.
Once you have read this section you will be able to choose the most appropriate settings for your
appliance when cooking different types of food.
We ask you to read the instructions in this booklet very carefully as this will allow you to get the best
results from using your appliance.
KEEP THE DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE.

OPEN 24/7
ILVE ACCESSORIES ONLINE SHOP
For a wide range of Genuine ILVE accessories at the
click of a button shop.ilve.com.au

iWarranty

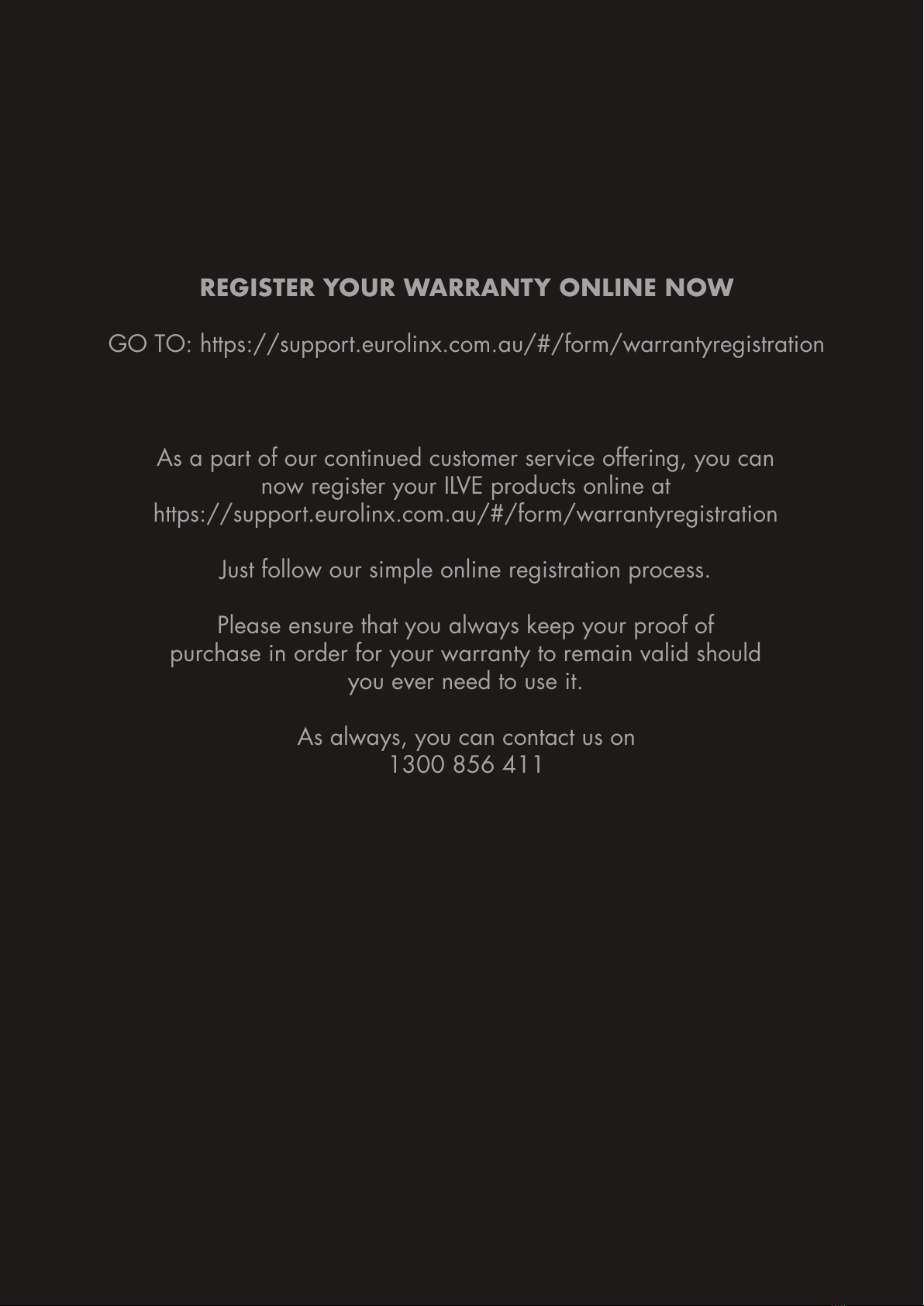

REGISTER YOUR WARRANTY ONLINE NOW
GO TO: https://support.eurolinx.com.au/#/form/warrantyregistration
As a part of our continued customer service offering, you can
now register your ILVE products online at
https://support.eurolinx.com.au/#/form/warrantyregistration
Just follow our simple online registration process.
Please ensure that you always keep your proof of
purchase in order for your warranty to remain valid should
you ever need to use it.
As always, you can contact us on
1300 856 411

7
USER GUIDE
CONTENTS
IMPORTANT SAFETY WARNINGS
First operation of the oven
INSTRUCTIONS FOR USE
Using the hob
Use of a steak grill
Proper use of burners
Use of the gas fry-top
Electric Multifunction Oven
Optional
CLEANING AND MAINTENANCE
Bulb replacement
Removing the door
Door cleaning and Glasses
Tips for cleaning the hob
Tips for cleaning the oven and front panel
Recommendations for cleaning the cooktop
PROBLEM SOLVING
General problems
COOKING CHART
Ventilated convection oven
Static oven
4
14
15
15
17
18
19
20
22
23
24
24
25
26
27
28
28
29
30
30
32
USER GUIDE
INFORMATION - To be reminded to the user
INSTALLATION
Installation of the cooker
Room ventilation
Positioning of the appliance between furniture
How to install the xing bracket
ELECTRICAL CONNECTIONS
Groups of cooking
GAS CONNECTIONS
By the Qualied installer
ADJUSTMENT
Replacement of the injectors for models
Kitchen table PRO LINE
Adjustments minimun GAS ow
WIRING DIAGRAM
Key
NOTES
32
33
33
33
34
35
36
36
37
37
38
38
39
40
41
42
43
INSTALLATION

8
IMPORTANT SAFETY WARNINGS
As well as being shown on the packaging, the data plate is
applied to the oven door frame and is visible with the door
open.
These warnings refer to different types of appliances. Pay
attention in properly identifying the type you own (see the
data plate).
These warnings are valid for the countries mentioned in the
plate.
Before using the cooker, read the instructions booklet
carefully. This contains very important information
concerning safety during installation, use and maintenance.
The instructions booklet must be kept with care for later
consultation.
The electrical safety of this cooker is guaranteed only if it is
correctly grounded as required by the regulations. It is
fundamental to ensure that these regulations have been
respected; if you are in doubt, contact a skilled technician to
have the electric system accurately checked.
The manufacturer is not responsible for damage caused by a
bad grounding system.
Before powering the appliance, check that the
technical features shown on the data plate match those
of the electrical system perfectly. Installation / regulation
must be carried out by qualied personnel.
Make sure that air around the appliance can circulate
freely. This appliance is not connected to an evacuation
device for the combustion products, therefore the ven
tilation of the room must be analysed carefully and
according to the rules in force.
Appliance data
CAUTION
1
3
4
2

9
USER GUIDE
IMPORTANT SAFETY WARNINGS
When using a gas appliance, heat and dampness are
generated inside the premise. A good aeration of the kitchen
must be guaranteed by keeping the natural aeration vents
open or by installing a mechanical aeration device (hood). An
intensive and prolonged utilization of the appliance may result
in the need of supplementary aeration, such as opening a
window or increasing the power of the hood (if present).
The alimentation cable is supplied without a plug.
To connect it please refer to the paragraph
“electric connection”. It is recommended to not use adapters,
multiple-outlet plugs or extensions.
When the appliance is not in use for a prolonged time,
disconnect the electric power, switch off the main switch and
turn off the gas.
Do not block ventilation or heat dissipation slits.
If the alimentation cable is damaged it must be replaced
exclusively by a service center approved by the manufacturer.
The appliance must be used only for the purposes for which it
was intended. Any other use (for example, heating a room) is
incorrect and therefore dangerous. The manufacturer
declines all responsibilities for damage caused by similar
incorrect uses.
The appliance is not destined to be activated by means of
anexternal timer or a remote control.
5
6
7
8
10
11
9
CAUTION
continued...

10
The use of any electrical appliances requires that a
number of fundamental rules must be respected:
Never touch the appliance when you have wet or
damp hands or feet;
Never use the appliance barefoot;
Avoid using extensions;
Never pull the electric cable to remove it from the
power socket;
Do not expose the appliance to atmospheric
agents(rain, sun, etc...);
Be careful: accessible parts can become very hot
during the use.
Keep children less than 8 years old far from the
cooker if it is not continuously watched. This
appliance may be used by children of 8 years of age
or older, by people with reduced physical, sensory or
mental abilities, or with lack of experience and
knowledge only if they are under adequate
surveillance or if they have been adequately
instructed about the use of the cooker and if they are
aware of the possible dangers. Children must not
play with the cooker. The operations of cleaning and
of maintenance must not be made by children
without surveillance.
CAUTION: During the utilization of the appliance some
parts may become very hot. Keep out of reach of
children.
Absolutely do not touch the elements inside the oven
during the utilization.
12
A.
B.
C.
D.
E.
F.
14
13
IMPORTANT SAFETY WARNINGS
