ILVE T11 IVCC900X-20140811 Configuration guide

Range Hoods
General Manual

IMPORTANT SAFETY INFORMATION
**Read the complete manual carefully before installation**
Intended for Domestic Kitchen Use Only
Warnings:
TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR PERSONAL INJURY, PLEASE
OBSERVE THE FOL-LOWING:
1. Installation and electrical work must be done by a qualified person in accordance
with all ap-plicable codes and standards
2. If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or a similarly qualified person to avoid a hazard. Any modifications that may be
required to the electrical system for the installation of the range hood must only be
made by qualified electri-cians.
3. Before servicing or cleaning unit, switch power off at the service panel. Lock panel
to prevent power from being switched on accidentally.
4. Use this unit only in the manner intended by the manufacturer.
5. When cutting or drilling into wall or ceiling, be carefully to do not damage existing
electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. This unit must be grounded.

CAUTION
1. To reduce the risk of fire and to properly exhaust air, be sure to duct air outside.
Do not vent exhaust air into spaces within walls or ceiling or into attics, crawl spaces or
garages.
2. Take care when using cleaning agents or detergents.
3. Avoid using food products that produce flames under the range hood.
4. The range hood must only be used for the exhaust of cooking fumes in home
kitchens. The manufacturer disclaims all liability for any other use of the appliance.
5. Two installers are recommended because of the large size and weight of this
hood.
6. Use with approved cord-connection kit only.
7. Please read specification label on product for further information and
requirements.
8. Do not flambe under the range hood.

INSTALLATION INSTRUCTIONS
Before You Start...
1. Read this manual carefully and completely.
2. The range hoods conform to related appliances standards. Please check
your local building codes for any additional requirements.
3. The appliance has been manufactured as class I, there-fore ground
connection is necessary. The range hood must be installed so that that the plug
is easily accessible.

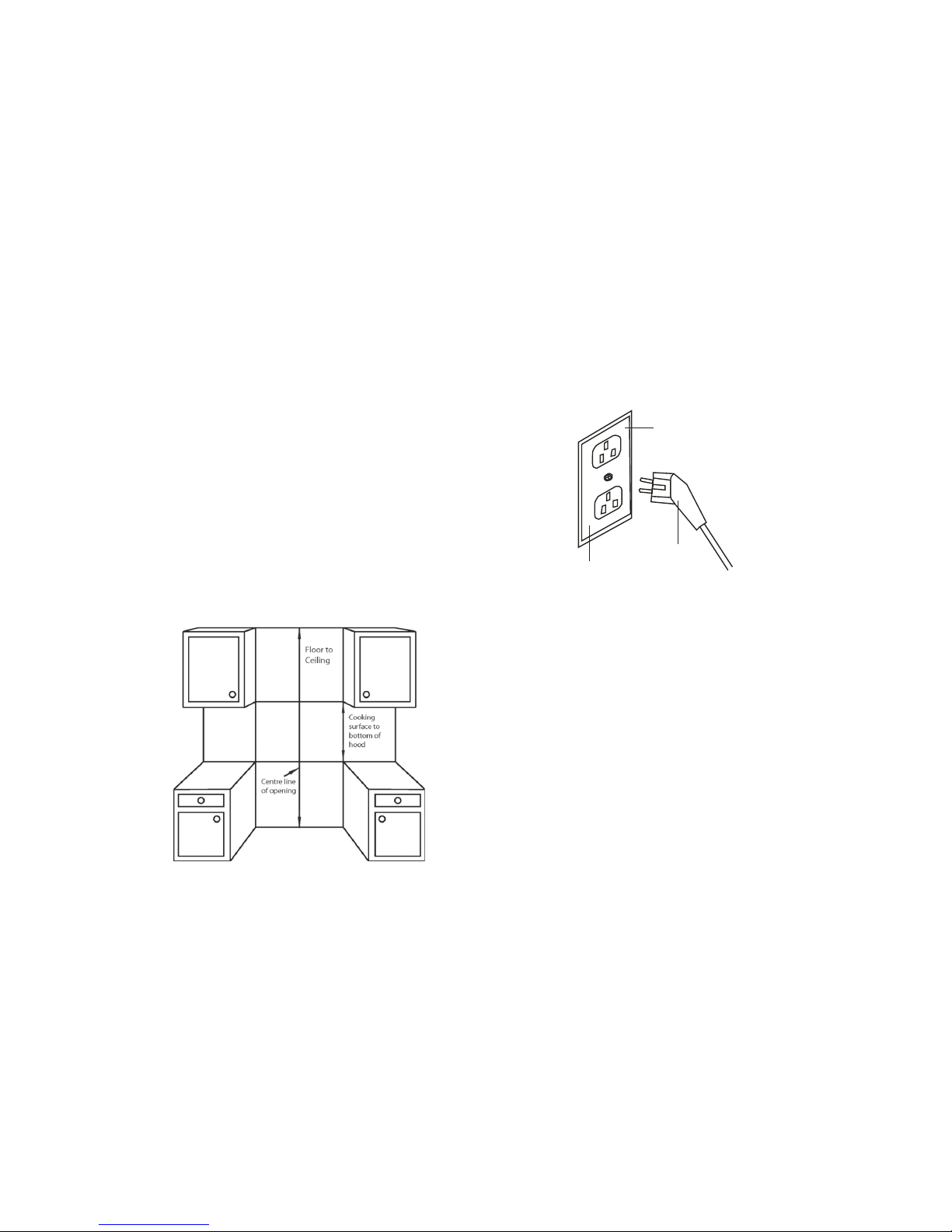

1. Measure the floor to ceiling height. This
hood can be installed on walls between 8”
and 9” tall.
2. Find the centre point of your opening.
Mark a plumb line through this point from
ceiling to your range/cook-top.
3. Check your range/cook-top User Manual
for the minimum distance above your
cooking surface. The minimum distance
between any element or flame height and the
nearest combustible surface is 61cm (24”).
4. Decided where the ductwork will run
between the hood and the outside. Short,
straight duct runs will provide the most air
flow.
5. If a recalculating kit is necessary, you may
purchase one through your dealer.
Unpacking
Remove the packaging with the product in place. Cut off the packing ribbons and
carefully cut open the packaging (do not cut too deeply), remove the packaging.
Check that the product is free from transport damage. Any damage shall be reported
imme-diately to the carrier or seller. Damage, faults and missing parts must be
reported immediately to the seller.
Planning Your Installation

Installing the Ductwork

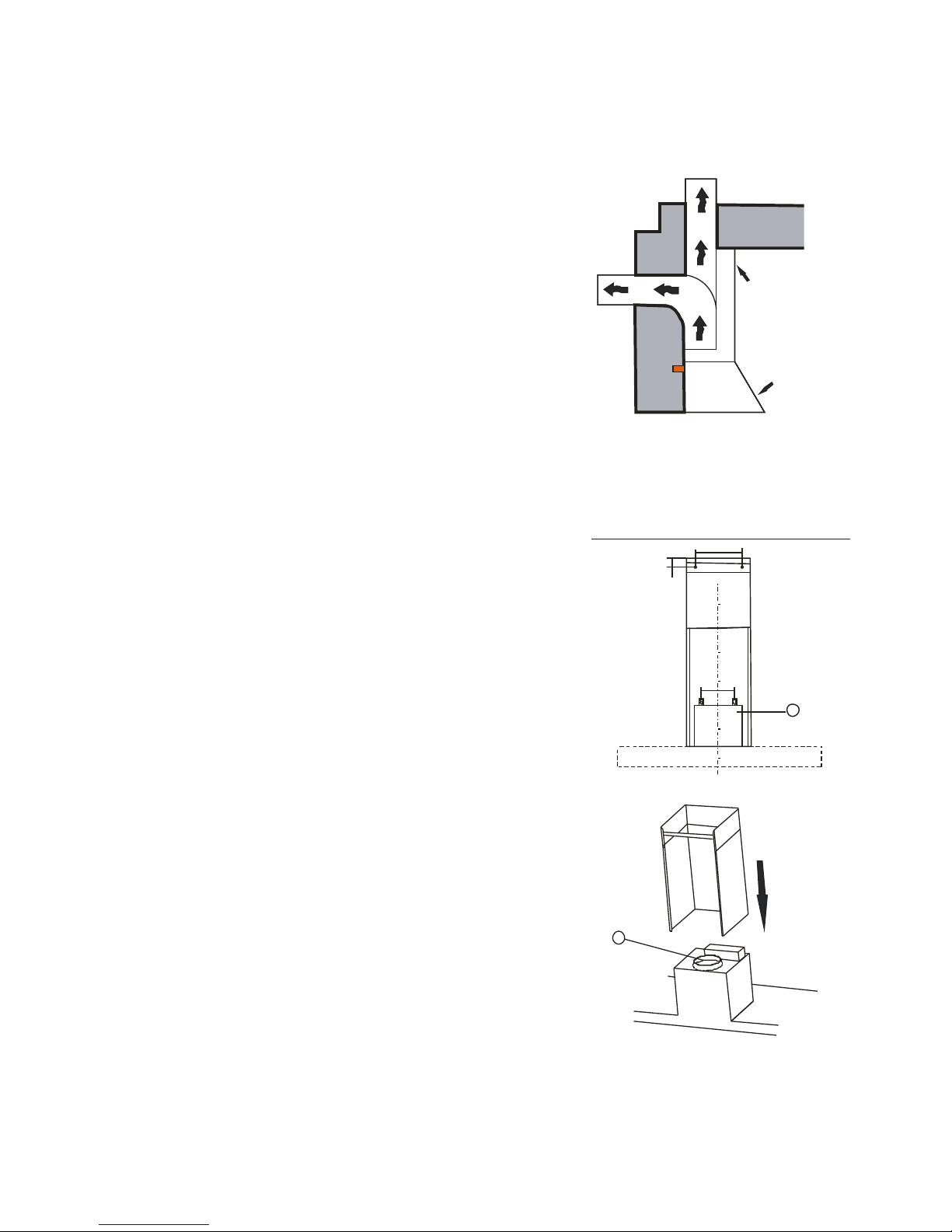

1. Plan where the ductwork will run between the hood
and the outside. The hoods exhaust vertically but can
be ducted to the rear behind the chimney duct
through an outside wall or vertically up through the
ceiling to the roof. A short straight duct run will
produce the most air flow. Length and elbows will
reduce the efficiency of the blower.
2. Install a roof or wall cap. Connect a 6” round metal
duct to the cap and work backwards toward the hood.
Ensure joints are completely sealed with duct tape.

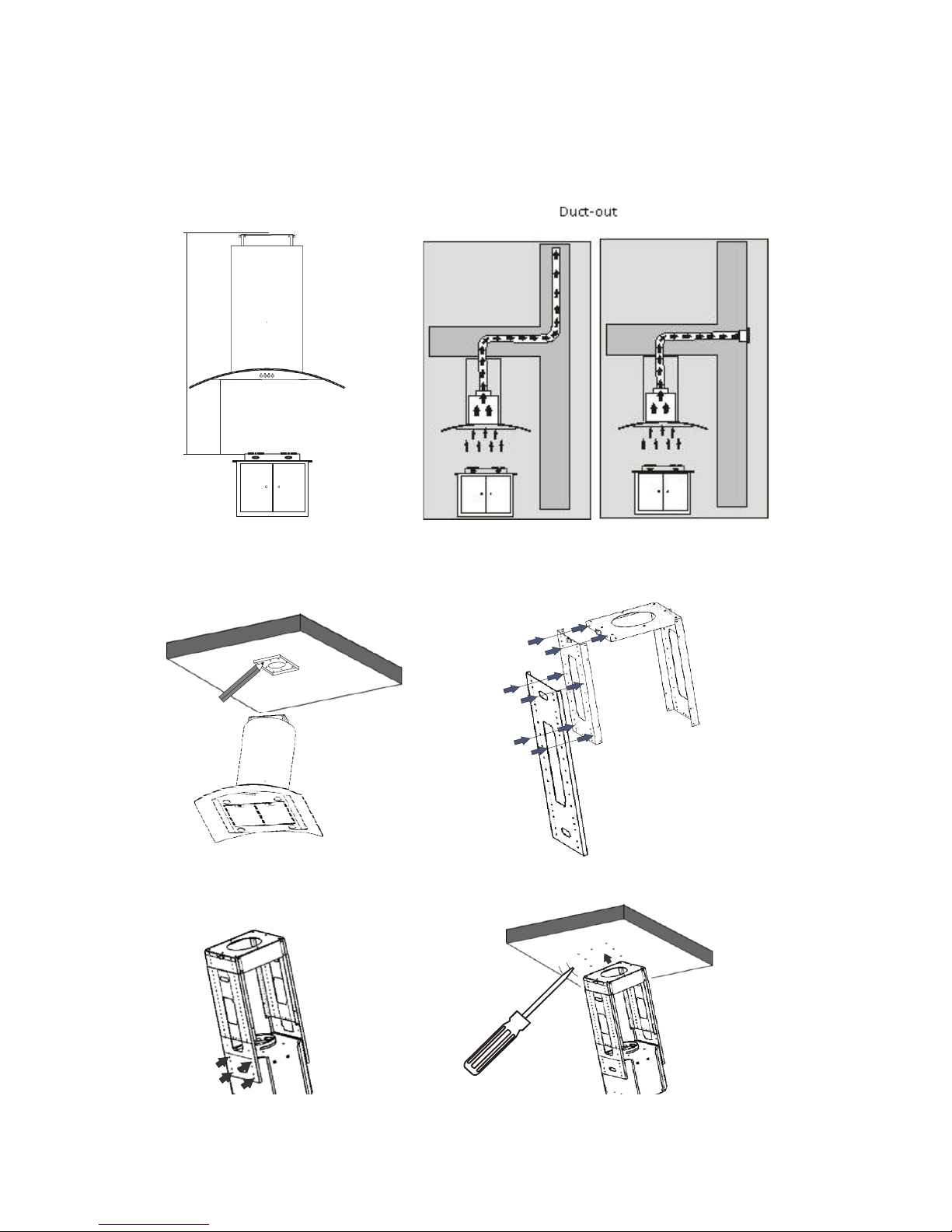

Fixing to the Wall
1. Before mounting the hood, plug in and test all
functions for proper operation.
2. Removed the filters from the bottom of the hood to
pre-vent damage during the installation.
3. With assistance, hold the hood temporary in position
ensuring the bottom is above the minimum clearance
for the cooking surface. Mark on the wall the holes for
the two mounting screws.
4. Drill the holes (A) at the distances indicated. Use the
appropriate screws and screw anchors for your wall
type (e.g. reinforced concrete, drywall, etc.). If
necessary, prepare back wall with cross framing for
secure installation.
5. Mount the hood on the wall screws. Align it in a
hori-zontal position relative to cabinets. When the
hood has been adjusted, secure unit by tightening
screws (A).
6. Connect a 6” aluminum duct tube (not included) to
the exhaust piece using duct tape on all seals. (C)
Fixing the Decorative Chimney Duct
1. Carefully losen but do not separate the telescopic
chim-ney duct pieces.
2. Arrange the electrical power supply within the
dimen-sions of the decorative chimney duct.
3. Adjust the width of the support bracket to match the
upper duct. Fix it to the ceiling using the screws (B) so
that it is centered in line with your hood and at a
distance from the ceiling indicated.

Installing Guideline
Wall Mounted+-
1200 ~ 17 00mm
650~ 7 0 0 mm
Island'hood'step'1
Island'hood'step'2
Island'hood'step'3
Island'hood'step'4
Note: The above installation guideline for references only, please contact
local dealer for installation service.

Leveling Device
When mounting hood on the wall,the level can be adjusted by turning the two screws
on the motor housing.

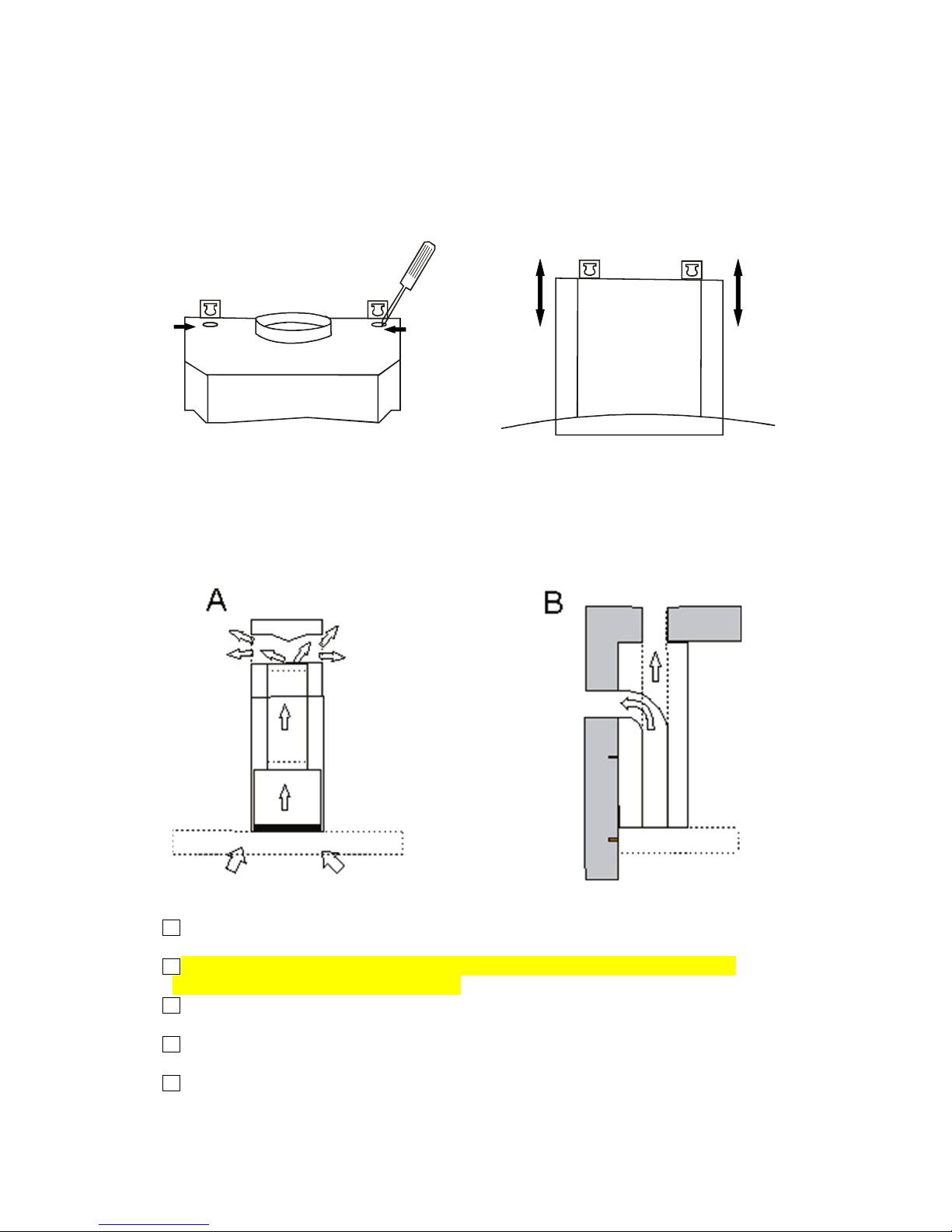

INSTALLATION ALTERNATIVES
The cooker hood can be installed in the following ways:
Circulating indoor air (A)
Outdoor venting (B)
REMEMBER!
l
The distance between the top of the hob and the lowest part of the
cooker hood must be at least 60cm.
lIf a two-part connection tube is used, the lower section must sit outside
the upper sec-tion.
lDo not connect the cooker hood exhaust to a duct used to circulate hot air
or vent steam from another appliance.
lAlways use protective gloves when installing the appliance!

USE AND CARE INSTRUCTIONS
Operations
1. For optimum performance in removing cooking odors, it is
recommended that you turn on your range hood prior to cooking and you
leave it operating for 15 min-utes after cooking.
2. Clean the surfaces of the range hood regularly using a non-abrasive
detergent.
3. The anti-grease filters capture the grease particles sus-pended in the
air. They will accumulate grease and dirt depending on the frequency of
the use of your range/cook top.
4. In order to prevent a fire hazard, it is recommended that you clean the
aluminum filter at least every 2 months
WARNINGS: Do not attempt to remove the fil-ters while the Range Hood
is operating.
Disconnect the electrical plug prior to any maintenance.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
There should be adequate ventilation in the room when the Range Hood is
used at the same time as other fuel burning appliances.
CAUTION: Accessible parts may become hot when used with cooking
appliances.
The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels.
Regulations concerning the discharge of air have to be fulfilled.
DESCRIPTION OF THE CONTROLS
A. Slide control
Motor%ON/OFF
LIGHT
TIMER/TURBO SLIDE%CONTROLLER DIGIT DISPLAY
Motor:
Touch short time-blue indicator flash: default set in speed 1, by slide
control can adjust to speed 2, 3
*turbo mode in optional hoods.
After stop on one speed level, the light will flash 10sec.
Light:
Touch short time-blue indicator flash-default set in 25% lux, -by slide
control can adjust to , 25%, 50%, 75% & 100% available.
Timer(Delay-off Function):

Touch short time-blue indicator flash-by slide control can adjust to, 5, 10,
15 , 20 min delay off function available.

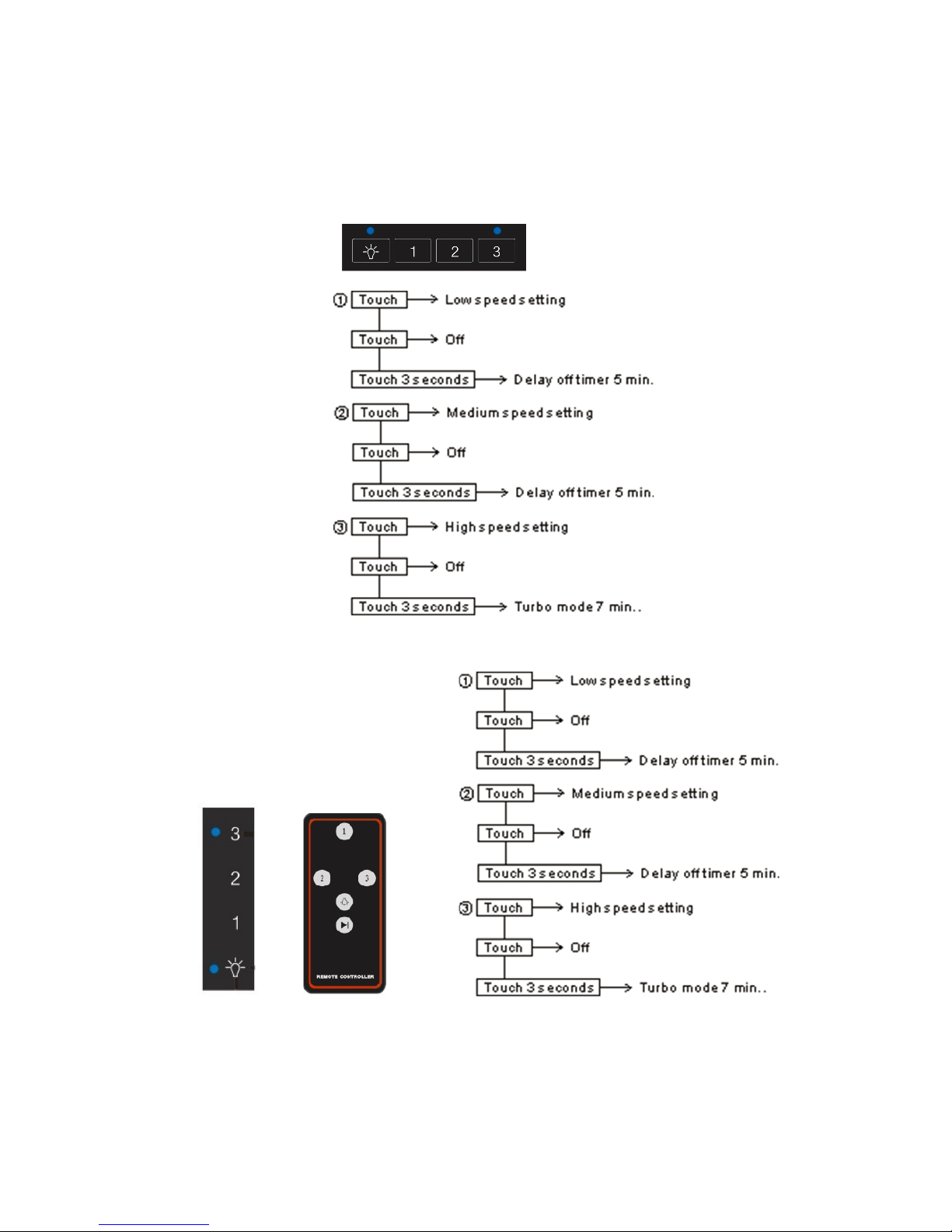

B. Touch Control
lFor model COLLIDER
lFor model V.I.P.
Remote controller

lFor model AUVRORA
Remote controller
C. Push button control
D. Electric control with LCD screen

LIGHT ON/OFF
TIME SETT I NG LCD SCREEN MOTOR ON/OFF
T IME R DE L AY OF F
SET INCREASE SET DECREASE
CARE AND CLEANING
General
Regular maintenance is required to
ensure that the cooker hood functions
properly. This is espe-cially true of the
grease and charcoal filters.
Clean the fan and other surfaces of the
cooker hood regularly with a cloth dipped
in denatured alcohol or a non-abrasive
liquid cleaner.
The charcoal filter cleans the circulating
air in the room. Such filters cannot be
cleaned or recycled and must be replaced
at least every four months. The speed at
which the charcoal filter becomes
saturated depends on how often the fan
is used, the type of food that is cooked
and how often the grease filter is cleaned.
To prevent the risk of fire and to ensure
that the cooker hood functions properly,
the grease filter must always be cleaned
as instructed below when the display
indicates the need or at least every two
months.
*There is a fire risk if cleaning is not
carried out in accordance with the
instructions.

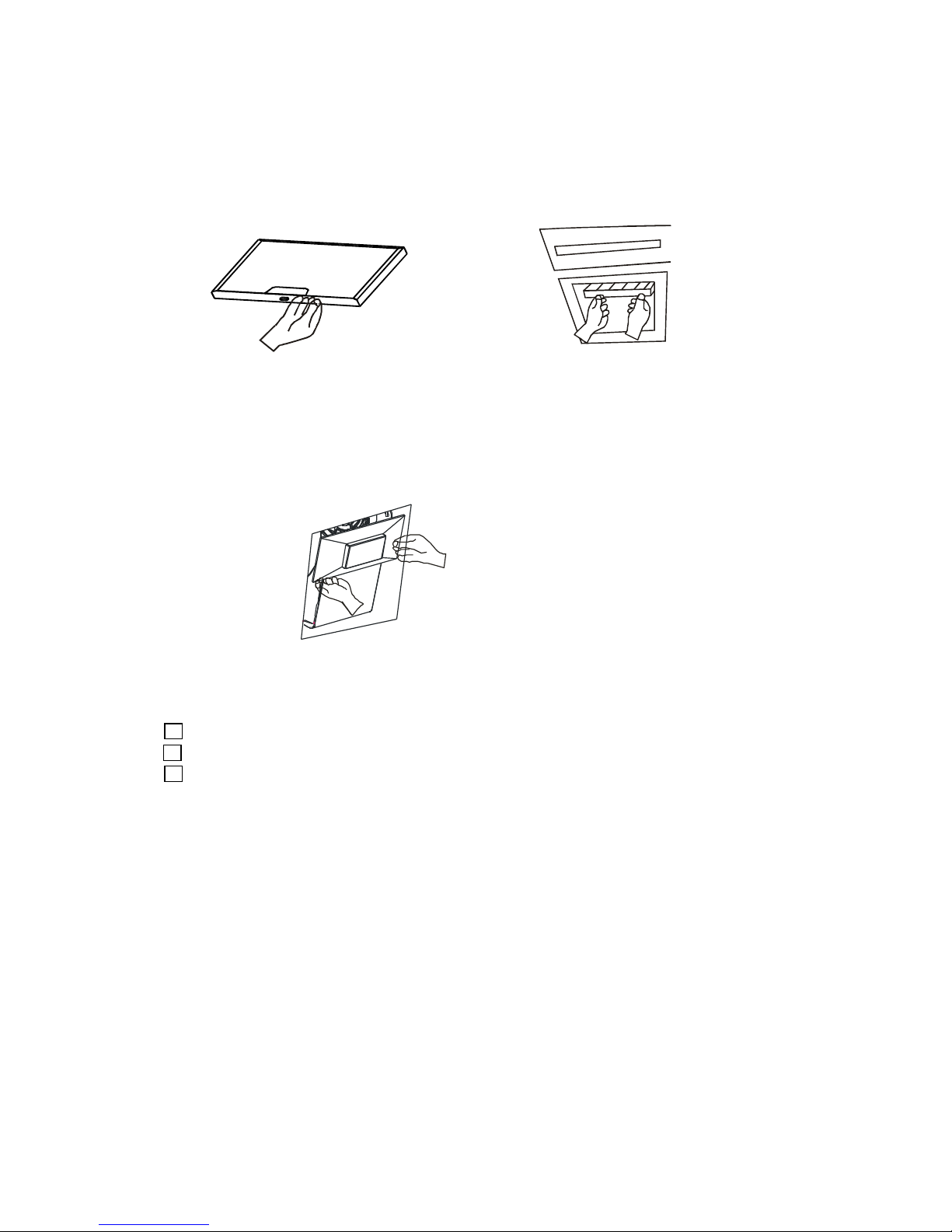

Cleaning the grease filter
Remove the flter from the cooker hood
and clean it in a solution of water and
neutral cleaning liquid. Leave the flter to
soak in the solution for a while.
- Rinse thoroughly with hot water and
leave the filter to dry.
- The filter can also be cleaned in a
dishwasher. The color of the grease filter
may change after a few washes. This is
normal.
l Replacing the charcoal
filter (standard hood)
Replace the charcoal filter (standard
hood) as follows:
Remove the grease filter.
Squeeze the clips on the charcoal
filter a pull the charcoal filter back to
remove it.
l Replacing the charcoal filter (for
hood with sloping surface)
1. Press the middle of the right edge
of the glass cover to open it
2. Remove the grease filter

Emptying and cleaning the oil collector (For these hood fitted with oil
collector)
The fan is fitted with an oil collector that collects oil from the fan blades and fan
housing.
1. Remove the grease filter and the charcoal filter (if fitted).
2. Remove the oil collector and clean it in warm water with washing up liquid. It can
also be cleaned in a dishwasher.
l DO NOT let dirt build up on the hood
lDO NOT use steel wool or steel brushes to clean the hood
lDO NOT leave salt solutions, disinfectants, bleaches or cleaning compounds on
the hood for any length of time as they may damage the stainless steel. Rinse after use
with clean water and wipe dry with a clean cloth.
Replacing the bulbs
Depending on your model of hood, there are two possible types of lighting, halogen
and LED. The illumination is designed for use during cooking and not for prolonged
general illumination of your kitchen. Prolonged use of the lights may reduce the life
time of the bulbs.
WARNING: Do not touch or change light bulbs while the hood is
operating. Wait until the bulb has cooled before removing.
Use only the same bulbs as the original specification. Re-placement lights are available
through the dealers.
NB:
If you clean the grease flter in the dishwasher: load only the grease flter and
no other items as food particles from dishes can fasten in the filter.
3. Squeeze the clips on the charcoal
filter and pull the charcoal filter back to
remove it.

Halogen and LED Lights.
With the grease filter removed, from inside the hood press the light fixture out of its
mounting bracket. Unplug the light from the wiring harness. Avoid direct contact
between the lense and your hands.
Replace the damaged lamp by reversing the steps. Snap in place.
Replace the bulbs as follows:
1. Lift up and remove the light fitting with a screwdriver or other suitable tool.
2. Remove the blown halogen bulb (if the fan has 4 bulbs = 10W, 2 bulbs = 20W).
Remember that the bulb can be hot!
3. Insert the new halogen bulb.
If you touch the halogen bulb with your bare hands this may reduce its service life.
Always use a glove or a cloth to avoid direct contact.
NB:
The light is only meant for use during cooking and not for illuminating the
surroundings for longer periods. If the light is used for longer periods, this will
considerably shorten the burn time of the bulbs.
Recycling
This appliance complies with European Community directive 2002/96/EC, Waste
Electrical and Electronic Equipment (WEEE). By ensuring that this product is recycled
responsibly, the user helps prevent possible negative impact on the environment.
NB:
Dispose of this product responsibly. Irresponsible disposal can result in negative
environmental impact or personal injury.'

Under no circumstances may this extractor fan be disposed of as household waste. It
must be taken to a recycling centre for electrical and electronic equipment.
This product must be disposed of in accordance with local legislation.
For more information on disposal, recycling and reuse of this product, contact your
local authority, your household waste collection service or the store where you
purchased the product
Trouble Shooting Guide
Problem
Possible Reason
Solution
Hood doesn't turn on.
No electrical supply.
Check the plug is connect-ed.
Check the plug is connect-ed.
Power cord is damaged
Contact technician service
Poor Airflow
Aluminum grease filters
clogged
Clean the filters and replace
when dry.
Charcoal filters clogged.
Re-circulating mode only.
Replace the charcoal filters.
Hood is vibrating
Hood is not secured in place
Check the installation of
hood.Tighten mounting
screws.
Motor running but no
air flow
Butterfly valve jammed.
Contact technician service
Motor stops after a
few minutes
High temperature safety
device activated.
The kitchen is not
sufficient-ly ventilated.
The hood is installed too near
the cooking surface.
The hood must be at least
61cm (24”) from the stove
Strong cooking smell.
Fan speed too low
Use one of the higher
set-tings.
Charcoal filters not installed.
n re-circulating mode,
char-coal filters must be
installed.
Oil dripping onto
stove.
Aluminum grease filter
satu-rated.
Wash the aluminum grease
filters
Whirring sound
Something in contact with fan
blade.
Contact technician service
Lights are working
but
fan isn't
Contact technician service
Fan is working but
lights are not
Contact technician service
GUARANTEE AND SERVICE!
Before booking a service call,read the Trouble Shooting Guide above , for more
information on guarantee and

service conditions, please contact local dealer.
