OP+OER+S
OP+OER+HI+S
OP+OER+SF+D
OP+OER+SF+HI+D
3 Gb/s HD-SDI Optical-to-Electrical Receivers
Installation and Operation Manual
Edition B
July 2010

OP+OER Installation and Operation Manual iii
Copyright © 2010, Harris Corporation
Contents
Preface
Manual Information .................................................................................v
Unpacking/Shipping Information ......................................................... vii
References ............................................................................................viii
Safety Standards and Compliances ..........................................................x
Chapter 1: Introduction
General Description .................................................................................1
Main Features ...................................................................................1
Module Types ...................................................................................2
Back Modules ..........................................................................................3
Signal Flow ..............................................................................................4
OP+OER+S and OP+OER+HI+S Single-Slot .................................4
OP+OER+SF+D and OP+OER+SF+HI+D Dual-Slot .....................4
Chapter 2: Installation and Operation
Maximum Frame Power Ratings .............................................................5
Setting Jumpers ........................................................................................7
Installing and Removing the Modules .....................................................9
Installation Overview ........................................................................9
Back Module Installation ................................................................10
Front Module Installation ...............................................................11
Removing Modules .........................................................................12
Inspecting and Cleaning Fiber Optic Connections ................................13
Important Points ..............................................................................13
Inspection and Cleaning Procedure ................................................15
CCS Parameter List ................................................................................17
LEDs and Alarms ...................................................................................19
LEDs ...............................................................................................19
Alarms .............................................................................................21

iv OP+OER Installation and Operation Manual
Copyright © 2010, Harris Corporation
Contents
Chapter 3: Specifications
Power Consumption .............................................................................. 23
Start-Up Time ........................................................................................ 23
Temperature .......................................................................................... 23
Electrical Specifications ........................................................................ 24
Optical Specifications ........................................................................... 25
Appendix A: Laser Safety Guidelines
Laser Safety ........................................................................................... 27
Precautions for Enclosed Systems ................................................. 28
Precautions for Unenclosed Systems ............................................. 28
Labels .................................................................................................... 29
Appendix B: Communication and Control
Troubleshooting Tips
Software Communication Problems ...................................................... 31
Hardware Communication Problems .................................................... 34
Index
Keywords .............................................................................................. 35

OP+OER Installation and Operation Manual v
Copyright © 2010, Harris Corporation
Preface
Manual Information
Purpose This manual details the features, installation procedures, operational
procedures, and specifications of the OP+OER 3 Gb/s HD-SDI
Optical-to-Electrical Receivers.
Audience This manual is written for engineers, technicians, and operators
responsible for the installation, setup, and operation of the OP+OER
3 Gb/s HD-SDI Optical-to-Electrical Receivers.
Revision History Table P-1. Manual Revision History
Edition Date Revision History
A February 2009 Preliminary release
B July 2010 Addition of DWDM wavelengths

vi OP+OER Installation and Operation Manual
Copyright © 2010, Harris Corporation
Preface
Writing Conventions
To enhance your understanding, the authors of this manual have
adhered to the following text conventions:
Table P-2. Manual Style and Writing Conventions
Term or
Convention Description
Bold Indicates dialog boxes, property sheets, fields, buttons,
check boxes, list boxes, combo boxes, menus, submenus,
windows, lists, and selection names.
Italics Indicates email addresses, the names of books or
publications, and the first instances of new terms and
specialized words that need emphasis.
CAPS Indicates a specific key on the keyboard, such as ENTER,
TAB, CTRL, ALT, or DELETE.
Code Indicates variables or command-line entries, such as a
DOS entry or something you type into a field.
> Indicates the direction of navigation through a hierarchy
of menus and windows.
hyperlink Indicates a jump to another location within the electronic
document or elsewhere
Internet address Indicates a jump to a website or URL
NOTE
Indicates important information that helps to avoid and
troubleshoot problems.

OP+OER Installation and Operation Manual vii
Copyright © 2010, Harris Corporation
Preface
Unpacking/Shipping Information
This product was carefully inspected, tested, and calibrated before
shipment to ensure years of stable and trouble-free service.
1. Check equipment for any visible damage that may have occurred
during transit.
2. Confirm that you have received all items listed on the packing list.
3. Contact your dealer if any item on the packing list is missing.
4. Contact the carrier if any item is damaged.
5. Remove all packaging material from the product and its associated
components before you install the unit.
In the unlikely event that your product fails to operate properly, contact
Customer Service to obtain a Return Authorization (RA) number, and
then send the unit back for servicing. Except for firmware upgrades,
OPTO+modules are not designed for field servicing.
Keep at least one set of original packaging in the event that a product
needs to be returned for service. If the original package is not available,
you can supply your own packaging as long as it meets the following
criteria:
• The packaging must be able to withstand the product’s weight.
• The product must be held rigid within the packaging.
• There must be at least 2 in. (5 cm) of space between the product and
the container.
• The corners of the product must be protected.
Ship products back to us for servicing prepaid and, if possible, in the
original packaging material. If the product is still within the warranty
period, we will return the product prepaid after servicing.

viii OP+OER Installation and Operation Manual
Copyright © 2010, Harris Corporation
Preface
References
ANSI/SMPTE 259M-1997
10-Bit 4:2:2 Component and 4fsc NTSC Composite Digital Signals -
Serial Digital Interface (144/243/270/360 Mb/s SDI)
SMPTE 424M-2006
3Gb/s Signal/Data Serial Interface
SMPTE 425M-2006
3Gb/s Signal/Data Serial Interface - Source Image Format Mapping
SMPTE 372M-2002
Dual Link 292M Interface for 1920 x 1080 Picture Raster
SMPTE 344M-2000
540Mb/s Serial Digital Interface
SMPTE 292M-1999
Bit-Serial Digital Interface for High-Definition Television Systems (1.5
Gb/s SDI)
SMPTE 297M-2000
Serial Digital Fiber Transmission System for SMPTE 259M- and
SMPTE 292M- Signals
DVB A010 Rev.1
Interfaces for CATV/SMATV Headends and Similar Professional
Equipment (Annex B: ASI)
ITU-T G.694.2
Spectral Grids for WDM Applications: CWDM Wavelength Grid
ITU-T G.695
Optical Interfaces for Coarse Wavelength Division Multiplexing
Applications
ITU-T G.652
Characteristics of a Single-Mode Optical Fiber Cable
IEC 61754
• ST-PC Connector: Fibre Optic Connector Interfaces - Part 2: Type
BFOC/2,5 Connector Family
• SC-PC Connector: Fibre Optic Connector Interfaces - Part 4: Type
SC Connector Family
• FC-PC Connector: Fibre Optic Connector Interfaces - Part 13: Type
FC-PC Connector

OP+OER Installation and Operation Manual ix
Copyright © 2010, Harris Corporation
Preface
IEC 60874-14-2
Detail Specification for Fiber Optic Connector Type SC-PC Tuned
Terminated to Single-Mode Fiber Type B1
IEC 60874-14-5
Detail Specification for Fiber Optic Connector Type SC-PC Un-Tuned
Terminated to Single-Mode Fiber Type B1
FCC Code of Federal Regulations (CFR) 47, part 15
•EN55103-1
EMC emission requirements applies to professional audio,
video, audio-visual and entertainment lighting control
apparatus
•EN55103-2
EMC immunity requirements applies to professional audio,
video, audio-visual and entertainment lighting control
apparatus

xOP+OER Installation and Operation Manual
Copyright © 2010, Harris Corporation
Preface
Safety Standards and Compliances
See “Laser Safety” on page 27 to find the safety standards and
compliances for this product. A safety manual is included in the Harris
Infrastructure and Networking Documentation and Product Resources
DVD, and it can be downloaded from our website. Alternatively,
contact your Customer Service representative for a copy of this safety
manual.
Restriction on Hazardous Substances (RoHS) Directive
Directive 2002/95/EC—commonly known as the European Union (EU)
Restriction on Hazardous Substances (RoHS)—sets limits on the use of
certain substances found in electrical and electronic equipment. The
intent of this legislation is to reduce the amount of hazardous chemicals
that may leach out of landfill sites or otherwise contaminate the
environment during end-of-life recycling. The Directive took effect on
July 1, 2006, and it refers to the following hazardous substances:
• Lead (Pb)
• Mercury (Hg)
• Cadmium (Cd)
• Hexavalent Chromium (Cr-V1)
• Polybrominated Biphenyls (PBB)
• Polybrominated Diphenyl Ethers (PBDE)
According to this EU Directive, all products sold in the European Union
are fully RoHS-compliant and “lead-free.” (See our website for more
information.) Spare parts supplied for the repair and upgrade of equip-
ment sold before July 1, 2006 are exempt from the legislation. Equip-
ment that complies with the EU directive are marked with a
RoHS-compliant emblem, as shown in Figure P-1.
Figure P-1. RoHS Compliance Emblem

OP+OER Installation and Operation Manual xi
Copyright © 2010, Harris Corporation
Preface
Waste from Electrical and Electronic Equipment
(WEEE) Directive The European Union (EU) Directive 2002/96/EC on Waste from
Electrical and Electronic Equipment (WEEE) deals with the collection,
treatment, recovery, and recycling of electrical and electronic waste
products. The objective of the WEEE Directive is to assign the
responsibility for the disposal of associated hazardous waste to either
the producers or users of these products. Effective August 13, 2005,
producers or users are required to recycle electrical and electronic
equipment at end of its useful life, and may not dispose of the
equipment in landfills or by using other unapproved methods. (Some
EU member states may have different deadlines.)
In accordance with this EU Directive, companies selling electric or
electronic devices in the EU will affix labels indicating that such prod-
ucts must be properly recycled. (See our website for more information.)
Contact your local sales representative for information on returning
these products for recycling. Equipment that complies with the EU
directive is marked with a WEEE-compliant emblem, as shown in
Figure P-2.
Figure P-2. WEEE Compliance Emblem

xii OP+OER Installation and Operation Manual
Copyright © 2010, Harris Corporation
Preface
Safety Terms and Symbols
This product manual uses the following safety terms and symbols to
identify certain conditions or practices. See “Laser Safety” on page 27
and the frame Safety Instructions and Standards Manual for more
information.
Table P-3. Safety Terms and Symbols
WARNING: Identifies conditions or practices that can result in
personal injury or loss of life—high voltage is present.
Uninsulated dangerous voltage within the product’s enclosure
may be sufficient to constitute a risk of electric shock to persons.
CAUTION: Identifies conditions or practices that can result in
damage to the equipment or other property. Important operating
and maintenance (servicing) instructions are included in the
literature accompanying the product.

OP+OER Installation and Operation Manual 1
Copyright © 2010, Harris Corporation
Chapter 1
Introduction
General Description
OP+OER modules are 3 Gb/s HD-SDI Optical-to-Electrical Receivers.
They are available in a single- and double-slot versions (the double-slot
version adds a passive splitter and additional reclocked outputs), and in
standard-sensitivity PIN and high-sensitivity APD versions.
Main Features • 3 Gb/s HD-SDI capability
• Comprehensive operating controls, including automatic/manual
reclocking and rate selection, laser enable, and laser disable
• Comprehensive status reporting via CCS-compliant software and
control panels, including module ID, loss of input, signal lock
status, input data rate, and input optical power
• Available SC/PC, ST/PC, and FC/PC connectors (the SC/PC
connector is supplied standard)
• Hot-swappable installation and removal
• 1260 nm to 1620 nm capability

2OP+OER Installation and Operation Manual
Copyright © 2010, Harris Corporation
Chapter 1: Introduction
Module Types
Table 1-1. Module Types
Product Description
OP+OER+S Single-slot standard-sensitivity SD-SDI PIN fiber receiver with
SC-type rear connector
OP+OER+HI+S Single-slot high-sensitivity SD-SDI APD fiber receiver with SC-type
rear connector
OP+OER+SF+D Dual-slot standard-sensitivity SD-SDI PIN fiber receiver with
single-mode fiber optic loop-through, and SC-type rear connector
OP+OER+SF+HI+D Dual-slot high-sensitivity SD-SDI APD fiber receiver with
single-mode fiber optic loop-through, and SC-type rear connector
Table 1-2. Hardware Upgrades (Available at Time of Order)
Connector Description
OP+OPT+ST ST/PC fiber optic connector option
OP+OPT+FC FC/PC fiber optic connector option

OP+OER Installation and Operation Manual 3
Copyright © 2010, Harris Corporation
Chapter 1: Introduction
Back Modules

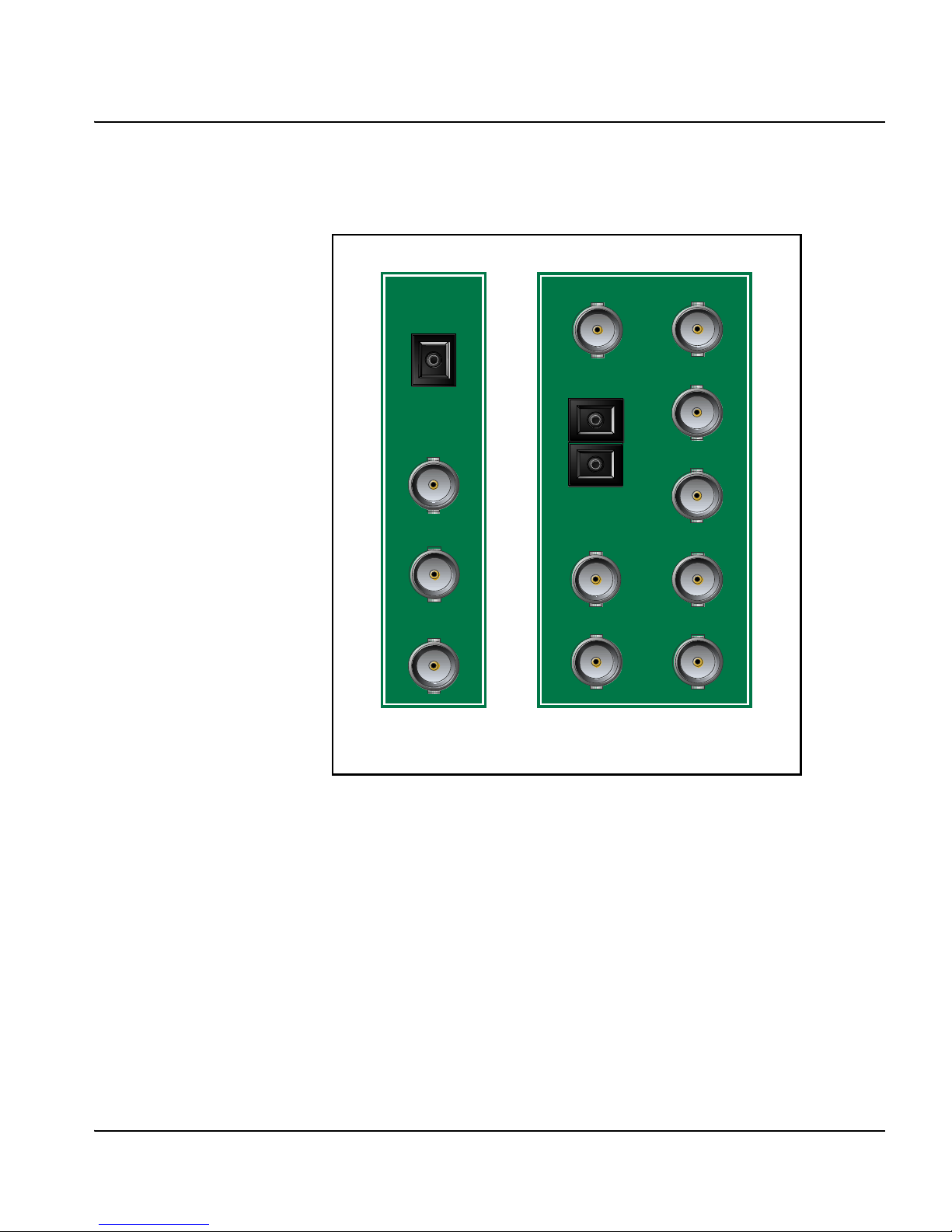

Figure 1-1. Back Modules
OPTICAL
IN
SDIOUT
SDIOUT
SDIOUT
-9dBm Max (APD)
OP+OER+S and
OP+OER+HI+S OP+OER+SF+D and
OP+OER+SF+HI+D
OPTICALOUT
SDIOUT
SDIOUT
SDIOUT
SDIOUT
SDIOUT
SDIOUT
SDIOUT
SDIOUT
OPTICALIN

4OP+OER Installation and Operation Manual
Copyright © 2010, Harris Corporation
Chapter 1: Introduction

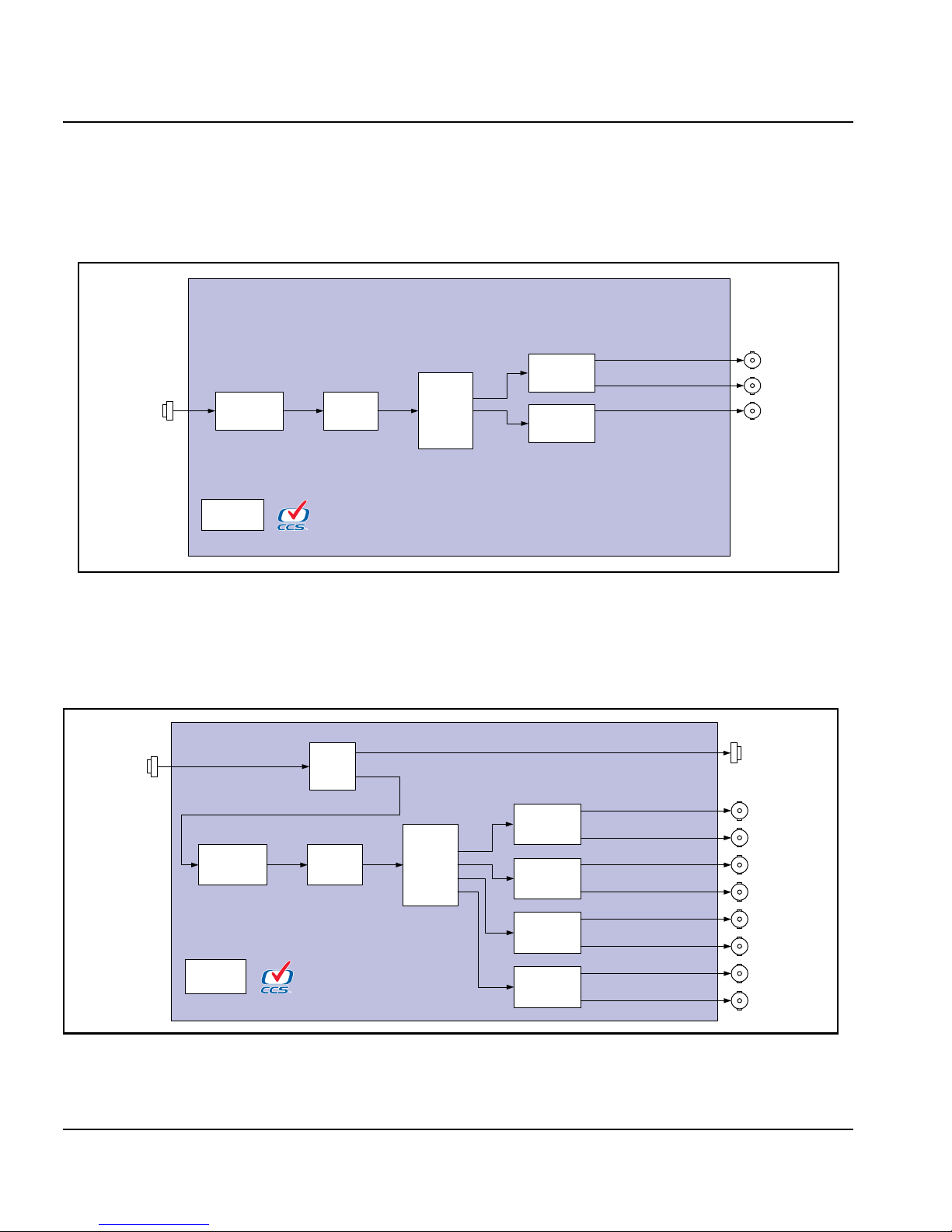

Signal Flow
OP+OER+S and OP+OER+HI+S Single-Slot
Figure 1-2. Single-Slot Module Signal Flow
OP+OER+SF+D and OP+OER+SF+HI+D Dual-Slot
Figure 1-3. Dual-Slot Module Signal Flow
CPU
Monitoring
and Control
Reclocker Fanout
Cable Driver
Cable Driver
3Gb/s / HD /
SD-SDI Fiber In
3Gb/s / HD /
SD-SDI Out
3Gb/s / HD /
SD-SDI Out
3Gb/s / HD /
SD-SDI Out
Fiber-optic
receiver
O/E Converter
PIN/APD
CPU
Monitoring
and Control
Fiber-optic
receiver
O/E Converter
PIN/APD
Reclocker Fanout
Optical
splitter
Cable Driver
Cable Driver
Cable Driver
3Gb/s / HD /
SD-SDI Fiber In
3Gb/s / HD /
SD-SDI Fiber Out
3Gb/s / HD /
SD-SDI Out
3Gb/s / HD /
SD-SDI Out
3Gb/s / HD /
SD-SDI Out
3Gb/s / HD /
SD-SDI Out
3Gb/s / HD /
SD-SDI Out
Cable Driver
3Gb/s / HD /
SD-SDI Out
3Gb/s / HD /
SD-SDI Out
3Gb/s / HD /
SD-SDI Out

OP+OER Installation and Operation Manual 5
Copyright © 2010, Harris Corporation
Chapter 2
Installation and Operation
Maximum Frame Power Ratings
OP+OER modules operate only in fan-cooled 6800+frames, subject to
the limitations shown in Table 2-1. These modules cannot be installed
in FR6802+DM or 6800/7000 series frames.
CAUTION
To maintain proper temperatures, ensure the front panel is closed at
all times, and the fan module is fully operational.
Table 2-1. Frame Power Ratings
6800+Frame Type Power
Supply Max. Frame
Power
Dissipation
Number
of
Usable
Slots*
Max. Power
Dissipation
Per Slot
Module
Power
Requirements
FR6802+XF AC 120 W 20 6 W <5 W
FR6802+XF48 DC 105 W 20 5.25 W
FR6802+QXF AC or
DC 120 W 20 6 W
FR6822+/FR6822+QXFE AC or
DC 120 W 20 6 W
* Each front module requires two of these slots. Therefore, to calculate the maximum power dissipation available per module, dou-
ble the rating shown in the Max. Power Dissipation Per Slot column.

6OP+OER Installation and Operation Manual
Copyright © 2010, Harris Corporation
Chapter 2: Installation and Operation
CAUTION
To prevent damage, ensure that you mate single-slot front modules
with single-slot back modules, and dual-slot front modules with
dual-slot back modules. Do not mix-and-match different front and
back modules.
Before installing this product, read the Safety Instructions and
Standards Manual . The safety manual contains important
information about the safe installation and operation of OPTO+
series products.
Also see “Laser Safety” on page 27 of this manual.
