IMG JUGGER PIX User manual

www.imglighting.com
Wandsbeker Straße 3-7
[email protected]
Hamburg, Germany
IMG LIGHTING
1. The luminaire shall be installed by a qualified electrician and wired in accordance with the latess IEE
electrical regulations or the national requirements.
2. No supplied water-proof box, installation should be adviced by qualified professional.
3. The external flexible cable can not be replaced. If the cable is damaged, the luminaire should be
discarded.
JUGGER PIX

www.imglighting.com
Wandsbeker Straße 3-7
[email protected]
Hamburg, Germany
IMG LIGHTING
CONTENTS
1. SAFETY INSTRUCTIONS
2. FEATURES
3. LUMINAIRE DETAILS
4. DIMENSIONAL DRAWINGS
5. INSTALLATION INSTRUCTIONS
6. DMX CONTROL
7. CLEANING AND MAINTENANCE
Please keep luminaire away from children and non-professionals.
Important:
Damages to the luminaires caused by the disregard of this user manual are not subject to warranty.
The Manufacturer and Dealer will not accept liability for any defects resulting from the misuse of
the luminaire.
For safety reasons, please be aware that all modifications to the luminaire are forbidden.

www.imglighting.com
Wandsbeker Straße 3-7
[email protected]
Hamburg, Germany
IMG LIGHTING
1. SAFETY INSTRUCTIONS
1.1. IMPORTANT SAFETY WARNING
This luminaire left the factory in perfect condition. In order to maintain this condition and to
ensure safe operation, it is necessary for the user to follow the safety instructions and warning
notes written in this user manual.
Instructions pertaining to a risk of fire or injury to persons
--- During use, luminaires are hot, turn off/unplug and allow to cool before handling luminaire
--- Do not touch hot lenses, guard or enclosure of the luminaire.
--- Keep luminaire away from materials that may burn
--- Do not operate the luminaire fitting with a missing or damaged cover
If the luminaire has been exposed to temperature changes due to environmental changes, do not
switch it on immediately. The resulting condensation could damage the luminaire. Leave the
luminaire switched off until it has reached room temperature.
This luminaire falls under protection-class I, it is essential that the luminaire be earthed.
Should the lens of the luminaire be damaged or crack, it must be replaced.
Any electric connection must be performed by qualified persons.
Ensure that the available voltage is not higher than AC 100-277V, 50/60Hz
The power cord must never be trapped or damaged by sharp edges. If this happens it must be
replaced and the replacement of the cable must be perfromed by an authorized dealer.
If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by the
manufacturer or his service agent or a similar qualified person in order to avoid a hazard.

www.imglighting.com
Wandsbeker Straße 3-7
[email protected]
Hamburg, Germany
IMG LIGHTING
1.2. GENERAL GUIDELINES
Do not shake the luminaire.
Avoid brute force when installing or operating the luminaire.
Operate the luminaire only after having familiarized yourself with its functions.
Do not permit operation by persons not qualified to operate the luminaire.
Please use the original packaging if the luminaire is to be transported back to the manufacturer or
dealer for service.
Should this luminaire be operated in any way other than as described in this manual, the
luminaire may suffer damage and the warranty become void. Furthermore, such operation may
lead to short-circuit, burns, electric shock, etc.
2. FEATURES
Power Supply
AC 100-277V ~ 50/60Hz
Dimming Protocol
DMX512 Control
On-line upgrade the software
RDM for monitoring DMX address, fixture LED on/off and temperature
Automatic addressing for DMX and RDM
IP Rating
IP66

www.imglighting.com
Wandsbeker Straße 3-7
[email protected]
Hamburg, Germany
IMG LIGHTING

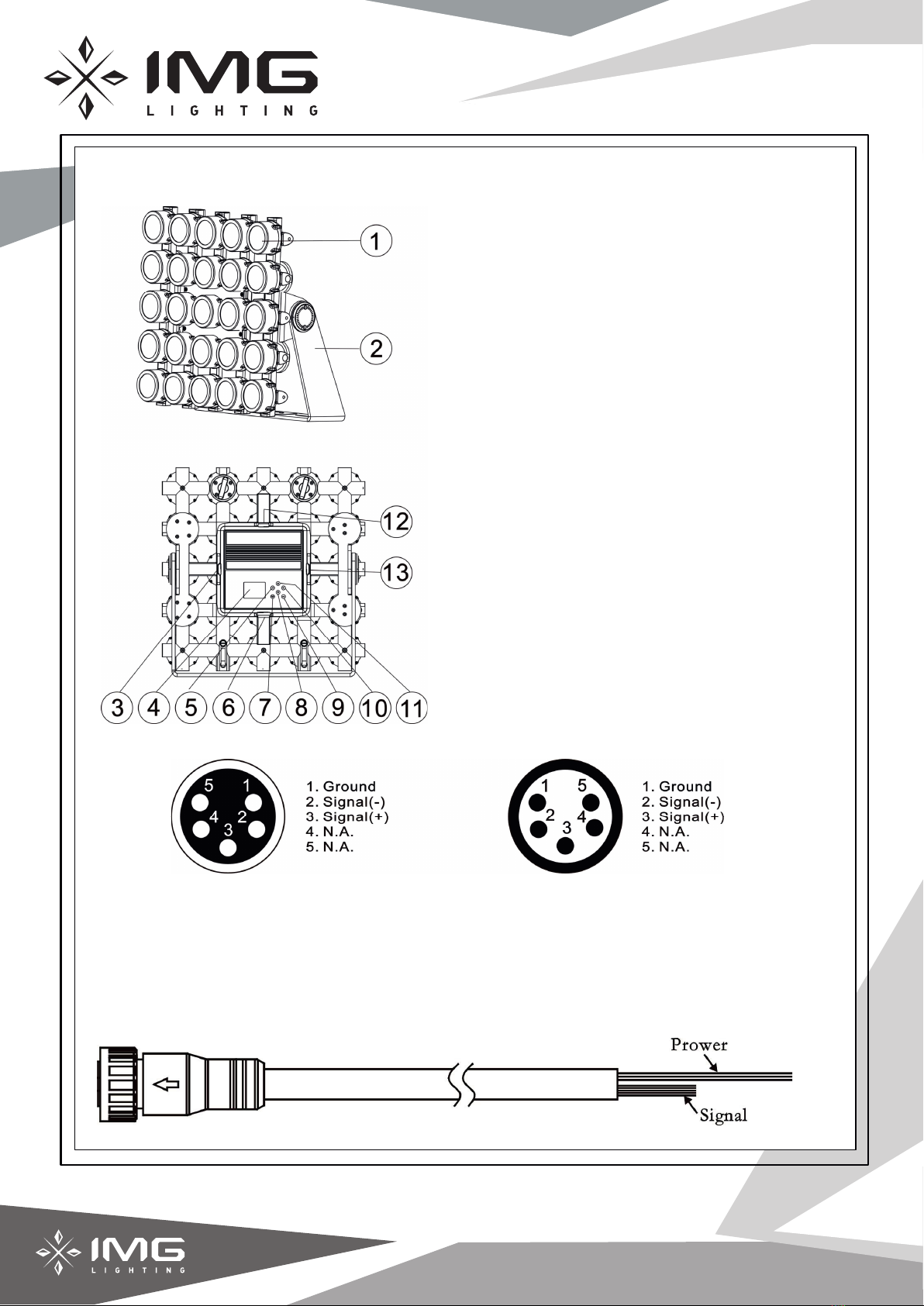

3. LUMINAIRE DETAILS
Power/Signal Cable Color CodeÖ
1. Ground------------------ Brown,22#
2.Signal (-)---------------Brown,22#
3.Signal 1(+)--------------Brown,22#
4.N.A.
5. N.A.
1 Len
2 Bracket
3 DMX Out
4 Display
5 Left-Button
6 Power Out
7 Mode/Esc-Button
8 Down-Button
9 Enter-Button
10 Right-Button
11 Up-Button
12 Power In
13 DMX In

www.imglighting.com
Wandsbeker Straße 3-7
[email protected]
Hamburg, Germany
IMG LIGHTING

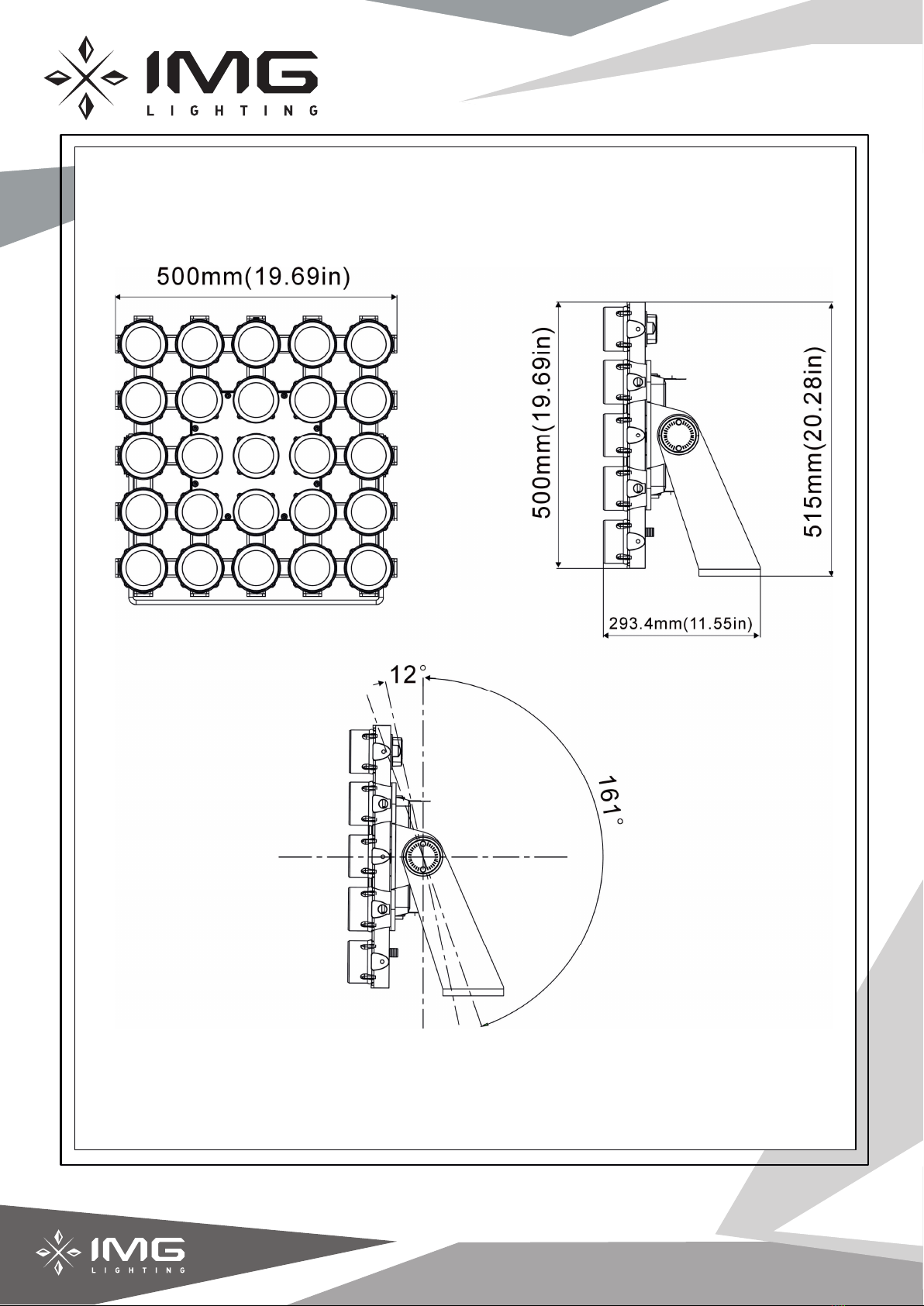

4. DIMENSIONAL DRAWINGS

www.imglighting.com
Wandsbeker Straße 3-7
[email protected]
Hamburg, Germany
IMG LIGHTING
5. INSTALLATION INSTRUCTIONS

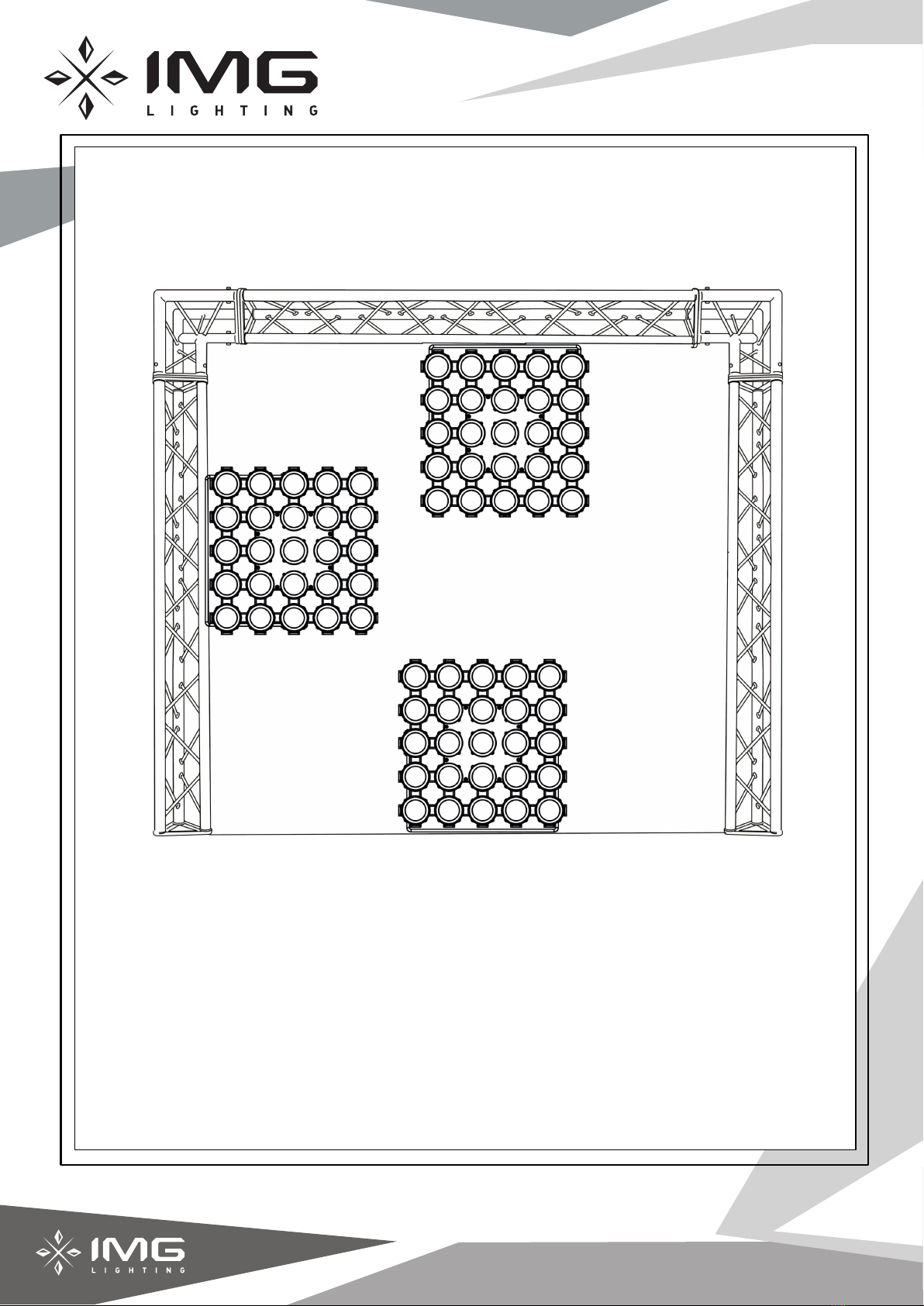

5.1. Mounting Options
Be sure this fixture is kept at least 0.1m away from any flammable materials.
Overhead mounting requires extensive experience, including amongst others calculating working
load limits, a fine knowledge of the installation material being used, and periodic safety
inspection of all installation material and the fixture. If you lack these qualifications, do not
attempt the installation yourself. Improper installation can result in bodily injury.

www.imglighting.com
Wandsbeker Straße 3-7
[email protected]
Hamburg, Germany
IMG LIGHTING
JUGGER PIX
RGBW color mixing models offer 0 to 100% intensity control of red, green, blue and white.
DMX channel´s functions and their values (100 DMX channels):
Mode/Channel Value Function
4ch 100ch
1RED LED:
0-255 RED ( 0-Black , 255-100% Red )
2GREEN LED:
0-255 GREEN( 0-Black , 255-100% Green )
3BLUE LED:
0-255 BLUE ( 0-Black , 255-100% Blue )
4WHITE LED:
0-255 WHITE( 0-Black , 255-100% White )
1RED LED 1:
0-255 RED ( 0-Black , 255-100% Red )
2GREEN LED 1:
0-255 GREEN( 0-Black , 255-100% Green )
3BLUE LED 1:
0-255 BLUE ( 0-Black , 255-100% Blue )
4WHITE LED 1:
0-255 WHITE ( 0-Black , 255-100% White )
5RED LED 2:
0-255 RED( 0-Black , 255-100% Red )
6GREEN LED 2:
0-255 GREEN ( 0-Black , 255-100% Green )
7BLUE LED 2:
0-255 BLUE ( 0-Black , 255-100% Blue )
8WHITE LED 2:
0-255 WHITE ( 0-Black , 255-100% White )
9RED LED 3:
0-255 RED ( 0-Black , 255-100% Red )
10 GREEN LED 3:
0-255 GREEN( 0-Black , 255-100% Green )
11 BLUE LED 3:
0-255 BLUE ( 0-Black , 255-100% Blue )
12 WHITE LED 3:
0-255 WHITE ( 0-Black , 255-100% White )
…… …… …… ……
97 RED LED 25:
0-255 RED( 0-Black , 255-100% Red )
98 GREEN LED 25:
0-255 GREEN ( 0-Black , 255-100% Green )
99 BLUE LED 25:
0-255 BLUE ( 0-Black , 255-100% Blue )
100 WHITE LED 25:
0-255 WHITE ( 0-Black , 255-100% White )
6. DMX CONTROL

www.imglighting.com
Wandsbeker Straße 3-7
[email protected]
Hamburg, Germany
IMG LIGHTING
JUGGER PIX TW
Variable white models offer 0 to 100% dimming control and color temperature control from cold
and warm.
DMX channel´s functions and their values (50 DMX channels):
Mode/Channel Value Function
2ch 50ch
1COLD WHITE:
0-255 WHITE ( 0-Black , 255-100% White )
2WARM WHITE:
0-255 WHITE ( 0-Black , 255-100% White )
1COLD WHITE1:
0-255 WHITE ( 0-Black , 255-100% White )
2WARM WHITE1:
0-255 WHITE ( 0-Black , 255-100% White )
3COLD WHITE2:
0-255 WHITE ( 0-Black , 255-100% White )
4WARM WHITE2:
0-255 WHITE ( 0-Black , 255-100% White )
5COLD WHITE3:
0-255 WHITE ( 0-Black , 255-100% White )
6WARM WHITE3:
0-255 WHITE ( 0-Black , 255-100% White )
…… …… …… ……
49 COLD WHITE25:
0-255 WHITE ( 0-Black , 255-100% White )
50 WARM WHITE25:
0-255 WHITE ( 0-Black , 255-100% White )
JUGGER PIX FW
Variable white models offer 0 to 100% dimming control of white.
DMX channel´s functions and their values (25 DMX channels):
Mode/Channel Value Function
2ch 25ch
1WHITE LED:
0-255 WHITE ( 0-Black , 255-100% White )
1WHITE LED1:
0-255 WHITE ( 0-Black , 255-100% White )
2WHITE LED2:
0-255 WHITE ( 0-Black , 255-100% White )
3WHITE LED3:
0-255 WHITE ( 0-Black , 255-100% White )
…… …… …… ……
24 WHITE LED24:
0-255 WHITE ( 0-Black , 255-100% White )
25 WHITE LED25:
0-255 WHITE ( 0-Black , 255-100% White )

www.imglighting.com
Wandsbeker Straße 3-7
[email protected]
Hamburg, Germany
IMG LIGHTING
7. CLEANING AND MAINTENANCE
The following points have to be considered during the inspection:
-- All screws for installing the luminaire or parts of the luminaire have to be tight and screws
must not be corroded.
-- There must not be any deformation to the housing, lenses, or fixing points (ceiling, suspension,
trussing).
-- The electric power supply cables must not show any physical damage, material fatigue.
-- Please use a moist, lint-free cloth when cleaning the luminaire
-- Never use alcohol or solvents.
-- Should any spare parts be required, please order genuine parts from your local dealer.
