Operating instructions
07502
/
0
OPEN SUN 1050 ULTRA POWER

2
JK-Global Service GmbH
Rottbitzer Straße 69
53604 Bad Honnef (Rottbitze)
GERMANY
JK-Licht GmbH
Eduard-Rhein-Str. 3
53639 Königswinter
GERMANY
JK-Products GmbH
Köhlershohner Straße
53578 Windhagen
GERMANY
●+49 (0) 22 24 / 818-861
+49 (0) 22 24 / 818-205
E-mail:
[e-mail]
▲+49 (0) 22 44 / 9239-0
+49 (0) 22 44 / 9239-24
+49 (0) 22 24 / 818-140
+49 (0) 22 24 / 818-166
...
15232 / 1

3
Dear Customer,
Dear Customer,
In selecting an Ergoline sunbed you have acquired a high-performance
appliance featuring advanced technology. Your sunbed has been manu-
factured with the greatest care and precision, having undergone numer-
ous quality and safety tests to guarantee trouble-free and safe operation.
Nonetheless, you too can make a significant contribution to your long-
term satisfaction with your sunbed. Following the tips and instructions in
the instruction manual will ensure your enjoyment and pleasure when us-
ing your sunbed.
We will be pleased to provide you with further advice if you have any que-
ries.1)
Yours sincerely,
JK-Sales GmbH
• Read and observe the information in this instruction manual. This will
help prevent accidents and ensure that your Ergoline sunbed is al-
ways fully functional and operational.
• Always observe the generally applicable legal regulations, any other
regulations and the legal requirements - including those applying to
the country of installation - as well as any environmental protection
conditions.
• Always comply with local regulations in force established by profes-
sional associations and other regulatory authorities.
1) +49 (0) 2224/ 818-0 +49 (0) 2224/ 818-116

4

5
Table of contents
General safety instructions
and information
Recommended tanning times
Description
Operation
Maintenance
Technical data / Appendix
Index

6
Table of contents
General safety instructions and other information
How to use these operating instructions . . . . . . . . . . . . . . . . . . . . . . . . 8
Meaning of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Safety information for the operator . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Safety information for the user. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Export . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Information for the operator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Environmental protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Manufacturer’s guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Recommended tanning times
Use the sunbed - but use it properly!. . . . . . . . . . . . . . . . . . . . . . . . . . 20
Tanning table symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
OPEN SUN 1050 ULTRA POWER . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Description
Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Description OPEN SUN 1050 ULTRA POWER . . . . . . . . . . . . . . . . . 24
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Operation
Operation at a glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Switching UV lamps on and off during a tanning session. . . . . . . . . . 29
Regulating the facial tanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Regulating body cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Regulating facial cooling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Voice Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Selecting an audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Adjusting the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Changing music track or studio music channel . . . . . . . . . . . . . . . . . 44
Connecting an MP3 player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

7
Table of contents
Maintenance
Safety instructions for maintenance and care . . . . . . . . . . . . . . . . . . . 48
Disconnect the device from the power supply and ensure that it
cannot be switched on again. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Filters and filter mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
UV lamps: Replacement intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Acrylic covers: Replacement intervals . . . . . . . . . . . . . . . . . . . . . . . . . 59
Filter panels: Replacement intervals . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Fan: Replacement intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Cleaning/replacing UV high-pressure lamps and filter panels . . . . . . . 61
Cleaning/replacing accent lighting in the base . . . . . . . . . . . . . . . . . . 67
Cleaning/replacing accent lighting in front panel . . . . . . . . . . . . . . . . . 69
Cleaning/replacing accent lighting in the side section . . . . . . . . . . . . . 72
Cleaning/replacing ambient light (cabin lighting) . . . . . . . . . . . . . . . . . 74
Cleaning/replacing filter mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Technical data / Appendix
Connection ratings, power output and noise levels . . . . . . . . . . . . . . 77
Installed lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
UV lamps, filter panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Accent lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Spare parts and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Installation location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
JK timer controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Insert SD memory card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

8
How to use these operating instructions
The section headings at the top of the page will help you find the page
you are looking for with ease: Section headings at the beginning of the
section are large (1) and those on the following pages slightly smaller (2).

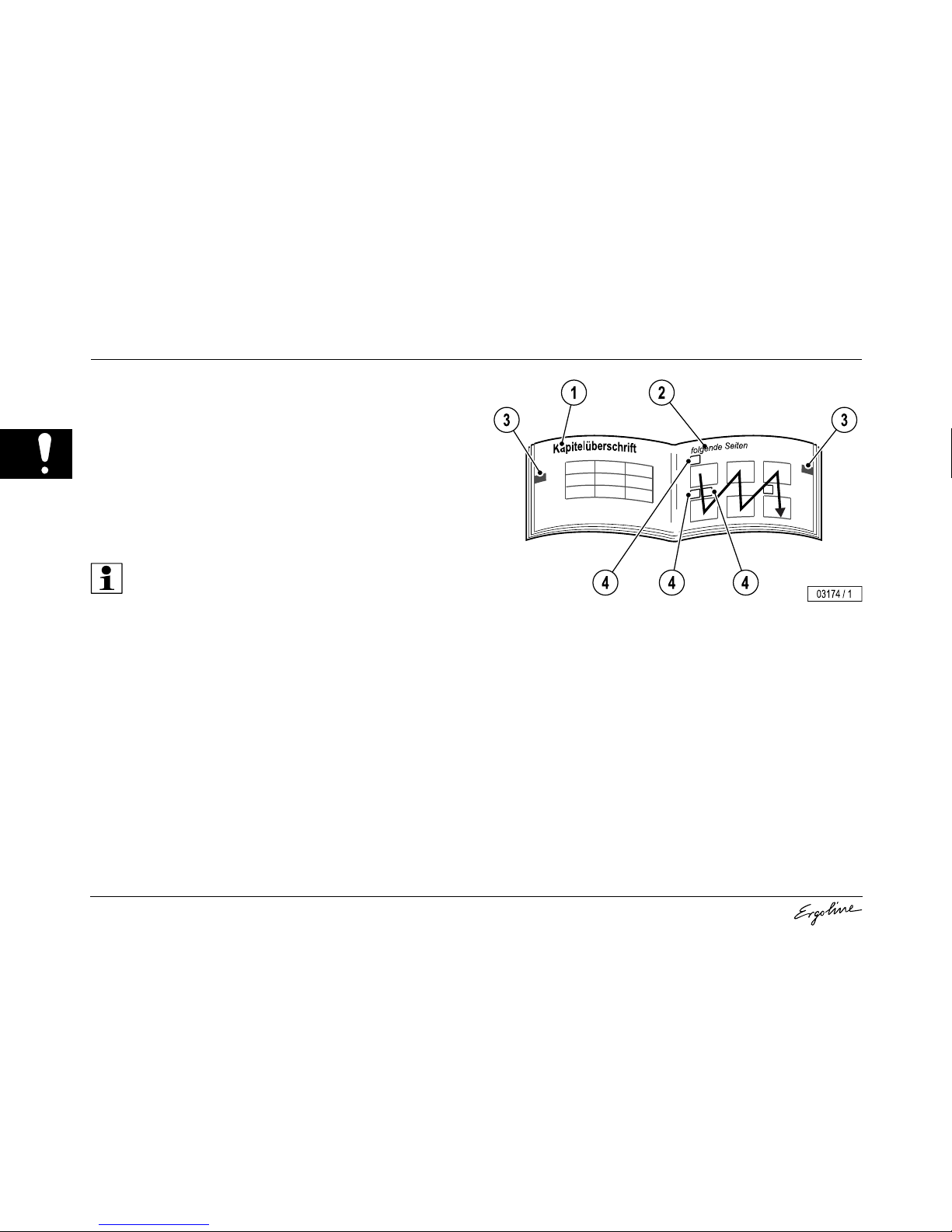

Symbols are also used. There are several types of symbols:
• The sections are categorised by means of the symbols (3) in the over-
view on page 5.
• Symbols directly above a figure (4) refer to the work step shown in the
figure.
The symbols are described in this section on Page 9 and following.
Note:
The right to make technical changes to the illustrations and
specifications in these operating instructions is reserved!
Reprinting and reproduction, in whole or in part, of this manual
is only permitted with our previous written approval and with
specification of the source.

9
Meaning of symbols
Hazard information
Example:
Important information:
Danger! Type and source of hazard!
This safety notice – warning triangle with the word “Danger” – in-
dicates primarily that there is a personnel risk
(risk to life and limb).
Danger! High voltage!
Personnel danger due to electric shocks or burns.
– Disconnect the sunbed from the power supply.
Caution!
This safety notice – Warning triangle with the word “Caution” –
indicates that there is a possible risk to equipment, materials or
the environment.
Note:
This symbol does not indicate any safety instructions, rather
provides information to improve understanding of the process-
es.

10
Meaning of symbols

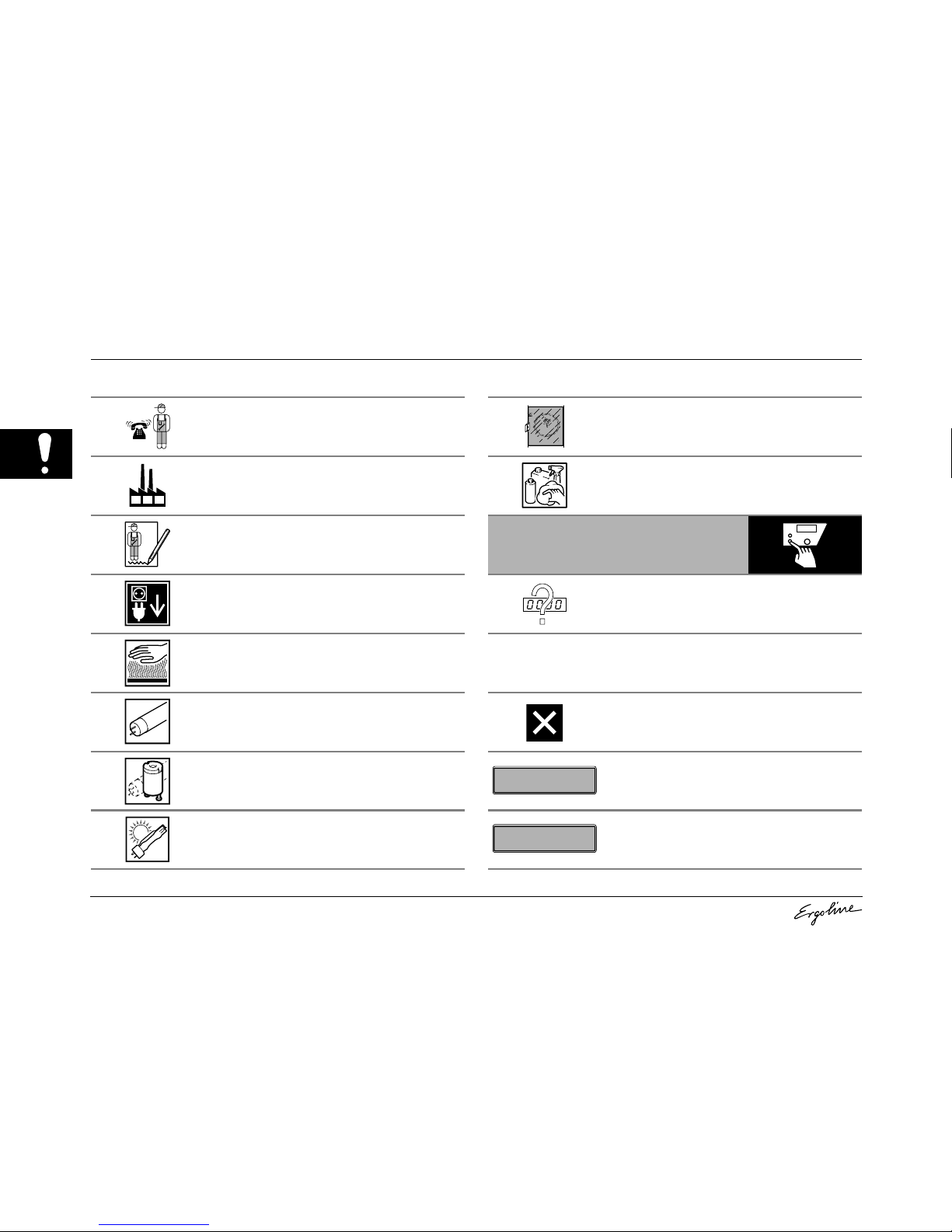

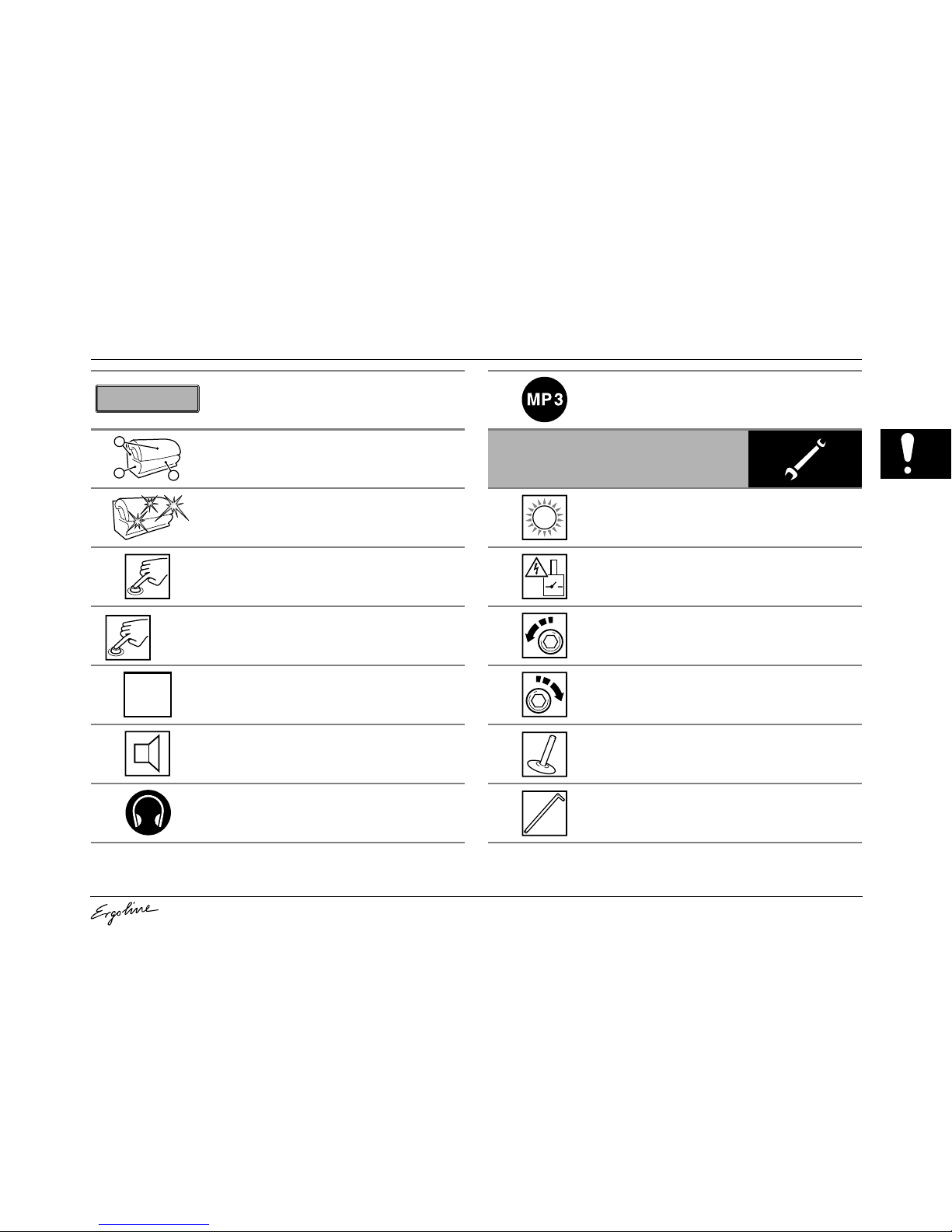

Symbols for description, operation and maintenance
Customer service
Manufacturer
Part/article number (for orders)
Danger!
Switch off the device
– unplug the device from the power supply
Burning hazard!
Do not touch, hot surface.
Low-pressure lamps
Starter for low-pressure lamps
UV high-pressure lamps
Filter panels
Cleaning and disinfection agents
Operation
Presettings
Operating procedure continued on next page
End of operating procedure
Tanning time display
Warm-down time display(fan run-on)
...
Tanning time
03:25:00 min.
Follow-up time
02:59:00 min.

11
Meaning of symbols
Fault display (example)
Description
Accent lighting
Press button
Press button for 2 seconds
Duration: 3 minutes
Loudspeaker
Headphone jack
Error code
E040
e.g.:
2s
0-3 min
MP3 player connection
Maintenance
UV type
Caution, safety switch!
Unscrew/release screw
Tighten/lock screw
Vacuum bowl
Mount for acrylic covers

12
Meaning of symbols
Cleaning
Replacing
Clean or replace depending on soiling
Visual inspection
Filter mat
Filter and filter mats may not be damp.
This procedure requires 2 people.
Technical data / Appendix

13
Intended use
This unit is intended only for commercial use and not for private use.
This unit is used for tanning one adult person at a time.
Nursing infants and small children up to 7 years of age may not use this
unit.
The following applies for children and teenagers between the ages of 8
and 17 years: Only use tanning devices in agreement with a parent or
guardian, or after consulting a physician.
This unit is only to operated with the specified lamps or their equivalent.
The tanning times given in this instruction manual are valid only for the
specified lamp set.
Any other use shall be considered improper. The manufacturer cannot be
held liable for damage or injuries resulting from this. The operator bears
the sole risk for this.
Proper use also includes compliance with the manufacturer’s instructions
and its operating and maintenance conditions. The sunbed may only be
operated, maintained and repaired by persons familiar with these tasks
and that have been informed of the dangers involved.

14
Safety information for the operator
• All danger and safety notes attached to the unit must be observed!
• Please see the Technical Data - see page 77 for the maximum per-
missible weight loading of the acrylic glass panel.
• No safety equipment (e.g. panel switch) or safety warnings may be
removed or deactivated which would impair the safe operation of the
unit!
• The unit may only be operated in full working order!
1) In Germany: VDE regulations
• A timer control must be attached so that the device automatically
switches off at the latest after <110% of the selected running time
even if the controller fails. The sunbed running time must be provided
with double protection by use of a timer control that complies with the
standard EN 60335-2-272).
• Do not change, obstruct or block the air inflow and outflow area to the
unit or make any unauthorised changes to the unit. The manufacturer
shall bear no liability for damage or injuries resulting from such ac-
tions.
• The unit should not be installed and operated on the transport pallet.
Danger of overheating by obstructing the air circulation.
2) For JK timer controls, see page 83
Danger!
Installation and electrical connections must comply with the na-
tional regulations.1)
The on-site electrical installation must be fitted with an easily ac-
cessible all-pole isolating device (master switch), complying
with overvoltage category III. This means that each pole must
have a contact opening width complying with the conditions of
overvoltage category III for full isolation.
If the unit is connected via a plug and socket connection, a plug
system complying with EN 60309-1/A11; 5-pole; 400 VAC
(50 A) must be used.
Assembly, installation, upgrading or repair of the device may
only be carried out by specially trained and instructed person-
nel.
Caution!
The code for accessing the unit via the infrared interface is pre-
set in the software of the hand-held unit, and can therefore be
used on any unit. Anyone downloading the software from the In-
ternet can access the unit’s data using a hand-held unit. Please
make sure that customer service changes the preset access
code prior to initial start-up. Please make a note of the new code
for subsequent use!
This code is independent of the access code for the pre-settings
via the control panel.

15
Safety information for the user
▲: JK-Licht GmbH – see page 2.
Danger of skin and eye injuries or skin diseases!
• Persons with very sensitive skin (skin type I) must not use
the system, since, for this skin type, tanning without skin
damage (e.g. sunburn) is not possible.
• Individuals with acute sunburn, individuals who have had or
have skin cancer, or individuals who are at increased risk of
skin cancer, must not use the unit.
• UV systems should not be used without medical advice, if
unexpected manifestations such as irritation occur within 48
hours of first using the sunbed.
• The sunbed may never be used when a filter panel is miss-
ing or damaged, or if the timer is defective!
• UV radiation from the sun or UV systems can cause injuries
to the skin or eyes. This biological effect is dependent on the
sensitivity of the individual’s skin and on the type and
amount of UV radiation.
• The skin can get sunburned when exposed to excessive ra-
diation. Excessive, frequently repeated UV irradiation with
sunlight or UV devices can result in premature aging of the
skin and increased risk of skin tumours.
• Particular caution is advisable for individuals who are espe-
cially sensitive to UV radiation, and when certain medica-
ments or cosmetics are used.
• Remove cosmetics before tanning and do not use sun
screen products.
• See a doctor if stubborn swelling, sores or pigmented moles
form on the skin.
• Some medications for internal or external use can consider-
ably increase the skin’s sensitivity to UV radiation. For exam-
ple: Antibiotics, sulphonamides, psoralens such as melanin,
vitamin A acid and derivatives. Sunbaths – including those in
the sun – should not be taken during and shortly after using
this kind of substances! If in doubt, ask your physician first!
• The unprotected eye can become inflamed on the surface,
and in certain cases the retina can be damaged by exces-
sive radiation. Cataracts can form after frequently repeated
exposure to radiation.
Use the accompanying UV goggles
(order no. ▲84592-..).
• The time between the first two sessions on the sunbed must
be at least 48 hours! Do not sunbathe again on the same
day.
• Increasing tanning requires increased exposure time (= radi-
ation time) or after a certain degree of tanning has been
achieved, increased tanning is not possible. However, the
radiation time may not be extended as desired within the
scope of the permissible radiation doses! Therefore, de-
pending on the skin type, there is always a limitation to the
degree of final tanning that can be achieved without endan-
gering your health.

16
Information for the operator
Guidelines
This unit was manufactured according to the following guidelines:
• EC directive “Electromagnetic Compatibility” 89/336/EEC
(according to the version valid at the time).
• Low Voltage Directive 72/23/EEC
(according to the version in force at present).
Export
We emphasise that these sunbeds are intended for the European market
and must not be exported to or operated in the USA or Canada! The man-
ufacturer does not accept any liability in the event of non-observance!
We explicitly emphasise that high liability risks may occur to the exporter
and/or the operator in the event of non-observance.
Note:
Depending on the local utility company, the devices can transmit
interference to the power system of the house that impair the au-
dio-frequency remote control system used by the utility compa-
ny. This can, for example, interfere with the function of night-
storage heaters.
Note:
If faults occur due to the operation of the sunbeds, then the op-
erator is responsible for the installation of an audio frequency
blocking device in the building electrical installation. Please con-
tact your electrician. The electrician is familiar with the technical
connection conditions of your local utility company so that the
audio-frequency blocking device can be matched to the power
system of your utility company.

17
Information for the operator
MP3 music (optional)
If a personal MP3 player is used during a tanning session, it is not con-
sidered a public public performance according to copyright so that the
studio operator is not liable for registration or payment to the GEMA.
The same regulations apply to the public use of MP3 music files as to all
other music sources. As a studio operator/studio owner, you may only
play original Audio-CDs, MCs, audio-DVDs etc., on your premises and/
or play music via the “MP3-music modules” which are provided in the
professional sunbeds in the Ergoline range, if you have acquired the nec-
essary stage rights (GEMA/GVL1)[German copyright handling organisa-
tion]).
Copy protected audio CDs, MCs, audio DVDs etc, as well as the tracks
on such sound storage media should not converted to MP3 format and/
or stored on HDD, audio CDs, MCs, audio DVDs etc. if software is used
for this that voids or circumvents copy protection for the said storage me-
dia.
At the request of the GEMA’s external staff or any other GEMA control-
ling body, you must always be in a position to prove that you have pur-
chased the performance rights by showing the relevant authorisation is-
sued by the GEMA.
As long as you observe all the listed instructions and have acquired the
necessary rights for use of the “MP3-music-module”, you may convert
your original audio-CDs, MCs, audio-DVDs etc. into the MP3 format re-
quired by the player. However, only one copy is to be made of each le-
gally purchased audio CD, MC, audio DVD etc. The source media (orig-
inal sound storage media) must be kept and are not permitted to be used
at the same time.
1) or have purchased the commercial performance rights from the associa-
tion responsible in your country.

18
Information for the operator
Environmental protection
Environmental Declaration – The JK Corporate Group
The JK corporate group is subject to the strict regulations
of EC Directive 761/2001 and the standard
EN ISO 14001:1996, and undergoes regular internal and
external environment audits performed by trained audi-
tors.
Environmental regulations – disposal of lamps and batteries
UV high-pressure lamps contain fluorescent materials and other waste
containing mercury. Batteries contain heavy metal compounds.
According to the national waste disposal laws and in accordance with the
municipal waste regulations, proof must be provided of the proper dis-
posal of UV lamps and batteries.
Your local sales agency will be happy to assist you with the disposal
of UV lamps and batteries.
– Report the number of UV lamps and batteries to your local agency by
telephone or in writing.
– The agency will inform you about a collecting point 1) for your lamps
or will pickup the lamps and arrange proper disposal in cooperation
with a disposal company.
Packaging
All packaging consists of 100 % recyclable materials. Packaging brought
into circulation by the JK Corporate Group that is no longer required can
be returned to the JK Corporate Group. Your agency partner or dealer
will be happy to advise you.
Disposing of used equipment
The device has been produced of recyclable materials. When being
scrapped later, the device must be disposed of properly. The JK Corpo-
rate Group will provide you with information on the content or potential
hazards of the materials used.
If required, the JK-Company Group1) will dispose of this equipment in ac-
cordance with the regulations. Your agent or dealer will be pleased to ad-
vise you.
The components and units are marked with the following symbols:
1) The respective national laws apply. Please contact your local sales
agency.

19
Manufacturer’s guarantee
Ergoline accepts liability for any tanning system defects that arise in ac-
cordance with the following regulations on behalf of customers who have
purchased an Ergoline tanning system for private or commercial utilisa-
tion from one of Ergoline’s sales partners; consumable parts such as UV-
high pressure lamps (burner), UV-low pressure lamps (tubes) and start-
ers, as well as the acrylic glass panel itself, are not covered by the war-
ranty.
The guarantee stipulates that Ergoline will rectify any defects within a
time period predetermined by Ergoline by repair or exchange of the de-
fective part.
Claims made in accordance with this guarantee can be lodged with Er-
goline or the Ergoline sales partner from whom the product was pur-
chased on presentation of the guarantee card or invoice; this guarantee
is valid for a period of 24 months from the date of purchase.
This does not affect the rights of the customer under the existing guaran-
tee with regard to any claims that the customer might have in accordance
with the contract of purchase.
