VICTRIX PLUS
Condensation-type wall-hung room sealed
fan-assisted boiler for central heating only
or with an external storage tank.
VICTRIX 20 Plus
VICTRIX 27 Plus
General features.
VICTRIX Plus is a condensation type wall-hung room sealed
fan-assisted boiler for central heating only, designed to work
with a Plus storage tank with an 80, 105, 120 or 200-litre
capacity.
anks to the condensation technology this boiler stands out
for its high performance and wide modulation range (from
20% to 100% of nominal heat power).
ere are two versions in the range with working outputs of
23.5 kW (20210 kcal/h) and 32.0 kW (27520 kcal/h) and
both models feature an innovative total premix combustion
system that ensures minimal pollution emissions. ey can
run on natural gas or LPG.
anks to their excellent energy performance, these boilers
bear the 4-star mark (´´´´) in conformity with the P.D.
660/96.
e appliance is regulated and controlled by means of a printed
microprocessor control board which, via a display, shows the
state of boiler operation (temperatures, safety devices, etc.) and
enables it to be connected (optional) to the Remote Control,
to the external probe, to the zone control unit and to the
Multisystem Distribution Manifold.
e hydraulic circuit features a water-gas coil exchanger in
stainless steel, a 3-way hydraulic diverter valve and an adjustable
by-pass on the system.
All boilers are fitted with an antifreeze device for temperatures
of -5 °C.
e VICTRIX Plus boiler has to be installed using the suc-
tion/exhaust kit or the ducting systems (60 mm Ø rigid and
80 mm Ø flexible) made of plastic and expressly conceived for
the Immergas condensation boilers.
e AISI 316L stainless steel storage tanks are supplied with
an anode and domestic hot water expansion vessel as standard
features and can be connected to the recirculation system by
means of a specific kit (optional).
Technical Documentation Technical Documentation

2
STVP ed 02/06 VICTRIX Plus
VICTRIX 20 Plus main dimensions.
80-litre storage tank
200-litre storage tank
105-litre storage tank
120-litre storage tank
Legend:
V - Power connection
U - D.h.w. outlet
G - Gas supply
RB - Boiler return
MB - Boiler delivery
A - System filling
E - D.h.w. (cold) inlet
RI - System return
MI - System delivery
RP - Solar panel return (optional)
MP - Solar panel delivery (optional)
S - Condensation runoff
RC - Recirculation (optional)
FITTINGS
SYSTEM GAS D.H.W.
MB-RB MI-RI MP-RP G Inlet Outlet RC
3/4” 3/4” 3/4” 1/2” 1/2” 1/2” 1/2”
Technical DocumentationTechnical Documentation

3
STVP ed 02/06 VICTRIX Plus
VICTRIX 27 Plus main dimensions.
FITTINGS
SYSTEM GAS D.H.W.
MB-RB MI-RI MP-RP G Inlet Outlet RC
3/4” 3/4” 3/4” 1/2” 1/2” 1/2” 1/2”
105-litre storage tank 120-litre storage tank
80-litre storage tank
200-litre storage tank
Legend:
V - Power connection
U - D.h.w. outlet
G - Gas supply
RB - Boiler return
MB - Boiler delivery
A - System filling
E - D.h.w. (cold) inlet
RI - System return
MI - System delivery
RP - Solar panel return (optional)
MP - Solar panel delivery (optional)
S - Condensation runoff
RC - Recirculation (optional)
Technical Documentation Technical Documentation

4
STVP ed 02/06 VICTRIX Plus
VICTRIX Plus main components.
Legend:
1 - System filling valve
2 - Gas valve
3 - System drainage fitting
4 - Gear motor for the 3-way diverter valve
5 - 3-way diverter valve
6 - Sealed chamber back
7 - Detection electrode
8 - Condensation module lid
9 - Intake traps (air A) - (fumes F)
10 - Fume thermostat
11 - Heating limit and adjustment NTC probe
12 - Air vent
13 - Expansion vessel
14 - Air intake pipe
15 - Condensation module
16 - Ignition electrodes
17 - Sleeve with Venturi housing
18 - Electronic control unit
19 - Voltage transformer
20 - Overtemperature safety thermostat
21 - Circulator
22 - Pump safety pressure switch
23 - System safety valve 3 bar
24 - Condensation siphon
25 - Adjustable by-pass
26 - Draught diverter
27 - Positive signal pressure point
28 - Negative signal pressure point
29 - Burner
30 - Air fan
31 - Gas valve outlet pressure test
(from the serial number 3035590 for VICTRIX 20 Plus)
(from the serial number 2773117 for VICTRIX 27 Plus)
Technical DocumentationTechnical Documentation

5
STVP ed 02/06 VICTRIX Plus
Storage tank main components.
Legend:
1 - ermometer
2 - D.h.w. probe
3 - D.h.w. drainage cock
4 - D.h.w. expansion vessel
5 - Coil
6 - Magnesium anode
7 - Double coil
8 - Coil for use with solar panels
9 - Solar panels probe (Optional for the 200-litre S.T. only)
80-litre storage tank
120-litre storage tank
105-litre storage tank
200-litre storage tank
Technical Documentation Technical Documentation

6
STVP ed 02/06 VICTRIX Plus
VICTRIX Plus control panel.
Legend:
1 - Central heating ON light
2 - Central heating temperature selector switch
3 - D.h.w. temperature selector switch
4 - D.h.w. ON light
5 - D.h.w./Remote Control – D.h.w. and Heating switch 0
6 - Manometer
7 - Reset
8 - Temperature and diagnostics display
9 - Burner ON light
10 - Storage tank thermometer
11 - Cap
“Condensation Technology”.
Combustion performance (see VICTRIX).
Gas heating power (see VICTRIX).
Dewtemperature (see VICTRIX).
Operating performance of traditional boilers (see
VICTRIX).
Boiler control panel
Storage tank control panel
Operating performance of condensation boilers
(see VICTRIX).
Features and advantages of condensation boilers
(see VICTRIX).
Technical DocumentationTechnical Documentation

7
STVP ed 02/06 VICTRIX Plus
VICTRIX Plus hydraulic circuit.


 
 
Legend:
1 - Gear motor for 3-way diverter valve
2 - Condensate collector siphon
3 - Gas valve
4 - Gas valve outlet pressure point (P3)
5 - 3-way diverter valve
6 - Venturi positive signal (P1)
7 - Fan
8 - Venturi negative signal (P2)
9 - Gas nozzle
10 - Venturi air/gas manifold
11 - Detection electrode
12 - Burner
13 - Condensation module lid
14 - Condensation module
15 - Fume thermostat
16 - Draught diverter
17 - Air analyser trap
18 - Gas pressure point
19 - Fumes analyser trap
20 - Heating limit and adjustment NTC
probe
21 - Overheating safety thermostat
22 - Automatic air vent
23 - Ignition electrodes
24 - Expansion vessel
25 - Air inlet pipe
26 - Circulator
27 - Circulator pressure switch micro
28 - System safety valve 3 bar
29 - Circulator pressure switch
30 - Adjustable by-pass
31 - System drainage cock
32 - System filling valve
33 - One way valve (Europa)
34 - D.h.w. (cold) inlet cock
35 - D.h.w. expansion vessel
36 - System safety valve 3 bar
37 - Storage tank
38 - Magnesium anode
39 - D.h.w. NTC probe
G - Gas supply
S - Condensation runoff
MB- Storage tank delivery
RB - Storage tank return
A - System filling
RI - System return
MI - System delivery
U - D.H.W. outlet
E - D.H.W. (cold) inlet
RC - Recirculation (optional)
MP - Solar panels delivery (optional for the
200-litre S.T. only)
RP - Solar panels return (optional for the
200-litre S.T. only)
(from the serial number 3035590 for VICTRIX 20 Plus)
(from the serial number 2773117 for VICTRIX 27 Plus)
Technical Documentation Technical Documentation

8
STVP ed 02/06 VICTRIX Plus
Primary circuit (boiler circuit).

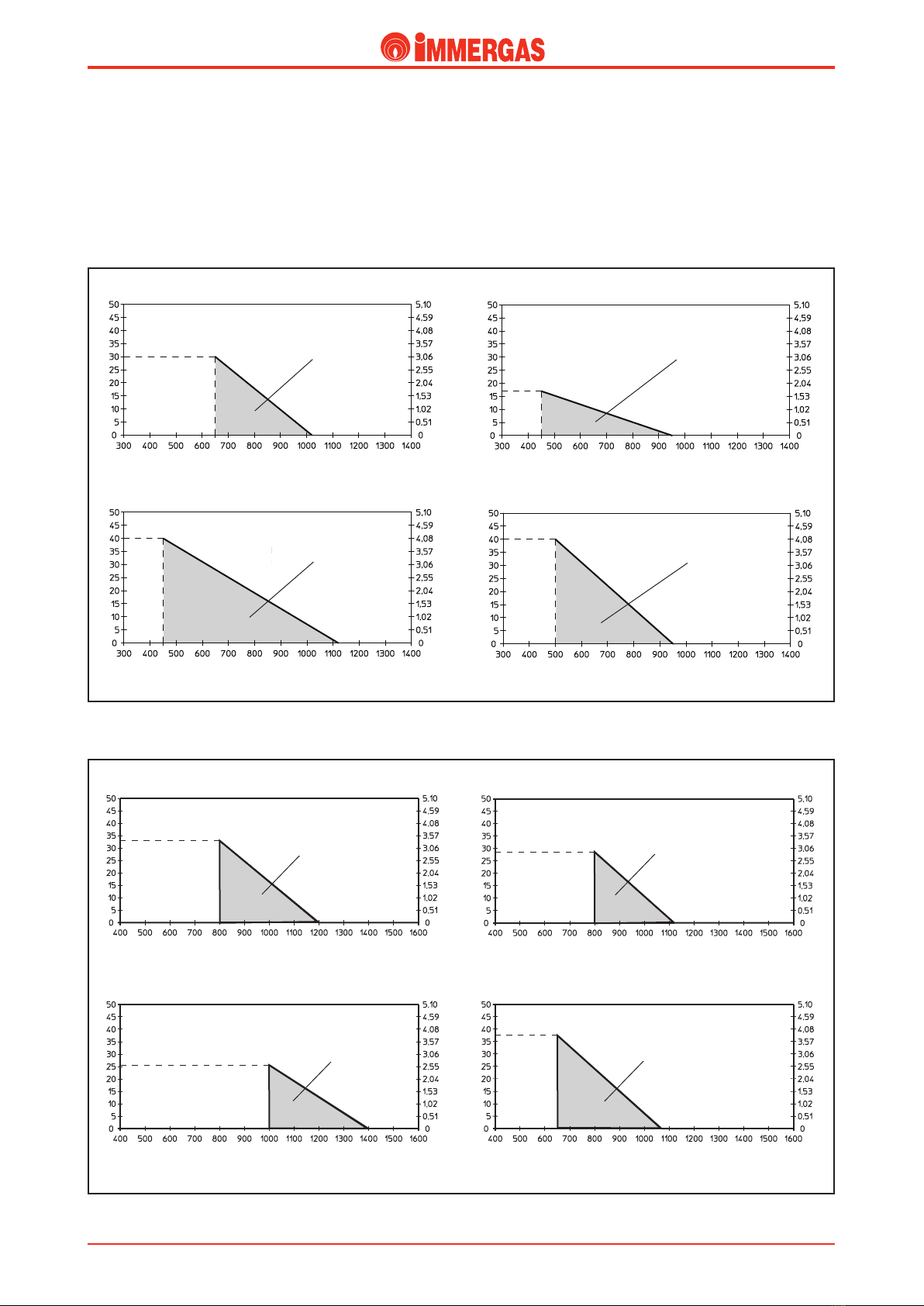

Flow litres/h
A = Head available to the system on maximum speed with the by-pass
off (adjustment screw fully tightened)
B = Head available to the system on maximum speed (screw tightened
4.5 turns compared to the screw completely loose)
C = Head available to the system on maximum speed with the by-pass
open (adjustment screw completely loose)
A
B
C
Head (kPa)
Flow litres/h
A
B
C
A = Head available to the system on maximum speed with the by-pass
off (adjustment screw fully tightened)
B = Head available to the system on maximum speed (screw tightened
4.5 turns compared to the screw completely loose)
C = Head available to the system on maximum speed with the by-pass
open (adjustment screw completely loose)
VICTRIX 20 Plus
VICTRIX 27 Plus
Head (m H2O)
Head (kPa)
Head (m H2O)
2
1
3
e primary circuit with relevant control and safety devices is
triggered each time there is a request for central heating or
domestic hot water.
Operation.
e heat contained in the products of combustion is absorbed
by the pipes of the coil water-gas exchanger fitted in the con-
densation module (14) which, in turn, transfers it to the water
circulating inside thanks to the boiler pump (26).
When the boiler is working only in the central heating mode,
the water is transferred directly into the system while if it is
coupled to the storage tank it can be diverted to inside the
storage tank coil.
is depends on the position of the electric 3-way diverter valve
(5) which, depending on the request, permits flow through the
system delivery (M) and return (R) pipes, or it diverts the flow
to the storage tank coil.
Flow-head graph.
e trend of the curve that represents the flow-head ratio,
depends on how the system by-pass is adjusted. Depending
on the position, it provides the system with a higher or smaller
head. Circulator.
e circulator works on the primary circuit return and is
located on the brass assembly.
It is connected to the enbloc by means of a threaded connec-
tion while the condensation module and the expansion vessel
are connected by means of coupling pipes (2) and an O ring
(3), locked by special forks (1).
Primary exchanger (see VICTRIX).
Technical DocumentationTechnical Documentation

9
STVP ed 02/06 VICTRIX Plus
Safety devices and checks.
Adjustable system by-pass (3).
is device guarantees the circulation of water in the primary
circuit (between delivery and return) even when it would be
prevented by the high resistance of the system.
It is mounted on an enbloc and can be adjusted by means of
a screw accessible from the bottom part of the valve support
plate.
No-water pressure switch (1).
is detects the pressure difference at the ends of the circula-
tor.
It is housed in the enbloc and connected to a microswitch that
prevents the burner working if the pump is blocked or there
is no water in the boiler circuit.
It prevents the main exchanger from overheating.
Automatic air vent (6).
It automatically expels any gaseous substances from the boiler
circuit.
It is screwed to the water side of the expansion vessel.
3-bar safety valve (2).
It is located at the front of the 3-way enbloc and prevents safety
pressure being exceeded in the circuit (3 bar).
When this valve trips it causes water to exit from the delivery
pipe.
One-way valve (4).
(up to serial number 2279840 for VICTRIX 20 Plus)
During the d.h.w. mode it prevents natural circulation starting
in the central heating system.
“Europa” type one-way valve (5).
(from the serial number 2279841 for VICTRIX 20 Plus)
(from the start of production for VICTRIX 27 Plus)
During the d.h.w. mode it prevents natural circulation starting
in the central heating system.
It is housed at the end of the system delivery pipe where the
boiler’s connection unit is located.
Expansion vessel (7).
It offsets volume variations resulting from the water being
heated thus restricting pressure variations.
It is mounted at the back of the appliance and connected to
the pump by means of a coupling tube.
It has a capacity of 8 litres and a 1 bar pre-load pressure.
1
2
3
4
5
6
7
Technical Documentation Technical Documentation

10
STVP ed 02/06 VICTRIX Plus
Secondary circuit (domestic hot water circuit).
e secondary circuit comes into use whenever it is necessary
to bring the temperature in the storage up to the temperature
wanted, measured with the d.h.w. NTC probe (4).
Operation.
Following a domestic hot water request, the modulating control
board starts the boiler pump (1) and powers the electric 3-way
diverter valve motor (2). When the valve consequently moves
into the d.h.w. position (see electric 3-way diverter valve), it
closes the system return pipe (R1) and simultaneously opens
the storage tank coil return pipe (RB).
In this way, circulation is permitted in the coil (3) which,
through its walls, lets the cold domestic water absorb the heat
contained in the primary circuit water.
In this phase the heating function is off, the production of
domestic hot water having priority.
Storage tank.
e PLUS storage tanks, 80, 105, 120 and 200 litres, consist
of a coil storage tank insulated with polystyrene and fitted with
a casing and control panel.
e storage tank is made entirely in AISI 316 L stainless steel
and comprises an external casing enclosed at the top by a flange
fixed with 12 screws.
A coil is housed inside (two coils in the 120- and 200-litre
versions) consisting of a concentric spiral shaped stainless
steel pipe and through whose walls thermal exchange occurs
between the primary circuit hot water and the water inside
the storage tank.
is keeps the water inside the storage tank at a constant
temperature and, when water is drawn, the instant produc-
tion of hot water.
Whenever it is necessary, the coil can be taken out of the storage
tank after removing the top inspection flange.
e storage tank features a series of devices that, besides guar-
anteeing proper operation, also guarantee integrity:
Anode (6).
It is inside the storage tank and preserves it from the galvanic
currents. It is screwed to the top flange.
Polyphosphates metering unit (optional).
It prevents limescale depositing on the coil walls.
e kit is mounted on the domestic cold water inlet.
Safety valve unit (14).
is unit is located at the top of the storage tank, by the do-
mestic cold water inlet.
Besides an 8 bar valve (“7” d.h.w. circ.) that prevents the safety
pressure inside the storage tank from being exceeded, this unit
also includes:
- a one way diverter valve (“8” d.h.w. circ.) that prevents the
increase in pressure (as aresult of heating domestic water)
from causing a return to the water mains.
- a 12 l/min flow limiter (only on the 80- and 105-litre ver-
sions).
Technical DocumentationTechnical Documentation

11
STVP ed 02/06 VICTRIX Plus
ON-OFF thermostat kit (12) (optional).
is kit adapts storage tank operation to systems with ON-
OFF type temperature control.
It consists of a thermostat whose bulb is put in place of the
NTC sensor and electrically wired to the storage tank’s control
panel terminal board.
It is adjusted by way of the control panel after having removed
the cap (13).
Recirculation kit (11) (optional).
If your boiler includes a d.h.w. recirculation system, this kit
is used to connect it.
It consists of a pipe that is inserted in the storage tank after
have removed the anode (6) and relative cap.
With installation of the kit, the anode (6) has to be screwed
on the end of the pipe.
Note: the recirculation probe fitting (11) is already mounted
on the 105 and 200 litre storage tanks.
Domestic hot water drainage cock (10).
is brass cock features a hose-end fitting and is screwed on
the outside wall of the storage tank through which the water
inside the tank can be drained.
Storage tank NTC sensor (B4) (4).
anks to this sensor the modulating control board is able to
read the temperature of the water inside the storage tank.
It is fitted inside a bulb holder against the outside wall of the
storage tank.
Domestic hot water expansion vessel (9).
It offsets volume variations resulting from heating the water
in the storage tank.
It has a 4-litre capacity in the 80- and 105-litre versions, 5 litres
in the 120-litre version and 8 litres in the 200-litre version.
10
3
4
6
9
11
7
14
13
12
Technical Documentation Technical Documentation

12
STVP ed 02/06 VICTRIX Plus
Available head for the storage tank with Victrix 27 Plus.
Flow (l/h)
Head (m H2O)
Available head for the storage tank with Victrix 20 Plus.
Head (kPa)
Flow (l/h)
Head (m H2O)
Head (kPa)
Flow (l/h)
Head (m H2O)
Head (kPa)
Flow (l/h)
Head (m H2O)
Head (kPa)
Flow (l/h)
Head (m H2O)
Head (kPa)
Flow (l/h)
Head (m H2O)
Head (kPa)
Flow (l/h)
Head (m H2O)
Head (kPa)
Flow (l/h)
Head (m H2O)
Head (kPa)
Graph of flow-head to the storage tank.
To guarantee the heat exchange of all the boiler’s nominal
heat power, the hydraulic connection with the PLUS unit
(optional) must have load losses less than those indicated in
the following graphs according to the boiler model and type
of storage tank.
MAX HEAT EXCHANGE
80-litre STORAGE TANK COIL
MAX HEAT EXCHANGE
120-litre STORAGE TANK COIL
MAX HEAT EXCHANGE
80-litre STORAGE TANK COIL
MAX HEAT EXCHANGE
120-litre STORAGE TANK COIL
MAX HEAT EXCHANGE
200-litre STORAGE TANK COIL
MAX HEAT EXCHANGE
105-litre STORAGE TANK COIL
MAX HEAT EXCHANGE
200-litre STORAGE TANK COIL
MAX HEAT EXCHANGE
105-litre STORAGE TANK COIL
Technical DocumentationTechnical Documentation

13
STVP ed 02/06 VICTRIX Plus
Motorised 3-way diverter valve.
is electric 3-way diverter valve works on the primary circuit
return and, depending on the request made (d.h.w. or central
heating), it transfers boiler water to the central heating system
or to the storage tank coil.
is depends on the position of the shutter (3) which closes
the passage to the system while opening it to the storage tank
(d.h.w. position) or vice versa (central heating position).
e motor (1) has to be powered in order to move the shutter
(3) in either position.
Operation.
When either the central heating or d.h.w. position has to be
reached, the modulating control board starts the motor (1)
running.
Motor operation, whose rpm are reduced by a gear system,
turns a disk (6) that is eccentrically fixed on the motor shaft.
Movement of this disk causes the joint (5) to shift and, with
each 180° turn, it presses (domestic hot water position) or
releases (central heating position) the shutter’s counteracting
spring (4).
When the position required is hydraulically reached, it alterna-
tively opens a limit switch micro (2) and closes the other.
In this way power can be cut to the motor, locking it in the
position reached, and can be enabled only when a different
request is made (d.h.w. or central heating signal).
1
2
34
6
5
COIL RETURN
PUMP RETURN
SYSTEM
RETURN
CENTRAL HEATING
SIGNAL
D.H.W. SIGNAL
COMMON
Technical Documentation Technical Documentation

14
STVP ed 02/06 VICTRIX Plus
Air-gas circuit.
Operation (see VICTRIX).
Gas valve (see VICTRIX).
Fan (see VICTRIX).
Venturi (see VICTRIX).
Burner (see VICTRIX).
Air-gas adjustments.
Adjusting nominal and minimum heat output
(see VICTRIX).
Air-gas ratio adjustment (off-set) (see
VICTRIX).
Gas conversion (see VICTRIX).
Fumes circuit.
Operation (see VICTRIX).
Draught diverter (see VICTRIX).
Condensation runoff siphon (see VICTRIX).
Venturi pressure points (P1-P2) (see
VICTRIX).
Air-fumes intake traps (see VICTRIX).
Suction and exhaust systems.
(see suction and exhaust terminal instructions).
Conventional flue configuration (type B23) for
indoor installation (see VICTRIX).
Fan-assisted sealed chamber configuration (type
C) (see VICTRIX).
Technical DocumentationTechnical Documentation

15
STVP ed 02/06 VICTRIX Plus
Electrical circuit.
e VICTRIX Plus electrical circuit is completely connected
to a microprocessor controlled p.c.b. that controls generator
functions.
230 V AC circuit.
Safety devices and checks.
Some of the devices on the circuit operate at mains voltage
(230 V AC) while the others at low voltage.
is detects ignition of the burner by whose flame it is covered.
It is connected to the ignition board detection circuit.
Detection electrode
(E3)
is cuts power to the circuit when the current absorbed is over 3.15 A.
It is fitted on the modulating control board.
Line fuse
(F)
3.15 AF fuse
250 V
Legend:
A1 - Storage tank (optional)
B1 - NTC heating probe
B3 - External probe (optional)
B4 - NTC storage tank probe
CAR - Amico Remote Control (optional)
CZ - Zone control unit (optional)
DL1 - Central heating function LED
DL2 - D.h.w. function LED
DL3 - Flame detection LED
E1-E2 - Ignition electrodes
E3 - Detection electrode
E4 - Temperature safety thermostat
E6 - Fume thermostat
F - Line fuse
M1 - Circulator
M2 - Fan
M3 - 3-way diverter valve
PU1 - Reset lock condition
R1 - D.h.w. inhibition resistor
S1 - Rotary main switch
S2 - Pump flow switch micro
T - Transformer fuse
TA - ON/OFF room thermostat (optional)
T1 - Voltage transformer
U1 - Rectifier inside the gas valve connector
X20 - TA or CAR inhibition jumper
Y1 - Gas valve
 


















(from the serial number 3035590 for VICTRIX 20 Plus)
(from the serial number 2773117 for VICTRIX 27 Plus)
Technical Documentation Technical Documentation

16
STVP ed 02/06 VICTRIX Plus
is cuts power to the transformer (230V/24V) of the low-voltage circuit
when the current absorbed is over 315 mA .
It is fitted on the modulating control board.
Transformer fuse
230V / 24V
(T)
315 mA fuse
250 V
Loads.
When the safety temperature is exceeded (100 ºC) this device cuts power
to the gas valve’s main coils.
It is positioned on the delivery pipe at the primary exchanger outlet.
Overtemperature safety device
thermostat
(E4)
Depending on the position:
0: - circuit not powered.
: - d.h.w. and CAR function (optional).
: - d.h.w. and heating function.
Main switch
(S1) 3-position switch
is is controlled by the modulating control board when burner ignition is required.
It controls the devices required for ignition (gas valve, ignition electrodes) and flame detection
(ionisation electrode).
It is located inside the sealed chamber in the bottom right section.
Ignition control unit
(IGN. BOARD)
Clicson twin-con-
tact thermostat
It permits water circulation in the primary circuit.
It is powered by the modulating control board following a d.h.w., heating or antifreeze request.
Circulator
(M1)
ese produce an electric discharge which ignites the air-gas mix.
Electrode E1 is connected to the ignition control unit, while E2 is earthed.
Ignition electrodes
(E1-E2)
is is powered when the main switch is positioned on (summer) or (winter) (see modu-
lating control board operation).
Modulating control board
is is a 230 V/ 24 V transformer that supplies the low-voltage adjustment circuit.
It is located inside the sealed chamber in the bottom left section.
Transformer
(T1)
It diverts the flow of primary circuit water from the heating system to the storage tank coil and
vice versa.
It is powered by the modulating control board.
Electric 3-way diverter valve
(M3)
is is energised by the ignition control unit (IGN. BOARD) when the burner has to be ignited.
It is energised at mains voltage rectified by a diode bridge (U1) inside the gas valve connector.
It lets gas flow to the burner.
Gas valve (Y1)
(main coils)
When the fume safety temperature is exceeded (100 ºC) this device cuts
power to the gas valve’s main coils.
It is positioned on the condensation module close to the draught
diverter.
Fume thermostat
(E6)
(from the serial number 3035590
for VICTRIX 20 Plus)
(from the serial number 2773117
for VICTRIX 27 Plus)
Clicson twin-con-
tact thermostat
Technical DocumentationTechnical Documentation

17
STVP ed 02/06 VICTRIX Plus
Low-voltage circuit.
Safety devices and controls.
It permits operation of the boiler with 3 zone valves or external pumps
controlled by the relevant room thermostats.
Zone 1 is controlled (times and temperatures) by the CAR (if mounted).
Zone control unit (CZ)
(external optional)
See zone control
unit operation
It reads the outside temperature and enables the modulating control board
to change the system delivery temperature according to the temperature
outside.
External sensor (B3)
(external optional)
PTC sensor
1 kohm 25 °C
is enables the modulating control board to read the temperature of the
primary circuit delivery water.
If it breaks, burner operation stops for both d.h.w and heating.
is is located at the outlet of the primary exchanger.
Heating sensor
(B1)
NTC sensor
10 kohm 25 °C
is affects the modulating control board and it is possible to cut power
to the control unit in the event of a blocked pump or no water in the
primary circuit.
No-water safety device
(S2) Twin-contact switch
e generator can be controlled remotely with this device (SUMMER/
WINTER switch, temperature adjustment and indication, alarm display,
reset, etc) and it also acts as a weekly timer-thermostat.
Together with an external sensor (B3), it enables the modulating control
board to change the system delivery temperature according to the outside
temperature.
Amico Remote Control
(CAR)
(optional)
See Amico Remote
Control (CAR)
operation
is allows the modulating control board to read the outlet temperature
of the hot water inside the storage tank.
If it breaks burner operation stops in the d.h.w. mode.
It is fitted inside the bulb holder against the outside wall of the storage
tank.
Domestic hot water
sensor
(B4)
NTC sensor
10 kohm 25 °C
is enables operation during the heating phase when room temperature
is below that required.
If the CAR is installed the room thermostat must be disconnected without
re-installing the jumper X20.
Room thermostat (TA)
(external optional) Twin-contact switch
Loads.
is displays burner operation (orange LED), d.h.w. operation (green LED) and heating operation
or antifreeze (green LED) on the panel.
A display shows the boiler temperature, the set d.h.w. and heating temperatures and the error codes
(see modulating control board operation).
Twin-contact switch
is ensures the flow of air in the air-gas mix pipe and the extraction of fumes produced by com-
bustion.
It is powered by the modulating control board.
Fan
(M2)
Technical Documentation Technical Documentation

18
STVP ed 02/06 VICTRIX Plus
Electrical circuit.
Heating phase.
Operating with a room thermostat.
With the main switch (S1) on WINTER it powers the modu-
lating control board and enables operation in the heating
mode.
When the room thermostat contact (TA) closes, the low volt-
age circuit starts the pump (M1) by means of the K2 relay
contact.
e flow of water intercepts the pump pressure switch (S2)
whose contact, on closing, energises the coil of relay K3.
At the same time, the adjustment circuit causes the relay K1
contact to divert until the 3-way diverter valve (M3) motor (M)
is powered. is motor keeps working until the limit switch
“A” opens when the central heating position is reached.
If the temperature measured by the NTC heating sensor (B1)
is below that set on the control panel with the heating poten-
tiometer, the low voltage circuit starts the fan (M2) and then
closes the contact of the request relay (K3).
Hence the control unit (IGN. BOARD) starts the ignition
cycle, first energising the ignition electrodes (E1-E2) and then
with the possible tripping of the fume thermostat (E6) both
gas valve coils (Y1) after it has been enabled by the overtem-
perature thermostat (E4).
Burner ignition is detected by this same control unit (IGN.
BOARD) by way of the ionisation electrode (E3).
Operation with the Amico Remote Control.
With the main switch (S1) on SUMMER, the modulating
control board and the Amico Remote Control (CAR) are
powered.
If the conditions detected by the Amico Remote Control
(CAR) require ignition in the heating phase (CAR SUM/WIN
selector switch on WINTER, heating temperature setting above
that detected by the heating sensor (B1), room temperature setting
higher than that read), the board turns the pump (M1) on by
means of relay K2 and ignition occurs as described above.
Note: In both cases, each time the control unit switches off due to
the set temperature having been reached, the modulating control
board turns the burner off in the heating phase for 180 seconds.












Technical DocumentationTechnical Documentation
