Impex Iron Grip Sport IGS-07 User manual

NOTE:
Please read all instructions
carefully before using this
product
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
IGS-07
Retain This
Manual for
Reference
04-22-02
OWNER'S
MANUAL
IGS-07
MULTI LAT/MID/LOW Machine
IMPEX FITNESS PRODUCTS
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: [phone] Fax: [phone]
www.impex-fitness.com
[email protected]

TABLE OF CONTENTS
BEFORE YOU BEGIN...................................................................................... 1
IMPORTANT SAFETY NOTICES..................................................................... 2
HARDWARE IDENTIFIER.....…....................................................................... 3
ASSEMBLY INSTRUCTIONS........................................................................... 4
EXPLODED DIAGRAM……………………………………………………………... 11
PARTS LIST……………………………………………………………………….. 12
WARRANTY.................................................................................................… 13
ORDERING PARTS......................................................................................... 13
BEFORE YOU BEGIN
Thank you for selecting the IRON GRIP SPORT IGS-07 Multi Lat/Mid/Low
Machine by IMPEX FITNESS PRODUCTS. For your safety and benefit, read
this manual carefully before using the machine. As a manufacturer, we are
committed to provide you complete customer satisfaction. If you have any
questions, or find there are missing or damaged parts, we guarantee you
complete satisfaction through direct assistance from our factory. To avoid
unnecessary delays, please call our TOLL-FREE customer service number.
Our Customer Service Agents will provide immediate assistance to you.
1
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.impex-fitness.com
[email protected]m

IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES
NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED
BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
2

3

ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Adjustable Wrench and Allen Wrench
NOTE: It is strongly recommended this machine to be assembled by two or more
people to avoid possible injury.
STEP 1 (See Diagram 1)
A.) Attach the Rear Stabilizer (#33) and the Base Frame (#45) to the Main Stabilizer (#35).
Secure them with two M12 x 4” Carriage Bolts (#38), ∅1” Washers (#12) and M12
Aircraft Nuts (#13).
B.) Attach the Rear Vertical Beam (#19) to the Rear Stabilizer (#33). Secure it with two M12
x 1” Allen Bolts (#29) and ∅1” Washers (#12).
C.) Attach the Front Vertical Beam (#22) to the Base Frame (#45). Secure it with two M12 x
4” Carriage Bolts (#38), ∅1” Washers (#12), and M12 Aircrafts (#13).
D.) Attach the Seat Frame (#53) to the Base Frame (#45). Secure it with three M12 x 1’
Allen Bolts (#29) and ∅1” Washers (#12).
4

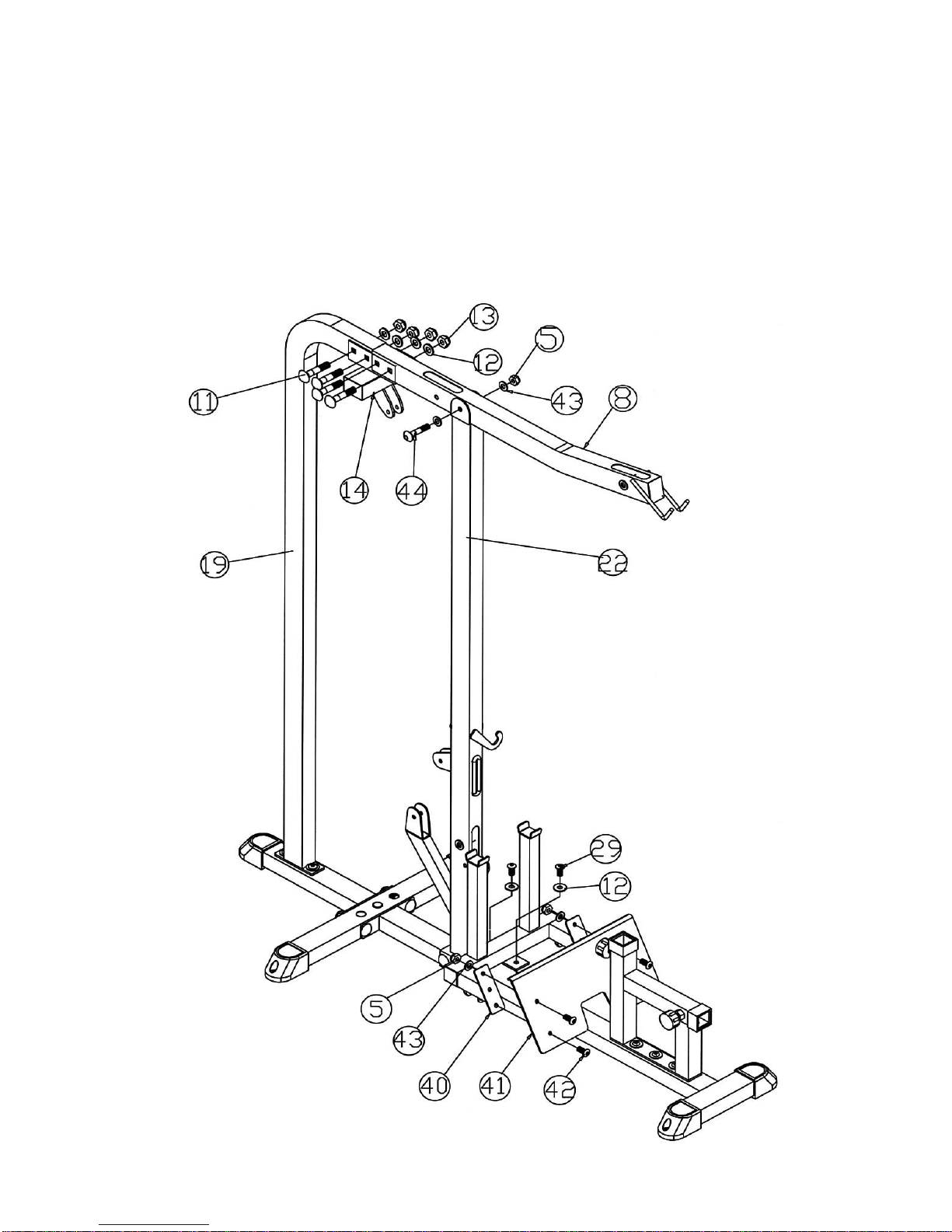

STEP 2 (See Diagram 2)
A.) Align the rear of Upper Frame (#8) to the Rear Vertical Beam (#19). Attach the Top
Socket Assembly (#14) to the joint. Secure it with four M12 x 3 1/8” Carriage Bolts
(#11), ∅1” Washers (#12), and M12 Aircraft Nuts (#13). Do not tighten the bolts yet.
B.) Place the Upper Frame onto the open bracket on the Front Vertical Beam (#22). Secure
it with one M10 x 3” Allen Bolt (#44), two ∅¾” Washers (#43), and one M10 Aircraft Nut
(#5). Securely tighten all bolts previously installed.
C.)Attach the Foot Plate Support (#40) to the Base Frame (#45). Secure it with two M12 x
1” Allen Bolts (#29) and ∅1” Washers (#12).
D.)Attach the Foot Plate (#41) to the Foot Plate Support (#40). Secure it four M10 x 1” Allen
Bolts (#42), ∅¾” Washers (#43), and M10 Aircraft Nuts (#5).
5

STEP 3 (See Diagram 3)
A.) Insert the two Guide Rods (#18) into the holes on the Main Stabilizer (#35). Slide two
Rubber Washers (#26) onto the Guide Rods from the top. NOTE: WD-40 or similar
lubricant might be needed to reduce friction.
B.) Slide two Guide Rod Sleeves (#28) and two Rubber Bumpers (#27) onto the Guide
Rods (#18). Then slide the Weight Holder (#24) onto the two Guide Rods. At last, slide
two Guide Rod Rings (#15) onto the Guide Rods.
C.)Align the Guide Rods to the holes on the Top Socket Assembly (#14). Lift up the
Rings (#15) to secure the Rods with two M8 x ½” Allen Bolts (#16).
D.)Slide a Rubber Washer (#26) and Olympic Sleeve (#30) onto the post on the Weight
Holder (#24). Secure the Olympic Sleeve with a M8 x ½” Allen Bolt (#16). Plug an
Olympic Sleeve End Cap (#34) to the end. Clip a Spring Clip (#32) onto the Sleeve.
Repeat the same procedure for the other side.
E.) Attach the Arm Curl Pad (#55) to the Arm Curl Stand (#54). Secure it with two M8 x 1
3/8” Allen Bolts (#49) and ∅5/8” Washers (#50). Insert the Stand into the top opening
on the Seat Frame (#53). Use the Lock Knob (#46) to select desired height for the Arm
Curl Pad.
F.) Insert the Seat Adjustment Frame (#47) into the front opening on the Seat Frame
(#53). Use a Lock Knob (#46) to select the desired position.
G.)Attach the Seat Pad (#51) to the Seat Post (#52). Secure it with two M8 x 1 3/8” Allen
Bolts (#49) and ∅5/8” Washers (#50). Insert the Seat Post into the Seat Adjustment
Frame (#47). Use the Lock Knob to select desired height for the Seat.
6

DIAGRAM 3
7

STEP 4 (See Cable Loop & Diagram 4)
A.) Attach the 119” Upper Cable (#10) to the front opening on the Upper Frame (#8).
Make sure the ball stopper on the Cable is under the opening.
B.) Attach a Pulley (#9) to the opening. Secure it with one M10 x 2 ½” Allen Bolt (#7), two
Bushings (#6), and one M10 Aircraft Nut (#5).
C.)Draw the Cable towards the back of the machine to the second opening on the Upper
Frame. Repeat Step B above to install a Pulley.
D.)Draw the Cable downward. Place a Pulley in between the two Pulley Brackets (#21).
Secure them together with one M10 x 2” Allen Bolt (#17), two ∅¾” Washers (#43),
and one M10 Aircraft Nut (#5). Draw the Cable around the Pulley and the Bracket
hanging for now.
E.) Pull the Cable upward towards the open bracket on the Top Socket Assembly and
install a Pulley to the bracket.
F.) Pull the Cable downward to the opening hole on top of the Weight Holder. Thread the
tip of the Cable into the hole to firmly secure the Cable.
G.)Attach the 104” Lower Cable (#23) to the upper opening on the Front Vertical Beam
(#22) and install a Pulley. Make sure the ball stopper is in the front of the Beam.
Draw the Cable underneath the Pulley then pull up to the hanging Pulley Bracket
previously installed.
H.)Install a Pulley to the lower opening on the hanging Bracket. Note: There are a few
holes on the Bracket. Use these holes to adjust the tightness of the Cables by
selecting different holes. Draw the Cable over the Pulley then downward to the open
bracket on the Front Vertical Beam.
I.) Install a Pulley to the open bracket. Pull the Cable underneath the Pulley toward the
lower opening on the Front Vertical Beam. Repeat the Step B above to install a
Pulley.
J.) Insert a M10 x 2 3/8” Allen Bolt (#7) through the hole underneath the Pulley. Tighten it
with two ∅¾” Washers (#43) and one M10 Aircraft Nut (#5).
K.) Attach a C-clip (#2) to the tip of the Cable end. Attach a Chain (#3) to the C-clip.
Connect the Curl Bar (#56) to the Chain using another C-clip.
L.) Repeat the Step K to install the Lat Bar (#1) and the Double D-bar Handle (#57).
M.)Plug the 2” x 2 ¾” End Cap (#4) into the front opening on the Upper Frame (#8).
8

CABLE LOOP DIAGRAM
9

DIAGRAM 4
10

11

PARTS LIST
KEY NO. DESCRIPTION Q’ty
1 Lat Bar 1
2 C-clip 6
3 Chain 3
4 2” x 2 ¾” End Cap 3
5 M10 Aircraft Nut 14
6 Bushing 6
7 M10 x 2 ½” Allen Bolt 4
8 Upper Frame 1
9 Pulley 8
10 119 “ Upper Cable 1
11 M12 x 3 1/8” Carriage Bolt 4
12 ∅1” Washer 15
13 M12 Aircraft Nut 8
14 Top socket Assembly 1
15 Guide Rod Ring 2
16 M8 x ½” Allen Bolt 4
17 M10 x 2” Allen Bolt 5
18 Guide Rod 2
19 Rear Vertical Beam 1
20 Plastic Bushing 4
21 Pulley Bracket 2
22 Front Vertical Beam 1
23 104” Lower Cable 1
24 Weight Holder 1
25 ∅1” End Cap 1
26 Rubber Washer 4
27 Rubber Bumper 2
28 Guide Rod Sleeve 2
29 M12 x 1” Allen Bolt 7
30 Olympic Sleeve 2
31 Spring Clip Sleeve 4
32 Spring Clip 2
33 Rear Stabilizer 1
34 Olympic Sleeve End Cap 2
35 Main Stabilizer 1
36 M10 x 1” Round Allen Bolt 5
37 Horse Shoe End Cap 5
38 M12 x 4” Carriage Bolt 4
39 2” Square End Cap 2
40 Foot Plate Support 1
41 Foot Plate 1
42 M10 x 1” Allen Bolt 4
43 ∅¾” Washer 18
44 M10 x 3” Allen Bolt 1
45 Base Frame 1
46 Lock Knob 3
47 Seat Adjustment Frame 1
48 Plastic Sleeve 3
49 M8 x 1 3/8” Allen Bolt 4
50 ∅5/8” Washer 4
51 Seat Pad 1
52 Seat Post 1
53 Seat Frame 1
54 Arm Curl Stand 1
55 Arm Curl Pad 1
56 Curl Bar 1
57 Double D-bar Handle 1
12

IRON GRIP SPORT
By IMPEX FITNESS PRODUCTS
LIMITED LIFE TIME WARRANTY
IMPEX FITNESS PRODUCTS ("IMPEX") warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of LIFE TIME on the Frame and Weld, 3
YEARS on parts, and 6 MONTHS on upholstery from the date of purchase. This warranty extends only to the
original purchaser. IMPEX's obligation under this Warranty is limited to replacing or repairing, at IMPEX's
option.
All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX Customer
Service Department at 1-800-999-8899. All freights on products returned to IMPEX must be prepaid by the
customer. This warranty does not extend to any product or damage to a product caused by or attributable to
freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an IMPEX authorized
service center or for products used for heavy commercial or rental purposes. No other warranty beyond that
specifically set forth above is authorized by IMPEX.
IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection
with the use or performance of the product or other damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other
consequential damages or whatsoever natures. Some states do not allow the exclusion or limitation of
incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal right. You may also have other rights which vary from state to state.
Register on-line at www.impex-fitness.com
IMPEX INC.
14777 Don Julian
City of Industry, CA 91746
ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-999-8899
during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard time.
[e-mail]
When ordering replacement parts, always give the following information.
1. Model
2. Description of Parts
3. Part Number
4. Date of Purchase
13
