Impex IRON GRIP STRENGTH TSA-9900 User manual

IRON GRIP STRENGTH
Corner Gym
TSA-9900
IMPEX INC.
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: [phone] Fax: [phone]
www.impex-fitness.com
[email protected]
NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Parts List
Resistance Chart
Warranty
Ordering Parts
Model
TSA-9900
Retain This
Manual for
Reference
08-06-05
OWNER'S
MANUAL

TABLE OF CONTENTS
BEFORE YOU BEGIN...................................................................................... 1
IMPORTANT SAFETY NOTICES..................................................................... 2
HARDWARE PACK……….....…....................................................................... 4
ASSEMBLY INSTRUCTIONS...............................................................….......... 7
PARTS LIST…………………………………………………………….……….……. 30
RESISTANCE CHART………………………………………………………………. 31
WARRANTY.................................................................................................… 32
ORDERING PARTS......................................................................................... 32
BEFORE YOU BEGIN
Thank you for selecting the IRON GRIP STRENGTH TSA-9900 CORNER
GYM by IMPEX INC. For your safety and benefit, read this manual
carefully before using the machine. As a manufacturer, we are committed
to provide you complete customer satisfaction. If you have any questions,
or find there are missing or damaged parts, we guarantee you complete
satisfaction through direct assistance from our factory. To avoid
unnecessary delays, please call our TOLL-FREE customer service
number. Our Customer Service Agents will provide immediate assistance
to you.
Toll-Free Customer Service Number
1-800-999-8899
Mon. – Fri. 9 a.m. – 5 p.m. PST
www.impex-fitness.com
[email protected]m
1

IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the same station.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
CARE AND MAINTENANCE
1. Lubricate moving parts with WD-40 or light oil periodically.
2. Inspect and tighten all parts before using the machine.
3. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.
4. Maximum user’s weight: 300 lbs.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE
AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.
ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY
DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
2

WARNING LABEL REPLACEMENT

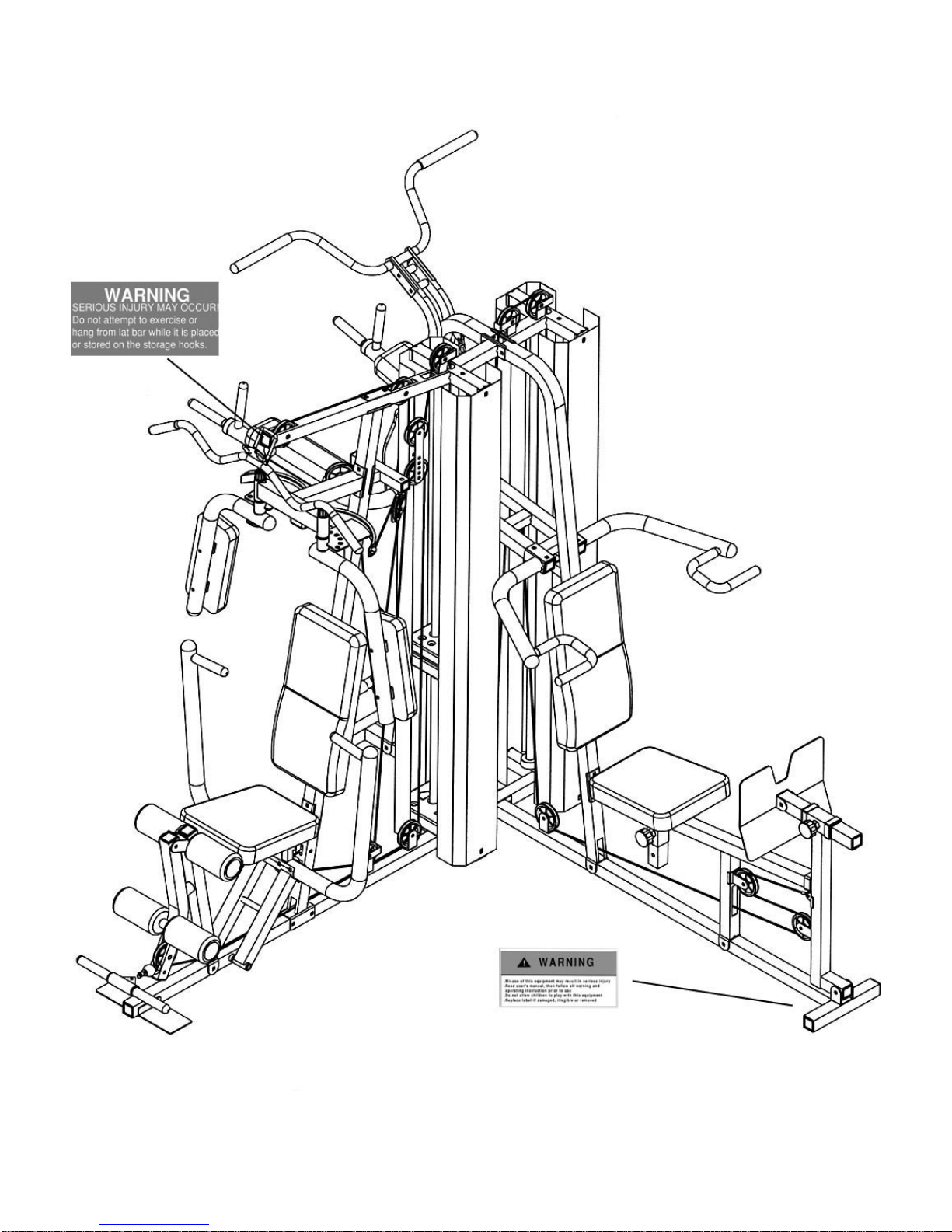

The warning labels shown here have been placed on the Rear Base and Upper Frame. If the labels are
missing or illegible, please call customer service at 1-800-888-8899 for replacements. Apply the labels
in location shown.
3

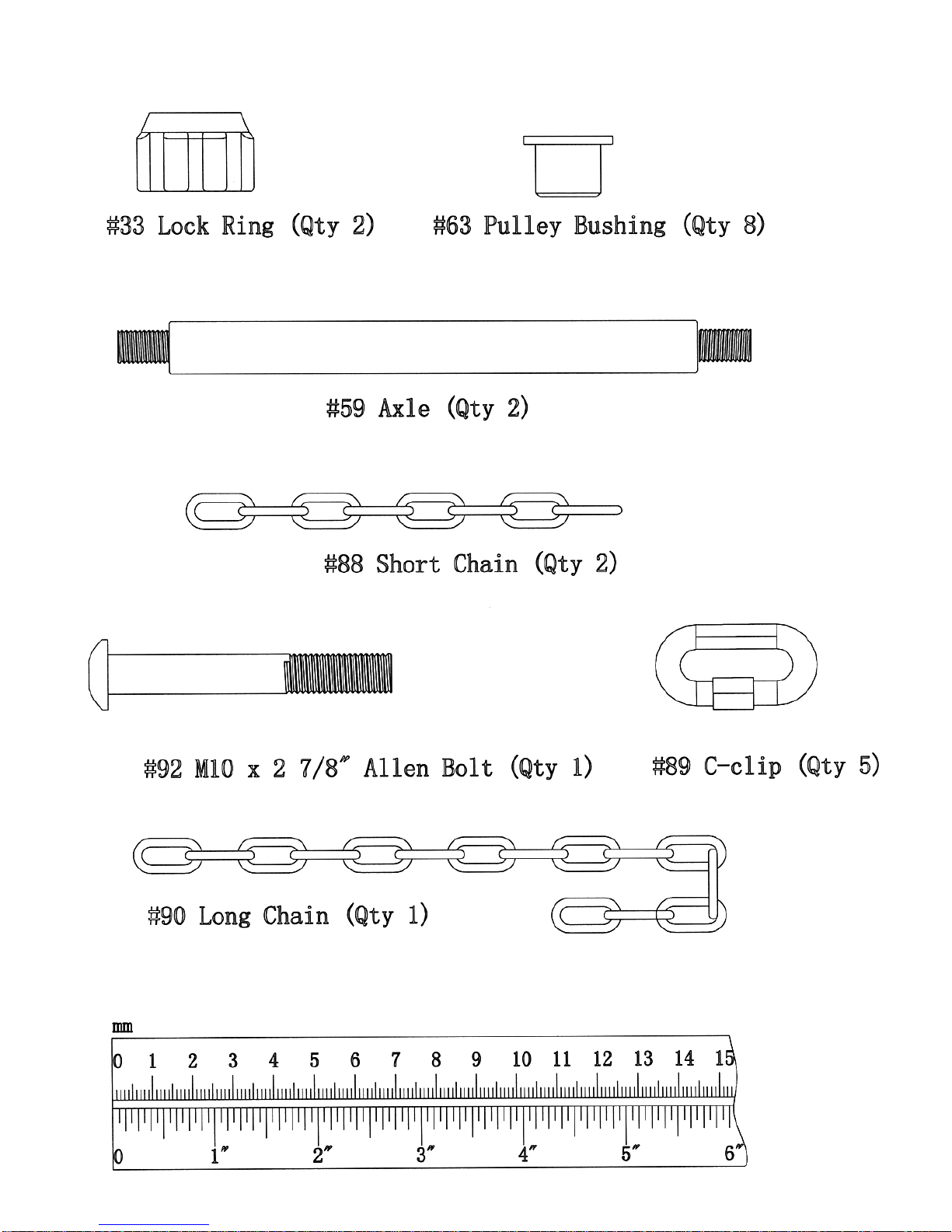

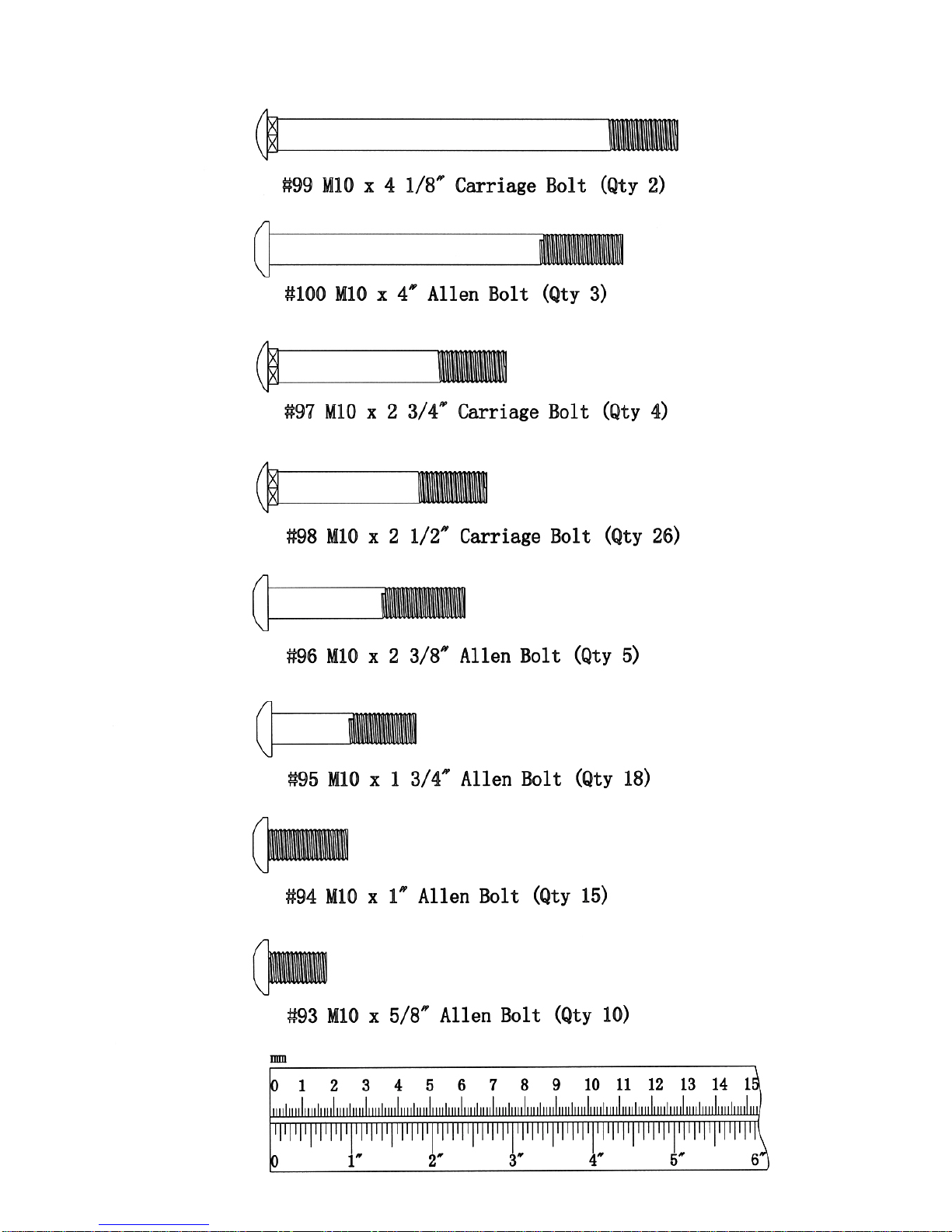

HARDWARE PACK
4

HARDWARE PACK
5

HARDWARE PACK
6

ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches
NOTE: It is strongly recommended two or people assembling this machine to avoid
possible injury.
STEP 1 (See Diagram 1)
A.) Place the Right Base Frame (#1) on a flat surface. Make sure there is enough space around
to assemble the machine.
B.) Insert four Guide Rods (#4) into the holes on the Right Base Frame. Secure each Guide Rod
from the bottom with a M10 x 1” Allen Bolt (#94).
C.) Slide four Ø 2 ½” x 1” Rubber Bumpers (#86) onto the Guide Rods. DIAGRAM 1
7

STEP 2 (See Diagram 2)

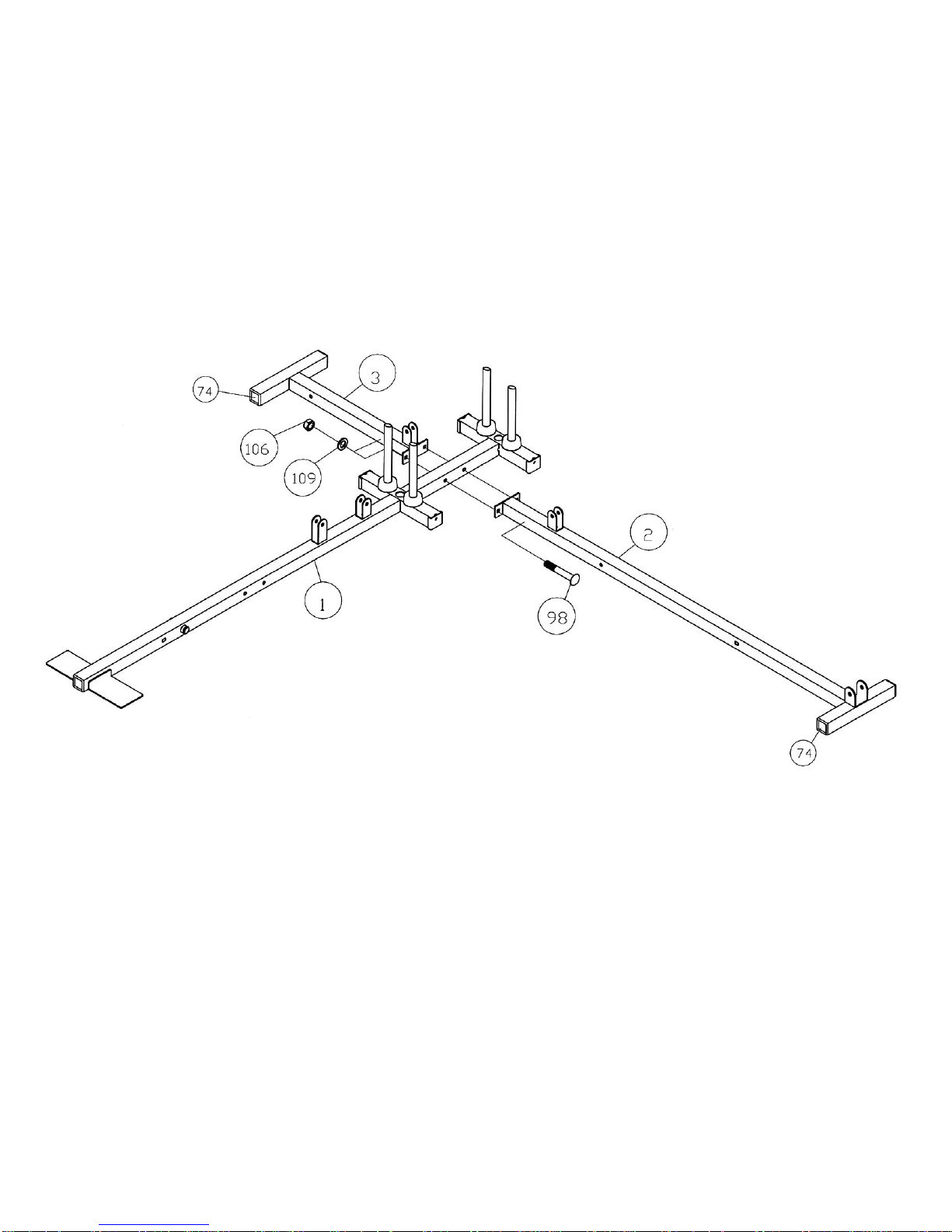

A.) Attach the Left Base and the Power Station Base Frame (#2 & #3) to the Right Base
Frame (#1).
B.) Align the holes and secure them with two M10 x 2 ½” Carriage Bolts (#98), ∅¾” Washers
(#109), and M10 Aircraft Nuts (#106). DIAGRAM 2
8

STEP 3 (See Diagram 3)
A.) Slide fourteen Weight Plates (#54) onto the rear set of Guide Rods (#4). Make sure the
groove on the plates all face toward the front of the machine.
B.) Insert a Selector Rod (#53) into the center holes. Slide a Selector Stem (#34) onto the
two Guide Rods. Slide a Ø 1 ¾” Rubber Bumper (#34) onto the Selector Rod.
C.)Repeat procedures A & B above to install the other fourteen Weight Plates onto the front
two Guide Rods. Make sure the grooves face the back of the machine. DIAGRAM 3
9

STEP 4 (See Diagram 4)
A.) Do not tighten all Nuts and Bolts in this step until instructed to do so.

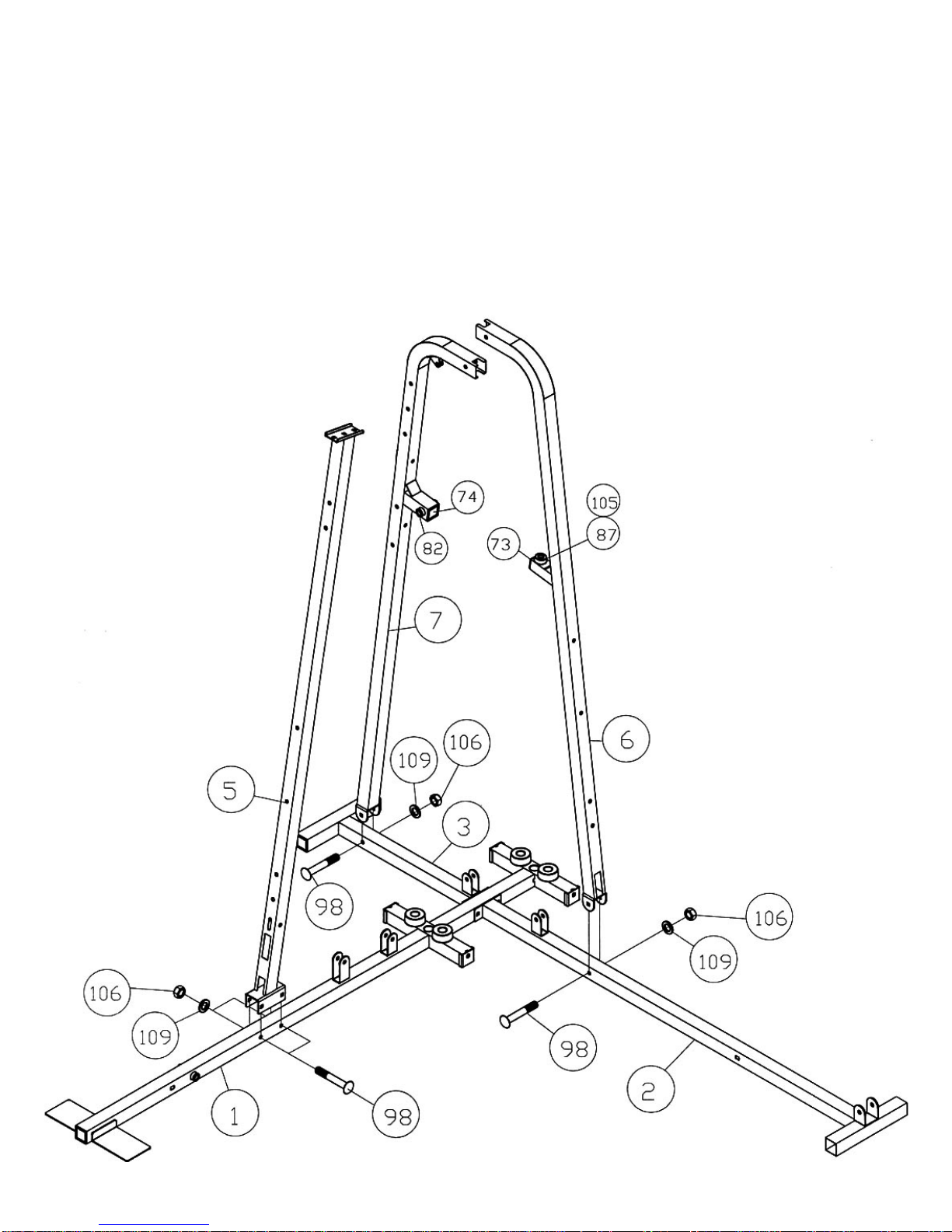

B.) Attach the Right Vertical Frame (#5) to the Right Base Frame (#1). Secure it with two M10 x
2 ½” Carriage Bolts (#98), Ø ¾” Washers (#109), and M10 Aircraft Nuts (#106).
C.)Attach the Left Vertical Frame (#6) to the Left Base Frame (#2). Secure it with one M10 x 2
½” Carriage Bolt (#98), Ø ¾” Washer (#109), and M10 Aircraft Nut (#106).
D.)Attach the Power Station Vertical Frame (#7) to the Power Station Base Frame (#3). Secure
it with one M10 x 2 ½” Carriage Bolt (#98), Ø ¾” Washer (#109), and M10 Aircraft Nut
(#106). DIAGRAM 4
10

STEP 5 (See Diagram 5)
A.) Do not tighten all Nuts and Bolts in this step until instructed to do so.
B.) Place the Upper Frame (#8) onto the Right Vertical Frame (#5) and two Guide Rods (#4).
Secure the Upper Frame to the Right Vertical Frame with two M10 x 2 ½” Carriage Bolts (#98),
one 4 3/8” x 1 ¾” Bracket (#84), two Ø ¾” Washers (#109), and two M10 Aircraft Nuts (#106).
C.)Secure the Upper Frame to the two Guide Rods with two M10 x 1” Allen Bolts (#94) and Ø ¾”
Washers (#109).

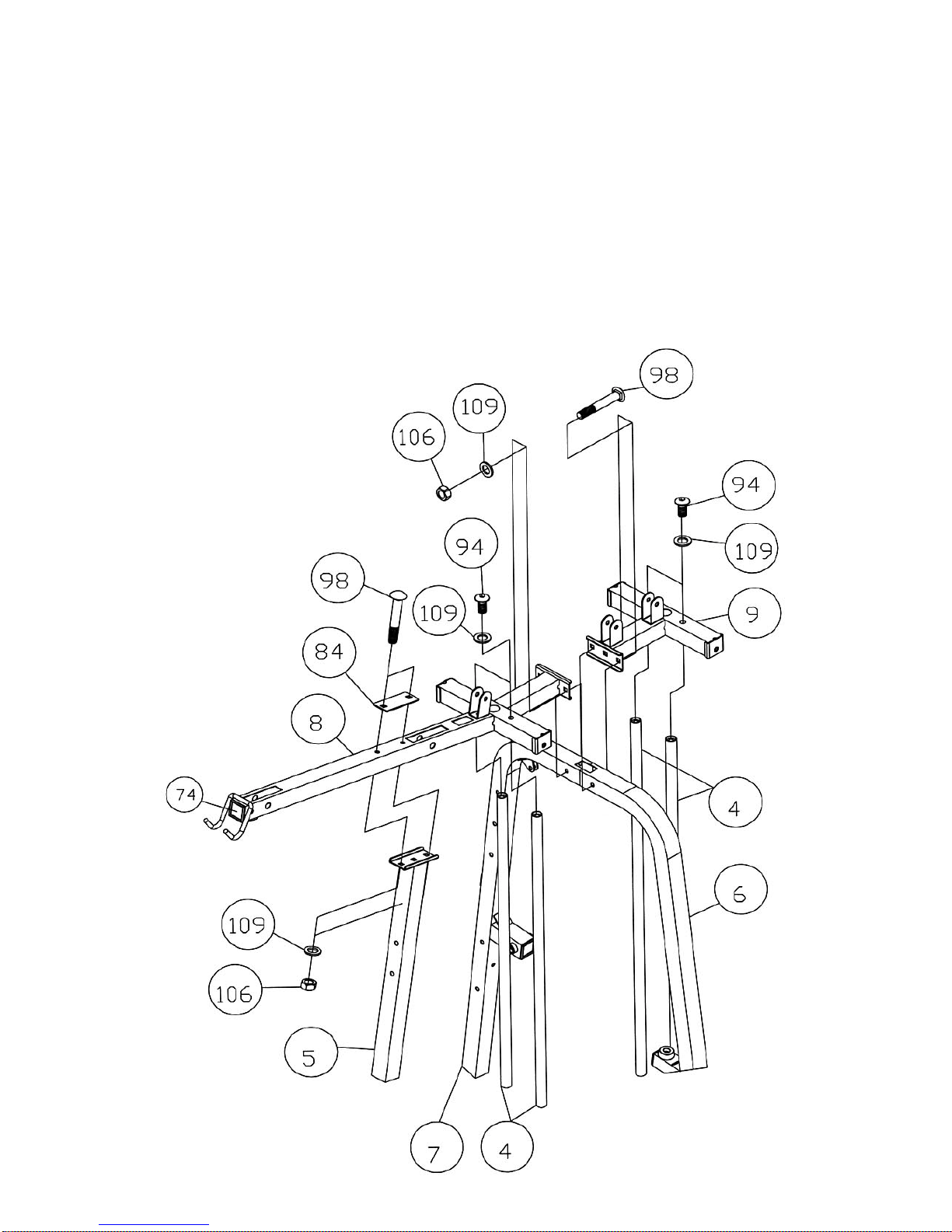

D.)Place the Top Socket Assembly (#9) onto the two Guide Rods on the rear. Secure them with
two M10 x 1” Allen Bolts (#94) and Ø ¾” Washers (#109).
E.) Connect the Top Socket Assembly (#9), Power Station Vertical Frame (#7), Upper Frame (#8)
and Left Vertical Frame (#6) together. Align the holes and secure them with two M10 x 2 ½”
Carriage Bolts (#98), Ø ¾” Washers (#109), and M10 Aircraft Nuts (#106).
11

STEP 6 (See Diagram 6)
A.) Securely tighten all Nuts and Bolts previously installed.
B.) Attach the Right Seat Support (#10) to the Right Base Frame (#1). Secure it with one
M10 x 2 ½” Carriage Bolt (#98), Ø ¾” Washer (#109), and M10 Aircraft Nut (#106).
C.)Attach the Right Seat Support (#10) to the Right Vertical Frame (#5). Secure it with
two M10 x 2 ½” Carriage Bolts (#98), one 4 3/8” x 1 ¾” Bracket (#84), two Ø ¾”
Washers (#109), and two M10 Aircraft Nuts (#106).
D.)Attach the Leg Developer (#26) to the bracket on the Right Seat Support. Secure it
with a M10 x 2 7/8” Allen Bolt (#92), two Ø ¾” Washers (#109), and one M10 Aircraft
Nut (#106). Do not over tighten the Nut and Bolt. Make sure the Leg Developer is able
to swivel.
E.) Attach the Butterfly Support Frame (#12) and the Butterfly Pulley Support (#46) to the
Right Vertical Frame. Align the holes and secure them together with two M10 x 2 ½”
Carriage Bolts (#98), Ø ¾” Washers (#109), and M10 Aircraft Nuts (#106).
F.) Attach two Swivel Pulley Brackets (#49) to the Butterfly Pulley Support (#46). Secure
each Bracket with one M12 x 4 3/8” Hex Bolt (#101), two Ø 1” Washers (#110), and
one M12 Aircraft Nut (#107). Do not over tighten the Nut and Bolt. Make sure each
Bracket is able to swivel.
12

DIAGRAM 6
13

STEP 7 (See Diagram 7)
A.) Attach the Left Seat Support (#11) to the Left Base Frame (#2). Secure it with one M10 x 2
½” Carriage Bolt (#98), Ø ¾” Washer (#109), and M10 Aircraft Nut (#106).
B.) Attach the Left Seat Support (#11) to the Left Vertical Frame (#6). Secure it with two M10 x 2
½” Carriage Bolts (#98), one 4 3/8” x 1 ¾” Bracket (#84), two Ø ¾” Washers (#109), and two
M10 Aircraft Nuts (#106).
C.) Attach the Leg Press Frame (#25) to the bracket on the Left Base Frame. Secure it with one
M12 x 3” Hex Bolt (#102), two Ø 1” Washers (#110), and one M12 Aircraft Nut (#107). DO
not over tighten the Nut and Bolt. Make sure the Leg Press Frame is able to swivel.

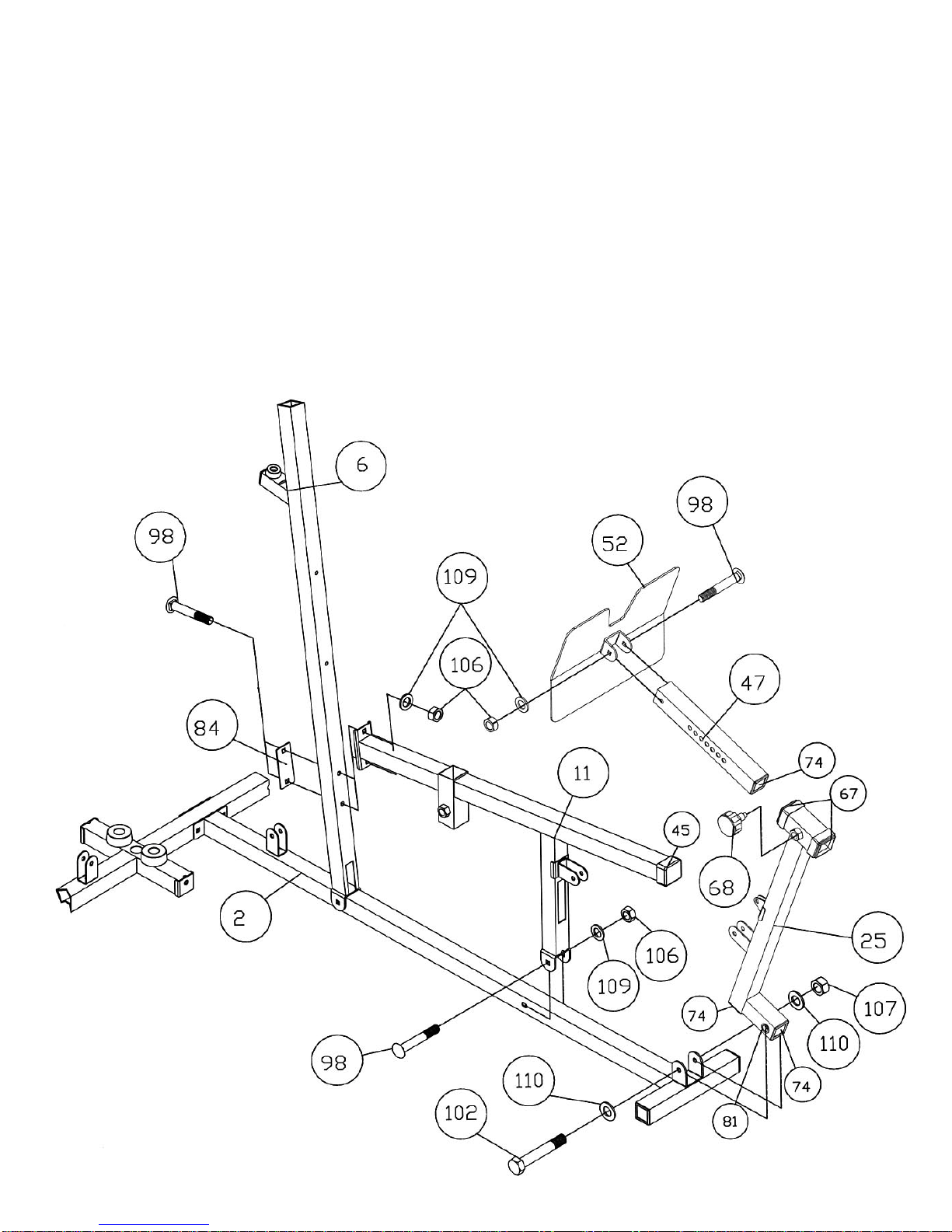

D.) Attach the Leg Press Plate (#52) to the Leg Press Adjustment Frame (#47). Secure it with
one M10 x 2 ½” Carriage Bolt (#98), Ø ¾” Washer (#109), and M10 Aircraft Nut (#106).
E.) Insert the Leg Press Adjustment Frame into the Leg Press Frame. Use a Lock Knob (#68) to
secure it in selected position. DIAGRAM 7
14

STEP 8 (See Diagram 8)
A.) Attach the Chin-up Support (#17) to the Power Station Vertical Frame (#7). Secure it with
three M10x4” Allen Bolts (#100), six ؾ” Washers (#109) and three M10 Aircraft Nuts (#106).
B.) Attach the Chin-up Bar (#18) to the Chin-up Support. Secure it with two M10 x 4 1/8” Carriage
Bolts (#99), Ø ¾” Washers (#109), and M10 Aircraft Nuts (#106).
C.) Attach the Right & Left Dip Supports (#19 & #20) to the Power Station Vertical Frame (#7).
Securely tighten them together with two M10 x 2 ½” Carriage Bolts (#98), Ø ¾” Washers
(#109), and M10 Aircraft Nuts (#106). Insert the two Dip Handles (#21) into the Dip Supports.
Secure each Dip Handle with one M10 x 1” Allen Bolt (#94) and Ø ¾” Washer (#109).
D.) Attach the Foot Step (#28) to the Power Station Vertical Frame (#7). Secure it with one M10 x
2 ½” Carriage Bolt (#98), Ø ¾” Washer (#109), and M10 Aircraft Nut (#106).
15

STEP 9 (See Diagram 9)

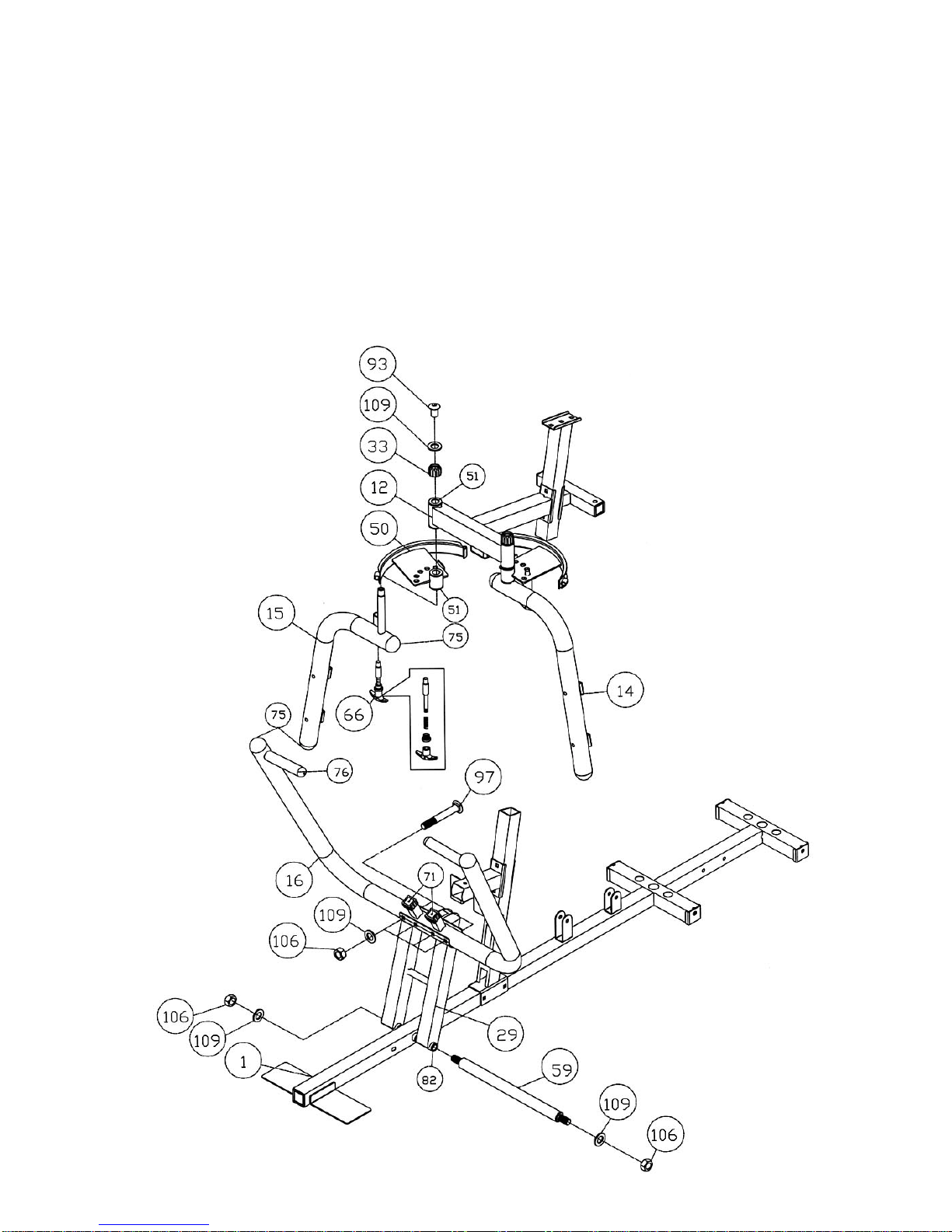

A.) Insert the axle on the Right Butterfly (#15) through a Butterfly Adjustment Frame (#50) into
the Butterfly Support Frame (#12). Secure it with one M10 x 5/8” Allen Bolt (#93), Ø ¾”
Washer (#109), and Lock Ring (#33).
B.) Thread a T-shaped Pull Pin (#66) into the hole on the Right Butterfly from the bottom. Use
the Pin to adjust the Butterfly position.
C.)Repeat the same procedures A & B above to install the Left Butterfly (#14).
D.)Attach the Front Press Base (#29) to the Right Base Frame (#1). Secure it with one Axle
(#59), two Ø ¾” Washers (#109), and two M10 Aircraft Nuts (#106).
E.) Place the Front Press (#16) onto the Front Press Base. Secure it with four M10 x 2 ¾”
Carriage Bolts (#97), Ø ¾” Washers (#109), and M10 Aircraft Nuts (#106).
DIAGRAM 9
16

STEP 10 (See Diagram 10)
A.) Attach the Vertical Press Base (#23) to the pivot on the Power Station Vertical Frame (#7).
Secure it with one Axle (#59), two Ø ¾” Washers (#109), and two M10 Aircraft Nuts (#106).
B.) Attach one Vertical Press Arm (#24) to the Vertical Press Base. Secure it with two M10 x 2
½” Carriage Bolts (#98), Ø ¾” Washers (#109), and M10 Aircraft Nuts (#106).
C.)Repeat the same procedure to install the other Vertical Press Arm.
DIAGRAM 10
17

CABLE LOOP DIAGRAM
18

STEP 11 (See Cable Loop Diagram & Diagram 11)
A.) Attach the 102” Upper Cable (#36) to the front opening on the Upper Frame (#8).
Attach a Pulley (#64) to the opening. Secure it with one M10 x 2 3/8” Allen Bolt
(#96), two Pulley Bushings (#63), and one M10 Aircraft Nut (#106). Draw the Cable
towards the back of the machine. Note: Make sure the Ball Stopper is underneath
the frame.
B.) Attach a Pulley to the opening on the Upper Frame. Secure it with one M10 x 2 3/8”
Allen Bolt (#96), two Pulley Bushings (#63), and one M10 Aircraft Nut (#106).
C.)Draw the Cable around the Pulley and downward. Install a Pulley to the two Double
Floating Pulley Brackets (#32). Secure it with one M10 x 1 ¾” Allen Bolt (#95), two
∅¾” Washers (#109), and one M10 Aircraft Nut (#106). Let the bracket hanging for
now. Draw the Cable around the Pulley then upward to the open bracket on the
Upper Frame.
D.)Install a Pulley to the bracket with a L-shaped Cable Retainer (#60).
E.) Draw the Cable around the Pulley then downward to the Selector Rod (#53). Attach
the ring on the Selector Pin (#62) to the Selector Rod (#53). Securely thread the
end of the Cable into the Selector Rod. Use the Nut at the end of the Cable to
tighten down the Bolt.
19
