Impex MARCY MWM 800 User manual

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Resistance Chart
Warranty
Ordering Parts
Model
MWM 800
Retain This
Manual for
Reference
08-20-02
OWNER'S
MANUAL

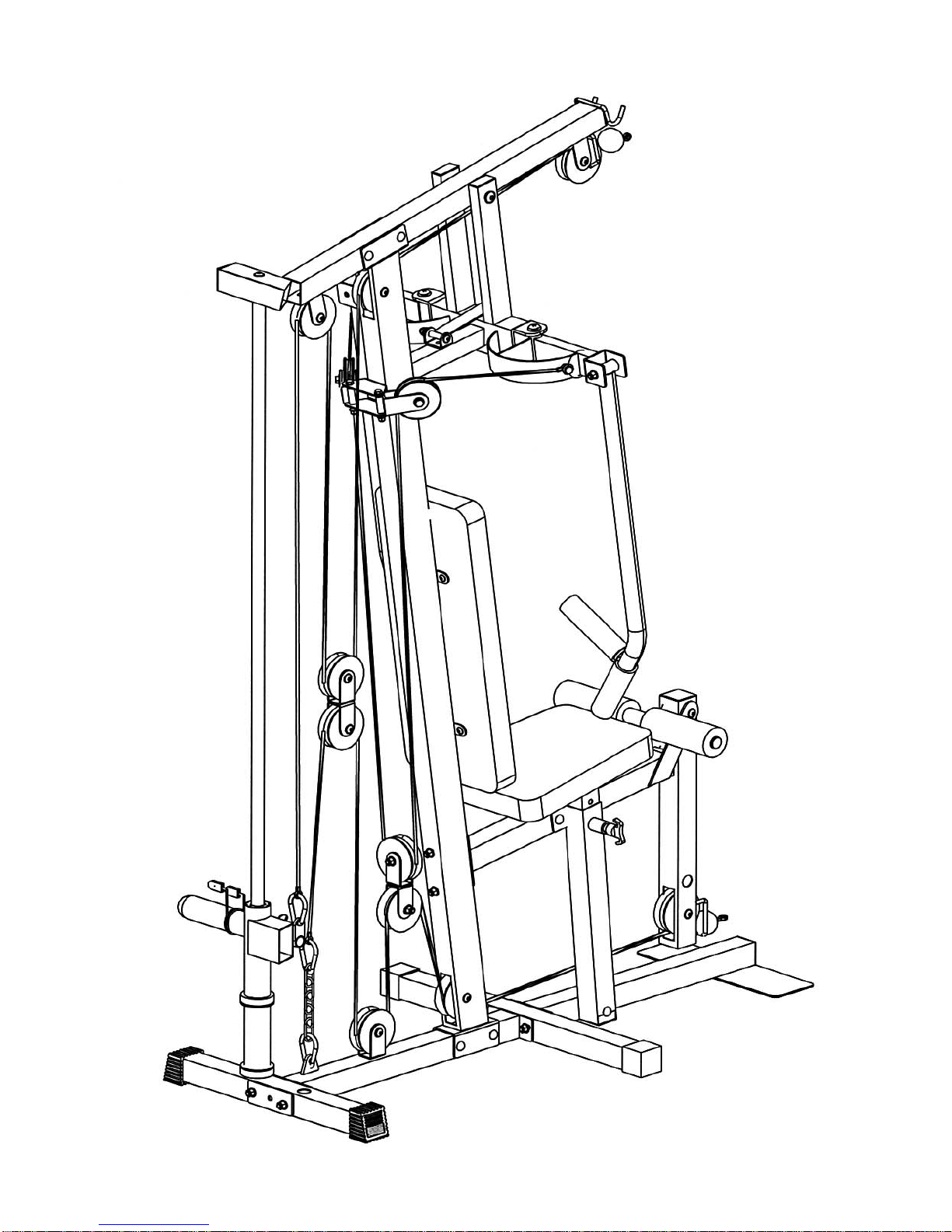

MARCY HOME GYM
MWM 800
IMPEX FITNESS PRODUCTS
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: [phone] Fax: [phone]
www.impex-fitness.com
[email protected]

TABLE OF CONTENTS
BEFORE YOU BEGIN....................................................................................……….. 1
IMPORTANT SAFETY NOTICES...................................................................……….. 2
HARDWARE IDENTIFIER.....….....................................................................……….. 3
ASSEMBLY INSTRUCTIONS.........................................................................……….. 8
EXPLODED DIAGRAM......................................................................................……… 19
PARTS LIST………………………………………………………………………………….. 20
RESISTANCE CHART………….......................................................................………. 21
WARRANTY.................................................................................................…………. 22
ORDERING PARTS.......................................................................................………… 22
BEFORE YOU BEGIN
Thank you for selecting the MARCY MWM800 HOME GYM by IMPEX
FITNESS PRODUCTS. For your safety and benefit, read this manual
carefully before using the machine. As a manufacturer, we are committed
to provide you complete customer satisfaction. If you have any questions, or
find there are missing or damaged parts, we guarantee you complete
satisfaction through direct assistance from our factory. To avoid
unnecessary delays, please call our TOLL-FREE customer service number.
Our Customer Service Agents will provide immediate assistance to you.
1
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.impex-fitness.com
[email protected]m

IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:
1. Keep children and pets away from the machine at all times. DO NOT leave
children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to properly
warm up.
11. Never operate the machine if the machine is not functioning properly.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES
NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE
SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
2

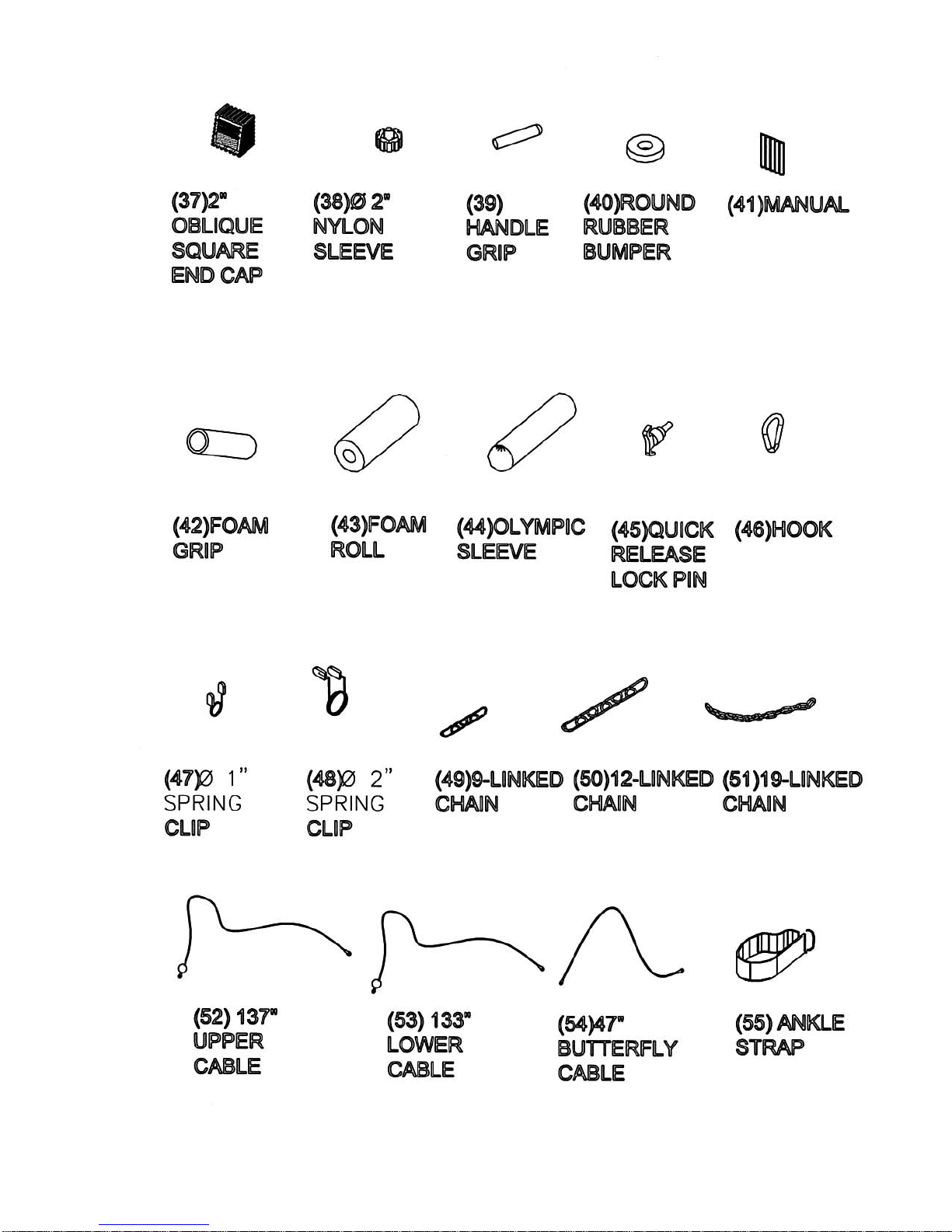

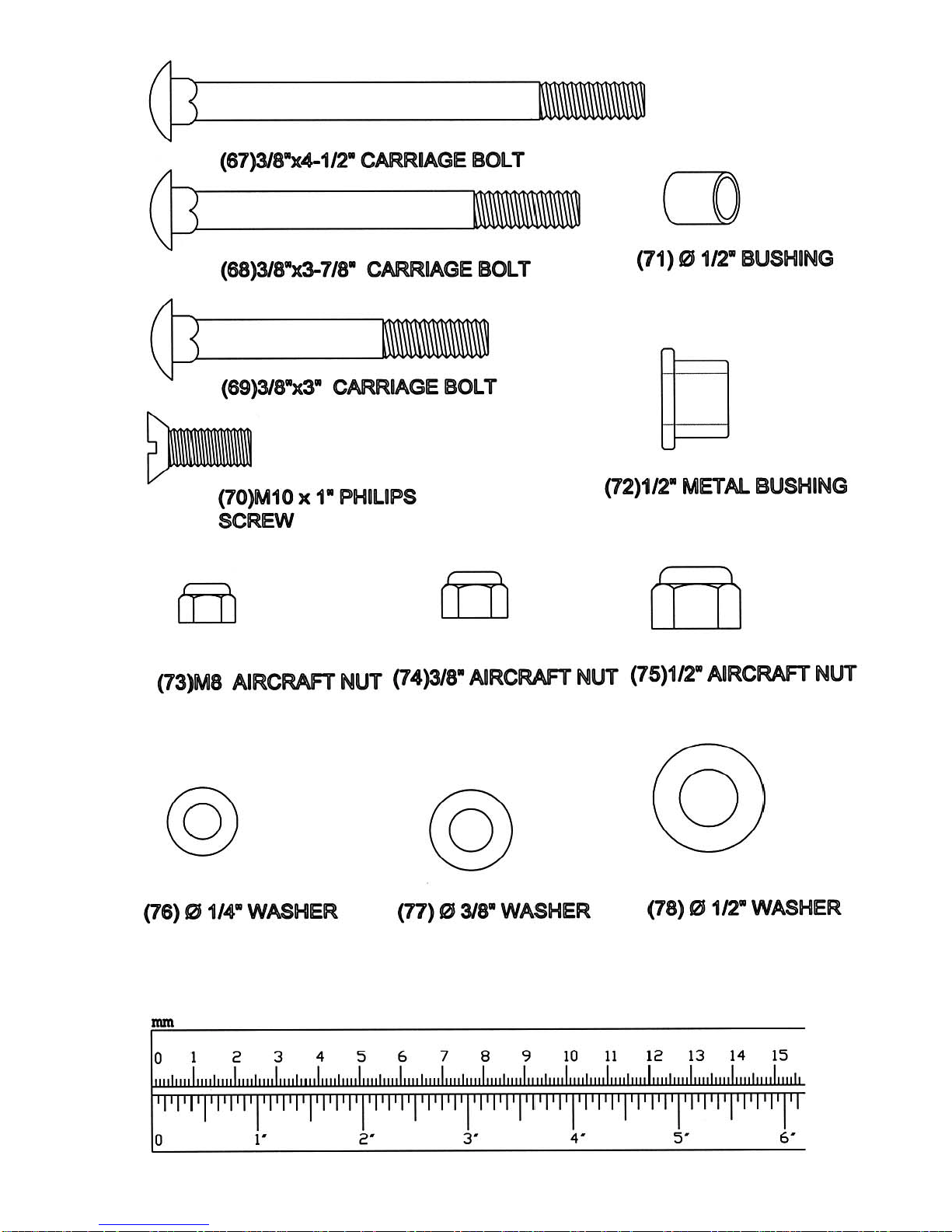

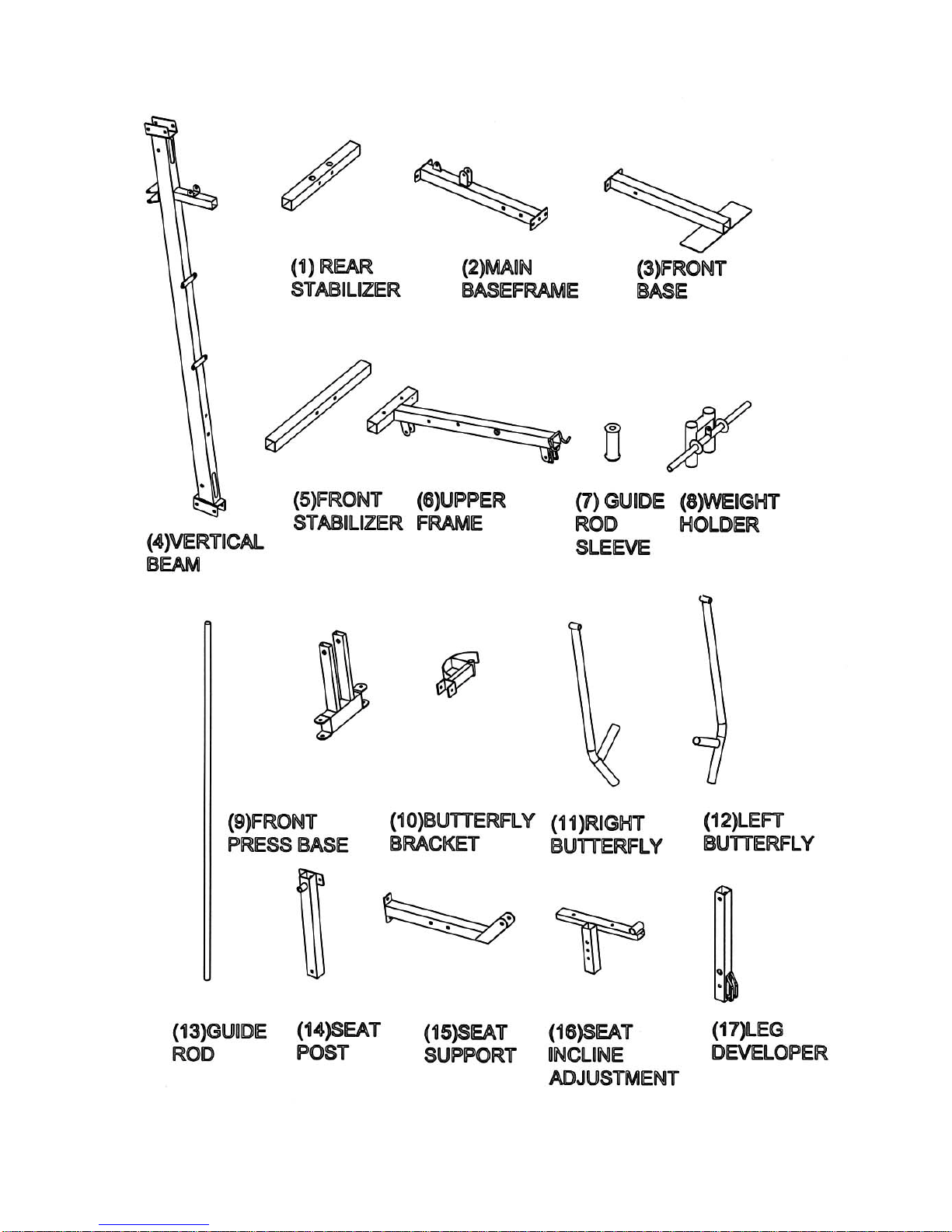

Hardware Identifier
3

4

5

6

7

ASSEMBLY INSTRUCTION
Tools Required to Assemble the Machine: Two Adjustable Wrenches, two Allen
Wrenches, and one Flat Head Screwdriver
NOTE: It is strongly recommended two or more people assembling this machine to
avoid possible injury.
STEP 1 (See Diagram 1)
A.) Connect the Main Base Frame (#2) and Front Base (#3) to the Front Stabilizer (#5).
Align the holes then secure them with two 3/8” x 3” Carriage Bolts (#69), ∅3/8”
Washers (#77), and 3/8” Aircraft Nuts (#74).
B.) Attach the Rear Stabilizer (#1) to the Main Base Frame. Secure it with one Bracket
(#26), two 3/8” x 3” Carriage Bolts (#69), ∅3/8” Washers (#77), and 3/8” Aircraft Nuts
(#74).
C.)Attach the Vertical Beam (#4) to the Main Base Frame (#2). Secure it with two 3/8” x 3”
Carriage Bolts (#69), ∅3/8” Washers (#77), and 3/8” Aircraft Nuts (#74).
D.)Over the two holes on the Rear Stabilizer (#1), stack up two Round Rubber Bumpers
(#40), two Guide Rod Sleeves (#7), then two Round Rubber Bumpers (#40) in
sequence. Align the holes then insert two Guide Rods (#13) all the way down into the
Rear Stabilizer (#1).
E.) Slide the Weight Holder (#8) from the top onto the two Guide Rods.
F.) Place the Upper Frame (#6) onto the Vertical Beam (#4) and the two Guide Rods (#13).
Secure the Upper Frame to the Guide Rods with two 3/8” x 1” Allen Bolts (#63) and ∅
3/8” Washers (#77). Secure the Upper Frame to the Vertical Beam (#4) with two 3/8” x
3” Carriage Bolts (#69), ∅3/8” Washers (#77), and 3/8” Aircraft Nuts (#74).
G.)Attach the Olympic Sleeves (#44) to the Weight Holder (#8). Attach the ∅2” Spring
Clips (#48) onto the Olympic Sleeves. Please note that we also provided two ∅1”
Spring Clips in case the ∅1” standard plates were used.
H.)Carefully tip over the machine to its side. Secure the bottom of the two Guide Rods to
the Rear Stabilizer (#1) with two 3/8” x 1” Allen Bolts (#63) and ∅3/8” Washers (#77).
8

DIAGRAM 1
9

STEP 2 (See Diagram 2)
A.) Attach the Seat Support (#15) to the Vertical Beam (#4). Secure it with one Bracket
(#26), two 3/8” x 3 7/8” Carriage Bolts (#68), ∅3/8” Washers (#77), and 3/8” Aircraft Nuts
(#74).
B.) Attach the Seat post (#14) to the Seat Support (#15). Secure it with one Bracket (#26),
two 3/8” x 3” Carriage Bolts (#69), ∅3/8” Washers (#77), and 3/8” Aircraft Nuts (#74).
C.)Secure the bottom of the Seat Post (#14) to the Front Base (#3) with one 3/8” x 4 ½”
Carriage Bolt (#67), ∅3/8” Washer (#77) and 3/8” Aircraft Nut (#74).
D.)Insert the Seat Incline Adjustment (#16) into the hole on top of the Seat Post (#14).
Secure it with a quick Release Lock Pin (#45).
E.) Place the Seat Pad (#20) onto the Seat Incline Adjustment (#16). Secure it with two M8 x
1 ½” Allen Bolts (#65) and ∅¼” Washers (#76).
F.) Attach a Square Rubber Bumper (#29) onto the front opening on the Seat Support (#15).
Secure it with one M10 x 1” Philips Screw (#70).
G.)Attach the Leg Developer (#17) to the Seat Support (#15). Secure it with one 3/8” x 3”
Allen Bolt (#59), two ∅3/8” Washers (#77), and one 3/8” Aircraft Nut (#74).
H.)Insert the Foam Roll Tubes (#27) halfway through the hole on the Seat Incline
Adjustment (#16) and Leg Developer (#17). Push four Foam Rolls (#43) onto the Tubes.
10

DIAGRAM 2
11

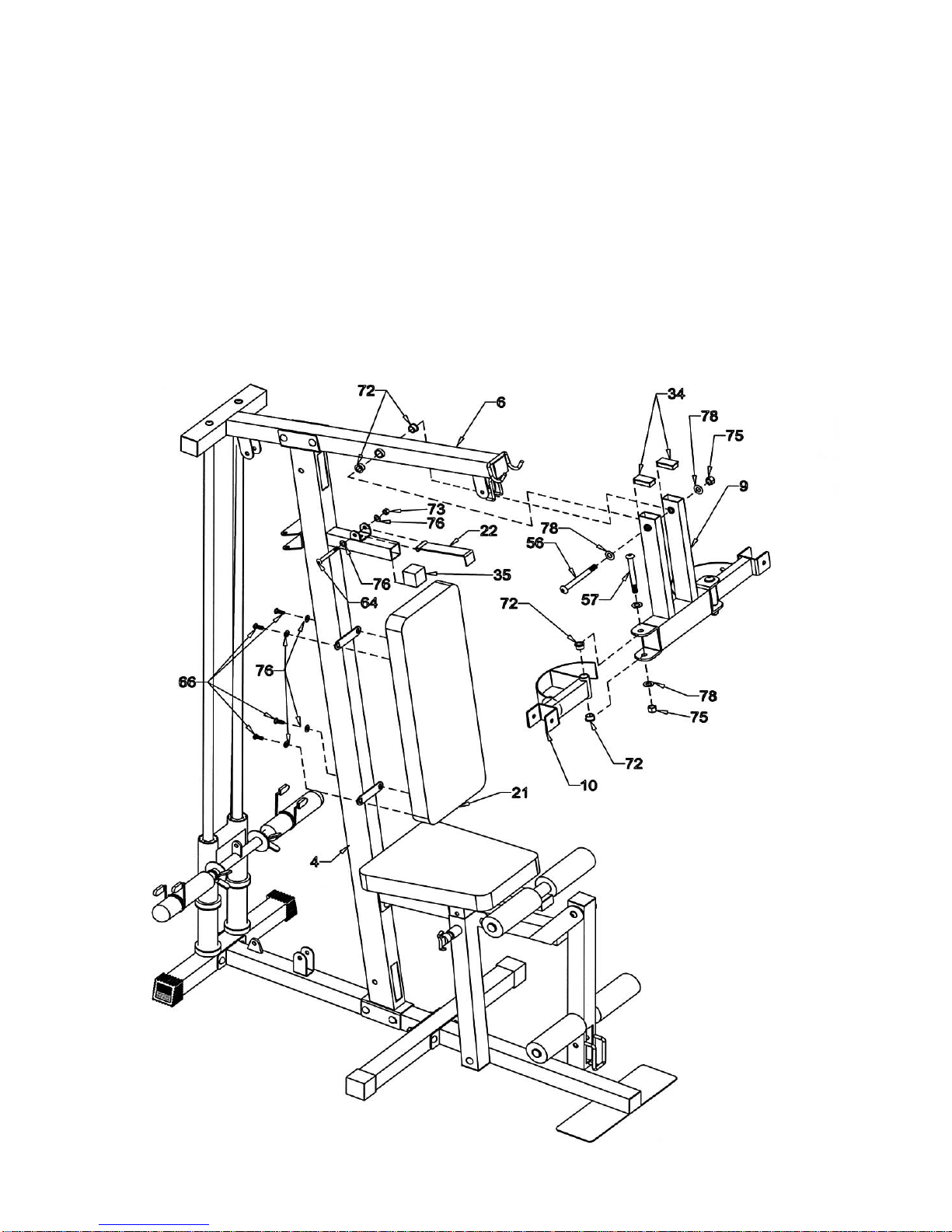

STEP 3 (See Diagram 3)
A.) Attach the Front Press Lock Pin (#22) to the Vertical Beam (#4). Secure it with one M8 x 2 ½”
Allen Bolt (#64), two ∅¼” Washers (#76), and one M8 Aircraft Nut (#73). Plug a 1 ½” Square
End Cap (#35) to the front opening on the Vertical Beam.
B.) Plug two ½” Metal Bushings (#72) onto the side-holes on the Upper Frame (#6). Attach the
Front Press Base (#9) to the Bushings. Secure it with one ½” x 6 1/8” Allen Bolt (#56), two ∅
½” Washers (#78), and one ½” Aircraft Nut (#75). Flip down the Lock Pin (#22) to lock the
Front Press Base for Butterfly exercise only. Flip up the Lock Pin for Front Press exercises.
C.) Plug two ½” Metal Bushings (#72) to the pivot on the Butterfly Bracket (#10). Attach the
Butterfly Bracket to the Front Press Base. Secure it with one ½” x 4 1/8” (#57) Allen Bolt (#57),
two ∅½” Washers (#78), and one ½” Aircraft Nut (#75). Repeat the same procedure to install
the other side.
D.) Secure the Backrest Board (#21) to the Vertical Beam (#4) with four M8 x 2 ½” Allen Bolts
(#66) and ∅1/4” Washers (#76).
12

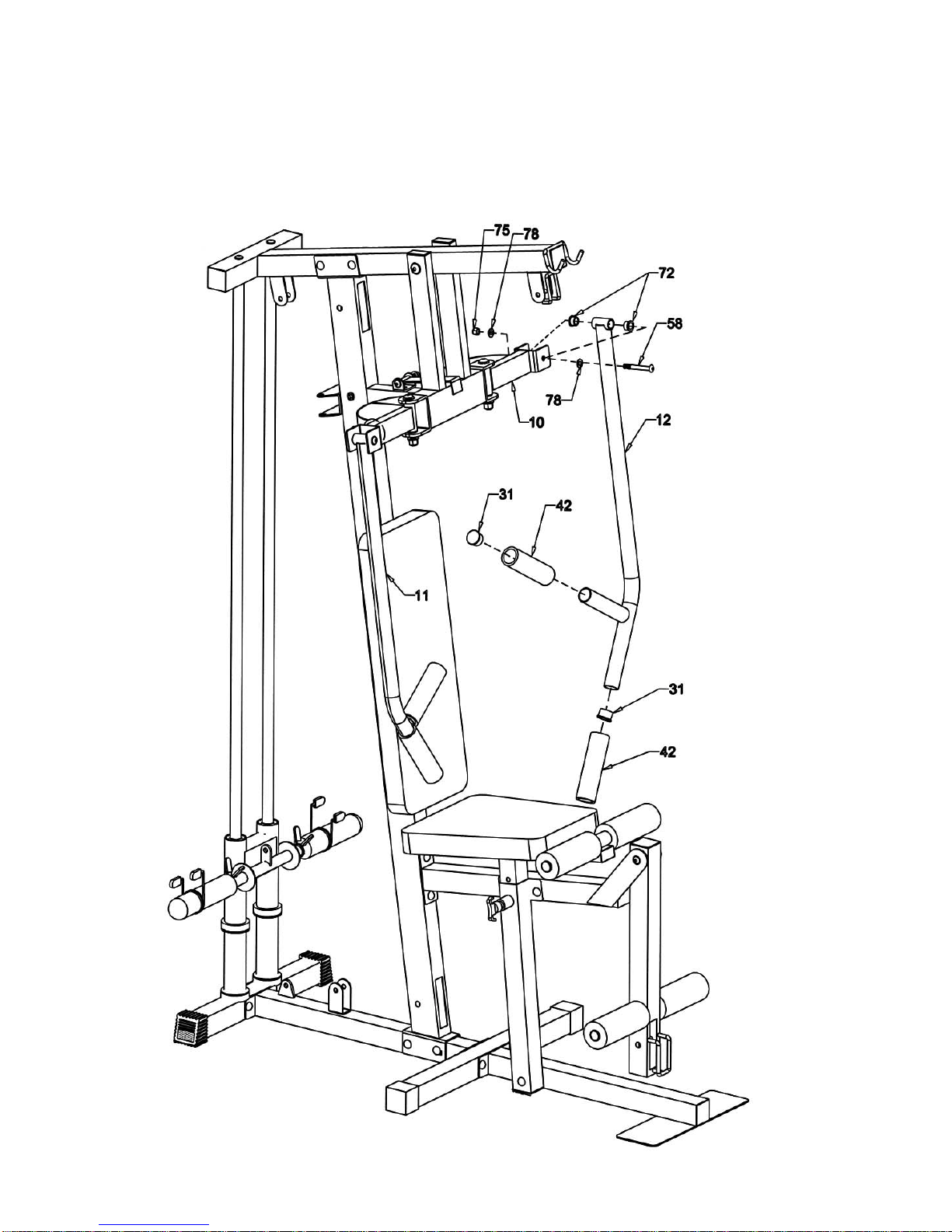

STEP 4 (See Diagram 4)
A.) Plug two ½” Metal Bushings (#72) to the pivot on the Left Butterfly (#12). Attach the Left
Butterfly to the Front Press Base (#9). Secure it with one ½” x 3 1/8” Allen Bolt (#58), two ∅½”
Washers (#78), and one ½” Aircraft Nut (#75).
B.) Slide two Foam Grips (#42) onto the Left Butterfly handle.
C.) Repeat Procedures A & B above to install the Right Butterfly (#11). DIAGRAM 4
13

CABLE LOOP DIAGRAM
14

STEP 5 (See Diagram 5 & Cable Loop Diagram)
A.) Attach the 137” Upper Cable (#52) to the open bracket on the front of the Upper
Frame (#6). Note: The Ball Stopper on the cable should be underneath the Frame.
B.) Attach a Pulley (#28) to the bracket and secure it with one 3/8” x 1 ¾” Allen Bolt
(#61), two ∅3/8” Washers (#77), and one 3/8” Aircraft Nut (#74).
C.) Draw the Cable to the open slot on the Vertical Beam (#4). Install a Pulley to the
opening. Align the holes and secure it with one 3/8” x 2 5/8” Allen Bolt (#60), two ∅
½” Bushings (#71), two ∅3/8” Washers (#77), and one 3/8” Aircraft Nut (#74).
D.) Draw the Cable over the Pulley then downward. Install a Pulley to the Flat Double
Floating Pulley Bracket (#23). Let the Bracket hanging for now. Draw the Cable
around the Pulley then upward to the open bracket on the rear of Upper Frame.
E.) Install another Pulley then pull the Cable downward to the Weight Holder (#8).
Connect the Cable to the Weight Holder with a Hook (#46).
F.) Slide two Handle Grips (#39) onto the Lat Bar (#18). Connect the Lat Bar to the
Upper Cable with two Hooks (#46) and one 12-linked Chain (#50).
15

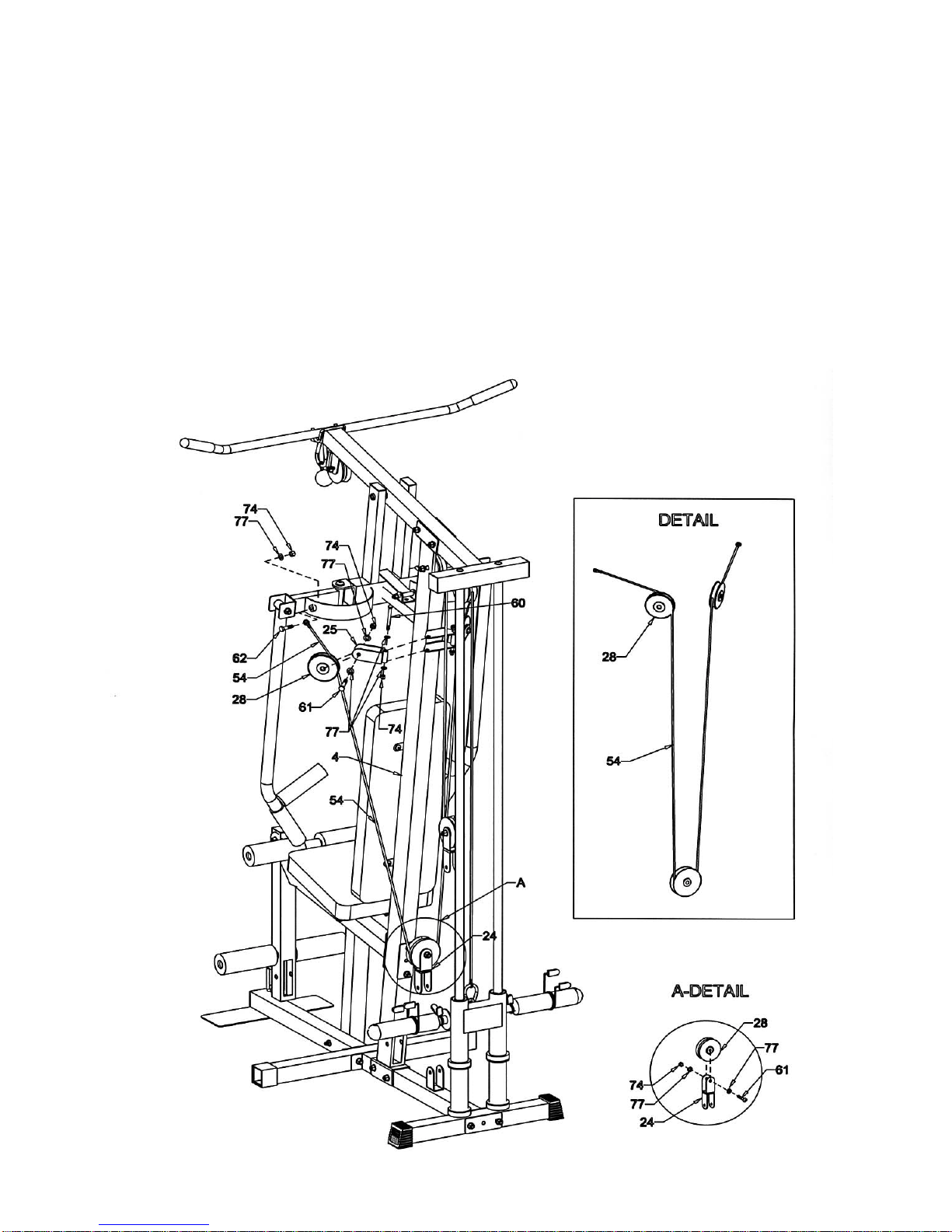

STEP 6 (See Diagram 6 & Cable Loop Diagram)
A.) Attach one end of the 47” Butterfly Cable (#54) to the left Butterfly Bracket (#10). Secure the
Cable to the Bracket with one 3/8” x 1 3/16” Allen Bolt (#62), ∅3/8” Washer (#77), and 3/8”
Aircraft Nut (#74).
B.) Attach a Swivel Pulley Bracket to the Pivot on the Vertical Beam (#4). Secure it with one 3/8”
x 2 5/8” Allen Bolt (#60), two ∅3/8” Washers (#77), and one 3/8” Aircraft Nut (#74). Draw
the Cable to the Swivel Pulley Bracket.
C.)Attach a Pulley to the Bracket. Secure it with one 3/8” x 1 ¾” Allen Bolt (#61), two ∅3/8”
Washers (#77), and one 3/8” Aircraft Nut (#74).
D.)Draw the Cable over the Pulley then downward. Attach an Angled Double Floating Bracket
(#24). Installed a Pulley as described in Step C. Let the Bracket hanging for now.
E.) Draw the Cable around the Pulley then pull upward. Repeat the steps above to install the
other side. DIAGRAM 6
16

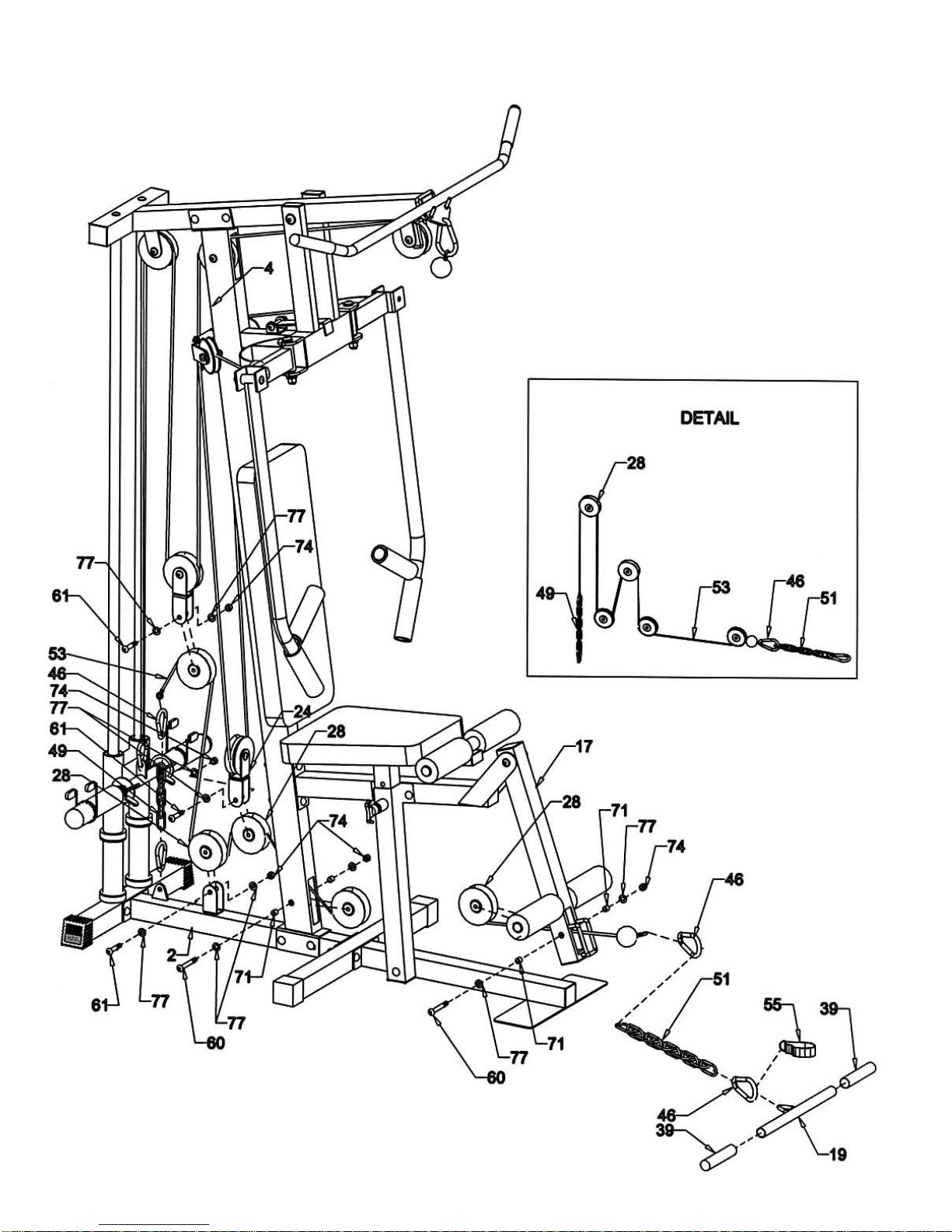

STEP 7 (See Diagram 7 & Cable Loop Diagram)
A.) Attach the 133” Lower Cable (#53) to the opening on the Leg Developer (#17). Attach a Pulley
(#28) to the opening. Secure it with one 3/8” x 2 5/8” Allen Bolt (#60), two ∅½” Bushings
(#71), two ∅3/8” Washers (#77), and one 3/8” Aircraft Nut (#74).
B.) Draw the Cable underneath the Pulley to the open slot on the Vertical Beam (#4). Install
another Pulley as described in Step A.
C.)Draw the Cable underneath the Pulley then upward to the Angled Double Floating Bracket
(#24) previously installed. Attach a Pulley to the open bracket. Secure it with one 3/8” x 1 ¾”
Allen Bolt (#61), two ∅3/8” Washers (#77), and one 3/8” Aircraft Nut (#74).
D.)Draw the Cable around the Pulley the downward to the open bracket on the Main Base Frame
(#2). Install another Pulley.
E.) Draw the Cable around the Pulley then upward to the Flat Double Floating Pulley Bracket
(#23) previously installed. Install another Pulley.
F.) Draw the Cable around the Pulley then connect the Cable to the Main Base Frame with two
Hooks (#46) and a 9-linked Chain (#49).
G.)Adjust the tension of the Cable Loop System by adjusting the length of the Chain.
17

DIAGRAM 7
18

19
