Impex Marcy MWM-8150 User manual

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Resistance Chart
Warranty
Ordering Parts
Model
MWM-8150
Retain This
Manual for
Reference
08-04-08
OWNER'S
MANUAL
MARCY HOME GYM
MWM-8150
IMPEX®INC.
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: [phone] Fax: [phone]
www.impex-fitness.com
[email protected]

TABLE OF CONTENTS
BEFORE YOU BEGIN....................................................................................……….. 1
IMPORTANT SAFETY NOTICE...................................................................……….. 2
HARDWARE PACK……….....….....................................................................……….. 4
ASSEMBLY INSTRUCTIONS.........................................................................……….. 8
PARTS LIST………………………………………………………………………………….. 21
RESISTANCE CHART………….......................................................................………. 22
WARRANTY.................................................................................................…………. 23
ORDERING PARTS.......................................................................................…………23
BEFORE YOU BEGIN
Thank you for selecting the Marcy Home Gym MWM-8150 by IMPEX®
FITNESS PRODUCTS. For your safety and benefit, read this manual
carefully before using the machine. As a manufacturer, we are committed
to provide you complete customer satisfaction. If you have any questions,
or find there are missing or damaged parts, we guarantee you complete
satisfaction through direct assistance from our factory. To avoid
unnecessary delays, please call our TOLL-FREE customer service
number. Our Customer Service Agents will provide immediate assistance
to you.
Toll-Free Customer Service Number
1-800-999-8899
Mon. – Fri. 9 a.m. – 5 p.m. PST
www.impex-fitness.com
[email protected]m
1

IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands and feet away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
12. A spotter is recommended during exercise.
CARE AND MAINTENANCE
1. Lubricate moving parts with WD-40 or light oil periodically.
2. Inspect and tighten all parts before using the machine.
3. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.
4. Maximum user’s weight: 300 lbs.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE
AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ
ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.
ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY
DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
2

WARNING LABEL REPLACEMENT
The warning labels shown here have been placed on the Rear Base and Upper Frame. If the labels are
missing or illegible, please call customer service at 1-800-888-8899 for replacements. Apply the labels in
the location shown.
3

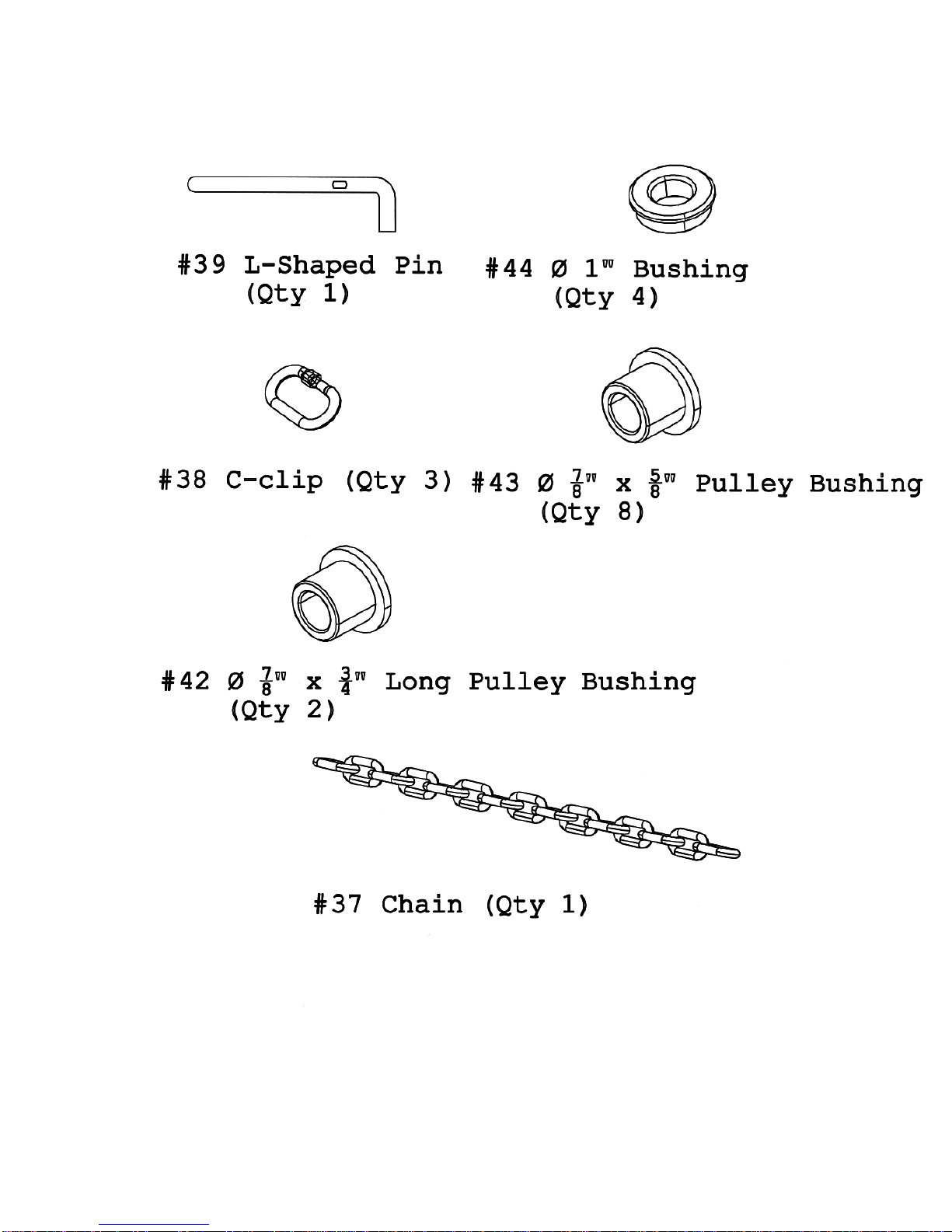

HARDWARE PACK
NOTE: The following parts are not drawn to scale. Please use your own ruler or scale to measure the size.
4

HARDWARE PACK
NOTE: The following parts are not drawn to scale. Please use your own ruler or scale to measure the size.
5

HARDWARE PACK
NOTE: The following parts are not drawn to scale. Please use your own ruler or scale to measure the size.
6

HARDWARE PACK
NOTE: The following parts are not drawn to scale. Please use your own ruler or scale to measure the size.
7

ASSEMBLY INSTRUCTION
Tools Required for Assembling the Machine: Two Adjustable Wrenches, two Allen
Wrenches, and one Philips Screwdriver. NOTE: It is strongly recommended that
this machine to be assembled by two or more people to avoid possible injury.
STEP 1 (See Diagram 1)

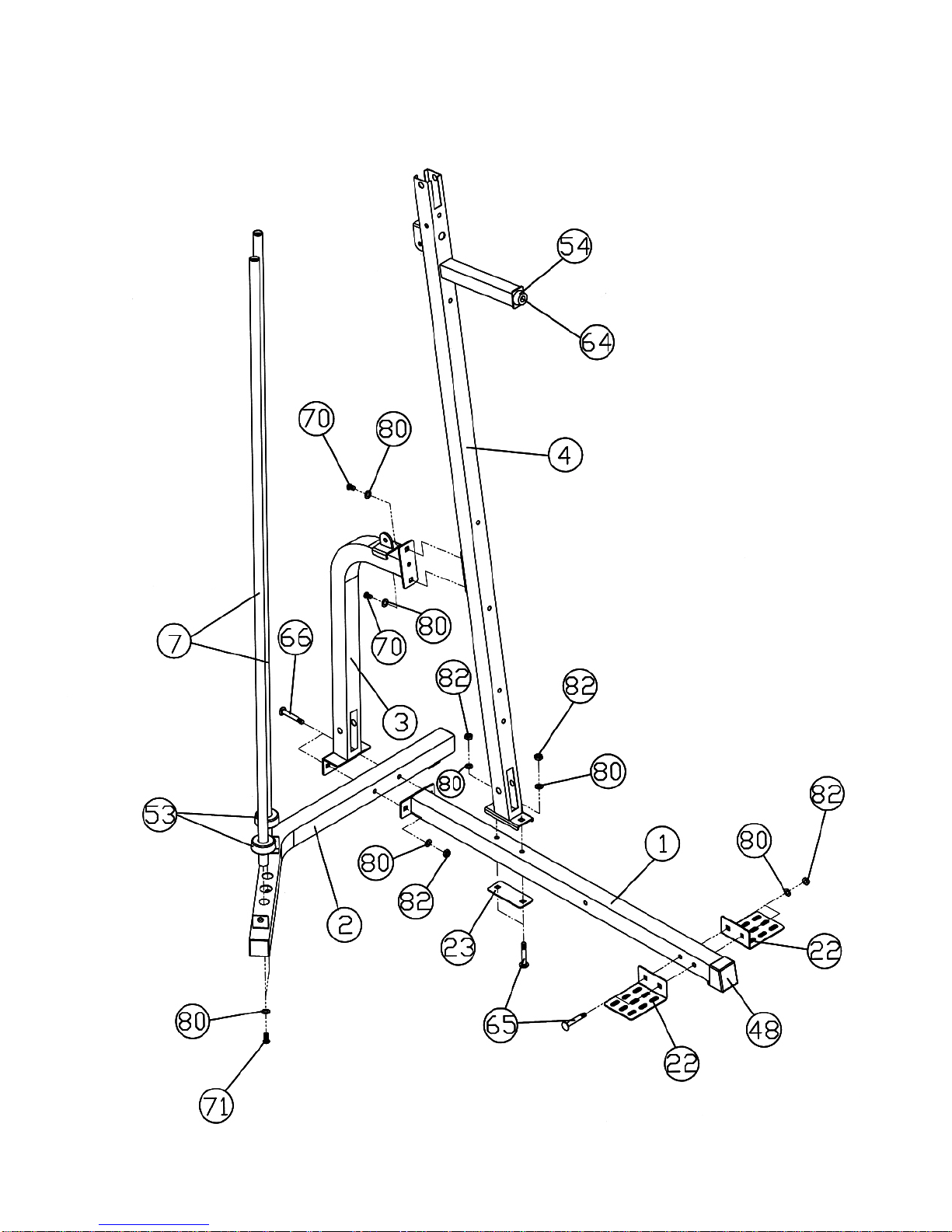

A.) Insert the two Guide Rods (#7) into the holes on the Rear Base Frame (#2). Secure it
with two M10 x 1” Allen Bolts (#71) and Ø ¾” Washers (#80) from the bottom. Slide
two Ø 2 ½” Rubber Bumpers (#53) onto the Guide Rods from top to bottom.
B.) Attach the Vertical Frame (#4) onto the Main Base Frame (#1). Secure it with two M10
x 2 ½” Carriage Bolts (#65), one 4 ¾” x 2” Bracket (#23), two Ø ¾” Washers (#80), and
two M10 Aircraft Nuts (#82).
C.) NOTE: Do not tighten all the Nuts and Bolts until instructed to do so.
D.) Attach the Main Base Frame to the Rear Base Frame. Attach the Vertical Support
Frame (#3) onto the Rear Base Frame. Align the holes. Secure them together with two
M10 x 2 ¾” Carriage Bolts (#66), two Ø ¾” Washers (#80), and two M10 Aircraft Nuts
(#82).
E.) Attach the top of Vertical Support Frame to the Vertical Frame. Secure it with two M10
x 5/8” Allen Bolts (#70) and two Ø ¾” Washers (#80).
F.) Attach the two Foot Plates (#22) to the front of Main Base Frame from each side. Align
the holes. Secure the two Foot Plates to the Main Base Frame with two M10 x 2 ½”
Carriage Bolts (#65), two Ø ¾” Washers (#80), and two M10 Aircraft Nuts (#82).
8

DIAGRAM 1
9

STEP 2 (See Diagram 2)

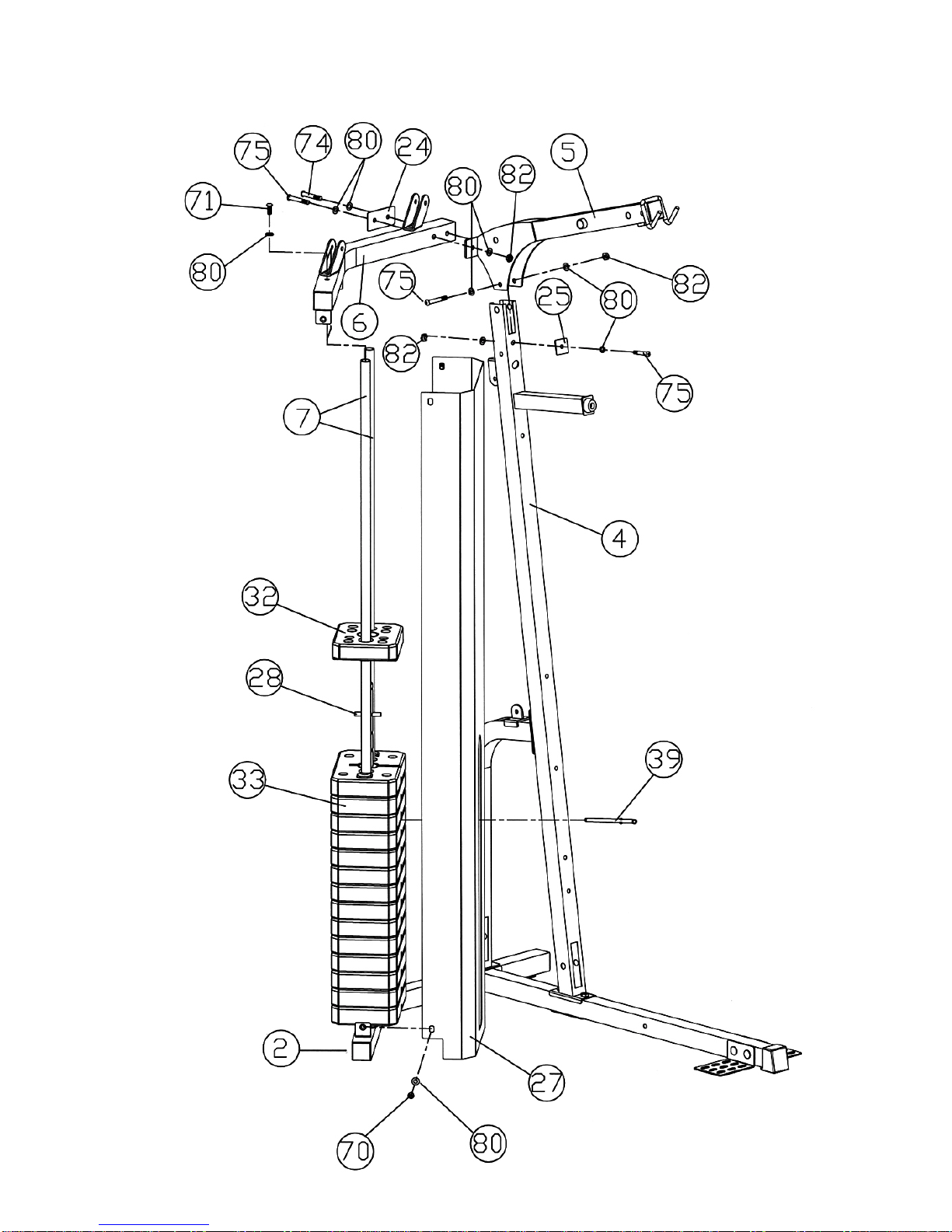

A.) Slide 14 Weight Plates (#33) onto the Guide Rods. Make sure the deep groove
on the Weight Plates all facing the front of the machine and downward. Insert the
Selector Rod (#28) through the center hole on the Weight Plates. Slide the
Selector Stem (#32) onto the Guide Rods. Use the L-shaped Pin (#39) to select
total weights to exercise. Please refer to the Weight Resistance Chart in page 22.
B.) Place the Upper Frame (#5) onto the Vertical Frame (#4). Secure them with one
M10 x 2 ¾” Allen Bolt (#75), two Ø ¾” Washers (#80), and one M10 Aircraft Nut
(#82) from the side. One M10 x 2 ¾” Allen Bolt (#75), one 1 7/8” Square Bracket
(#25), two Ø ¾” Washers (#80), and one M10 Aircraft Nut (#82) from front.
C.)Attach the holes on the Top Socket Assembly (#6) onto the two Guide Rods (#7).
Secure it with two M10 x 1” Allen Bolts (#71) and two Ø ¾” Washers (#80).
D.)Attach the other end of Top Socket Assemble to the Upper Frame. Secure it with
one M10 x 2 ¾” Allen Bolts (#75), one M10 x 2 ½” Allen Bolt (#74), two Ø ¾”
Washers (#80), one 4” x 2” Bracket (#24), one Ø ¾” Washer (#80), and one M10
Aircraft Nuts (#82).
E.) Attach the Weight Stack Cover (#27) to Rear Base Frame (#2) and Top Socket
Assembly. Secure it with four M10 x 5/8” Allen Bolts (#70) and four Ø ¾” Washers
(#80).
F.) Securely tighten all Nuts and Bolts previously installed in Sept-1 and Step-2.
10

DIAGRAM 2
11

STEP 3 (See Diagram 3)

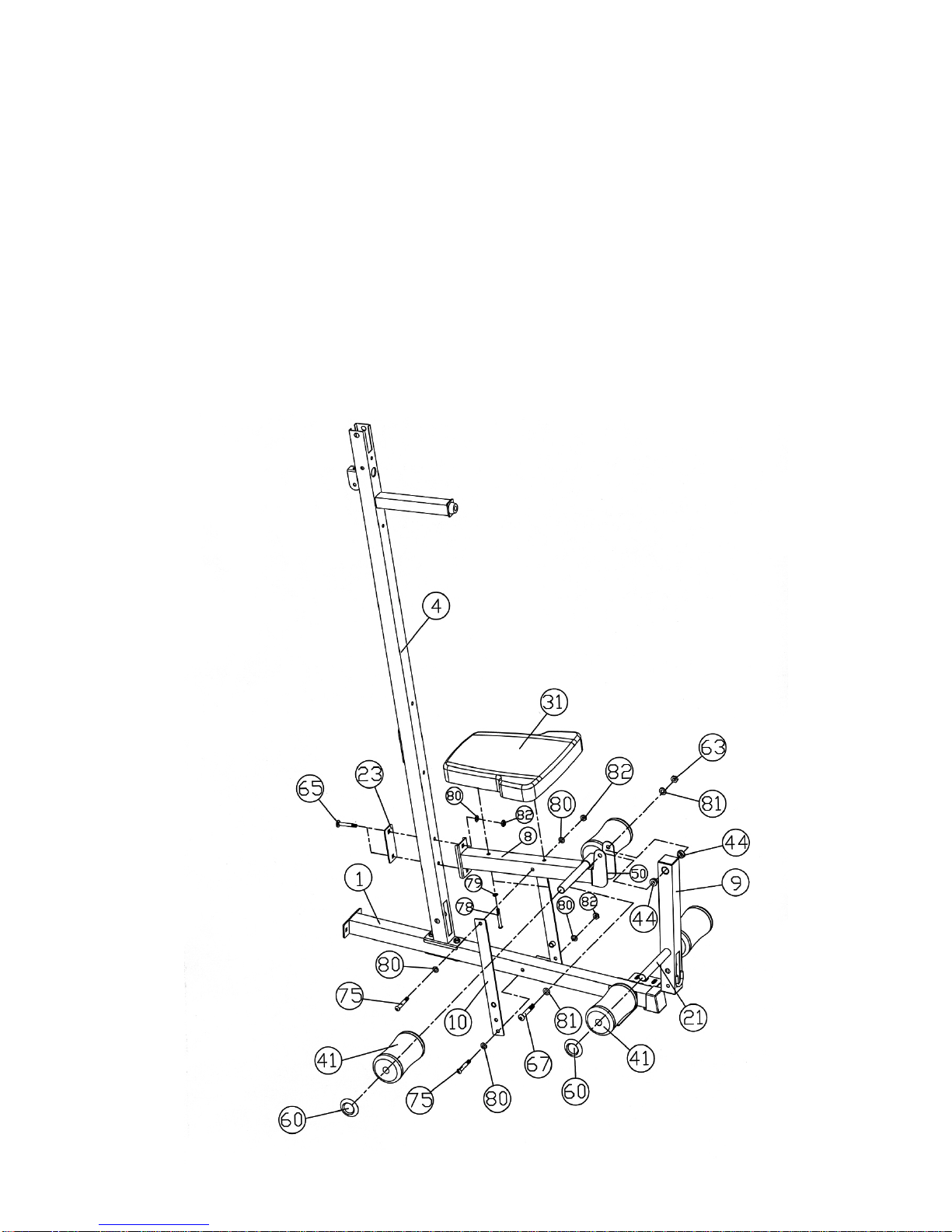

A.) Attach the Seat Support (#8) to the Vertical Frame (#4). Secure it with two M10 x 2 ½”
Carriage Bolts (#65), one 4 ¾” x 2” Bracket (#23), two Ø ¾” Washers (#80), and two M10
Aircraft Nuts (#82). Do not tighten the Nuts and Bolts yet.
B.) Attach the two Seat Support Frames (#10) to the Seat Support and the Main Base frame (#1)
from each side. Secure them to the Seat Support and Main Base Frame with two M10 x 2 ¾”
Allen Bolts (#75), four Ø ¾” Washers (#80), and two M10 Aircraft Nuts (#82).
C.)Securely tighten all Nuts and Bolts installed in this step.
D.)Attach the Seat Pad (#31) to Main Seat Support. Secure it with two M8 x 2 ½” Allen Bolts
(#78) and two Ø 5/8” Washers (#79).
E.) Attach two Ø 1” Bushings (#44) to the hole on the Leg Developer (#9). Attach the Leg
Developer to the open bracket on Main Seat Support. Secure it with one M12 x 3” Allen Bolt
(#67), two Ø 1” Washers (#81), and one M12 Aircraft Nuts (#63).
F.) Insert two Foam Tubes (#21) halfway through the holes on Main Seat Support and Leg
Developer. Push four Foam Rolls (#41) onto the Tubes from each end. Plug four Foam Roll
End Caps (#60) into the Ends.
12

STEP 4 (See Diagram 4)
A.) Attach two Ø 1” Bushings (#44) to the holes on the Upper Frame (#5). Attach the Front
Press Base (#11) to the two Bushings. Secure it with one M12 x 4 1/8” Allen Bolt (#68), two
Ø 1” Washers (#81), and one M12 Aircraft Nuts (#63). Do not over tighten the Nut and
Bolt. Make sure the Front Press Base is able to move smoothly.
B.) Attach the Right Butterfly (#13) to the Front Press Base. Secure it with one M12 x 4 3/8”
Allen Bolt (#69), two Ø 1” Washer (#81), and one M12 Aircraft Nut (#63).
C.) Repeat the Steps B above to install the Left Butterfly (#12).
D.) Attach a Butterfly Pulley Bracket (#15) to the Vertical Frame (#4). Secure it with one M10 x
3 ½” Allen Bolt (#77), two Ø ¾” Washers (#80), and one M10 Aircraft Nut (#82).
E.) Attach one Swivel Pulley Brackets (#16) to each end of the Butterfly Pulley Bracket. Secure
each Bracket with one M10 x 2 ½” Allen Bolt (#74), two Ø ¾” Washers (#80), and one M10
Aircraft Nut (#82). Do not over tighten! Make sure the Brackets are able to swivel freely.
F.) Attach the Backrest Board (#30) to the Vertical Frame. Secure it with two M8 x 2 ½” Allen
Bolts (#78) and Ø 5/8” Washers (#79).
13

CABLE LOOP DIAGRAM
14

STEP 5 (See Diagram 5 & Cable Loop Diagram)

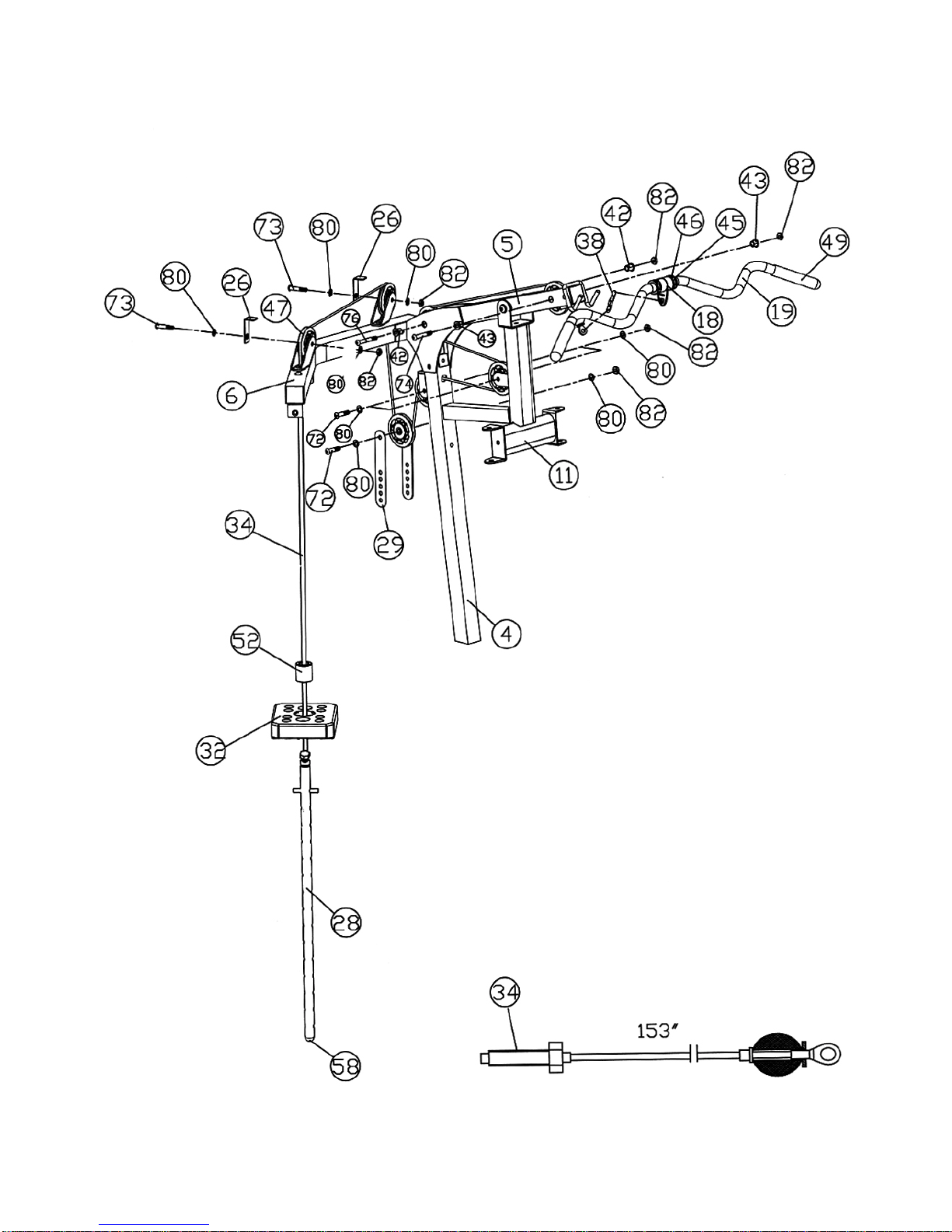

A.) Attach the 153” Upper Cable (#34) to the opening at the front of the Upper
Frame (#5). Note: The Ball Stopper on the cable should be underneath the
Frame.
B.) Attach a Pulley (#47) to the opening. Secure it with one M10 x 2 ½” Allen Bolt
(#74), two Ø 7/8” x 5/8” Pulley Bushings (#43), and one M10 Aircraft Nut (#82).
C.) Draw the Cable towards the back of the machine to the opening on the Upper
Frame. Attach a Pulley to the opening. Secure it with one M10 x 3” Allen Bolt
(#76), two Ø 7/8” x ¾” Long Pulley Bushings (#42), and one M10 Aircraft Nut
(#82).
D.) Draw the Cable around the Pulley then pull back towards the open bracket on
the Front Press Base (#11).
E.) Attach a Pulley to the bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#72),
two Ø ¾” Washers (#80), and one M10 Aircraft Nut (#82).
F.) Draw the Cable around the Pulley through the hole on the Vertical Frame to the
open bracket on the rear of Vertical Frame (#4). Repeat Procedure E above to
install another Pulley.
G.) Draw the Cable around the Pulley then downward. Attach the Cable to in
between the two Double Floating Pulley Brackets (#29). Repeat Procedure E to
install a Pulley. Let the bracket hanging for now.
H.) Draw the Cable around the Pulley then pull the Cable upward to the open
bracket on the Top Socket Assembly (#6).
I.) Attach a Pulley to the bracket. Secure it with one M10 x 2” Allen Bolt (#73), one
L-shaped Cable Retainer (#26), two Ø ¾” Washers (#80), and one M10 Aircraft
Nut (#82).
J.) Draw the Cable to the other open bracket on the Top Socket Assembly. Repeat
Procedure I to install another Pulley.
K.) Pull the Cable downward between the two Guide Rods, through a Ø 1 ¾” Rubber
Bumper (#52) to the Selector Rod (#28). Fully thread the bolt at the end of the
Cable into the top opening on the Selector Rod.
L.) Connect the Lat Bar (#19) to the Upper Cable with a C-clip (#38).
15

DIAGRAM 5
16

STEP 6 (See Diagram 6 & Cable Loop Diagram)

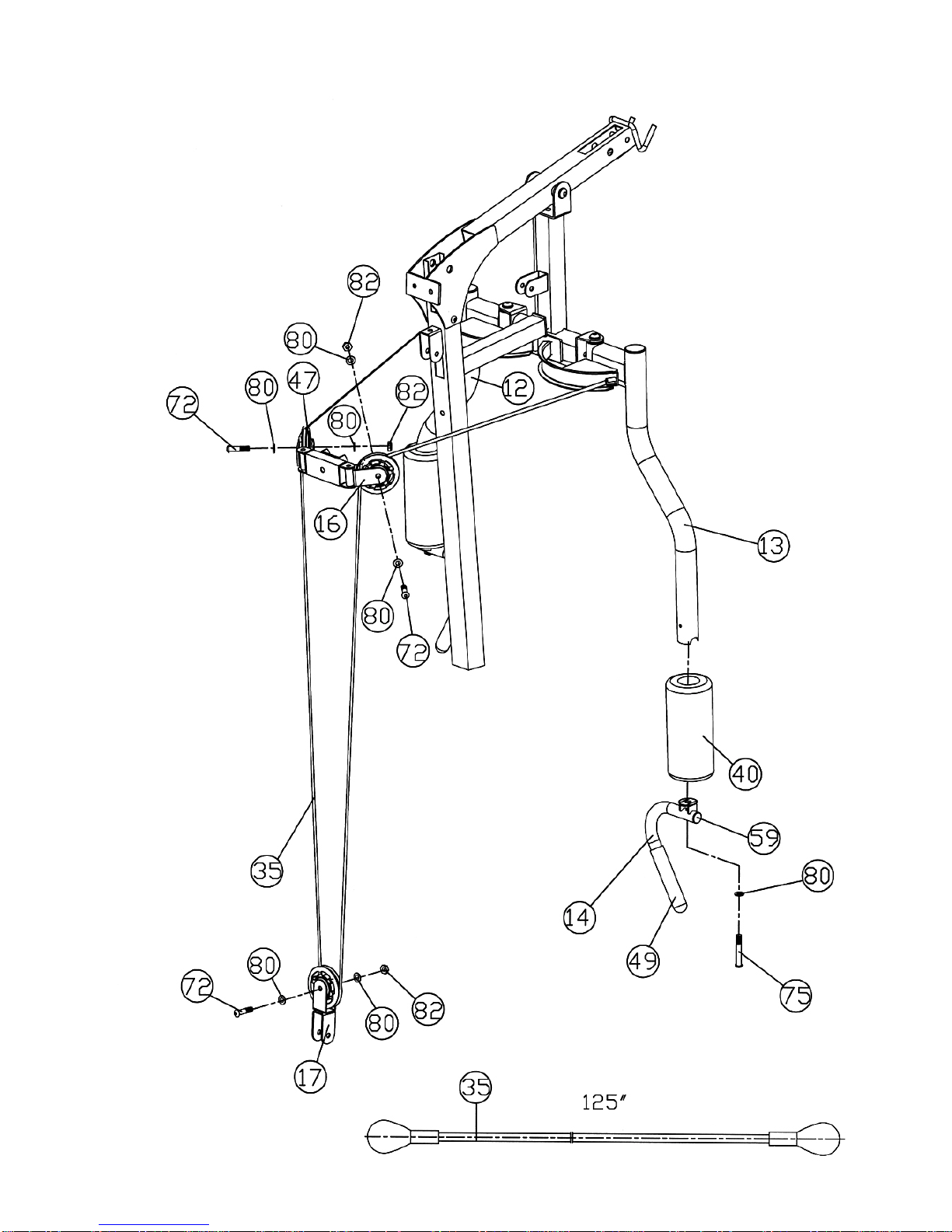

A.) Attach one end of the 125” Butterfly Cable (#35) to the hook on the Right Butterfly (#13).
B.) Draw the Cable to the right Swivel Pulley Bracket (#16).
C.)Attach a Pulley to the bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#72), two Ø ¾”
Washers (#80), and one M10 Aircraft Nut (#82).
D.)Draw the Cable around the Pulley then downward. Attach the Cable to a Crossed Double
Floating Pulley Bracket (#17). Install another Pulley. Let the Bracket hang for now.
E.) Pull the Cable around the Pulley then upward to the left Swivel Pulley Bracket. Repeat
Procedure C above to install a Pulley.
F.) Draw the Cable to the left Butterfly. Attach the end to the hook on the Left Butterfly.
G.)Push one Butterfly Foam Roll (#40) onto the Right Butterfly. Attach a Front Press Handle
(#14) to the Right Butterfly. Secure it with one M10 x 2 ¾” Allen Bolt (#75) and Ø ¾” Washer
(#80). Repeat the same procedure to install the Foam Roll and Handle to Left Butterfly.
17

DIAGRAM 6
18

STEP 7 (See Diagram 7 & Cable Loop Diagram)
A.) Attach the 131” Lower Cable (#36) to the opening on the bottom of the Leg
Developer (#9).
B.) Attach a Pulley to the opening. Secure it with one M10 x 2 ½” Allen Bolt (#74), two Ø
7/8” x 5/8” Pulley Bushings (#43), and one M10 Aircraft Nut (#82).
C.) Draw the Cable underneath the Pulley to the opening in between the two Seat
Support Frames (#10).
D.) Attach a Pulley to the opening. Secure it with one M10 x 2 ¾” Allen Bolt (#75), two Ø
¾” Washers (#80) and one M10 Aircraft Nut (#82). Insert a M10 x 2 ½” Allen Bolts
(#74) through the hole on the two Seat Support Frames under the Pulley. Secure the
Bolt with two Ø ¾” Washers (#80) and one M10 Aircraft Nut (#82).
E.) Draw the Cable underneath the Pulley along the Main Base Frame to the opening on
the bottom of the Vertical Frame (#4). Repeat Procedure B above to install another
Pulley.
F.) Pull the Cable upward to the Crossed Double Floating Pulley Bracket (#17)
previously installed in Step-6. Install another Pulley with one M10 x 1 ¾” Allen Bolt
(#72), two Ø ¾” Washers (#80) and one M10 Aircraft Nut (#82).
G.) Draw the Cable over the Pulley then downward to the opening on the bottom of
Vertical Support Frame (#3). Repeat Procedure B to install another Pulley.
H.) Pull the Cable around the Pulley then upward to the Double Floating Pulley Bracket
(#29) previously installed in Step-5. Install another Pulley with one M10 x 1 ¾” Allen
Bolt (#72), two Ø ¾” Washers (#80) and one M10 Aircraft Nut (#82).
I.) Draw the Cable around the Pulley then pull downward to the bracket on the back of
the Vertical Support Frame. Secure the Cable to the bracket with one M10 x 1” Allen
Bolt (#71), two Ø ¾” Washers (#80), and one M10 Aircraft Nut (#82).
J.) Adjust the tension of the Cable by adjusting the Pulley position on the Double
Floating Pulley Bracket (#29). If the cables are too loose, move the Pulley up one
hole. If the cables are too tight, move the Pulley down one hole.
K.) For best performance of the machine, adjust the Cables so the Selector Stem (Top
Plate) on the weight stack is ¼” above the first plate. To select the weight, push
down on the Selector Stem to close the gap then insert the selector pin. This will
remove the slack in the cable system so the range of motion is smooth and tight.
L.) Connect the Shiver Bar (#20) to a Chain (#37) with a C-clip (#38). Connect the
Chain to the Lower Cable with another C-clip.
19
