Impex POWERHOUSE ELITE PHE1000 User manual

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Parts List
Resistance Chart
Warranty
Ordering Parts
Model
PHE 1000
Retain This
Manual for
Reference
03-07-04
OWNER'S
MANUAL
POWERHOUSE ELITE
PHE1000 HOME GYM
IMPEX FITNESS PRODUCTS
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: [phone] Fax: [phone]
www.impex-fitness.com
[email protected]

TABLE OF CONTENTS
BEFORE YOU BEGIN....................................................................................……….. 1
IMPORTANT SAFETY NOTICES...................................................................……….. 2
HARDWARE IDENTIFIER.....….....................................................................……….. 3
ASSEMBLY INSTRUCTIONS.........................................................................……….. 6
PARTS LIST…………………………………………………………………………………..17
RESISTANCE CHART………….......................................................................……….18
WARRANTY.................................................................................................………….19
ORDERING PARTS.......................................................................................…………19
BEFORE YOU BEGIN
Thank you for selecting the POWERHOUSE ELITE PHE1000 HOME GYM
by IMPEX FITNESS PRODUCTS. For your safety and benefit, read this
manual carefully before using the machine. As a manufacturer, we are
committed to provide you complete customer satisfaction. If you have any
questions, or find there are missing or damaged parts, we guarantee you
complete satisfaction through direct assistance from our factory. To avoid
unnecessary delays, please call our TOO-FREE customer service number.
Our Customer Service Agents will provide immediate assistance to you.
Toll-Free Customer Service Number
1-800-999-8899
Mon. – Fri. 9 a.m. – 5 p.m. PST
www.impex-fitness.com
[email protected]m
1

IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES
NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE
SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
2

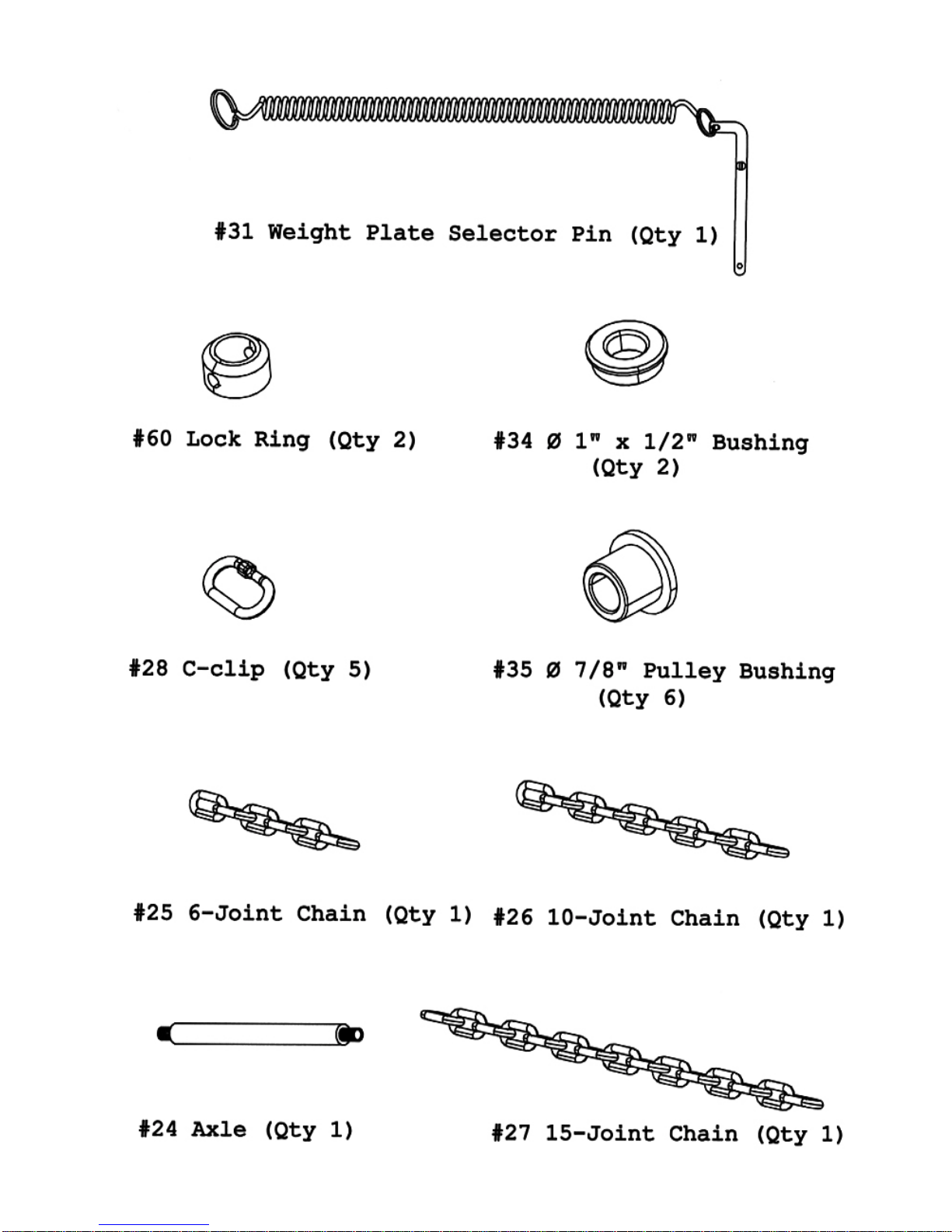

HARDWARE PACK
3

HARDWARE PACK
4

HARDWARE PACK
5

ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches. NOTE: It is strongly recommended this machine to be assembled by
two or more people to avoid possible injury.
STEP 1 (See Diagram 1)
A.) Slide two Ø2 ½” Round Rubber Bumpers (#43) onto the Guide Rods (#7). Insert
the two Guide Rods into the holes on the Rear Stabilizer (#8). Secure each Guide
Rod with one M10 x 1” Allen Bolt (#72) and ∅¾” Washer (#77) from the bottom.
B.) Attach the rear of Main Base Frame (#1) to the Rear Stabilizer. Secure them with
two M10 x 2 ¾” Carriage Bolts (#62), one 4 3/8” x 2” Bracket (#20), two Ø ¾”
Washers (#77), and two M10 Aircraft Nuts (#81). Do not tighten the nuts and bolts
yet.
C.) Attach the Front Base Frame (#19) to the Main Base Frame (#1). Secure them
with one M10 x 3” Allen Bolt (#74), one 4” x 2” Bracket (#29), two Ø ¾” Washers
(#77), and one M10 Aircraft Nut (#81) to the top hole. Secure the bottom hole with
one M10 x 2 ½” Allen Bolt (#64) and ∅¾” Washer (#77) from the back.
D.) Attach the Front Stabilizer (#30) to the Front Base Frame. Secure them with two
M10 x 2 ¾” Carriage Bolts (#62), one 4 ¾” x 2” Bracket (#22), two Ø ¾” Washers
(#77), and two M10 Aircraft Nuts (#81).
E.) Place the Vertical Frame (#2) onto the Main Base Frame. Secure them with two
M10 x 3 ½” Carriage Bolts (#63), one Pulley Bracket (#18), two Ø ¾” Washers
(#77), and two M10 Aircraft Nuts (#81). Securely tighten all nuts and bolts
previously installed.
6
DIAGRAM 1

7

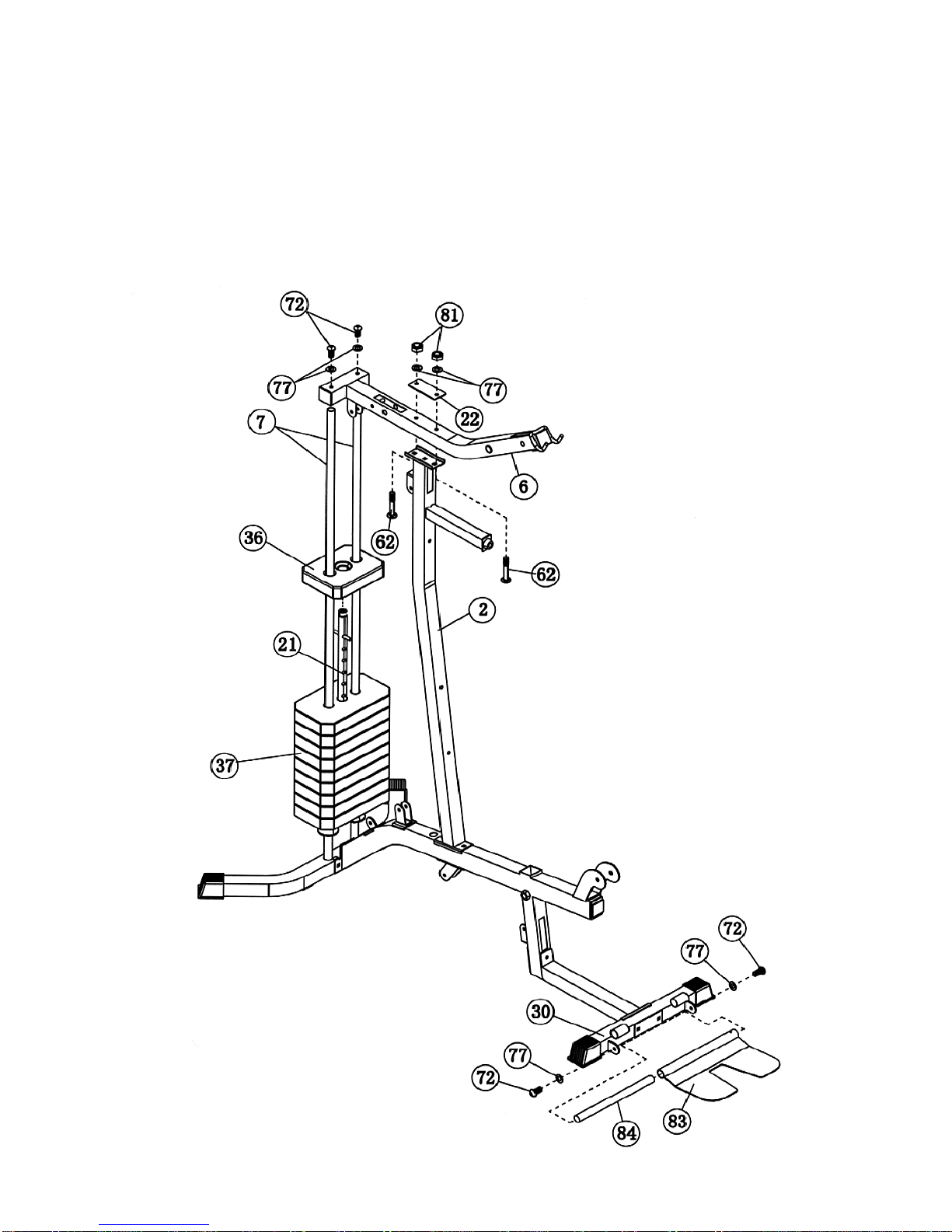

STEP 2 (See Diagram 2)

A.) Slide 9 Weight Plates (#37) onto the Guide Rods (#7). Align the holes on the Weight Plates.
Insert a Selector Rod (#21) through the center hole. Slide the Selector Stem (#36) onto the
Guide Rods.
B.) Attach the holes on the Upper Frame (#6) onto the Guide Rods. Place the Upper Frame
onto the Vertical Frame (#2). Secure the Upper Frame (#6) to the Guide Rods (#7) with two
M10 x 1” Allen Bolts (#72) and Ø ¾” Washers (#77).
C.)Secure the Upper Frame to the Vertical Frame with two M10 x 2 ¾” Carriage Bolts (#62),
one 4 ¾” x 2” Bracket (#22), two ∅¾” Washers (#77), and two M10 Aircraft Nuts (#81).
D.)Insert the Foot Plate Axle (#84) through the pivot on the Foot Plate (#83). Attach the Foot
Plate to the Front Stabilizer (#30). Secure the Axle to Front Stabilizer with two M10 x 1” Allen
Bolts (#72) and Ø ¾” Washers (#77).
8

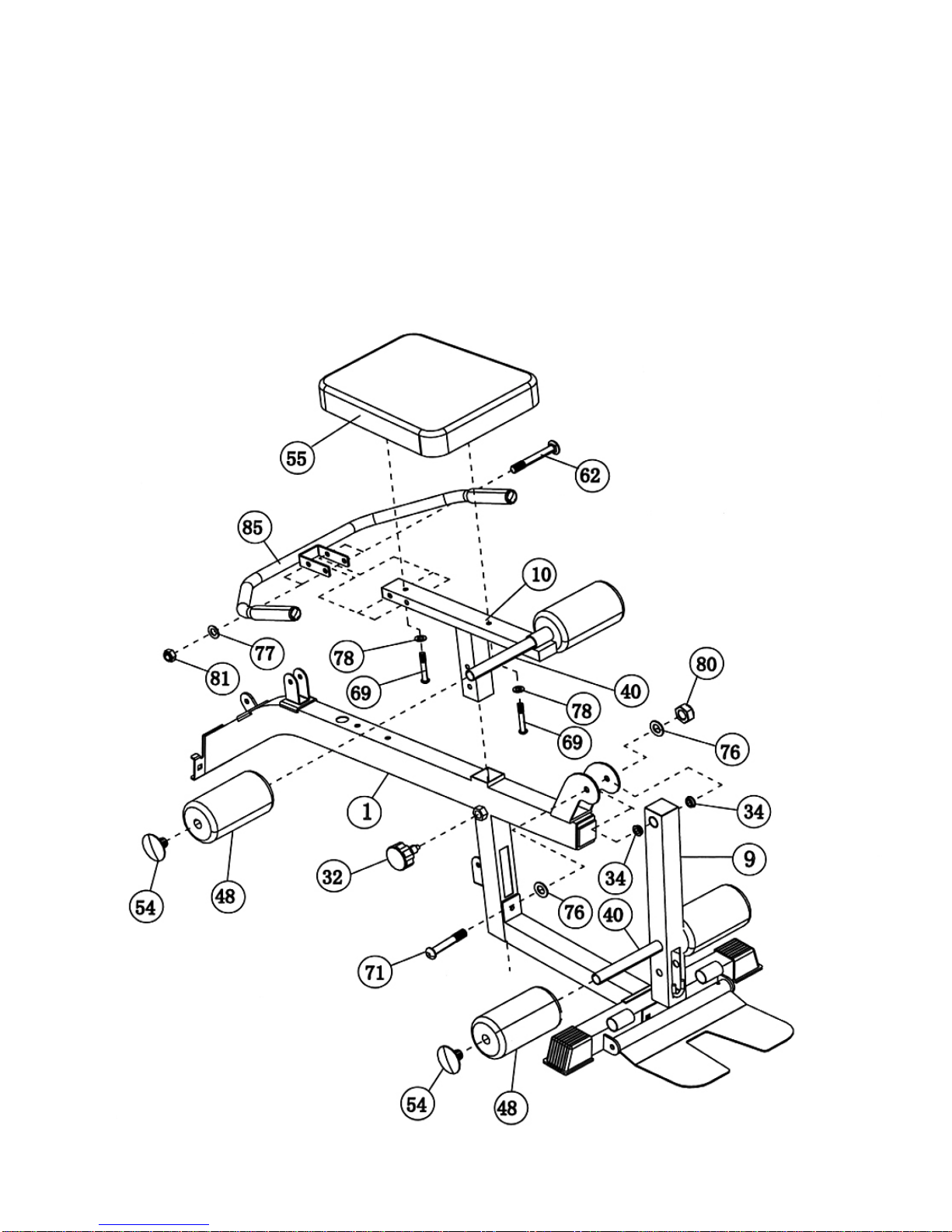

STEP 3 (See Diagram 3)

A.) Attach the Seat Handle (#85) to the Seat Support (#10). Secure it with two M10 x 2 ¾”
Carriage Bolts (#62), four Ø ¾” Washers (#77), and two M10 Aircraft Nuts (#81).
B.) Place the Seat (#55) onto the Seat Support (#10). Secure it with two M8 x 1 5/8” Allen Bolts
(#69) and Ø 5/8” Washers (#78).
C.) Insert the Seat Support into the opening on the Main Base Frame (#1). Use a Lock Knob
(#32) to secure the Seat Support at desired height.
D.) Attach two ∅1” x ½” Bushings (#34) to the Leg Developer (#9). Attach the Leg Developer to
the bracket on the Main Base Frame. Secure it with one M12 x 3 1/8” Allen Bolt (#71), two Ø
1” Washers (#76), and one M12 Aircraft Nut (#80). Do not over tighten the Bolt and Nut.
Make sure the Leg Developer is able to swivel on the Bolt.
E.) Insert two Foam Tubes (#40) halfway through the holes on the Seat Support and Leg
Developer. Push four Foam Rolls (#48) onto the Tubes from both ends. Cover each end
with a Foam Roll End Cap (#54).
9

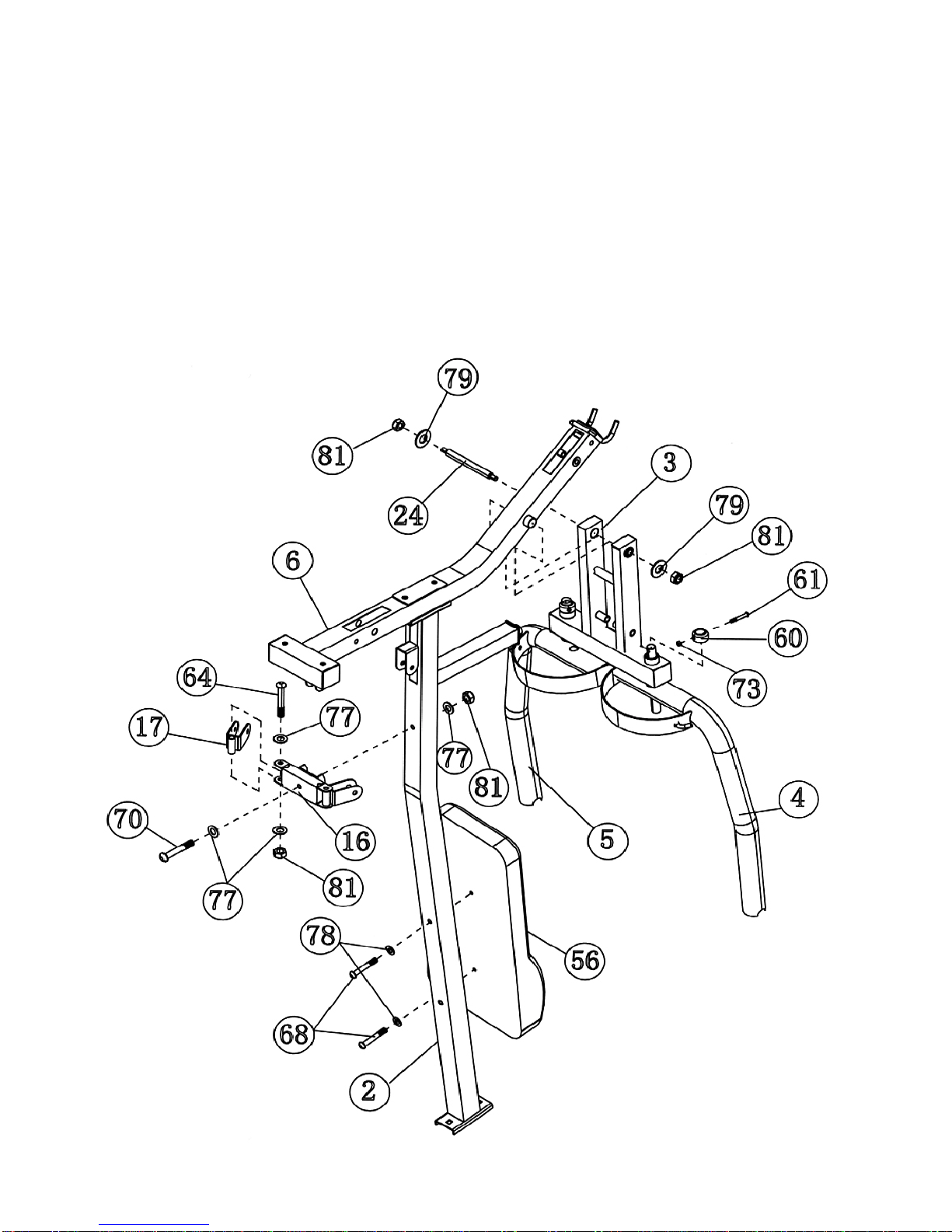

STEP 4 (See Diagram 4)

A.) Attach the Front Press Base (#3) to the Upper Frame (#6). Secure it with one Axle (#24), two
Spacers (#79), and two M10 Aircraft Nuts (#81). Do not over tighten the Nuts.
B.) Insert the axle on the Right Butterfly (#4) through the hole on the Front Press Base from the
bottom. Slide a Lock Ring (#60) onto the axle. Align the holes and secure it with one M6 x 1
¼” Allen Bolt (#61) and M6 Aircraft Nut (#73). Repeat the same step to install the Left
Butterfly (#5).
C.)Attach the Swivel Pulley Bracket Frame (#16) to the back of the Vertical Frame (#2). Secure
it with one M10 x 3 ½” Allen Bolt (#70), two Ø ¾” Washers (#77), and one M10 Aircraft Nut
(#81).
D.)Attach a Swivel Pulley Bracket (#17) to each end of Swivel Pulley Bracket Frame. Secure
each Bracket with one M10 x 2 ½” Allen Bolt (#64), two Ø ¾” Washers (#77), and one M10
Aircraft Nut (#81).
E.) Attach the Backrest Board (#56) to the Vertical Frame (#2). Secure it with two M8 x 2 ½”
Allen Bolts (#68) and Ø 5/8” Washers (#78).
10

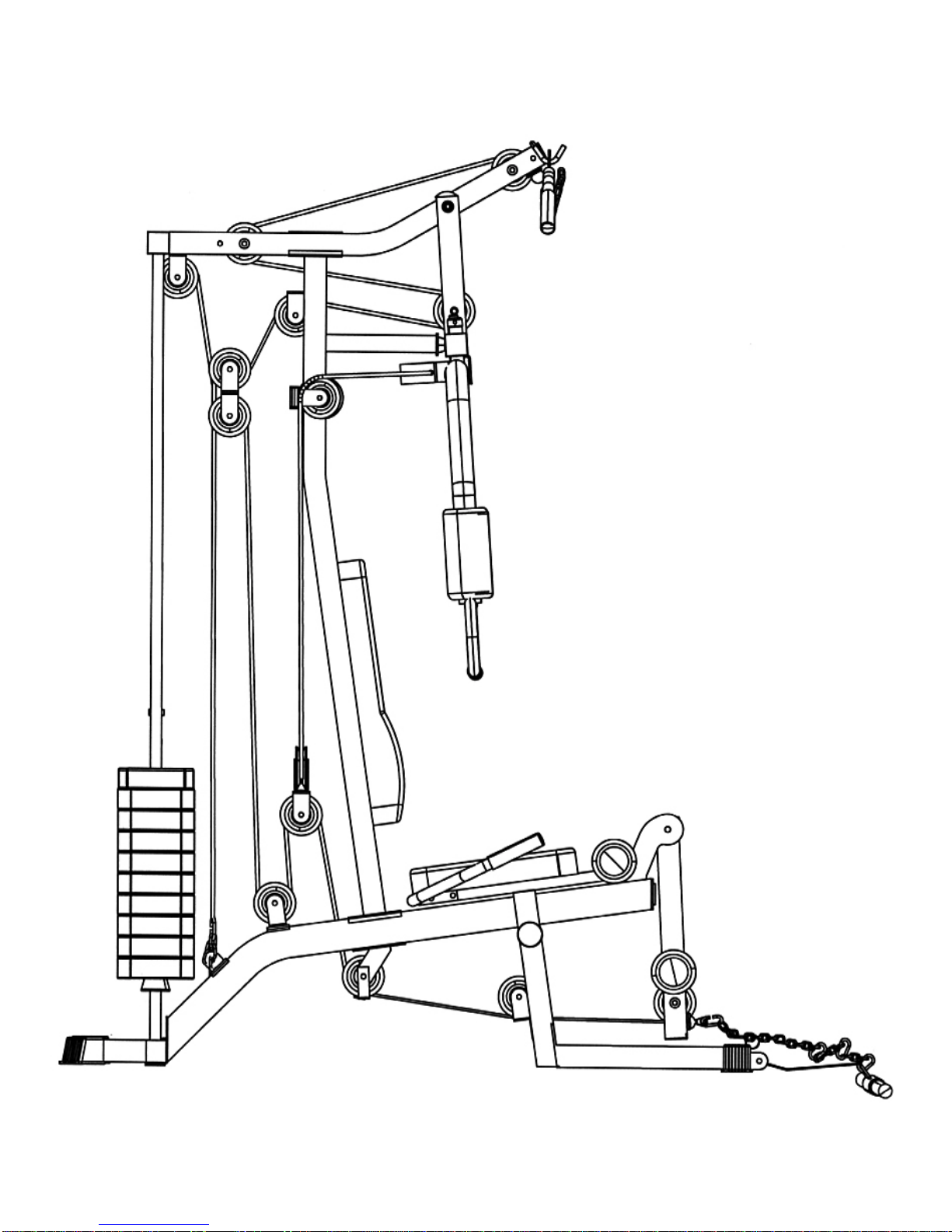

CABLE LOOP DIAGRAM
11

STEP 5 (See Diagram 5 & Cable Loop Diagram)
A.) Attach the 144” Upper Cable (#57) to the front opening on the Upper Frame (#6).
NOTE: The Ball Stopper on the Cable needs to be underneath the Frame.
B.) Attach a Pulley (#41) to the opening. Secure it with one M10 x 2 ½” Allen Bolt
(#64), two Ø 7/8” Pulley Bushings (#35), and one M10 Aircraft Nut (#81).
C.) Draw the Cable towards the back of the machine to another opening on the Upper
Frame. Repeat Step B above to install a Pulley.
D.) Draw the Cable around the Pulley then pull back to the opening on the Front Press
Base (#3). Attach a Pulley to the opening. Secure it with one M10 x 5 ¾” Allen Bolt
(#67), two Ø ¾” Washers (#77), and one M10 Aircraft Nut (#81).
E.) Draw the Cable around the Pulley then through the hole on the Vertical Frame (#2)
to the open bracket on the back of Vertical Frame.
F.) Attach a Pulley to the bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#65), two
∅¾” Washers (#77), and one M10 Aircraft Nut (#81).
G.) Draw the Cable over the Pulley and pull the Cable downwards. Attach a Pulley to
the upper holes on the two Double Floating Pulley Brackets (#14). Repeat Step F
above to install another Pulley. Let the Bracket hanging for now.
H.) Draw the Cable around the Pulley then pull upwards to the open bracket
underneath the Upper Frame. Repeat Step F above to install another Pulley.
I.) Pull the Cable downwards between the two Guide Rods to the Selector Rod (#21).
Attach the string on the Weight Plate Selector Pin (#31) onto Selector Rod.
Securely thread the bolt at the end of the Cable into the Selector Rod. Use the
Weight Plate Selector Pin to select the numbers of weight plates to exercise.
J.) Attach a 10-Joint Chain (#26) to the Cable using a C-clip (#28). Attach the Lat Bar
(#11) to the Chain using a C-clip. Adjust the length of Chain to obtain the desired
Lat Bar exercise.
12

DIAGRAM 5
13

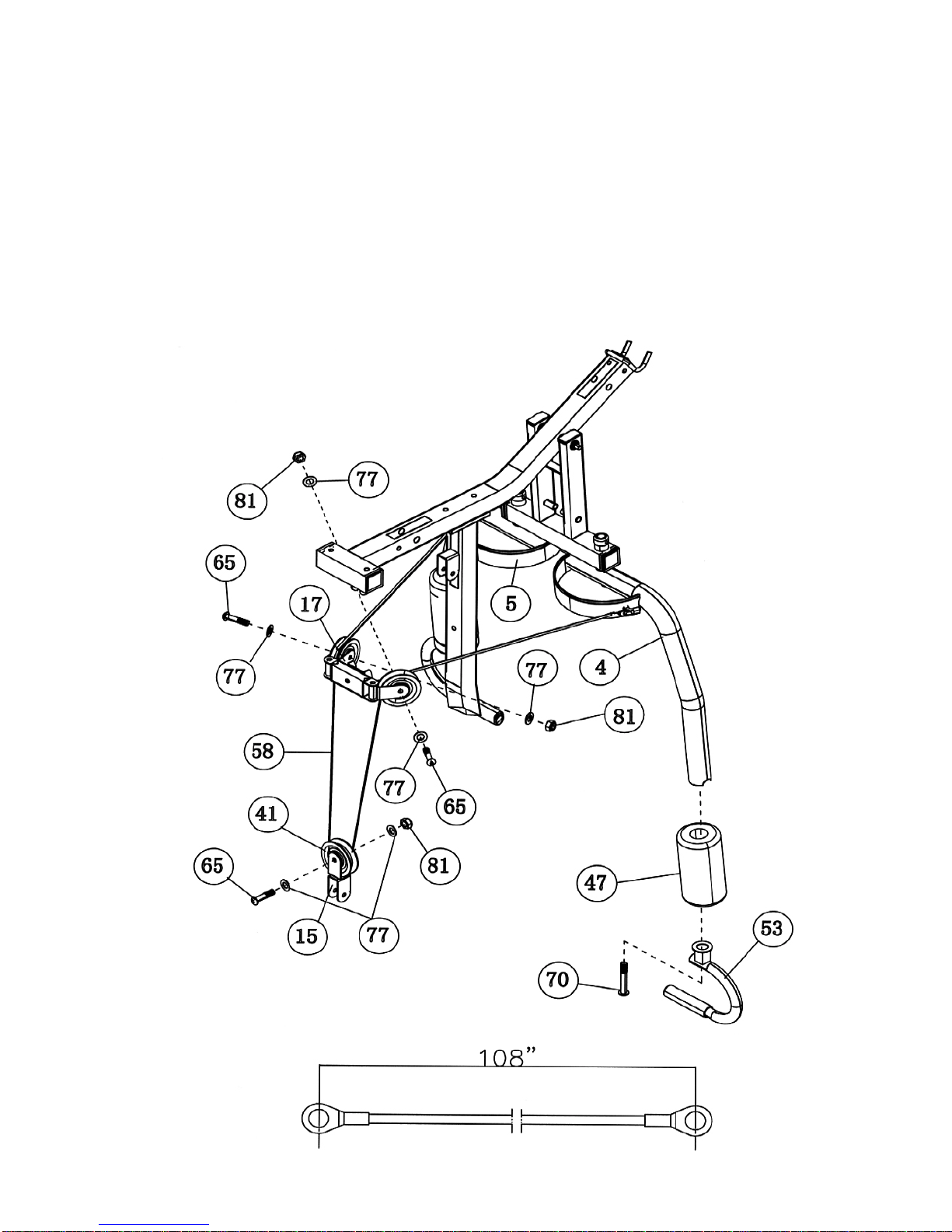

STEP 6 (See Diagram 6 & Cable Loop Diagram)
A.) Attach one end of the 108” Butterfly Cable (#58) to the hook on the Right Butterfly (#4). Draw
the Cable towards the right open Swivel Pulley Bracket (#17).
B.) Attach a Pulley (#41) to the bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#65), two ∅¾”
Washers (#77), and one M10 Aircraft Nut (#81).
C.)Draw the Cable over the Pulley then pull downward. Attach the Cable to an Angled Double
Floating Pulley Bracket (#15). Install another Pulley. Let the Bracket hanging for now.
D.)Draw the Cable around the Pulley and pull upward to the left open Swivel Pulley Bracket.
Install another Pulley as described in Step B above.
E.) Draw the Cable over the Pulley and attach the end to the open hook on the Left Butterfly (#5).
F.) Slide a Butterfly Foam Roll (#47) onto the Right Butterfly (#4). Attach a Front Press Handle
(#53) to the end of the tube and sure it with a M10 x 3 ½” Allen Bolt (#70). Repeat the same
procedure to install the other side.
14

STEP 7 (See Diagram 7 & Cable Loop Diagram)
A.) Attach the 144” Lower Cable (#59) to the opening on the bottom of the Leg
Developer (#9).
B.) Attach a Pulley (#41) to the opening. Secure it with one M10 x 2 ½” Allen Bolt
(#64), two ∅7/8” Pulley Bushings (#35), and one M10 Aircraft Nut (#81).
C.) Draw the Cable underneath the Pulley towards the back of the machine through
the opening on the bottom of the Main Base Frame (#1) to an open bracket.
D.) Attach a Pulley to the bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#65),
two Ø ¾” Washers (#77), and one M10 Aircraft Nut (#81).
E.) Draw the Cable underneath the Pulley towards the back of the machine to the
Pulley Bracket (#18) underneath the Main Base Frame.
F.) Attach a Pulley to the bracket. Secure it with one L-shaped Bracket (#23), one
M10 x 2” Allen Bolt (#66), two ∅¾” Washers (#77), and one M10 Aircraft Nut
(#81).
G.) Pull the Cable upward to the Angled Double Floating Pulley Brackets (#15)
previously installed in Step 6. Repeat Step D to install another Pulley.
H.) Draw the Cable around the Pulley then pull downward to the open bracket on the
Main Base Frame. Repeat Step D to install another Pulley.
I.) Draw the Cable around the Pulley then pull upward to the Double Floating Pulley
Bracket (#14) previously installed in Step-5. Repeat Step D to install a Pulley.
J.) Draw the Cable around the Pulley then pull downward to the bracket on the rear
of Main Base Frame. Attach the Cable to a 6-Joint Chain (#25) using a C-clip
(#28). Secure the other end of the Chain to the bracket with a M10 x 1” Allen
Bolt (#72), two ∅¾” Washers (#77) and one M10 Aircraft Nut (#81).
K.) Use the length of the Chain to adjust the tension of the Cable Loop System. If
the Cables are too loose, shorten the Chain.
L.) Attach the 15-Joint Chain (#27) to the end of the Cable by using a C-clip. Attach
the Arm Curl Handle (#12) to the Chain by using another C-clip. Replace Arm
Curl Handle with the Ankle Strap (#82) for various Leg exercises. Adjust the
length of Chain to obtain the desired exercise. Remove the Arm Curl Handle and
Ankle Strap when using the Leg Developer.
M.) Lubricate the two Guide Rods with WD-40 or light oil. This will minimize the
friction on the Rods so the weight plates can slide up and down on the rods more
freely.
15

DIAGRAM 7
16

PARTS LIST
KEY NO. DESCRIPTION Q’ty
1 Main Base Frame 1 51 2” x 1” End Cap 3
2 Vertical Beam 1 52 Ø 1” End Cap 3
3 Front Press Base 1 53 Front Press Handle 2
4 Right Butterfly 1 54 Foam Roll End Cap 4
5 Left Butterfly 1 55 Seat 1
6 Upper Frame 1 56 Backrest Board 1
7 Guide Rod 2 57 144” Upper Cable 1
8 Rear Stabilizer 1 58 108” Butterfly Cable 1
9 Leg Developer 1 59 144” Lower Cable 1
10 Seat Support 1 60 Lock Ring 2
11 Lat Bar 1 61 M6 x 1 ¼” Allen Bolt 2
12 Arm Curl Handle 1 62 M10 x 2 ¾” Carriage Bolt 8
13 Arm Curl Tube 1 63 M10 x 3 ½” Carriage Bolt 2
14 Double Floating Pulley Bracket 2 64 M10 x 2 ½” Allen Bolt 6
15 Angled Double Floating Pulley Bracket 1 65 M10 x 1 ¾” Allen Bolt 10
16 Swivel Pulley Bracket Frame 1 66 M10 x 2” Allen Bolt 1
17 Swivel Pulley Bracket 2 67 M10 x 5 ¾” Allen Bolt 1
18 Pulley Bracket 1 68 M8 x 2 ½” Allen Bolt 2
19 Front Base Frame 1 69 M8 x 1 5/8” Allen Bolt 2
20 4 3/8” x 2” Bracket 1 70 M10 x 3 ½” Allen Bolt 3
21 Selector Rod 1 71 M12 x 3 1/8” Allen Bolt 1
22 4 ¾” x 2” Bracket 2 72 M10 x 1” Allen Bolt 7
23 L-shaped Bracket 1 73 M6 Aircraft Nut 2
24 Axle 1 74 M10 x 3” Allen Bolt 1
25 6-Joint Chain 1 75 M6 x 5/8” Philips Screw 1
26 10-Joint Chain 1 76 Ø 1” Washer 2
27 15-Joint Chain 1 77 Ø ¾” Washer 51
28 C-clip 5 78 Ø 5/8” Washer 4
29 4” x 2” Bracket 1 79 Spacer 2
30 Front Stabilizer 1 80 M12 Aircraft Nut 1
31 Weight Plate Selector Pin 1 81 M10 Aircraft Nut 32
32 Lock Knob 1 82 Ankle Strap 1
33 Ø 1” x 5/8” Bushing 6 83 Foot Plate 1
34 Ø 1” x ½” Bushing 2 84 Foot Plate Axle 1
35 Ø 7/8” Pulley Bushing 6 85 Seat Handle 1
36 Selector Stem 1 #4 Allen Wrench (Tool) 1
37 Weight Plate 9 #5 Allen Wrench (Tool) 1
38 Ø 1 1/8” Bushing 2 #6 Allen Wrench (Tool) 1
39 Ø 1 ½” Bushing 2 #8 Allen Wrench (Tool) 1
40 Foam Tube 2
41 Pulley 15
42 1 7/8” Rubber Bumper 1
43 Ø 2 ½” Round Rubber Bumper 2
44 ∅1 ½” Rubber Bumper 1
45 5 ½” Handle Grip 8
46 Ø 1 ¼” End Cap 4
47 Butterfly Foam Roll 2
48 Foam Roll 4
49 2” Square Stabilizer End Cap 4
50 2” Square End Cap (Impex Logo) 7
17

18

IMPEX INC.
LIMITED WARRANTY
IMPEX Inc. ("IMPEX") warrants this product to be free from defects in workmanship and material, under
normal use and service conditions, for a period of two years on the Frame from the date of purchase. This
warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to
replacing or repairing, at IMPEX's option.
All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX
Customer Service Department at 1-800-999-8899. All freights on products returned to IMPEX must be
prepaid by the customer. This warranty does not extend to any product or damage to a product caused by
or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an
IMPEX authorized service center or for products used for commercial or rental purposes. No other warranty
beyond that specifically set forth above is authorized by IMPEX.
IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in
connection with the use or performance of the product or other damages with respect to any economic loss,
loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other
consequential damages or whatsoever natures. Some states do not allow the exclusion or limitation of
incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal right. You may also have other rights which vary from state to state.
Register on-line at www.impex-fitness.com
IMPEX INC.
14777 Don Julian
City of Industry, CA 91746
ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-999-8899
during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard time.
[e-mail]
When ordering replacement parts, always give the following information.
1. Model
2. Description of Parts
3. Part Number
4. Date of Purchase
19
