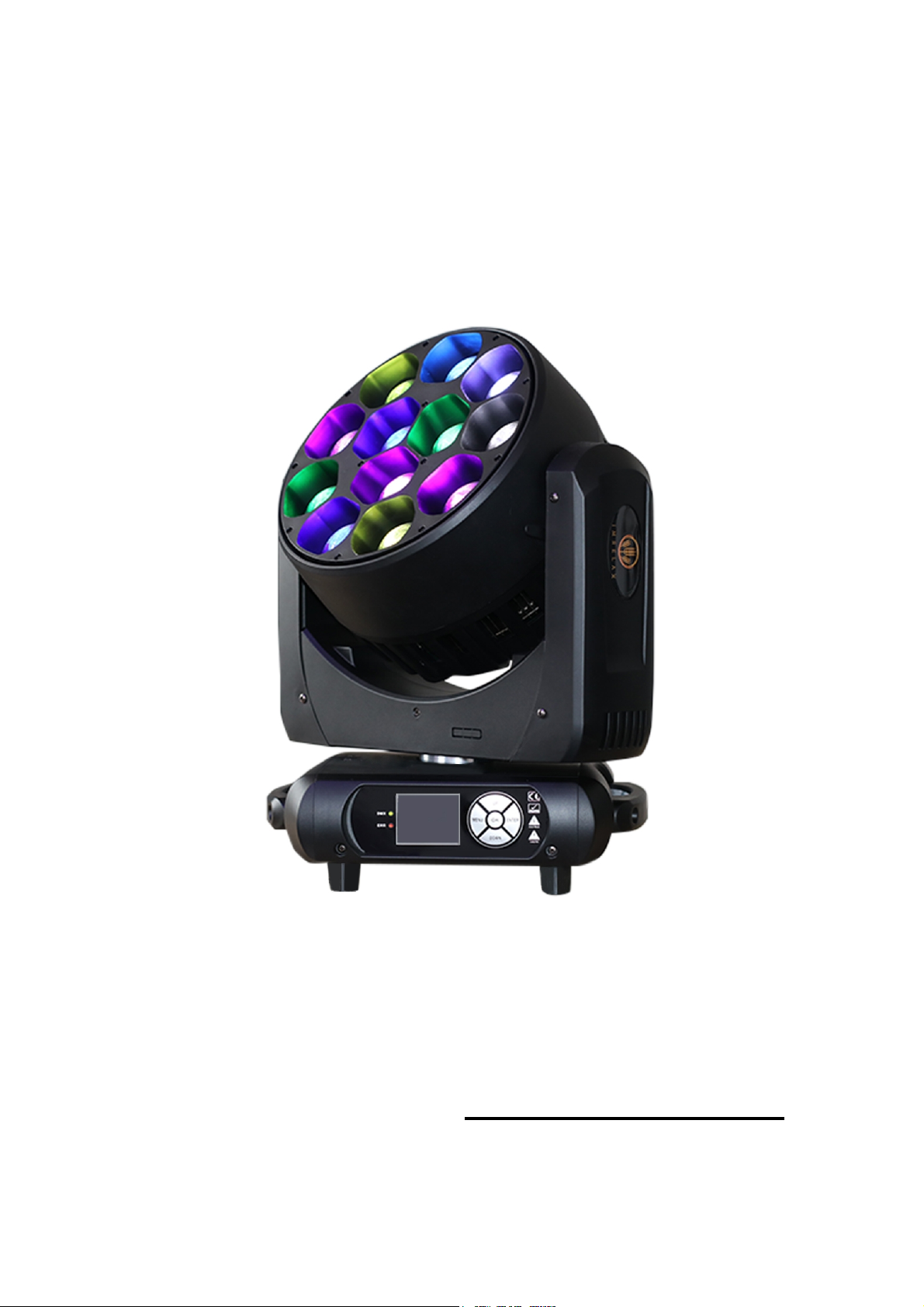

IMRELAX IM-MH1240 User manual

IMRELAX 12x40W LED Wash
Zoom Moving Head Light
IM-MH1240 User Manual
Professional EntertainmentTechnology

- 1 -
1. SafetyInstructions
Please read carefullythe instruction,which includes
important information aboutthe installation,usage
and maintenance.
WARNING
ŸPlease keep this UserGuide forfutureconsultation. Ifyou sell theunittoanother
user, be surethattheyalso receive thisinstructionbooklet.
ŸUnpack and checkcarefullythereis no transportation damagebeforeusing the
unit.
ŸBefore operating, ensurethatthe voltage and frequencyof power supplymatch
the power requirements ofthe unit.
ŸIt s importantto groundthe yellow/green conductor to earthin orderto avoid
electric shock.
ŸTheunit is for indooruseonly. Use onlyin adrylocation.
ŸTheunit must beinstalled in a location with adequate ventilation, at least50cm
from adjacent surfaces. Be surethat noventilation slotsareblocked.
ŸDisconnect main power beforereplacementor servicing.
ŸMake surethere are no flammable materials closetotheunit while operating as
it is fire hazard.
ŸUse safetycable when fixes this unit.DONOThandle the unitbytaking itshead
only, but always bytaking itsbase.
ŸMaximum ambienttemperature is Ta:40 .DONOToperateitwhere the
temperature ishigherthan this.
ŸUnit surfacetemperaturemayreachup to 85 .DO NOTtouchthe housing
bare-handduring itsoperation. Turn off thepower and allowabout 15 minutes for
the unittocool down before replacing orserving.
ŸIn theevent ofseriousoperatingproblem, stopusing theunitimmediately.Never
try torepair the unit by yourself. Repairs carried out by unskilled people canlead
to damage ormalfunction. Please contactthe nearestauthorized technical
assistance center. Always use thesametype spare parts.
DO NOTtouchanywire during operation ashighvoltagemightbecausing electric
shock

- 2 -
Ifusing a 230V 50Hzpower supply, DO NOT connect in series more than 11units;
use another main supplyfor the next 11 fixtures.
Ifusing a120V 60Hzpower supply,DO NOT connect in series more than5units; use
another main supplyfor the next 5 fixtures.
Warning:
ŸTo preventor reduce the risk ofelectrical shock or fire, do not exposethe
unit to rain or moisture.
ŸDO NOTopen the unit within five minutes after switchingoff.
ŸThe housing, the lenses, or the ultraviolet filter must be replaced ifthey
are visiblydamaged.
Caution:
There arenouser serviceable partsinsidethe unit.DONOTopenthe
housingor attempt any repairs yourself.Inthe unlikelyevent your unit
mayrequire service, please contact your nearest dealer.
Installation:
Theunit should be mounted via its screwholes on thebracket.Always
ensurethattheunit isfirmlyfixedtoavoid vibration andslippingwhile
operating.And make sure that the structure towhich you are attachingthe
unit is secureand isabletosupport aweight of10times oftheunit s
weight. Alsoalwaysuse asafetycablethat canhold 12 times oftheweight
ofthe unit when installingthe fixture.

- 3 -
2. Technical Specifications
Led Source
Light Source: 12x40W4inl RGBWOriginal OrsamLED
Zoom Range :2.8°- 55 °
Dimming: 0- 100°smooth dimming
CCT: 2500-8000k ( adjustable)
Strobe: 0-20Hz
Luminous: 8212lm/10m2.8°
Control
DMXChannel : 18CH /24CH / 68CH
Control Mode : DMX512, Master-Slave , Sound Slave
Pan/Tilt
Pan/Tilt:540°/270°
Pan/Tilt Resolution:16bit
Construction
Data In/Out : 3-pin&5-pin XLP
Power in/Out :Power Con in /out
Protection Rating: IP20
POWER
Power Voltage : AC100-240V,50/60Hz
Power Consumption: 600W
Workingtemperature:-20 ~ 40°
DIMENSIONS AND WEIGHT
Dimensions : 470x400x270 mm
Weight: 14.3kgs

- 4 -
3. MENU
DMX512
Run mode
DMXSettings 001 -512
ManualSet
DIM__G
DIM__W
Sound Sence
DIM
__
R
Default Settings
System Information
Channel mode
Invert pan/tile
Slow(auto run)
Fast (autorun)
Strobe
DisplaySet
LCD Backlighton
Sound
Manual
English /Chinese
Dim
Invert word
Pan
Panmico
Tilt
Tiltmico
Zoom
Invert pan/tile
System Set
Sound Sence
DIM__B
Reset
Code Settings
Reset

- 5 -
4. 68Channels function list
68CH Function DMXValue Detail
CH 1 Pan 0-255 0-540°
CH 2 Pan Fine 0-255 16 bit
CH 3 Tilt 0-255 0-270°
CH 4 Tilt Fine 0-255 16 bit
CH 5 P/T Speed 0-255 Fast to slow
CH 6 Focus 0-255 Near to far
CH 7 Dimmer 0-255 Linear dimmer （darkto brightness)
CH 8 Strobe 0-9 No function
10-154 Slowto fast (1HZ-25HZ)
155-204 Random
205-255 Thunder
CH 9 Led1 red dimmer 0-255 Darkand bright
CH10 Led1 green dimmer 0-255 Darkand bright
CH11 Led1 blue dimmer 0-255 Darkand bright
CH12 Led1 white dimmer 0-255 Darkand bright
CH13 Led2 red dimmer 0-255 Darkand bright
CH14 Led2 green dimmer 0-255 Darkand bright
CH15 Led2 blue dimmer 0-255 Darkand bright
CH16 Led2 white dimmer 0-255 Darkand bright
CH17 Led3 red dimmer 0-255 Darkand bright
CH18 Led3 green dimmer 0-255 Darkand bright
CH19 Led3 blue dimmer 0-255 Darkand bright
CH20 Led3 white dimmer 0-255 Darkand bright
CH21 Led4 red dimmer 0-255 Darkand bright
CH22 Led4 green dimmer 0-255 Darkand bright
CH23 Led4 blue dimmer 0-255 Darkand bright
CH24 Led4 white dimmer 0-255 Darkand bright
CH25 Led5 red dimmer 0-255 Darkand bright
CH26 Led5 green dimmer 0-255 Darkand bright
CH27 Led5 blue dimmer 0-255 Darkand bright
CH28 Led5 white dimmer 0-255 Darkand bright
CH29 Led6 red dimmer 0-255 Darkand bright
CH30 Led6 green dimmer 0-255 Darkand bright
CH31 Led6 blue dimmer 0-255 Darkand bright
CH32 Led6 white dimmer 0-255 Darkand bright
CH33 Led7 red dimmer 0-255 Darkand bright
CH34 Led7 green dimmer 0-255 Darkand bright
CH35 Led7 blue dimmer 0-255 Darkand bright
CH36 Led7 white dimmer 0-255 Darkand bright
CH37 Led8 red dimmer 0-255 Darkand bright

- 6 -
CH38 Led8 green dimmer 0-255 Darkand bright
CH39 Led8 blue dimmer 0-255 Darkand bright
CH40 Led8 white dimmer 0-255 Darkand bright
CH41 Led9 red dimmer 0-255 Darkand bright
CH42 Led9 green dimmer 0-255 Darkand bright
CH43 Led9 blue dimmer 0-255 Darkand bright
CH44 Led9 white dimmer 0-255 Darkand bright
CH45 Led10 red dimmer 0-255 Darkand bright
CH46 Led10 green dimmer 0-255 Darkand bright
CH47 Led10 blue dimmer 0-255 Darkand bright
CH48 Led10 white dimmer 0-255 Darkand bright
CH49 Led11 red dimmer 0-255 Darkand bright
CH50 Led11 green dimmer 0-255 Darkand bright
CH51 Led11 blue dimmer 0-255 Darkand bright
CH52 Led11 white dimmer 0-255 Darkand bright
CH53 Led12 red dimmer 0-255 Darkand bright
CH54 Led12 green dimmer 0-255 Darkand bright
CH55 Led12 blue dimmer 0-255 Darkand bright
CH56 Led12 white dimmer 0-255 Darkand bright
CH57 COT (color temperature)0-9 No
10-255 10000K-2500K
CH58 Color effect 0-9 No
10-19 Color effect 1
20-29 Color effect 2
30-39 Color effect 3
40-49 Color effect 4
50-59 Color effect 5
60-69 Color effect 6
70-79 Color effect 7
80-89 Color effect 8
90-99 Color effect 9
100-109 Color effect 10
110-119 Color effect 11
120-129 Color effect 12
130-139 Color effect 13
140-149 Color effect 14
150-159 Color effect 15
160-169 Color effect 16
170-179 Color effect 17
180-189 Color effect 18
190-199 Color effect 19
200-209 Color effect 20
210-224 Jumping

- 7 -
225-239 Pulse
240-255 Gradual change
CH59 Pattern effect 0-9 No
10-19 Pattern effect 1
20-29 Pattern effect 2
30-39 Pattern effect 3
40-49 Pattern effect 4
50-59 Pattern effect 5
60-69 Pattern effect 6
70-79 Pattern effect 7
80-89 Pattern effect 8
90-99 Pattern effect 9
100-109 Pattern effect 10
110-119 Pattern effect 11
120-129 Pattern effect 12
130-139 Pattern effect 13
140-149 Pattern effect 14
150-159 Pattern effect 15
160-169 Pattern effect 16
170-179 Pattern effect 17
180-189 Pattern effect 18
190-199 Pattern effect 19
200-209 Pattern effect 20
210-255 Pattern effect 21
CH60 Shape 0-9 No
10-19 Shape 1
20-29 Shape 2
30-39 Shape 3
40-49 Shape 4
50-59 Shape 5
60-69 Shape 6
70-79 Shape 7
80-89 Shape 8
90-99 Shape 9
100-109 Shape 10
110-129 Shape 11
130-139 Shape 12
140-149 Shape 13
150-159 Shape 14
160-169 Shape 15
170-179 Shape 16
180-189 Shape 17
190-199 Shape 18

- 8 -
200-209 Shape 19
210-219 Shape 20
220-229 Shape 21
230-239 Shape 22
240-249 Shape 23
250-255 Shape 24
CH61 Backred0-255 Control it on CH59 and CH60
CH62 Backgreen 0-255 Control it on CH59 and CH60
CH63 Backblue0-255 Control it on CH59 and CH60
CH64 Backwhite 0-255 Control it on CH59 and CH60
CH65 Direction0-127 CW
128-255 CCW
CH66 Speed 0-255 Fast to slow
CH67 Macro 0-9 No
10-99 Auto run 1
100-199 Auto run 2
200-255 Sound control
CH68 Reset 0-239 No
240-250 Reset (3s)
251-255 No
24Channels functionlist
24CH Function DMXValue Detail
CH 1 Pan 0-255 0-540°
CH 2 Pan Fine 0-255 16 bit
CH 3 Tilt 0-255 0-270°
CH 4 Tilt Fine 0-255 16 bit
CH 5 P/T Speed 0-255 Fast to slow
CH 6 Focus0-255 Near to far
CH 7 Dimmer 0-255 Linear dimmer （darkto brightness)
CH 8 Strobe 0-9 No function
10-154 Slowto fast (1HZ-25HZ)
155-204 Random
205-255 Thunder
CH 9 Led1-12 red dimmer 0-255 Darkand bright
CH10 Led1-12 green dimmer 0-255 Darkand bright
CH11 Led1-12 blue dimmer 0-255 Darkand bright
CH12 Led1-12 white dimmer 0-255 Darkand bright
CH 13 COT (color temperature) 0-9 No

- 9 -
10-255 10000K-2500K
CH14 Color effect 0-9 No
10-19 Color effect 1
20-29 Color effect 2
30-39 Color effect 3
40-49 Color effect 4
50-59 Color effect 5
60-69 Color effect 6
70-79 Color effect 7
80-89 Color effect 8
90-99 Color effect 9
100-109 Color effect 10
110-119 Color effect 11
120-129 Color effect 12
130-139 Color effect 13
141-149 Color effect 14
150-159 Color effect 15
160-169 Color effect 16
170-179 Color effect 17
180-189 Color effect 18
190-199 Color effect 19
200-209 Color effect 20
210-224 Jumping
225-239 Pulse
240-255 Gradual change
CH15 Pattern effect 0-9 No
10-19 Pattern effect 1
20-29 Pattern effect 2
30-39 Pattern effect 3
40-49 Pattern effect 4
50-59 Pattern effect 5
60-69 Pattern effect 6
70-79 Pattern effect 7
80-89 Pattern effect 8
90-99 Pattern effect 9
100-109 Pattern effect 10
110-119 Pattern effect 11
120-129 Pattern effect 12
130-139 Pattern effect 13
140-149 Pattern effect 14
150-159 Pattern effect 15
160-169 Pattern effect 16
170-179 Pattern effect 17

- 10 -
180-189 Pattern effect 18
190-199 Pattern effect 19
200-209 Pattern effect 20
210-255 Pattern effect 21
CH16 Shape 0-9 No
10-19 Shape 1
20-29 Shape 2
30-39 Shape 3
40-49 Shape 4
50-59 Shape 5
60-69 Shape 6
70-79 Shape 7
80-89 Shape 8
90-99 Shape 9
100-109 Shape 10
110-129 Shape 11
130-139 Shape 12
140-149 Shape 13
150-159 Shape 14
160-169 Shape 15
170-179 Shape 16
180-189 Shape 17
190-199 Shape 18
200-209 Shape 19
210-219 Shape 20
220-229 Shape 21
230-239 Shape 22
240-249 Shape 23
250-255 Shape 24
CH17 Backred0-255 Control it on CH59 and CH60
CH18 Backgreen 0-255 Control it on CH59 and CH60
CH19 Backblue0-255 Control it on CH59 and CH60
CH20 Backwhite 0-255 Control it on CH59 and CH60
CH21 Direction0-127 CW
128-255 CCW
CH22 Speed 0-255 Fast to slow
CH23 Macro 0-9 No
10-99 Auto run 1
100-199 Auto run 2
200-255 Sound control
CH24 Reset 0-239 No
240-250 Reset (3s)
251-255 No

- 11 -
18Channels functionlist
18CH Function DMXValues Details
CH 1 Pan 0-255 0-540°
CH 2 Pan Fine 0-255 16 bit
CH 3 Tilt 0-255 0-270°
CH 4 Tilt Fine 0-255 16 bit
CH 5 P/T Speed 0-255 Fast to slow
CH 6 Dimmer 0-255 Linear dimmer（darkto bright)
CH 7 Strobe 0-9 No function
10-154 Slowto fast (1HZ-25HZ)
155-204 Random
205-255 Thunder
CH 8 Led1-12 red dimmer 0-255 Darkand bright
CH 9 Led1-12green dimmer 0-255 Darkand bright
CH10 Led1-12 blue dimmer 0-255 Darkand bright
CH11 Led1-12 white dimmer 0-255 Darkand bright
CH 12 Macro 0-255 No function
CH13 Shape 0 No
1-6 Led 1
7-13 Led 2
14-20 Led 3
21-27 Led 4
28-34 Led 5
35-41 Led 6
42-48 Led 7
49-55 Led 8
56-62 Led 9
63-69 Led 10
70-76 Led 11
77-83 Led 12
84-90 Shape 1
91-97 Shape 2
98-104 Shape 3
105-111 Shape 1
112-118 Shape 2
119-125 Shape 3
126-132 Shape 1
133-139 Shape 2
140-146 Shape 3
147-153 Pattern 1
154-160 Pattern 2

- 12 -
161-167 Pattern 3
168-174 Pattern 4
175-181 Pattern 5
182-188 Pattern 6
189-195 Pattern 7
196-202 Pattern 8
203-209 Pattern 9
210-216 Pattern 10
217-223 Rotation effect
224-230 Colorful rotation effect 1
231-237 Colorful rotation effect 2
238-244 Colorful rotation effect 3
245-251 Colorful rotation effect 4
252-255 Colorful rotation effect 5
CH14 Speed 0-255 Fast to slow
CH15 Shape back0-255 Shape backcolor selection
CH16 BackDim 0-255 Darkto bright
CH17 Focus0-255 Focus
CH18 Reset 0-239 No
240-250 Reset (3s)
251-255 No
5. Trouble shooting
Followingare a fewcommon problems thatmayoccur duringoperation.
Here are some suggestions for easytroubleshooting:
A. The unit does not work, no light andthe fan does not work
1.Check the connection ofpower and mainfuse.
2.Measure the mains voltage onthe main connector.
3.Check the power on LED.
B. Not responding to DMX controller
1.DMXLED should be on. Ifnot, check DMXconnectors, cables to see if
linkproperly.

- 13 -
2.If the DMXLED is on and no response tothechannel, check the
address settings and DMXpolarity.
3.If you haveintermittentDMXsignal problems,check the pins on
connectors or onPCB ofthe unit or the previous one.
4.Tryto useanother DMXcontroller.
5.Check ifthe DMXcables run near or run alongside to high voltage
cables thatmaycause damage or interference to DMXinterface
circuit.
C. One of the channels is not working well
1.The stepper motor might be damaged or the cable connected tothe PCB
isbroken.
2.Themotor s drive IC on the PCB might be out ofcondition.
6. Fixture Cleaning
The cleaningofinternal and external optical lenses and/or mirrors must be
carried out periodically to optimizelight output. Cleaningfrequency depends
on the environment in which the fixture operates: damp, smokyor
particularlydirtysurroundingcan cause greater accumulation ofdirt on the
unit s optics.
ŸClean with soft cloth usingnormal glass cleaningfluid.
ŸAlways drythe parts carefully.
ŸClean the external optics at least every20 days. Clean theinternal
optics at least every30/60days.
Thank you for choosing IMRELAX.
More info please visit: www.imrelax.com
