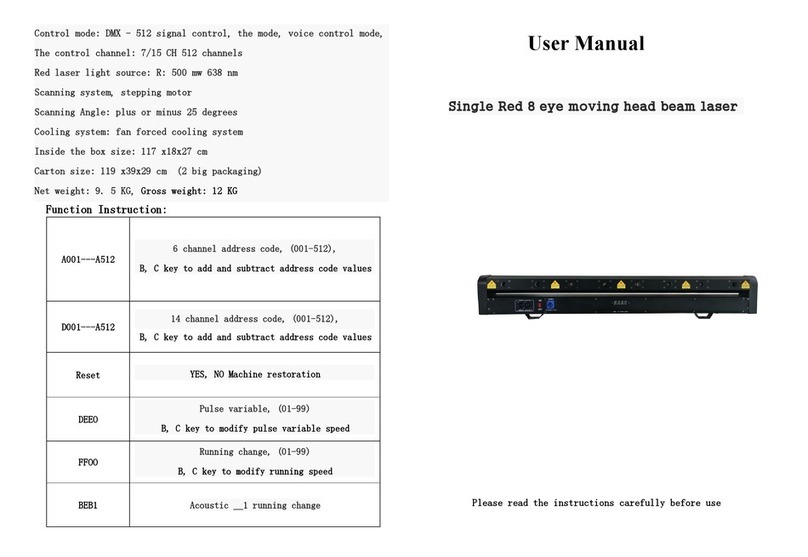

IMRELAX Single Red 8 User manual

Control mode: DMX - 512 signal control, the mode, voice control mode,
The control channel: 7/15 CH 512 channels
Red laser light source: R: 500 mw 638 nm
Scanning system, stepping motor
Scanning Angle: plus or minus 25 degrees
Cooling system: fan forced cooling system
Inside the box size: 117 x18x27 cm
Carton size: 119 x39x29 cm (2 big packaging)
Net weight: 9. 5 KG, Gross weight: 12 KG
Function Instruction:
A001---A512
6 channel address code, (001-512),
B, C key to add and subtract address code values
D001---A512
14 channel address code, (001-512),
B, C key to add and subtract address code values
Reset
YES, NO Machine restoration
DEEO
Pulse variable, (01-99)
B, C key to modify pulse variable speed
FFOO
Running change, (01-99)
B, C key to modify running speed
BEB1
Acoustic __1 running change
User Manual
Single Red 8 eye moving head beam laser
Please read the instructions carefully before use

7 Channel mode:
CH
Function
Introduction
1
Y
0---255 0°-180°
2
motor
The motor speed
3
Dimmer
0---255 0-100%
4
Strobe
0---9 No effect
10-255 Strobe speed from slow to fast
5
Effect
0-55: DMX channel control;
56-80: pulse variable (motor control);
81-105: running (motor control);
106-130: voice control (motor controlled) 1;
131-155: voice control (motor controlled) 2;
156-180: pulse variable (motor uncontrolled);
181-205: running uncontrolled (motor);
1 (206-230: voice control motor uncontrolled);
2(231-255: voice control motor uncontrolled);
6
Effect
speed
0----255 From slow to fast
7
Reset
0-250,OFF! 2251-255 ON. 8
seconds after the system reset
15 Channel mode:
CH
Function
Introduction
1
Y
0---255 0°---------180°
2
motor
The motor speed
3
Dimmer
0---255 0-------100%
4
Strobe
0---9 No effect
10-255 Strobe speed from slow to fast
5
Effect
0-55: DMX channel control;
56-80: pulse variable (motor control);
81-105: running (motor control);
106-130: voice control (motor controlled)
1;
131-155: voice control (motor controlled)
2;
156-180: pulse variable (motor
uncontrolled);
181-205: running uncontrolled (motor);
1 (206-230: voice control motor
uncontrolled);
2 (231-255: voice control motor
uncontrolled);
6
Effect
speed
0----255 From slow to fast
7
Red 1 dimming
0---255 0----100%
8
Red 2 dimming
0---255 0----100%
9
Red 3 dimming
0---255 0----100%
10
Red 4 dimming
0---255 0----100%
11
Red 5 dimming
0---255 0----100%
12
Red 6 dimming
0---255 0----100%
13
Red 7 dimming
0---255 0----100%
14
Red 8 dimming
0---255 0----100%
15
Reset
0-250,OFF! 2251-255 ON.
8 seconds after the system reset
Specification:
Rated voltage: AC110V ~ AC230V plus or minus 10% 50 hz ~ 60 hz
Rated power: 140 w
RED-color laser power: 4000mw
Laser modulation signal: TTL modulation signal

7 Channel mode:
CH
Function
Introduction
1
Y
0---255 0°-180°
2
motor
The motor speed
3
Dimmer
0---255 0-100%
4
Strobe
0---9 No effect
10-255 Strobe speed from slow to fast
5
Effect
0-55: DMX channel control;
56-80: pulse variable (motor control);
81-105: running (motor control);
106-130: voice control (motor controlled) 1;
131-155: voice control (motor controlled) 2;
156-180: pulse variable (motor uncontrolled);
181-205: running uncontrolled (motor);
1 (206-230: voice control motor uncontrolled);
2(231-255: voice control motor uncontrolled);
6
Effect
speed
0----255 From slow to fast
7
Reset
0-250,OFF! 2251-255 ON. 8
seconds after the system reset
15 Channel mode:
CH
Function
Introduction
1
Y
0---255 0°---------180°
2
motor
The motor speed
3
Dimmer
0---255 0-------100%
4
Strobe
0---9 No effect
10-255 Strobe speed from slow to fast
5
Effect
0-55: DMX channel control;
56-80: pulse variable (motor control);
81-105: running (motor control);
106-130: voice control (motor controlled)
1;
131-155: voice control (motor controlled)
2;
156-180: pulse variable (motor
uncontrolled);
181-205: running uncontrolled (motor);
1 (206-230: voice control motor
uncontrolled);
2 (231-255: voice control motor
uncontrolled);
6
Effect
speed
0----255 From slow to fast
7
Red 1 dimming
0---255 0----100%
8
Red 2 dimming
0---255 0----100%
9
Red 3 dimming
0---255 0----100%
10
Red 4 dimming
0---255 0----100%
11
Red 5 dimming
0---255 0----100%
12
Red 6 dimming
0---255 0----100%
13
Red 7 dimming
0---255 0----100%
14
Red 8 dimming
0---255 0----100%
15
Reset
0-250,OFF! 2251-255 ON.
8 seconds after the system reset
Specification:
Rated voltage: AC110V ~ AC230V plus or minus 10% 50 hz ~ 60 hz
Rated power: 140 w
RED-color laser power: 4000mw
Laser modulation signal: TTL modulation signal

Control mode: DMX - 512 signal control, the mode, voice control mode,
The control channel: 7/15 CH 512 channels
Red laser light source: R: 500 mw 638 nm
Scanning system, stepping motor
Scanning Angle: plus or minus 25 degrees
Cooling system: fan forced cooling system
Inside the box size: 117 x18x27 cm
Carton size: 119 x39x29 cm (2 big packaging)
Net weight: 9. 5 KG, Gross weight: 12 KG
Function Instruction:
A001---A512
6 channel address code, (001-512),
B, C key to add and subtract address code values
D001---A512
14 channel address code, (001-512),
B, C key to add and subtract address code values
Reset
YES, NO Machine restoration
DEEO
Pulse variable, (01-99)
B, C key to modify pulse variable speed
FFOO
Running change, (01-99)
B, C key to modify running speed
BEB1
Acoustic __1 running change
User Manual
Single Red 8 eye moving head beam laser
Please read the instructions carefully before use
