IMRELAX IM-MH250 User manual

(IM-MH250)
AC90~260V/250W
____________________beamLighting______________________
Congratulations on purchasing this Beam 250W Super Moving Head Light
Thank you for extendingyour trust in our technology

1
/
13
www.imrelax.com
Installation and attention
1.1 Maintenance
lTo reduce the risk of electrical shock or fire, do not expose this unit to rainor moisture.
lIntermittently using will extend this items service life.
lPlease clear the fan ,fan net , and optical lens in order to keep good workstate.
lDo not use the alcohol or any other organic solvent to wipe the shell.
1.2 Statement
The product has perfect performance andintegrity packing. All users should be strictly complying with the warning
and operating instructions as stated. Orwe aren tin chargeof any result by misusing. Anydamageresulting by
misuse is not within the Company swarranty.Any fault or problem caused by neglecting the manual is also not in
the chargeof dealers.
Note: All information is subject to change without prior notice.
1.3 SafetyPrecaution
lIn order to guaranteethe productslife, please don tput it in the damp places oreven the environment over
60degress.
lAlways mount this unit in safe and stable matter.
lInstall or dismantle should operate by professional engineer.
lUsing lamp the change rate of power voltage should be within±10% If the voltage is too high it will shorten the
lights life; If its notenough, willinfluence the effect.
lPlease restart it 20 minutes later after turning offlight ,until full-cooling. Frequent switchingwillreduce the life
span of lamps and bulbs; intermittent using will improve the life of bulbs and lamps.
lIn order to make surethe product is used well, please read the Manual carefully.
1.4 Specification
1. Voltage:AC100-240V,50-60Hz
2. Full load Power: 350W
3. Light source: Original Philips250W MSD Silver Bulb
4. Channel: 16/18 DMXchannel
5. Lens optical system: Super Powerful, 400,000+ Luxin 10 meters!
6. Pan: 540 degree +fine
7. Tilt:270 degree + fine
8. Dimmer: 0-100% smooth linear dimmer
9. Strobe: 1-25 Hz with pulse effect
10. Color Wheel: 14 colors + open, with 6 color rainbow effect wheel;
11. Gobo Wheel: 13 gobos + open
12. Prism one: 8 facet prism;
13. Prism two: 46 facet prism;
14. Prism overlapping: 8+46 facet prism available
15. Display: Touch Screen display, can adjust 180 degree to fit different installation position
16. Control: DMX/Master-slave/Auto/Sound activated
17. Product Size:38×40×53cm
18. Packing Size: 40*42*55cm
19. N.W: 18kg
20. G.W: 19kg
14. With Powercon IN and OUT

2
/
13
www.imrelax.com
1.5 Cable connection
DMX
）
Useacable conforming to specifications EIA RS-485: 2-pole twisted,shielded,120Ohmcharacteristicimpedance, 22-24AWG,
low capacity. Donotuse microphonecable or othercable with characteristicsdifferingfromthosespecified. Theend connections
must be madeusing XLRtype3or 5-pinmale/femaleconnectors. A terminating plug must be inserted intothelast projector witha
resistance of 120Ohm(minimum 1/4W) betweenterminals 2and3.
IMPORTANT: Thewiresmustnotmake contact witheachotheror withthe metal casing of the connectors. The casing itself
mustbe connected tothe shieldbraidandto pin1oftheconnectors.

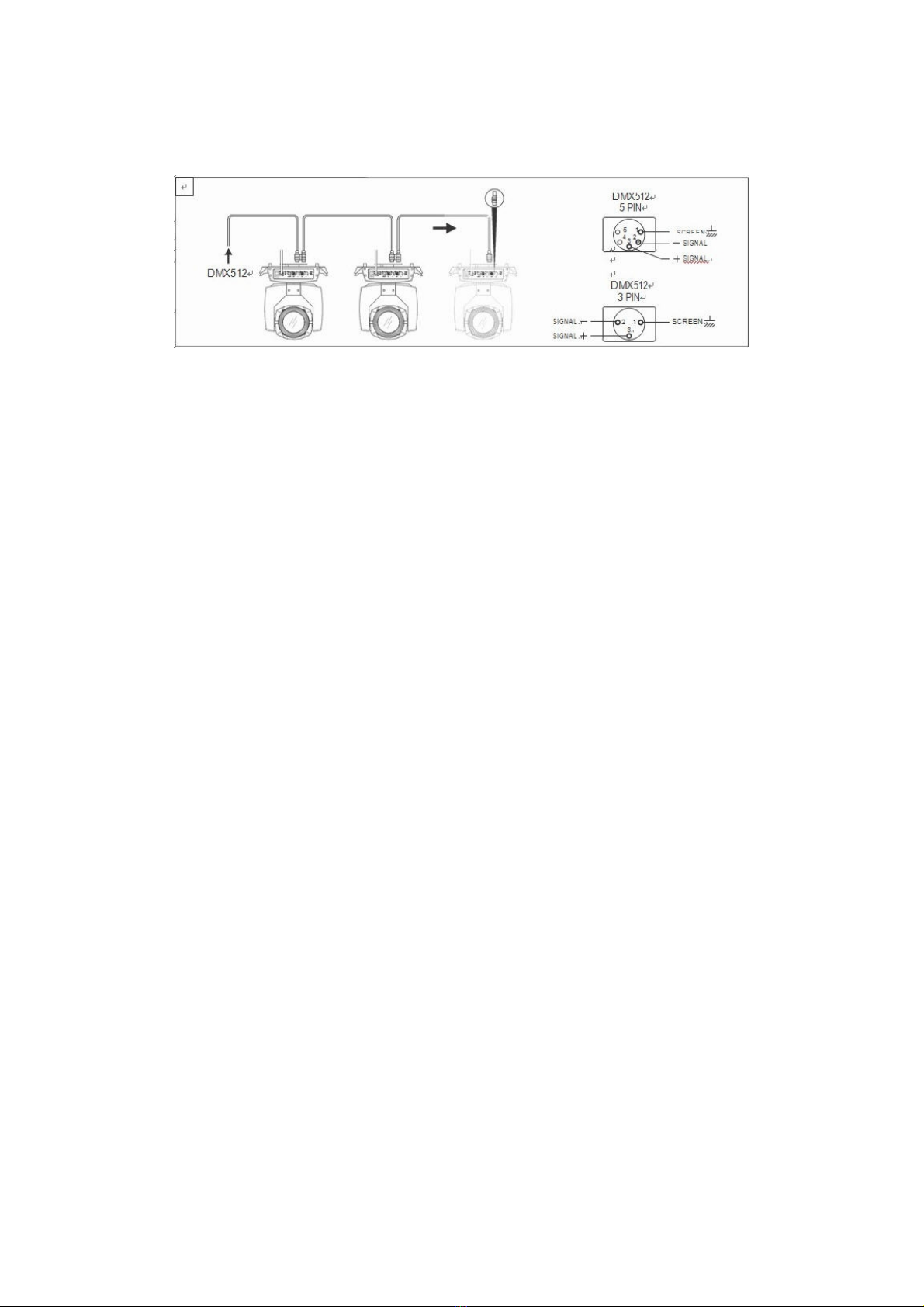

Picture 1 DMXCable connection
1.6 Rigging(Optional)
This equipment can be positioned and fixed by clamp in every directionof the stage. Lockingsystem makes it easy
to fasten to the bracket.
Attention! Two clampsis neededto fixthe equipment. Every clamp is locked by fastener of 1/4kind. Fastener can
only be locked clockwise.
Attention! Fasten asafety stringto the additional hole of side aluminumpiece. Thesecondary accessory can not
hang on the delivery handle. Nip the equipment on bracket.
lCheck if riggingclamp (not including the one inside) damaged or not? If stand ten times weight as the
equipment.Make surethe architecture canstand tentimes weight as all the equipments, clamps, wirings and
other additional fixtures.
lScrews for clampingmust be fixed firmly.Take one M12 screw (Grade 8.8 or higher)to clamp bracket, and then
screw the nuts.
lLevel the two hangingpointsat the bottomof clamp. Insert fastener to the bottom, lock thetwo levers by 1/4
rotating clockwise; then install another clamp.
lInstall on safety string which stands at least ten times weight as equipment. Terminal of the accessory is
designed for clamps.
lMake sure pan/tilt lockunlockedor not.Keep the distance morethan 1Mfrom equipment toflammable material
or lighting source.

3
/
13
www.imrelax.com
Picture 2 Installation
2. Panel operation
2.1 Brief
The light panel diagram show as Picture 3, Leftarea is TFTDisplayer,support touch, and right area is KEY,both of
touch and KEYcan operate light and setting.
Display & operationjust like ‘Android operation system , touch the item will set or modify setting.
Note: Prevent damage the touch or TFTdisplayer, Can not use sharp objects chick displayer.
Picture 3 Panel diagram
2.2 Operation
2.2.1 Operate light with touch or KEY
lThe leftarea is TFTDisplayer and touch, chick item or value with fingerwill to complete operation of set light
setting(parameters) or view light state.
lThe area on the right hand side is 4KEY,Asauxiliary input interface, ifdisabletouch function,, the KEYr can
been choose to set the parameter.

4
/
13
www.imrelax.com
2
.2
.2
Parameter value setting
When the selected item is value need to been modified, the dialog shown in Picture 4 will popup.
Picture 4 Dialog of value setting
lModifyvalue Can quickly modify value via pull the slider to the desiredposition, or click the button of ‘up or
‘down whitfinger on the right side to set the exactdesired value, another way is roll encoder onthe right hand
side of panel.
lApplyvalue WhenValue hadbeen modified, Thenpress the bottom of ‘apply in theleftcorner to applyto the
light, but hav t saved；
lSave Value Any time, click on the lower right cornerof the "OK" button, the setting will been saved into internal
memory.
2.2.3 Boolean parameter setting
lwhen the selected parametersis aBoolean value (such as ON or OFF), can directly modify setting by chick
corresponding item, the setting will been saved right now.
lWhen the parameteris akey item, chick corresponding item, adialogshown in Picture 5willbeen popup ask
for the confirm. Chick ‘sure to confirm.
Picture 5 Dialog of confirm
2. 2.4 Sub Menu Parameter）
Chick itemof main menu, enter correspondingsub menu, shown in Picture 6, total 6sub menu, includes classof
parameter and status:
lADDRESS：Set light DMXaddress.
lWORKMOD：Set light work mode, master or slavemode when in auto run mode.
lDISPLAY：Set display parameter, eg. select language.
lTEST：Used for test light, modify DMXchannel datato testfunction thecorresponding function of reference
channel function table.
lADVANCE：Set light running parameter.
lSTATUS：view light current status.
Picture 6 Parameter menu

5
/
13
www.imrelax.com
2
.3
Operation and parameterinstruction
Via following operation, enter sub menu(parameter menu) shown in Picture 6
lIn main menu, chick 1/6 function button into corresponding parameter menu.
lIn sub menu(page), chick main item on the leftsideof displayer,can shiftto correspondingsub menu(page)
quickly.
2.3.1 ADDR--> Address: Set DMX Address
Click and select the "ADDR", can enter the page of DMXaddress setting, range from 1to 512, the address code
shouldn tisnot greater than (512- channels quantity), otherwise the lightwill not been controlled. Following is the
operation:
Enter the page of DMX address, as shownin Picture 7, click the blank area in right side of display willpop-up diglog
as in Fig. 4, modify value, then click ‘ENTER to confirm and save DMXaddress code.

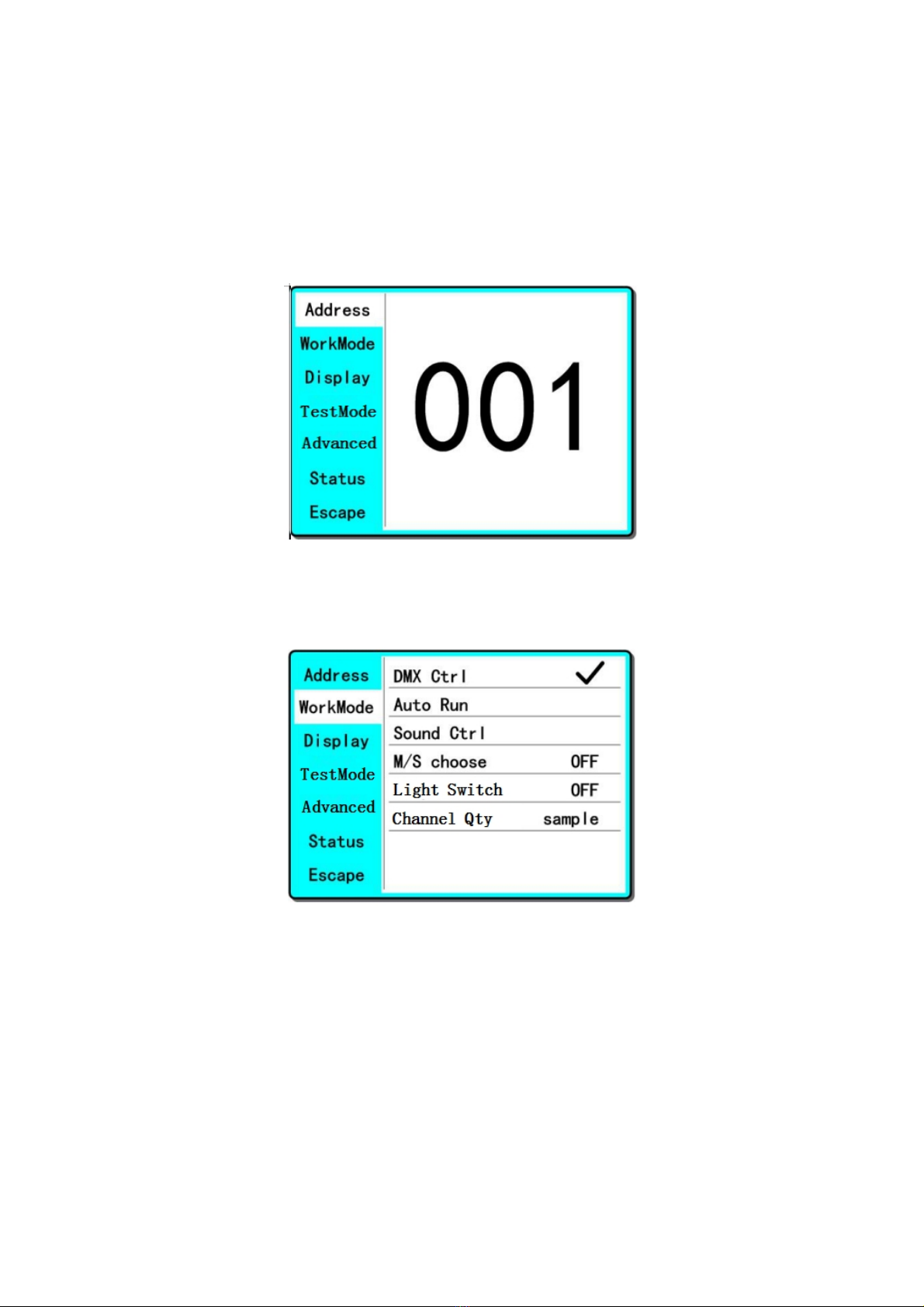

Picture 7 page of DMXAddress
2.3.2 MODE--> WorkMode: Set Light work mode
Enter the page of ‘WorkMode as shown inPicture 8and modifysetting. Can set light work mode, control lamp and
DMXchannel mode.
Picture 8 page of work mode
◆DMX Ctrl:Choose to set DMXMode,
◆Auto Run:Choose to set Auto Mode,
◆Sound Ctrl:Choose to set Sound Mode,
◆M/S Choose:Available just in ‘AUTO RUN or ‘SOUND Ctrl mode.
ON--> Master.(Data will be send to other slave lamp immediately.)
OFF--> Slaver.(NOTsend data to other lamp via DMXCable).(Default)
◆Light Switch:
ON--> Turn on the light,
OFF--> Turn off the light.
◆Channel Qty: Light support 2 DMX Channel mode: sample or extend。
Simple --> 16CH.(Default)
Expand--> 20CH(or null).

6
/
13
www.imrelax.com
2.3.3 DISP-->DISPLAY: Set display
Light support 2 language, rotation display Enter page as shown in Picture9 to set parameter following:
Picture9 page of display
◆Language:English / 文.
◆Screen Saver: when panel is idle(these is no operation in 10 second), displayer will enter saver status.
OFF--> No screen saver.
Mode1--> Power-saving mode, turn offthe display.
Mode2--> Displaysthe current address.
Mode3--> Displaysthe icon and the current working mode.(Default)
◆Screen Rotion: To turning display.
ON--> Normal display.(Default)
OFF--> 180°turning display.
◆Touch enable Disable or enable touch function,.
ON--> Enable touch function.(Default)
OFF--> Dosable touch function.
◆Touch adjust Adjust touch function. Normally, not enter this item.
2.3.4 TEST--> TestMode
Enter the page as shown inPicture 10, Light willintotest mode, in this mode, the light does not receivethe datafor
DMXcontroller.:
Picture 10page of Test
◆PAN: range for 0 to 255;
◆TILT: range for 0 to 255;
◆FOCUS: range for 0 to 255;
◆COLOR: range for 0 to 255;
◆GOBO: range for 0 to 255;
◆PRISM: range for 0 to 255;
◆FROST: range for 0 to 255;；

7
/
13
www.imrelax.com
◆
STROBE:
range for 0 to 255;
2.3.5 ADVA-->Advanced: Set light run parameter
Enter the page as shown in Picture 10, set the parameter of light:
Picture 11page of run parameter
◆Pan Invert:Reverse PAN move
OFF--> Pan Normal move.(Default)
ON--> Reverse PAN move.
◆Tilt Invert: Reverse TILT move
OFF--> Tilt Normal move.(Default)
ON--> Reverse Tilt move.
◆P/T Rectify: Disable or enable position rectifyfunction.
OFF--> Disable P/Trectify
ON--> Enable P/Trectify-(Default)
◆Pan Offset: Set PAN original position. Default: 10
◆Tilt Offset: Set TILToriginal position. Default: 10
◆Lampwhen:
PowerON--> Turn on the lamp when power on.(Default)
RstDone-->Turn on the lamp after reset.
Manual--> Manually turnon the lamp.
◆Data hold:
OFF--> When no DMXsignal,return to middle position.(Default)
ON--> Whenno DMXsignal,stop in the final position.
◆FactorySetting: Restore all parameter to factory setting.
2.3.6 STAT-->Status: View status
Enter the page as shown in Picture 12:
Picture 12page of status
◆Work Mode: Show thecurrent working mode.

8
/
13
www.imrelax.com
◆
Address
:
Show the current address.
◆Version: Show the version of the lamp.
◆Elapse: Working hours after turn on.
◆Tatol: Cumulative hours of operation
3. DMX Channel:
16 Channels:
CH1 PAN 0-255 0-540°
CH2 PAN 16bit 0-255
CH3 TILT 0-255 0-270°
CH4 TILT16bit 0-255
CH5 XY Speed 0-255 Fast to slow
CH6 Frost 0-127 None
128-255 Insert frost
CH7 Strobe
0-3 Drak
4-103 Slow strobe to fast strobe
104-107 White
108-207 Slow strobe to fast strobe(mode 2)
208-212 White
213-251 Free strobe
252-255 White
CH8 Dimmer 0-255 0-100%
CH9 Color
0-3 White
4-7 White + COLOR1
8-11 COLOR1
12-16 COLOR1+ COLOR2
17-20 COLOR2
21-24 COLOR2+ COLOR3
25-28 COLOR3
29-33 COLOR3+ COLOR4
34-37 COLOR4
38-41 COLOR4+ COLOR5
42-45 COLOR5
46-50 COLOR5+ COLOR6
51-54 COLOR6
55-58 COLOR6+ COLOR7
59-63 COLOR7
64-67 COLOR7+ COLOR8
68-71 COLOR8
When <Datahold> set<ON>,clickto
clearDMXdata, and makethelamp
return to themiddle position.
Click to reset.

9
/
13
www.imrelax.com
72
-
75
COLOR8+ COLOR9
76-80 COLOR9
81-84 COLOR9+ COLOR10
85-88 COLOR10
89-92 COLOR10 + COLOR11
93-97 COLOR11
98-101 COLOR11 + COLOR12
102-105 COLOR12
106-109 COLOR12 + COLOR13
110-114 COLOR13
115-118 COLOR13 + COLOR14
119-122 COLOR14
223-127 COLOR14 + WHITE
128-191 Rotate forward (fast to slow)
192-255 Rotate reverse (slow to fast)
CH10 Gobo
0-4 White
4-9 GOBO1
9-14 GOBO2
14-19 GOBO3
19-24 GOBO4
24-29 GOBO5
29-34 GOBO6
34-39 GOBO7
39-44 GOBO8
44-49 GOBO9
49-54 GOBO10
54-69 Rotate forward (fast to slow)
69-135 Stop
135-140 Rotate reverse (slow to fast)
140-205 Shake slow to fast GOBO1
205-210 Shake slow to fast GOBO2
210-215 Shake slow to fast GOBO3
215-220 Shake slow to fast GOBO4
220-225 Shake slow to fast GOBO5
225-230 Shake slow to fast GOBO6
230-235 Shake slow to fast GOBO7
235-240 Shake slow to fast GOBO8
245-250 Shake slow to fast GOBO9
250-255 Shake slow to fast GOBO10
CH11 Prism1
0-63 None
64-127 Prism1
128-191 Prism2
192-255 Prism1 + Prism2
CH12 Prism1 Rotation
0-127 0-400 degrees
128-187 Rotate forward (fast to slow)
188-195 Stop
196-255 Rotate reverse (slow to fast)
CH13 Prism2 Rotation
0-127 0-400 degrees
128-187 Rotate forward (fast to slow)
188-195 Stop
196-255 Rotate reverse (slow to fast)

10
/
13
www.imrelax.com
CH14 7 Colurful
0
-
127
None
128-255 Insert 7 colorful
CH15 Focus 0-255 From far to near
CH16 Lamp/Reset
100-105 Close lamp over 3 sencods
200-205 Open lamp over 3 sencods
210-215 Reset over 3 sencods
220-235 Close lamp over 3 sencods
240-255 Open lamp over 3 sencods
18Channels:
CH1 PAN 0-255 0-540°
CH2 PAN 16bit 0-255
CH3 TILT 0-255 0-270°
CH4 TILT16bit 0-255
CH5 XY Speed 0-255 Fast to slow
CH6 Dimmer 0-255 0-100%
CH7 Strobe
0-3 Drak
4-103 Slow strobe to fast strobe
104-107 White
108-207 Slow strobe to fast strobe(mode 2)
208-212 White
213-251 Free strobe
252-255 White
CH8 Frost 0-127 None
128-255 Insert frost
CH9 Color
0-3 White
4-7 White + COLOR1
8-11 COLOR1
12-16 COLOR1+ COLOR2
17-20 COLOR2
21-24 COLOR2+ COLOR3
25-28 COLOR3
29-33 COLOR3+ COLOR4
34-37 COLOR4
38-41 COLOR4+ COLOR5
42-45 COLOR5
46-50 COLOR5+ COLOR6
51-54 COLOR6
55-58 COLOR6+ COLOR7
59-63 COLOR7
64-67 COLOR7+ COLOR8
68-71 COLOR8
72-75 COLOR8+ COLOR9
76-80 COLOR9
81-84 COLOR9+ COLOR10

11
/
13
www.imrelax.com
85
-
88
COLOR10
89-92 COLOR10 + COLOR11
93-97 COLOR11
98-101 COLOR11 + COLOR12
102-105 COLOR12
106-109 COLOR12 + COLOR13
110-114 COLOR13
115-118 COLOR13 + COLOR14
119-122 COLOR14
223-127 COLOR14 + WHITE
128-191 Rotate forward (fast to slow)
192-255 Rotate reverse (slow to fast)
CH10 Gobo
0-4 White
4-9 GOBO1
9-14 GOBO2
14-19 GOBO3
19-24 GOBO4
24-29 GOBO5
29-34 GOBO6
34-39 GOBO7
39-44 GOBO8
44-49 GOBO9
49-54 GOBO10
54-69 Rotate forward (fast to slow)
69-135 Stop
135-140 Rotate reverse (slow to fast)
140-205 Shake slow to fast GOBO1
205-210 Shake slow to fast GOBO2
210-215 Shake slow to fast GOBO3
215-220 Shake slow to fast GOBO4
220-225 Shake slow to fast GOBO5
225-230 Shake slow to fast GOBO6
230-235 Shake slow to fast GOBO7
235-240 Shake slow to fast GOBO8
245-250 Shake slow to fast GOBO9
250-255 Shake slow to fast GOBO10
CH11 7 Colurful 0-127 None
128-255 Insert 7 colorful
CH12 Prism1 0-127 None
128-255 Prism1
CH13 Prism1 Rot
0-127 0-400 degrees
128-187 Rotate forward (fast to slow)
188-195 Stop
196-255 Rotate reverse (slow to fast)
CH14 Prism2 0-127 None
128-255 Prism2
CH15 Prism2 Rot
0-127 0-400 degrees
128-187 Rotate forward (fast to slow)
188-195 Stop
196-255 Rotate reverse (slow to fast)
CH16 Focus 0-255 From far to near

12
/
13
www.imrelax.com
CH17 Lamp
100
-
105
Close lamp over 3 sencods
200-205 Open lamp over 3 sencods
CH18 Reset 210-215 Reset over 3 sencods
220-235 Close lamp over 3 sencods
240-255 Open lamp over 3 sencods
More information welcome to visit: www.imrelax.com
Order Inquiry: [email protected]om
Thank you very much! :)
Please note: All Information is subject tochange without prior notice.
