IMRELAX IM-MH150B User manual

150W LED BEAM Moving Head
User Manual
KEEP THIS MANUAL FOR FUTURE NEEDS

1. Unpacking
Thank you for choosing our 150W LED Beam. For your own safety, please read
this manual before installing the device. This manual covers the important
information on installation and applications. Please install and operate the fixture
with following instructions. Meanwhile, please keep this manual well for future
needs.
150W LED Beam is made of a new type of high temperature strength of
engineering plastics and cast aluminum casing with nice outlook. The fixture is
designed and manufactured strictly following CE standards, complying with
international standard DMX512 protocol. It’s available independently controlled
and linkable with each other for operation. And it is applicable for large-scale live
performances, theater, studio, nightclubs and discos.
White LED which features high brightness and stability. Please carefully unpack
it when you receive the fixture and check whether it is damaged during the
transportation. And please check whether the following items are included inside
the box:
Moving Head---------One Signal Cable----One
Hanging Bracket-----Two Power Cable----One
User Manual----One
.1.

10. Maintenance and Cleaning
The following points have to be considered during the inspection:
1. All screws for installing the devices or parts of the device have to be tightly
connected and must not be corroded.
2. There must not be any deformations on the housing, color lenses, fixations and
installation spots (ceiling, suspension, trussing).
3. Mechanically moved parts must not show any traces of wearing and must not
rotate with unbalances.
4. The electric power supply cables must not show any damage, material fatigue or
sediments.
Further instructions depending on the installation spot and usage have to be adhered
by a skilled installer and any safety problems have to be removed.
In order to make the lights in good condition and extend the life time, we suggest a
regular cleaning to the lights.
1) Clean the inside and outside lens each week to avoid the weakneness of the
lights due to accumulation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month,
make sure that the circuit contacts are in good condition, prevent the poor contact
of circuit from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth.
Never use alcohol or solvents.There are no serviceable parts inside the device.
Please refer to the instructions under “Installation instructions”.Should you need any
spare parts, please order genuine parts from your local dealer
.9.
2. Safety Instructions
This device has left the factory in perfect condition. In order to maintain this condition
and to ensure a safe operation, it is absolutely necessary for the user to follow the
safety instructions and warning notes written in this user manual.
If the device has been exposed to temperature changes due to environmental
changes, do not switch it on immediately. The arising condensation could damage
the device. Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be
earthed.
The electric connection must carry out by qualified person.
The device shall only be used with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this
manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this
would be the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning
it. Only handle the power cord by the plug. Never pull out the plug by tugging the
power cord.
During initial start-up some smoke or smell may arise. This is a normal process and
does not necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm
distance with wall for smooth air flow, so there should be no shelter for fans and
ventilation for heat radiation.
If the external flexible cable or cord of thi
s luminaire is damaged, it shall
be exclusively replaced by the manufacturer or his service agent or a similar
qualified person in order to avoid a hazard.
.2.

8. Key Features
Voltage: 100-240V, 50-60Hz
Power : 250W
Light Source: 150W White LED
Color Temperature: 6800K
LED Life Time: 50000 Hours
Pan: 540 degree+fine
Tilt: 270 degree+fine
Beam Angle: 2 degree
Channel: 13 DMX channel
Dimmer：0-100% smooth linear dimmer
Strobe: 1-25Hz, with pulse effect
Color Wheel: 11 colors+open
Gobo Wheel: 17 static goboes+open
Prism: 8 facet rotation prism
Display: LCD display which can show the current tempurature of fixture and can
change 180 degree automatic to fit different installation position
Fixture Dimension: 300*200*490 mm
Package Dimension: 430*380*530 mm
Net Weight: 12KG Gross Weight: 14KG

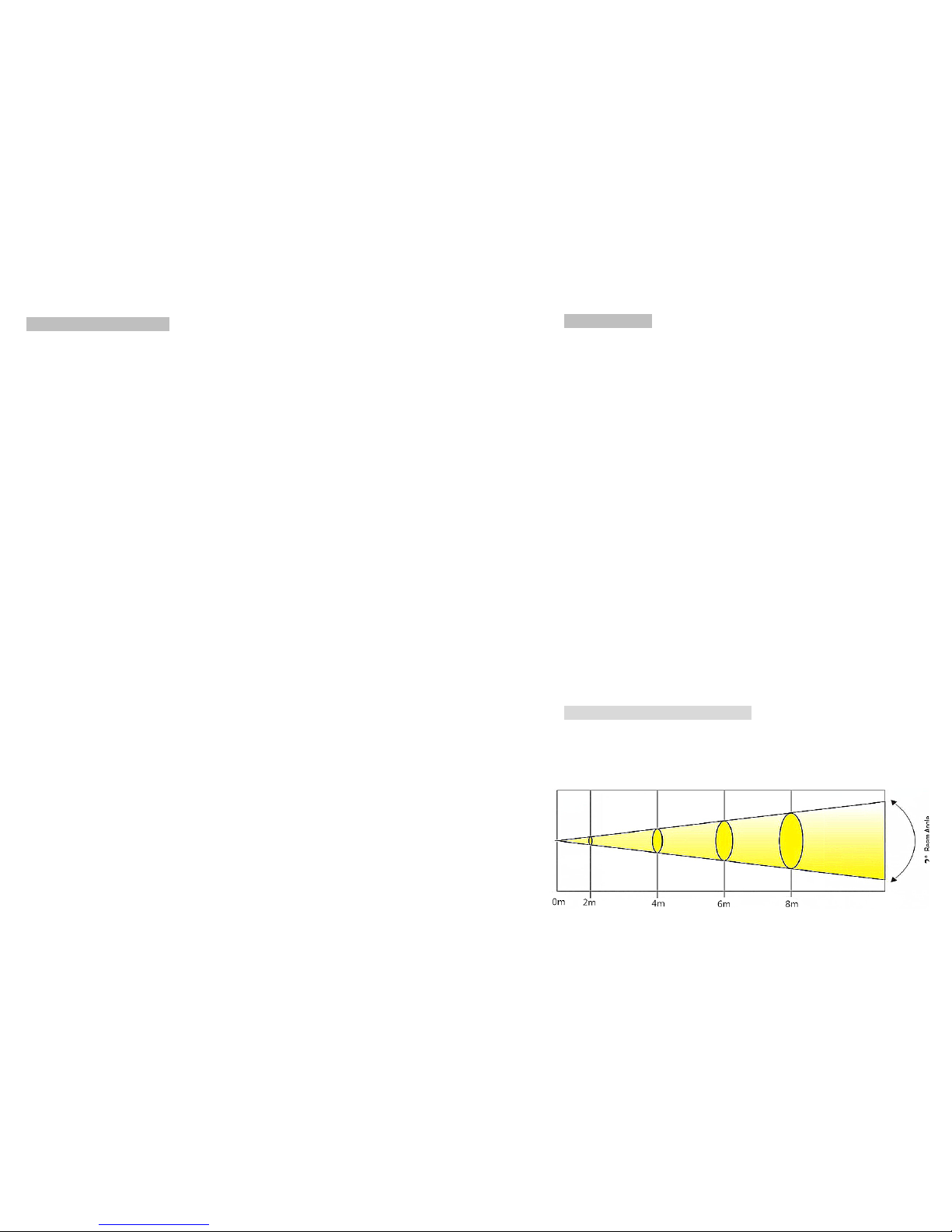

9. Photometric Beam Angle Data:
LUX Data of 2 degree beam angle:
195300 LUX @2m 48500 LUX @4m 23000 LUX@6m
.8.
3.Operation Instructions
-The 150W LED Beam is for beam light purpose.
-Don’t turn on the fixture if it’s been through severe temperature difference like after
transportation because it might damage the light due to the environment changes. So make
sure to operate the fixture until it is in normal temperature.
-This light should be keep away from strong shaking during any transportation or movement.
-Don’t pull up the light by only the head, or it might cause damages to the mechanical parts.
-Don’t expose the fixture in overheat, moisture or environment with too much dust when
installing it.
And don’t lay any power cables on the floor. Or it might cause electronic shock to the people.
-Make sure the installation place is in good safety condition before installing the fixture.
-Make sure to put the safety chain and check whether the screws are screwed properlywhen
installing the fixture.
-Make sure the lens are in good condition. It’s recommended to replace the units if there are
any damages or severe scratch.
-Make sure the fixture is operated by qualified personnel who knows the fixture before using.
-Keep the original packages if any second shipment is needed.
-Don’t try to change the fixtures without any instruction by the manufacturer or the appointed
repairing agencies.
-It is not in warranty range if there are any malfunctions from not following the user manual to
operate or any illegal operation, like shock short circuit, electronic shock, lamp broke, etc.
4. Mounting and Installation
Cautions: For added protection mount the fixtures in areas outside walking paths, seating
areas, or in areas were the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 times the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
.3.

Never stand directly below the device when mounting, removing, or servicing the fixture
from a periodic safety inspection of all installation material and the fixture. If you lack these
qualifications, do not attempt the installation yourself. Improper installation can result in
bodily injury.
Be sure to complete all rigging and installation procedures before connecting the main
power cord to the appropriate wall outlet.

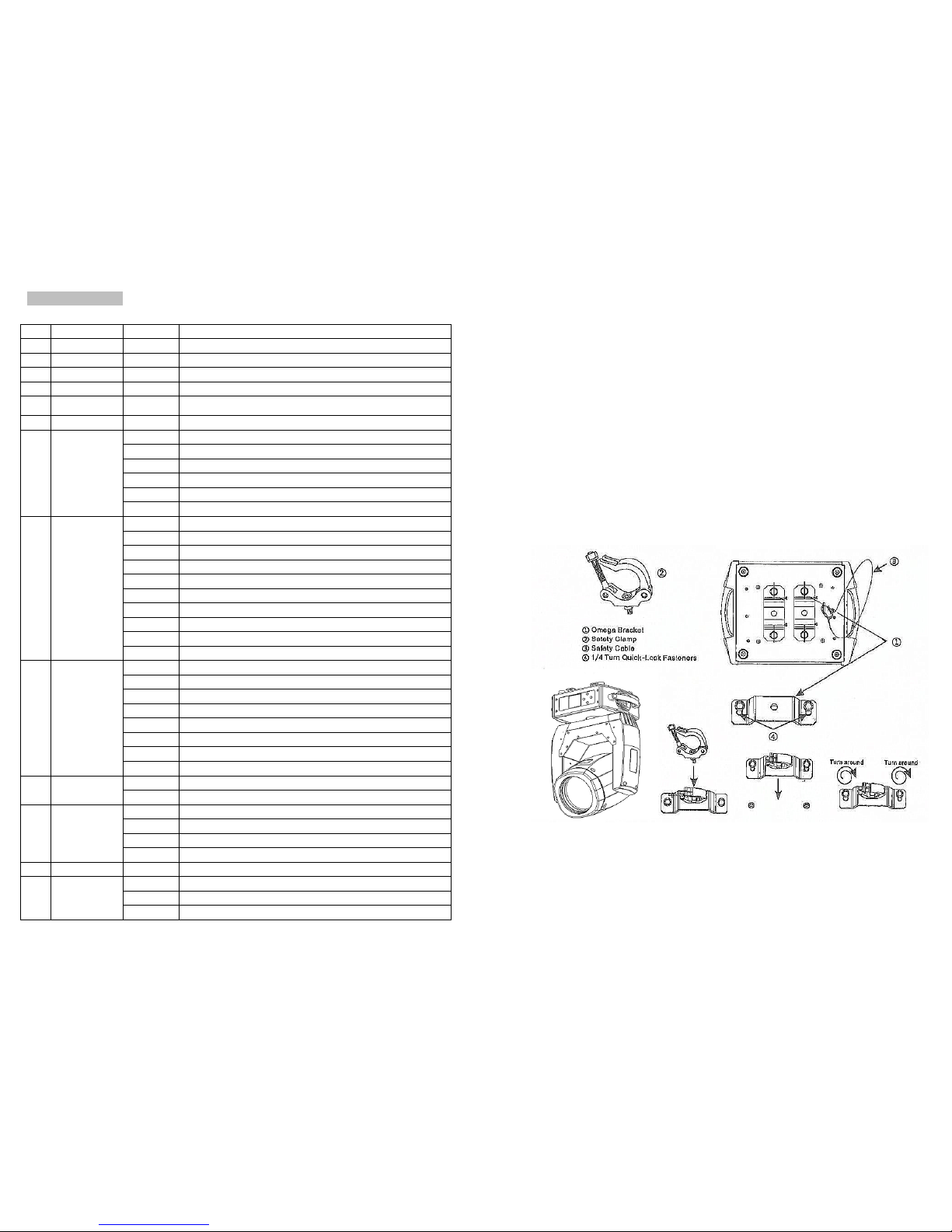

Clamp Mounting: 150W LED Beam provides a unique mounting bracket assembly that
integrates the bottom of the base, the included “Omega Bracket,” and the safety cable
rigging point in one unit (see the illustration below). When mounting this fixture to truss be
sure to secure an appropriately rated clamp to the included omega bracket using a M10
screw fitted through the center hole of the “omega bracket”.As an added safety measure be
sure to attached at least one properly rated safety cable to the fixture using on of the safety
cable rigging point integrated in the base assembly
Regardless of the rigging option you choose for your 150W LED Beam, always be sure to
secure your fixture with a safety cable. The fixture provides a built-in rigging point for a
safety cable on the hanging bracket as illustrated above. Besure to only use the designated
rigging point for the safety cable and never secure a safety cable to a carrying handle.
.4.
7. DMX Channels
13 Channels mode:
CH
Function
DMX
Description
1
Pan
0-255
Pan movement
2
Pan fine
0-255
Pan fine
3
Tilt
0-255
Tilt movement
4
Tilt fine
0-255
Tilt fine
5 P/T Speed 0-255 Pan/Tilt speed
6
Dimmer
0-255
0-100% linear dimmer
7 Strobe
0-3
No function(LED on)
4-99
Strobe from slow to fast
100-149
Pulse strobe from slow to fast
150-199
Thunder strobe from slow to fast
200-249
Random strobe from fast to slow
250-255
No function(LED on)
8 Color wheel
0-4
Open
5-9
Color 1 mix with open
10-14
Color 1
15-19
Color 1 mix with color 2
…………
……………………
110-114
Color 11
114-119
Color 11 mix with open
120-186
Color wheel clockwise rotates from slow to fast
187-188
No function(Stop)
189-255
Color wheel anti-clockwise rotates from slow to fast
9 Static Gobo
wheel
0-4
Open
5-9
Static gobo 1
…………
……………………
85-89
Static gobo 17
90-136
Gobo wheel clockwise rotates from slow to fast
137-169
Gobo wheel anti-clockwise rotates from slow to fast
170-249
1th to 16 th Gobo shake from slow to fast
250-255
Static gobo 17 shake from slow to fast
10 Prism
0-126
No function
127-255
8 facet prism effect
11 Prism
rotation
0-127
Prism angle adjustment
128-190
Prism clockwise rotates from slow to fast
191-912
No function(Stop)
193-255
Prism anti-clockwise rotates from slow to fast
12
Focus
0-255
Focus
13 Marco and
reset
0-80
No function
81-240
Marco effect
241-255
Reset
.7.

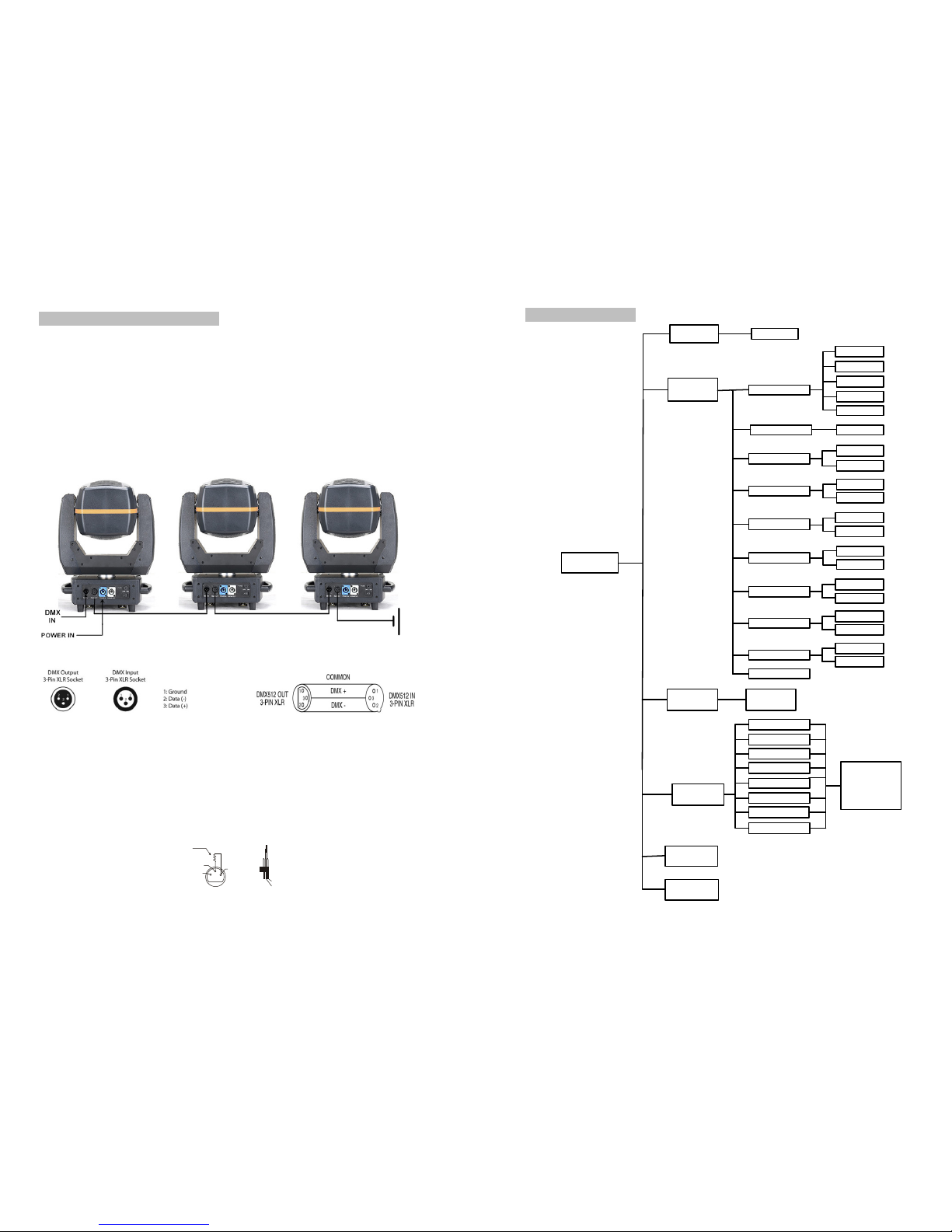

5. DMX-512 control connections
Connect the provided XLR cable to the female 3-pin XLR output of your controller and
the other side to the male 3-pin XLR input of the moving head. You can chain multiple
Moving heads be connected together through serial linking. The cable needed should
be two core, screened cable with XLR input and output connectors. Please refer to the
diagram below.
DMX-512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or is in an electrically
noisy environment, such as in a discotheque, it is recommended to use a DMX
terminator. This helps in preventing corruption of the digital control signal by electrical
noise. The DMX terminator is simply an XLR plug with a 120 Ω resistor connected
between pins 2 and 3,which is then plugged into the output XLR socket of the last fixture
in the chain. Please see illustrations below.
.5.
1
23
PIN 3
PIN 2
120Ω
6. Menu Operations
MENU
System
Setup Run Mode
DMX
Address
Channel mode
Invert Pan
Invert Tilt
Motor
Calibration
DMX
Sound
Auto 1
Auto 2
Auto 3
001-512
13CH
OFF
ON
OFF
Pan-Tilt Swap OFF
ON
Encoder ON
OFF
No Singal Keep
Clean
Screen Saver On
Off
Language EN
中文
Load Default
Check
Colour
Gobo
System
Test
System
Info
Don’t change
the data
unless it’s
necessary
ON
Prism
TILT
PAN
Focus
Manual
Drive
MIC
Change code
.6.
