In-situ RDO Blue User manual

2020-12-16 | 0103192

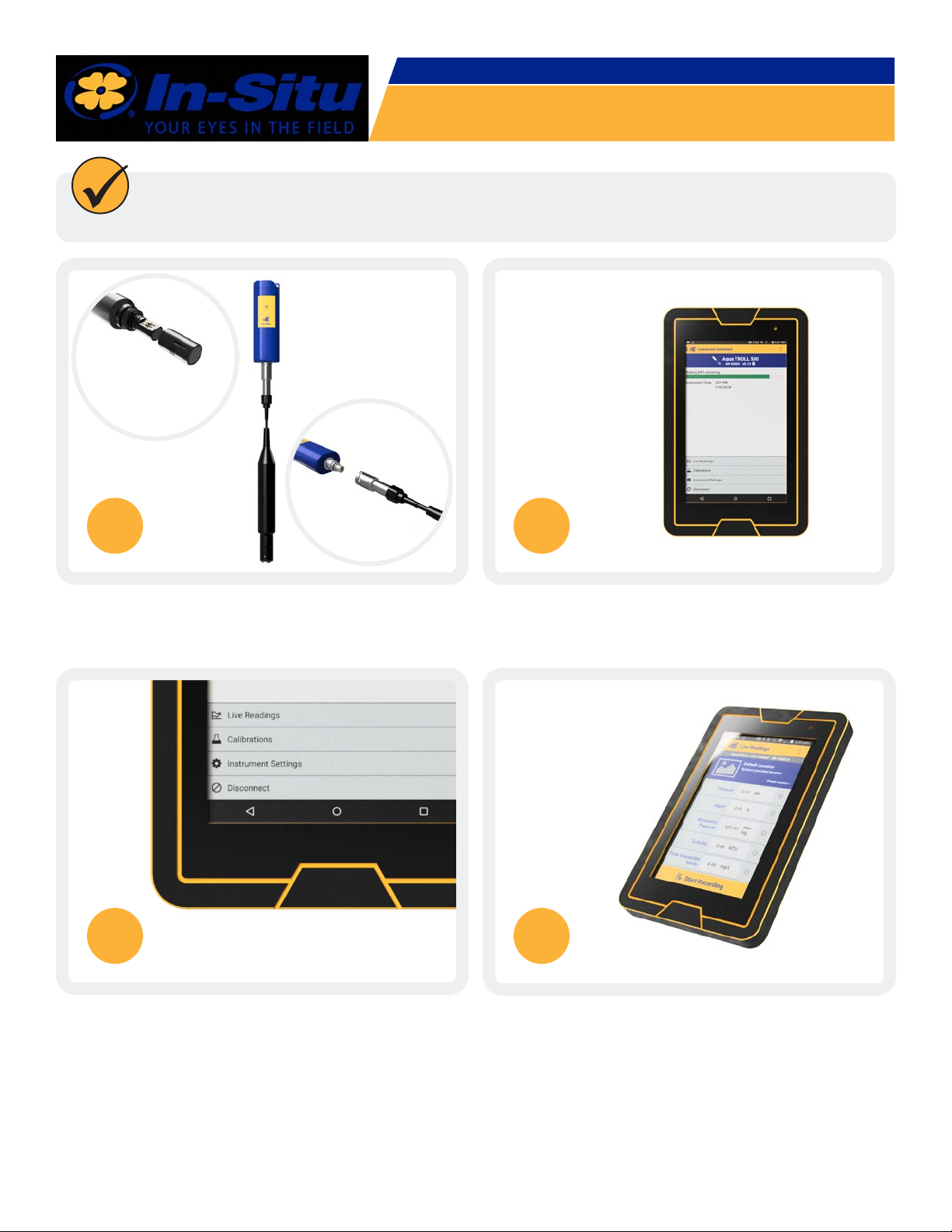

RDO Blue Quickstart Guide
Set up and deploy your RDO instrument in four simple steps. Read the overview below, and
then see the following pages for detailed instructions.
A B
C D
Connect Pair
Calibrate (optional) Deploy
Install the RDO cap and attach the instrument to a
Wireless Rugged TROLL Com.
The RDO Blue is factory calibrated, but you can
perform a calibration at any time with VuSitu. Select
Calibrations from VuSitu’s menu. Follow the on-
screen instructions.
Select Live Readings to view real-time readings from
the instrument.
Use the VuSitu mobile app to pair your Wireless
TROLL Com with your mobile device.
Information subject to change without notice. In-Situ, In-Situ logo, Baro Merge, BaroTROLL, HERMIT, HydroVu™, iSitu,
Pocket-Situ, RDO, RuggedCable, RuggedReader, SmarTROLL™, TROLL, VuSitu, and Win-Situ are trademarks or registered
trademarks of In-Situ Inc.©2016. All rights reserved. This product may be covered by patents identied at www.in-situ.com/
patents

2
#0038640
#0103200
• RDO Blue with 10 meter cable
• RDO Blue with 3 meter cable
Kit #0103190
Kit #0103210
1 RDO Blue with 10 meter cable
2 Wireless TROLL Com
3 Lanyard for Wireless TROLL Com
1 RDO Blue with 3 meter cable
2 Wireless TROLL Com
3 Lanyard for Wireless TROLL Com
Part Numbers
The Wireless TROLL Com’s lanyard is not a weight-bearing part.
1-970-498-1500 www.in-situ.com

Getting Started
2
1
Connect the instrument to a Wireless TROLL Com.
Install the RDO cap.
Attach the RDO Blue’s
twist-lock connector to
the end of the Wireless
TROLL Com.
Make sure the at edges
of the connectors align,
and then push and twist.
You will hear a click when
the cable is connected
properly.
Press the power button
on the Wireless TROLL
Com.
click
Flat
edge
Slide the nose guard into place and thread it
clockwise to install.
Align the RDO cap so the at edge on the inside
matches up with the at edge on the sensor. Slide
the RDO cap into place.
31-970-498-1500 www.in-situ.com

VuSitu will guide you through conguration, calibration, and other tasks. Choose an option
from the menu to get started.
3
4
Pair the Wireless TROLL Com with your mobile device.
Congure and deploy the RDO Blue.
You must have the VuSitu mobile app to use the RDO Blue with a mobile device. Download
VuSitu from the Google Play Store or the Apple App Store.
Make sure your mobile
device’s Bluetooth is
turned on. Launch VuSitu
and tap Dismiss.
Tap Add New Device
and select the Wireless
TROLL Com from the list
of available devices.
Tap your mobile device’s
back button. In VuSitu,
tap the serial number of
your Wireless TROLL Com.
VuSitu displays the
Connected Instrument
screen when pairing is
complete.
RDO Blue
41-970-498-1500 www.in-situ.com
