Inalto ASL60DR2S User manual

MODEL CODE/S
ASL60DR2S
ASL90DR2S
60cm & 90cm
Slideout
Rangehoods
V6.0 | 0422
USER MANUAL INALTO.HOUSE
FOR ALL AUSTRALIAN HOMES

Residentia Group Pty Ltd
ACN. 600 546 656
165 Barkly Avenue
Burnley, Victoria 3121
Australia
—
Applico Ltd
635 Great South Road
Penrose, Auckland 1061
New Zealand
—
InAlto
www.inalto.house
/ inalto.house
/ inalto.house
Welcome Congratulations on purchasing
your new appliance!
The InAlto brand is proudly distributed within
Australia by Residentia Group Pty Ltd and within
New Zealand by Applico Ltd.
Please refer to the warranty card at the rear of this
manual for information regarding your product’s parts
and labour warranty, or visit online at:
→ www.residentia.group
→ www.applico.co.nz
→ www.inalto.house
Both Residentia Group & Applico are customer obsessed
and our Support Teams are there to ensure you get the
most out of your appliance. Should you want to learn
more about recommended usage, the various features of
your appliance, and importantly taking care of the unit
when cleaning, our Support Teams are here to help.
Telephone Contacts:
→AU: 1300 11 4357
→ NZ: 0800 763 448
It is important that you read through the following use
and care manual thoroughly to familiarise yourself with
the installation and operation requirements of your
appliance to ensure optimum performance.
Again, thank you for choosing an InAlto appliance and
we look forward to being of service to you.

InAlto recommends the use of original spare parts. When contacting our customer
service team on 1300 11 4357, please ensure that you have the following information
at hand (which can be found on your appliances’ rating plate).
• Model Number
• Serial Number
Customer Care
Contents 2 Welcome
4 Safety Information
8 Your InAlto Rangehood
11 Operation Instructions
12 Installation Instructions
18 Maintenance & Cleaning
20 Troubleshooting
21 Technical Data
22 Your Receipt
23 Purchase Details
24 Warranty Information

4
Safety Information
IMPORTANT INFORMATION
The following statements you will see in this
booklet have these meanings:
WARNING: Indicating information concerning
your personal safety.
CAUTION: Indicating information on how to
avoid damaging the appliance or cabinetry.
IMPORTANT: Indicating tips and information
about use of the cooker.
BEFORE USING YOUR APPLIANCE
This manual explains the proper use of your
new InAlto rangehood. Please read this
manual carefully before using the product.
This manual should be kept in a safe place
for handy reference. This rangehood (cooker
hood) is a domestic appliance which has been
manufactured and tested to comply with
Australian and New Zealand Standard
AS/NZS 60335.2.31.
This rangehood must only be installed in
accordance with the instructions provided.
Incorrect installation may cause harm to
persons, damage property and void the
product’s warranty.
Read the following carefully to avoid damage
or injury.
IMPORTANT: Check for any damage or
marks. If you nd the appliance is damaged or
marked, you must report it within 7 days if you
wish to claim for damage/ marks under the
manufacturer’s warranty. This does not aect
your statutory rights.
WARNING: Follow these instructions carefully to
avoid an electric shock or re.
• Young children should be supervised to
ensure they do not play with the cooker hood.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning the use of the appliance by a
person responsible for their safety.

5
• Ensure the cooker hood is switched o before
carrying out maintenance, to avoid any
possibility of electric shock.
• Never carry out ambé cooking under the
cooker hood.
• This cooker hood is not suitable for use over
barbecues.
• This cooker hood cannot be installed for
external use- only to be installed indoors.
• The Aluminium grease lters must be
removed every four weeks (at a maximum) for
cleaning to reduce the risk of re.
• The exhaust from the cooker hood must not
be discharged into any heating ue, which
may carry combustion products from other

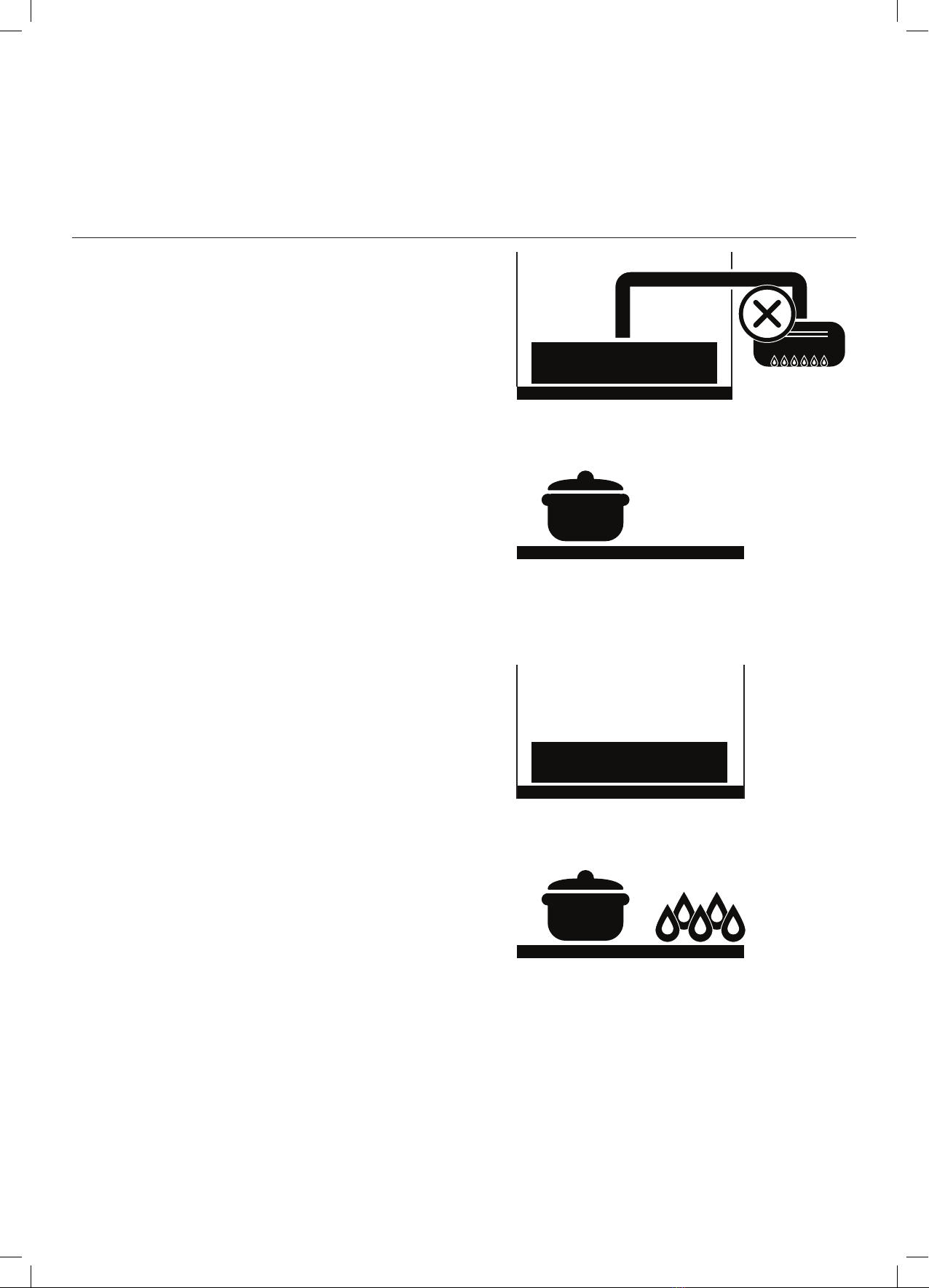

sources. (Figure 1)
• Exhaust air must not be discharged into a
wall cavity, unless the cavity is designed for
the purpose.
• There shall be adequate ventilation of the
room when the range hood is used at the
same time as appliances burning gas or other
fuels (not applicable that only discharge the
air back into the room).
• Regulations concerning the discharge of air
have to be fullled.
• There must be adequate ventilation of the
room when the cooker hood is used at the
same time as appliances burning gas or
other fuels.
• Your new rangehood is guaranteed against
electrical or mechanical defects, subject
to certain exclusions that are noted in the
Warranty Terms and Conditions (at the rear
of this user manual). The foregoing does not
aect your statutory rights.
• Always cover lit gas burners with pots or pans
when cooker hood is in use.
• Always switch o gas burners before you
remove pots or pans.
• Do not leave lit gas burners exposed due to
the risk of re. (Figure 2)
Figure 1
Figure 2

6
ELECTRICAL CONNECTION
Check that the mains voltage matches with
the voltage on the data plate inside the cooker
hood. Check that the installation complies
with standards of local building, gas and
electrical authorities. Before connecting to the
mains supply ensure that the mains voltage
corresponds to the voltage on the rating plate
inside the cooker hood.
WARNING: If the supply cord is damaged, it
must be replaced by the manufacturer or its
service agent or similarly qualied person in
order to avoid a hazard.
WARNING: All electrical work must be done in
accordance with local and national electrical
codes as applicable and should be undertaken
by licenced and qualied persons only.
SAFETY WARNINGS – FOR THE INSTALLER
When installing the cooker hood, make sure you
adhere to the minimum and maximum distances
from the cooker hood base to the cook top
surface (as per table on page 12)
Exhaust ue installation:
The following rules must be strictly followed to
obtain optimal air extraction.
• Keep exhaust ue short and straight.
• Do not reduce the size or restrict exhaust ue.
• Keep bends in the exhaust ue to a minimum;
the more bends the lower the extraction
performance.
• When using exible ue always install
duct with helix pulled taut to minimise
pressure loss.
• Failure to observe these basic instructions
will drastically reduce the performance and
increase the noise levels of the cooker hood.
Exhaust air must not be discharged into a wall
cavity, unless the cavity is designed for that
purpose. The exhaust from the cooker hood
must not be discharged into any heating ue,
which may carry combustion products from
other sources.
NOTE: Some installations may require the
expandable/telescopic ducting to be cut to
length. Cut with sharp tin snips or a ne-tooth
hack saw blade, taking care not to distort or
dent the exhaust cover. Where using expandable
ducting, it’s important to have the ducting fully
taught to maximise eciency of the airow.
Safety Information (Continued)

7
UNPACKING
During transportation, protective packaging
was used to protect the appliance against any
damage. After unpacking, please dispose of
all elements of packaging in a way that will not
cause damage to the environment.
All materials used for packaging the appliance
are environmentally friendly; they are
100% recyclable and are marked with the
appropriate symbol.
CAUTION:During unpacking, the packaging
materials (polythene bags, polystyrene pieces,
etc.) should be kept out of reach of children.
DISPOSAL OF THE APPLIANCE
Old appliances should not simply be disposed
of with normal household waste and should
be delivered to a collection and recycling
centre for electric and electronic equipment.
A symbol shown on the product, the instruction
manual or the packaging shows that it is suitable
for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this. By recycling materials or other
parts from used devices you are making a
signicant contribution to the protection of
our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.

8
Your InAlto Rangehood
YOUR RANGEHOOD
510/810
40
40/80
20
176
200
472
599/899
278
Figure 3A
Figure 3B
Your Slideout Rangehood features switch controls with 2 speed levels of extraction.
KEY
1. Rangehood housing
2. Slide-out Front Fascia Rail
3. Inner Aluminium Grease Filter
4. Outer Aluminium Grease Filter
5. On/O Switch
6. Fan Speed Switch
7. Light
1
2
3
4
5 6
7

9
RANGEHOOD COMPONENTS
Your InAlto Undermount Rangehood is supplied with:
• 1 × Rangehood
• 1 × Rear-underside support mounting bracket
• 1 × 40mm Height Front Fascia Rail
• 1 × Set of pre-installed Charcoal Filters (2 pcs)
• 6 × Screws (ST4 × 30mm)
• 2 × Screws (ST4 × 8mm)
• 6 × Wall Plugs (8mm)
• 6 × Flat Washers
• 1 × Front Vent Cover (if external ducting is required)
• 1 × Flu Outlet Adapter
• 1 × User Manual
• 1 × Quick Start Guide
• 1 × User Manual
ADDITIONAL ITEMS REQUIRED FOR INSTALLATION
• Duct tape or cable ties
• Ducting relevant to your installation requirements
(including any rigid bends, vents and/or adapters)
• Drill and/or screwdriver
• Spirit Level
• Tape Measure
• Jigsaw
• Ladder
OPTIONAL ACCESSORIES
Residentia Group (Australia) and Applico (NZ) sell a range of optional accessories,
which can be purchased separately by contacting our After Sales Service Team.
Including:
• Carbon Filters
• Various ducting solutions (rigid ducting, adapters, vents/outlets and elbow bends)

10
THIS PAGE IS INTENTIONALLY LEFT BLANK

11
Operation Instructions
• The rangehood will only operate once
the slide-out rail is pulled outwards towards
the kitchen.
• Close the front panel and the rangehood will
stop working.
• The next time the front panel is pulled back
out, the rangehood will start working at the
previously set level.
ON/OFF SWITCH
I Turns the rangehood ON
O Turns the rangehood OFF
FAN SPEED SWITCH
= Turns on the fan motors to high speed
for maximum extraction
O Turns o the fan motors for no extraction,
the fan motors are o
– Turns on the fan motors to low speed
minimum extraction
When the rangehood is plugged up, the ‘1’ key would start to shining, the rangehood come to the standby mode. Press the keys to start the using. –Short press the ‘1’ key, the rangehood will operate at low speed.–Short press the ‘2’ key, the rangehood will operate at a medium speed.–Short press the ‘3’ key, the rangehood will operate at a high speed.–Short press the ‘B’ key, the rangehood will operate at a highest speed. 5 minutes working in this mode, the motor would change to 3rd speed automatically.–Short press the ‘Light’ key and the LED pan will come on. To turn the lights off,simply press the ‘Light’ key again.–Long press the ‘Light’ key , the rangehood would come to the 5 minutes timer,with the ‘Light’ key shinning. After 5 minutes working, the motor would stopautomatically.–To switch the rangehood motor or light off, simply press the key a second time.
When the rangehood is plugged up, the ‘1’ key would start to shining, the rangehood come to the standby mode. Press the keys to start the using. –Short press the ‘1’ key, the rangehood will operate at low speed.–Short press the ‘2’ key, the rangehood will operate at a medium speed.–Short press the ‘3’ key, the rangehood will operate at a high speed.–Short press the ‘B’ key, the rangehood will operate at a highest speed. 5 minutes working in this mode, the motor would change to 3rd speed automatically.–Short press the ‘Light’ key and the LED pan will come on. To turn the lights off,simply press the ‘Light’ key again.–Long press the ‘Light’ key , the rangehood would come to the 5 minutes timer,with the ‘Light’ key shinning. After 5 minutes working, the motor would stopautomatically.–To switch the rangehood motor or light off, simply press the key a second time.

12
Installation Instructions
WARNING: Before starting the installation,
please refer to the Safety Information section.
• Always switch the power o prior to
beginning the installation.
• Stainless steel is very easily damaged during
installation.
• Wherever possible, protect the rangehood
with the cardboard box or plastic
• A power point must be located within 1.5m
of the power cord exit from the rangehood,
and it should be always accessible to allow
isolation from power during cleaning or
maintenance.
• A 120mm round ducting adapter is supplied,
however all other ducting accessories are not.
• All ducting must comply with building codes
and local requirements.
• Ensure that the rangehood is mounted in a
level position, both horizontally and vertically.
This is essential to ensure the rangehood
operates correctly and prevents grease build
up at one end.
IMPORTANT: Never use a silicone around your
rangehood or ue pieces. Never install the
rangehood or ue pieces into the plaster ceiling
which prevents easy access to the rangehood for
servicing requirements.
IMPORTANT: Before installing your rangehood,
please record the details of your rangehood’s
rating label (located within the rangehood,
behind the aluminium grease lters) into the
form on page 23. This will be helpful should you
need to contact our service team in the future.
POSITIONING THE RANGEHOOD
• The typical installation method for your
slideout rangehood is into a purpose built
overhead/wall cabinet.
• Using a jigsaw, create the required cut-out
for your rangehood, as per the measurement
dimensions in Figure 3A on page 8.
• Make sure the cut-out is at least 35mm from
the cabinet edge.
IMPORTANT: The height of the rangehood
underside must be a minimum of 600mm* to a
maximum 800mm from the top of your cooktop
surface (for gas cooktops, this is the top of the
gas burner).
* If the installation instructions for your cooktop
specify a greater distance than the minimum,
then that shall be the minimum height for
installation.
COOKTOP FUEL TYPE: DIMENSION A
Minimum* Maximum
Gas (multiple burners
with maximum 45.4 MJ/h
total output and no single
burner exceeding
16.2 MJ/h output)
600mm 800mm
Gas (multiple burners with
total output greater than
45.4 MJ/h but less than
77.8 MJ/h, and no single
burner exceeding
17.3 MJ/h output)
760mm 800mm
Gas (single burner
not exceeding
21.6 MJ/h output)
650mm 800mm
Gas (single burner with
an output greater than
21.6 MJ/h but not
exceeding 29.2 MJ/h)
760mm 800mm
Electric 600mm 800mm

13
ELECTRICAL CONNECTION
Check that the installation complies with the
standards of local building, gas and electrical
authorities. Before connecting your rangehood
to the mains supply, ensure that the mains
voltage corresponds to the voltage on the
rating plate inside the rangehood.
BEFORE INSTALLATION
Before installation, please decide the extraction
mode with the adjuster on the motor (Figure 4).
Figure 4
CHOOSING YOUR EXTRACTION METHOD
As a default setting, your rangehood is set to
Recirculation Mode. Although the rangehood
is suitable for both External Ducting (Figure 5A)
and Recirculation (Figure 5B), we recommend
ducting your rangehood wherever possible,
for the maximum performance.
DUCTED INSTALLATION
Before beginning the installation of your
rangehood, consider your ducting method.
This rangehood has been supplied with
expandable plastic ducting, however for
maximum performance we recommend installing
with rigid or semi rigid ducting. Use cable ties or
suitable duct tape to secure the exible pipe or
ducting to the rangehood duct outlet.
WARNING: All ducting must be re retardant.
Depending on your situation, there are multiple
options for ducting your rangehood, as follows:
• Straight up through your tiled or metal
roof, using a roof cowl (not supplied with
the rangehood).
• Into your ceiling cavity (where compliant
with local and national building
regulations/codes. Seek approval from the
relevant authority or building inspector
where necessary.
• Into your ceiling cavity and then vented to
the atmosphere through your eaves, using
no more than 2 × 90 degree bends within
the ducting run.
• Through your wall.
IMPORTANT: Ducting can have a major eect on
your rangehoods performance. The following tips
outline how to correctly duct your rangehood.
• Always use the correct size ducting.
This rangehood is designed for use with
120mm ducting to achieve optimum airow
performance and minimised noise.
• For maximum performance use semi rigid or
rigid ducting
• Always use non-ammable ducting
• Always duct to the outside atmosphere,
unless your local building codes and
regulations permit otherwise
• Where using exible ducting, always install
the ducting pulled taut to minimize pressure
loss, and cut any excess ducting o.
Fig. 2
Fig. 2 Fig. 3
Figure 5A Figure 5B
DUCTING RECIRCULATING
DUCTING RECIRCULATING

14

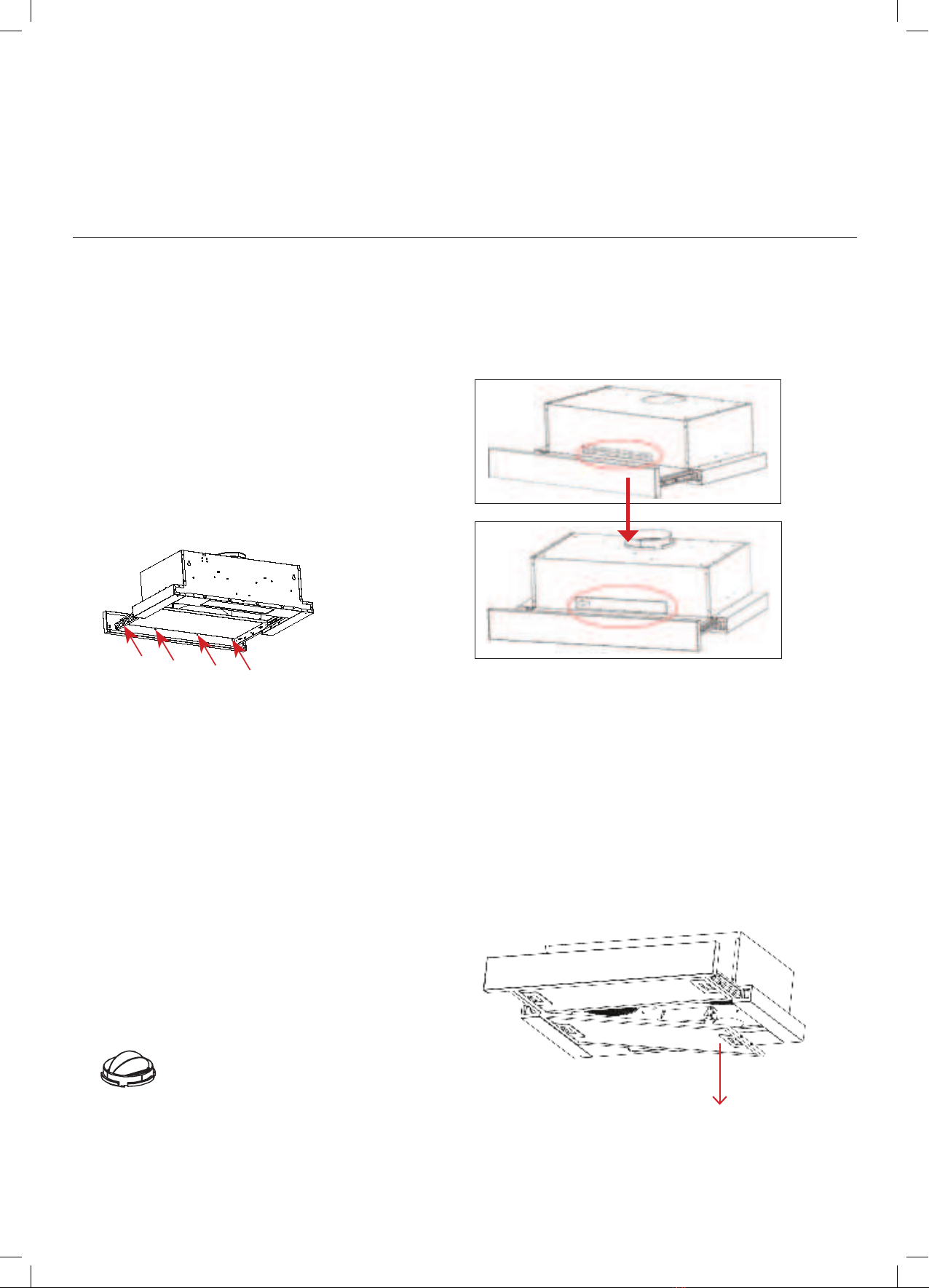

• Where possible, avoid using 90 degree bends
and in their place use multiple 45 degree bends.
• Keep your total length of ducting to the
shortest length possible.
• Ensure there are no kinks in your ducting.
• Use cylindrical ducting whenever possible
If you have chosen to operate your rangehood
in External Ducting Mode you will need to follow
the steps below:
1. Unscrew the 80mm fascia rail which is already
installed on the rangehood (Figure 6).
Figure 6
2. Using the same screws, attach the 40mm
fascia rail supplied in the box.
3. Remove the aluminium grease lters
(Figure 8) from the underside of the
rangehood.
4. Turn the switch in the centre of the motor
housing to External Ducting position
(Figure 4).
5. Remove the charcoal lters by twisting
anticlockwise (Figure 10). The charcoal lters
are not required for External Ducting mode.
6. Clip in the plastic Front Vent Cover over the
vent holes on the front of the rangehood.
7. Using the screws provided, install the Flu
Outlet Adaptor to the top of the rangehood.
8. Install the ducting pipe (not supplied) to
the outlet on the top of the rangehood and
vent to external air. It is recommended that
the ducting pipe is 120mm in diameter.
WHITE PLASTIC COVER
For External Ducting, you can cover the front
outlet the white plastic cover provided in the box
(Figure 7).
Figure 7
RECIRCULATION INSTALLATION
This mode is the default setting. The rangehood
will operate with carbon lters and vent the air
back into the kitchen.
To ensure that the mode is correct, remove the
grease lters (see Figure 8) and check that the
switch is in the Recirculation Mode position
(see Figure 4).
Figure 8
Installation Instructions (Continued)
Fig. 6

15
CHARCOAL FILTERS
If you intend to use the rangehood with the air
recirculating back into the kitchen, it is important
that you use the charcoal lters that are already
installed to prevent the odours generated
through cooking from being vented back into
the kitchen.
Before installing the rangehood into the cabinet,
please remember to remove the adhesive transit
support tape on the carbon lters rst (Figure 9).
Figure 9

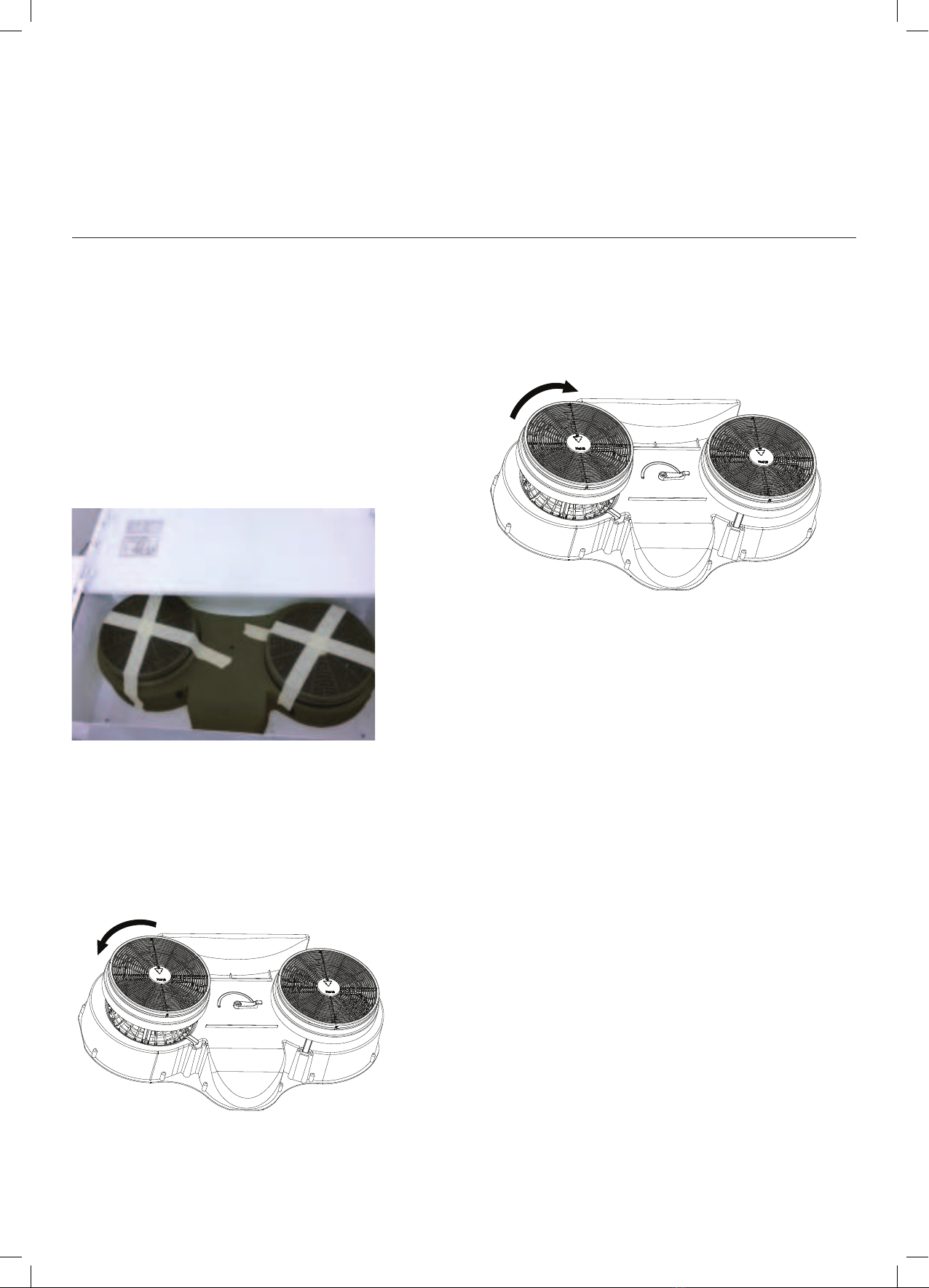

REMOVING THE CHARCOAL FILTERS
To remove the charcoal lters you will rst need
to remove the grease lters (see Figure 8).
Then twist anti-clockwise and pull down as
shown in Figure 10.
Figure 10
To install new charcoal lters you will need
to rst remove the grease lters (Figure 11).
Then align the charcoal lters with the centre of
the motors, twist clockwise and push upwards
until they lock into place.
Figure 11
Fig. 8

16
Installation Instructions (Continued)
REAR-MOUNTING TO THE WALL
• Using a spirit level, mark a horizontal line on the wall where the rangehood base
will be, adhering to the minimum and maximum distances from the rangehood base
to the cooktop surface (as per table on page 12).
• Drill 4 holes of Ø8mm on the wall, as illustrated below (Figure 12).
• Hammer the wall plugs into the holes, then insert two ST4×30mm screws
into the lower wall plugs.
• Tighten the screws, but leave a 2mm gap so that you can hang the rangehood
on the screws in the keyhole slots.
• Hang the hood to the wall screws, and make sure the hood is in balance
and positioned correctly.
• Take away the Aluminum Filters, mark and drill another 2 holes of Ø8mm
on the wall (Safety Screw Holes).
• Take back the hood and hammer the wall plugs, hang the hood again and x the hood
with two ST4×30mm screws.
WARNING: Failure to install the screws or xing device in accordance with these instructions
may result in electrical hazards!
Figure 12
Fig. 11

17

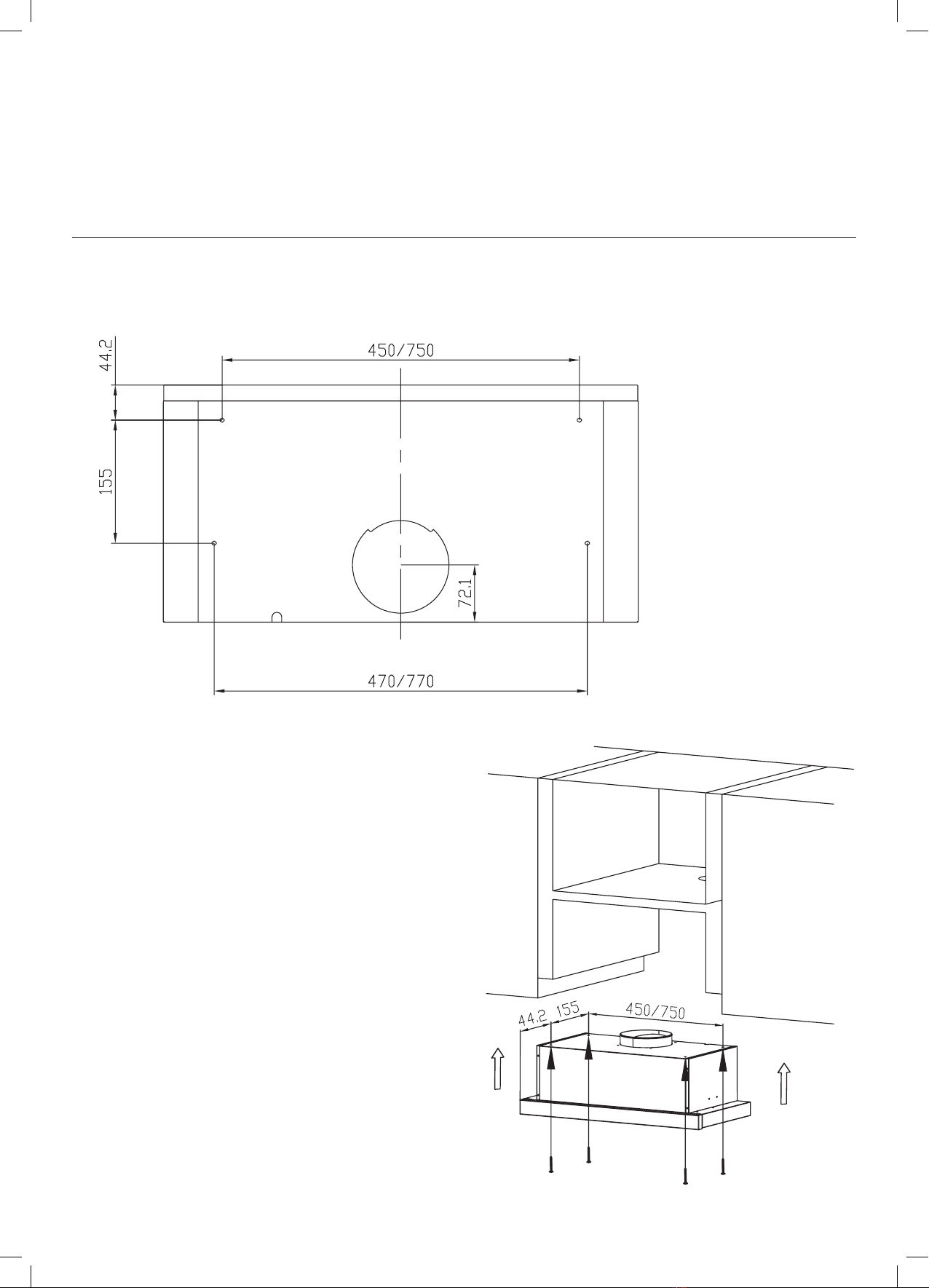

TOP-MOUNTING IN A CABINET
• Determine where in the top cabinet you want to install the rangehood,
then drill 4 holes of Ø4mm at the bottom of the hanging board of your cabinet (Figure 13).
Figure 13
• Install the rangehood onto the bottom of the
cupboard and secure it in place
with four ST4×30mm screws (Figure 14).
• If there is a space between the wall and the rear
of the rangehood, install the
rear-underside support mounting bracket using
the two ST4×8mm screws.
WARNING: Failure to install the screws or xing
device in accordance with these instructions
may result in electrical hazards!
Figure 14

18
Maintenance & Cleaning
CAUTION:
• Before maintenance or cleaning is carried
out, ensure the operation and light switches
are set to the ‘0’ position and the rangehood
is disconnected from the main power supply.
Ensure that the rangehood is switched o at
the wall socket and the plug removed.
• Stainless steel is susceptible to scratches
and abrasions, so please follow the cleaning
instructions to ensure the best possible result
is achieved without damage.
• The instructions within this manual must be
followed to avoid a re risk.
• Keep the motor and other spare parts free
from water, as this will cause damage to
the appliance.
ALUMINIUM GREASE FILTER
• To remove the Aluminium grease lter,
see Figure 8 on page 14.
• Your aluminium lters can be washed by
hand in warm soapy water. After cleaning,
allow the lters to completely dry before
retting into your rangehood.
CAUTION: We do not recommend washing
the Aluminium lters within a dishwasher.
This can damage the lter and cause a
discolouration of the lter.
EXTERIOR SURFACES
Clean surfaces using non-abrasive cleaning
products that are specically for use on stainless
steel. To ensure best results also use an even
pressure and follow the grain of the stainless
steel. Use of a soft cloth reduces the risk of
scratching. If the cloth is wet, ensure that a dry
soft cloth is used to wipe down the surface again
reducing the risk of any surface rust appearing.
CHARCOAL FILTERS
If your rangehood has been installed in
recirculating mode, you should be using the
Charcoal Filter accessories available for purchase
separately. These lters can not be re-used
or cleaned and as a general rule the activated
charcoal lter should be replaced every 6 months
(or more frequently depending on the amount
and type of cooking you do).
To order a replacement lter, please contact our
After Sales Service Team.
To remove and/or install new lters, please see
page 15.

19
CHANGING A LIGHT GLOBE
If the light lamp needs replacing, proceed as follows:
• Slide out the front panel for easier access and remove the two aluminium mesh lters
• Push out the lamp by hand from its back, pull out the lamp connecting lines together;
• Open the protection cover as shown in the picture below, and unplug the connected plastic shell
to replace a new lamp.
Please contact our After Sales Service Team
if you need assistance.
Open the protective cover
Unplug the lines

20
Troubleshooting
OPERATION IN CASE OF EMERGENCY
In the event of an emergency you should:
• Switch o all rangehood controls.
• Switch the rangehood o at the power outlet and immediately unplug.
• Call After Sales Support.
Some minor faults can be fixed by referring to the instructions given in the table below.
IMPORTANT: If your appliance appears to be operating incorrectly, then you should disconnect it
from your electrical supply and then contact After Sales Support.
WARNING: Do not attempt to repair the rangehood yourself.
Please note that if an engineer is asked to attend whilst the product is under warranty and finds that the
problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge.
The appliance must be accessible for the engineer to perform any necessary repair.
If your appliance is installed in such a way that an engineer is concerned that damage will be caused
to the appliance or your kitchen, then they will not complete a repair. This includes situations where
the rangehood has been tiled in or sealed in with a sealant.
Please refer to the conditions of that appear on the warranty card at the rear of this user manual.
FAULT POSSIBLE CAUSE COMMON SOLUTIONS
The extractor
fan ceases to
function
There is no electrical current
in the network
Check with other appliances
that your electricity supply is
in working order
There is
insucient
suction power
Wrong suction speed has
been selected
Select suction speed “ II ”
if speed “ I ” was selected
Ducting is loose, kinked, too long
or too many bends
Make sure your kitchen is adequately vented to allow
the entry of fresh air
The charcoal filter needs to be
replaced.
Please replace charcoal filter if food odour start
to become noticeable within your kitchen
The distance between the range-
hood and your cooktop is too great
Have your installer re-adjust the installation position,
ensuring that the minimum distances are observed
as per the building code and relevant standards
The rangehood
has lost power
during operation
The switch board may have tripped Check the switch board
Check if the rangehood has been
installed below the height levels
indicated in the “Installation” section
Re-installation may be required.
If the height recommendations are not followed,
the motor will cut out frequently, which may
damage the rangehood
The light does not
illuminate The bulbs are loose, or have burnt out Tighten the bulbs, or replace if necessary
