InCarTec 27-572 User manual

27-572 - CAMERA INPUT INTERFACE FOR BMW WITH EVO (ID5/ID6) IDRIVE SYSTEMS
CONNECTION DIAGRAM

27-572 - CAMERA INPUT INTERFACE FOR BMW WITH EVO (ID5/ID6) IDRIVE SYSTEMS
DIP SWITCH SETTINGS
Please disconnect & reconnect interface power after changing any DIP setting
*Please note that DIP Switch 5 and DIP Switch 8 put ON (▼) with OEM rear camera
*4,5,6,7,8 OFF, OFF, OFF, OFF, ON
*Quick Dip Switch Settings

27-572 - CAMERA INPUT INTERFACE FOR BMW WITH EVO (ID5/ID6) IDRIVE SYSTEMS
INSTALLATION GUIDE
Please ensure the car is switched off to avoid damaging the interface/ vehicle

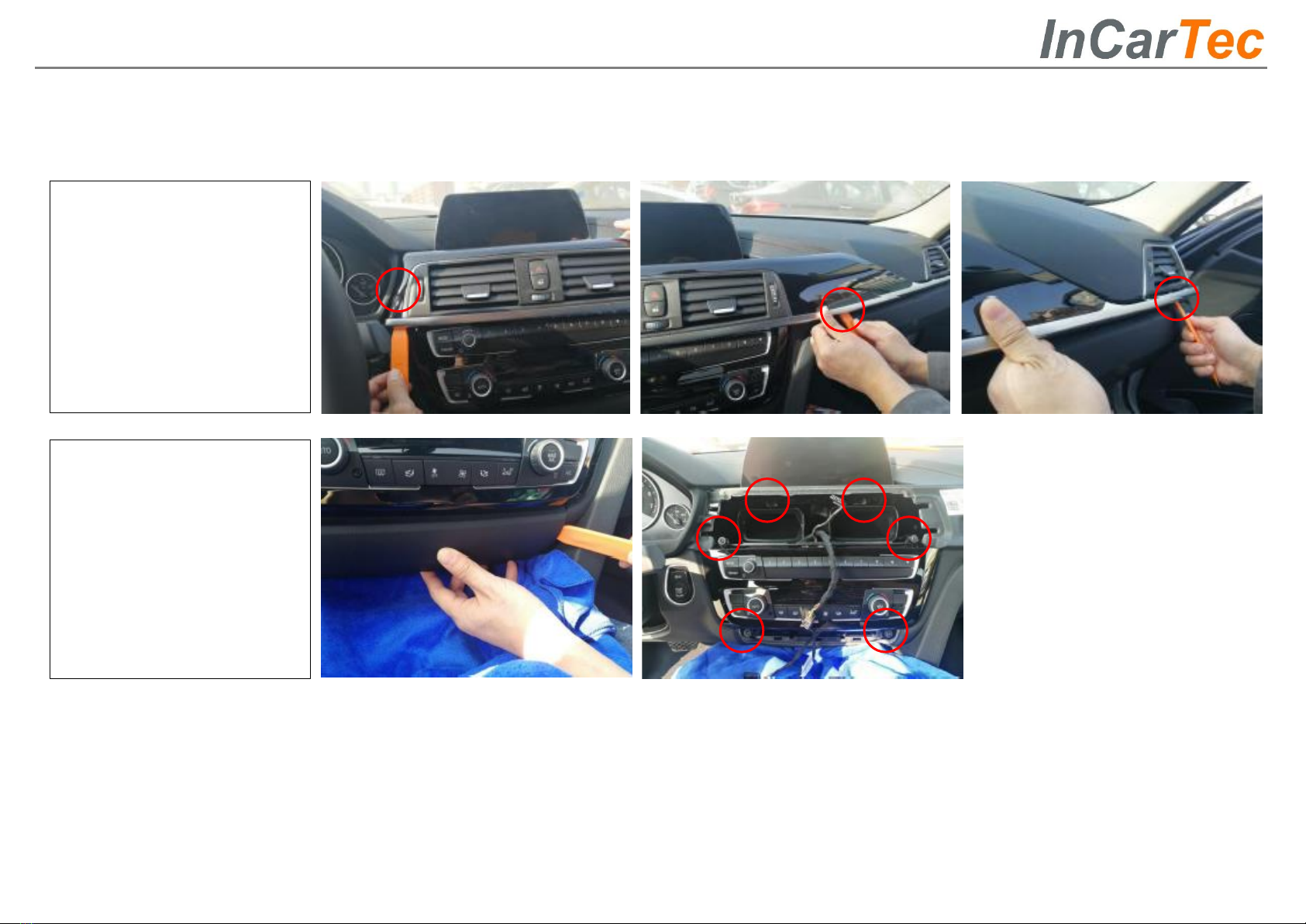

STEP ONE
Using a panel tool or similar,
carefully prize up the air
conditioning panel in the
highlighted positions.
Please note: If there are
screws on the side panel,
please unscrew these first.
STEP TWO
Once the air conditioning has
been prized up, pull out the
panel cables.
Prize up the plastic panel
below the air conditioning unit
and remove the screws in the
highlighted positions.
Pull out the remaining panel

27-572 - CAMERA INPUT INTERFACE FOR BMW WITH EVO (ID5/ID6) IDRIVE SYSTEMS
STEP THREE
Remove the screws in the
highlighted positions and pull
out the head unit
Please note: If the original
quadlock has fibre optic cables,
you will need to move these to
the new quadlock connector.
Please see pictures
STEP FOUR
Disconnect the LVDS from the
original screen and connect it
to the LVDS input on the new
interface.
Connect the NEW LVDS cable
from the LVDS output on the
interface to the LVDS
connection on the Original
screen (See Page one)

27-572 - CAMERA INPUT INTERFACE FOR BMW WITH EVO (ID5/ID6) IDRIVE SYSTEMS
DVR SWITCHING
Hold the MENU button on iDrive controller for
2-5 seconds to enter DVR mode (If available)
ADJUST COLOUR/ CONTRAST SETTINGS
Hold down the centre controller for 4 seconds to enter
iDrive menu and adjust colour/ contrast settings
SWITCH FPG (FLEXIBLE PARKING GUIDELINES) POSITION
Hold MENU button for about 10 seconds to enter dynamic guidelines mode. Then switch up, down, right, left four
directions to adjust dynamic guidelines by turn multimedia buttons.
