Xtrons TD697G User manual

Car Double Din DVD Navigation Entertainment System
OWNER’S MANUAL

- 2 -
Table of contents
Function summary…………………………………………………………………………………
Notice for use…………………………………………………………………………………
Audio and Video knowledge…………………………………………………………………
Menu operation…………………………………………………………………………………
1. Main interface ………………………………………………………………………………………
2. PIP function……………………………………………………………………………………
3. Radio interface ……………………………………………………………………………
4. Multimedia player ……………………………………………………………………………………
Play disc……………………………………………………………………………………………
Play SD/USB ……………………………………………………………………………………
Detailed operation…………………………………………………………………………………
5. GPS navigation system……………………………………………………………………………
6. Bluetooth…………………………………………………………………………………
7. TV function…………………………………………………………………………………
8. IPod function…………………………………………………………………………………
9. Setting interface…………………………………………………………………………………
System setting…………………………………………………………………………………
Vedio setting…………………………………………………………………………………
Audio setting…………………………………………………………………………………
Time setting…………………………………………………………………………………
Language setting…………………………………………………………………………………
SWC setting…………………………………………………………………………………
System info. Setting…………………………………………………………………………………
Start logo setting…………………………………………………………………………………
Off-screen setting…………………………………………………………………………………
Navigation audio setting……………………………………………………………………………
10. User friendly…………………………………………………………………………………
Remote control…………………………………………………………………………………
Troubleshooting…………………………………………………………………………………
System Parameter…………………………………………………………………………………

- 3 -
Thank you for selecting our products! Hope this user’s manual facilitate your understanding of
product operating method. Our company has the right to make final description of the Operating
Instructions of this product. Before use, please be sure to read it carefully for safe operation and
better entertainment.
Main features:
1. High Definition TFT-LCD digital screen.
2. Built-inAM/FM receiver, with 30 preset stations , RDS available
3. Compatible with DVD/VCD /CD/MP3/WMA/MP4/JPGE/AVI
4. With multi-language
5. Built-in GPS multimedia system
6. Built-in bluetooth function, with touch input
7. GPS sound output mode can be defined.
8. With AV output, can be connected with amplifier and monitor
9. Aux-in function, can be connected with external AV output device
10. Support USB/SD audio/vedio/picture display
11. Auto recognition of NTSC/PAL system
12. Hi-fi highpower output
13. Real time display
14. Rearview camera input, automatically change to rearview when reversing (A camera is
needed)
15. Built-in CMMB digital TV(optional)
16. Full function remote control
17. Easy for installation
Notice of use
Attention: Before installation, please carefully read all the instructions. Car audio
professional vendors’ guidance are recommended for the installation.
This model fits automobile 12V power supply system( ground wire should
be connected). Please do not install it directly in truck or bus with 24V
power supply, otherwise will cause machine damage.

- 4 -
Original disc is required. Please do not use non-standard or inferior disc,
otherwise may cause machine malfunction or serious impact on its service
life.
Replace of power fuse without professional instruction is prohibited. The
improper use of fuse will cause machine damage or a fire.
Do not place the unit in moist and humid conditions to avoid electric shock,
damage and fire caused by short circuit.
Do not touch the screen with hard objects to avoid touch screen damage.
Attention: To avoid short circuit, please stall the car and disconnect ACC and the connection with
B+.
Audio and Video knowledge
Main interface
Disc types
Content
Disc size
DVD
Sound & Picture
12cm
VCD
Sound & Picture
12cm
CD
Sound
12cm
MP3
Sound
12cm
MPEG-4
Sound & Picture
12cm
USB
Sound & Picture
12cm
Notice: This product supports VCD dis of 1.0/1.1/2.0/3.0 version

- 5 -

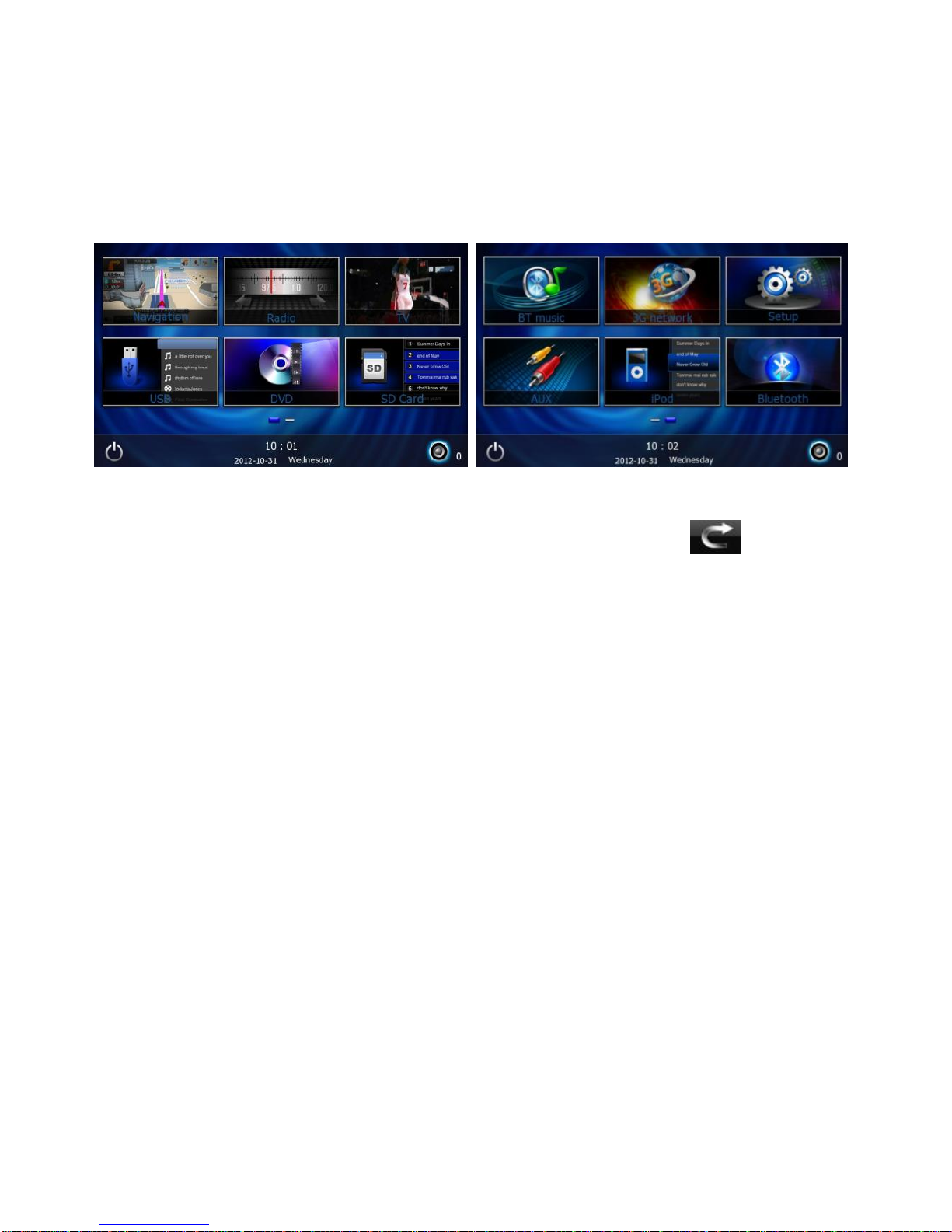

In the status of ON, touch the top left of the screen to enter intomain interface.
The system provides functions of Navigation，Radio，TV，USB，DVD，SD card，BT music,3G
Network,Setup,AUX,Ipod,Bluetooth. Touch the icons in the main interface to enter into the relavent
function.
The main interface is made of several icons for different functions. Touch the icons in the main
menu to enter into the second-level menu. Under second-level mune, touch icon to return to
previsous menu.
Navigation system
★Cautions:
1. Be careful to use the GPS system. The functions of this system is for navigation reference only,
so please do use it for accurate measurement of the position, distance, location, terrain, etc..
2. During the first GPS satellite positioning, please stay in the same location, where there shall be
open area and without any shelter on the topappropriate open space at the top of may not have
shelter. It may need more than two minutes to finish the positioning, depending on the environment
and satellite signal strength.
3. For your driving safety, please finish the navigation setup before going out on the road. Please do
not operate the system when driving because it may lead to a traffic accident if the area ahead is
neglected.
4. When passing through the tunnel, or the car is located in the building, the underpass, climatic
factors, or the surrounding tall obstacles, or nearby mobile phone base stations, satellite signal
reception quality will be affected, then the system will be temporarily unable to provide you with

- 6 -
positioning and navigation. While leaving the sources of influence, you can quickly restore the
positioning and navigation.
5. Please note that any wireless telecommunication products(such as mobile phones or speed
alarms), are likely to interfere with satellite reception, resulting in signal reception instability.
6. Path planning is for reference only. The road conditions may be adjusted according to the local
traffic situation, or because of some factors such as road construction, government and commercial
activities. Please be sure to follow the current road situation and other traffic rules.If the road
situation is different from display display, please judge which way to take.
★Detailed instructions of GPS

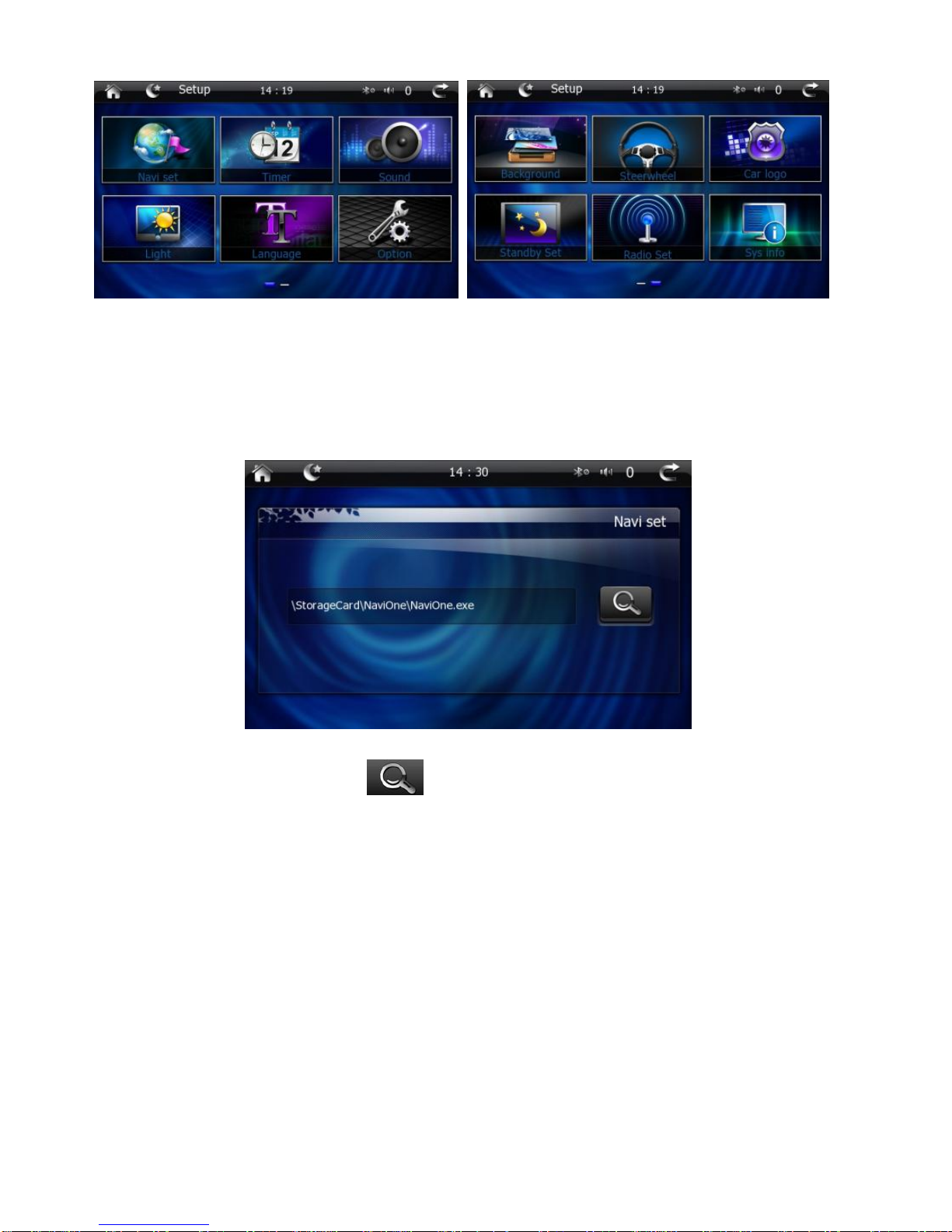

■Set navigation path. Click “Set-up” in the home page to enter into setting interface,
then click”Navi set”to set the Navigation path,shown as below:
■After navigation path setup, return to the main interface, click navigation icon to turn to
navigation interface, then the system will turn to navigation interface and start running the
navigation software.shown as below picture:

- 7 -
Radio interface
Radio menu,this product is built-in high quality AM/FM/RDS radio receiver, which supports AM/FM
auto search function, frequency display, etc.
1. ---Sound button. When it shows , you can adjust the volume; Press this button,
the icon will be changed to , which is mute state.
2. ---Short press this button to upward adjust the station gradually; Long press this button to
upward search the station semi-automatically.
3. --- Short press this button to downward adjust the station gradually; Long press this
button to downward search the station semi-automatically.
4. BAND--- Press this button to switch radio bands.
5. Scan--- Short press this button to scan the stations in prestored district; Long press this button
to automatically search station and put the searched stations into the prestored district orderly

- 8 -
according to signal strength.
6. ST--- Single track. In FM band, press this button to switch between ST and MONO. The
default setting is ST. AM band doesn’t have this function.
7. DX---In FM band, press this button to switch between LOC and DX. The default setting is DX.
AM band doesn’t have this function.
8. BK--- Short press this button to switch radio skin.
9. Both sides are for prestored station region. Short press any station number of this region, it will
play the station that chose; Long press any station number, the station that being played will
be restored.
Note: This function can be achieved by short/long press number 1-6 of the remote control.

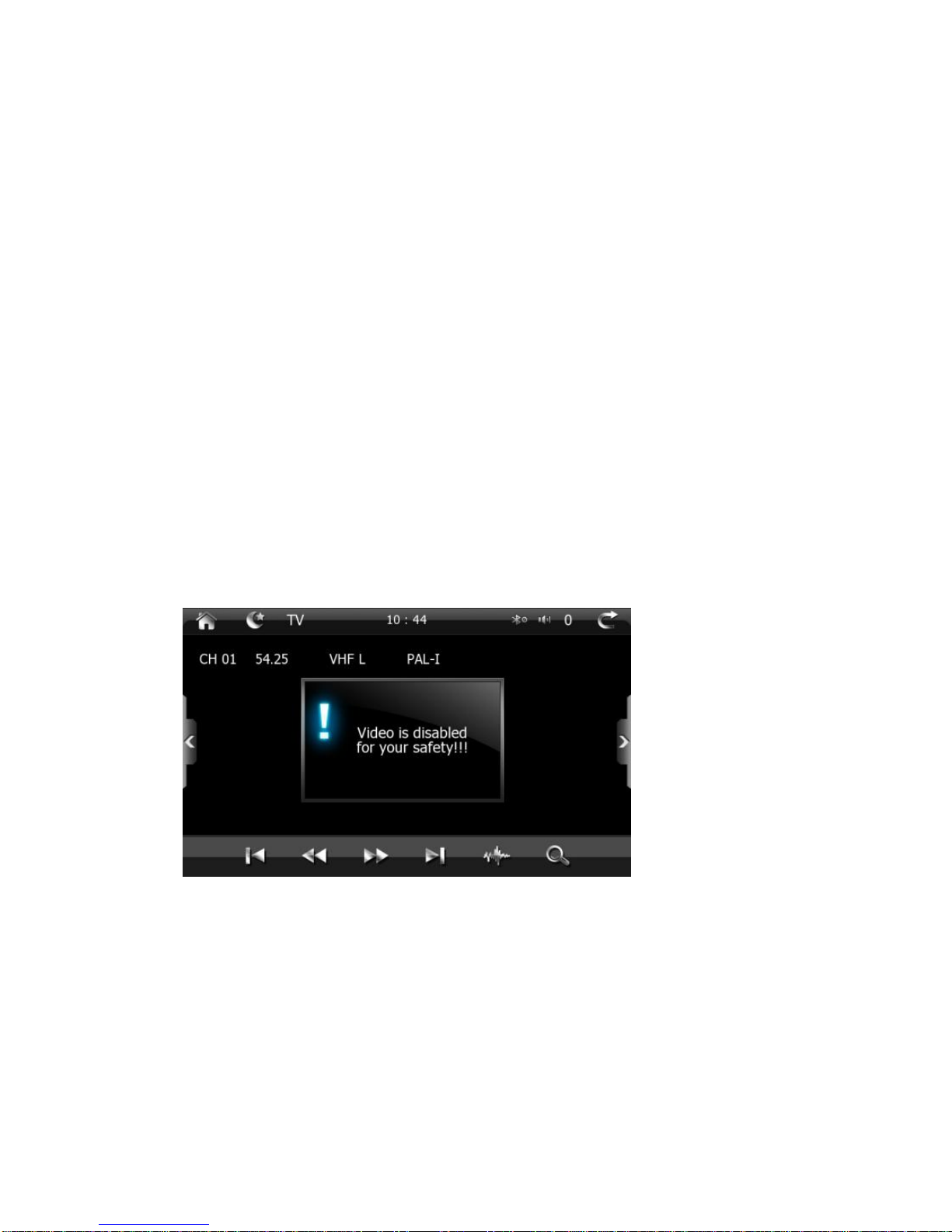

TV function
The system is built-in TV function. It supports TV signal inputs of all colour and sound systems.
shown as follow picture:
★Enter
Click TV icon in main interface/press MODE key in remote controll to switch and enter TV mode.
Touch "Auto Search" button to start automatic search of TV channels. The channels that searched
will be stored automatically.
touch screen, the "Auto Search" button to start automatic search TV channels, the search range for
the entire TV channel range, automatic memory search to TV channels to the serial number

- 9 -
increments preset channel bodyin
★Exit
Select or automatically turn to other play mode.
Play USB
When the device is under running state,the system will automatically switch to USB/SD play mode
after connecting to USB/SD,When USB/SD is connected to the device that is not under running
state,it shall click “USB”/”SD”icon in main interface/prss mode key in remote controll to switch play
source to USB/SD play mode after the device runs. Formats supported by USB/SD:
MP3/WMA/MP4/JPEG/ BMP etc.Shown as below picture:
★Play DVD
Attention: Please use standard and genius discs and keep the discs clean. Proper use can assure
normal service life of this product.
Insert the disc into disc inlet slightly, the disc will be suctioned into the device and played
automatically.
When there is a disc in the device, press MODE or click DVD icon in the main interface, it will turn to
disc display menu. If the disc is stucked or cannot be suctioned, please longly press exit button
to exit the disc by the strong hand.

- 10 -
★Detailed operation
When playing disc, if no operation within a certain time, both upper and lower menu will disappear
and it will be full screen display. Touch the screen, the menu will come out again.
3G network
★The system is built-in 3G network function.Click “3G network”in the main interface to enter into
the 3G network mode,shown as below picture:
★Click “dialing”icon to enter the dailing interface.

- 11 -
Bluetooth
This device has bluetooth and hand free function. If your mobile has bluetooth function, it can set up
point-to-point connection with this device. To make and receive calls as well as play music are
achieveable on the screen.

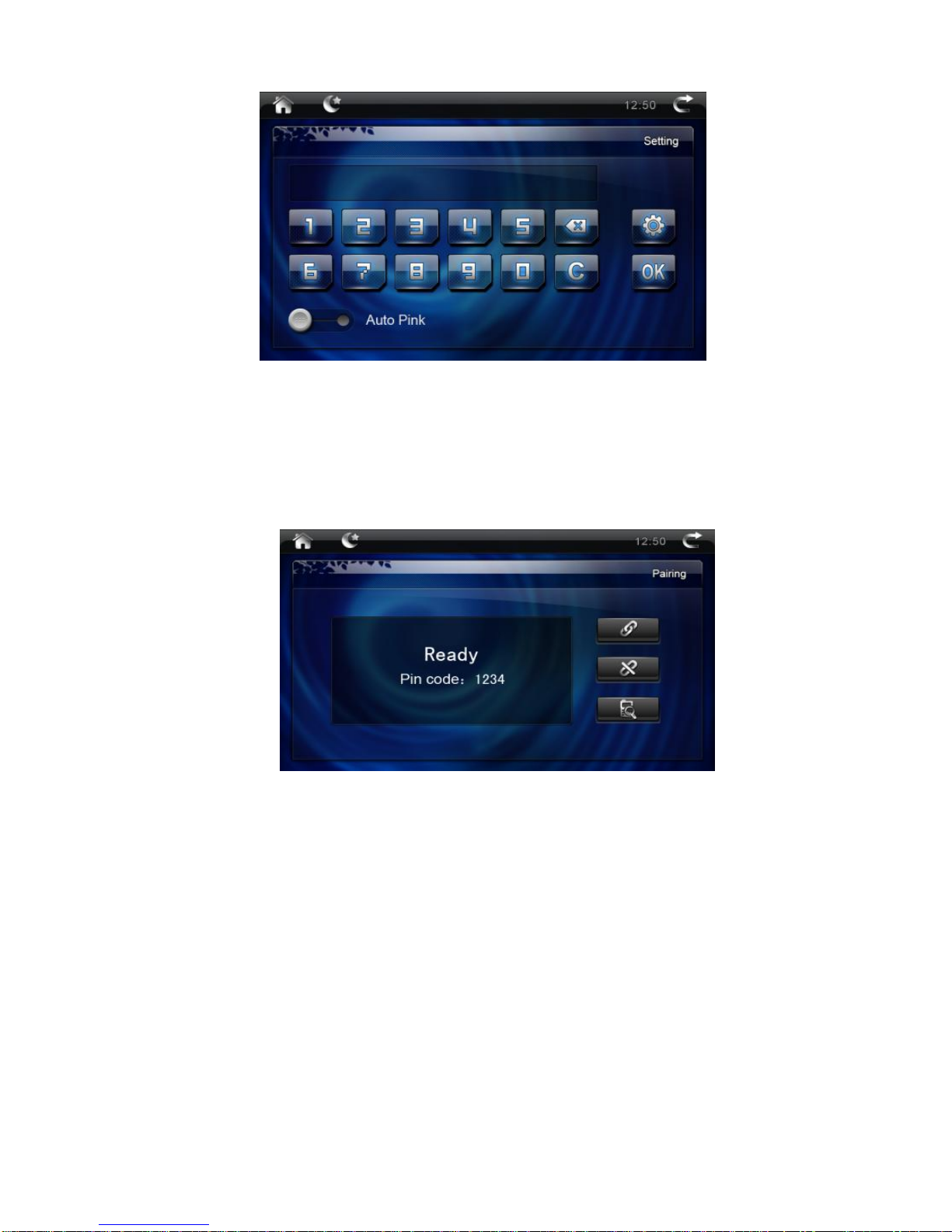

★Pairing
Press Bluetooth icon in main interface to switch to bluetooth interface.
1.Click “Pairing”,then “pairing”will come out
2.Whilst open the phone’s bluetooth device, and search for new pairing. When phone search out the
device bluetooth, that is the name of native bluetooth device, select this device and connect it.
3.Input a password( default password 0000), the phone will Pair with the device automatically.
★Bluetooth operation
1. Press ‘Dial’to enter bluetooth phone call interface, shown as below picture:

- 12 -
2. Pairing. Enter into bluetooth interface, then touch, “Phone Pairing” will come out. Whilst open the
phone’s bluetooth device, and search for new pairing. When phone search out the device bluetooth,
that is the name of native bluetooth device, select this device and connect it. Input a
password( default password 0000), the phone will pair with the device automatically.
3. Make a call
Enter the phone number by the number key-press in bluetooth interface. Click dialing key to make a
call. Or select the phone number from missed calls, received calls, dialed calls list and then click
dialing key to make a call.

- 13 -
4. Answer a call
When this device is on, if a call is in, the system will automatically switch to bluetooth and hands
free mode interface. If bluetooth setting of system menu is Auto Answer Mode, the system will
answer a call automatically. If setting is Manual Answer Mode, click dialing key to answer a call.
Click hang up key to end the call. While calling, users can click hang up key to end the call.
5. Play phone’s music
This function is only available when the system is connected with mobile phone. When the mobile is
playing music, click the”BT music”icon in main interface,switch to music play interface, shown as
below picture:
1. ---Stop play.
2. ---Last section/item.
3. ---Play/pause.
4. --- Next section/item.

- 14 -
IPod interface
★This system supports iPOD audio and vedio playing.Ipod is a large capacity media developed by
APPLE CORPORATION,it takes 1.8-inch hard disk produced by Toshiba as storage media and has
a storage capacity of 2~80G.It can store more than 10000 MP3 music/vedio files with CD quality,has
perfect management program,innovative operation manner and unique appearance.It is one of few
APPLE products that can cross PC and MAC platforms.Besides playing MP3 and compressed
audio/video files,iPod also can be used as High-speed mobile hard disc.
★When the device is under running state,the system will automatically switch to iPod play mode
after connecting to iPod.When iPod is connected to the device that is not under the running state,it
shall click iPod icon in main interface to switch play source to iPod play.
★IPod operation can be done by touch screen and the steering wheel control. The detailed
information such as the name of song, singer, playing state, will be showed on the screen.
Setting interface
Click “Set-up” in the home page to enter into setting interface, here including Navi setting,Timer
setting,Sound setting,Light setting,Language setting,Option setting,Background setting,Steerwheel
setting,Car logo setting,Standby setting,Radio setting,Sys info.

- 15 -
★Navi set
1.GPS navigation path setting.
2.Cick system setting, then click “ ” to enter into navigation routing menu to select correct
routing, in order to run the map.Remarks: only when the correct navigation map routing is selected,
can you run theGPS navigation function.

- 16 -
3. Brake wire testing
Click to select it, you can test the hand brake wire during driving, this wire is to avoid the driver to
watch dvd during driving, which is hazardous, and it can cause severe injury.
★Time setting
It includes time setting and date setting, theuser can select either 12 hour or24 hour system. Click it
and input the digit,then click “OK”.

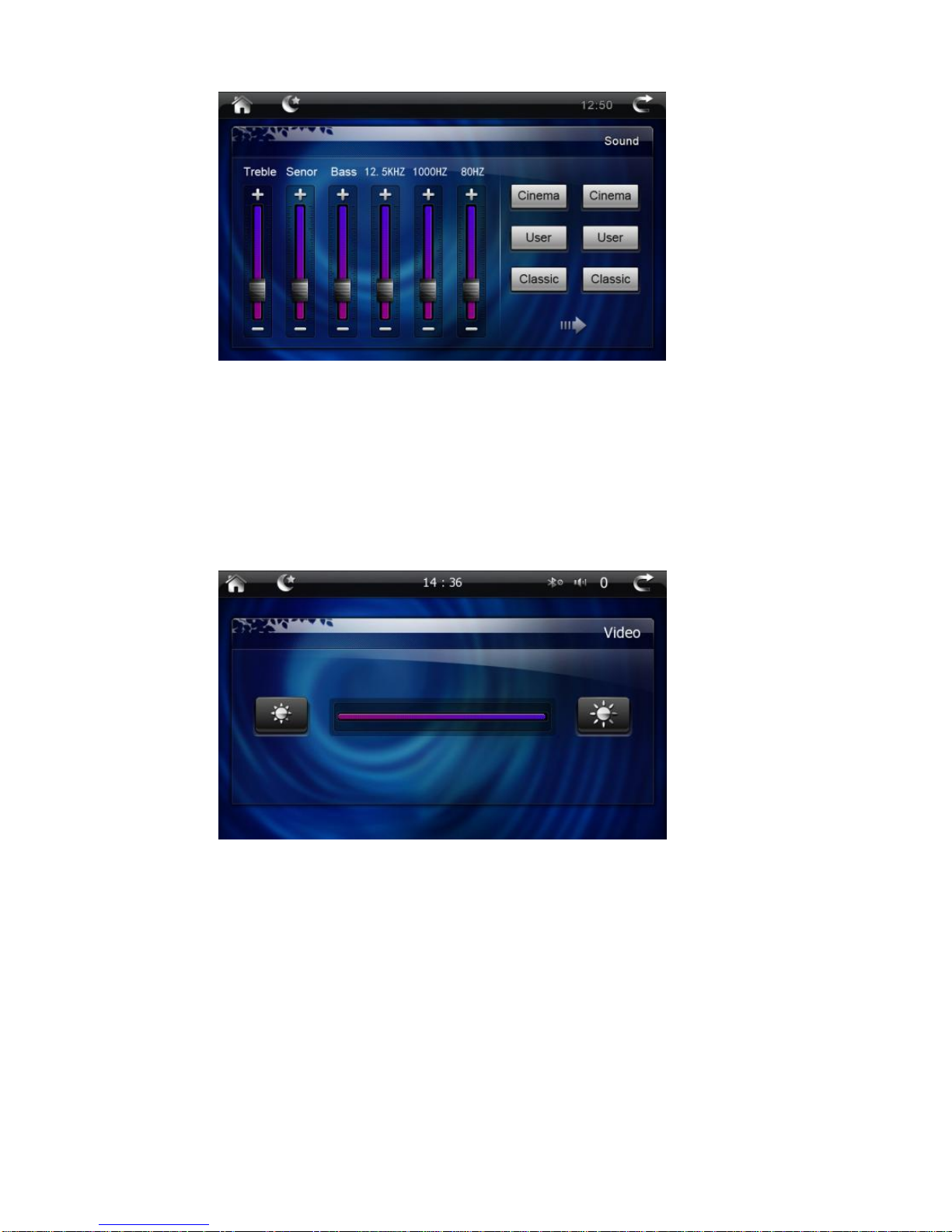

★Sound setting
Here the user can adjust tweeter, woofer, front, rear, left, right channel, EQ setting(cinema,
user,classic,popular,rocl, etc.), and Loud on

- 17 -
★Backlight setting
Click the”backlight”icon to adjust the backlight, bright screen in the night might hinder the driver.
(Remarks: you can reset to the default value, it is 100%).
★Language setting
Click to select the language. The system is built-in
multi-languages:Chinese,English,Portugese,Franch,Spanish,Deutsch,Russian,japanese.

- 18 -
★Option setting
User can select”Beep”and “Break detect”
★Background setting
The user can can select the backgroud images，then clike the”OK”.

- 19 -
★Steering wheel control setting
Learn the buttons between steering wheel and dvd unit one by one, then you can control dvd unit
through steering wheel button.
★Car Logo
Here the user select the car logo according to your car brand.

- 20 -
★Standby setting
The uer can set off-screen time here,: 3 minutes; 5 minutes; 10 minutes; standby sofor now. It will
be on all the time if setting is cancelled.
★Radio setting
The user can select the radio area:Europe,Russia,N.ANERICA,S.ANERICA,JAPAN
