1
Welcome Section
Congratulations!
You have made an excellent choice with the purchase of this quality
MAXTEK®product.
By doing so you now have the assurance and peace of mind which
comes from purchasing a product that has been manufactured to
the highest standards of performance and safety, supported by the
high quality standards of Quesh Ltd.
We want you to be completely satised with your purchase, so this
MAXTEK® product is backed by a comprehensive manufacturer’s
3 year warranty and outstanding after sales service through our
dedicated helpline.
We hope you enjoy using this product for many years to come.
If you require technical support or in the unlikely event that your
purchase is faulty, please telephone our helpline for immediate
assistance. Faulty product claims made within the 3 year warranty
period will be repaired or replaced free of charge provided that you
have a satisfactory proof of purchase (keep your receipt safe).
This does not affect your statutory rights. However be aware that the
warranty will become null and void if the product is found to have
been deliberately damaged, misused and/or disassembled.
2
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
General Information &
Safety Instructions
This remote control is powered by 1 x ‘CR-2025’ lithium battery.
Do not dispose of batteries in your household waste.
Please contact your local authority for details on safe disposal.
• Never throw batteries into a re or expose to excessive heat sources.
• If batteries are swallowed, please seek immediate medical attention.
• Always ensure correct +/- battery polarity when installing batteries.
• Do not recharge non-rechargeable batteries.
Equipment, which is marked with the WEEE logo
(as shown on the left), should not be thrown away with your household waste.
Contact your local authority waste disposal department, as they will be able to
provide details of the recycling options available in your area.
Electrical and electronic equipment (EEE) contains materials, parts and
substances, which can be dangerous to the environment and harmful to
human health. Therefore waste electrical and electronic equipment (WEEE)
must be disposed of correctly.
Equipment, which is marked with the WEEE logo
(as shown on the left), should not be thrown away with your household waste.
Contact your local authority waste disposal department, as they will be able to
provide details of the recycling options available in your area.

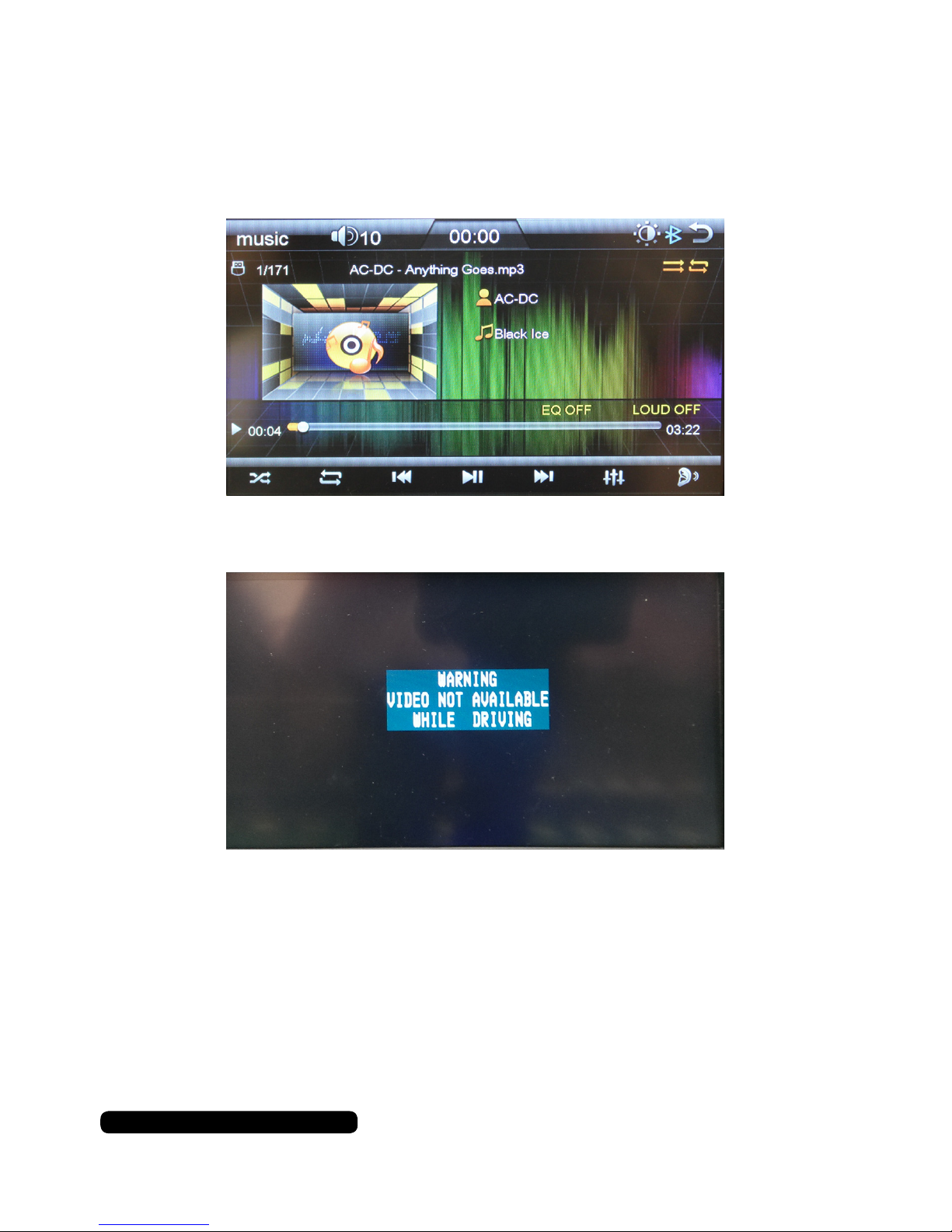

To ensure safety while driving and to comply with UK laws,
drivers should not watch video or operate the video device while driving.
It is illegal to drive while operating a hand-held phone or a similar device.
This applies even if you’re stopped at traffic lights or queuing in traffic.
The EU Declaration of Conformity
can be downloaded from www.quesh.co.uk.
3
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Contents & Features
Contents
1 x Deckless Multimedia Player
1 x Mounting Cradle
1 x Remote Control
1 x Media Connection Cable
2 x Installation Keys
1 x ISO Cable
Features
• 7” TFT touch screen display (800x480pxl)
• Bluetooth (Hands Free & Audio)
• PAL
• MP3, MP4, AVI, DIVX & JPEG Media Formats
• Optional Steering Wheel Control Interface
• Optional Reverse Camera Output
• FM & AM Radio Receiver
• RCA IN
• RCA OUT
• SD Port
• USB Port
• 3.5mm AUX Port
• Sub Woofer Connection
4
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Please Note:
Mark the polarity of the existing speaker wires before disconnecting battery.
1. After removing the old radio and mounting
sleeve, insert supplied mounting sleeve
into opening.
2. Bend the tabs on the mounting sleeve
with a screw driver to keep the mounting
sleeve firmly in place.
3. Attach the wires from the unit to the
existing wires. See wiring connections
diagram. Insert radio into dashboard
then apply the trim frame to the
outside of radio.
DIN Front Mount
Installation
WARNING!
Disconnect the negative terminal from the battery before starting installation.
Consult the vehicle owner’s manual for detailed instructions.
Supplied Parts
2 Keys
1 Faceplate Case (not shown)
1 1/8” Stereo Cable
1 Remote control
5
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Installation

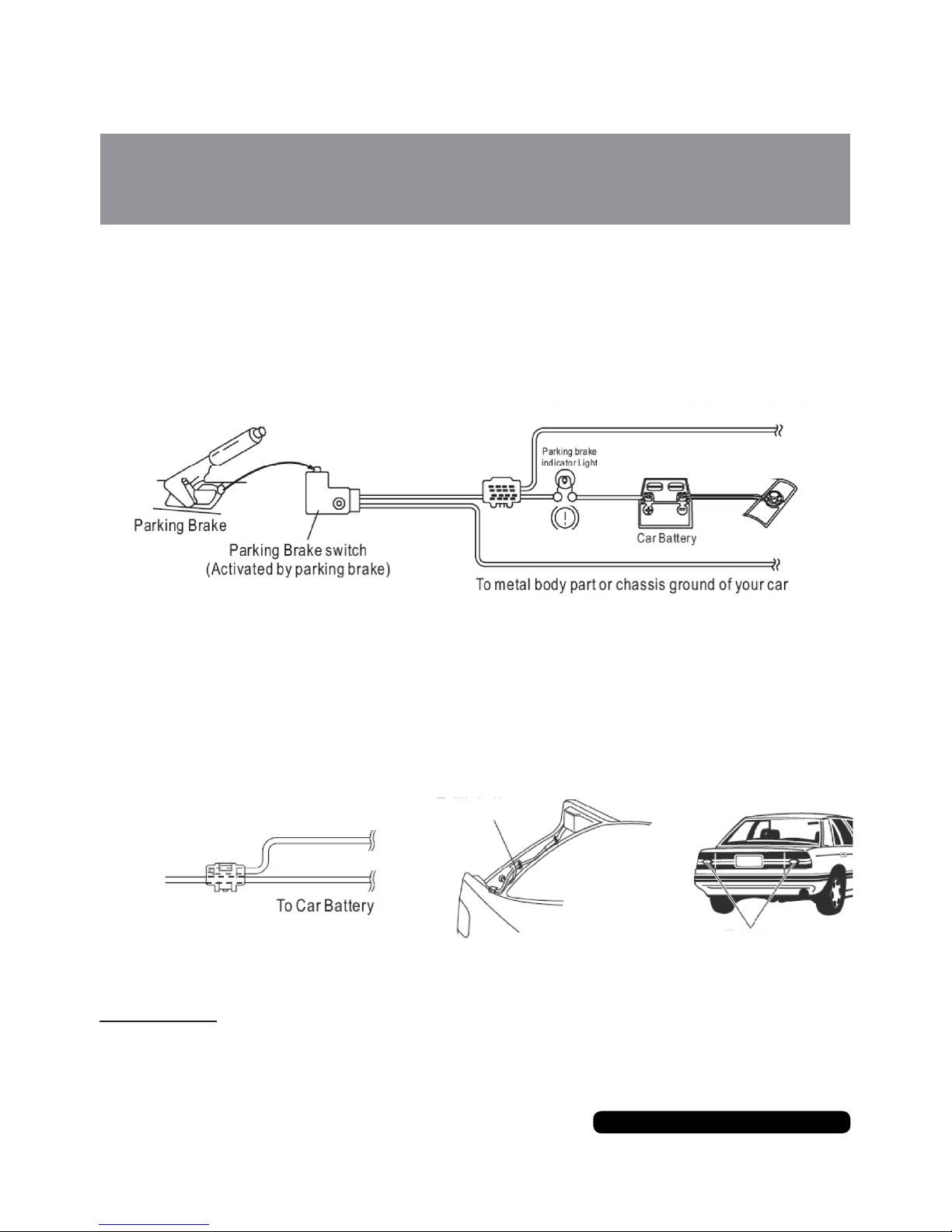

Parking wire from player (Green)
Reverse Light
Reverse Light
Reverse wire from player (Purple/White)
Reverse
Light
Parking Wire (Green)
Once connected correctly you will be able to view video media on the screen when the parking brake has
been engaged and the vehicle has power.
WARNING!
Disconnect the negative terminal from the battery before starting installation.
Consult the vehicle owner’s manual for detailed instructions.
Reverse Wire (Purple/White)
Once connected correctly you will be able to view the connected reversing camera when the reverse gear is
engaged. Refer to the manufactures installation guide of the camera for details.
Please Note:
If you are unsure about any part of installing this unit please get it tted by a
qualied automotive technician.
6
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Make sure that you have a good earth connection. A good earth connection will eliminate most electrical
noise problems. A good earth connection requires a tight connection to the vehicle's metal chassis.
The area around the earth connection should be clean, bare metal without rust, paint, plastic, dust, or dirt
for a good electrical connection.
Please Note:
Follow the above wiring diagram to install the head unit with new or existing speakers.
• This unit is designed for use with four (4) speakers with an impedance between 4 Ohms to 8 Ohms.
• An impedance load of less than 4 Ohms could damage the unit.
• Never bridge or combine the speaker wire outputs. When not using four speakers, use electrical tape
to tape the ends of the un-used speaker outputs to prevent a short circuit.
• Never connect the negative speaker terminals to
earth connection
.
• Never connect to a power source greater than 12V.
Wiring Connection
Media Connection Pins
A
B
Steering Wheel Controls
You will require an after
market adaptor in order
to use this feature.
Steering 1:
Voltage Detection
Steering 2a:
GND/Earth
Steering 2b:
Voltage Detection
7
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk

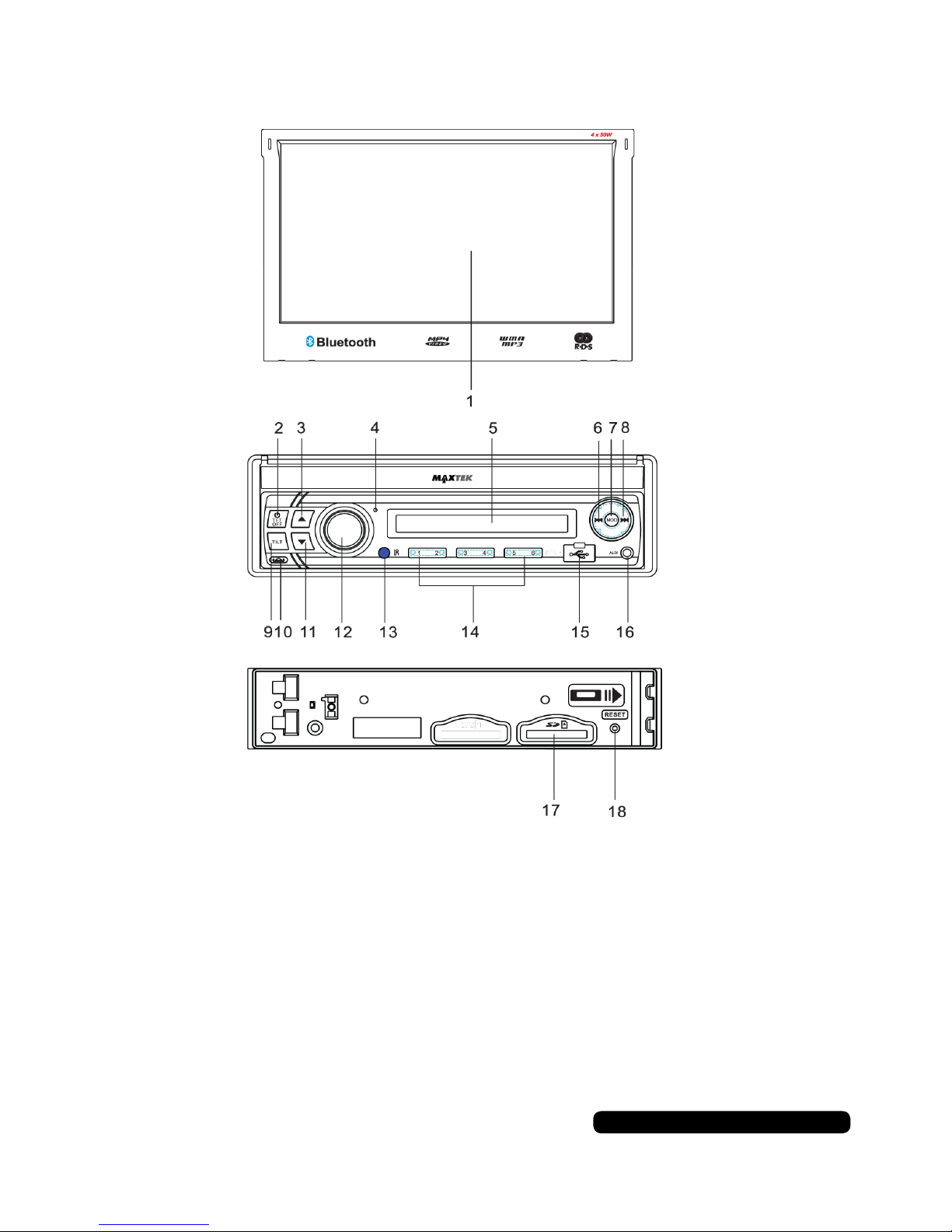

Fascia Controls
1. TFT Display
2. Power/TFT Off
3. Up
4. Microphone
5. LCD Screen
6. Skip Back
7. MOD
8. Skip Forward
9. TILT
10. Open
11. Down
12. Volume/Select Dial
13. IR sensor
14. 1-6 Presets
15. USB Port
16. AUX Port
17. SD/MMC port
18. Reset
Remote Control
8
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Operating the Remote Control
Aim the remote at the IR sensor on the fascia. The maximum distance at which
signals can be received is approximately 6m.
Vol +
Power On/Off
Navigation Up
Stop/Playback
Enter
Navigation Left
Navigation Down
Mute
Tuning/Preset
Source Select
Vol -
Play/Pause
Next
Navigation Right
Skip Back
Menu
Mode
Band/Select
Auto Preset Scan/Repeat
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
Replacing the Batteries
Follow the 3 steps below:
• Remove the cover from the back of the remote.
• Insert a CR-2025 Lithium Battery observing the polarity marking.
• Replace the cover on the back of the remote.
9
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk

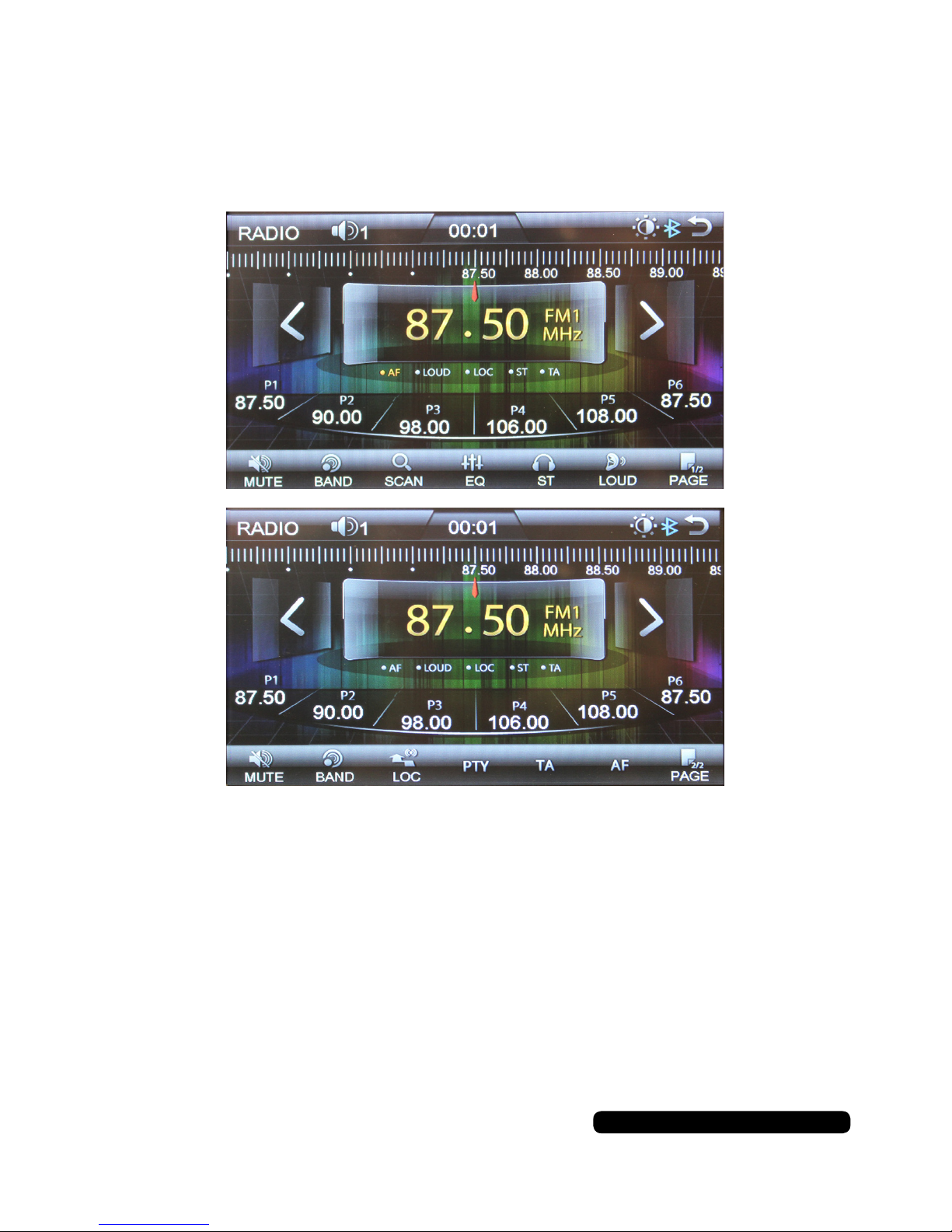

Radio Operation
Operating the Radio
When turning on the unit it will automatically go into radio mode unless a USB
stick or SD card has been inserted.
By pressing the PAGE button you will be able to cycle between the two available
option screens for the radio functions.
Functions that use RSS/RDS signal will be limited to FM band only.
To return to the main menu press the return arrow in the top right of the screen.
10
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Radio Operation
Choose Radio Band
Press the BND Button anytime to access the radio
function. The unit comes with five bands, three FM
Bands (FM1, FM2, and FM3) and two AM Bands
(AM1, and AM2). Each of the five bands can store
up to six preset stations, for a total of 30 preset
memory stations.
Radio Tune / Seek Function
In radio mode, press the “|<<” or “>>|” button for 2
seconds to automatically seek the next strong and
clear radio station. Press and hold the “|<<” or “>>|”
button until the screen shows MANUAL. At this time,
you can manually fine tune your desired frequency
by pressing “|<<” or “>>|”. Wait until the MANUAL
disappears in order to perform auto seek again.
Mono / Stereo Reception Control
In FM radio mode, Press “ST” button on the display
“ST ON” will show on the screen . This will allow
you to change between Mono and Stereo reception.
Save Your Preset Stations
There are six numbered preset buttons which
can store and recall stations for each band. While
listening to a radio station you would like to save
as a pre-set, press and hold one of the buttons
numbered 1-6 on the fascia until the preset station
number is shown. The button you pressed is now
the pre-set button for that station.
Automatic Scan & Store
While listening to the FM or AM Radio, press and
hold the F/PS Button for 4 seconds. The receiver
will automatically scan and save to the presets the
strongest radio station signals available to you in
your area.
Scan Saved Stations
Press the F/PS button once to perform the preset
scanning function. In FM or AM mode, press the F/
PS button and the stations stored in the FM band
preset will be scanned. The scan will pause on each
preset for 6 seconds before moving on to the next.
To stop and listen to a preset of your choice press
the SEL dial.
Local / DX
Press LOC Button on the display. When “LOC ON”
is shown on the display, this means local reception
is turned on. When “LOC OFF” is shown on the
display, this means distant reception is turned on.
Local and distance reception settings can facilitate
the radio reception, depending on the location in
which the radio is being used.
TA - (Traffic Announcement)
Press and hold the TA button so that the unit will
receive traffic announcement from local radio
stations.
To choose the TA mode, press the VOL dial for
2 seconds, the display will show “TA SEEK”.
Rotate the encoder volume to choose between
the TA SEEK and TA ALARM, after choosing,
please leave the unit idle for the mode to activate.
In TA SEEK mode, the unit will seek for traffic
announcement program when TA is pressed.
When in TA ALARM mode, no TA/TP is displayed
and the alarm is set off.
PTY - (Program Type)
This radio will allow you to select the type of
program required, and will search for a station
broadcasting that type of program. Press and
hold the PTY button once to show the music
type. Then press 1-6 button to choose the
different music types available.
Press the PTY button twice to show the speech
type program. Then press 1-6 button to choose
the different speech type program. Each number
key will show 3 different speech programs for you
to choose.
RDS Operation
This unit is equipped with the latest technology
of EON control, so that when you are listening
to Radio or other function, if there is any travel
announcement from a nearby local station, the
radio will already know the frequency of that radio
station. Then it will receive the station, turn up the
volume, or interrupt the playback of the music for
the duration of the announcement. At the end
of the announcement the radio will return to its
previous state ready for the next announcement.
11
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Main Menu

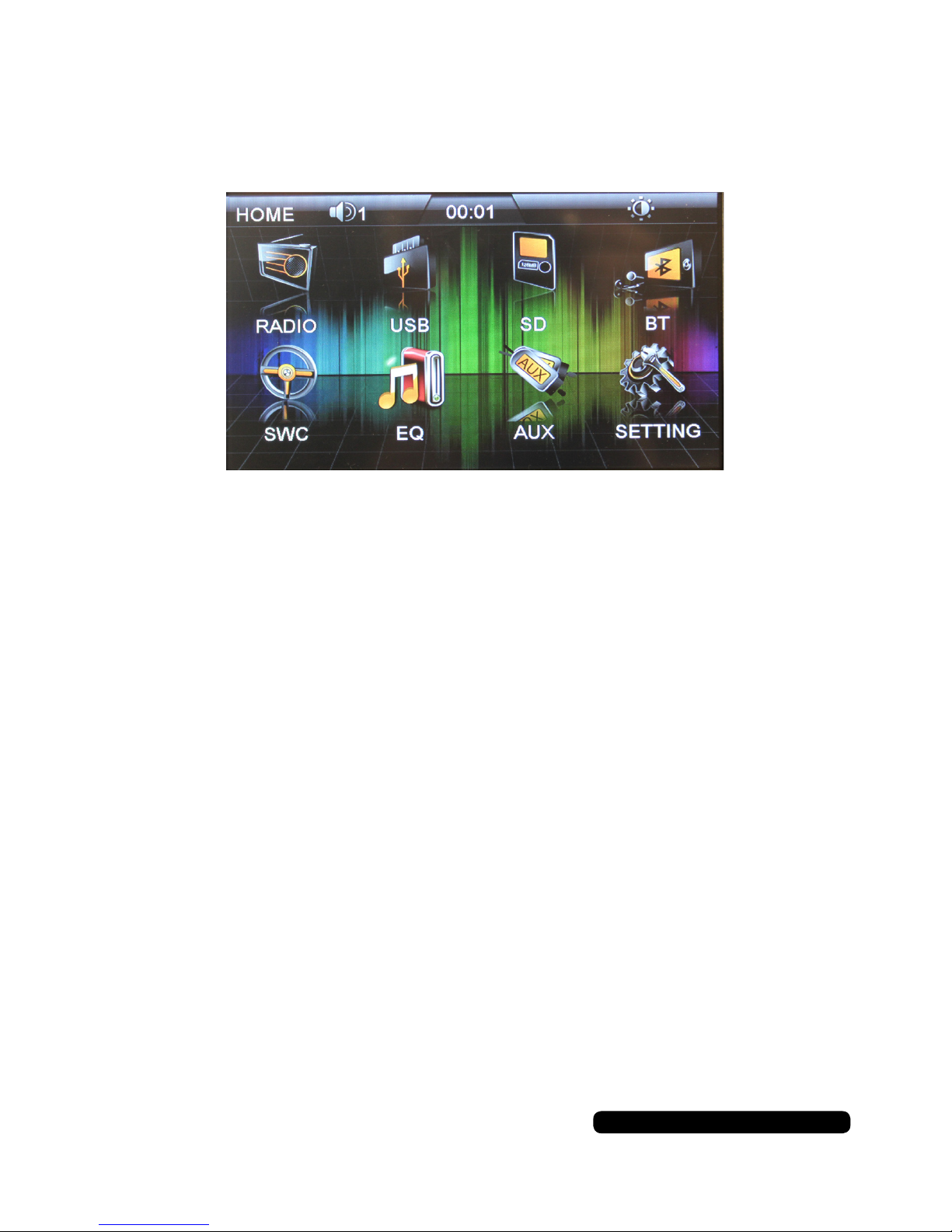

Home Screen
On the home screen you can select any of the 8 options listed.
The sun icon near the top right corner controls the brightness of the screen.
Press this to dim it in night mode. Press it again to turn the screen off. Press it a
third time to return it to day mode.
The time is displayed at the top in the middle.
The speaker Icon on the top left after the page description is the current volume
level.
12
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Bluetooth Operation
Pairing
The bluetooth function of this radio is always in standby mode ready for pairing
and connection, signalled by a flashing bluetooth icon on the screen.
Run the bluetooth search and connect function on your mobile phone. Find and
select “BT car stereo” on your mobile phone. If you are asked for a connection
password, please input “0000” on your mobile phone to finish the pairing. The
bluetooth icon on the display will be on indicating that the connection is established.
The bluetooth functions are ready to use.

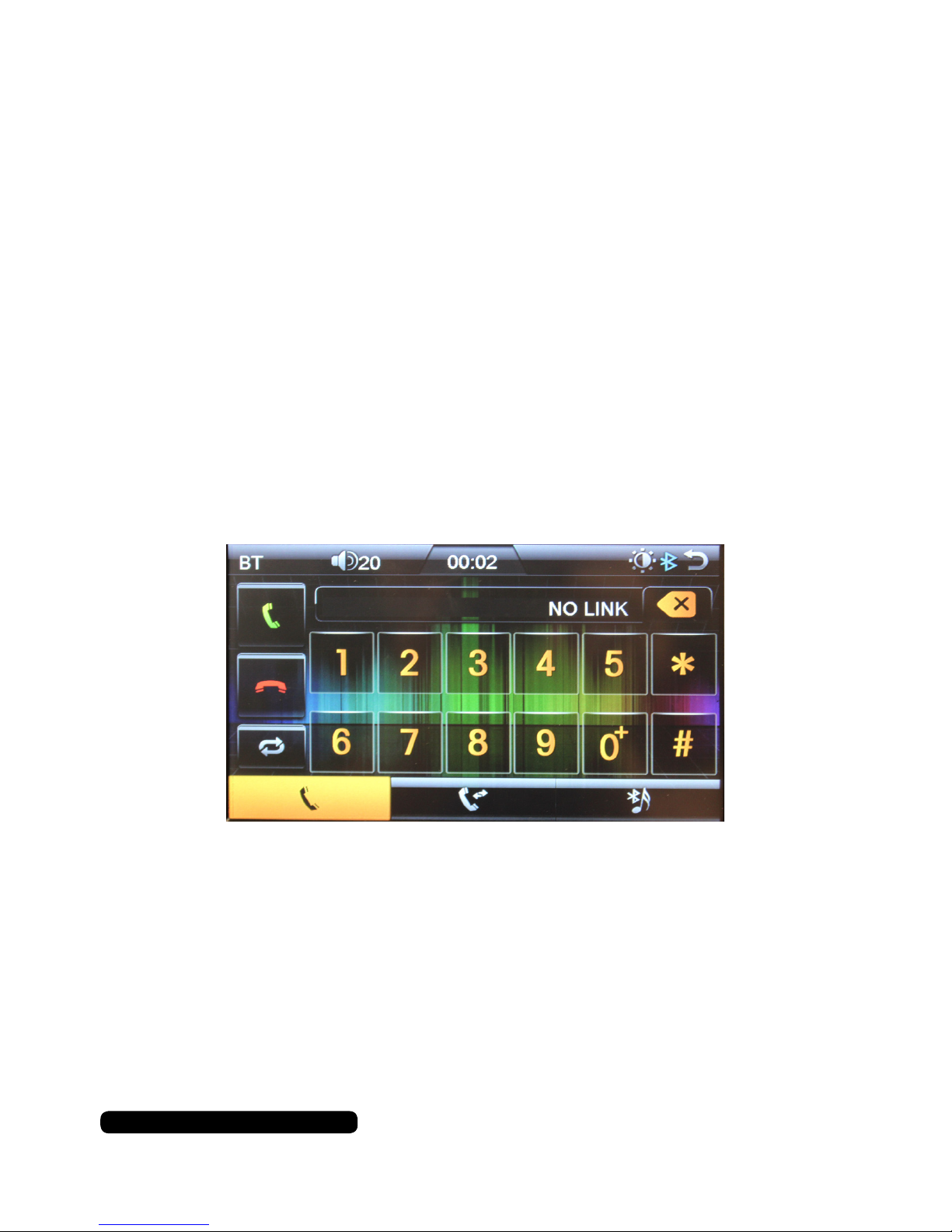

Bluetooth Call Function
When you press the Bluetooth option on the main screen you will see the call
dialing screen. If your phone is compatible you will be able to dial numbers straight
on to this screen. You can start/answer a call with the green phone icon or end/
reject a call with the red phone icon.
Any outgoing on incoming numbers will be displayed in the box above the numbers.
To return to the main menu press the return arrow in the top right of the screen.
13
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
Bluetooth Phone History
Press the middle button on the screen at the bottom of the page to access the call
history. You can see Dialed, Received and Missed calls.
You can select a number from the list a call back by pressing the green phone icon.
To return to the main menu press the return arrow in the top right of the screen.
Bluetooth Music
Once a device is connected you can start to play music from making the selection
from you phone. The bluetooth music screen will automatically show.
You can skip back, play/pause and skip forward from the touch screen or your
phone. No track information will be displayed.
To return to the previous menu press the return arrow in the top right of the screen.
Bluetooth Operation
14
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
USB/SD Operation
Playing Media
Insert either the SD card or USB stick into the relevant port the unit will start to
automatically play the first readable file.
If the media is music you will see the screen above.
If the media is a video you will see this warning if the vehicle is in motion or if the
parking cable has not been fitted correctly.
If the vehicle is not moving and the parking break has been engaged then you will
be able to view a video file on full screen mode.
15
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
USB/SD Operation
Navigate Files
To navigate all files on either SD Card or USB stick, press the Return button in the
top right corner on the screen on either the video screen or music screen.
You will see the ‘explorer’ screen.
The first of the three icons on the left is for filtering music files only.
The middle icon on the left is for filtering video files only.
The bottom icon on the left is for filtering photo files only.
Press on the Icons to either select a file or navigate through the folders. Pressing
the folder at the top of the list will allow you to view the previous folder unless you
are in the root directory.
Use the return button in the top right corner to go back to the main menu.
AUX Operations
16
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk
AUX Inputs
You can either connect a device through the 3.5mm port in the fascia for audio or
a device through the RCA connectors are the back for video and/or audio.
The screen will be blank if there is no video to display. To view the AUX options
press the screen anywhere and the screen above will appear.
Here you can turn on or off the Loudness, mute the audio or go back to the main
screen.
The screen with return to the video mode after a few seconds once the screen has
been pressed.
Please Note:
The RCA connectors are marked ‘AUX in’ please see ‘Wiring Connection’.
If you have a reverse camera set up this is where the camera will show if it doesn’t
automatically show when the reverse gear is engaged.
17
After Sales Support
UK/N.IRELAND HELPLINE NO:
REP.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508538
1800 995 036
www.quesh.co.uk

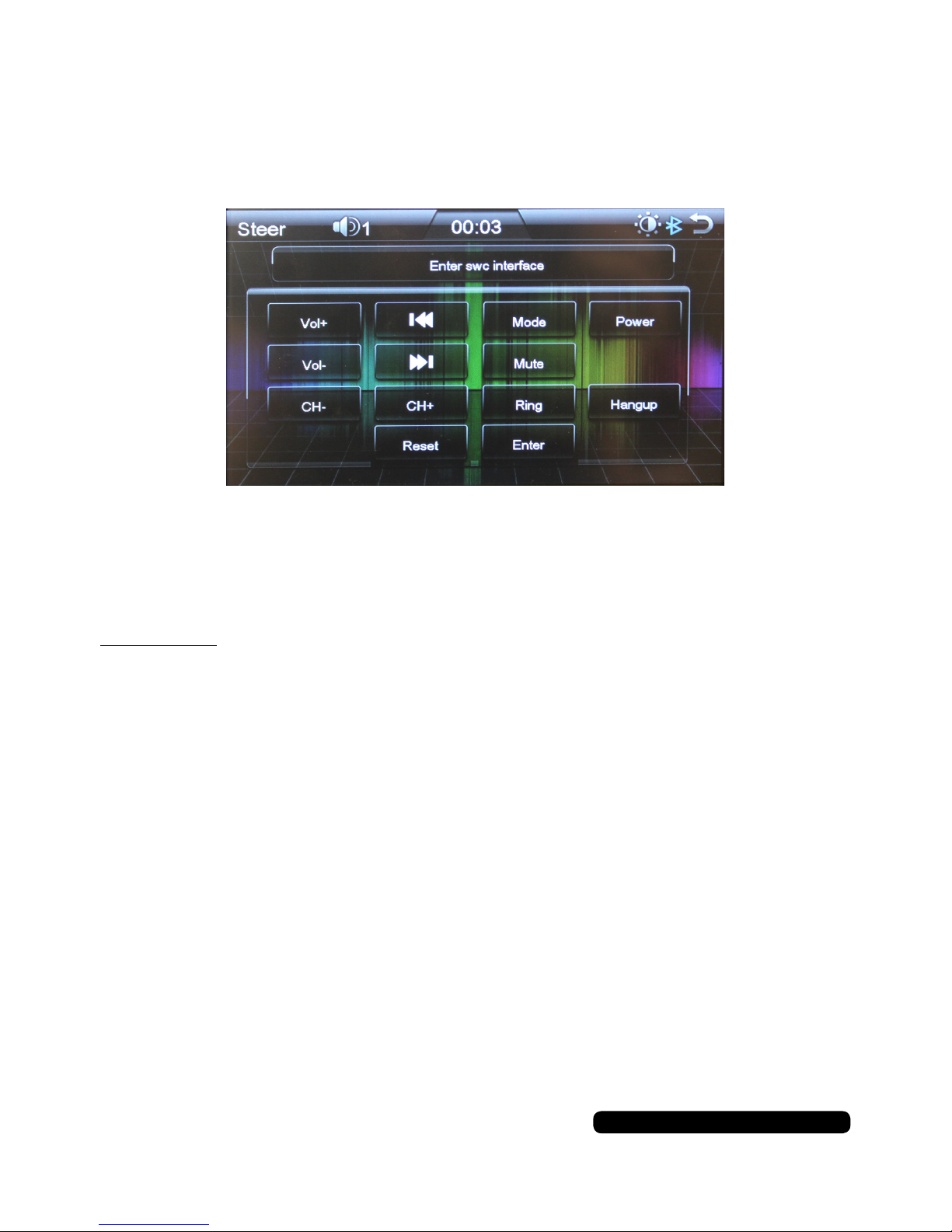

SWC (Steering Wheel Control)
SWC Inputs
If the three steering wheel cable have been correctly wired to an adaptor you will
be able to configure your controls through the SWC option on the main screen.
Select an option to program. Press the corresponding button on your steering
wheel control and press ‘Enter’ on the screen to confirm.
Press ‘Reset’ to reprogram the controls.
Please Note:
You will require an after market steering wheel control adaptor to use this function.
Table of contents
Other MAXTEK Car Video System manuals
