MF800 OPERATION MANUAL

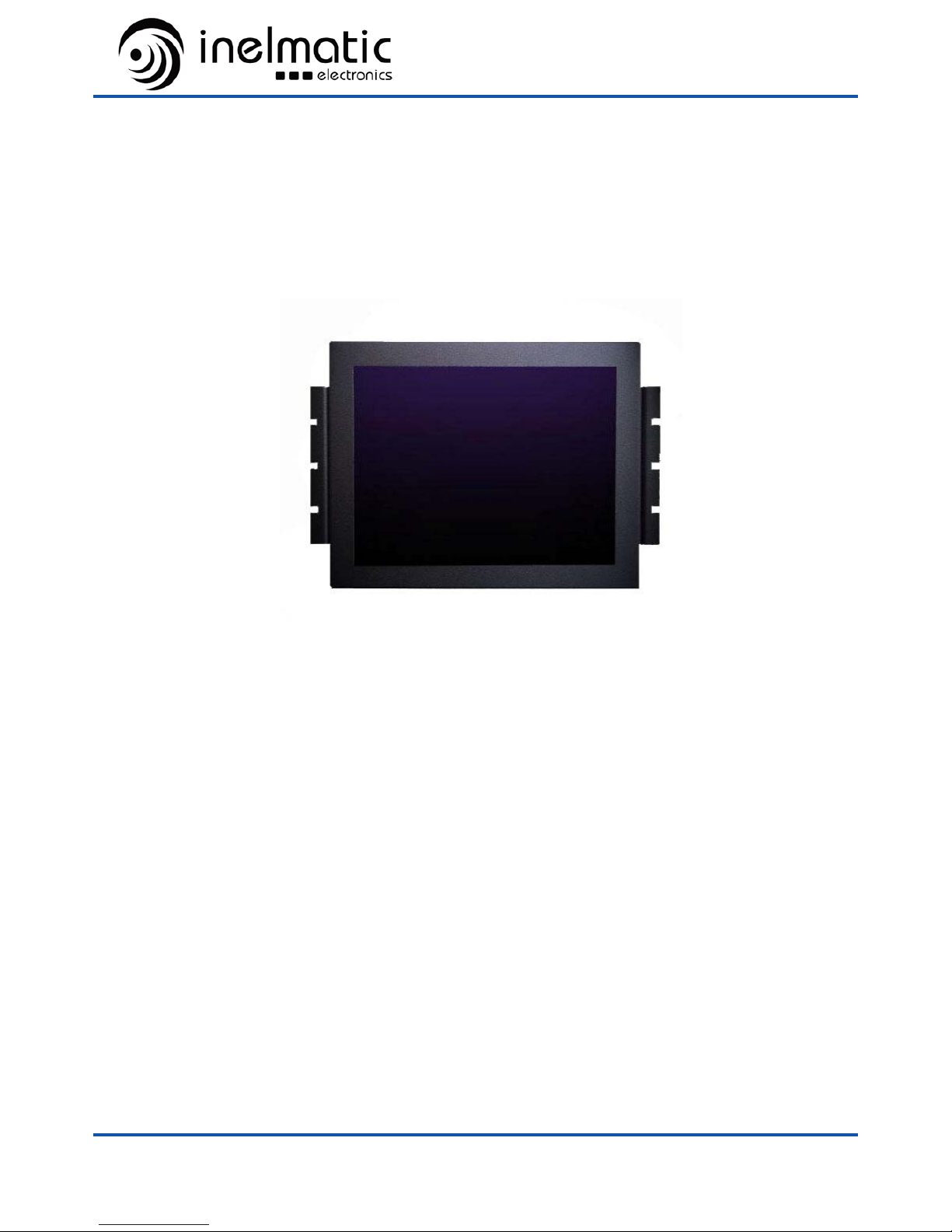

High Brightness 8 inch MetalFrame Monitor

MF800 OPERATION MANUA
L
Safety precautions
In this manual, symbols are used to highlight warnings and
cautions for you to read so that accidents can be prevented.
The meanings of these symbols are as follows:
This symbol indicates explanations about
extremely dangerous matters. If users ig-
nore this symbol and handle the device the
wrong way, serious injury or death could re-
sult.
This symbol indicates explanations about
dangerous matters. If users ignore this
symbol and handle the device the wrong
way, bodily injury and damage to the equip-
ment could result.
Please observe the following safety tips and precautions
to ensure hazard-free use of the equipement.
Disclaimer
We shall not be liable for any error or for incidental or conse-
quential damages in connection with the furnishing, perfor-
mance, or use of this documentation or the examples herein.
1. This equipment should not be submerged on water
or other liquids.
2. Do not cover crash or press the display area.
3. Do not attempt to remove the cover of this equip-
ment.Any visible attempting of removing will exempt
any manufacturer responsability.
4. If any of the following situations arises, have the
equipment checked by an authorized service person-
nel:
Any connector is damaged.
The cable/cord is damaged.
The equipment has obvious sign of breakage.
Environment
To prevent the risk of fire, electric shock or malfunction,
avoid using your equipement in environments where it will
be exposed to:
• Extreme temperatures, over the operation range.
• Heat sources such as radiators or stoves.
• High humidity or moisture.
• Excessive dust or sand.
Handling
• Do not place naked flame sources, such as lighted candles, on
the device.
• Do not exert undue pressure on the keys and other
controls. Also take care not to drop the unit, and do not
subject it to shock or excessive pressure.
• Dont overpress the LCD or touch panel, it would da-
mage one or either components.
Cleaning
Use a soft, dry cloth to clean the chassis and
LCD/Touch surface. If necessary, slightly moisten
the cloth. Adecuated LCD liquid cleaner might be
used to remove dust and finger prints.
Connection
Don´t connect the unit to over the maximum vol-
tage ratings, it will damage the unit and harm to
the user.
The device is fully protected and ready to be connected to
9-30V DC power.
Security usage
Don´t operate the device while driving. In several coun-
tries, it´s forbidden to opperate any visual device, either
forbidden to visualize any content except GPS or similar
guidance utility. The manufacturer isn´t responsible or any
harm caused by the unsecure use of our devices while
driving.
Please keep this manual in a convenient
place for future reference.

MF800 OPERATION MANUA
L
Contents
1 ................................... Introduction ............................................. Pag 1
2 ................................... Specification ........................................... Pag 1
3 ................................... Installation .............................................. Pag 2
3.1 Connection ........................................ Pag 2
3.2 Power on ........................................... Pag 4
4 ................................... Adjusting ................................................ Pag 4
4.1 Keyboard ........................................... Pag 4
4.2 OSD(On Screen Display) .................. Pag 5
4.3 Basic settings .................................... Pag 6
4.4 Advanced Settings ............................ Pag 7
5 ................................... Dimensions ............................................ Pag 8
6 ................................... Packing .................................................. Pag 9
7 ................................... Certifications .......................................... Pag 10

MF800 OPERATION MANUA
L
Page 1
1. Introduction
The XF series provides the best interactive HMI solution for any embedded application. The XF
series is specially designed to meet harsh environment such as sustaining extreme shock and
vibration. By introducing some key features, such as using “all in one” lockable cable, and simple
OSD interface for easy and convenience usage, including a dimmer shortcut key and autodimmer
features.
2. Specifications
Size 8 inches
Aspect 4:3
Colors 256k
Native resolution 800x600px
VGAmodes 640x480 to 1920x1440px (incl. 800x600px)
Contrast 500:1
Inputs VGA/DVI/HDMI, 2x Composite Video optional
Audio No Audio
Touch Panel Resistive 4 wires USB/RS232, protecting glass optional
Power supply 6-36VDC automotive car/truck suitable.
Power consumption Normal 6W, HB 8W
Dimensions 197.8x157.3x33.45mm
Weight 1000gr
Enclosure Metal folding
Operation temperature. -35ºC to 70ºC max (-20ºC to 60ºC continuous)
Storage temperature. -40ºC to 85ºC
Vibrations 1G 2-500Hz
Shock 20G 11ms
Drop 10cm max.

MF800 OPERATION MANUA
L
Page 2
3. Installation
3.1 Connection.
Power suppy: main power supply. Connect this line to 10A fused vehicle’s power battery.
VGA input: computer or any device with VGA input.
USB Touch: touch controller HMI USB client.
Audio input R: Audio input Right chanel.
Audio input L: Audio input Left chanel.
Video input AV1: Composite Video input 1.
CCD Input: Composite Video input with*auto-switch and * auto-start feature.
Auto-switch: the monitor will automatically switch to the CCD input when composite Video
signal is present on CCD input. The monitor will return to the previous input once the signal isn't
present.
Auto-start: the monitor will automatically power on and switch to CCD input when signal is
present. The monitor will turn to power-off automatically when the signal isn't present.

MF800 OPERATION MANUA
L
Page 3

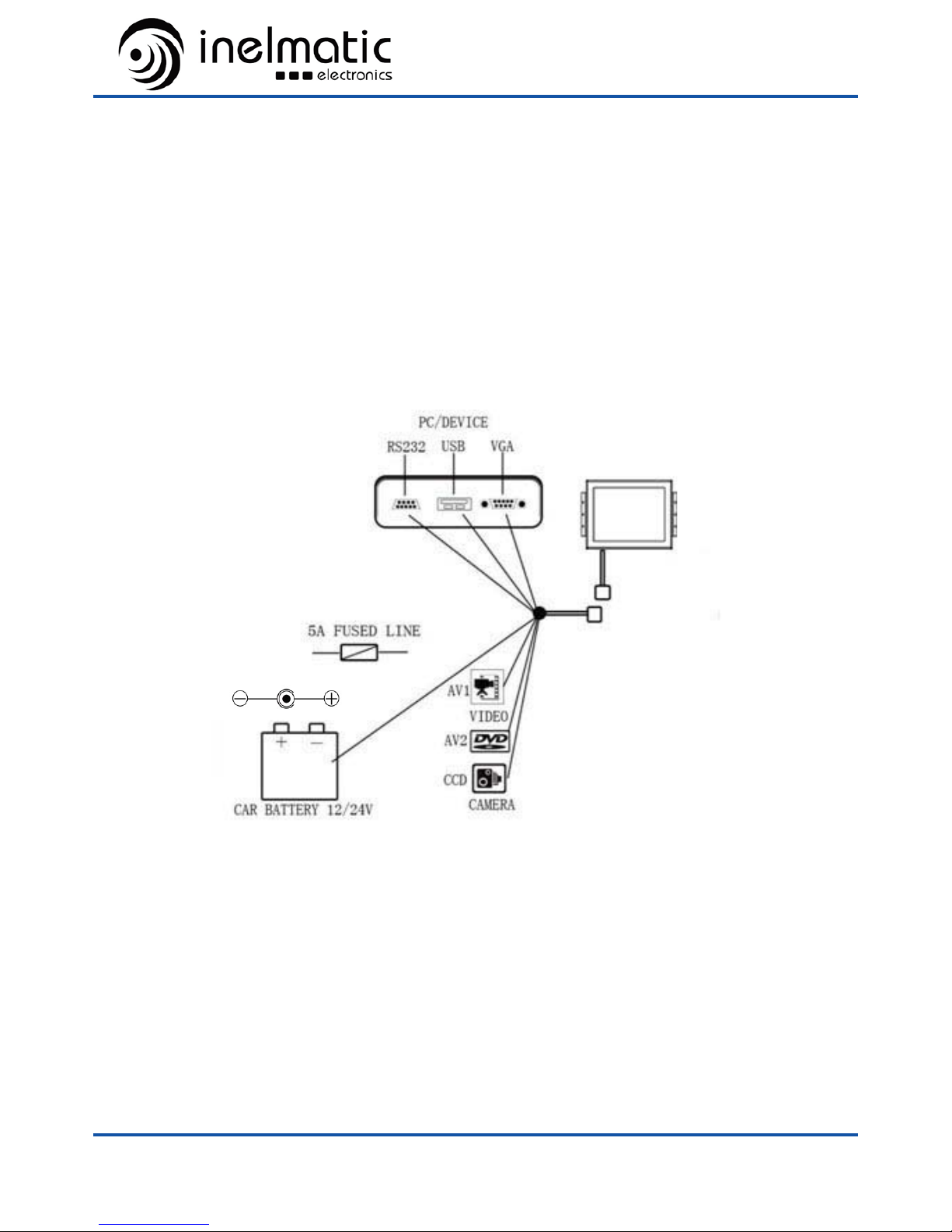

Typical connection:

MF800 OPERATION MANUA
L
Page 4
3.2 Power on.
Please verify the polarity of the power supply and connections before power on the unit.
After connect the power supply, there are different ways to power on the monitor:
1. Connect the VGAto any VGA source.
2. Connect the Rear camera input to a CVBS source.
3. Press the power on button until the monitor power on.
4. Adjusting

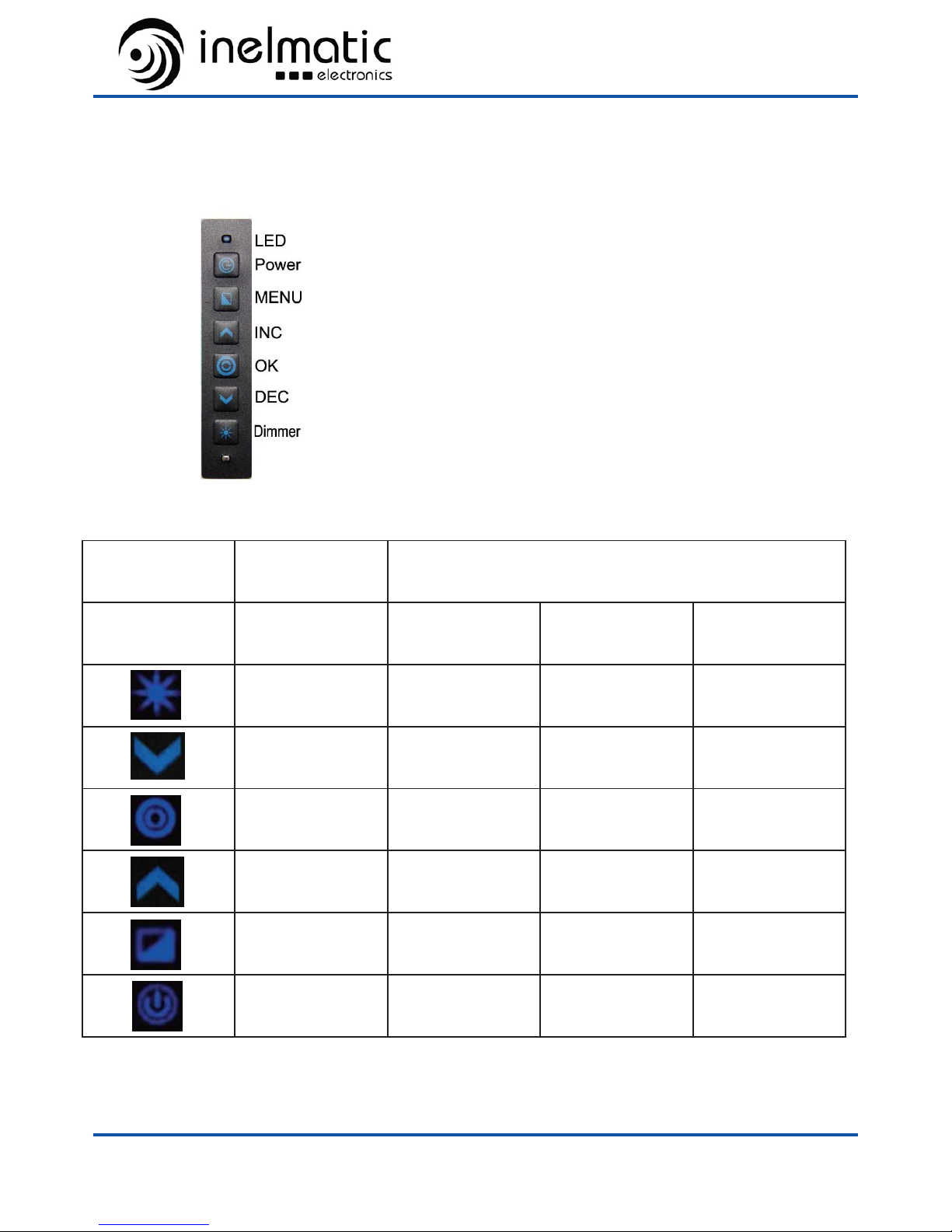

4.1 Keyboard.
1. Power on key.
2. Show OSD window.
3. Increase Volume/OSD Parameter.
4. Source switching.
5. Decrease Volume/OSD Parameter.
6. Dimmer.
7. Power on Indicator/LED.

MF800 OPERATION MANUA
L
Page 5
4.2 OSD (On Screen Display).
Function
Name Powered off
Powered on
Shortcut
Powered on
Menu opened
Dimmer 2s press, switch
to Auto-Dimmer
Roll parameter
Dec Volume Dec
Dec Value
OK
Power on and
roll source
Roll Source
-
*Inc Volume Inc
Inc Value /
Accept
Menu Open OSD
Return / Close
Menu
Power Power on Power Off Power Off

MF800 OPERATION MANUA
L
Page 6
4.3.Basic Settings

MF800 OPERATION MANUA
L
Page 7

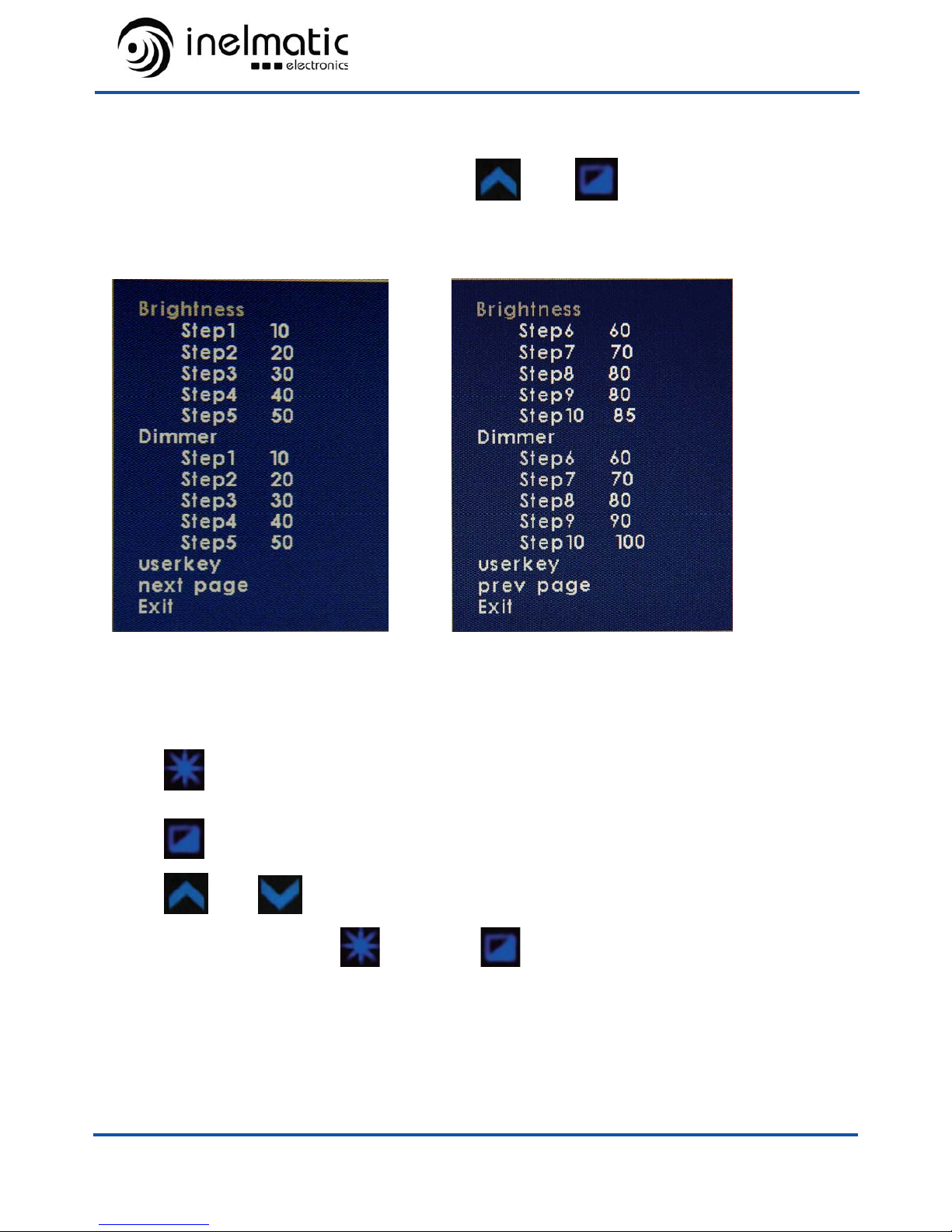

4.4. Advanced Settings.
To enter in advanced mode, press and simultaneously.
4.4.1. Dimmer options.
The dimmer option allows to configure the values of brightness and backlight
intensity for each step:
1. Use to select the desired parameter.
2. Use to enter in edit mode.
3. Use and to adjust from 0 to 100.
4. To exit, roll to Exit using and press , the settings are automatically stored.

MF800 OPERATION MANUA
L
Page 8

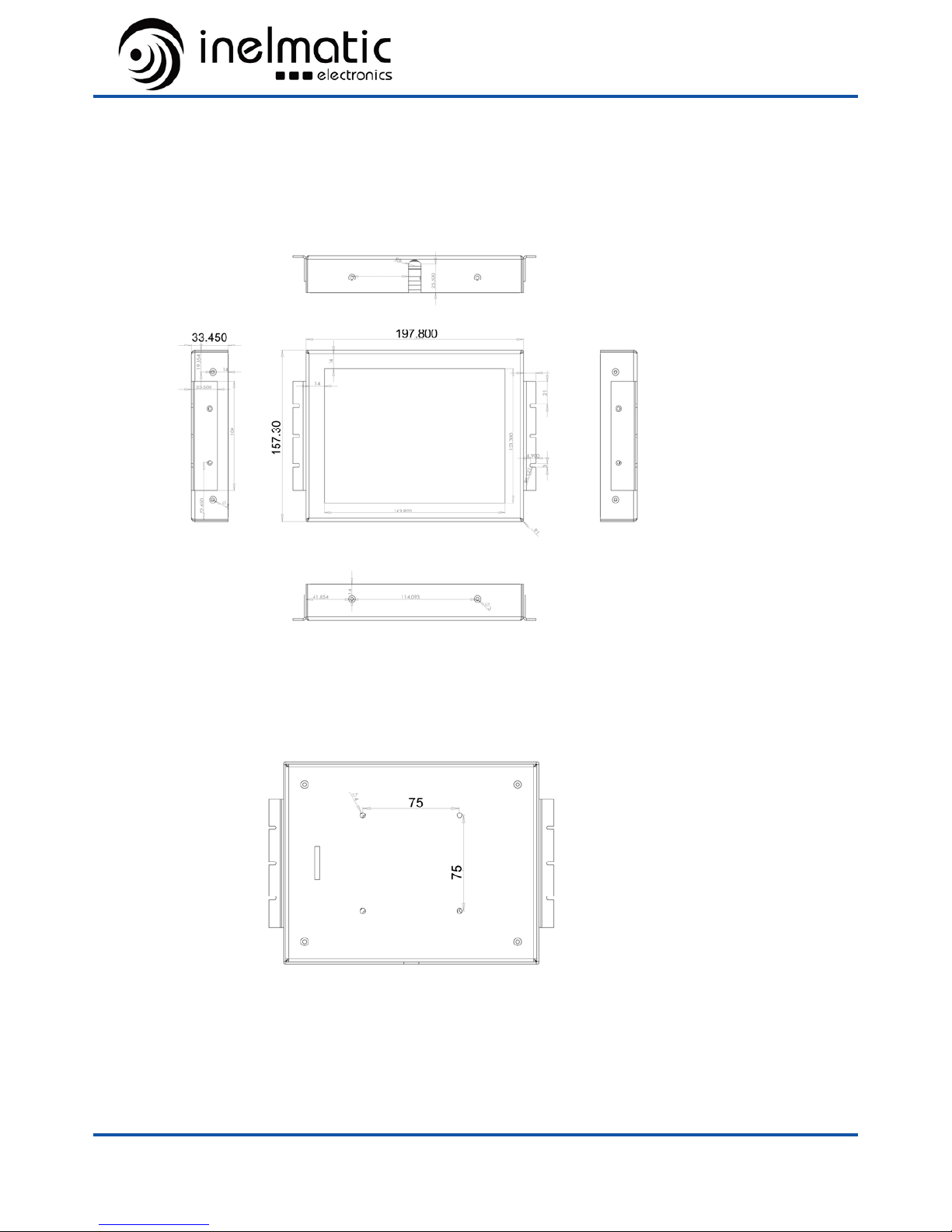

5. Dimmensions
5.1 Front/profile.
5.2 Rear

MF800 OPERATION MANUA
L
Page 9

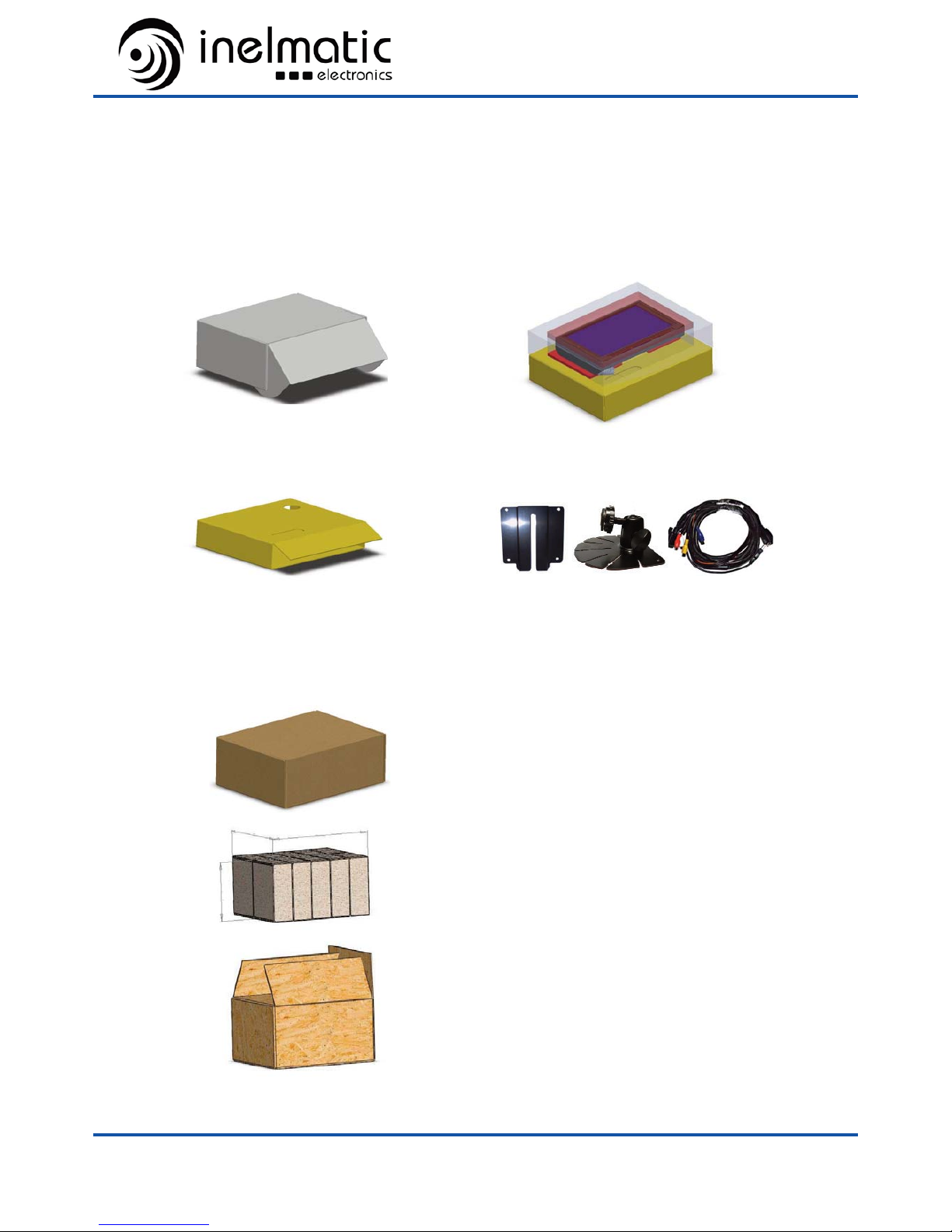

6. Packing
6.1 Box unpacking
Accessories
6.2 Carton packing
BOX SIZE: 26X19X10CM
QTY/CTN: 1 UNITS
G.W/CTN(kgs):1.86 (2.5-meter-cable)
2.04 (4.5-meter-cable)
N.W/CTN(kgs): 1.4 (2.5-meter-cable)
1.58 (4.5-meter-cable)
BOX SIZE: 26X19X10CM
Q’TY/CTN: 10 UNITS
CTN SIZE: 53X42X30CM
G.W/CTN(kgs):18.7( 2.5-meter-cable)
21.5 (4.5-meter-cable)
N.W/CTN(kgs):18.6 (2.5-meter-cable)
20.4 (4.5-meter-cable)

Page 10
MF800 OPERATION MANUAL
7.Certifications:
European Community Declaration of Conformity:
General CE conformity 1999/5/EC.
EMC 89/336/EEC Electromagnetic Compatibility of Information Technology Equipment.
EN61000-3-2:2000+A1
EN61000-3-3:1995+A1
EN55024:1998+A1+A2
EN55022:1998+A1+A2 Class B
Automotive devices, 95/54/EC / 72/245/EC last amend 2006/28/EC.
ISO 10605, "Road vehicles, Test methods for electrical disturbances from electrostatic
discharge"
ISO 7637, "Road vehicles, Electrical disturbances from conduction and coupling”.
RoHS
This product is in compliance with the European Union Directive 2002/95/EC on the
restriction of use of certain hazardous substances (“RoHS Directive”). Based on
information provided by our suppliers, we designate the product as RoHS compliant.
Confirmation of compliance status by our suppliers is either because the products do not
contain any of the restricted substances referred to in the European Union Commission
Decision of August, 18, 2005 (2005/618/EC) in connection with Articles 4 and 5 of the
RoHS Directive in concentrations in excess of the values permitted thereunder or
because removal of the restricted substances is not technically possible and their
existence in the products at levels in excess of these concentrations is allowed as one of
the particular applications listed in the Annex to the RoHS Directive.
WEEE
This appliance is labelled in accordance with European Directive 2002/96/EC concerning
waste electrical and electronic equipment (WEEE). The Directive determines the
framework for the return and recycling of used appliances as applicable throughout the
European Union. This label is applied to various products to indicate that the product is
not to be thrown away, but rather reclaimed upon end of life per this Directive
Environment:
Vibrations MIL-STD 810F 514.5.
Shock MIL-STD-810F 516.5.
IP65 according to IEC-529
Temperature MIL-STD-810F Method 501.4, 502.4
