Inepro Spider Desktop User manual

© 2020 Inepro B.V. All rights reserved
Technical Manual | Spider Reader
Spider Reader

Spider Reader
Congratulations on your selection of the Inepro Spider Reader. We are certain you will
be pleased with your purchase of one of the flexibele solutions of the market.
We want to help you get the best result from your Spider Reader. This manual contains
information on how to do that; please read it carefully. Due to continuous product
improvements this manual is subject to changes without notice.
We strongly recommend you read the license agreement to fully understand its
coverage and your responsibilities of ownership.
Your Inepro dealer is dedicated to your satisfaction and will be pleased to answer your
questions and your concerns.
Best wishes,
Inepro BV.
The most versatile card reader solution

All rights reserved. No parts of this work may be reproduced in any form or by any means - graphic, electronic, or mechanical,
including photocopying, recording, taping, or information storage and retrieval systems - without the written permission of the
publisher.
Products that are referred to in this document may be either trademarks and/or registered trademarks of the respective owners.
The publisher and the author make no claim to these trademarks.
While every precaution has been taken in the preparation of this document, the publisher and the author assume no responsibility
for errors or omissions, or for damages resulting from the use of information contained in this document or from the use of
programs and source code that may accompany it. In no event shall the publisher and the author be liable for any loss of profit or
any other commercial damage caused or alleged to have been caused directly or indirectly by this document.
Revision number R 5. This revision of the manual can be applied to products with version 1.0 or higher.
Publisher
Managing Editor
Technical Editors
Cover Design
Inepro B.V.
K. de Graaf
K. de Graaf
K. de Graaf
Production
Inepro B.V.
Team Coordinator
R. Groen
H. Wagenaar
Spider Reader

http://www.inepro.com
Table of Contents
Introduction 1
Requirements 3
Components 5
Test 7
........................................................................................................................................................ 8Software
1
........................................................................................................................................................ 9Hardware
2
User Interface 11
........................................................................................................................................................ 12LED's
1
Technical Specifications 13
Troubleshooting 15

ATTENTION!!
Read this manual carefully before installing the Spider Reader!
Guarentee
Security
No guarantee can be given if safety regulations are not followed.
Always disconnect the power supply before handling anything inside the device.
Directives
I
This dev ice may only be used indoors.
For Indoor Use Only
Changes and/or modifications
Changes and/or modfications whch have not been approved by the responsible party can void the user's
authorty to operate the equitement.
This dev ice is complies w ith part 15 of the F C C rules, operation is subject to tw o conditions:
(1) This dev ice may not cause harmful interference.
(2) This dev ice must accept any interference receiv ed, includng interference that may cause undesired operation.
FCC Feder al C ommunications C ommission - US
This dev ice is in conformity w ith the EM C directiv e and low -v oltage directiv e.
CE Confor mité Eur opeéne ( Confor m European Nor m)
A ppareil concernés:
Spider
Le présent appareil est conforme aux C N R
d’Industrie C anada applicables aux appareils radio
exempts de licence.
L’exploitation est autorisée aux deux conditions
suiv antes :
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le
fonctionnement.
Confor mité d’Industr ie Canada
Relev ant Dev ices:
Spider
This dev ice complies w ith Industry C anada’s
licence-exempt RS S s. O peration is subject to the
follow ing tw o conditions:
(1) This dev ice may not cause interference; and
(2) This dev ice must accept any interference, including
interference that may cause undesired operation of the
dev ice.
Confirm Canada Industr ies
End of life dir ectives
Inepro is pay ing a lot of attention to env ironmentally -friendly production. Your new dev ice contain materials w hich can be recy cled and
reused. A t the end of its life specialised companies can dismantle the discarded dev ice to recy cle the reusable materials and to minimise the
amount of materials to be disposed of. P lease observ e the local regulations regarding the disposal of packaging materials, exhausted batteries
and old requipment.
This dev ice is in conformity w ith A ustralian law .
RCM Regulatory C ompliance Mar k

I
Introduction
Part

Introduction
2 - Spider Reader
Introduction
In this manual you find the instructions to install and configure your Spider. This manual is meant for all the Inepro Spider
Readers.
This manual, the Spider Reader hardware and software are subject to change, make sure you have the latest version of this
manual, because the older versions may have become obsolete.
Function
The purpose of the Spider Reader is to read the unique ID contained in the card that is presented to the reader and transfer this
ID to a server. In most cases this data will be the card serial number. To facilitate this a variety of card reader software modules
have been developed. Our configuration tool will enable you to change the settings on the Spider Reader board.
Our reader can read Bluetooth Low Energy, 125KHz and 13,56 MHz Tags.
FCC Certified
Caution! Changes or modifications not expressly approved by INEPRO B.V. could void the user’s authority to operate the
equipment.
Note:
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense

II
Requirements
Part

Requirements
4 - Spider Reader
Requirements
The Spider Reader has no known requirements other than a USB host that can read a keyboard-like Human Interface Device

III
Components
Part

Components
6 - Spider Reader
Components

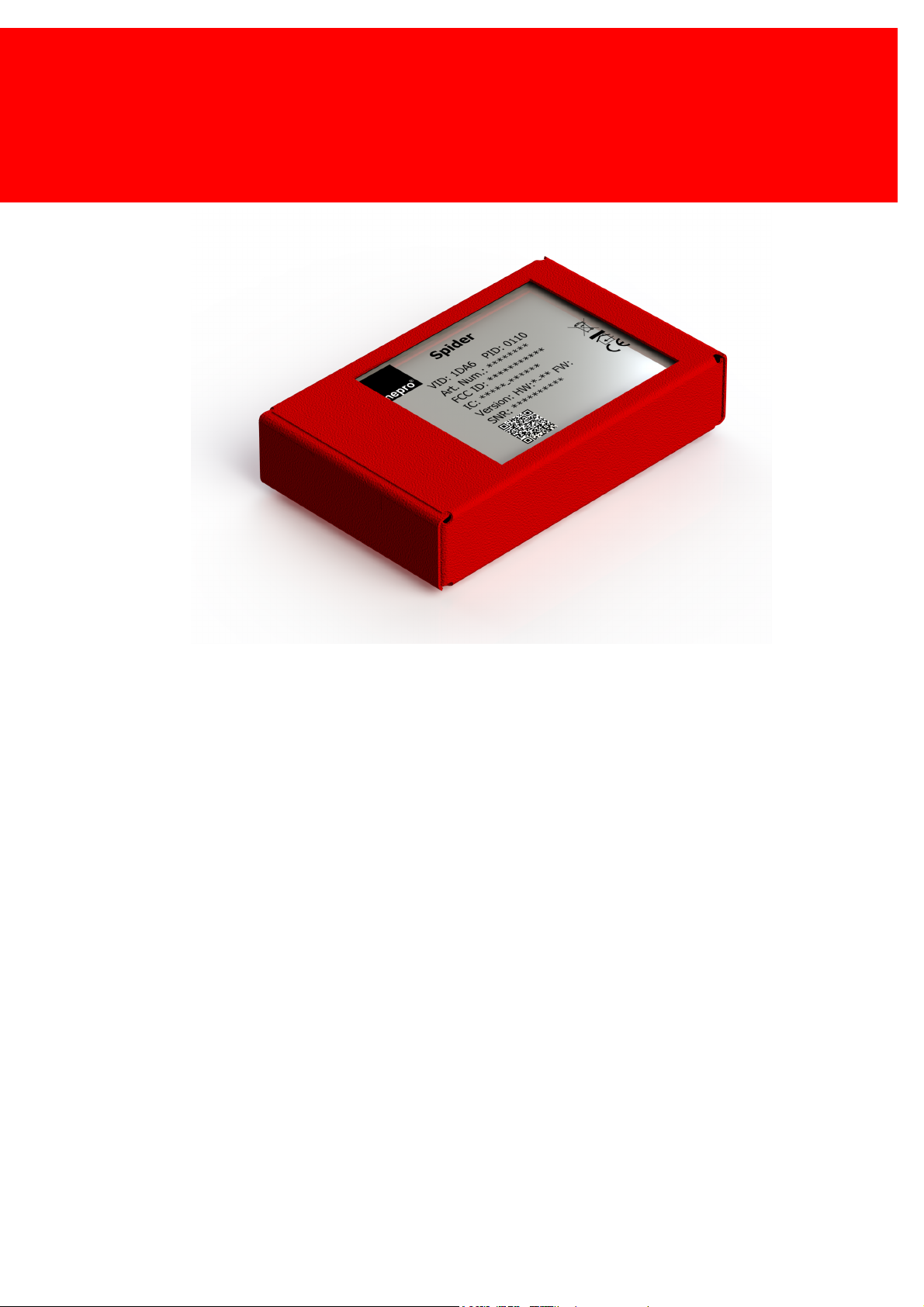

§ P551087 - Spider Cardboard box
§ 200000 - Spider Reader
§ Spider Core Housing Top
§ Spider Antenna Board I
§ Spider Antenna Board II
§ Spider Core Housing Bottom
§ P120647 - External Spider Braille RFID Foil
§ P551364 - Spider Serial Stickers | Desktop sticker | EDP Sticker | 2x QR Serial sticker
Check Components
Please check if all the components are in the set before you continue with the installation and set-up.
Some parts may already have been pre-assembled

IV
Test
Part

Test
8 - Spider Reader
Software
For the Spider there is are tools available each with its specific features. Connect the Spider to a computer or laptop and present
a card to the reader. Please note that the reader needs to have the HID RAW Configuration. (See Inepro SCR-MCR-DCR RFID
Programmer Tool Full Version manual for more details).
Inepro SCR-MCR-DCR Programmer
With this tool it is possible to change the behaviour of the card reader, by creating or editing it's configuration file. For example it
is possible to change the read out of the RFID card but also the LEDs can be switched off or the volume of the beeper can be
changed. Once finished it is possible to store the created settings in a special config file which can be programmed via the SCR-
MCR-DCR RFID Programmer Tool. For more information regarding this SCR-MCR-DCR RFID Programmer Tool please consult it's
user manual. This tool was developed for the predecessors of the Spider Reader. Specific Spider Reader tools might be created
in a later stage.
Quick-Test with the Notepad:
1. Connect to Inepro Spider Reader to the USB PC or laptop.
2. Start a Text Editor application on Windows, such as Word or Notepad.
3. Present a card to the Inepro Spider Reader.
4. Remove the card from the Inepro Spider Reader.
5. The data read should be displayed in the Text Editor.
This concludes the hardware test

Hardware
Version 1.0.5 - 9
Hardware
Physical test Inepro Spider Reader
1. Connect the Inepro Spider Reader to the USB port of a computer.
2. Check the indicator LED's to see if the board is operating as it should.
Blue Led burning:
Reader is powered and has connection
Put a card on the Spider:
Besides the blue power LED, the yellow
and the green LED should lit.
Yellow: card detected
Green: card recognised.
This concludes the hardware test

V
User Interface
Part

User Interface
12 - Spider Reader
LED's
On the USB interface board are a number of LED’s. Each of the LED's has a label, explaining their use.
See the table below
Function
Standby /
Normal
Triggered /
Not OK
Card is not
recognized
Off
On
Card in
detection field
Off
On
Card
Recognized
Off
On
Reader is on
and connected
On
Flashes
(no connection)
