Inepro 276001 User manual

© 2014 Inepro B.V. All rights reserved
Technical Manual | USB Card Reader (Desktop & MFP)
USB Card Reader
(Desktop & MFP)
Product Version: Mk. II
Version of this manual: 3.0.3

USB Card Reader (Desktop & MFP)
Congratulations on your selection of Inepro card readers. We are certain you will be
pleased with your purchase of one of the flexibele solutions of the market.
We want to help you get the best result from your Inepro Back Office Suite. This manual
contains information on how to do that; please read it carefully. Due to continuous
product improvements this manual is subject to changes without notice.
We strongly recommend you read the license agreement to fully understand its coverage
and your responsibilities of ownership.
Your Inepro dealer is dedicated to your satisfaction and will be pleased to answer your
questions and your concerns.
Best wishes,
Inepro BV.
The most versatile card reader solution

All rights reserved. No parts of this work may be reproduced in any form or by any means -
graphic, electronic, or mechanical, including photocopying, recording, taping, or information
storage and retrieval systems - without the written permission of the publisher.
Products that are referred to in this document may be either trademarks and/or registered
trademarks of the respective owners. The publisher and the author make no claim to these
trademarks.
While every precaution has been taken in the preparation of this document, the publisher and
the author assume no responsibility for errors or omissions, or for damages resulting from the
use of information contained in this document or from the use of programs and source code that
may accompany it. In no event shall the publisher and the author be liable for any loss of profit
or any other commercial damage caused or alleged to have been caused directly or indirectly by
this document.
Version 3.0.3 created: October 2014 in Nieuw-Vennep.
Publisher
Managing Editor
Technical Editors
Cover Design
Inepro B.V.
K. de Graaf
P. Blom
K. de Graaf
Production
Inepro B.V.
Team Coordinator
R. Groen
H. Wagenaar
R. de Koker
USB Card Reader (Desktop & MFP)

Table of Contents
Introduction 2
Inepro USB Reader Component List 4
Operation 8
Inepro Card Reader Tools 10
......................................................................................... 12Change the Configuration of the reader
......................................................................................... 15Inepro Reader Software
......................................................................................... 19Default card Read out
......................................................................................... 21Concept Summery
Software Test 23
Hardware Test 27
Appendix I 29
Notes 31

ATTENTION!!
Read this manual carefully before installing the IP Reader!
Mains connection
Guarentee
Security
Before connecting the appliance to the mains, check that the mains supply voltage corresponds
to the voltage printed on the type plate of the adapter. If the mains voltage is different, consult
your supplier.
No guarantee can be given if safety regulations are not followed.
Always disconnect the power supply before handling anything inside the device.
This device is in conformity with the EMC directive and low-voltage directive.
CE Conformité Europeène (Conform European Norm)
End of life directives
Inepro is paying a lot of attention to environmentally-friendly production. Your new device contain
materials which can be recycled and reused. At the end of its life specialised companies can
dismantle the discarded device to recycle the reusable materials and to minimise the amount of
materials to be disposed of. Please observe the local regulations regarding the disposal of
packaging materials, exhausted batteries and old equipment.
This device may only be used indoors.
Indoor User Only
Directives
Version 3.0.3 - I

I
Introduction
Part

Introduction
Version 3.0.3 - 2
Introduction
The Inepro USB (Universal Serial Bus) card reader consists of a
USB interface controller board with a proximity card reader. The
controller board is programmed with software to read out the UID
(Unique ID) of the proximity card. By default the card reader reads
out the CSN (Card Serial Number) of the proximity card.
Please note that the firmware version programmed in the controller
board is depending on the proximity card technology and, if
needed, customized read out of the UID of the user card.
When a user card is presented to the reader the host device
receives the data as a keyboard input in hex format.
The Inepro USB Card Reader has an unique vendor and a
application ID. The vendor ID of Inepro = 0x1DA6, the application
ID = 0x0110. For each Inepro USB Card Reader the same
vendor/application ID is used (regardless of the used Inepro USB
card reader). At the connection procedure the software version of
the Inepro USB Card Reader is send to the host device.
Supported Proximity Card Technologies
USB Communication
The Inepro USB card readers supports the USB 2.0 protocol as a
Human Interface Device (HID)

II
Inepro USB Reader Component List
Part

Inepro USB Reader Component List
Version 3.0.3 - 4
Inepro USB Card Reader Component List
The Inepro USB card reader comes in four version, the desktop
and the MFP version in the colours grey and red. The MFP version
is meant to be mounted on the side of an MFP machine, the
desktop version for use on a flat service or installment inside the
MFP.
Inepro Desktop USB Card Reader (Grey) Kit Content 276001
(or Red 276003)
The Inepro Desktop USB Card Reader Kit consist of the following
items:

5 - USB Card Reader (Desktop & MFP)
1. Desktop USB Card Reader Kit
§1x Multi ISO Reader Desktop (Grey 276001, Red 276003)
§2x Double-sided adhesive tape (for attachment of the USB
controller to the MFD (Multi Functional Device))
§1x Manual Leaflet (P551211)
§1x Serial Stickers (P551360)
§2x Cable Duct (PS8650)
Inepro MFP USB Card Reader (Grey) Kit Content 276000
(or Red 276002)
The Inepro MFP USB Card Reader Kit consist of the following
items:

Inepro USB Reader Component List
Version 3.0.3 - 6

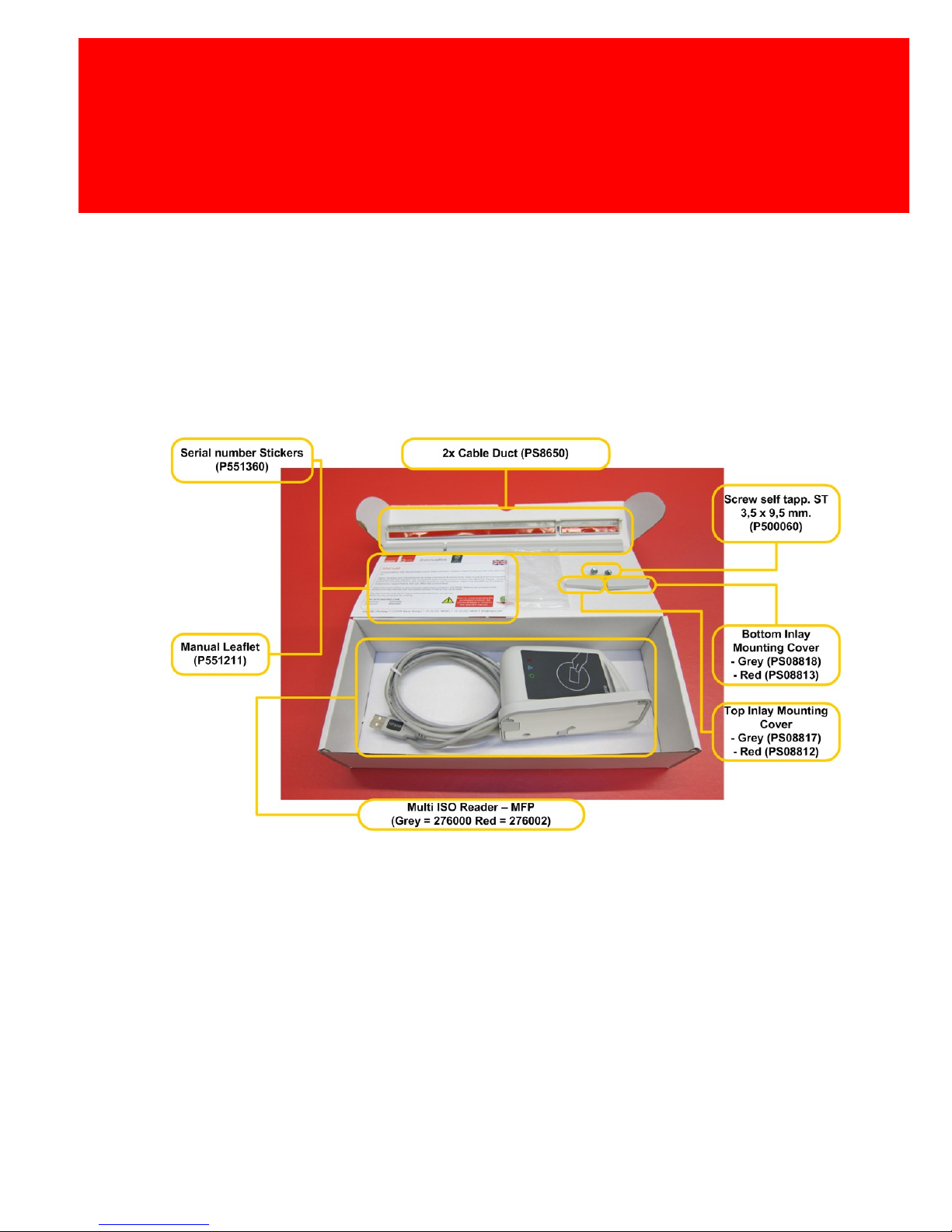

2. MFP USB Card Reader Kit
§1x Multi ISO Reader MFP (Grey 276000, Red 276002)
§2x Cable Duct (PS8650)
§1x Manual Leaflet (P551211)
§1x Serial Stickers (P551360)
§1x Bottom Inlay Mounting Cover (Grey PS08818, Red
PS08813)
§1x Top Inlay Mounting Cover (Grey PS08817, Red
PS08812)

III
Operation
Part

Operation
Version 3.0.3 - 8
Operation
Connect the reader
Connect the reader to a free USB port.
Inner operation of the Inepro USB reader
The card number that is read by the Inepro USB Card Reader is a
hex decimal format. This hex decimal number is divided into two
and after that the keyboard representation code of the number
shall be send by the USB interface controller. After the last
character an <enter> keystroke code is send.
The software driver that runs in the host will convert the code to the
ASCII character of the keystroke code.
When the card is removed, only a single <enter> keystroke code is
send.
For example:
·Read value: 0x12345678 (hex decimal number)
·Send keystroke data:
<0x1E><0x1F><0x20><0x21><0x22><0x23><0x24><0x25><0x
58>
·Conversion to ASCII characters by the HID host driver:
<1><2><3><4><5><6><7><8><enter>

IV
Inepro Card Reader Tools
Part

Inepro Card Reader Tools
Version 3.0.3 - 10
Inepro Card Reader Tools
There are two Inepro Card Reader Tools; the Inepro Reader
Software and Inepro Reader Update. The Inepro Reader Software
is used to read out a card and view the card details like the card
ID and sector information. It can also be used to see if other
output formats will return the desired card ID and to create and
store custom configuration files. The Inepro Reader Update Tool is
used to update to Inepro reader with new firmware or another or
new configuration file.
Inepro Reader Update Tool
With this tool it is possible to upgrade the reader firmware and to
program a custom created config file. For more information
regarding this Reader Program Tool please consult the user
manual.

11 - USB Card Reader (Desktop & MFP)
Inepro Reader Software Tool
With this software card information can be read out, and custom
configuration files can be stored.
HID or HID?
When working with card reader the term 'HID' will emerge, so what
does it mean?
Well, the complex issue with this question is, that there are two
concepts that both are called 'HID' and both are related to the card
reader. Therefore both will be explained:
HID
Hughes Identification Devices, or HID is often a reference to one or
more card technologies developed by the Hughes Identification
Devices company, like HID Prox or iClass SE.
HID
A Human Interface Device, or HID is a type of computer device that
interacts directly with humans. In this manual the card reader is
such a HID

Inepro Card Reader Tools
Version 3.0.3 - 12
Change the Configuration of the reader
By default the card reader is programmed as full output and will
recognize all available card types. This can be changed by
changing the configuration of the reader, for example by changing
to Classic output. A default classic output configuration file can be
found in the config files folder. To change the configuration follow
the following instructions:
Prequisites:
§No prequisites required
1. Open the shortcut to the Inepro Reader Update tool.
On the bottom of the tool the status of the reader is shown (in
this image: 'Inepro reader detected: multiiso 31.0.977 (config
hidraw)'). Normally when no reader is connected this will be:
'Inepro Reader Removed'.
'Inepro reader detected: multiiso 31.0.977 (config hidraw)'
means that an Inepro reader has been detected by the
software and that that reader is a Multi ISO reader that has the
'HID raw' config file loaded.

Change the Configuration of the reader
13 - USB Card Reader (Desktop & MFP)
2. Connect the USB connector to a free USB port on your PC
Shortly after that, the status 'Inepro reader removed', should
change to 'Inepro reader detected' and will show the type of the
reader and which firmware and config file is loaded on the
reader.
3. Select the required config file by clicking the search button in the
config block:
4. A browse window is now opened, select the classic output
configuration in the config files folder:
After selecting the correct file, the file name is now shown in
the config block, but the button to program the config is still
greyed out and cannot be selected.
This is because the reader is in 'normal mode' and not in
'program mode'.

Inepro Card Reader Tools
Version 3.0.3 - 14
5. To set the reader in program mode click on “Switch to program
mode” in the Reader mode block.
6. To verify that the reader is in program mode the 3 led’s on front
of the reader will blink continuously.
7. Now click “Program Config” to actually upload the selected
config to the reader.
Shortly the Status will show; “Programming” but it will only take
a few seconds, once finished the Status bar is completely
green.
8. Now switch back the reader to normal mode by pressing the
button “Switch to normal mode” in the reader mode Block.

Change the Configuration of the reader
15 - USB Card Reader (Desktop & MFP)
The reader will beep twice and after a few seconds only the
right LED will light up.
9. Close the Inepro USB reader tool and remove the USB
connector from your PC.
10.To see now what has been changed, please follow the steps of
the chapter: “Default Card read out”.
As you will see the output is now changed.
It now only shows the Hexadecimal card ID and will only return
<Enter> when removing the Card
Inepro Reader Software
With the Inepro Reader software it is possible to read out the RFID
technology of the card as well as all the RAW details. These details
can be stored, typically to export to third party software/databases.
The Inepro Reader software is using 'HID Raw' as communication
with the reader. The type of communication is set in the
configuration, the default configuration uses HID. So to let the card
reader communicate with the Inepro Reader software the reader
must be programmed with a configuration containing 'HID Raw'
communication.
To change the configuration please see the chapter: “Change the
configuration of the reader”. Change the configuration using the
Following config file: “IneproReaderSoftware.readerconfig”.
The following settings can be adjusted and afterwards stored in a
configuration file which can be programmed in to the reader:
Field
Value
Description
Default
Output format
§Classic
Output
§Full Output
§Only ID of the card
§Type ID, decimal and hexadecimal ID
Full
Output
