Technical Manual | SCR708
SCR708
Product Version: Rev.1
Version of this manual: 1.0.10

SCR708
Congratulations on your selection of Inepro card readers. We are certain you will be
pleased with your purchase of one of the flexibele solutions of the market.
We want to help you get the best result from your Inepro card reader. This manual
contains information on how to do that; please read it carefully. Due to continuous
product improvements this manual is subject to changes without notice.
We strongly recommend you read the license agreement to fully understand its
coverage and your responsibilities of ownership.
Your Inepro dealer is dedicated to your satisfaction and will be pleased to answer your
questions and your concerns.
Best wishes,
Inepro BV.
The most versatile card reader solution

All rights reserved. No parts of this work may be reproduced in any form or by any means - graphic, electronic, or mechanical,
including photocopying, recording, taping, or information storage and retrieval systems - without the written permission of the
publisher.
Products that are referred to in this document may be either trademarks and/or registered trademarks of the respective owners. The
publisher and the author make no claim to these trademarks.
While every precaution has been taken in the preparation of this document, the publisher and the author assume no responsibility for
errors or omissions, or for damages resulting from the use of information contained in this document or from the use of programs and
source code that may accompany it. In no event shall the publisher and the author be liable for any loss of profit or any other
commercial damage caused or alleged to have been caused directly or indirectly by this document.
Version 1.0.10 created: December 2017 in Nieuw-Vennep.
Publisher
Managing Editor
Technical Editors
Cover Design
Inepro B.V.
K. de Graaf
P. Blom
K. de Graaf
Production
Inepro B.V.
Team Coordinator
R. Groen
H. Wagenaar
K. de Graaf
SCR708

http://www.inepro.com
Table of Contents
Introduction 2
Requirements 4
Components 6
Optional Components 8
Test 12
........................................................................................................................................................ 12Software
1
........................................................................................................................................................ 13Hardware
2
User Interface 16
........................................................................................................................................................ 16LED's
1
Technical Specifications 18
Troubleshooting 20
Appendices 22
........................................................................................................................................................ 22Appendix I
1
Notes 24
Notes 26
END-USER LICENSE AGREEMENT I

ATTENTION!!
Read this manual carefully before installing the SCR708!
Mains connection
Guarentee
Security
Before connecting the appliance to the mains, check that the mains supply voltage corresponds to the
voltage printed on the type plate of the adapter. If the mains voltage is different, consult your supplier.
No guarantee can be given if safety regulations are not followed.
Always disconnect the power supply before handling anything inside the device.
Directives
Version 1.0.10 - I
This device may only be used indoors.
Indoor User Only
Changes and/or modifications
Changes and/or modfications whch have not been approved by the responsible party can void the user's
authorty to operate the equitement.
This device is complies with part 15 of the FCC rules, operation is subject to two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, includng interference that may cause undesired operation.
FCC Federal Communications Commission - US
This device is in conformity with the EMC directive and low-voltage directive.
CE Conformité Europeène (Conform European Norm)
Appareil concernés:
SCR708
Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils radio
exempts de licence.
L’exploitation est autorisée aux deux conditions
suivantes :
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout
brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le
fonctionnement.
Conformité d’Industrie Canada
Relevant Devices:
SCR708
This device complies with Industry Canada’s
licence-exempt RSSs. Operation is subject to the
following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including
interference that may cause undesired operation of the
device.
Confirm Canada Industries
End of life directives
Inepro is paying a lot of attention to environmentally-friendly production. Your new device contain materials which can be recycled and
reused. At the end of its life specialised companies can dismantle the discarded device to recycle the reusable materials and to minimise the
amount of materials to be disposed of. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries
and old requipment.
This device is in conformity with the Korea Certification directive.
KC - Korea Certification
This device is in conformity with Australian law.
Regulatory Compliance Mark

I
Introduction
Part

Introduction
2 - SCR708
Introduction
In this manual you find the instructions to install and configure your SCR708. This manual is meant for all the Inepro USB
RFID Readers.
This manual, the USB RFID Reader hardware and software are subject to change, make sure you have the latest version of
this manual, because the older versions may have become obsolete.
Function
The purpose of the USB RFID Reader is to read the unique ID contained in the card that is presented to the reader and
transfer this ID to a server. In most cases this data will be the card serial number. To facilitate this a variety of card reader
software modules have been developed. Our configuration tool will enable you to change the settings on the USB RFID
Reader board.
FCC Certified
Caution! Changes or modifications not expressly approved by INEPRO B.V. could void the user’s authority to operate the
equipment.
Note:
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense

II
Requirements
Part

Requirements
4 - SCR708
Requirements
The USB RFID Reader has no known requirements other than a USB host that can read a keyboard-like Human Interface
Device

III
Components
Part

Components
6 - SCR708

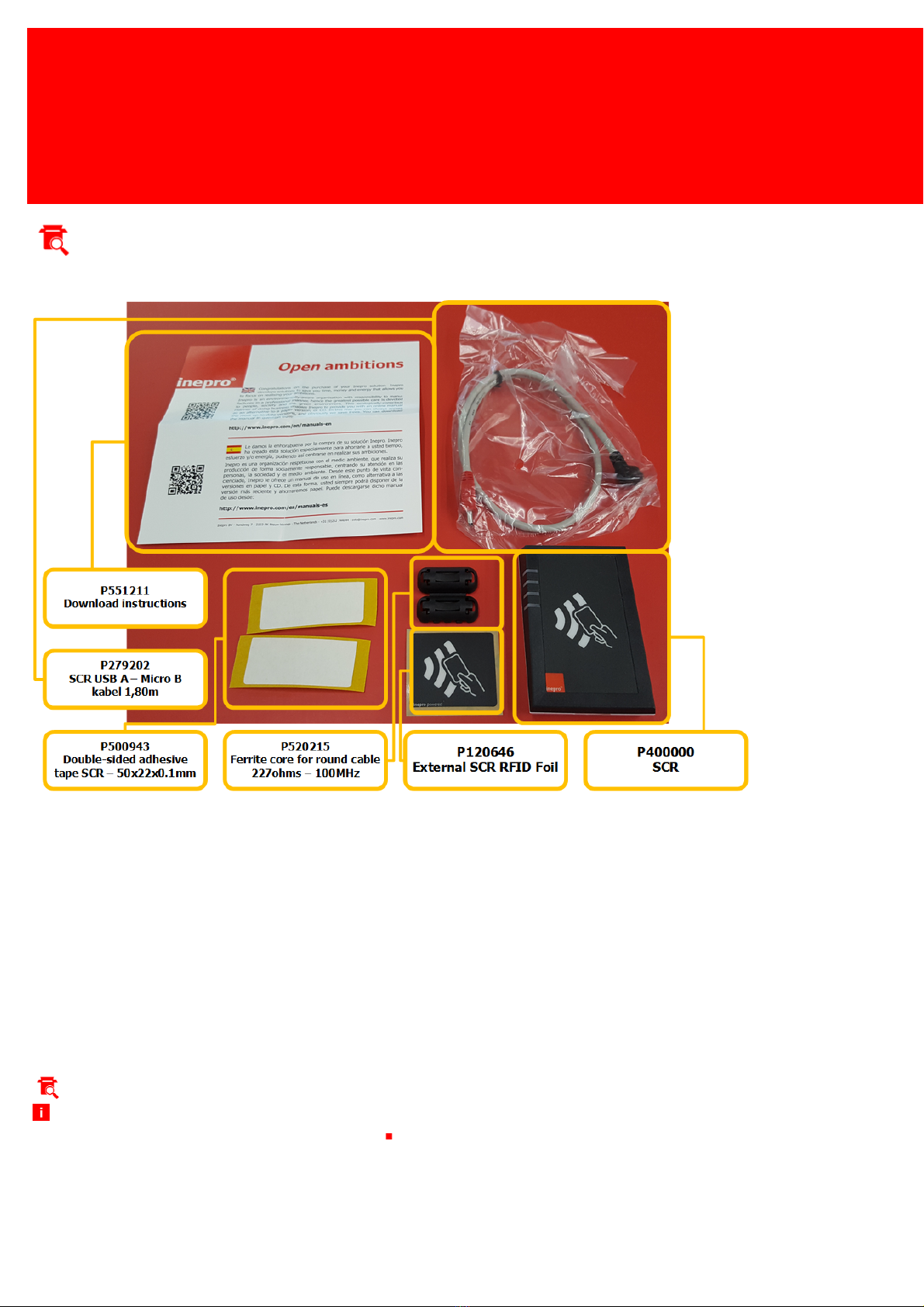

Components
§P400000 - USB RFID Reader - SCR708
§SCR708 Housing Top
§SCR708 Antenna Board
§SCR708 Housing Bottom
§SCR708 LED Cover
§Screw cross-head for plastic M2.2x8mm - SCR708
§P120646 - External SCR708 RFID Foil
§P520215 - Ferrite core for round cable 227 Ohms - 100MHz
§P500943 - Double-sided adhesive tape SCR708 - 50x22x0.1mm
§
§P279202 - SCR708 USB A - Micro B cable 1.80M
§P551211 - Download instructions
Check Components
Please check if all the components are in the set before you continue with the installation and setup.
Some parts may already have been pre-assembled

IV
Optional Components
Part

Optional Components
8 - SCR708
Optional Components
The SCR708 has a couple of optional components that are advisable to use in specific cases. This is an overview of these
components:

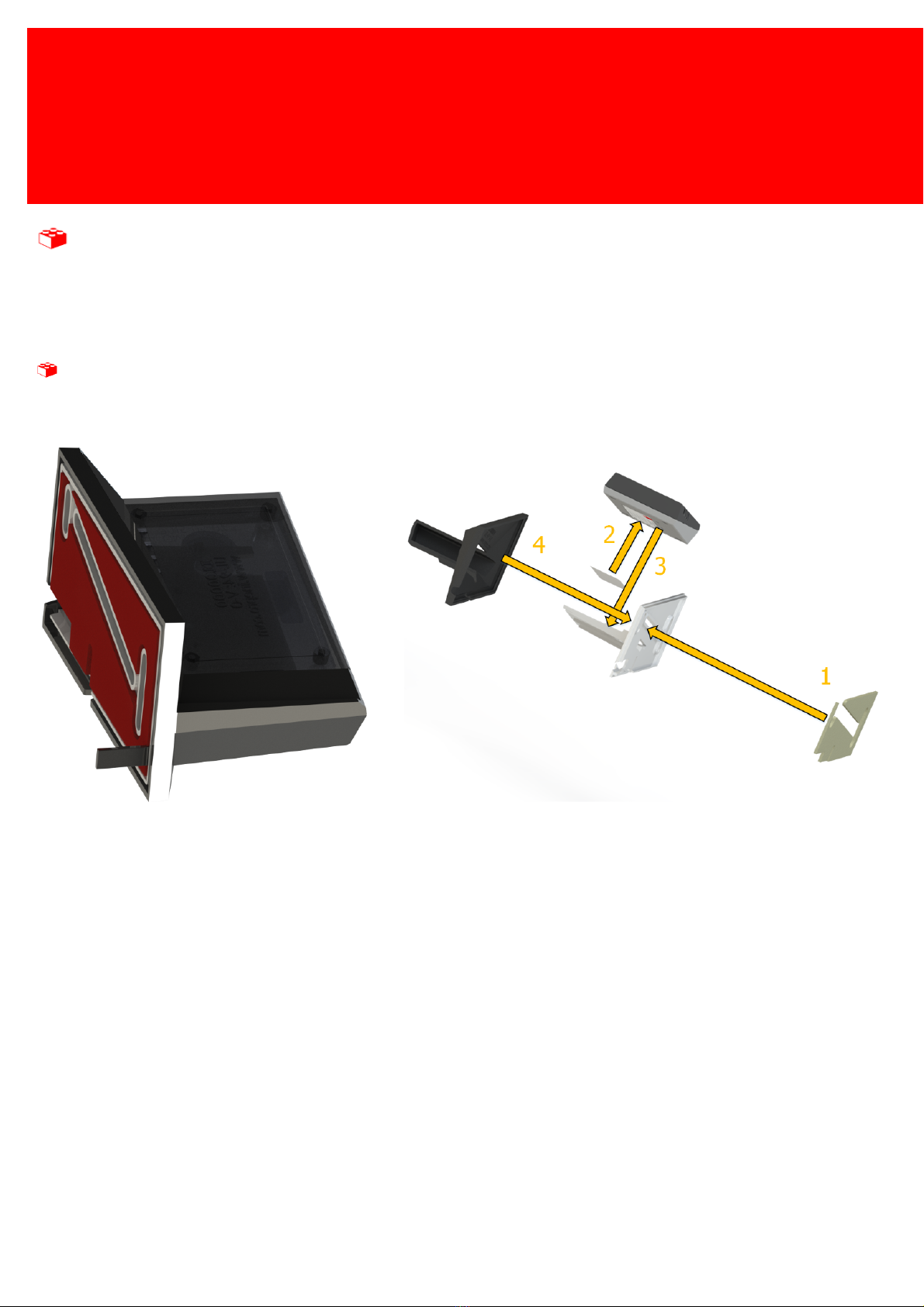

SCR708 Bracket Set
The SCR708 can be used on a MFP (a Multi Functional Printer). It can be placed inside or stuck to the exterior with tape.
For a more elegant solution a bracket set is available:
SCR708 Bracket - Art. Nr.: 400001
Follow steps 1-4 to assemble the bracket.

Version 1.0.10 - 9

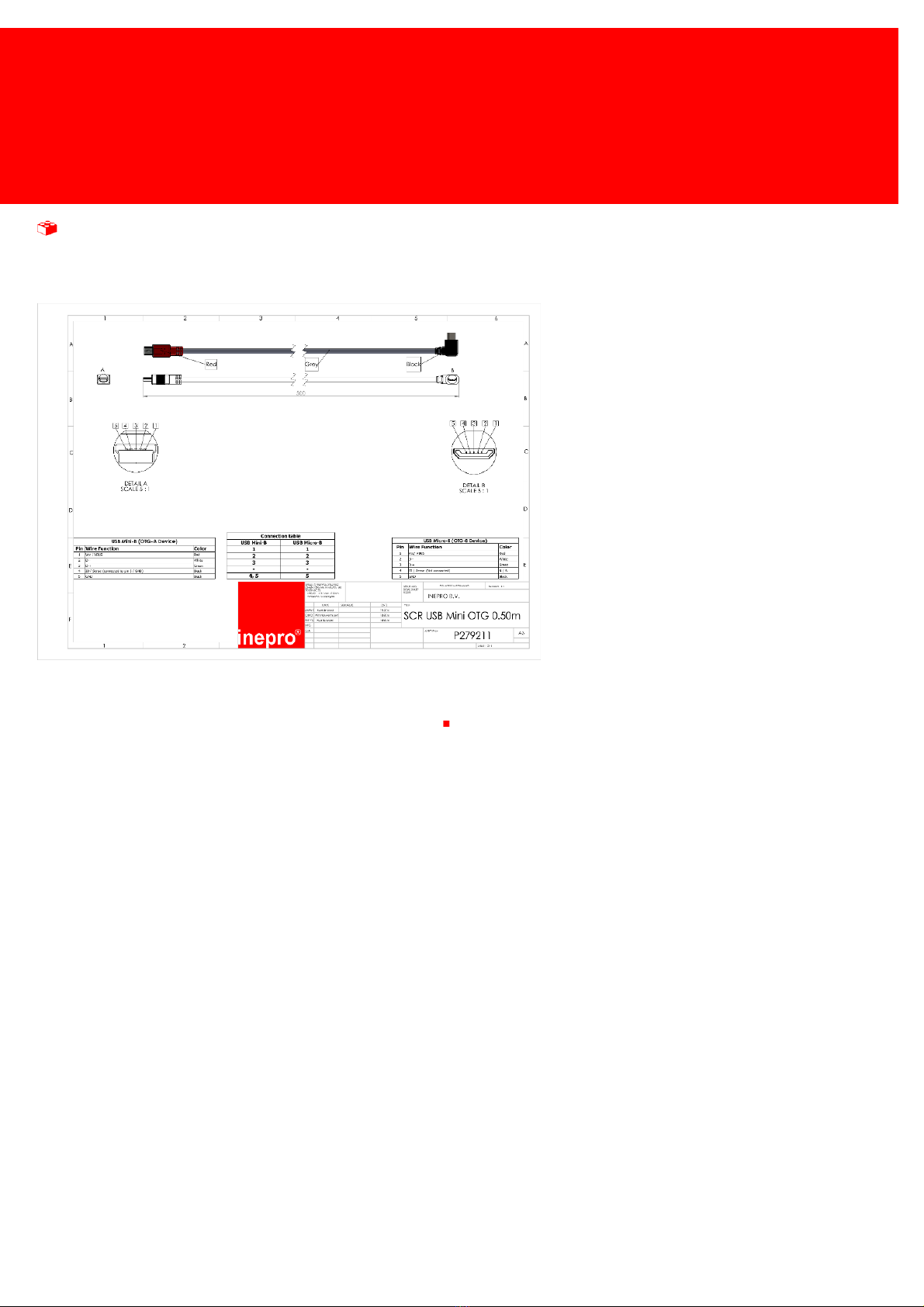

SCR708 USB Mini B - Micro B OTG Cable 0.50m & 1.80m
This cable is needed when a USB OTG (On The Go) connection is used in the MFP. The cable is available at a length of 0.5m
or 1.8m.
SCR708 USB Mini B - Micro B OTG cable 0.50m - P279211 /
SCR708 USB Mini B - Micro B OTG cable 1.80m - P279212
These can be ordered with your supplier of Inepro products

V
Test
Part

Test
12 - SCR708
Software
For the SCR708 there are 2 tools available each with its specific features. Connect the SCR708 to a computer or laptop and
present a card to the reader. Please note that the reader needs to have the HID RAW Configuration. (See Omni RFID
Program tool manual for more details).
Omni RFID Reader Configuration Tool
This tool is ideal for card investigation of customer cards
With this tool it is possible to change the behaviour of the card reader, for example it is possible to change the read out of
the RFID card but also the LEDs can be switched off or the volume of the beeper can be changed. Once finished it is possible
to store the created settings in a special config file which can be programmed via the Inepro Omni ISO Reader Program tool.
For more information regarding this Reader and Configuration tool please consult it's user manual.
Quick-Test with the Windows Calculator:
1. Connect to Inepro USB RFID Reader to the USB PC or laptop.
2. Start the Calculator application on Windows, set de calculator under 'View' in on 'Scientific'.
3. Set the number system to hex decimal ('Hex').
4. Present a card to the Inepro USB RFID Reader.
5. Set the number system to decimal ('Dec') to read out the decimal value of this number. This is the card number
