Instruction sheet - PayCon II MDB Master Kit
MDB master interface for PayCon II
Attention!!
Read this manual carefully before installing this device!
Main connection
Before connecting the device to the mains, check if the
mains supply voltage corresponds to the voltage printed on
the type plate of the adapter. If the mains voltage is different,
consult your supplier.
Guarantee
No guarantee can be given if safety regulations are not
followed.
Security
Always disconnect the power supply before handeling
anything inside the device.
Installation
This device has to be installed by authorised personal only.

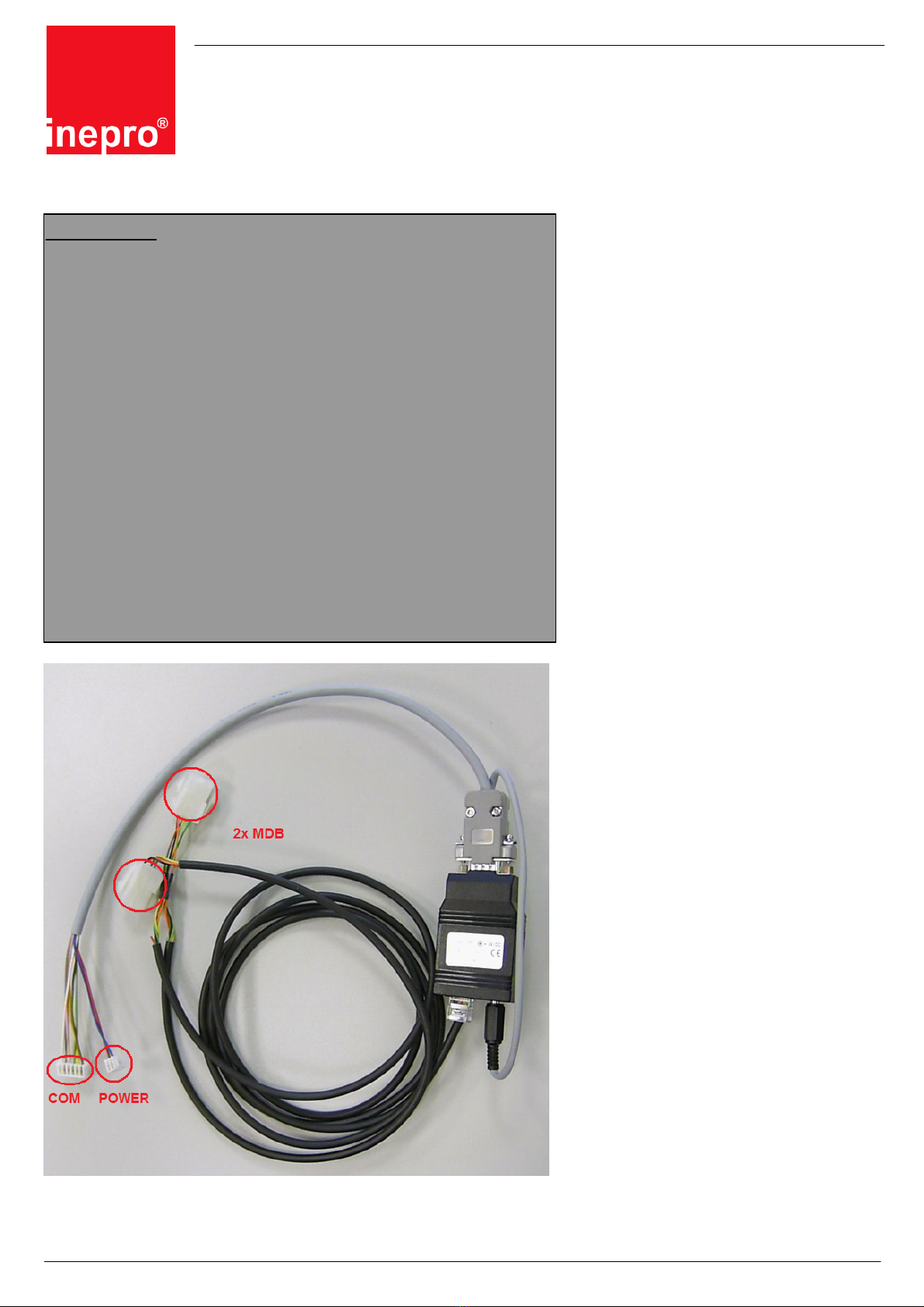

1. Connect cabling as in above picture.
2. Connect the power connector to the J23 / PWR DC connector of the PayCon.
3. Connect the COM connector to the RS232 connector of the PayCon (COM1, 2, 3, 9 or 10).

Version 1.0.2 Inepro B.V.http://www.inepro.com
Instruction sheet - PayCon II MDB Master Kit
4. Connect the MDB device(s) to the MDB connector(s).
5. Attach the COM400 module with supplied self-adhesive tape to the vending machine or the PayCon.
The PayCon supplies the power to connected the MDB devices, so the PayCon must be powered with
24V (f.e. from the vending machine).
6. Make settings as above in the PayCon (supported with firmware 4.10 and above)
The COM port setting should be correspond with the connected COM port.
7. Set up the connected devices (the banknote reader and the changer are supported devices).
