WYLER wylerCONNECT User manual

wylerCONNECT
User Manual
20.02.2023 Page 1 / 23 G. Lasczyk R1.1.3.1
USB A-C
RS485/232
24V
5V
IR
Bluetooth
®
Clinotronic S
BlueLEVEL &
BlueLEVEL II
BlueLEVEL-2D
BlueCLINO &
wylerCLINO
Laptop/PC Windows
wylerTRIGGER
ZEROTRONIC
ZEROMATIC
C
MultiTC
wylerLEVEL

wylerCONNECT
User Manual
20.02.2023 Page 2 / 23 G. Lasczyk R1.1.3.1
Table of contents
1. wylerCONNECT User Manual ............................................................................................................3
1.1 Introduction ......................................................................................................................................... 3
1.2 Note, Attention!, Warning!.................................................................................................................. 3
1.3 Name and address of manufacturer.................................................................................................... 3
1.4 Product trademark and type designation............................................................................................ 4
1.5 Other applicable documents ............................................................................................................... 4
2. Product description, technical information .......................................................................................5
wylerCONNECT in brief, series and optional accessories .......................................................................... 7
3. Safety note ......................................................................................................................................7
3.1 Appropriate use ................................................................................................................................... 7
3.2 Inappropriate use................................................................................................................................. 7
3.3 Electromagnetic environment ............................................................................................................. 7
3.4 Additional information for FCC (USA) and IC (Canada)........................................................................ 8
4. Preparing product for use.................................................................................................................9
4.1 Case contents....................................................................................................................................... 9
4.2 Overview of connecting elements, wylerTRIGGER (IR), and LEDs ...................................................... 9
4.3 Connecting wylerCONNECT to laptop .............................................................................................. 10
5. Operation ......................................................................................................................................11
5.1 Connection via Bluetooth (RFCOMM & Low Energy) ........................................................................ 11
5.1.1 BlueLEVEL, wylerLEVEL, BlueCLINO, wylerCLINO family, Clinotronic S..................................... 11
5.1.2 Incompatibilities........................................................................................................................ 12
5.2 Connecting via RS485 cable:.............................................................................................................. 13
5.2.1 ZEROTRONIC sensors, Clinotronic PLUS, MINILEVEL NT via MultiTC, 5V/24V power supply ... 13

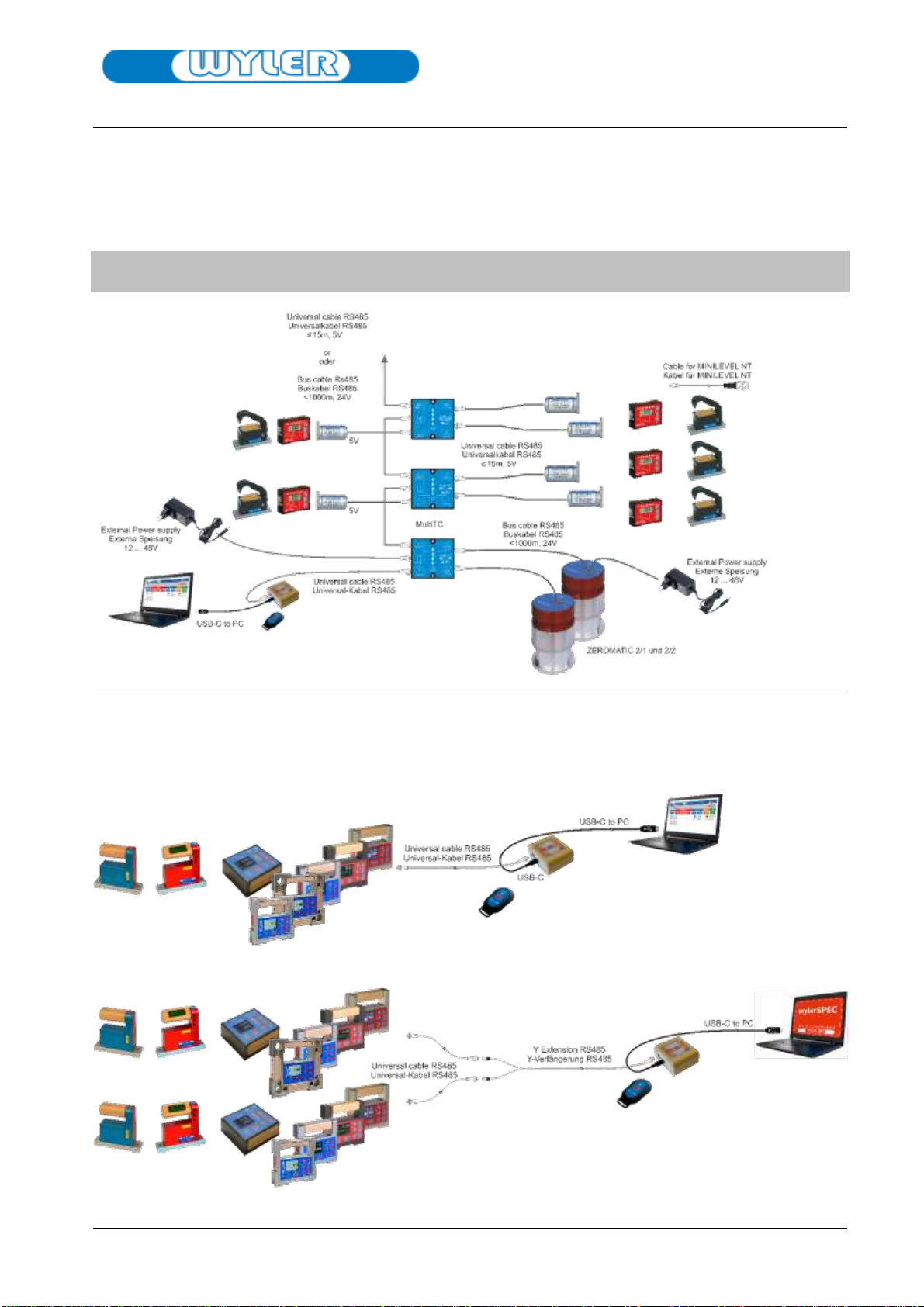

5.2.2 ZEROMATIC via MultiTC, 24V power supply, ZEROTRONIC, Clinotronic PLUS, MINILEVEL NT. 14
5.2.3 BlueSYSTEM product line, 5V power supply ............................................................................. 15
5.2.4 BlueSYSTEM product line 3 or more devices via MultiTC, 24V power supply .......................... 15
5.2.5 BlueMETER SIGMA, BlueTC, 5V power supply .......................................................................... 15

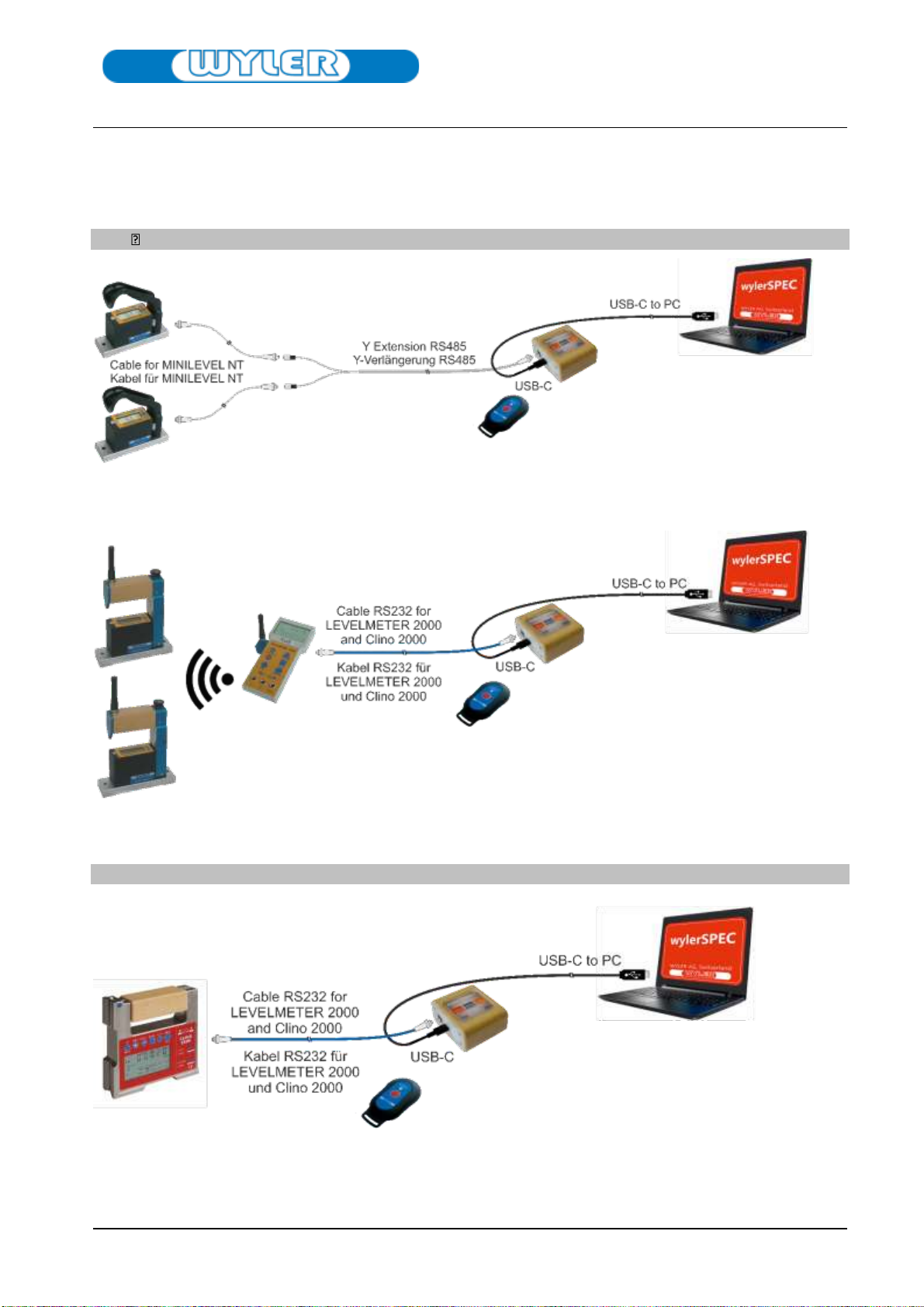

5.2.6 MINILEVEL NT, MINILEVEL NT wireless with LEVELMETER 2000, CLINO 2000 ......................... 16
5.2.7 Using Seatronic (wylerDYNAM)................................................................................................. 17
5.2.8 Incompatibilities........................................................................................................................ 17
5.2.9 Cable list from wylerCONNECT with product number. ............................................................. 18
5.3 LED notifications ................................................................................................................................ 19
5.4 wylerTRIGGER teach-in, using............................................................................................................ 19
5.5 SW licenses ex works, obtaining additional licenses ......................................................................... 20
5.6 FW update.......................................................................................................................................... 20
6. Specifications, tool identification plate ...........................................................................................21
7. Maintenance.................................................................................................................................. 22
7.1 For safe operation.............................................................................................................................. 22
7.2 Cleaning ............................................................................................................................................. 22
7.3 Troubleshooting................................................................................................................................. 22
7.4 Repacking prior to transport.............................................................................................................. 22
7.5 Customer service address.................................................................................................................. 22
8. Disposal.........................................................................................................................................23
Decommissioning, disposal...................................................................................................................... 23
9. Document version and updates ......................................................................................................23

wylerCONNECT
User Manual
20.02.2023 Page 3 / 23 G. Lasczyk R1.1.3.1
1. wylerCONNECT User Manual
1.1 Introduction
Before you begin
Read through this user manual carefully before using the wylerCONNECT for the first time.
Please also note the safety instructions.
1.2 Note, Attention!, Warning!
For ease of reading, the following references are used in this manual:
•"Note:" Is used to highlight useful tips.
•"Attention!:" Is used to help you avoid improper use or disadvantages.
•Is used to indicate conditions that are mentioned as required by law.
1.3 Name and address of manufacturer
WYLER AG
Im Hölderli 13
8405 Winterthur
Switzerland
Tel. [phone] www.wylerag.com
Fax [phone] [email protected]m
National representatives: https://www.wylerag.com/en/contact/representatives/

wylerCONNECT
User Manual
20.02.2023 Page 4 / 23 G. Lasczyk R1.1.3.1
1.4 Product trademark and type designation
Product trademark
wylerCONNECT
Classification: wylerCONNECT
*Product number 029-0001-001
*Subject to change
1.5 Other applicable documents
You will find the CE Conformity Declaration and this user manual on our homepage at: www.wylerag.com
They can be found on the wylerCONNECT product page,
under „Download”

wylerCONNECT
User Manual
20.02.2023 Page 5 / 23 G. Lasczyk R1.1.3.1
2. Product description, technical information
wylerCONNECT in brief, series and optional accessories
wylerCONNECT in brief
oThe wylerCONNECT housing consists of plastic with a beechwood outer shell.
oThe front is equipped with a screen.
oThe left side features an RS485 connection and a USB-C port.
oThe USB-C port will be connected to the USB-A port at the PC.
oThe right side features an RGB diode.
oFor triggering data recording remotely, there is an infrared (IR) receiver on the right side.
oAs standard for the series, the wylerCONNECT is equipped with BluetoothLowEnergy/Legacy.
oCabled sensors can be connected via the RS485 connection.
oA license management is available for the wylerSOFT licenses.
Dimensions, weight, protection rating, storage
oDimensions L x W x H: 65 x 70 x 40 mm
oWeight: 140 g
oProtection rating: IP6x
oStorage: In case -20° to +60° C
oOperation: 0° to 40 ° C
Series-based accessories
oCable USB-A/USB-C
oInfrared (IR) wylerTRIGGER
oPlastic case
oQuick reference guide
oThis manual can be found at: www.wylerag.com

wylerCONNECT
User Manual
20.02.2023 Page 6 / 23 G. Lasczyk R1.1.3.1
Optional accessories
Mechanical
oProtective cover screwed to RS485 port to prevent plugging.
Software (licenses management)
oInterface software as wylerINSERT
oGeometry software as wylerSPEC
oMonitoring software as wylerDYNAM
oRemote display software as wylerPLOT

wylerCONNECT
User Manual
20.02.2023 Page 7 / 23 G. Lasczyk R1.1.3.1
3. Safety note
•The wylerCONNECT meets the applicable guidelines and norms.
•See also:
- the current wylerCONNECT CE Conformity Declaration at:
https://www.wylerag.com/fileadmin/pdf/cerificates_DoC/DoC_wylerCONNECT_R1.pdf
- this user manual and quick reference guide.
- the tool identification plate on the back of the device.
3.1 Appropriate use
•The wylerCONNECT is to be used solely for the reception of sensor or measuring device data.
The measurement can
- be received wirelessly via the BlueLEVEL, wylerLEVEL, BlueCLINO, wylerCLINO and
Clinotronic S product lines.
- be received via RS485 cable (only for devices connected by sensors and cables).
Attention!: There are no other intended uses.
3.2 Inappropriate use
•Do not use under water, as the wylerCONNECT is not sufficiently watertight and the internal
components can short circuit.
•Not to be used as a hammer or in a weight-bearing capacity at any time. This will damage the housing.
•Do not throw the wylerCONNECT. The housing can cause severe injury/damage upon impact with
people and objects.
3.3 Electromagnetic environment
Note: Assess the electromagnetic environment before using the device
Do not use the wylerCONNECT near sources of strong electromagnetic radiation (for example unshielded,
intentionally operated high-frequency sources), as these can interfere with the proper operation of the
device.

wylerCONNECT
User Manual
20.02.2023 Page 8 / 23 G. Lasczyk R1.1.3.1
3.4 Additional information for FCC (USA) and IC (Canada)
FCC part 15 and ICES-0003
Class A Device
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation”.
This Class A digital apparatus complies with Canadian ICES-0003.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense.

wylerCONNECT
User Manual
20.02.2023 Page 9 / 23 G. Lasczyk R1.1.3.1
4. Preparing product for use
4.1 Case contents
Product number 029-0001-002
1Case
2 wylerCONNECT
3USB-A/USB-C cable
4wylerTRIGGER (infrared)
5Quick reference guide →This manual at www.wylerag.com
4.2 Overview of connecting elements, wylerTRIGGER (IR) and LEDs
1 Housing
2,3,4 RGB LEDs
5USB-C connection for data transfer and FW updates via laptop
6RS485 connection (Binder)
7wylerTRIGGER
7

wylerCONNECT
User Manual
20.02.2023 Page 10 / 23 G. Lasczyk R1.1.3.1
4.3 Connect wylerCONNECT to laptop
oConnect the wylerCONNECT to a laptop, using the USB cable.
oThe cable connection provides the wylerCONNECT with a 5V power supply.
- A current limiter prevents too much current from being drawn from the laptop.
- Do not use a USB power source greater than 15W!
oThe LED on the right-side glows green to indicate that the wylerCONNECT is ready for use.

wylerCONNECT
User Manual
20.02.2023 Page 11 / 23 G. Lasczyk R1.1.3.1
5. Operation
5.1 Connection via Bluetooth (RFCOMM & Low Energy)
5.1.1 BlueLEVEL, wylerLEVEL, BlueCLINO, wylerCLINO product line, Clinotronic S
Note: The connecting of devices is always initiated via software.
The following software packages are available:
•wylerEXPLORER
•wylerINSERT
•wylerPLOT
•wylerDYNAM / wylerCHART
•wylerSPEC / wylerPROFESSIONAL / wylerELEMENTS
Connection via Bluetooth (RFCOMM)
Up to 7 measuring devices from the BlueSYSTEM product line
Connection via Bluetooth (Low energy)
Up to 7 Clinotronic S measuring devices
ATTENTION!: The number of connections depends on the possible interference fields.
(e.g. high-power machine tools)
ATTENTION!: If there are problems reconnecting, turn the relevant measuring devices off and back on
again, and restart the software.

wylerCONNECT
User Manual
20.02.2023 Page 12 / 23 G. Lasczyk R1.1.3.1
5.1.2 Incompatibilities
Attention!: The following devices are not compatible via Bluetooth:
•LEVELMETER 2000
•BlueMETER,
•BlueMETER SIGMA,
•BlueTC
•BlueLEVEL with former Bluetooth module version B2.3 and below
BlueLEVEL with former
Bluetooth module
version B2.3 and below

wylerCONNECT
User Manual
20.02.2023 Page 13 / 23 G. Lasczyk R1.1.3.1
5.2 Connecting via RS485 cable:
5.2.1 ZEROTRONIC sensors, Clinotronic PLUS, MINILEVEL NT via MultiTC, 5V/24V power supply
ZEROTRONIC 3 and ZEROTRONIC C: always via MultiTC (57600 Bd)
When using more than 2 ZEROTRONIC sensors or measuring instruments
or operating at a distance exceeding 15m: always work with an external power supply.
Note: With less load, the 5V supply from the RS485 output is sufficient.
ATTENTION!: Do not intermix with devices from the BlueSYSTEM product line.
ATTENTION!: The sampling rate diminishes as the number of devices increases.
ATTENTION!: If there is an overload, the LED on the wylerCONNECT blinks red.
There will be no data transmission!
Remedy: Use an external power supply or reduce the number of sensors.

wylerCONNECT
User Manual
20.02.2023 Page 14 / 23 G. Lasczyk R1.1.3.1

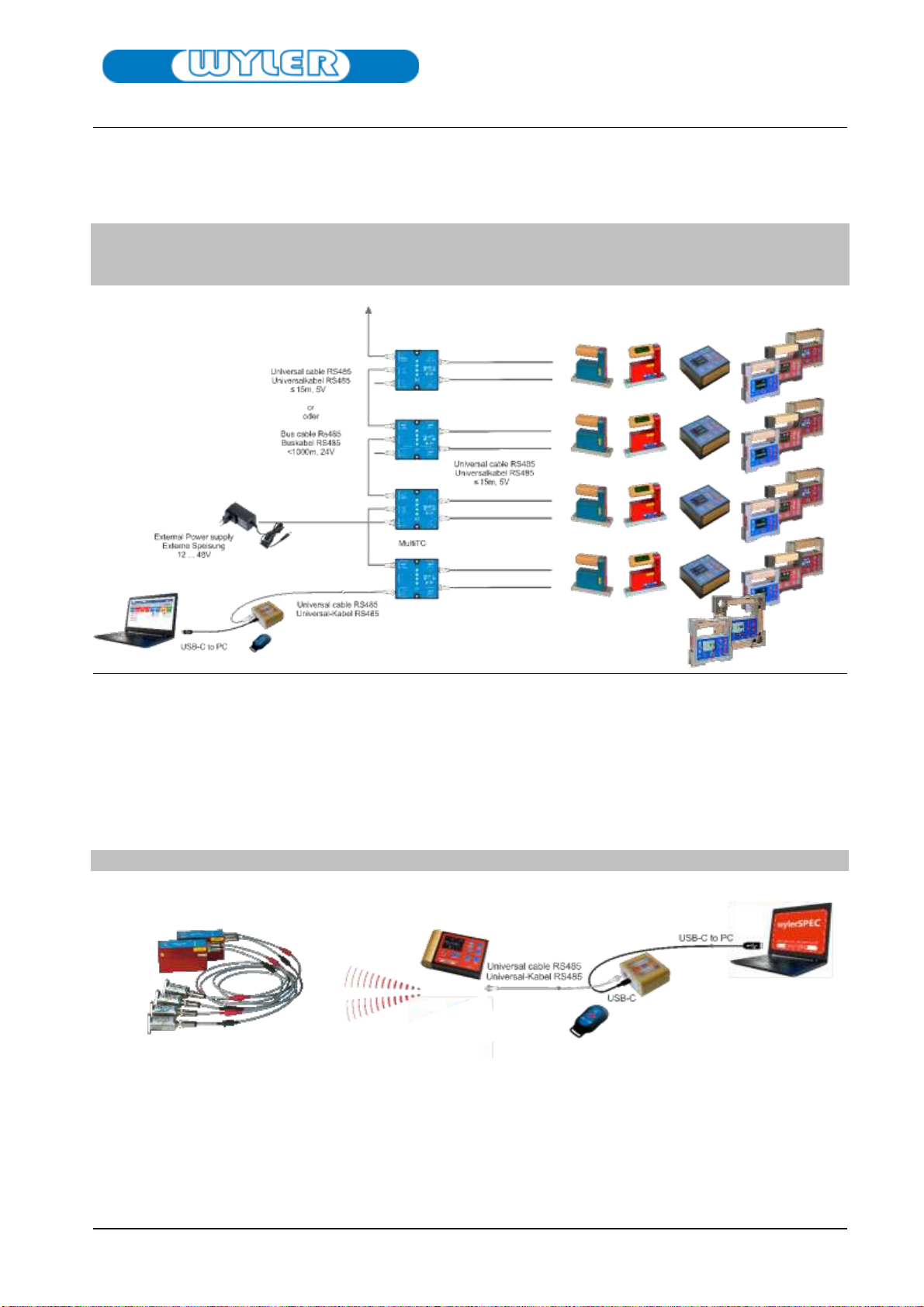

5.2.2 ZEROMATIC via MultiTC, 24V power supply, ZEROTRONIC, Clinotronic PLUS, MINILEVEL
NT
ZEROMATIC sensors always via MultiTC and with 24V power supply
ATTENTION!: Do not intermix with BlueSYSTEM product line.
ATTENTION!: The sampling rate diminishes as the number of devices increases.
5.2.3 BlueSYSTEM product line, 5V power supply
BlueSYSTEM product line: 1 device connected directly via cable
BlueSYSTEM product line: 2 devices connected directly via cable

wylerCONNECT
User Manual
20.02.2023 Page 15 / 23 G. Lasczyk R1.1.3.1
5.2.4 BlueSYSTEM product line 3 or more devices via MultiTC, 24V power supply
BlueSYSTEM product line: 3 devices or more
•Always via MultiTC with external power supply
ATTENTION!: Do not intermix with ZEROTRONIC, ZEROMATIC, Clinotronic PLUS, MINILEVEL NT
and CLINO 2000 devices.
ATTENTION!: The sampling rate diminishes as the number of devices increases.
5.2.5 BlueMETER SIGMA, BlueTC, 5V power supply
ZEROTRONIC product line:
1 BlueMETER SIGMA via cable
•Up to 4 ZEROTRONIC sensors
ATTENTION!: Note: Baud rate maximum: 9600 Bd

wylerCONNECT
User Manual
20.02.2023 Page 16 / 23 G. Lasczyk R1.1.3.1
5.2.6 MINILEVEL NT, MINILEVEL NT wireless with LEVELMETER2000, CLINO 2000
2 MINILEVEL NT, cable connected, without LEVELMETER 2000
Note : Also functions with only one device connected
1 LEVELMETER 2000 for 2 Minilevel NT with wireless
1 CLINO 2000
ATTENTION!: Only ONE device can be connected.

wylerCONNECT
User Manual
20.02.2023 Page 17 / 23 G. Lasczyk R1.1.3.1
5.2.7 Using Seatronic (wylerDYNAM)
wylerDYNAM software:
•Seatronic application
ATTENTION!: Always use the 24V external power supply.
Note: In this configuration, the maximum baud rate of 57600 is achieved.
5.2.8 Incompatibilities
ATTENTION!: The following devices are not compatible:
Transceiver/Converter (TC, silver)
miniTC

wylerCONNECT
User Manual
20.02.2023 Page 18 / 23 G. Lasczyk R1.1.3.1
5.2.9 Cable list from wylerCONNECT with product number
Cable
Length in m
Product number
Voltage
Male/Female
Y-extension RS485
0.4
029-004-878-Y
5/24V
m/2f
Universal cable RS485
2.5
029-025-878-001
5/24V
m/m
"
5
029-050-878-001
5/24V
m/m
"
10
029-100-878-001
5/24V
m/m
Universal angled cable
2.5
029-025-878W003
5/24V
m/m
"
5
029-050-878W003
5/24V
m/m
"
10
029-100-878W003
5/24V
m/m
Cable RS232 for
LM2000/Clino2000
2.5
029-025-858-001
Data only
m/m

wylerCONNECT
User Manual
20.02.2023 Page 19 / 23 G. Lasczyk R1.1.3.1
5.3 LED notifications
List of LED notifications
Function, purpose
Trigger
Solid
Blinking
0.5Hz
Rapid
blinking
1Hz
Final state
Use device
Connection to laptop
green
solid green
Device searches via cable
via software
green
rapid blinking green
Device searches wirelessly
via software
blue
rapid blinking blue
Device searches via cable and
wireless
via software
blue+green
rapid blinking
blue+green
Device is connected via cable
via software
green
rapid blinking
Device is connected wirelessly
via software
blue
blinking
Device is connected via cable
and wirelessly
via software
blue+green
blinking blue+green
Trigger recognized
Recognizing the trigger
red
1 ping
Overcurrent signal
Too many users
red
blinking red
Fault
red
solid red
5.4 wylerTRIGGER teach-in, using
•Take the wylerTRIGGER , aim it toward the wylerCONNECT and press the initiation button on the
wylerTRIGGER for at least 5 seconds. The connection is confirmed if the red LED lights once.
•From now on, every initiation of the wylerTRIGGER will be confirmed on the wylerCONNECT by the LED
lighting once.
•wylerTRIGGERs can be taught to recognize multiple devices concurrently.
•With each recognizing procedure, the most recently used wylerTRIGGER is deleted.

wylerCONNECT
User Manual
20.02.2023 Page 20 / 23 G. Lasczyk R1.1.3.1
5.5 SW licenses ex works, obtaining additional licenses
Visit the wylerSOFT Info-Center at: https://www.wylerag.com/en/products/software-wylersoft/
Then select wylerLICENSE in the SDK Tools section
Select "Request Quote for Product License" to order new software.
Follow the instructions given by the wylerLICENSE program.
5.6 FW update
Connect the wylerCONNECT to the computer using a USB-C/USB-A cable.
Start the wylerEXPLORER and follow the on-screen instructions.
