Infineon TLS8 2ELV Series User manual

OPTIREG™ linear voltage regulator TLS8xxx2ELVxx
demoboard
Z8F61720705
Preface
Scope and purpose
This document provides information about the usage of the demoboards for the low dropout linear voltage
regulators
• TLS820B2ELVSE
• TLS820D2ELVSE
• TLS835B2ELV
• TLS835B2ELVSE
• TLS835D2ELVSE
in a PG-SSOP-14 package from Infineon Technologies AG.
Intended audience
This document is intended for engineers who develop applications.
User manual Please read the Important Notice and Warnings at the end of this document Rev. 1.1
www.infineon.com/OPTIREG-linear 2021-06-24

Table of contents
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Feature sets and packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
1.2 TLS8xxx2ELVxx features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3 Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2 Demoboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 Operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Demoboard configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2.1 Jumper settings for all variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2.2.2 Jumper settings TLS820B2ELVSE, TLS835B2ELVSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2.3 Jumper settings TLS820D2ELVSE, TLS835D2ELVSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2.4 Jumper settings TLS835B2ELV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2.5 Signal access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3 Schematic and layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3.1 Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2 Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4 Bill of materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5 Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
OPTIREG™ linear voltage regulator TLS8xxx2ELVxx demoboard
Z8F61720705
Table of contents
User manual 2 Rev. 1.1
2021-06-24

1 Introduction
1.1 Feature sets and packages
Table 1 shows an overview of the feature sets and packages in the TLS8xxx2ELVxx voltage regulator family.
Table 1 Feature sets and packages
Type Package Output current Enable Reset Output voltage
TLS820B2ELVSE PG-SSOP-14 200 mA ✓ – 3.3 V or 5 V
TLS820D2ELVSE PG-SSOP-14 200 mA ✓ ✓ 3.3 V or 5 V
TLS835B2ELV PG-SSOP-14 350 mA ✓ – adjustable
TLS835B2ELVSE PG-SSOP-14 350 mA ✓ – 3.3 V or 5 V
TLS835D2ELVSE PG-SSOP-14 350 mA ✓ ✓ 3.3 V or 5 V
1.2 TLS8xxx2ELVxx features
• Wide input voltage range from 3.0 V to 40 V
• Output voltage selectable (3.3 V and 5 V) or adjustable (between 1.5 V and 6 V)
• 200 mA or 350 mA current capability
• Output voltage accuracy ≤ ±2%
• Ultra low current consumption, typically 20 µA
• Very low dropout voltage, typical 100 mV at 100 mA
• Stable with ceramic output capacitor of 1 µF
• Adjustable reset threshold down to 2 V1)
• Wide temperature range
• Green product (RoHS compliant)
• internal protection features make the devices robust against immediate damage:
- output current limitation
- overtemperature shutdown
These features make the voltage regulators perfectly suitable as automotive supplies that are connected to the
battery permanently and that need to operate in cranking condition.
1For TLS820D2ELVSE, TLS835D2ELVSE.
OPTIREG™ linear voltage regulator TLS8xxx2ELVxx demoboard
Z8F61720705
Introduction
User manual 3 Rev. 1.1
2021-06-24

1.3 Block diagram
Figure 1 shows the block diagram of TLS835D2ELVSE, which oers the full feature set.
Bandgap
Reference
GND
Q
I
Temperature
Shutdown
EN
Enable
Reset
RO
RADJ
D
Current
Limitation
SEL
Figure 1 Block diagram of TLS835D2ELVSE
OPTIREG™ linear voltage regulator TLS8xxx2ELVxx demoboard
Z8F61720705
Introduction
User manual 4 Rev. 1.1
2021-06-24

2 Demoboard
The OPTIREG™ linear voltage regulator TLS8xxx2ELVxx demoboard is available for all devices of the
TLS8xxx2ELVxx voltage regulator family in a PG-SSOP-14 package, see Table 1.
2.1 Operating conditions
To avoid electrical damage of the demoboard, the operating range defined in Table 2 must be followed.
Table 2 Operating conditions2)
Parameter Pin Values Unit Note
Min. Max.
Board supply voltage VIN 0 40 V power supply
Regulator output voltage VOUT 0 6 V 3)
Enable input signal EN 0 40 V enable or disable voltage regulator
Reset output signal RO 0 5 V 4) indicates, whether reset occurred
Ground GND 0 0 V system GND
2.2 Demoboard configuration
The TLS8xxx2ELVxx demoboard can be easily configured via jumpers on the board. The board provides the
following configuration options:
• Input capacitor C1 (X7)
• Enable function (X8)
• Placeholder for additional output capacitor (C4)
• Placeholder for external pull-up resistor for reset output RO (R2)
• Selectable output voltage (X9)
• Adjustable output voltage: placeholder for voltage divider (R3, R4) and jumper (X10)
• Adjustable reset threshold: placeholder for voltage divider (R5, R6) and jumper (X11)
• Reset timing selection (X12)
2Demoboard operates at an ambient temperature of 25°C.
3Nominal output voltage depends on voltage version.
4For TLS820D2ELVSE, TLS835D2ELVSE.
OPTIREG™ linear voltage regulator TLS8xxx2ELVxx demoboard
Z8F61720705
Demoboard
User manual 5 Rev. 1.1
2021-06-24

2.2.1 Jumper settings for all variants
Header X7 (Input capacitor C1)
A capacitor C1 of 47 µF can be connected to VIN by placing a jumper on X7.
Header X8 (Enable function)
EN input pin can be configured by X8.
Table 3 Header X8 options for Enable function
X8 Function
EN ↔ VIN The regulator is enabled while the EN pin is connected to VIN
EN ↔ GND The regulator is disabled while the EN pin is connected to GND
open The EN input pin is supplied from the EN banana jack connector5)
5Without supplying a signal to EN, the regulator is disabled due to the internal pull-down resistor.
OPTIREG™ linear voltage regulator TLS8xxx2ELVxx demoboard
Z8F61720705
Demoboard
User manual 6 Rev. 1.1
2021-06-24

2.2.2 Jumper settings TLS820B2ELVSE, TLS835B2ELVSE
Headers X9 (selectable output voltage)
The output voltage can be configured via X9.
Table 4 Header X9 options for selectable output voltage
X9 Function
SEL ↔ VOUT 6) Sets VOUT to 5 V
SEL ↔ GND Sets VOUT to 3.3 V
Headers X10, X11 and X12
These headers are not relevant. They can be set to open or as shown in Figure 2.

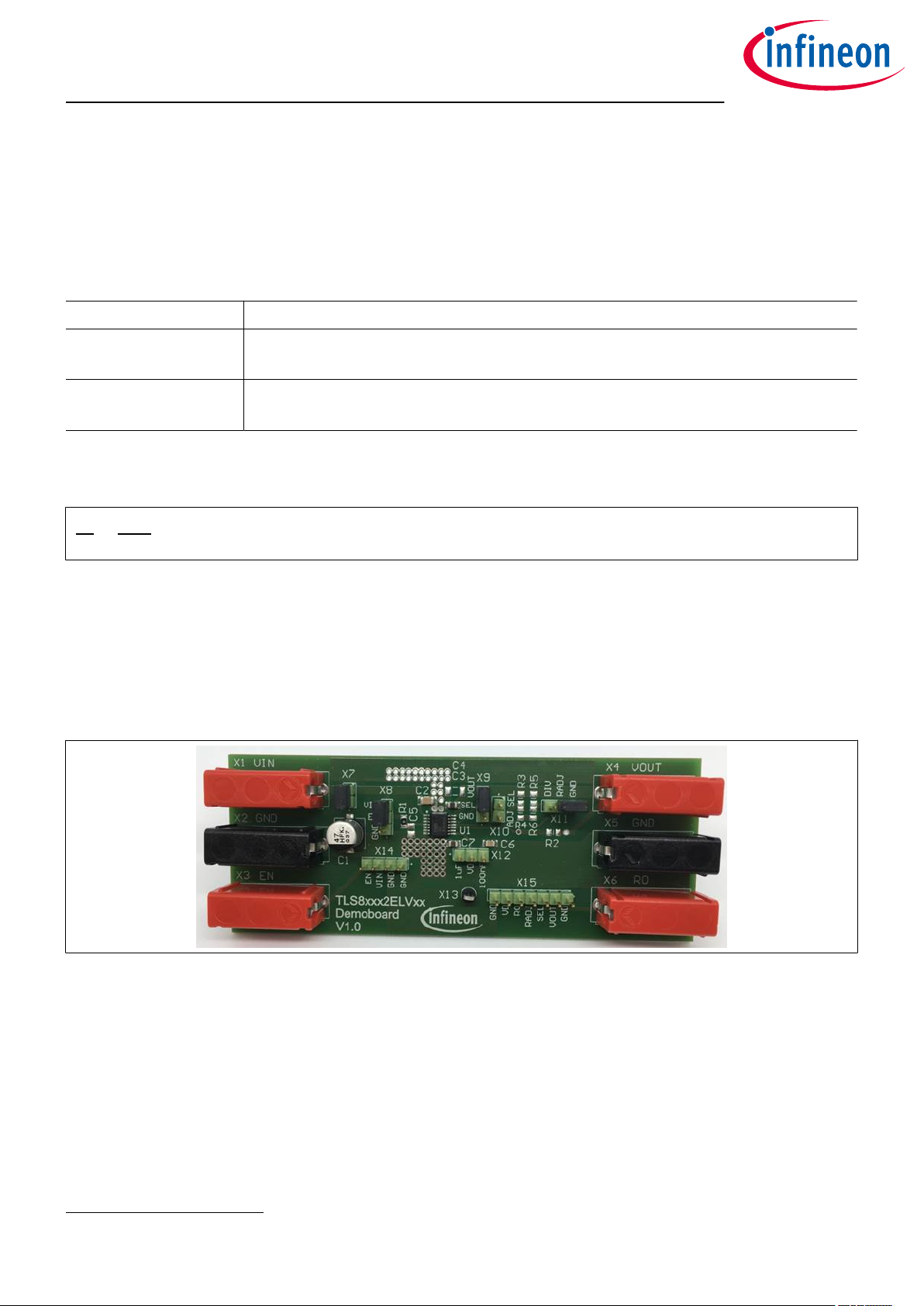

Default setting of the jumpers TLS820B2ELVSE, TLS835B2ELVSE
Figure 2 shows the default setting of the jumpers of TLS835B2ELVSE and TLS820B2EVLSE demoboards.
Figure 2 TLS820B2ELVSE and TLS835B2ELVSE default jumper setting
6Default setting.
OPTIREG™ linear voltage regulator TLS8xxx2ELVxx demoboard
Z8F61720705
Demoboard
User manual 7 Rev. 1.1
2021-06-24

2.2.3 Jumper settings TLS820D2ELVSE, TLS835D2ELVSE
Headers X9 (selectable output voltage)
The output voltage can be configured via X9.
Table 5 Header X9 options for selectable output voltage
X9 Function
SEL ↔ VOUT 7) sets VOUT to 5 V
SEL ↔ GND sets VOUT to 3.3 V
Headers X12 (Reset timing selection)
Reset delay timing can be configured via X12.
Table 6 Header X12 options for reset delay timing
X12 Function
VD ↔ 100nF 7) Sets the reset delay time to typically 10 µs
VD ↔ 1uF Sets the reset delay time to typically 28 µs
Headers X11 (Adjustable reset threshold )
Reset threshold can be configured via X11 and voltage divider R5, R6.
Table 7 Header X11 options for adjustable reset threshold
X11 Function
RADJ ↔ GND 7) Sets the default reset threshold
RADJ ↔ DIV Sets a reset threshold between 2 V and 4.2 V (for 5 V output voltage), or between 2 V
and 2.75 V (for 3.3 V output voltage), depending on the voltage divider R5, R6
The undervoltage reset switching threshold can be adjusted according to the application’s requirements by
connecting an external voltage divider (R5, R6). For selecting the default threshold connect RADJ to GND.
With a voltage divider connected, the reset switching threshold VRT,low,new is calculated according to the
following formula:
VRT,low,new =VRADJ,th R5
R6+1
Equation 1
Header X10
Leave header X10 open as it is not relevant.
Default setting of the jumpers TLS820D2ELVSE, TLS835D2ELVSE
Figure 3 shows the default setting of the jumpers of the TLS820D2ELVSE, TLS835D2ELVSE demoboard.
7Default setting.
OPTIREG™ linear voltage regulator TLS8xxx2ELVxx demoboard
Z8F61720705
Demoboard
User manual 8 Rev. 1.1
2021-06-24

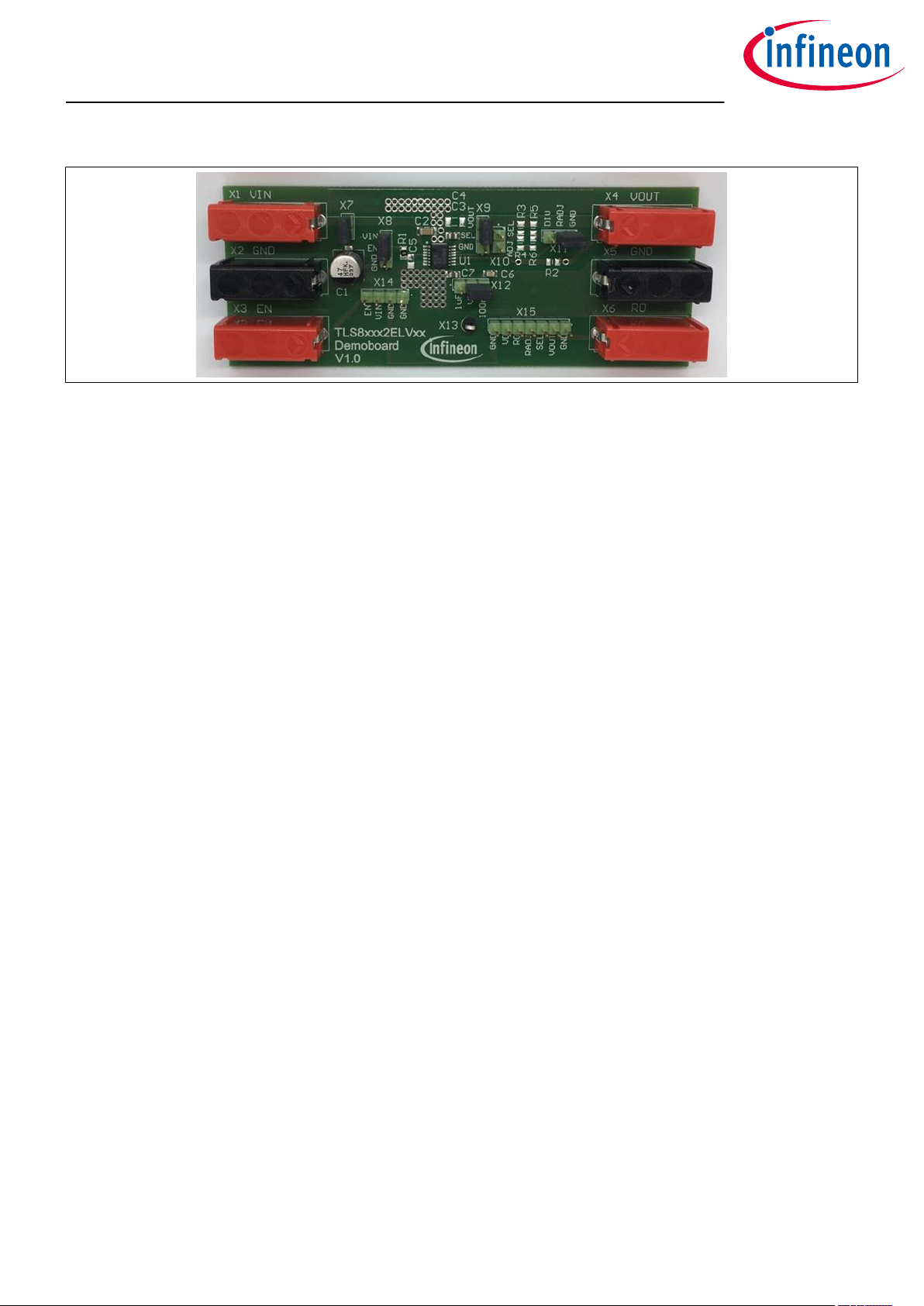

Figure 3 TLS820D2ELVSE, TLS835D2ELVSE default jumper setting
OPTIREG™ linear voltage regulator TLS8xxx2ELVxx demoboard
Z8F61720705
Demoboard
User manual 9 Rev. 1.1
2021-06-24

2.2.4 Jumper settings TLS835B2ELV
Headers X9 and X10 (Adjustable output voltage)
The output voltage can be configured via X9, X10 and voltage divider R3, R4.
Table 8 Headers X9 and X10 options for adjustable output voltage
X9 / X10 Function
X9: SEL ↔ VOUT
X10: open
8)
Sets VOUT to 1.5 V
X9: open
X10: SEL ↔ ADJ
Sets VOUT between 1.5 V and 6 V, depending on the voltage divider R3, R4
If the ADJ pin is to be supplied from the output voltage of the voltage divider, then the resistors of the voltage
divider must be implemented. The value of the resistors can be easily calculated when neglecting the current
flowing into the ADJ pin as follows:
R1
R2=VQ VADJ −1
Equation 2
Headers X11 and X12
These headers are not relevant. They can be set to open or as shown in Figure 4.
Default setting of the jumpers TLS835B2ELV
Figure 4 shows the default setting of the jumpers of TLS835B2ELV demoboard.
Figure 4 TLS835B2ELV default jumper setting
8Default setting.
OPTIREG™ linear voltage regulator TLS8xxx2ELVxx demoboard
Z8F61720705
Demoboard
User manual 10 Rev. 1.1
2021-06-24

2.2.5 Signal access
The connectors X13, X14 and X15 oer easy signal access, for example for probes of an oscilloscope.
Table 9 Signals on connector
Connector Accessible signal
X13 • GND (ground)
X14 • EN (Enable input signal)
• VIN (input voltage)
• GND (ground)
• GND (ground)
X15 • GND (ground)
• VD (Reset delay setting)
• RO (Reset output signal)
• RADJ (Reset threshold setting)
• SEL (output voltage selection)
• VOUT (output voltage)
• GND (ground)
OPTIREG™ linear voltage regulator TLS8xxx2ELVxx demoboard
Z8F61720705
Demoboard
User manual 11 Rev. 1.1
2021-06-24

3 Schematic and layout
3.1 Schematic

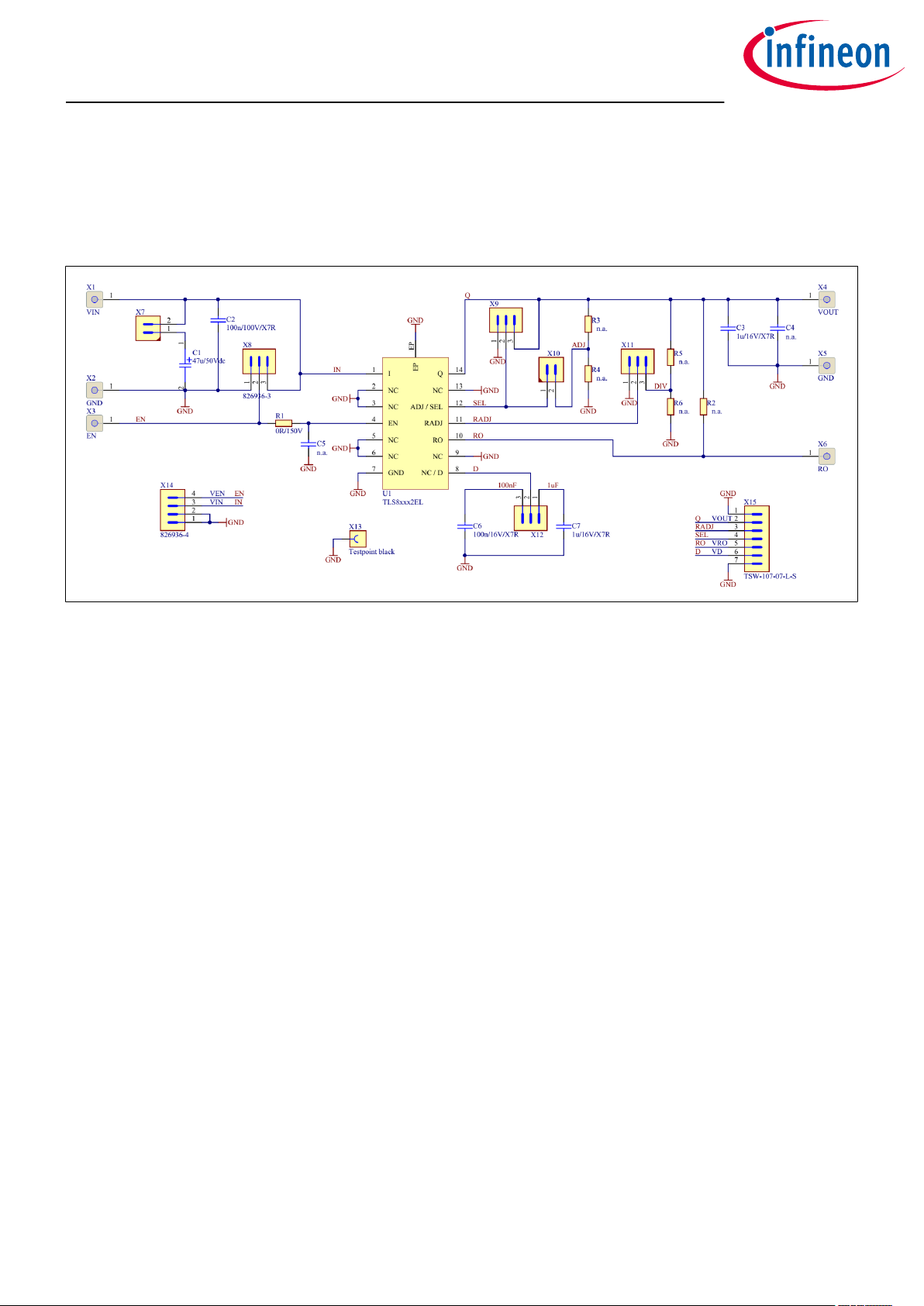

Figure 5 Schematic
OPTIREG™ linear voltage regulator TLS8xxx2ELVxx demoboard
Z8F61720705
Schematic and layout
User manual 12 Rev. 1.1
2021-06-24

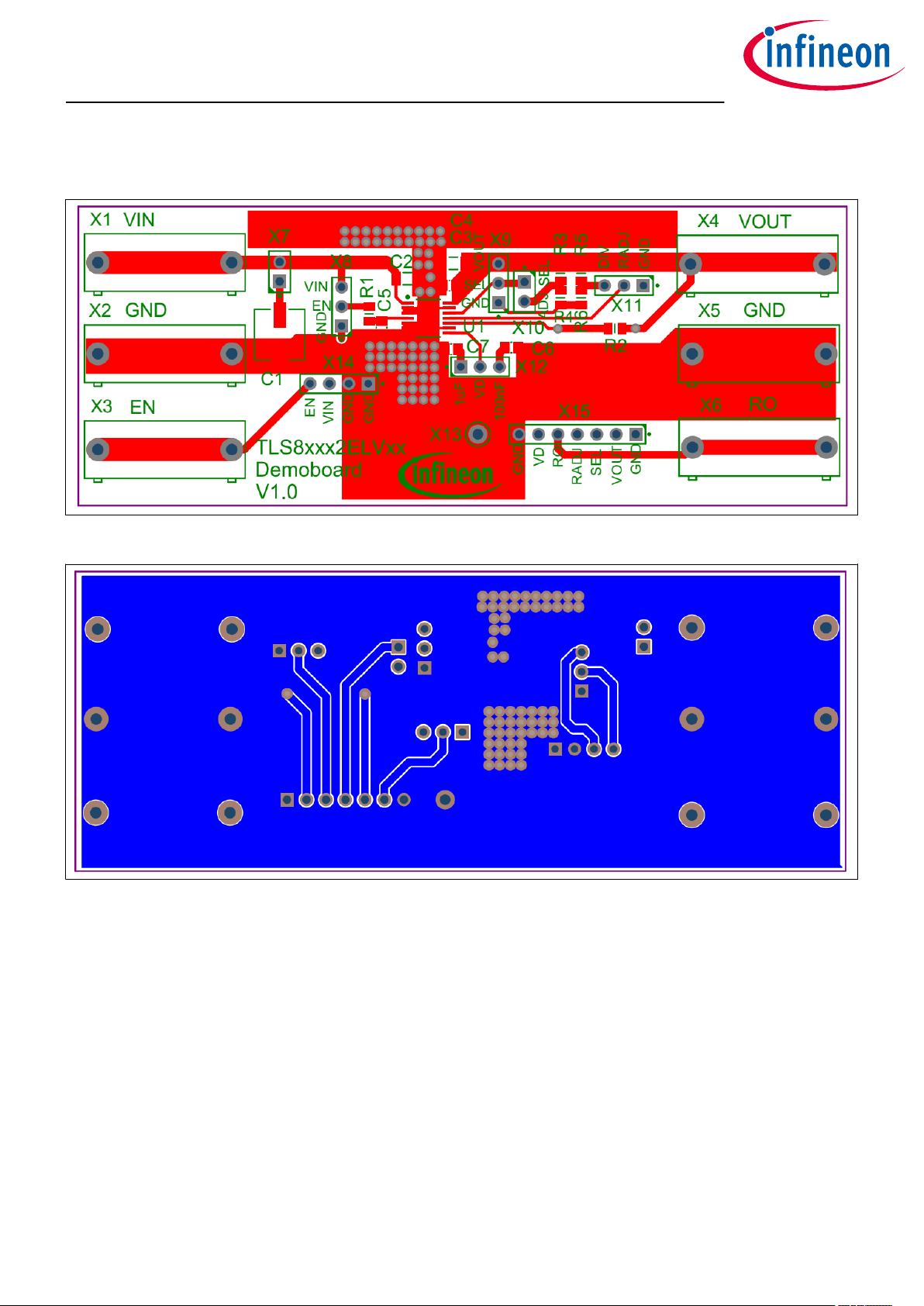

3.2 Layout
Figure 6 Top layer
Figure 7 Bottom layer
OPTIREG™ linear voltage regulator TLS8xxx2ELVxx demoboard
Z8F61720705
Schematic and layout
User manual 13 Rev. 1.1
2021-06-24

4 Bill of materials
Table 10 Bill of materials
Part Value Package
U1 one of the following:
• TLS820B2ELVSE
• TLS820D2ELVSE
• TLS835B2ELV
• TLS835B2ELVSE
• TLS835D2ELVSE
PG-SSOP-14
VIN banana jack BABU4MM
GND banana jack BABU4MM
EN banana jack BABU4MM
VOUT banana jack BABU4MM
GND banana jack BABU4MM
RO banana jack BABU4MM
R1 0 Ω R0805
R2, R3, R4 n.a. R0805
C1 47 µF / 50 V SMD
C2 100 nF / 100 V C1206
C3, C7 1 µF / 16 V C0805
C4 n.a. C1206
C5 n.a. C0805
C6 100 nF / 100 V C0805
X7, X10 2 pin header –
X8, X9, X11, X12 3 pin header –
X13 Test point –
X14 4 pin header –
X15 7 pin header –
OPTIREG™ linear voltage regulator TLS8xxx2ELVxx demoboard
Z8F61720705
Bill of materials
User manual 14 Rev. 1.1
2021-06-24

5 Restrictions
This demoboard oers limited features only for evaluation and testing of Infineon products. The demoboard is
not an end product or finished appliance, nor is it intended or authorized by Infineon to be integrated into end
products. The demoboard may not be used in any production system.
For further information please contact www.infineon.com.
OPTIREG™ linear voltage regulator TLS8xxx2ELVxx demoboard
Z8F61720705
Restrictions
User manual 15 Rev. 1.1
2021-06-24

6 Revision history
Revision Date Changes
1.1 2021-06-24 TLS820D2ELVSE added
1.0 2018-05-15 Document created
OPTIREG™ linear voltage regulator TLS8xxx2ELVxx demoboard
Z8F61720705
Revision history
User manual 16 Rev. 1.1
2021-06-24

Trademarks
All referenced product or service names and trademarks are the property of their respective owners.
Edition 2021-06-24
Published by
Infineon Technologies AG
81726 Munich, Germany
© 2021 Infineon Technologies AG
All Rights Reserved.
Do you have a question about any
aspect of this document?
Email: [e-mail]
Document reference
IFX-Z8F61720705
IMPORTANT NOTICE
The information given in this document shall in no
event be regarded as a guarantee of conditions or
characteristics (“Beschaenheitsgarantie”).
With respect to any examples, hints or any typical
values stated herein and/or any information regarding
the application of the product, Infineon Technologies
hereby disclaims any and all warranties and liabilities
of any kind, including without limitation warranties of
non-infringement of intellectual property rights of any
third party.
In addition, any information given in this document is
subject to customer’s compliance with its obligations
stated in this document and any applicable legal
requirements, norms and standards concerning
customer’s products and any use of the product of
Infineon Technologies in customer’s applications.
The data contained in this document is exclusively
intended for technically trained sta. It is the
responsibility of customer’s technical departments to
evaluate the suitability of the product for the intended
application and the completeness of the product
information given in this document with respect to such
application.
WARNINGS
Due to technical requirements products may contain
dangerous substances. For information on the types
in question please contact your nearest Infineon
Technologies oice.
Except as otherwise explicitly approved by Infineon
Technologies in a written document signed by
authorized representatives of Infineon Technologies,
Infineon Technologies’ products may not be used in
any applications where a failure of the product or
any consequences of the use thereof can reasonably
be expected to result in personal injury.
