1. Introduction
Sigfox is a communication protocol that is used to read data from sensors through a
fixed network of base stations. It works like a low cost “SMS” service. As an end-user,
you only need to buy a subscription to connect to the data network operated by
SIGFOX. Sigfox uses Ultra Narrow Band (UNB) radio technology and operates in the
license free bands (ISM). Sigfox has the advantage of covering larger areas than
other fixed local systems.
ADS-260 is an ultra low power, battery powered end node for the Sigfox network. The
units is available for the 868 to 869 MHz and 902 to 928 MHz bands. It incorporates a
configurable input (digital, pulse counter or analog) and multiple excitation options for
powering transducers. The device supports acquisition of up to 8 measurement
channels, based on the popular SDI-12 communication protocol and 8 channels,
based on the MODBUS protocol. ADS-260 can send up to 140 uplink messages per
day. The unit incorporates a Lithium Thionyl Battery supplying system operation for
up to 10 years.

ADS-260 User Guide 5
2. Operation modes
Modes of operation include:
1. Battery supplied cyclic operation.
2. External power adaptor supplied cyclic operation. The transition between the
two operation modes is uninterruptible.
3. Operation suspension for the device configuration.
3. Hardware setup
3.1 Packing list
1. ADS-260 Unit
2. Lithium Thionyl Battery (optional)

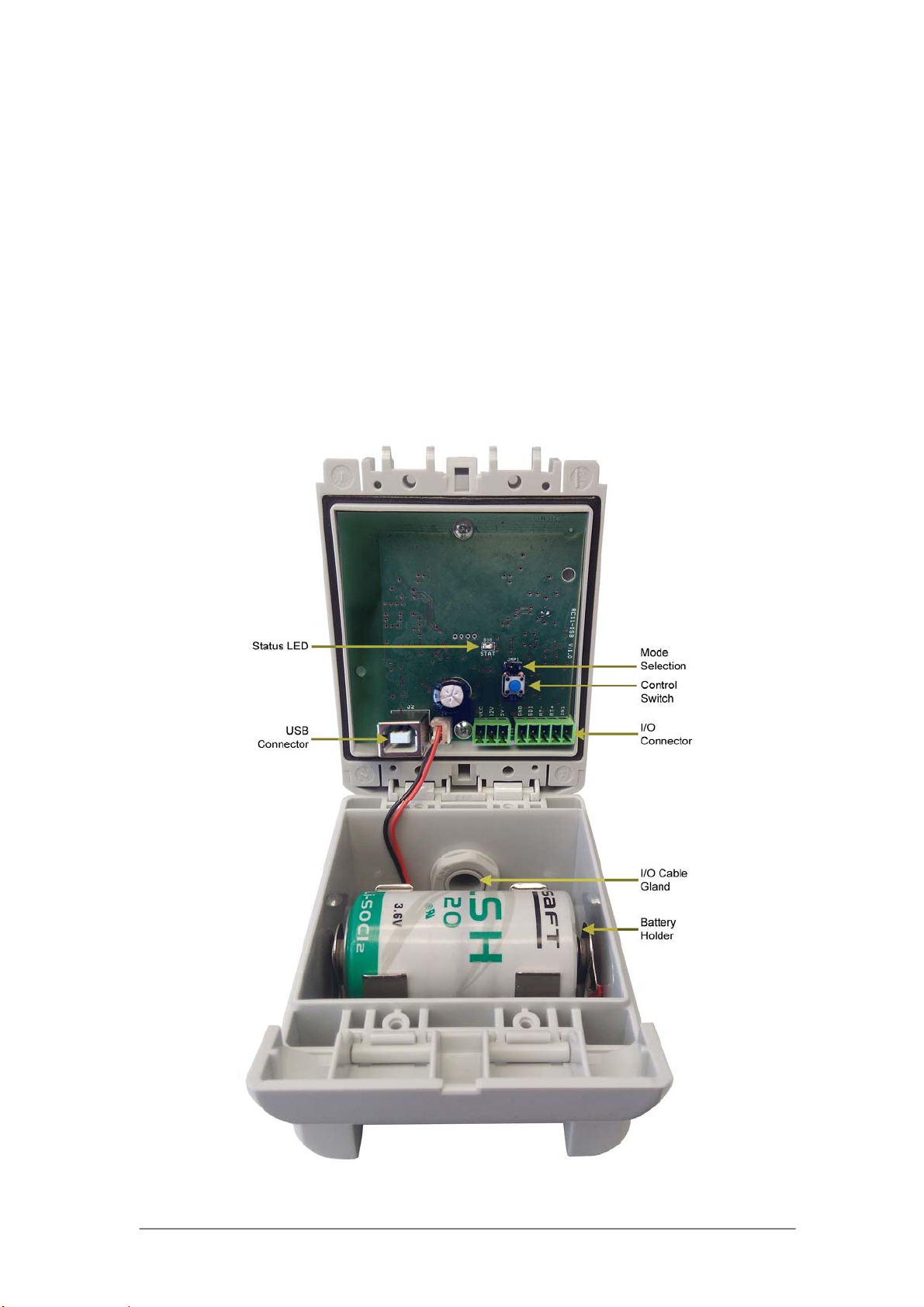

3.2 Opening the enclosure

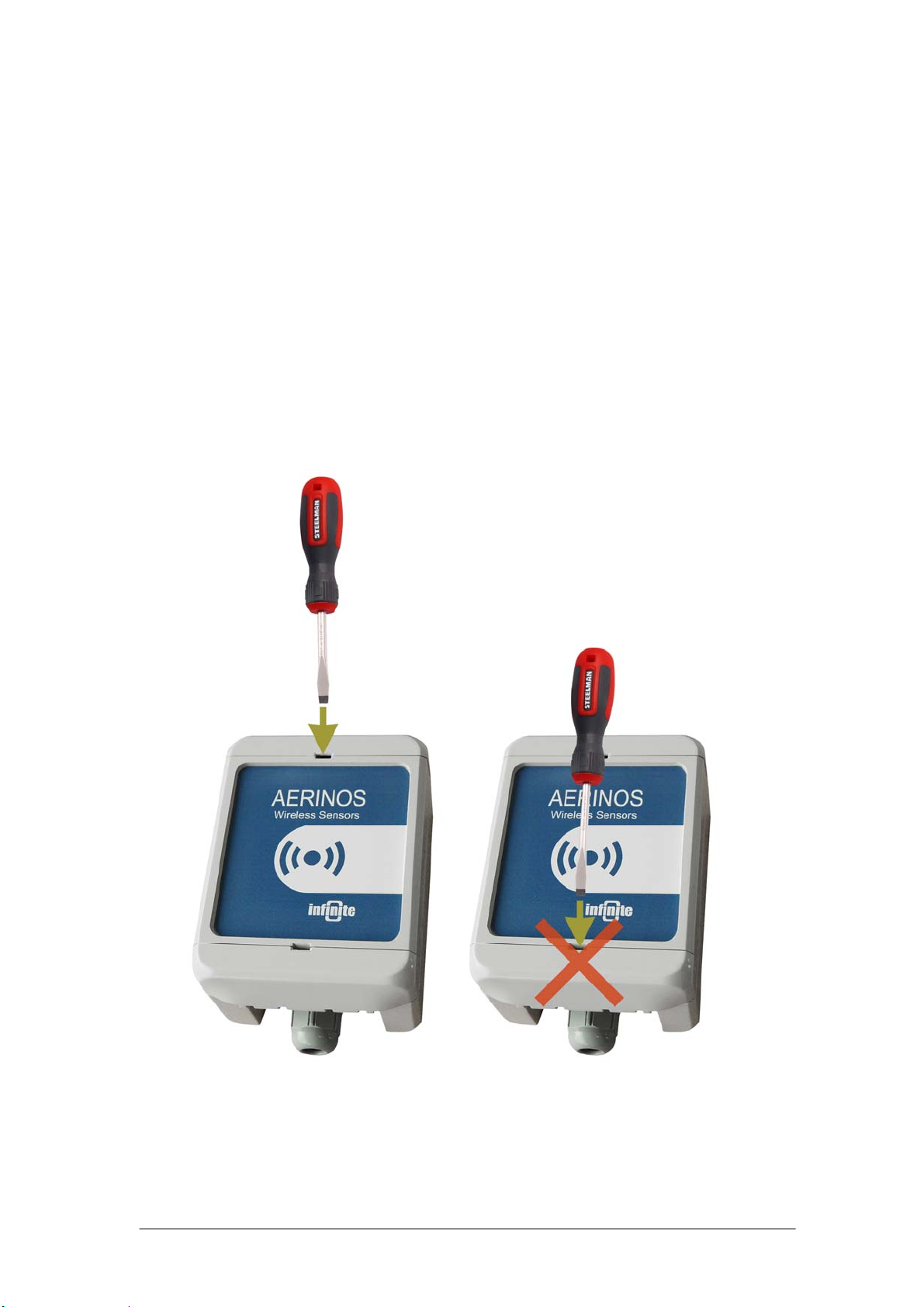

Open the unit enclosure by inserting a screwdriver in the slot on the enclosure’s top.
Right Wrong

ADS-260 User Guide 6

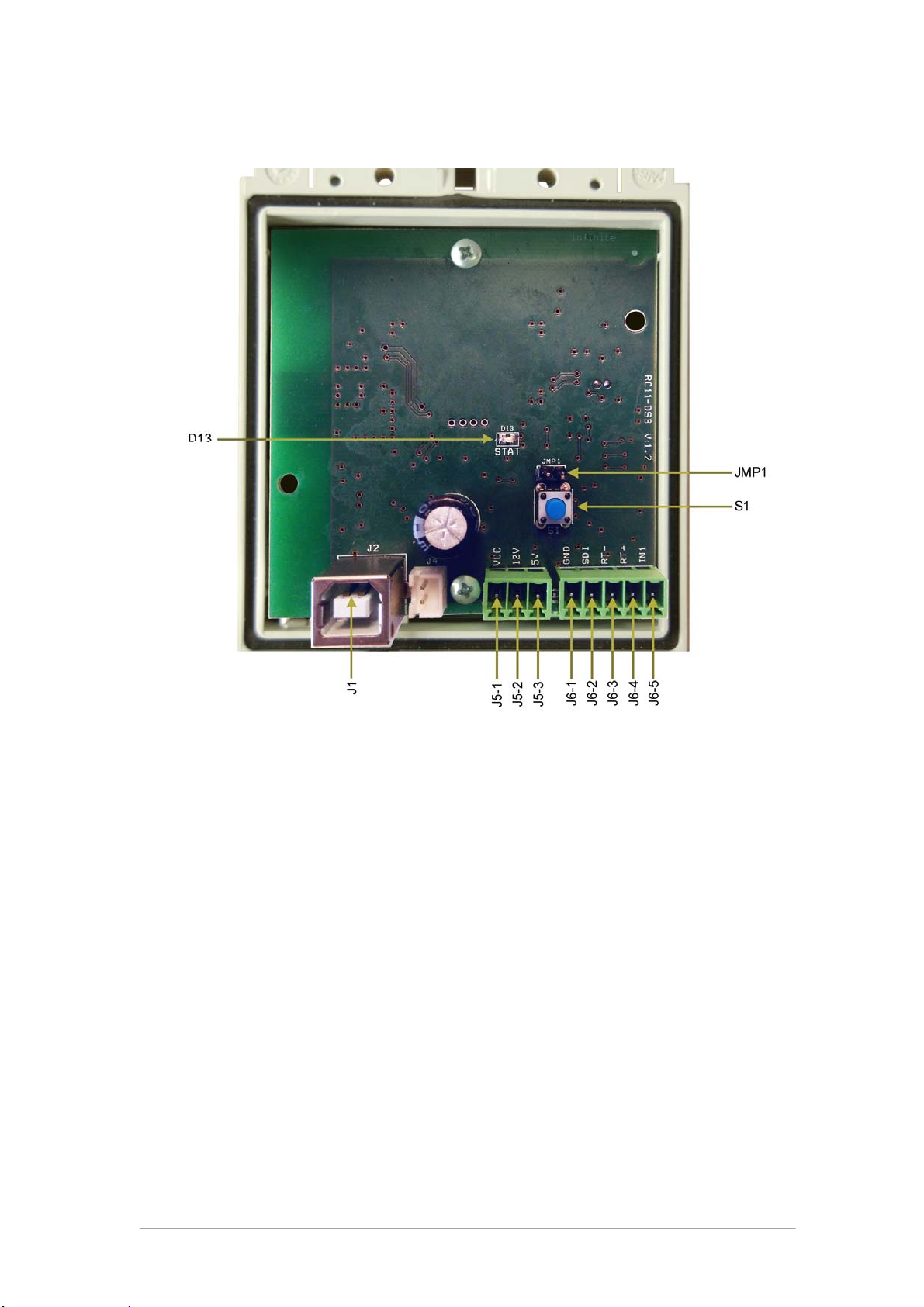

3.3 Connectors & Jumper settings
3.3.1 LED
D13: Status LED, Blinking in configuration mode.
3.3.2 Connectors
JMP1: Put a Jumper to enter configuration mode.
J2: USB Serial connector. The unit can be supplied through the USB connector for
configuration and test.
Caution: Remove the external power supply (J5-1), if applied, before connecting
the USB connector!
J4: Battery connector.
J5-1: VCC, External power supply, 5V (stabilized).
J5-2: 12VDC sensor excitation (switched)
J5-3: 5VDC sensor excitation (switched)
J6-1: GND (COM), Common for IN1
J6-2: SDI-12 data line
J6-3: RS-485 bus (-)
J6-4: RS-485 bus (+)
J6-5: IN1, Multifunction Input (Digital, Analog, Counter: software selectable)
3.3.3 Switches
S1: Test mode button

ADS-260 User Guide 7

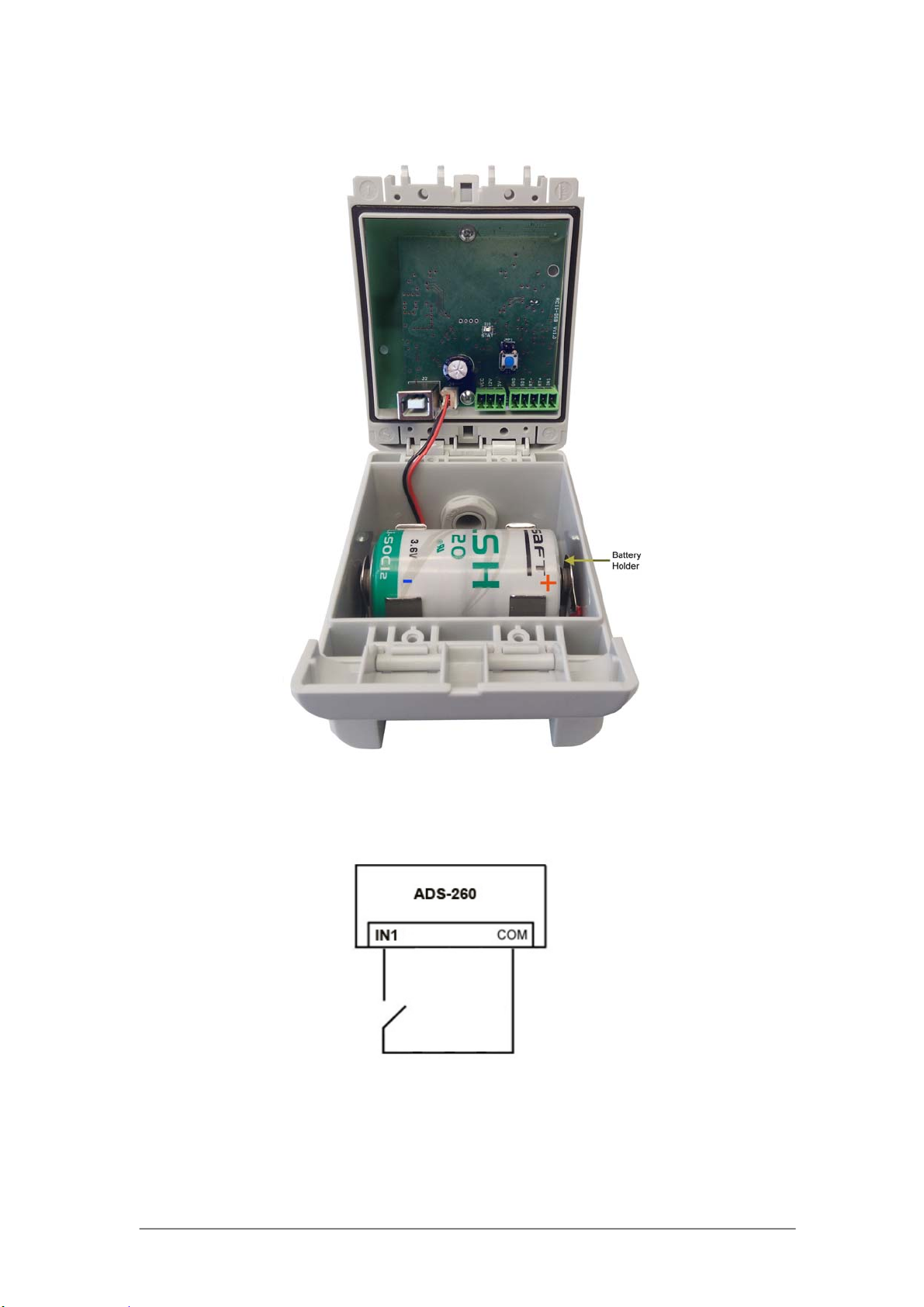

3.4 Battery installation
WARNING: Pay attention to the correct polarity during battery
installation! The right polarity is marked up on the Battery Holder. The unit is
protected against reverse polarity.
3.5 Wiring the digital (Counter) Input
COM: GND
Digital Input states are:
Contact closed  Input state: ON (logical ‘H’)
Contact open  Input state: OFF (logical ‘L’)

ADS-260 User Guide 8
3.6 Wiring the analog input
ADS-260 incorporates 1 analog input with 12 bit resolution. The Analog input is
scanned according to the selected message transmission period (see 4.5.2).
For current measurements, an external 47R/0.25W resistor can be applied between
the input terminals (J6-1 and J6-5) on IN1.
ADU-260 incorporates two excitation outputs (12V, 5V) to supply external
transducers. The excitation output switches ON/OFF according to the selected
message transmission period (see 4.5.2).
Low power transducers are recommended for preserving longer battery lifetime.
The unit performs 100 consecutive readings of the analog input for every sample,
thereby neglecting the maximum and minimum values and calculates the average of
the remaining 98 values.

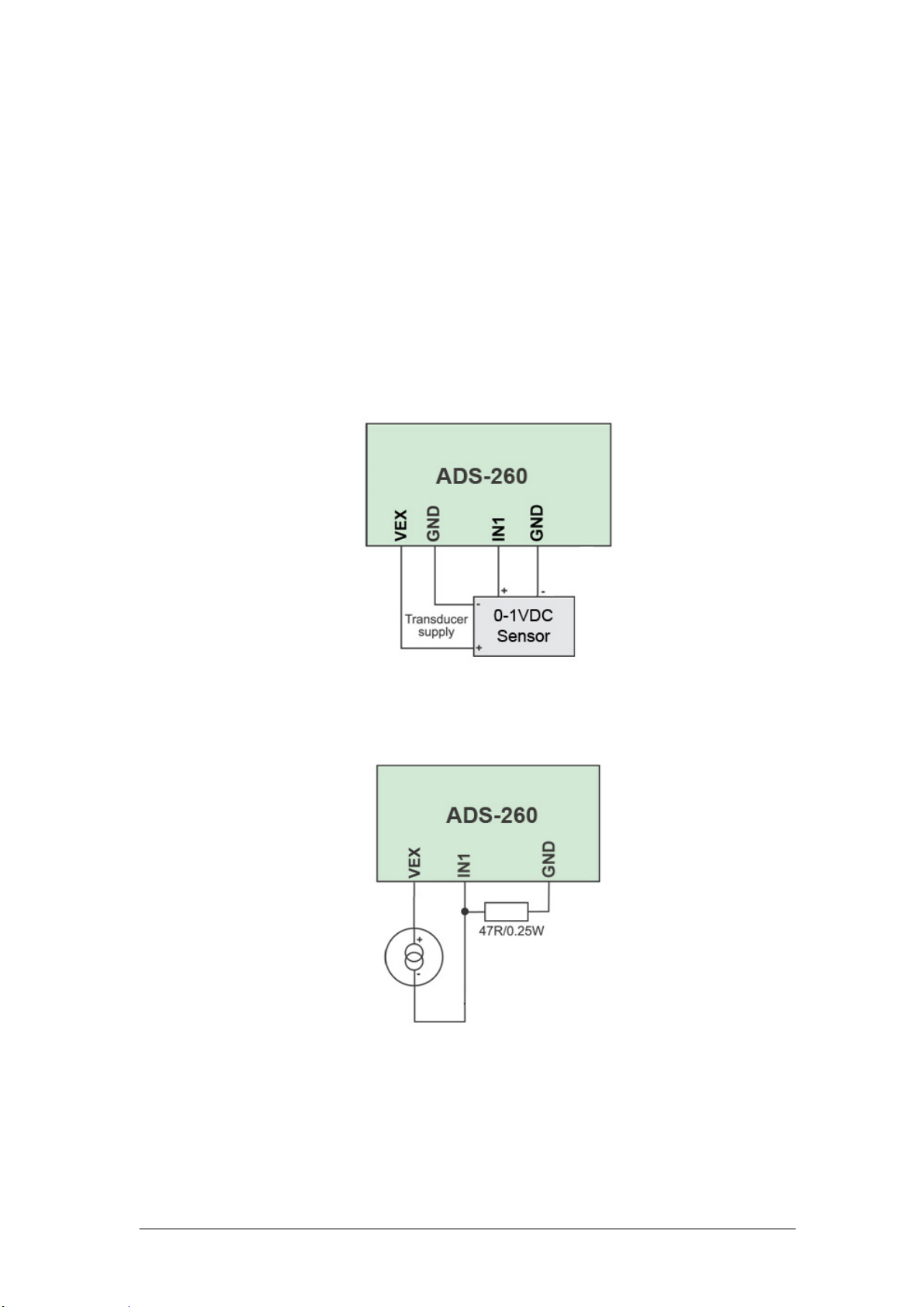

3.6.1 0-1V Transducers
Scale settings: 0..1V  Raw scale:0..4095
3.6.2 Two Wire 0-20/4-20mA transducers
Scale settings: 0..20mA, Raw scale:0..3846

ADS-260 User Guide 9

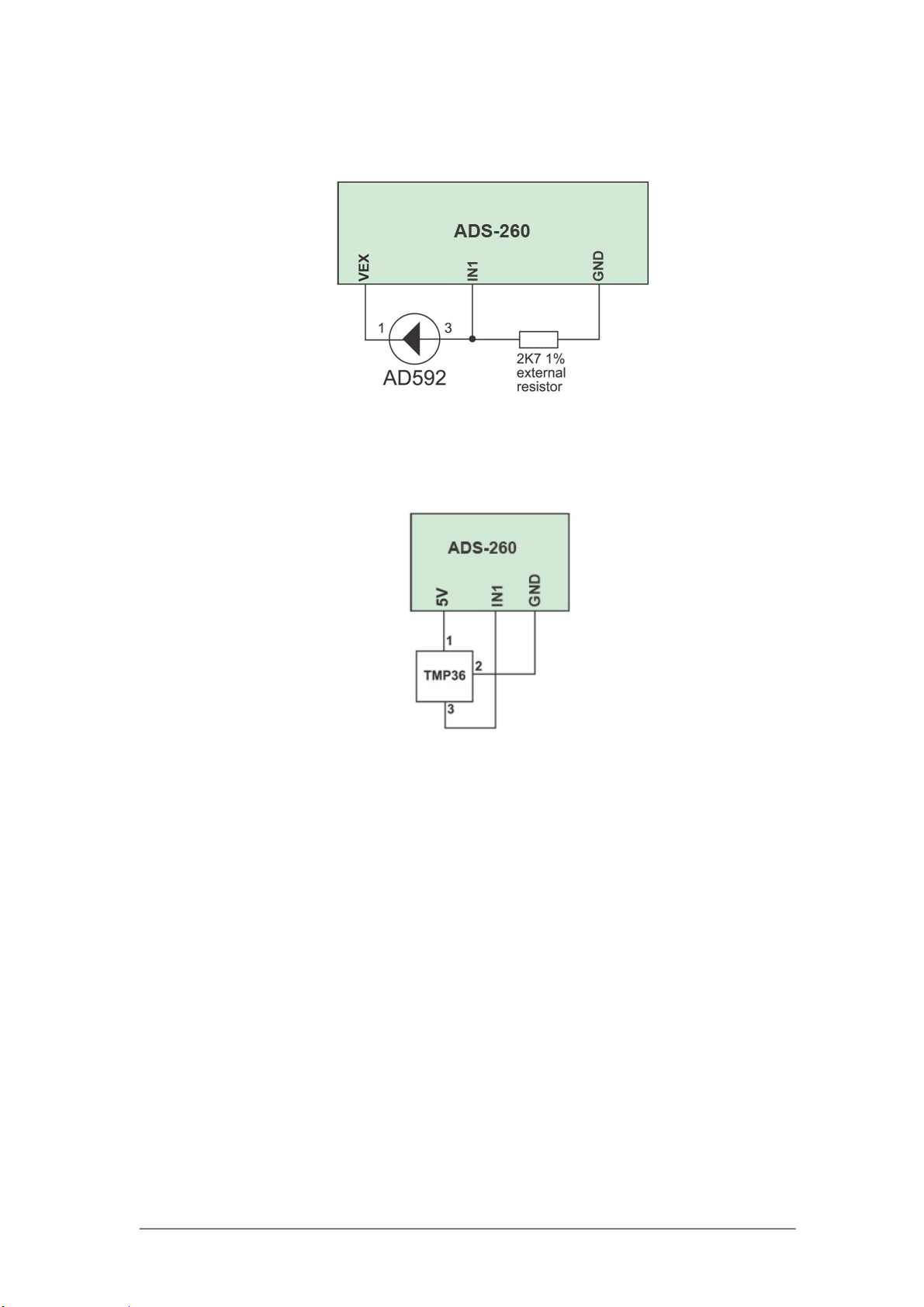

3.6.3 AD592 temperature transducer (-25°C … 105°C)
Scale settings: -25°C … 105°C
Sensor Output: 0.641V..0.977V, Raw scale: 2625..4001
3.6.4 TMP36 temperature transducer (-40°C … 50°C)
Scale settings: -40°C … 50°C
Sensor Output: 0.1V..1V, Raw scale: 410..4095

ADS-260 User Guide 10
3.7 Wiring the SDI-12 Serial Bus
SDI-12 is an asynchronous, ASCII, serial communications protocol that was
developed for intelligent sensory instruments that typically monitor environmental
data. The communication is achieved by digital communications. The addressing
system allows data recorder to communicate with several microprocessor-based
sensors over a single line.
ADS-200 is compliant to the SDI-12 Standard Version 1.2 and supports extended
commands for sensor configuration, in terminal mode. ADS-200 can collect data from
several SDI-12 sensors for a total amount of 8 measurement channels.

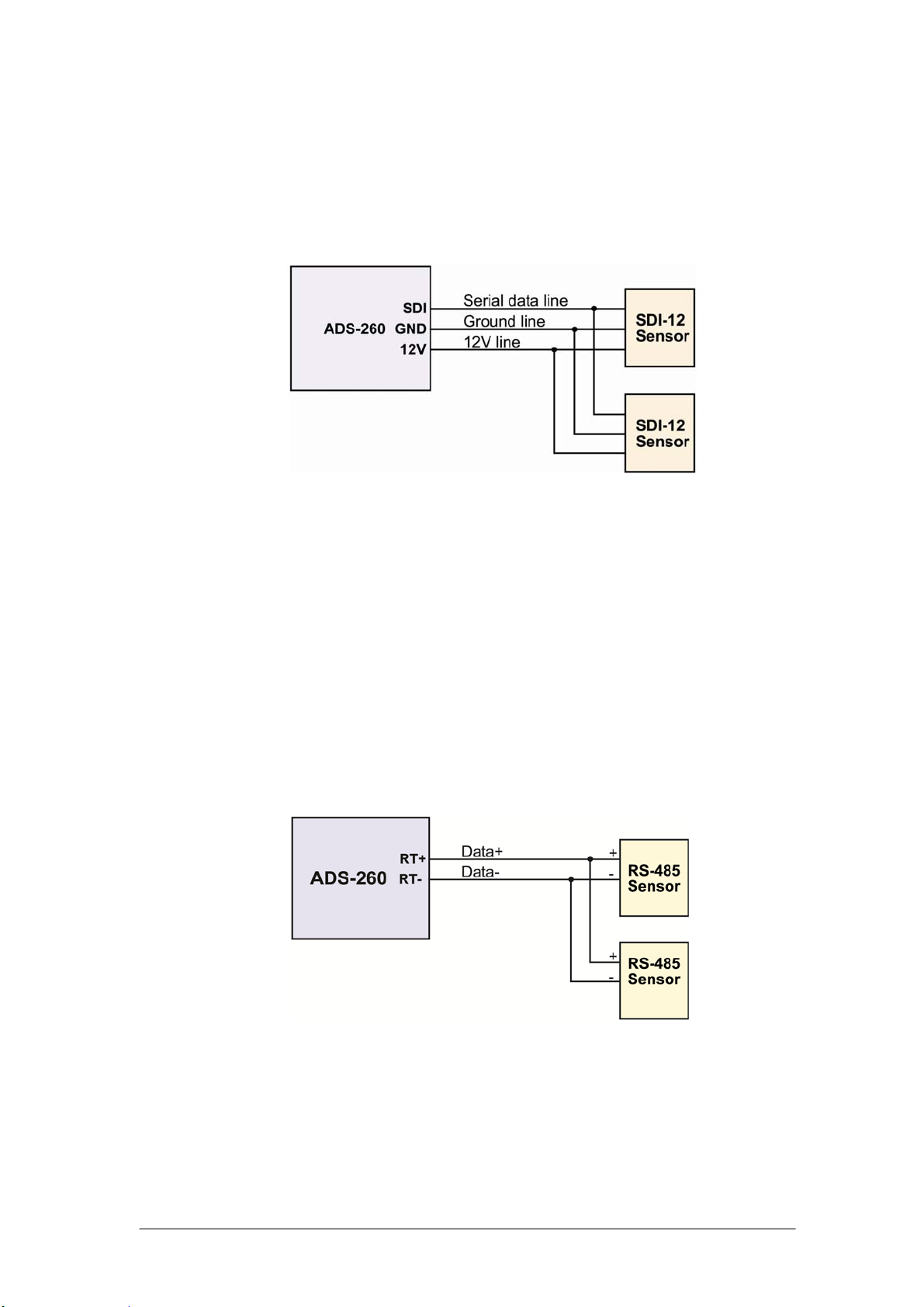

SDI-12 connections:
J6-2: SDI data line
J6-1: GND
J5-2: 12V excitation output. The 5V excitation output (J5-3) can be used instead, for
sensors with a 5VDC supply option.
It is recommended to read the sensor manufacturers’ Sensor Manual and the SDI-12
Specification by the SDI-12 Support Group [1] before utilizing the corresponding
functions of the ADS-260 device.
3.8 Wiring the RS-485 Bus
ADU-500 supports the popular MODBUS protocol over a differential RS-485 bus. The
bus line is internally terminated with a 120Ω resistor.

ADS-260 User Guide 11
4. Device configuration
4.1 Configuring IN1 as Counter input
The command enables counting mode on IN1. The Counter (0-65535) is cleared
according to a Clear Mode parameter, thereby acting as a Totalizer or a virtual
Analog Channel.
1150,n
1150: Command ID
n: 1, CNT number
4.1.1 Counter Scale factor
1154,n,f
1154: Command ID
n: 1, CNT number
f: 0.000-0.999, Counter Scale factor
4.1.2 Set Counter Clear Mode
1158,n,c
1158: Command ID
n: 1, CNT number
m: 0-1, 0 No Clear (Totalizer), 1 Clear on Sampling
4.1.3 Counter Preset
1181,n,v
1154: Command ID
n: 1, CNT number
f: Preset value
4.1.4 Reset Counter
Resets the counter value to 0.
1180,n
1154: Command ID
n: 1, CNT number
4.1.5 Clear Counter Configuration
1160,n
1160: Command ID
n: 1, CNT number

ADS-260 User Guide 12
4.2 Configuring IN1 as Analog Input
The AI configuration command structure is:
1200,n,ssl,ssh,sl,sh
1200: Command ID
n: 1, AI number
ssl: Sensor scale low (Row value 0-4095)
ssh: Sensor scale high (Row value 0-4095)
sl: User scale low
sh: User scale high
4.2.1 Clear AI Configuration
1210,n
1210: Command ID
n: 1, AI number
4.3 Configuring the SDI-12 channels
ADS-260 supports up to 8 channels.
The configuration command for a SDI-12 channel is:
1230,n,a,m,i
1230: Command ID
n: Channel number (1-8)
a: Sensor address
m: Measurement set (0 for the aM! command, 1-9 for the aM1!–aM9! commands)
i: Parameter
ADS-260 addresses the SDI-12 sensors using the basic measurement starting
commands aM! (aMx!) and the D0!...D9! send data commands.
4.3.1 SDI-12 acquisition scheme
ADS-260 sends a start measurement command to the SDI-12 serial bus:
aMm!
where,
a: sensor address
M: Start measurement command
m: void or 1-9, Measurement set (aM! or aM1! to aM9!)
This command tells the sensor with address ‘a’ to take a measurement.
The sensor responds with:
atttn
where,
a: sensor address
ttt: the specified time, in seconds, until the sensor will have the measurement(s)
ready
n - the number of measurement values the sensor will make and return in one or
more subsequent D commands; n is a single digit integer with a range of 0 to 9
ADS-260 waits for either of two events to occur before issuing a D0 command:
1) receipt of a service request (a<CR><LF>) from the sensor
2) the specified time to elapse (ttt seconds)
ADS-260 issues one or more read commands (aD0! to aD9!) to read the
measurement parameters. Each parameter corresponds to one channel according to
the channel configurations:

ADS-260 User Guide 13
aD0! (aD1!...aD9!)
The addressed sensor responds with:
a<values><CR><LF>
where,
<values> - pd.d
p - the polarity sign (+ or -)
d - numeric digits before the decimal place . - the decimal point (optional)
d - numeric digits after the decimal point. the maximum number of digits for a data
value is 7, even without a decimal point, the minimum number of digits for a data
value (excluding the decimal point) is 1, the maximum number of characters in a
data value is 9 (the (polarity sign + 7 digits + the decimal point))
Example:
A soil measurement sensor returns three parameters:
1. Soil moisture in Water fraction by Volume (wfv)
2. Soil Conductivity in Siemens/Meter (S/m)
3. Temperature in °C
Two sensors (addresses 1 and 2) are connected to the SDI-12 serial bus.
The configuration commands are:
1230,1,1,0,1
1230,2,1,0,2
1230,3,1,0,3
1230,4,1,0,1
1230,5,1,0,2
1230,6,1,0,3
4.3.2 Clear SDI-12 channel configuration
The command clears the specified SDI-12 channel configuration.
1238,n
1238: Command ID
n: 1-8, SDI-12 number
4.3.3 Clear all SDI-12 channels
The command clears all declared SDI-12 channels.
1239
1239: Command ID

ADS-260 User Guide 14
4.4 Configuring the MODBUS (RS-485) channels
ADU-500 supports up to 8 MODBUS channels.
The configuration command for a MODBUS channel is:
1241,n,a,c,sr,nr
1241: Command ID
n: Channel number (1-8)
a: RS-485 address
m: MODBUS command
sr: Start register
nr: Number of registers
4.4.1 Start Measurement Trigger command
The command concerns sensors requiring a trigger to make a measurement.
1240,a,r,v
1240: Command ID
a: RS-485 address
r: Register
v: Value
4.4.2 Clear MODBUS channel configuration
The command clears a MODBUS channel configuration.
1248,n
1248: Command ID
n: Channel number
4.4.3 Clear all MODBUS channels
The command clears a MODBUS channel configuration.
1249
1249: Command ID
4.4.4 Set MODBUS baud rate
The command sets the baud rate for the MODBUS communications. The other
settings are fixed: Data bits: 8, Parity: none, Stop bits: 1
1245,b
1245: Command ID
b: Baud rate: 9600, 19200, 38400, 57600, 115200
4.4.5 Set MODBUS protocol
The command sets the protocol for the MODBUS communications.
1244,p
1244: Command ID
p: Protocol: 0: RTU, 1: ASCII

ADS-260 User Guide 15
4.5 Data Acquisition Parameters
4.5.1 Sampling delay (Warm up time)
The parameter defines an idle period between switching on the excitation and reading
the measurements from the analog and the SDI-12 channels. This option should be
set according to the transducer with the longest warm up time for stable reading. The
value of this parameter affects strongly the battery life.
1291,d
d: 0-255 sec
4.5.2 Message transmission period
The parameter defines the message transmission period to the Sigfox network. The
period should be set according to the number of channels selected for acquisition.
Every message contains one channel. The minimum value is 10 minutes in order to
satisfy the limitation of 140 messages per day. The value of this parameter affects
strongly the battery life.
1292,p
p: 1-255 min
4.6 Message Format
The message is in ASCII format and has a fixed length of 12 bytes.
L1 L0 D9 D8 D7 D6 D5 D4 D3 D2 D1 IN
L0, L1: 0-F, HEX, Channel Number
D1-D9: Measurement value
D9: +/-, Sign
D1-D8: Value, can contain a decimal point
IN: 0-1, Digital Input value
Examples:
Channel 1 has the value of -16.7, Digital input is ON.
The Message contents are: 01-000016.71
Channel 2 has the value of 23.3440, Digital input is ON.
The Message contents are: 02+023.34401
Channel 3 has the value of 48546, Digital input is OFF.
The Message contents are: 03+000485460

ADS-260 User Guide 16
5. Programming the unit
The way to enter the unit setup mode is the following:
1. Install the USB driver on a PC.
2. Connect the USB port to a PC. The Status LED is lighting for 2 sec.
3. Put a Jumper on JMP1. The Status LED starts blinking, indicating setup mode.
Program execution is suspended.
There are two ways to program the unit:
1. Connecting the unit to a PC and using a terminal program to pass the ASCII
commands to the unit, according to the scheme: “Command, Parameters
<CR>”. The terminal settings should be: Baud rate: 115200 bps, Data bits: 8,
Parity: none, Stop bits: 1, Flow control: none.

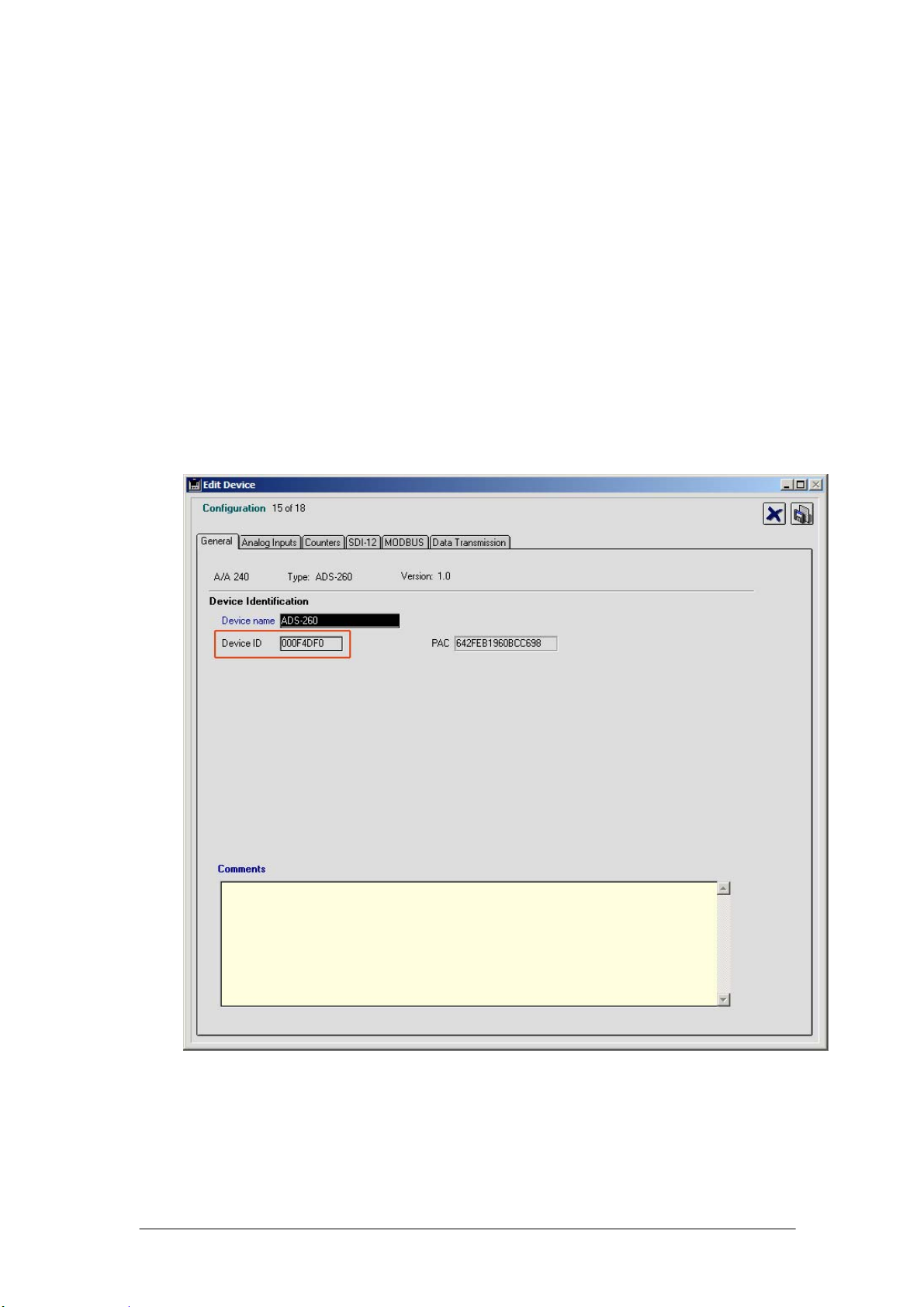

2. Connecting the unit to a PC and using the WA Manager software. This is the
most convenient way. The Device ID, which is necessary for connecting the
unit to the Sigfox network, is automatically read during downloading the
parameter file to the device. The Device ID is also printed on a label in the
device interior.

ADS-260 User Guide 17
6. Technical characteristics
Power supply Internal 3.6V Ah Lithium Thionyl battery
External 5VDC stabilized power adaptor
USB interface
(
Confi
g
uration
)
Temperature
Operation
Stora
g
e
-40 to 65 ºC
-45 to 85 ºC
Current draw
Standby
Measurement
Messaging
18 uA max
6.5 mA (w/o sensor current)
865-870MHz Band (ETSI): 58mA
902-928 MHz Band
(
FCC
)
: 292m
A
Radio characteristics
865-870 MHz Band
(
ETSI
)
Uplink data rate (TX): 100bps
Max output power: +14dBm
Radio characteristics
902-928 MHz Band
(
FCC
)
Uplink data rate (TX): 600bps
Max output power: +24dBm
Di
g
ital inputs 1, 0-30VDC or potential free contacts
Pulse counters 1, 2KHz, IN1
A
nalo
g
inputs 1, 12 bit resolution, IN1
SDI-12 Bus 8 Channels, multiple sensor suppor
t
RS-485 8 Channels, multiple sensor suppor
t
Excitation 12VDC/250mA, 5VDC/200m
A
Serial port USB 2, 9600 to 115200bps
Indications 1 LED, Device status
Protection IP66
Dimensions 130 x 130 x 75 mm
Wei
g
ht 0.5 k
g

ADS-260 User Guide 18
7. Command Summary
7.1 Configuration Commands
Cmd Description S
y
ntax Comments
0160 Clear Event Lo
g
cmd
0183 Set Factor
y
Defaults cmd,cmd
0205 Reset Unit Operation cmd,cmd
0301 Set Device ID cmd,id,p id: unit ID, p: password
0790 Show Status Messa
g
es cmd
0791 Hide Status Messa
g
es cmd
1150 Enable Counter cmd,n n: counter
1154 Set Counter Scale Factor cmd,n,f n: counter, f: factor
1158 Set Counter Auto Clear cmd,n,c
n: counter, c: auto clear
(
0: no, 1:
y
es
)
1160 Clear Counter Confi
g
uration cmd,n n: counter
1180 Clear Counter cmd,n n: counter
1181 Preset Counter cmd,n,v n: counter, v: value
1200 Set AI Confi
g
uration cmd,n,ssl,ssh,sl,sh
ssl/ssh: sensor scale l/h,
sl/sh: User scale l/h
1210 Clear AI Confi
g
uration cmd,n n: AI
1230
Set SDI-12 Channel
Confi
g
uration cmd,n,a,m,i
n: SDI AI, a: sensor address, m:
parameter set, i: parameter index
1238
Clear SDI-12 Channel
Confi
g
uration cmd,n n: SDI AI
1239
Clear All SDI-12 Channel
Confi
g
uration cmd
1240
Set Modbus Trigger
Command cmd,a,r,v a: address, r: re
g
, v: value
1241
Set Modbus Channel
Confi
g
uration cmd,n,a,c,sr,nr
n: Modbus AI, a: address, c:
command, sr: start reg, nr: number
of re
g
s
1248
Clear Modbus Channel
Confi
g
uration cmd,n n: Modbus AI
1249
Clear All Modbus Channels
Confi
g
uration cmd
1250 Set Massa AI Confi
g
uration cmd,n,a,u,o
n: Massa AI, a: address, u: unit
(
0:in, 1:cm
)
, o: offset
1259 Clear Massa AI Confi
g
uration cmd,n n: Massa AI
1291 Set AI Power Up Dela
y
cmd,d d: dela
y
(
sec
)
1310 Set Send Period cmd,p p: period
(
minutes
)
1600 Set Unit RTC Time cmd,d,m,
y
,h,n,s
d: day, m: month, y: year, h: hour,
n: minutes, s: seconds

ADS-260 User Guide 19
7.2 Verification Commands
Cmd Description S
y
ntax Comments
2000 Get Device Status cmd
2160
Get Event Log Entries
Number cmd
2161 Get Event Lo
g
Last Entries cmd,n n: event lo
g
entries
(
0: all
)
2301 Get Device ID cmd
3160 Get Counter Settin
g
s cmd,n n: counter
3210 Get AI Settin
g
s cmd,n n: AI
3230 Get SDI AI Confi
g
uration cmd,n n: SDI AI
3240
Get Modbus Trigger
Command cmd
3241 Get Modbus AI Confi
g
uration cmd,n n: Modbus AI
3250 Get Massa AI Confi
g
uration cmd,n n: Massa AI
3291 Get AI Power Up Dela
y
cmd
3310 Get Send Period cmd
3600 Get Unit RTC Time cmd
5100 Get Current AI/DI Values cmd
8100 Set
A
I
(
IN1
)
Correction Factor cmd,n,r,c
n: AI, r: real value, c: corrected
value
8270 Enter Si
g
fox Debu
g
Mode cmd,e e: enable
(
0: No, 1: Yes
)
8280 Send Si
g
fox Messa
g
e cmd,bs,sb1,...,sbN
bs: number of bytes to send,
sb1-sbN: b
y
tes to be sen
t
9100 Get Correction Factor cmd,n n: AI
9210 Send SDI Command cmd,s s: SDI command strin
g
9220 Send Modbus Command cmd,a,c,p1,p2
a: address, c: command, p1-p2:
function dependent parameters
9225 Send Massa Command cmd,a,rc,p1,p2
a: address, rc: request code, p1-
p2: request code dependent
parameters
9226 Get Massa Value cmd,a a: address
9270
Sigfox transceiver Send
Command cmd,bs,br,sb1,...,sbN
bs: number of bytes to send, br:
number of bytes to receive, sb1-
sbN: b
y
tes to be sent
9275
Sigfox transceiver Memory
Read cmd,addr,num
addr: start address, num: number
of b
y
tes to read
9276
Sigfox transceiver Memory
Confi
g
cmd,addr,num,v1,...,vN
addr: start address, num: number
of b
y
tes to write, v1-vN: values

ADS-260 User Guide 20
8. References
1) SDI-12, A Serial-Digital Interface Standard for Microprocessor-Based Sensors Version 1.3.
January 3, 2012
SDI-12 Support Group (Technical Committee),
165 East 500 South, River Heights, Utah,
435-752-4200, 435-752-1691 (FAX),
http://www.sdi-12.org
