Ingersoll-Rand 5 series User manual

16572208
Edition 3
January 2010
Save These Instructions
Product Information
EN Product Information
Especicaciones del producto
Spécications du produit
Προδιαγραφές προϊόντος
Especicações do Produto
Tuote-erittely
Produktspesikasjoner
Produktspecikationer
Produktspecikationer
Productspecicaties
Technische Produktdaten
Speciche prodotto
Ierices specikacijas
Gaminio techniniai duomenys
A termék jellemzői
Toote spetsikatsioon
Specikace výrobku
Špecikácie produktu
Specikacije izdelka
ES
FR
IT
DE
NL
DA
SV
NO
FI
PT
EL
SL
SK
CS
ET
HU
LT
LV
产品信息
Технические характеристики изделия
Informacje o Produkcie
PL
RU
ZH
Informaţii Privind Produsul
Информация за Продукта
BG
RO
Air Drill
5 and 5R Series

2 16572208_ed3
4
7
5
32
1
9
6
11 48h
PMAX
24h
8
10
6
11
1m
PMAX
10
1m
(Dwg. 16575656)
Models
13
2
5
6
9
10
11
IR # - NPT IR # - BS inch (mm) NPT IR # IR # cm3IR # cm3
5AJST4,
5AJST4-EU C38121-800 C381B1-800 1/4 (6) 1/4 10 23 2 23 2
5AKST4,
5AKST4-EU C38121-800 C381B1-800 1/4 (6) 1/4 10 23 2 23 2
5ALST4,
5ALST4-EU C38121-800 C381B1-800 1/4 (6) 1/4 10 23 2 23 2
5ANST6,
5ANST6-EU C38121-800 C381B1-800 1/4 (6) 1/4 10 23 4 23 4
5RALST6,
5RALST6-EU C38121-800 C381B1-800 1/4 (6) 1/4 10 23 2 23 2
5RANST6 C38121-800 C381B1-800 1/4 (6) 1/4 10 23 4 23 4
5RANST8,
5RANST8-EU C38121-800 C381B1-800 1/4 (6) 1/4 10 23 4 23 4
5LJ1, 5LJ1-EU C38121-800 C381B1-800 1/4 (6) 1/4 10 23 2 23 2
5LK1, 5LK1-EU C38121-800 C381B1-800 1/4 (6) 1/4 10 23 2 23 2
5LL1, 5LL1-EU C38121-800 C381B1-800 1/4 (6) 1/4 10 23 2 23 2
5LN3, 5LN3-EU C38121-800 C381B1-800 1/4 (6) 1/4 10 23 2 23 2

16572208_ed3 EN-1
EN
Product Safety Information
Intended Use:
These Air Drills are designed for drilling, honing, reaming and hole sawing.
For Additional information refer to Air Drills Product Safety Information Manual Form 04580353.
Manuals can be downloaded from www.ingersollrandproducts.com.
Product Specications
Models Style
Free
Speed
Chuck
Capacity
Sound Level dB(A)
(ISO15744)
Sound Level dB(A)
(ANSI S5.1-1971)
Vibration
(m/s²)
(ISO28927)
rpm inch (mm) † Pressure (Lp) ‡ Power (Lw) Pressure Power
(ISO3744) Level *K
5AJST4 Pistol 4500 1/4 (6) --- --- --- --- 3.5 1.3
5AJST4-EU Pistol 4500 1/4 (6) --- --- 74.8 --- 3.5 1.3
5AKST4 Pistol 3000 1/4 (6) --- --- --- --- 3.5 1.3
5AKST4-EU Pistol 3000 1/4 (6) --- --- 77.6 --- 3.5 1.3
5ALST4 Pistol 2200 1/4 (6) --- --- --- --- 3.5 1.3
5ALST4-EU Pistol 2200 1/4 (6) --- --- 75.6 --- 3.5 1.3
5ANST6 Pistol 1000 3/8 (10) --- --- --- --- 20.1 3.6
5ANST6-EU Pistol 1000 3/8 (10) --- --- 74.8 --- 20.1 3.6
5RALST6 Pistol 2000 3/8 (10) --- --- --- --- 3.5 1.3
5RALST6-EU Pistol 2000 3/8 (10) 79.4 90.4 --- --- 3.5 1.3
5RANST6 Pistol 900 3/8 (10) --- --- --- --- 20.1 3.6
5RANST8 Pistol 900 1/2 (13) --- --- --- --- 20.1 3.6
5RANST8-EU Pistol 900 1/2 (13) 79.0 90.0 --- --- 20.1 3.6
5LJ1 Inline 4800 1/4 (6) --- --- --- --- <2.5 ---
5LJ1-EU Inline 4800 1/4 (6) --- --- 75.6 --- <2.5 ---
5LK1 Inline 3100 1/4 (6) --- --- --- --- <2.5 ---
5LK1-EU Inline 3100 1/4 (6) --- --- 77.6 --- <2.5 ---
5LL1 Inline 2300 1/4 (6) --- --- --- --- 8.8 2.7
5LL1-EU Inline 2300 1/4 (6) 72.3 --- --- --- 8.8 2.7
5LN3 Inline 1000 3/8 (10) --- --- --- --- 8.8 2.7
5LN3-EU Inline 1000 3/8 (10) --- --- 78.6 --- 8.8 2.7
† KpA = 3dB measurement uncertainty * K = Vibration measurement uncertainty
‡ KwA = 3dB measurement uncertainty

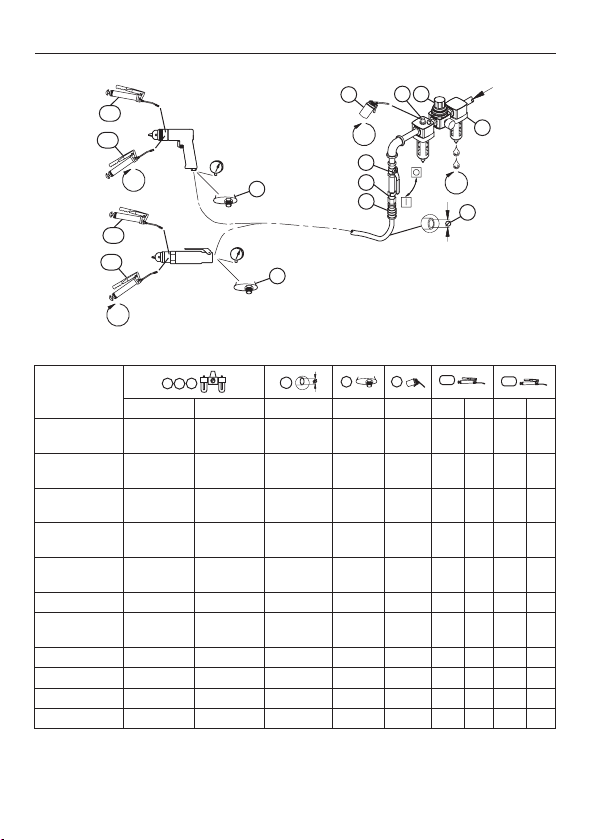

Installation and Lubrication
Size air supply line to ensure tool’s maximum operating pressure (PMAX) at tool inlet. Drain condensate
from valve(s) at low point(s) of piping, air lter and compressor tank daily. Install a properly sized Safety
Air Fuse upstream of hose and use an anti-whip device across any hose coupling without internal shut-
o, to prevent hose whipping if a hose fails or coupling disconnects. See drawing 16575656 and table
on page 2. Maintenance frequency is shown in a circular arrow and dened as h=hours, d=days, and
m=months of actual use. Items identied as:
1. Air lter 7. Coupling
2. Regulator 8. Safety Air Fuse
3. Lubricator 9. Oil
4. Emergency shut-o valve 10. Grease - during assembly
5. Hose diameter 11. Grease - through tting
6. Thread size

EN-2 16572208_ed3
EN
Parts and Maintenance
When the life of the tool has expired, it is recommended that the tool be disassembled,
degreased and parts be separated by material so that they can be recycled.
The original language of this manual is English.
Tool repair and maintenance should only be carried out by an authorized Service Center.
Refer all communications to the nearest Ingersoll Rand Oce or Distributor.

16572208_ed3 ES-1
ES
Información de Seguridad sobre el Producto
Uso Indicado:
Estos taladros neumáticos están diseñados para taladrar, escariar y recticar oricios.
Para más información, consulte el formulario 04580353 del Manual de información de seguridad
del producto.
Los manuales pueden descargarse en www.ingersollrandproducts.com.
Especicaciones del Producto
Modelos Estilo
Velocidad
Libre
Capacidad
de Pinza
Nivel Sonoro dB(A)
(ISO15744)
Nivel Sonoro dB(A)
(ANSI S5.1-1971)
Vibración
(m/s²)
(ISO28927)
rpm inch (mm) † Presión (Lp) ‡ Potencia (Lw) Presión Potencia
(ISO3744) Nivel *K
5AJST4 Pistola 4500 1/4 (6) --- --- --- --- 3.5 1.3
5AJST4-EU Pistola 4500 1/4 (6) --- --- 74.8 --- 3.5 1.3
5AKST4 Pistola 3000 1/4 (6) --- --- --- --- 3.5 1.3
5AKST4-EU Pistola 3000 1/4 (6) --- --- 77.6 --- 3.5 1.3
5ALST4 Pistola 2200 1/4 (6) --- --- --- --- 3.5 1.3
5ALST4-EU Pistola 2200 1/4 (6) --- --- 75.6 --- 3.5 1.3
5ANST6 Pistola 1000 3/8 (10) --- --- --- --- 20.1 3.6
5ANST6-EU Pistola 1000 3/8 (10) --- --- 74.8 --- 20.1 3.6
5RALST6 Pistola 2000 3/8 (10) --- --- --- --- 3.5 1.3
5RALST6-EU Pistola 2000 3/8 (10) 79.4 90.4 --- --- 3.5 1.3
5RANST6 Pistola 900 3/8 (10) --- --- --- --- 20.1 3.6
5RANST8 Pistola 900 1/2 (13) --- --- --- --- 20.1 3.6
5RANST8-EU Pistola 900 1/2 (13) 79.0 90.0 --- --- 20.1 3.6
5LJ1 En línea 4800 1/4 (6) --- --- --- --- <2.5 ---
5LJ1-EU En línea 4800 1/4 (6) --- --- 75.6 --- <2.5 ---
5LK1 En línea 3100 1/4 (6) --- --- --- --- <2.5 ---
5LK1-EU En línea 3100 1/4 (6) --- --- 77.6 --- <2.5 ---
5LL1 En línea 2300 1/4 (6) --- --- --- --- 8.8 2.7
5LL1-EU En línea 2300 1/4 (6) 72.3 --- --- --- 8.8 2.7
5LN3 En línea 1000 3/8 (10) --- --- --- --- 8.8 2.7
5LN3-EU Inline 1000 3/8 (10) --- --- 78.6 --- 8.8 2.7
† KpA = 3dB de error
‡ KwA = 3dB de error
* K = de error (Vibración)

ES-2 16572208_ed3
ES
Instalación y Lubricación
Diseñe la línea de suministro de aire para asegurar la máxima presión de funcionamiento (PMAX) en la
entrada de la herramienta. Vacíe el condensado de las válvulas en los puntos inferiores de la tubería,
ltro de aire y depósito del compresor de forma diaria. Instale una contracorriente de manguera de fusil
de aire de seguridad de tamaño adecuado y utilice un dispositivo antilatigazos en cualquier
acoplamiento de manguera sin apagador interno para evitar que las mangueras den latigazos en caso
de que una manguera falle o de que el acoplamiento se desconecte. Consulte la dibujo 16575656 y la
tabla en la página 2. La frecuencia de mantenimiento se muestra dentro de una echa circular y se dene
como h = horas, d = días y m = meses de uso real. Los elementos se identican como:
1. Filtro de aire 5. Diámetro de la manguera 9. Aceite
2. Regulador 6. Tamaño de la rosca 10. Grasa - durante el montaje
3. Lubricador 7. Acoplamiento 11. Grasa - por el engrasador
4. Válvula de corte de emergencia 8. Fusil de aire de seguridad
Piezas y Mantenimiento
Una vez vencida la vida útil de herramienta, se recomienda desarmar la herramienta, desengrasarla y
separar las piezas de acuerdo con el material del que están fabricadas para reciclarlas.
El idioma original de este manual es el inglés.
Las labores de reparación y mantenimiento de las herramientas sólo puede ser realizadas por un Centro
de Servicio Autorizado.
Toda comunicación se deberá dirigir a la ocina o al distribuidor Ingersoll Rand más próximo.

16572208_ed3 FR-1
FR
Informations de Sécurité du Produit
Utilisation Prévue:
Ces perceuses pneumatiques sont conçues pour les opérations de perçage, d’alésage et de
découpe circulaire.
Pour des informations complémentaires, utilisez le formulaire 04580353 pour obtenir le manuel
d’information de sécurité du produit Perceuse pneumatique.
Les manuels peuvent être téléchargés à l’adresse www.ingersollrandproducts.com.
Spécications du Produit
Modèles Style
Vitesse
Libre
Capacité
de la
Pince
Niveau Acoustique dB(A)
(ISO15744)
Niveau Acoustique
dB(A)
(ANSI S5.1-1971)
Vibration
(m/s²)
(ISO28927)
rpm inch (mm) † Pression (Lp) ‡ Puissance (Lw) Pression Puissance
(ISO3744) Niveau *K
5AJST4 Pistolet 4500 1/4 (6) --- --- --- --- 3.5 1.3
5AJST4-EU Pistolet 4500 1/4 (6) --- --- 74.8 --- 3.5 1.3
5AKST4 Pistolet 3000 1/4 (6) --- --- --- --- 3.5 1.3
5AKST4-EU Pistolet 3000 1/4 (6) --- --- 77.6 --- 3.5 1.3
5ALST4 Pistolet 2200 1/4 (6) --- --- --- --- 3.5 1.3
5ALST4-EU Pistolet 2200 1/4 (6) --- --- 75.6 --- 3.5 1.3
5ANST6 Pistolet 1000 3/8 (10) --- --- --- --- 20.1 3.6
5ANST6-EU Pistolet 1000 3/8 (10) --- --- 74.8 --- 20.1 3.6
5RALST6 Pistolet 2000 3/8 (10) --- --- --- --- 3.5 1.3
5RALST6-EU Pistolet 2000 3/8 (10) 79.4 90.4 --- --- 3.5 1.3
5RANST6 Pistolet 900 3/8 (10) --- --- --- --- 20.1 3.6
5RANST8 Pistolet 900 1/2 (13) --- --- --- --- 20.1 3.6
5RANST8-EU Pistolet 900 1/2 (13) 79.0 90.0 --- --- 20.1 3.6
5LJ1 En ligne 4800 1/4 (6) --- --- --- --- <2.5 ---
5LJ1-EU En ligne 4800 1/4 (6) --- --- 75.6 --- <2.5 ---
5LK1 En ligne 3100 1/4 (6) --- --- --- --- <2.5 ---
5LK1-EU En ligne 3100 1/4 (6) --- --- 77.6 --- <2.5 ---
5LL1 En ligne 2300 1/4 (6) --- --- --- --- 8.8 2.7
5LL1-EU En ligne 2300 1/4 (6) 72.3 --- --- --- 8.8 2.7
5LN3 En ligne 1000 3/8 (10) --- --- --- --- 8.8 2.7
5LN3-EU En ligne 1000 3/8 (10) --- --- 78.6 --- 8.8 2.7
† KpA = incertitude de mesure de 3dB
‡ KwA = incertitude de mesure de 3dB
* K = incertitude de mesure (Vibration)

FR-2 16572208_ed3
FR
Installation et Lubrication
Dimensionnez l’alimentation en air de façon à obtenir une pression maximale (PMAX) au niveau de
l’entrée d’air de l’outil. Drainez quotidiennement le condensat des vannes situées aux points bas de la
tuyauterie, du ltre à air et du réservoir du compresseur. Installez un raccordement à air de sûreté dont la
taille est adaptée au tuyau et placez-le en amont de celui-ci, puis utilisez un dispositif anti-débattement
sur tous les raccords pour tuyaux sans fermeture interne, an d’empêcher les tuyaux de fouetter si l’un
d’entre eux se décroche ou si le raccord se détache. Reportez-vous à l’illustration 16575656 et au tableau
de la page 2. La fréquence des opérations d’entretien est indiquée dans la èche circulaire et est dénie
en h=heures, d=jours, et m=mois de fonctionnement. Eléments identiés en tant que:
1. Filtre à air 5. Diamètre du tuyau 9. Huile
2. Régulateur 6. Taille du letage 10. Graisse - pour l’assemblage
3. Lubricateur 7. Raccord 11. Graisse - pour le raccordement
4. Vanne d’arrêt d’urgence 8. Raccordement à air de sûreté
Pièces Détachées et Maintenance
A la n de sa durée de vie, il est recommandé de démonter l’outil, de dégraisser les pièces et de les
séparer en fonction des matériaux de manière à ce que ces derniers puissent être recyclés.
Ce manuel a été initialement rédigé en anglais.
La réparation et la maintenance des outils ne devraient être réalisées que par un centre de services autorisé.
Adressez toutes vos communications au Bureau Ingersoll Rand ou distributeur le plus proche.

16572208_ed3 IT-1
IT
Informazioni sulla Sicurezza del Prodotto
Destinazione D’uso:
I trapani pneumatici sono adatti per operazioni di foratura, levigatura, e forature con seghe.
Per ulteriori informazioni, consultare il modulo 04580353 del Manuale informazioni sulla sicu-
rezza prodotto relativo ai trapani pneumatici.
I manuali possono essere scaricati da internet al sito www.ingersollrandproducts.com.
Speciche Prodotto
Modelli Stile
Velocità
a Vuoto
Capacità
del
Portapunta
Livello Acustico dB(A)
(ISO15744)
Livello Acustico dB(A)
(ANSI S5.1-1971)
Vibrazioni
(m/s²)
(ISO28927)
rpm inch (mm) † Pressione
(Lp)‡ Potenza (Lw)Pressione Potenza
(ISO3744) Livello *K
5AJST4 Impug-
natura 4500 1/4 (6) --- --- --- --- 3.5 1.3
5AJST4-EU Impug-
natura 4500 1/4 (6) --- --- 74.8 --- 3.5 1.3
5AKST4 Impug-
natura 3000 1/4 (6) --- --- --- --- 3.5 1.3
5AKST4-EU Impug-
natura 3000 1/4 (6) --- --- 77.6 --- 3.5 1.3
5ALST4 Impug-
natura 2200 1/4 (6) --- --- --- --- 3.5 1.3
5ALST4-EU Impug-
natura 2200 1/4 (6) --- --- 75.6 --- 3.5 1.3
5ANST6 Impug-
natura 1000 3/8 (10) --- --- --- --- 20.1 3.6
5ANST6-EU Impug-
natura 1000 3/8 (10) --- --- 74.8 --- 20.1 3.6
5RALST6 Impug-
natura 2000 3/8 (10) --- --- --- --- 3.5 1.3
5RALST6-EU Impug-
natura 2000 3/8 (10) 79.4 90.4 --- --- 3.5 1.3
5RANST6 Impug-
natura 900 3/8 (10) --- --- --- --- 20.1 3.6
5RANST8 Impug-
natura 900 1/2 (13) --- --- --- --- 20.1 3.6
5RANST8-EU Impug-
natura 900 1/2 (13) 79.0 90.0 --- --- 20.1 3.6
5LJ1 In linea 4800 1/4 (6) --- --- --- --- <2.5 ---
5LJ1-EU In linea 4800 1/4 (6) --- --- 75.6 --- <2.5 ---
5LK1 In linea 3100 1/4 (6) --- --- --- --- <2.5 ---
5LK1-EU In linea 3100 1/4 (6) --- --- 77.6 --- <2.5 ---
5LL1 In linea 2300 1/4 (6) --- --- --- --- 8.8 2.7
5LL1-EU In linea 2300 1/4 (6) 72.3 --- --- --- 8.8 2.7
5LN3 In linea 1000 3/8 (10) --- --- --- --- 8.8 2.7
5LN3-EU In linea 1000 3/8 (10) --- --- 78.6 --- 8.8 2.7
† KpA = incertezza misurazione 3dB
‡ KwA = incertezza misurazione 3dB
* K = incertezza misurazione (Vibrazioni)

IT-2 16572208_ed3
IT
Installazione e Lubricazione
La linea di alimentazione dell’aria deve essere dimensionata in maniera tale da assicurare all’utensile la
massima pressione di esercizio (PMAX) in ingresso. Scaricare quotidianamente la condensa dalla valvola
o dalle valvole sulla parte bassa della tubatura, dal ltro dell’aria e dal serbatoio del compressore. Instal-
lare un fusibile di sicurezza di dimensioni adatte a monte del tubo essibile e utilizzare un dispositivo
antivibrazioni su tutti i manicotti senza arresto interno per evitare i colpi di frusta dei essibili, se questi
si guastano o se si staccano gli accoppiamenti. Vedere il disegno 16575656 e la tabella a pagina 2. La
frequenza di manutenzione viene illustrata da una freccia circolare e denita con h=ore, d=giorni (days)
e m=mesi di uso eettivo. Componenti:
1. Filtro aria 5. Diametro tubo essibile 9. Olio
2. Regolatore 6. Dimensione della lettatura 10. Ingrassaggio - durante il montaggio
3. Lubricatore 7. Accoppiamento 11. Ingrassaggio - attraverso il raccordo
4. Valvola di arresto di emergenza 8. Fusibile di sicurezza
Ricambi e Manutenzione
Quando l’attrezzo diventato inutilizzabile, si raccomanda di smontarlo, sgrassarlo e separare i
componenti secondo i materiali in modo da poterli riciclare.
La lingua originale di questo manuale è l’inglese.
Riparazioni e manutenzione degli utensili devono essere eseguite esclusivamente da un Centro di
Assistenza Autorizzato.
Indirizzare tutte le comunicazioni al più vicino concessionario od ucio Ingersoll Rand.

16572208_ed3 DE-1
DE
Hinweise zur Produktsicherheit
Vorgesehene Verwendung:
Diese Druckluft-Bohrmaschinen wurden zum Bohren, Honen, Ausbohren und Lochsägen entwickelt.
Für zusätzliche Informationen siehe das Formblatt 04580353 im Handbuch, Produktsicherheitsin-
formationen Druckluft-Bohrmaschinen.
Handbücher können von www.ingersollrandproducts.com heruntergeladen werden.
Technische Produktdaten
Modelle Machart
Nen-
ndrehzahl
Kapazität
Spannfutter
Schallpegel dB(A)
(ISO15744)
Schallpegel dB(A)
(ANSI S5.1-1971)
Schwingungs
(m/s²)
(ISO28927)
rpm inch (mm) † Druck
(Lp)‡ Stromzufuhr (Lw)Druck Stromzufuhr
(ISO3744) Spegel *K
5AJST4 Pistole 4500 1/4 (6) --- --- --- --- 3.5 1.3
5AJST4-EU Pistole 4500 1/4 (6) --- --- 74.8 --- 3.5 1.3
5AKST4 Pistole 3000 1/4 (6) --- --- --- --- 3.5 1.3
5AKST4-EU Pistole 3000 1/4 (6) --- --- 77.6 --- 3.5 1.3
5ALST4 Pistole 2200 1/4 (6) --- --- --- --- 3.5 1.3
5ALST4-EU Pistole 2200 1/4 (6) --- --- 75.6 --- 3.5 1.3
5ANST6 Pistole 1000 3/8 (10) --- --- --- --- 20.1 3.6
5ANST6-EU Pistole 1000 3/8 (10) --- --- 74.8 --- 20.1 3.6
5RALST6 Pistole 2000 3/8 (10) --- --- --- --- 3.5 1.3
5RALST6-EU Pistole 2000 3/8 (10) 79.4 90.4 --- --- 3.5 1.3
5RANST6 Pistole 900 3/8 (10) --- --- --- --- 20.1 3.6
5RANST8 Pistole 900 1/2 (13) --- --- --- --- 20.1 3.6
5RANST8-EU Pistole 900 1/2 (13) 79.0 90.0 --- --- 20.1 3.6
5LJ1 Reihe 4800 1/4 (6) --- --- --- --- <2.5 ---
5LJ1-EU Reihe 4800 1/4 (6) --- --- 75.6 --- <2.5 ---
5LK1 Reihe 3100 1/4 (6) --- --- --- --- <2.5 ---
5LK1-EU Reihe 3100 1/4 (6) --- --- 77.6 --- <2.5 ---
5LL1 Reihe 2300 1/4 (6) --- --- --- --- 8.8 2.7
5LL1-EU Reihe 2300 1/4 (6) 72.3 --- --- --- 8.8 2.7
5LN3 Reihe 1000 3/8 (10) --- --- --- --- 8.8 2.7
5LN3-EU Reihe 1000 3/8 (10) --- --- 78.6 --- 8.8 2.7
† KpA = 3dB Messunsicherheit
‡ KwA = 3dB Messunsicherheit
* K = Messunsicherheit (Schwingungs)

DE-2 16572208_ed3
DE
Montage und Schmierung
Druckluftzufuhrleitung an der Druckluftzufuhr des Werkzeugs gemäß des maximalen Betriebsdrucks
(PMAX) bemessen. Kondensat an den Ventilen an Tiefpunkten von Leitungen, Luftlter und Kompressor-
tank täglich ablassen. Eine Sicherheits- Druckluftsicherung gegen die Strömungsrichtung im Schlauch
und eine Anti- Schlagvorrichtung an jeder Verbindung ohne interne Sperre installieren, um ein Peitschen
des Schlauchs zu verhindern, wenn ein Schlauch fehlerhaft ist oder sich eine Verbindung löst. Siehe
Zeichnung 16575656 und Tabelle auf Seite 2. Die Wartungshäugkeit mit einem Pfeil eingekreist und ist
deniert in h=Stunden, d=Tagen und m=Monaten der tatsächlichen Verwendung. Teile:
1. Luftlter 5. Schlauchdurchmesser 9. Ölen
2. Regler 6. Gewindegröße 10. Fetten - bei der Montage
3. Schmierbüchse 7. Verbindung 11. Fetten - über Anschlussstück
4. Notabsperrventil 8. Sicherheits-Druckluftsicherung
Teile und Wartung
Zur Entsorgung ist das Werkzeug vollständig zu demontieren, zu entfetten und nach Materialarten
getrennt der Wiederverwertung zuzuführen.
Die Originalsprache dieses Handbuchs ist Englisch.
Die Werkzeug-Reparatur und -Wartung darf nur von einem autorisierten Wartungszentrum durchgeführt
werden.
Wenden Sie sich bei Rückfragen an Ihre nächste Ingersoll Rand Niederlassung oder den autorisierten
Fachhandel.

16572208_ed3 NL-1
NL
Productveiligheidsinformatie
Bedoeld Gebruik:
Deze pneumatische boormachines zijn bedoeld voor boren, honen, naboren en gaten zagen.
Raadpleeg formulier 04580353 in de productveiligheidshandleiding van de pneumatische boor-
machines voor aanvullende informatie.
Handleidingen kunnen worden gedownload vanaf www.ingersollrandproducts.com.
Produktspesikasjoner
Modellen Soort
Onbelast
Toerental
Capaciteit
Spankop
Geluidsniveau dB(A)
(ISO15744)
Geluidsniveau dB(A)
(ANSI S5.1-1971)
Trillings
(m/s²)
(ISO28927)
rpm inch (mm) † Druk (Lp) ‡ Vermogen (Lw) Druk Vermogen
(ISO3744) Niveau *K
5AJST4 Pistool 4500 1/4 (6) --- --- --- --- 3.5 1.3
5AJST4-EU Pistool 4500 1/4 (6) --- --- 74.8 --- 3.5 1.3
5AKST4 Pistool 3000 1/4 (6) --- --- --- --- 3.5 1.3
5AKST4-EU Pistool 3000 1/4 (6) --- --- 77.6 --- 3.5 1.3
5ALST4 Pistool 2200 1/4 (6) --- --- --- --- 3.5 1.3
5ALST4-EU Pistool 2200 1/4 (6) --- --- 75.6 --- 3.5 1.3
5ANST6 Pistool 1000 3/8 (10) --- --- --- --- 20.1 3.6
5ANST6-EU Pistool 1000 3/8 (10) --- --- 74.8 --- 20.1 3.6
5RALST6 Pistool 2000 3/8 (10) --- --- --- --- 3.5 1.3
5RALST6-EU Pistool 2000 3/8 (10) 79.4 90.4 --- --- 3.5 1.3
5RANST6 Pistool 900 3/8 (10) --- --- --- --- 20.1 3.6
5RANST8 Pistool 900 1/2 (13) --- --- --- --- 20.1 3.6
5RANST8-EU Pistool 900 1/2 (13) 79.0 90.0 --- --- 20.1 3.6
5LJ1 In lijn 4800 1/4 (6) --- --- --- --- <2.5 ---
5LJ1-EU In lijn 4800 1/4 (6) --- --- 75.6 --- <2.5 ---
5LK1 In lijn 3100 1/4 (6) --- --- --- --- <2.5 ---
5LK1-EU In lijn 3100 1/4 (6) --- --- 77.6 --- <2.5 ---
5LL1 In lijn 2300 1/4 (6) --- --- --- --- 8.8 2.7
5LL1-EU In lijn 2300 1/4 (6) 72.3 --- --- --- 8.8 2.7
5LN3 In lijn 1000 3/8 (10) --- --- --- --- 8.8 2.7
5LN3-EU In lijn 1000 3/8 (10) --- --- 78.6 --- 8.8 2.7
† Meetonnauwkeurigheid bij KpA = 3dB
‡ Meetonnauwkeurigheid bij KwA = 3dB
* Meetonnauwkeurigheid bij K (Trillings)

NL-2 16572208_ed3
NL
Installatie en Smering
Om de maximale bedrijfsdruk ( Pmax) bij de luchtinlaat van het toestel te garanderen, moet de lucht-
toevoerleiding hierop geselecteerd zijn. Tap dagelijks condensaat af van kleppen bij lage punten van
het leidingwerk, de luchtlter en de compressortank. Monteer een beveiliging met de juiste afmeting
bovenstrooms van de slang en gebruik een antislingerinrichting op elke slangkoppeling zonder interne
afsluiter om te voorkomen dat de slang gaat slingeren als een slang valt of een koppeling losraakt. Zie
tekening 16575656 en tabel op pagina 2. De onderhoudsfrequentie wordt weergegeven in een cirkelvor-
mige pijl met h=uren, d=dagen en m=maanden reëel gebruik. Aangegeven onderdelen:
1. Luchtlter 5. Slangdiameter 9. Olie
2. Regelaar 6. Soort van schroefdraad 10. Smeervet - tijdens montage
3. Smeerinrichting 7. Koppeling 11. Smeervet - door smeernippel
4. Noodafsluitklep 8. Beveiliging
Onderdelen en Onderhoud
Wanneer de levensduur van het gereedschap verstreken is, wordt u aangeraden het gereedschap te
demonteren en ontvetten, en de delen gescheiden naar materialen op te bergen zodat zij gerecycled
kunnen worden.
De oorspronkelijke taal van deze handleiding is Engels.
Reparatie en onderhoud van dit gereedschap mogen uitsluitend door een erkend servicecentrum
worden uitgevoerd.
Richt al uw communicatie tot het dichtsbijzijnde Ingersoll Rand Kantoor ofWederkoper.

16572208_ed3 DA-1
DA
Produktsikkerhedsinformation
Anvendelsesområder:
Trykluftsborene er udformet til boring, honing, fræsning og hulsavning.
For yderligere oplysninger henvises der til formular 04580353 i vejledningen med produktsikker-
hedsinformation til trykluftsborene.
Vejledningerne kan hentes ned fra www.ingersollrandproducts.com.
Produktspecikationer
Modeller Stil
Fri Has-
tighed
Borepatron
Kapacitet
Lydniveau dB(A)
(ISO15744)
Lydniveau dB(A)
(ANSI S5.1-1971)
Vibrations
(m/s²)
(ISO28927)
rpm inch (mm) † Tryk (Lp) ‡ Eekt (Lw) Tryk Eekt
(ISO3744) Niveau *K
5AJST4 Pistol 4500 1/4 (6) --- --- --- --- 3.5 1.3
5AJST4-EU Pistol 4500 1/4 (6) --- --- 74.8 --- 3.5 1.3
5AKST4 Pistol 3000 1/4 (6) --- --- --- --- 3.5 1.3
5AKST4-EU Pistol 3000 1/4 (6) --- --- 77.6 --- 3.5 1.3
5ALST4 Pistol 2200 1/4 (6) --- --- --- --- 3.5 1.3
5ALST4-EU Pistol 2200 1/4 (6) --- --- 75.6 --- 3.5 1.3
5ANST6 Pistol 1000 3/8 (10) --- --- --- --- 20.1 3.6
5ANST6-EU Pistol 1000 3/8 (10) --- --- 74.8 --- 20.1 3.6
5RALST6 Pistol 2000 3/8 (10) --- --- --- --- 3.5 1.3
5RALST6-EU Pistol 2000 3/8 (10) 79.4 90.4 --- --- 3.5 1.3
5RANST6 Pistol 900 3/8 (10) --- --- --- --- 20.1 3.6
5RANST8 Pistol 900 1/2 (13) --- --- --- --- 20.1 3.6
5RANST8-EU Pistol 900 1/2 (13) 79.0 90.0 --- --- 20.1 3.6
5LJ1 Inline 4800 1/4 (6) --- --- --- --- <2.5 ---
5LJ1-EU Inline 4800 1/4 (6) --- --- 75.6 --- <2.5 ---
5LK1 Inline 3100 1/4 (6) --- --- --- --- <2.5 ---
5LK1-EU Inline 3100 1/4 (6) --- --- 77.6 --- <2.5 ---
5LL1 Inline 2300 1/4 (6) --- --- --- --- 8.8 2.7
5LL1-EU Inline 2300 1/4 (6) 72.3 --- --- --- 8.8 2.7
5LN3 Inline 1000 3/8 (10) --- --- --- --- 8.8 2.7
5LN3-EU Inline 1000 3/8 (10) --- --- 78.6 --- 8.8 2.7
† KpA = 3dB måleusikkerhed
‡ KwA = 3dB måleusikkerhed
* K = måleusikkerhed (Vibrations)

DA-2 16572208_ed3
DA
Installation og Smøring
Sørg for at lufttilførselsledningen har den korrekte størrelse for at sikre maksimalt driftstryk (PMAX) ved
værktøjsindgangen. Tøm dagligt ventilen(-erne) for kondensat ved rørenes, luftlterets og kompres-
sortankens lavpunkt(er). Montér en sikkerhedstryksikring i korrekt størrelse i opadgående slange og
brug en anti-piskeanordning tværs over enhver slangekobling uden intern aukning for at forhindre
at slangen pisker, hvis en slange svigter eller kobling adskilles. Se tegning 16575656 og tabel på side 2.
Vedligeholdelseshyppigheden vises med en rund pil og deneres som t=timer, d=dage og m=måneder
for reel brug. Elementerne er identiceret som:
1. Luftlter 7. Kobling
2. Regulator 8. Sikkerhedstryksikring
3. Smøreapparat 9. Olie
4. Nødafspærringsventil 10. Fedt - under samlingen
5. Slangediameter 11. Fedt - gennem monteringen
6. Gevindstørrelse
Reservedele og Vedligeholdelse
Efter værktøjets levetid anbefales det at demontere og aedte værktøjet, og opdele de adskilte kompo-
nenter ud fra materialetypen, så de kan genbruges.
Denne vejlednings originalsprog er engelsk.
Reparationsarbejde og vedligeholdelse må kun udføres af et autoriseret servicecenter.
Al korrespondance bedes stilet til Ingersoll Rands nærmeste kontor eller distributør.

16572208_ed3 SV-1
SV
Produktsäkerhetsinformation
Avsedd Användning:
Dessa luftdrivna borrmaskiner är utformade för borrning, honing, brotschning och hålsågning.
För mer information, se Luftdrivna borrmaskiners produktsäkerhetsinformation Form 04580353.
Handböcker kan laddas ner från www.ingersollrandproducts.com.
Produktspecikationer
Modeller Stil
Fri Has-
tighet
Chuckka-
pacitet
Ljudstyrkenivå dB(A)
(ISO15744)
Ljudstyrkenivå dB(A)
(ANSI S5.1-1971)
Vibrations
(m/s²)
(ISO28927)
rpm inch (mm) † Tryck (Lp) ‡ Eekt (Lw) Tryck Eekt
(ISO3744) Nivå *K
5AJST4 Pistol 4500 1/4 (6) --- --- --- --- 3.5 1.3
5AJST4-EU Pistol 4500 1/4 (6) --- --- 74.8 --- 3.5 1.3
5AKST4 Pistol 3000 1/4 (6) --- --- --- --- 3.5 1.3
5AKST4-EU Pistol 3000 1/4 (6) --- --- 77.6 --- 3.5 1.3
5ALST4 Pistol 2200 1/4 (6) --- --- --- --- 3.5 1.3
5ALST4-EU Pistol 2200 1/4 (6) --- --- 75.6 --- 3.5 1.3
5ANST6 Pistol 1000 3/8 (10) --- --- --- --- 20.1 3.6
5ANST6-EU Pistol 1000 3/8 (10) --- --- 74.8 --- 20.1 3.6
5RALST6 Pistol 2000 3/8 (10) --- --- --- --- 3.5 1.3
5RALST6-EU Pistol 2000 3/8 (10) 79.4 90.4 --- --- 3.5 1.3
5RANST6 Pistol 900 3/8 (10) --- --- --- --- 20.1 3.6
5RANST8 Pistol 900 1/2 (13) --- --- --- --- 20.1 3.6
5RANST8-EU Pistol 900 1/2 (13) 79.0 90.0 --- --- 20.1 3.6
5LJ1 Linjär 4800 1/4 (6) --- --- --- --- <2.5 ---
5LJ1-EU Linjär 4800 1/4 (6) --- --- 75.6 --- <2.5 ---
5LK1 Linjär 3100 1/4 (6) --- --- --- --- <2.5 ---
5LK1-EU Linjär 3100 1/4 (6) --- --- 77.6 --- <2.5 ---
5LL1 Linjär 2300 1/4 (6) --- --- --- --- 8.8 2.7
5LL1-EU Linjär 2300 1/4 (6) 72.3 --- --- --- 8.8 2.7
5LN3 Linjär 1000 3/8 (10) --- --- --- --- 8.8 2.7
5LN3-EU Linjär 1000 3/8 (10) --- --- 78.6 --- 8.8 2.7
† KpA = 3dB mätosäkerhet
‡ KwA = 3dB mätosäkerhet
* K = mätosäkerhet (Vibrations)

SV-2 16572208_ed3
SV
Installation och Smörjning
Dimensionera luftledningen för att säkerställa maximalt driftstryck (PMAX) vid verktygets ingångsans-
lutning. Dränera dagligen kondens från ventiler placerade vid ledningens lägsta punkter, luftlter och
kompressortank. Installera en säkerhetsventil av lämplig storlek uppström från slangen och använd en
anti-ryckenhet över alla slangkopplingar som saknar intern avstängning, för att motverka att slangen
rycker till och en slang går sönder eller koppling lossar. Se illustrationen 16575656 och tabellen på sidan
2. Underhållsintervallen visas i runda pilar och denieras som h=timmar, d=dagar och m=månader av
faktisk brukstid. Posterna denieras som:
1. Luftlter 7. Koppling
2. Regulator 8. Säkerhetsventil
3. Smörjare 9. Olja
4. Nödstoppsventil 10. Fett – under montering
5. Slangdiameter 11. Fett - via anslutning
6. Gängdimension
Delar och Underhåll
Då verktyget är utslitet, rekommenderar vi att det tas isär och avfettas, samt att de olika delarna sorteras
för återvinning.
Det ursprungliga språket för den här handboken är engelska.
Reparation och underhåll av verktygen får endast utföras av ett auktoriserat servicecenter.
Alla förfrågningar bör ske till närmaste Ingersoll Rand kontor eller distributör.

16572208_ed3 NO-1
NO
Produktspesikasjoner
Tiltenkt Bruk:
Trykkluftsbor er designet til boring, honing, opprømming og hullsaging.
For ytterligere informasjon henvises det til produktsikkerhetsinformasjonen i trykkluftsborets
håndboksskjema 04580353.
Håndbøker kan lastes ned fra www.ingersollrandproducts.com.
Productspecicaties
Modeller Stil
Fri
Hastighet
Chuck-
kapasitet
Lydnivå dB(A)
(ISO15744)
Lydnivå dB(A)
(ANSI S5.1-1971)
Vibrasjons
(m/s²)
(ISO28927)
rpm inch (mm) † Trykk (Lp) ‡ Styrke (Lw) Trykk Styrke
(ISO3744) Nivå *K
5AJST4 Pistol 4500 1/4 (6) --- --- --- --- 3.5 1.3
5AJST4-EU Pistol 4500 1/4 (6) --- --- 74.8 --- 3.5 1.3
5AKST4 Pistol 3000 1/4 (6) --- --- --- --- 3.5 1.3
5AKST4-EU Pistol 3000 1/4 (6) --- --- 77.6 --- 3.5 1.3
5ALST4 Pistol 2200 1/4 (6) --- --- --- --- 3.5 1.3
5ALST4-EU Pistol 2200 1/4 (6) --- --- 75.6 --- 3.5 1.3
5ANST6 Pistol 1000 3/8 (10) --- --- --- --- 20.1 3.6
5ANST6-EU Pistol 1000 3/8 (10) --- --- 74.8 --- 20.1 3.6
5RALST6 Pistol 2000 3/8 (10) --- --- --- --- 3.5 1.3
5RALST6-EU Pistol 2000 3/8 (10) 79.4 90.4 --- --- 3.5 1.3
5RANST6 Pistol 900 3/8 (10) --- --- --- --- 20.1 3.6
5RANST8 Pistol 900 1/2 (13) --- --- --- --- 20.1 3.6
5RANST8-EU Pistol 900 1/2 (13) 79.0 90.0 --- --- 20.1 3.6
5LJ1 Rett 4800 1/4 (6) --- --- --- --- <2.5 ---
5LJ1-EU Rett 4800 1/4 (6) --- --- 75.6 --- <2.5 ---
5LK1 Rett 3100 1/4 (6) --- --- --- --- <2.5 ---
5LK1-EU Rett 3100 1/4 (6) --- --- 77.6 --- <2.5 ---
5LL1 Rett 2300 1/4 (6) --- --- --- --- 8.8 2.7
5LL1-EU Rett 2300 1/4 (6) 72.3 --- --- --- 8.8 2.7
5LN3 Rett 1000 3/8 (10) --- --- --- --- 8.8 2.7
5LN3-EU Rett 1000 3/8 (10) --- --- 78.6 --- 8.8 2.7
† KpA = 3dB måleusikkerhet
‡ KwA = 3dB måleusikkerhet
* K = måleusikkerhet (Vibrasjons)

NO-2 16572208_ed3
NO
Installasjon og Smøring
Luftforsyningsslangen skal ha en dimensjon som sikrer maksimalt driftstrykk (PMAX) ved verktøysinntaket.
Drener daglig kondens fra ventilen(e) ved lave rørpunkter, luftlter og kompressortank. Monter en
slangebruddsventil oppstrøms i slangen og bruk en antipiskeenhet over slangekoblinger uten intern
avstengning, for å forhindre slangen i å piske ved funksjonsfeil eller utilsiktet frakobling. Se
tegning 16575656 og tabell på side 2. Vedlikeholdsfrekvens vises i den sirkulære pilens retning og angis
som h=timer, d= dager og m=måneder. Punkter identiseres som:
1. Luftlter 7. Kobling
2. Regulator 8. Slangebruddsventil
3. Smøreapparat 9. Olje
4. Nødstoppventil 10. Smørefett - under montering
5. Slangediameter 11. Smørefett - gjennom smørenippel
6. Gjengedimensjon
Deler og Vedlikehold
Når verktøyet ikke lenger er brukbart, anbefales det at verktøyet blir demontert, rengjort for olje og
sortert etter materialer i gjenvinningsøyemed.
Originalspråket for denne håndboken er engelsk.
Reparasjon og vedlikehold av verktøyet skal bare utføres av et autorisert servicesenter.
Henvendelser skal rettes til nærmeste Ingersoll Rand- avdeling eller -forhandler.
