Chapter I Preface
I. General
Pp1 represents the perfect combination of GSM and GPS
technologies. This model, with its precise dimensions and compact
appearance, expresses the advanced workmanship in the GSM and GPS
field. It is a typical design combing communication products and GPS
services.
As a professional security and positioning company, we will provide
you with more and better products and services. Before using the watch,
please spend several minutes reading this user’s manual in order to get to
know about operation details and obtain better services.
II. Notices
1. Please read this user’s manual carefully and always use correct
operation methods to prevent any possible errors.
2. This user’s manual is for reference only. If some contents and
operation steps are inconsistent with those for the actual product,
the latter will prevail.
3. The defaulted password of this product is 0000.

Gpstracker.net.in
Freedom is lost now…!
6
Chapter II about the Device
PP1 GPS WATCH, as a personal remote positioning device made up of
GPS module and GSM/GPRS module, is compact in dimensions with
high accuracy. On the basis of GPS satellites and under dynamic
conditions, it can provide you with accurate and correct location
information. With such features, it can be used to protect and look for our
old people and children. It can also be used for safety purpose and other
purposes, such as remote positioning to protect property safety.
1 Appearance

Gpstracker.net.in
Freedom is lost now…!
7
2 Product Features
●Inbuilt GPS Module
●Internet positioning service center, used to receive and send
positioning information
●GSM /GPRS modem supports Quad frequency bands, i.e.
850/900/1800/1900 MHz
●High-sensitivity, new workmanship and the most advanced GPS chip
●Can work effectively in limited space such as urban canyon
●Low energy consumption
●Fast signal acquisition
●Supports single positioning and continuous tracking;
●Supports alarming and remote monitoring
●Supports fast dial button
●Supports the location information inquiry by SMS and Internet
●May monitor without disturbing the tracked person and realizes
real-time tracking;
●Can position the holder by call or SMS
●In emergency, press the SOS button to have an accurate positioning

Gpstracker.net.in
Freedom is lost now…!
8
3 Product Specifications
(1). Technical Specifications
GSM module
GSM 850/900/1800/1900 MHz Quad frequency
GPS sensitivity
-163dBm
GPS center
frequency
L1, 1575.42MHz
GPS positioning
accuracy
5-25m
GSM positioning
accuracy
100-500m
Speed accuracy
0.1 m/s
Time accuracy
Synchronous with GPS
GPS Datum
WGS-84
Hot start
< 1s
Warm start
< 38s
Max. altitude
18000m
Max. speed
515m/s
Gravitational
acceleration
﹤4g

Gpstracker.net.in
Freedom is lost now…!
9
(2). Others
Operating temperature
-20---65℃
Humidity
5%---95%
Dimensions
64.5mm×45.5mm×17.5 mm (main unit)
Voltage
Rechargeable 450mAh battery
Power supply
DC5V
Standby time
>48h
Buttons
SOS button for emergency aid; Call 1, Call 2,
Switch on / off buttons, interface switch
button
Chapter III Usage Preparation
I. Accessories
1. Main unit
2. USB data cable
3. Charger
4. Headset cable (optional)
5 Battery
II. Appearance and Interface

Gpstracker.net.in
Freedom is lost now…!
10
1. Appearance and Buttons
Five buttons are equipped with this watch, the upper left button
serves for switch-on and hold-on, the bottom left button serves
interface switch, while the upper right button for predetermined
number 1, middle right button for emergency aid (SOS button) and
the bottom right button for predetermined number 2 as shown in
picture 1:
2. Interface Definition
GSM signal strength is indicated on the upper left corner of the main
screen

Gpstracker.net.in
Freedom is lost now…!
11
III. Charge the Battery
Please use up the battery and discharge it for 2-3 times and then
charge the battery for at least 12 hours for initial use, in order to keep
the quality of the battery.
The normal charging time of this product is 4-5 hours.
Put the battery into the inside of the terminal and connect the charger
to 100V/220V AC power supply to charge the battery. Then the
power indicator on the upper right corner of the terminal screen will
keep strolling as showed in picture 3-1:

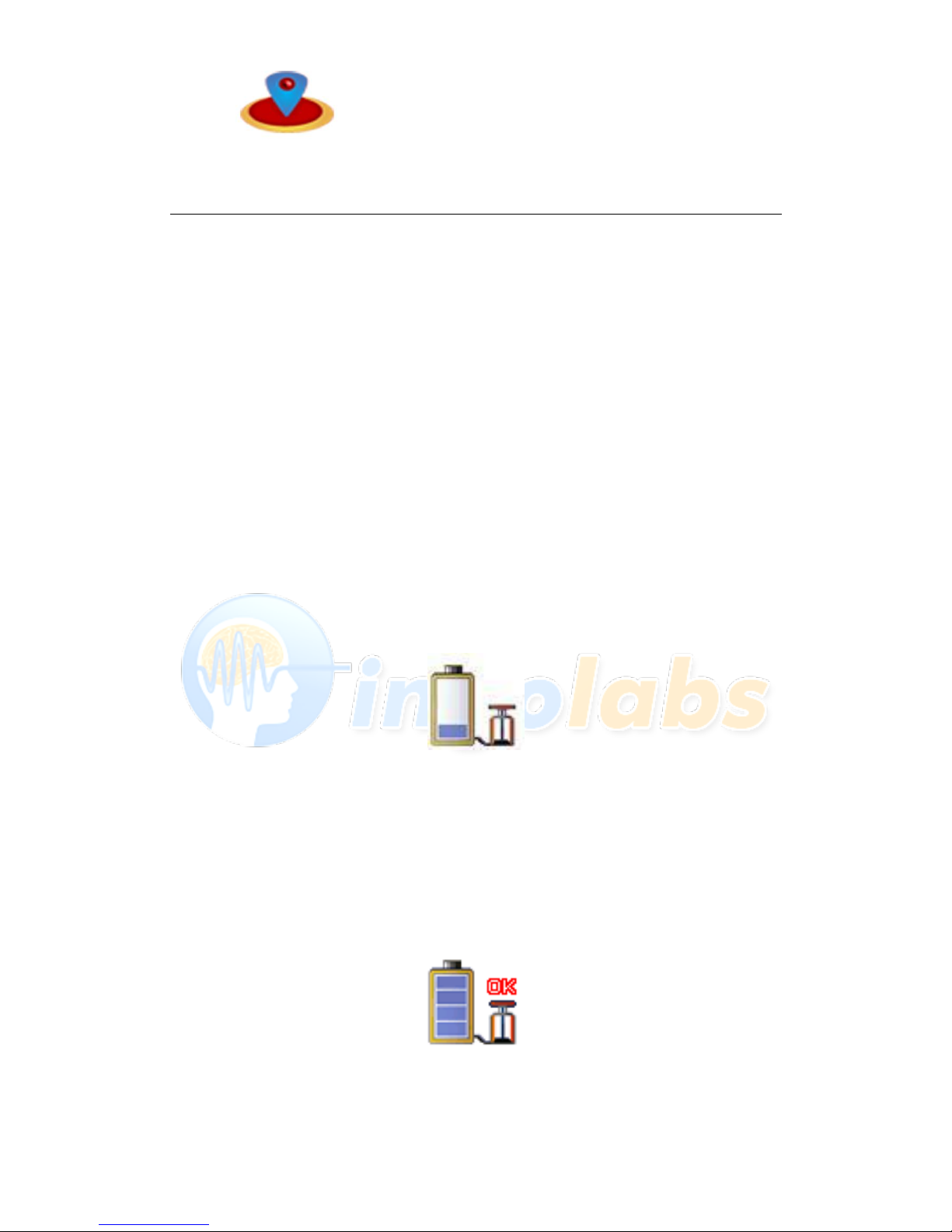

( picture 3-1 )
When the battery is fully charged, the power indicator will stop
strolling; if the battery is charged on switch-off mode, the following
picture 3-2 indicates the charging is finished:
( picture 3-2 )

Gpstracker.net.in
Freedom is lost now…!
12
Notes:
Please always use the charger offered by the supplier. Dangers
damages of the product caused by usage of any unconfirmed charger
will not be compensated and repaired.
The battery should be charged in time when the terminal automatic
shutdown or being alarmed with low power.
The standby duration and call duration offered by the supplier is
calculated in perfect functional mode, in practice, working hours of
the battery may vary due to difference of internet service, functional
mode and usage mode.
Disconnect the terminal and charger as soon as possible after the
battery is well charged.
IV. Installation of SIM Card
Open the back cover, then you will see the place where the SIM card is
placed. Then push the SIM card into the slot until it comes into its proper
position completely and consolidate it with the dome sheet nearby.
Choose SIM card:
The type of the SIM card is GSM card (the SIM card of China Mobile

Gpstracker.net.in
Freedom is lost now…!
13
is recommended).
Ensure sufficient money is within the SIM card in order to pay the
communication fee.
Prepare a SIM card for mobile phone (the SIM card of China Mobile
is recommended), make sure that the card has opened such functions
of Caller ID and sending and receiving SMS. If service platform
real-time tracking is in need, then GPRS function should be open.
Chapter IV Commands Corresponding to and Operation
Method of Basic Functions
1. Location Inquiry
(1) SMS Inquiry
Create 988 + password command (defaulted password as 0000) via
mobile phone and send it to the terminal mobile phone number; after
successful sending, the guardian’s mobile phone will receive a piece of
message. See the flow as follows:
①Send command to the terminal.
②The terminal return confirmation message to the mobile phone.

Gpstracker.net.in
Freedom is lost now…!
14
By the same means, send the command 987 plus password to the terminal,
then the terminal will return a piece of website message. The guardian
may inquire the location information of the ward attached with local map
through this website message.
In the same way, send command 666 plus password to the terminal, then
the terminal will return a piece of detailed latitude and longitude message.
(2) Platform Inquiry
Step 1: Log onto the platform (Please contact with the service provider to
get the platform address).
Step 2: Click the terminal of the ward, then the location of the ward will
be displayed on the map.

Gpstracker.net.in
Freedom is lost now…!
15
2. Setup of Centre Number
Set the centre number by SMS through the mobile phone, after the setup
is successful, then the mobile phone that sending the SMS will receive
the “&710&successful setting&&” response message from the terminal.
Command format: #710# center number # user password ##
For example: #710#134xxxxxxxx#0000##
Note: All alarming information thereafter including SOS, low power,
electronic fence, etc will be returned to that number.
3. Bi-directional Call Function
Incoming calls can be rejected by pressing upper left button or received

Gpstracker.net.in
Freedom is lost now…!
16
by pressing middle right button.
Send the command in form of SMS to the terminal via mobile phone.
After the setup is successful, the mobile phone will receive the
“&710&successful setting&&” response message from the terminal.
Setup format: #711# Call1# Call2 # Call3 # 0000##
incoming call interface and call duration interface
Notes: After the setup is successful, press the upper right button for a
while, then the terminal will automatically dial the first phone number.
Press the bottom right button, then the terminal will automatically dial the
second phone number.
4. Adjust Receiver Volume
While making phone calls, the user could press upper or bottom right
button to adjust receiver volume.

Gpstracker.net.in
Freedom is lost now…!
17
5. SOS Function
If a ward number (predetermined number in item3) is set, when the ward
encounters emergency and presses the SOS button, the terminal will send
alarming information to the center number and dial the three ward
numbers in turn. Picture 5 is SOS alarming interface:
SOS button for emergency aid interface
SOS SMS format: IMEI number: SOS (information about latitude and
longitude or base station)
Example: 356823031017473:SOS（11354.6397,E,2232.6283,N）
or 356823031017473:SOS（26280E77）
Remarks: when interface in picture 5 appears on the phone, the terminal
will skip to standby mode automatically; sound and interface during the
dialing will be completely shielded.
6. Monitoring Function

Gpstracker.net.in
Freedom is lost now…!
18
The guardian may send SMS 555 plus password to the terminal of the
ward, then the ward terminal will automatically call back to the mobile
phone of the guardian and the guardian may hear the sound of the
surroundings within 10m around the ward.
SMS format: 5550000
Remarks: 0000 is the initial defaulted password and in practice the
password could be set by the user.
7. Regular Upload Interval Setup
The defaulted upload interval of this product is 0, meaning that the
defaulted GPRS is closed. The user may change the parameter according
to actual demand.
Command format: # command number 730# Sampling interval # Pieces
of uploads # User password ##
Example: 730#20#4#0000##
Notes: The parameter “20” indicates getting one point every 20s; after
getting points accumulatively for 4 times, upload one piece of positioning
information with the upload interval as 20*4=80s. The user may change

Gpstracker.net.in
Freedom is lost now…!
19
this parameter as the case may be.
8. Function of Changing Password
Send the SMS “#770# User new password # User old password ##” by
mobile phone to the terminal number, after successful sending, the mobile
phone with such setup will receive one piece of ‘&770&successful
setting&&’ response information or ‘&770&PASSWORD ER&&’if the
password is wrong, as shown in the following picture:
①Send command to the terminal.
②The terminal return confirmation message to the mobile phone.
9. Set User name Command
SMS Command Format: #801#4~20-digit letters or numbers #4-digit
password ##
Example: #801#13900139000#0000##
Notes: After executing this command, the user name of the terminal on
GPRS mode is required to be set up according to actual demand. After the
setup is successful, the terminal will send reply with ‘&801&successful

Gpstracker.net.in
Freedom is lost now…!
20
setting&&’ or ‘&801&PASSWORD ER&&’ if the password is wrong.
10. SetAPN Command
Create the SMS “802#APN letters or digits, 4-20 bits # Log user name
letters or digits 4-20 bits in # Log password letter or digits 4-20 bits in #
terminal password 4 bits ##” and send it to the terminal; after executing
this command, the terminal will automatically restart and connect to
GPRS with APN set.
Command example 1: #802#cmnet###0000###
Command example 2: #802#CCDLEN#QIUXIA.21#RX0000#0000##
After this command is executed, APN will be CCDLEN; the login
user name is QIUXIA.21 and login password is RX0000.
Note: The default APN of this product is CMNET.
11. Setup of ServerAddress
Command Format: #803# Fixed IP address# port number#4-digit
password##
This command is used to set GPRS center server address, which could
be fixed IP number, like IP1, IP2, IP3, IP4……as well as domain
