NS-CLHD01
User Guide
Advanced HD Radio™ Table Top
NS-CLHD01_12-0501_MAN_V2_EN.fm Page 1 Thursday, May 3, 2012 4:13 PM

2www.insigniaproducts.com
Advanced HD Radio™ Table Top
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important safety instructions . . . . . . . . . . . . . . . . . . . . . . . . 3
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Setting up your radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Using the clock and alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Using your radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Using the menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Legal notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
90-day limited warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
NS-CLHD01_12-0501_MAN_V2_EN.fm Page 2 Thursday, May 3, 2012 4:13 PM

Advanced HD Radio™ Table Top
3
www.insigniaproducts.com
Introduction
Congratulations on your purchase of a high-quality Insignia
product. Your NS-CLHD01 represents the state of the art in
HD Radio™ design and is designed for reliable and trouble-free
performance.
Important safety instructions
1Read these instructions.
2Keep these instructions.
3Heed all warnings.
4Follow all instructions.
5Do not use this apparatus near water.
6Clean only with dry cloth.
7Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
NS-CLHD01_12-0501_MAN_V2_EN.fm Page 3 Thursday, May 3, 2012 4:13 PM

4
NS-CLHD01
www.insigniaproducts.com
10 Only use attachments/accessories specified by the
manufacturer.
11 Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
12 To reduce the risk of fire or electric shock, do not expose
this device to rain, moisture, dripping, or splashing, and
no objects filled with liquids, such as vases, shall be
placed on it.
Additional safety information
• Do not leave your radio in temperatures above 104°F
(40°C), such as in a sauna or a parked car.
• Using earphones or headphones for an extended time
may cause serious damage to your hearing. If you are
exposed to sound louder than 85dB for extended time,
you may adversely affect your hearing. The louder the
sound is, the more seriously damaged your hearing may
be (an ordinary conversation is between 50dB to 60dB
and road noise is approximately 80dB).
• You are strongly advised to set the volume level to
medium (the medium level is usually less than 2/3 of the
maximum).
• If you hear a ringing in your ear(s), lower the volume or
stop using the earphones or headphones.
• Do not place your radio near magnetic objects.
Features
• HD Radio Table Top Clock Receiver
• Crystal clear, digital stereo for AM & FM HD Radio
• Unlimited station presets
• 10 bookmarks
• Multicast Stations (HD2/HD3) and PSD
NS-CLHD01_12-0501_MAN_V2_EN.fm Page 4 Thursday, May 3, 2012 4:13 PM

Advanced HD Radio™ Table Top
5
www.insigniaproducts.com
• Artist Experience image display
• Automatic blending for Analog and Digital Signal
• Digital time display - Dual Alarm/Snooze
• Accessible mode with Voice prompt/feedback on
button press for visually impaired users
• Aux input/Headphone output Jack
• International frequency tuning:
• FM: 200kHz, 100kHz, 50kHz
•AM:10kHzand9kHz
• 2.4” TFT LCD display (320 x 240 QVGA)
• 4” speaker (2)
Package contents
• HD Radio table top receiver
• FM dipole antenna
• AM loop antenna
• AC adapter
• User Guide
• Quick Setup Guide
• Quick Setup Guide for visually impaired users
• CD for voice recording of user guide
NS-CLHD01_12-0501_MAN_V2_EN.fm Page 5 Thursday, May 3, 2012 4:13 PM

6
NS-CLHD01
www.insigniaproducts.com
Front
#Item Description
1 LCD Radio display screen.
2 Headphone
jack
Plug headphones into this jack.
3 MENU Press to open or close the menu system. In the
menu system, press to close a sub-menu.
4 SEL Press to select menu options or save the settings.
5SEEK/
SEEK
In radio mode, press SEEK to go to the next lower or
higher station. For more information, see “Manually
tuning to a frequency” on page 30.
In menu mode, press to scroll down or up.
6 DISP Press to switch between PG (Program Guide) mode
and AE (Artist Experience) mode in HD Radio mode.
For more information, see "Viewing the program
guide (PG) in HD Radio mode" on page 32.
7 B) In HD Radio mode, press to bookmark the current
audio selection.
In menu mode, press to delete a bookmark.
NS-CLHD01_12-0501_MAN_V2_EN.fm Page 6 Thursday, May 3, 2012 4:13 PM

Advanced HD Radio™ Table Top
7
www.insigniaproducts.com
8 CH /CH Press to tune to the next lower or higher frequency.
In time and alarm set mode , press to adjust the
hours up or down.
9 PS /PS Press to go to the next lower or higher preset
station.
Press and hold PS to set a preset. Press and hold
PS to clear a preset. For more information, see
“Setting a preset station” on page 31.
In time and alarm set mode , press to adjust the
minutes up or down.
10 Reset If your radio stops responding to button presses,
press this button to reset your radio.
# Item Description
NS-CLHD01_12-0501_MAN_V2_EN.fm Page 7 Thursday, May 3, 2012 4:13 PM

8
NS-CLHD01
www.insigniaproducts.com

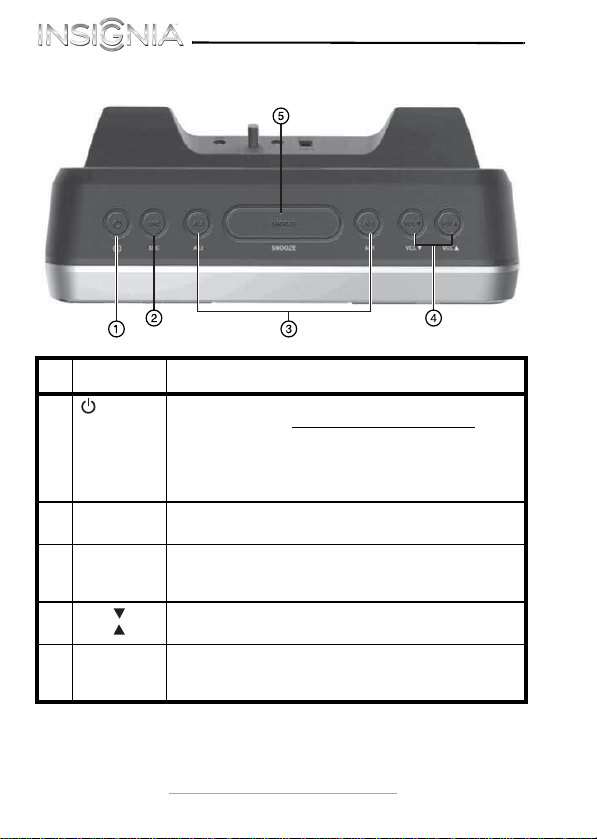

Top
#Item Description
1 (power) Press to turn your radio on or off. For more
information, see “Turning your radio on or off” on
page 24.
In clock mode, press and hold SEL + Power together
to switch between normal mode and accessible
mode for visually impaired users.
2 SRC Press repeatedly to cycle through the available
sound sources (AM>FM>AUX-IN).
3 AL1/AL2 In clock mode, press to set Alarm 1 or 2. Press and
hold to open the Alarm Set menu. For more
information, see "Setting the alarm" on page 18.
4VOL/
VOL
Press to lower or raise the volume.
5 SNOOZE Press to turn off the alarm temporarily for a
designated interval. See “Setting the alarm” on page
18.
NS-CLHD01_12-0501_MAN_V2_EN.fm Page 8 Thursday, May 3, 2012 4:13 PM

Advanced HD Radio™ Table Top
9
www.insigniaproducts.com
Back and Bottom
#Item Description
1 12V DC Connect the AC adapter (provided) to this jack.
2 AUX IN Connect an external sound source to this jack.
3 Battery
compartment
Install four (4) AA size alkaline batteries in this
compartment for clock backup. See “Installing the
batteries” on page 14.
4 FM Ant. Connect an FM dipole antenna to this jack.
5 AM Ant. Connect an AM loop antenna to this jack.
NS-CLHD01_12-0501_MAN_V2_EN.fm Page 9 Thursday, May 3, 2012 4:13 PM

10
NS-CLHD01
www.insigniaproducts.com

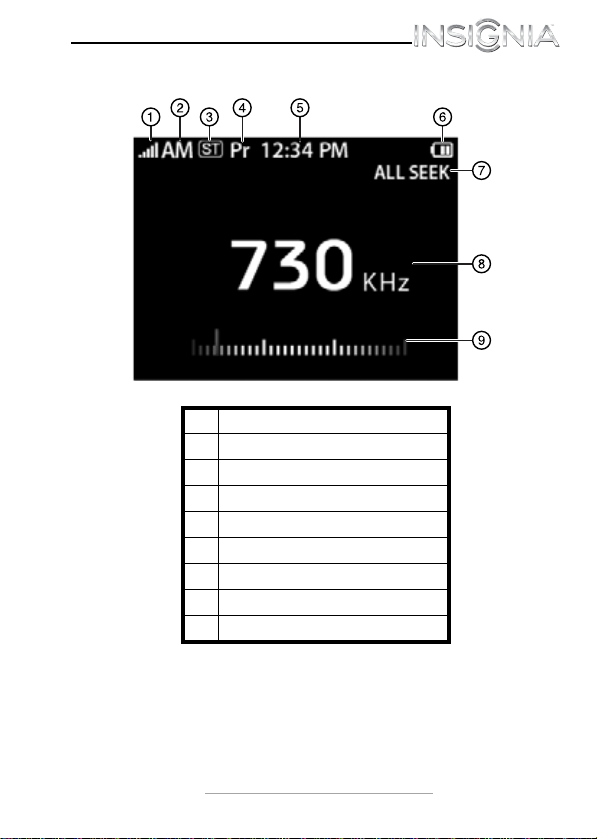

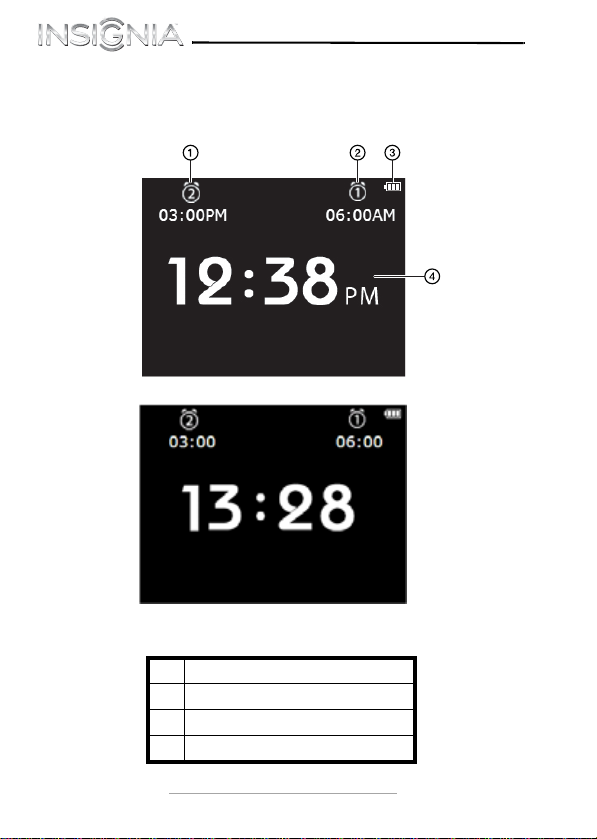

LCD information
Table clock modes
1 Alarm 2 status indicator
2 Alarm 1 status indicator
3 Backup battery status indicator
4Currenttime
24-hour type display
12-hour type display
