Insignia NS-C2115 User manual

Under-counter DVD Player/Clock Radio
Radio-réveil et lecteur de DVD pour dessous d’armoire de cuisine
Radio reloj y reproductor de DVD para instalación bajo el gabinete
NS-C2115
User Guide | Guide de l’utilisateur | Guía del Usuario

www.insignia-products.com 1
Welcome
Congratulations on your purchase of a high-quality Insignia product.
Your NS-C2115 under-counter clock radio represents the state of the
art in clock radio design and is designed for reliable and trouble-free
performance.
Contents
Safety information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Setting up your radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Using your clock radio and TV . . . . . . . . . . . . . . . . . . . . . . . .10
Maintaining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Español. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Safety information

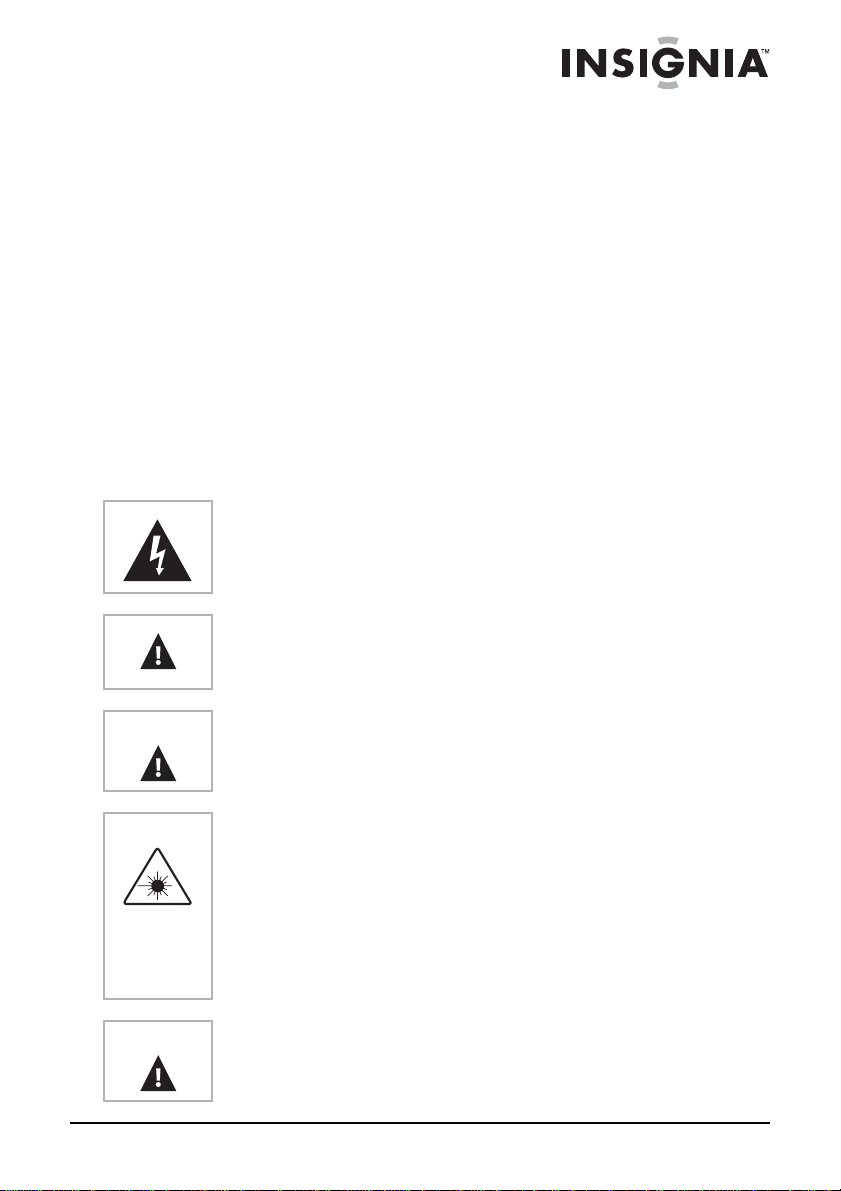

This symbol, located on the back or bottom of the unit, is intended
to alert you to the presence of uninsulated, dangerous voltage
within your radio’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock.
This symbol is intended to alert you to the presence of important
operating and maintenance (servicing) instructions in the literature
accompanying your radio.
Warning To prevent fire or shock hazards, do not expose this unit to rain or
moisture.
Warning This product utilizes a Class 1 laser to read CDs and DVDs. This
laser disc player is equipped with safety switches to avoid exposure
when the disc tray is open and the safety interlocks are defeated.
Invisible laser radiation is present when the player's tray is open
and the system's interlock has failed or been defeated. It is very
important that you avoid direct exposure to the laser beam at all
times. Do not attempt to defeat or bypass the safety switches.
Any use of the controls or an adjustment to the procedures other
than those specified herein may result in hazardous radiation.
Warning To reduce the risk of fire, do not place any heating or cooking
apparatus beneath your radio.

2
NS-C2115 Under-counter DVD Player/Clock Radio
www.insignia-products.com
Warning To reduce the risk of electric shock, do not remove the cover or
back. There are no user-serviceable parts inside. Refer all
servicing to qualified service personnel.
Warning To prevent electric shock, match the wide blade on the power cord
plug to the wide slot in the electrical outlet, and fully insert the plug.
Caution Batteries contain mercury. Do not put batteries in the trash.
Recycle or dispose of batteries as hazardous waste.
Caution When placing your unit on a lacquered or natural finish, protect
your furniture with a cloth or other protective material.

3
NS-C2115 Under-counter DVD Player/Clock Radio
www.insignia-products.com
Features
Front
#Feature Description
1POWER button Press to turn your radio on and off.
2 TIMER button Press to set the kitchen timer.
3PLAYMODE/
PROG MEM/
CLOCK SET button
Press to set Random and Program mode.
Press to set preset radio stations and program CD
tracks.
Press to set the time (with power off).
4 REPEAT/MEM DN
button If you are listening to a CD or watching a DVD, press to repeat a disc track or an entire disc.
If you are listening to the radio or watching TV,
press to go to a lower preset station.
5 DISPLAY button Press to toggle between current function display
and clock. For example, when listening to FM
radio, press to see the clock time, then press
again to see the FM channel you are listening to.
6 EQ button Press repeatedly to cycle through available
equalizer presets.
12 3 4 5 6 7 8 9
10 11
12 13 14 15
16
17
18
19
20

4
NS-C2115 Under-counter DVD Player/Clock Radio
www.insignia-products.com
7 FUNCTION button Press to select the play mode. You can select:
• TUNER–Radio
• TV–Television
• DVD–DVD and CD player
• AUX–External audio/video device
8 OPEN/CLOSE button Press to open and close the disc tray.
9 Mounting bracket Use this bracket to mount your radio under a
cabinet.
10 VOL + button Press to increase the volume.
11 VOL – button Press to decrease the volume.
12 SKIP/CLOCK/TUNING
DOWN button If you are listening to a CD, press to go to the previous track.
If you are setting the kitchen timer, press to
remove minutes.
If you are listening to the radio, press to go to a
lower frequency.
13 SKIP/CLOCK/TUNING
UP button If you are listening to a CD, press to go to the next track.
If you are setting the kitchen timer, press to add
additional minutes.
If you are listening to the radio, press to go to a
higher frequency.
14 STOP/BAND button If you are playing a disc, press to stop playback.
If you are listening to the radio, press to select the
AM or FM band.
15 PLAY/PAUSE/MEM UP
button If you are listening to a CD or watching a DVD, press to pause disc playback. Press again to
resume playback.
If you are listening to the radio or watching TV,
press to go to a higher preset station.
16 NAVIGATION button Press to go to a submenu.
17 MENU button Press to access the TV or DVD setup menu.
18 TV CHANNEL DOWN
button Press to go to a lower TV channel. With an on-screen menu open, press to adjust the
selected option downward.
#Feature Description

5
NS-C2115 Under-counter DVD Player/Clock Radio
www.insignia-products.com
Remote control
19 TV CHANNEL UP button Press to go to a higher TV channel. With an
on-screen menu open, press to adjust the
selected option upward.
20 LCD screen Displays the TV picture.
#Feature Description

6
NS-C2115 Under-counter DVD Player/Clock Radio
www.insignia-products.com

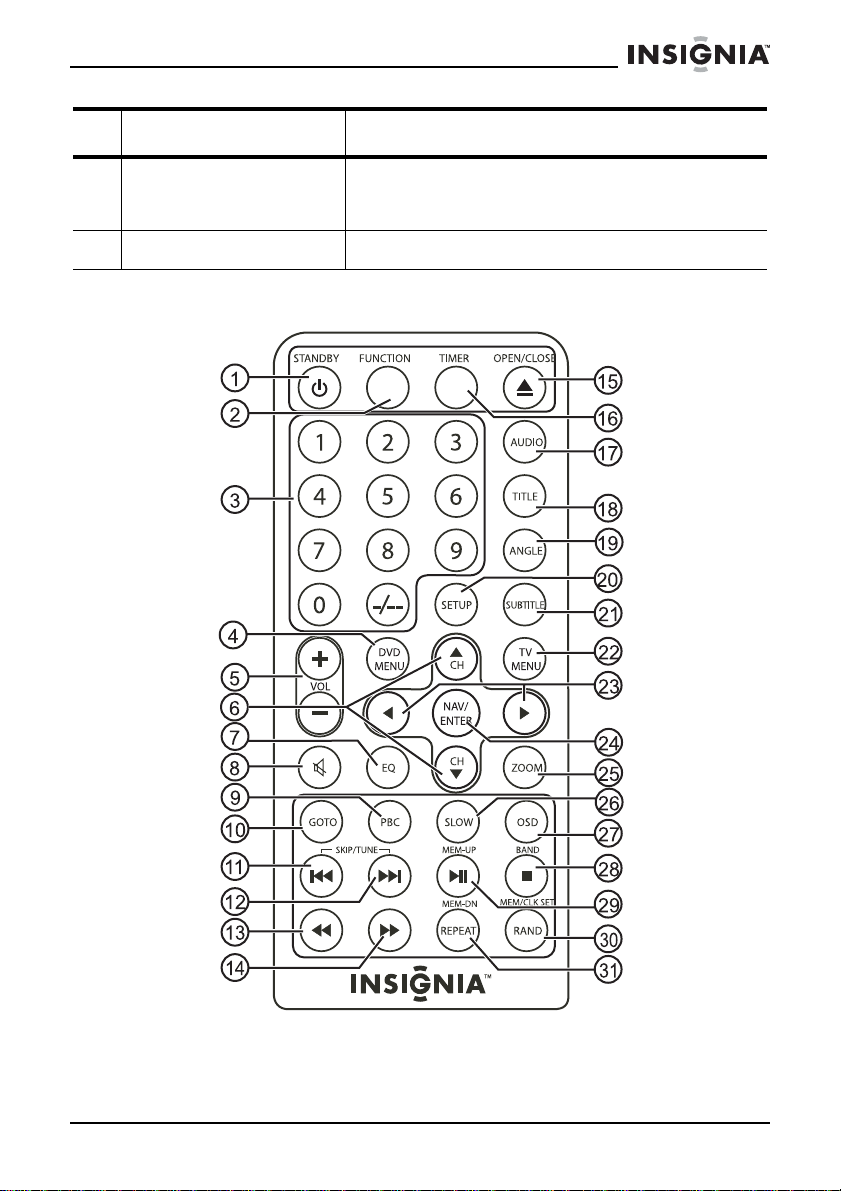

Button Description
1STANDBY Press to turn your radio on and off.
2 FUNCTION Press to select the play mode. You can select:
• TUNER–Radio
•TV–Television
• DVD–DVD and CD player
• AUX–External audio/video device
3 Number buttons Press to directly select a TV channel.
4 DVD MENU Press to go to DVD Setup Menu (while in DVD
mode).
5VOL + or – Press to increase or decrease the volume.
6CH /CH In TV mode, press to go to the next higher or
next lower channel.
In a TV menu, press to increase or decrease a
setting.
In DVD setup mode, press to scroll the
submenu up or down.
7 EQ Press to select the equalizer mode. You can
select CLASSIC, JAZZ, ROCK, or POP.
8(mute symbol) Press to mute the volume. Press again to
unmute the volume.
9 PBC Press to turn on and turn off Play Back
Control for VCD discs.
10 GOTO Press to go to a different DVD chapter.
11 SKIP/TUNE If you are listening to a CD, press to go to the
previous track.
If you are watching a DVD, press to skip to the
previous chapter.
If you are setting the kitchen timer, press to
subtract minutes.
If you are listening to the radio, press to go to
a lower frequency.

7
NS-C2115 Under-counter DVD Player/Clock Radio
www.insignia-products.com
12 SKIP/TUNE If you are listening to a CD, press to go to the
next track.
If you are watching a DVD, press to skip to the
next chapter.
If you are setting the kitchen timer, press to
add minutes.
If you are listening to the radio, press to go to
a higher frequency.
13 (fast backward) Press to fast backward a DVD, or to backward
search a CD track.
14 (fast forward) Press to fast forward a DVD, or to forward
search a CD track.
15 OPEN/CLOSE button Press to open and close the disc tray.
16 TIMER Press to set the kitchen timer.
17 AUDIO Press to select the audio channel settings in
DVD mode. (Some DVDs may not have this
option.)
18 TITLE Press to turn on or turn off the DVD title.
19 ANGLE Press to select DVD viewing angle options.
(Some DVDs may not have this option.)
20 SETUP Press to open the TV or DVD setup menu.
21 SUBTITLE Press to select DVD subtitle options. (Some
DVDs may not have this option.)
22 TV MENU Press to go to the TV menu (while in TV
mode).
23 and Press to scroll to left or right in a DVD
sub-menu.
24 NAV/ENTER Press to navigate through the sub menus (in
TV menus).
Press to confirm a setting (in DVD menus).
25 ZOOM Press to zoom into or out of a DVD picture.
(Some DVDs may not have this option.)
26 SLOW Press to go to slow motion (in DVD mode).
Button Description

8
NS-C2115 Under-counter DVD Player/Clock Radio
www.insignia-products.com
Setting up your radio
Checking AM radio reception
Your clock radio has a built-in antenna for the AM radio. To improve
reception, you need to rotate your clock radio.
Before you mount your clock radio under a counter, tune to an AM
station and rotate your clock radio until you get the best reception.
This is the orientation you need to use when you mount your clock
radio for best AM reception. For more information, see “Improving
reception” on page 11.
Installing the backup batteries
Your clock radio uses two AAA backup batteries that store your
settings. You cannot use the batteries to power your clock radio.
If your clock radio does not save your settings, you may need to
replace the batteries.
27 OSD Press to change languages on the on-screen
display.
28 BAND (stop) If you are listeningto a CD or watching a DVD,
press to stop playback.
If you are listening to the radio, press to select
the AM or FM band.
29 MEM-UP If you are listening to a CD or watching aDVD,
press to pause disc playback. Press again to
resume playback.
If you are listening to the radio, press to go to
a higher preset station.
30 MEM/CLK SET/RAND When the power is off, press to set the clock.
When the power is on, press to program radio
station presets. For more information, see
“Programming radio station presets” a la
página 11.
In CD stop mode, press to program CD tracks.
In CD playback mode, press to select Random
playback
31 MEM DN/REPEAT If you are listening to a CD or watching a DVD,
press to repeat a track, chapter, or the entire
disc.
If you are listening tothe radioor watching TV,
press to go to the next lower preset station.
Button Description

9
NS-C2115 Under-counter DVD Player/Clock Radio
www.insignia-products.com
To install the backup batteries:
1Open the battery compartment located on the right side of your
radio.
2Insert two AAA batteries (not included) into the battery
compartment. Make sure that the + and – symbols on the
batteries match the + and – symbols in the battery compartment.
3Close the battery compartment.
To install the remote control battery:
1Remove the battery holder.
2Insert one CR2025 (3-volt) battery into the battery holder. Make
sure that the + and – symbols on the battery match the + and –
symbols on the battery holder.
3Replace the battery holder.
Connecting to AC power
To connect the power:
• Plug the AC power cord into a power outlet.
N
EPO
+
Y
RE
TTA
B
MUIHTI
L
520
2R
C
V3
+
1
2

10
NS-C2115 Under-counter DVD Player/Clock Radio
www.insignia-products.com
Using your clock radio and TV
Turning on your clock radio and TV
To turn on your clock radio and TV:
1Plug the AC power cord into a power outlet.
2Press the POWER button to turn on the radio and TV.
Setting the time
To set the time:
1With the power off, press and hold the PLAY MODE/PROG MEM/
CLOCK SET button on the radio or the MEM/CLK SET/RAND
button on the remote control until the display shows “12 hr.” or “24
hr.”
2Press one of the SKIP/CLOCK/TUNING buttons on the radio or
one of the SKIP/TUNE / buttons on the remote control to
select the 12-hour clock or the 24-hour clock.
3Press the PLAY MODE/PROG MEM/CLOCK SET button on the
radio or the MEM/CLK SET/RAND on the remote control again
until the hour digits begin flashing, then press one of the
SKIP/TUNE / buttons on the remote to either increase or
decrease the hours shown.
4Press the PLAY MODE/PROG MEM/CLOCK SET button on the
radio or the MEM/CLK SET/RAND on the remote control again
until the minute digits begin flashing, then press one of the
SKIP/TUNE / buttons to either increase or decrease the
minutes shown.
5Press the PLAY MODE/PROG MEM/CLOCK SET button on the
radio or the MEM/CLK SET/RAND on the remote control again to
exit.
Listening to your radio
To listen to your radio:
1Press the POWER button to turn on your radio.
2Press the FUNCTION button one or more times until “ ”
appears on the display.
3Press the STOP/BAND button to select AM or FM.
4Press and hold one of the SKIP/TUNE / buttons to go to
an available radio station.
5Press one of the VOL buttons (+ or –) to adjust the volume.

11
NS-C2115 Under-counter DVD Player/Clock Radio
www.insignia-products.com
Improving reception
Your clock radio has an FM antenna on the back. If you are listening
to an FM station and the reception is poor, move the antenna until
reception improves.
If you are listening to an AM station and reception is not clear, rotate
your radio slightly until reception improves.
Programming radio station presets
You can program as many as 10 FM and 10 AM radio station presets.
You can tune to the preset stations by pressing the
PLAY/PAUSE/MEM UP or REPEAT/MEM DN buttons on the clock
radio, or the PLAY/PAUSE/MEM UP or MEM-DN/REPEAT buttons on
the remote control.
To program a radio station:
1Press the POWER button to turn on your radio.
2Press the FUNCTION button one or more times until “ ”
appears on the display.
3Press the STOP/BAND button to select AM or FM.
4Press one of the SKIP/CLOCK/TUNING buttons (up or down) on
the clock radio, or one of the SKIP/TUNE / buttons on the
remote control to select a radio station.
5Press and hold the PLAY MODE/PROG MEM/CLK SET button on
the clock radio or the MEM/CLK SET/RAND button on the remote
control to activate the programming mode.
6Press one of the SKIP/CLOCK/TUNING buttons (up or down) on
the clock radio, or one of the SKIP/TUNE / buttons on the
remote control to select the preset number you want to assign the
station to.
FM
AM

12
NS-C2115 Under-counter DVD Player/Clock Radio
www.insignia-products.com
7Press the PLAY MODE/PROG MEM/CLK SET button on the clock
radio or the MEM/CLK SET/RAND button on the remote control to
store the station with the preset number you selected.
8Repeat Steps 4 through 7 to program additional presets.
Tuning to a radio station preset
To tune to a radio station preset:
1Press the POWER button to turn on your radio.
2Press the FUNCTION button one or more times until “ ”
appears on the display.
3Press the BAND button to select AM or FM.
4Press the PLAY/PAUSE/MEM UP or REPEAT/MEM DN buttons
on the clock radio, or the MEM-UP or MEM-DN/REPEAT
button on the remote control until the preset number you want
appears on the display.
Setting the equalizer
You can adjust the sound by selecting an equalizer mode.
To select an equalizer mode:
• Press the EQ button one or more times to select the mode you
want. You can select:
•CLASSIC
•JAZZ
•ROCK
•POP
Watching your TV
To watch your TV:

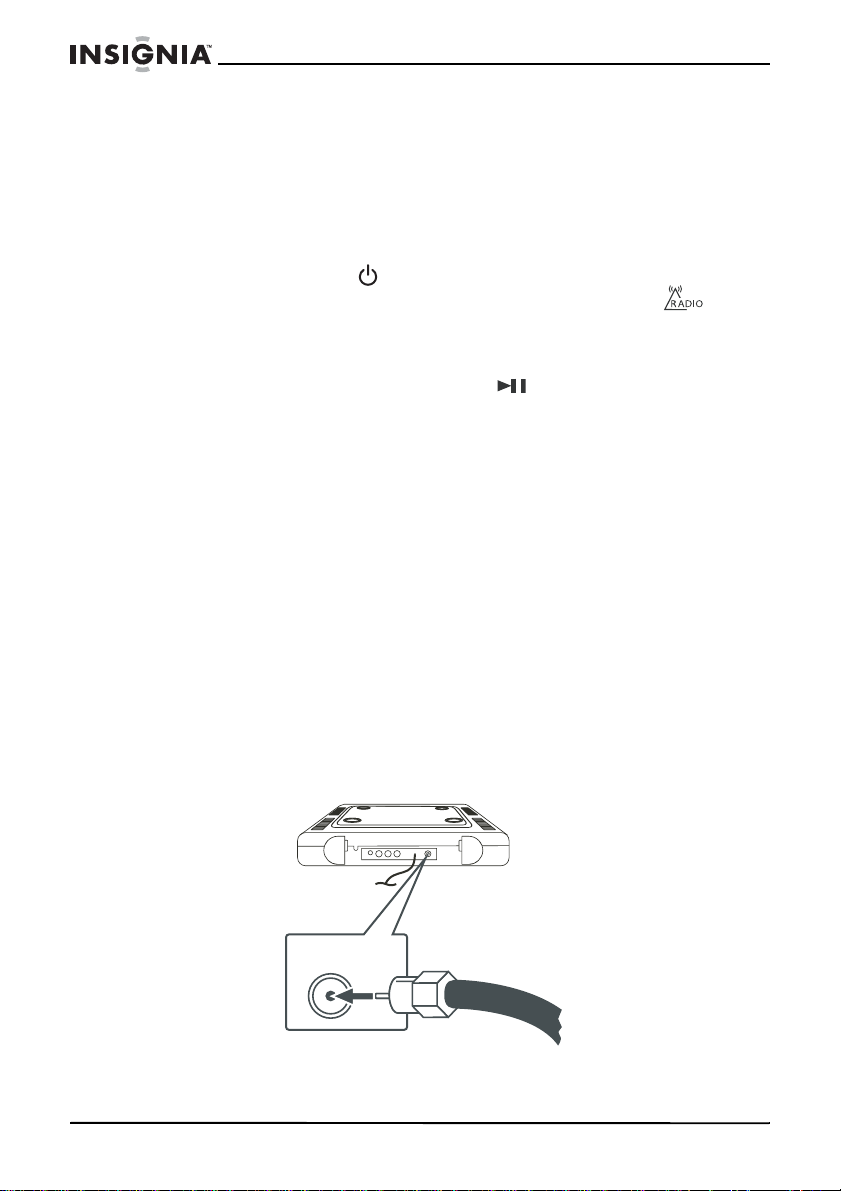

1Connect a 75 Ohm cable TV or antenna cable to the
TVANTENNA connection on the back of the radio.
TV ANTENNA

13
NS-C2115 Under-counter DVD Player/Clock Radio
www.insignia-products.com
2Swing the LCD screen down into viewing position and turn the
screen to a convenient viewing angle.
3Press the POWER button to turn on your TV.
4Press the FUNCTION button one or more times until TV appears
on the display.
5Press the one of the TV CHANNEL buttons (up or down), or press
the number buttons on the remote control to select a channel.
6Press one of the VOL buttons (+ or –) to adjust the volume.
Programming TV channels into memory
To program TV channels into memory:
1After connecting the antenna and turning on the power, press the
MENU button on your radio twice. The
TUNING menu opens.
2Press the NAVIGATION button repeatedly until AUTO SCAN is
selected.
3Press the TV CHANNEL DOWN button to begin the auto scan
process. Auto scan takes a few minutes to complete.
4Press the MENU button again to close the on-screen menu.
Adjusting the TV picture
To adjust the TV picture:
1With the TV on, press the MENU button. The
PICTURE menu
opens.
2Press the NAVIGATION button to select each the following picture
elements, then press TV CHANNEL UP or DOWN to adjust:
•BRIGHTNESS
•CONTRAST
• SHARPNESS
• COLOR
• HUE
• DISPLAY (4:3 or Fullscreen)
• DEFAULT (resets adjustments to factory default settings)
3Press the MENU button again to close the on-screen menu.
Note If you’re using your TV for the first time, you must program the available
TV channels into memory. See “Programming TV channels into
memory” on page 13.

14
NS-C2115 Under-counter DVD Player/Clock Radio
www.insignia-products.com
Tuning the TV
To tune the TV:
1With the TV on, press the MENU button twice. The
TUNING menu
opens.
2Press the NAVIGATION button to select each of the following
tuning options, then press TV CHANNEL UP or DOWN to change
the setting:
• CHANNEL—Choose the channel you want to be affected by
the tuning changes.
• TV MODE—Choose from AIR or CABLE.
• FINE TUNE—To fine tune the selected channel’s reception.
• MANUAL TUNE—To tune through the channels manually.
• AUTO SCAN—See “Programming TV channels into memory”
on page 13.
• CHANNEL SWAP—To swap the channels tuned in to different
channel locations.
Watching a DVD
To watch a DVD:
1Swing the LCD screen down into viewing position and turn the
screen to a convenient viewing angle.
2Press the POWER button to turn on the player.
3Press the FUNCTION button one or more times until “DVD”
appears on the display.
4Press the OPEN/CLOSE button on the radio to open the disc
tray.
5Place the DVD with the label side up into the disc tray, then press
the OPEN/CLOSE button again to close the tray.
6Press the PLAY/PAUSE/MEM UP button on the radio, or press the
MEM-UP button on the remote to begin playback.
Press the following buttons on the remote control to control DVD
playback.

15
NS-C2115 Under-counter DVD Player/Clock Radio
www.insignia-products.com
7Press VOL (+ or –) to adjust the volume to a comfortable level.
8Press the BAND button to stop playback.
Listening to a CD
Your radio can play audio CDs, CD-Rs, and CD-RWs. CD-Rs and
CD-RWs must be finalized before you can play them on your radio.
For more information about finalizing CD-Rs and CD-RWs, see your
CD burning software documentation.
To listen to a CD:
1Press the POWER button to turn on your clock radio.
2Press the FUNCTION button one or more times until DVD appears
on the display.
3Press the OPEN/CLOSE button to open the disc tray.
4Place a CD with the label side up into the disc tray.
5Press the OPEN/CLOSE button to close the disc tray.
6Press the PLAY/PAUSE/MEM UP button on the radio, or the
MEM-UP button on the remote to begin playback.
7To control the CD during playback:
• Press the PLAY/PAUSE/MEM UP button on the radio, or
press the MEM-UP button on the remote to pause
playback. Press the button again to resume playback.
Button Function
DVD MENU Press to go to the DVD menu.
SKIP/TUNE / Press to advance to the next chapter
or return to the previous chapter.
and Press to fast forward or fast backward
a DVD.
MEM-UP Press to start playback. Press again to
pause playback.
BAND (stop) Press to stop playback.
TITLE Press to turn the playback title on and
off.
ZOOM Press repeatedly to zoom in on a
scene on the DVD. (May not be
available on all DVDs.)
SLOW Press to play back in slow motion.
GOTO Press to go to another chapter.

16
NS-C2115 Under-counter DVD Player/Clock Radio
www.insignia-products.com
• Press one of the SKIP/CLOCK/TUNING buttons (up or
down) on the clock radio, or press one of the SKIP/TUNE
/ buttons on the remote to go to the next or
previous track on the CD.
• Press one of the SKIP/CLOCK/TUNING buttons (up or
down) on the clock radio, or press one of the SKIP/TUNE
/ buttons on the remote to search for a track on the
CD.
• Press the MEM/CLK SET/RAND button on the remote to
select Random playback mode.
8Press the STOP/BAND button to stop playback.
Connecting an external audio/video input device
To connect an external audio/video input device:
1Make sure that your radio is turned off and unplugged from the
power outlet.

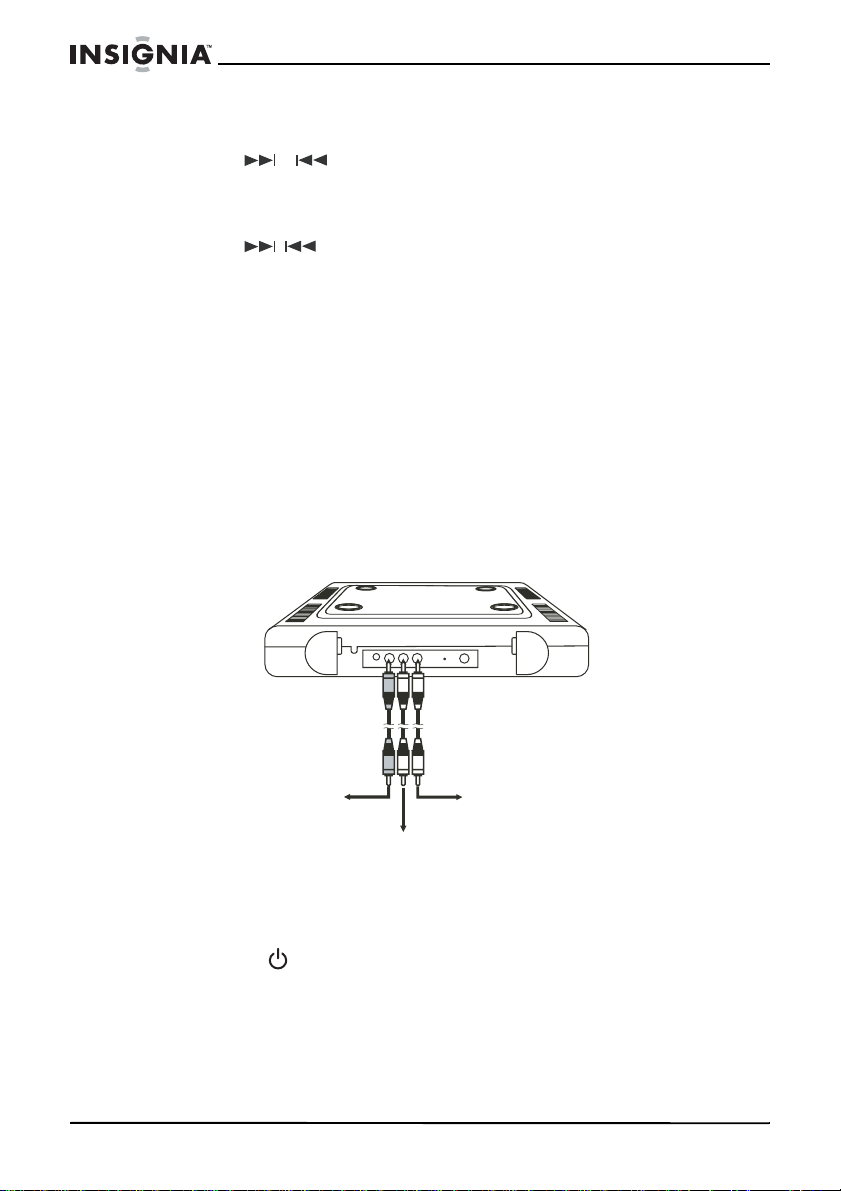

2Plug the yellow connector of an audio/video cable (not included)
into the VIDEO IN jack on the left side of your clock radio.
3Plug the left (white) and right (red) connectors of an audio/video
cable (not included) into the Land R AUDIO IN jacks on the left
side of your clock radio.
4Plug the other end of the audio/video cable into the Video and
Audio Out jacks on the audio/video input device.
5Plug the AC power cord into a power outlet, then press the
POWER button to turn on your radio.
6Press the FUNCTION button one or more times until AV appears
on the display.
7Turn on the external audio device and use the device’s controls to
control playback.
From Video
(yellow) output
FromAudioRight
(red) output
From Audio Left
(white) output

17
NS-C2115 Under-counter DVD Player/Clock Radio
www.insignia-products.com
Setting the kitchen timer
You can use your clock radio as a kitchen timer.
To set the kitchen timer:
1Press the TIMER button one or more times to select a length of
time in minutes. The initial time is 240 minutes. Each time you
press the TIMER button, the length of time decreases by
10 minutes.
2To increase or decrease the length of time from one to nine
minutes, press one of the SKIP/CLOCK/TUNING buttons (up or
down) one or more times. Each time you press a SKIP/CLOCK/
TUNING button, the length of time increases or decreases
(depending on which button you push) by one minute.
3When the alarm sounds, press the TIMER button for five seconds
to turn off the alarm.
4To check the number of minutes remaining, turn on your radio,
then press the TIMER button.
5To cancel the timer, press the TIMER button for five seconds.
Maintaining
Cleaning the exterior
To clean the exterior
• Use a soft cloth dampened with only luke-warm water.
Caring for discs
A dirty, scratched, or warped disc may cause skipping or noise.
To care for discs:
• Hold discs by their edges.
• Never touch the shiny sides of discs.
• Do not bend discs.
• Store discs in their cases when you are not using them.
• Do not expose discs to direct sunlight, high humidity, high
temperature, or dust. Prolonged exposure to extreme
temperatures can warp discs.
• Do not put labels or tape on discs.
Caution Make sure that you do not drip water into your radio.
Do not use solvents, such as benzene, because they may damage
the finish.

18
NS-C2115 Under-counter DVD Player/Clock Radio
www.insignia-products.com
Cleaning discs
To clean a disc:
• With a soft cloth, wipe the disc from the center to the outer
edge.
Troubleshooting
Problem Cause Solution
No sound. The power is turned off. Press the POWER button
to turn the power on.
Playback is paused. Press the
PLAY/PAUSE/MEM UP
button on the radio, or the
MEM-UP button on the
remotecontroltoresumedisc
playback.
Volume is set too low. Press the VOL +button to
increase the volume.
Sound is muted. Press the (mute) button
to unmute the sound.
Snowy picture and bad
sound. The station is not tuned in correctly. Fine-tune the channel. See “Tuning the TV” on page 14.
Theantennaconnection
or adjustment is bad. • Make sure that the antenna is securely
connected.
• Adjust the antenna.
• Connect to an external
antenna.
Dotted lines or stripes
on the screen. Local interference, such as cars, neon signs,
and hair dryers.
• Adjust the antenna.
• Connect to an external
antenna.

19
NS-C2115 Under-counter DVD Player/Clock Radio
www.insignia-products.com
Legal notices
FCC statement
Double images or
“ghosts.” Signal reflections from nearby mountains or
buildings.
A highly directional antenna
may improve the picture.
Good picture and no
sound. Signal reflections from nearby mountains or
buildings.
A highly directional antenna
may improve the picture.
Good picture and bad
sound. Signal reflections from nearby mountains or
buildings.
A highly directional antenna
may improve the picture.
No picture The power is turned off. Press the POWER button
to turn the power on.
All or part of a disc will
not play. The disc is inserted incorrectly. Make sure that the disc is placed in the tray with the
label side up.
The disc is scratched. Try another disc.
The disc is dirty. Clean the disc. For more
information, see “Cleaning
discs” on page 18.
The disc is warped. Try another disc.
Condensation has
formed inside your
player.
Remove the disc and leave
the disc tray open for about
one hour to let the player dry
out.
Warning Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment.
Problem Cause Solution
