Insignia NS-42L780A12 User manual

Composite video
and analog audio
AUDIO/VIDEO
OUT
CABLE
Identifying cables
YourTV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
You can use the HDMI 1 jack to connect a DVI device to yourTV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device’s jack.
Connection type Video quality Cable connector
HDMI video/audio Best
Component video
and analog audio
Better
Good
OR
OR
AUDIO/VIDEO
OUT
Front features
Installing the stand
1Carefully place yourTV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2Align and insert the base into the stand as illustrated.
3 Secure the stand to theTV with the four provided screws.
Installing a wall-mount bracket
1 Carefully place yourTV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 Remove the four screws that secure the base to the stand, then remove the base.
3 Remove the four screws that secure the stand column, then remove the column.
4 Attach the wall-mount bracket to yourTV using
the mounting holes on the back of yourTV. See
the instructions that came with the wall-mount
bracket for information about how to
correctly hang yourTV.
Connecting a DVD or Blu-ray
player, cable box, satellite receiver, camcorder,
or game station
Using an HDMI cable (best)
Using component cables (better)
Using composite cables (good)
Connecting an antenna/cable wall jack
Connect a coaxial cable (not included) to the ANT/CABLE jack on the back of
yourTV and to the Antenna/Cable wall jack.
42"/46” 1080p LCD HDTV
QUICK SETUP GUIDE
NS-42L780A12 /NS-46L780A12
Thank You
for purchasing this ne Insignia television. We hope you
enjoy the quality and reliability of this product for years
to come.
_______________________________
Remote control
and 2 AAA
batteries
Component
video cable
TV stand and 4 screws
Audio cable
Power cable
WE ARE GOING GREEN!
A copy of your User Guide is not provided in
the box but is available online.
Go to www.insigniaproducts.com, click
Support & Service, enter your model
number in the Product Search eld,
then click Search.
Remote
control sensor
Power
indicator
This apparatus is intended to be
supported by a UL Listed
wall mount bracket.
Warning
Cleaning cloth
Please note: Connect your Yellow video cable to
the Green Y/Video jack.

42"/46” 1080p LCD HDTV IQUICK SETUP GUIDE I NS-42L780A12/NS-46L780A12
AUDIO IN
OPTICAL
AUDIO IN
Antenna or
cable TV
(no box)
Blu-ray player/DVD player/VCR Cable or satellite TV box
AV receiver
Game console
or camera
USB ash drive
Computer
OK
ENTER
MENU EXIT
PICTURE AUDIO CHANNELS SETTINGS USB
Mode
Brightness
Contrast
Color
Tint
Sharpness
Energy Savings
48
50
60
0
+10
MOVE EXIT
PREVIOUS
SELECT
Adjust settings to affect picture quality
OK
ENTER
MENU EXIT
Reduces total power consumption
Home Mode
Retail Mode
MOVE EXIT
PREVIOUS
SELECT
Choose Your Picture Mode
OK
ENTER
MENU EXIT
Digital Channels
Analog Channels
Scan for digital channels
Choose Your TV Source
Antenna
Cable
Cable/Satellite Box
0
MOVE EXIT
PREVIOUS
SELECT
Channel scan may take 20+ minutes
0
OK
ENTER
MENU EXIT
Mode
Time Zone
Daylight Savings
Year
Month
Day
Time
If Automatic, options are automatically set by TV source
MOVE EXIT
PREVIOUS
SELECT
Choose Your Time Setting
Manual
Pacific
On
2011
Jan
1
12:25 AM
OK
ENTER
MENU EXIT
English
Français
Español
Choose Your Menu Language
MOVE EXIT
PREVIOUS
SELECT
Set menu language to English, Français, or Español
TV
VGA
HDMI 1
HDMI 2
USB
Input Source
Component/AV
HDMI 3

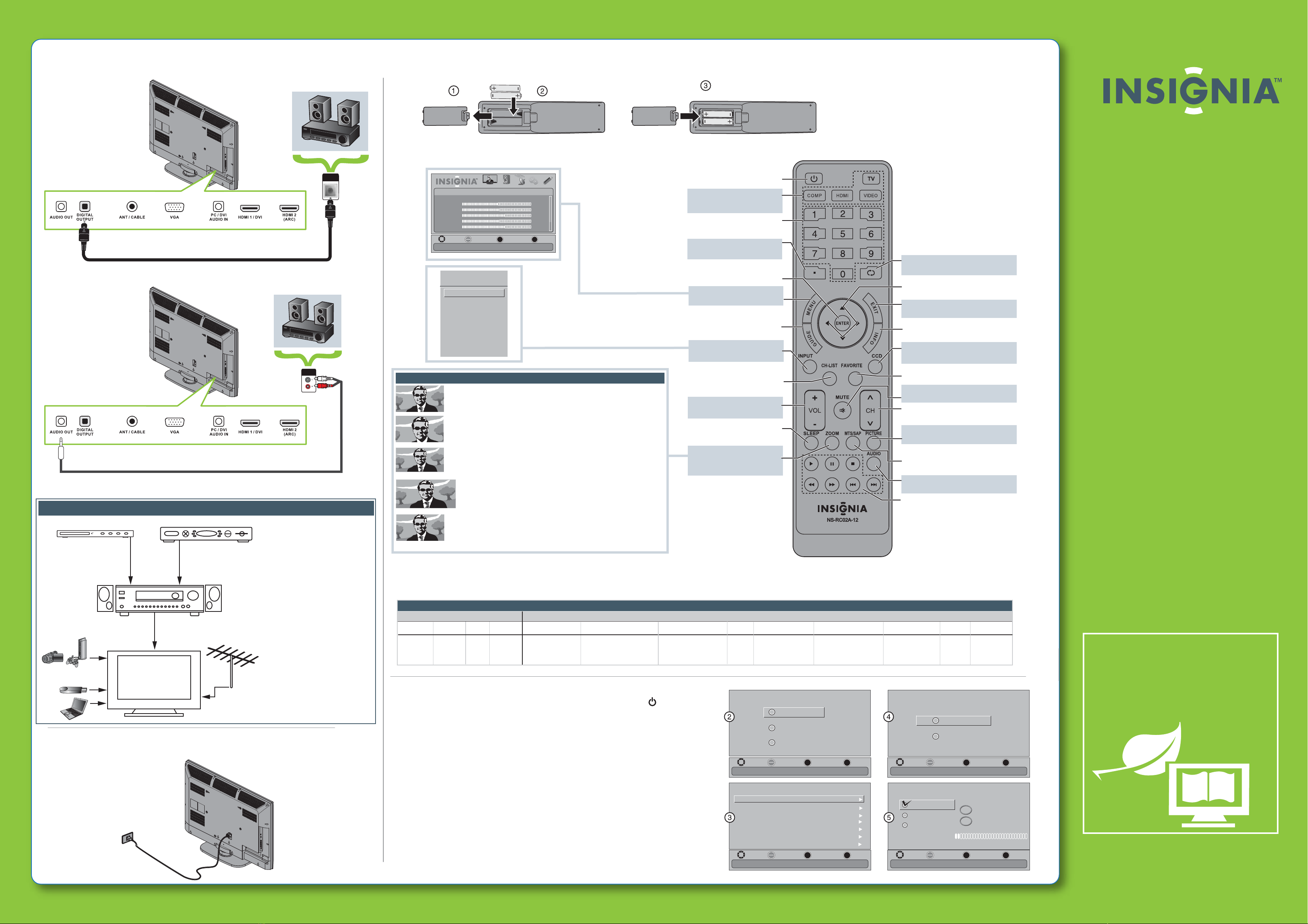

Connecting a HomeTheater System
Using Digital audio
Using Analog audio
Connecting power
Plug the AC power cord into the AC IN jack on the back of yourTV,
then plug the other end of the
cord into a power outlet.
Two-year limited warranty
Visit www.insigniaproducts.com for details.
Need additional help?
See your Online User Guide! This
comprehensive guide includes everything from
basic how-to steps to more advanced features.
A copy of your User Guide is not provided in
the box but is available online. Go to
www.insigniaproducts.com, click Support
& Service, enter your model number in the
Product Search eld, then click Search.
Check out our online community forum at
www.insigniaproducts.com for helpful
information from other InsigniaTV owners.
We’re here for you
www.insigniaproducts.com
For customer service, call:
877-467-4289 (U.S./Canada markets)
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richeld, MN USA
55423-3645
© 2011 BBY Solutions, Inc.
All rights reserved. INSIGNIA is a trademark of BBY Solutions,
Inc. Registered in some countries. All other products and
brand names are trademarks of their respective owners.
ENGLISH 11-0045
