Welcome
Congratulations on your purchase of a high-quality Insignia product.
Your NS-10PDVDD represents the state of the art in personal DVD
player design and is designed for reliable and trouble-free
performance.
Safety information
Placement
To prevent fire or electric shock, do not expose your player to rain or
moisture. Do not place your player on an unstable cart, stand, tripod,
bracket, or table to prevent it from falling. Keep your player away from
strong magnets, heat sources, direct sunlight, and excessive dust. If
your player is brought directly from a cold to a warm location,
moisture may condense inside your player. When you move your
player from a cold to a warm location, wait for about one hour before
operating your player, or remove the disc and leave your player
turned on until the moisture evaporates.
Installation
Make sure that your player is installed in accordance with the
instructions and illustrations provided in this guide.
07-343_NS-10PDVDD.fm Page 1 Monday, July 9, 2007 3:40 PM

2
Insignia NS-10PDVDD 10" Personal DVD Player
www.insignia-products.com
Cautions
• Do not push objects of any kind into your player through
openings in your player.
• Do not spill or spray liquid of any kind on or in your player
because liquid can cause a fire or electric shock.
• Do not place anything heavy on your player.
• To ensure correct ventilation and operation, never cover or
block openings on your player with a cloth or other material.
• Keep your player away from an open flame, such as fire or a
candle.
• Replace the battery only with the same or equivalent type.
Replacing the battery incorrectly can be hazardous. In order to
protect the environment, dispose the battery as hazardous
waste.
• Do not use your player in temperatures higher than 95°F
(35°C).
Disassembly
Do not attempt to disassemble your player. There is a risk of electric
shock and exposure to laser radiation. Contact qualified service
personnel if your player needs repair.
Cleaning
When cleaning, make sure that your player is unplugged from the
power source. Do not use liquid or aerosol cleaners. Use a cloth,
lightly dampened with water, for cleaning the exterior of your player.
Discs
• Do not use irregularly shaped discs, such as heart-shaped or
star-shaped discs, because they may cause your player to
malfunction.
• Do not stick paper, tape, or glue on a disc.
• Do not expose a disc to direct sunlight or heat sources.
• Do not touch the surface of a disc. Handle a disc by its edge.
• Clean a disc by wiping the disc from the center out with a
cleaning cloth.
• Remove a disc from your player and store it in its case after
playing.
• Some playback operations of discs may be intentionally limited
by software producers. Because your player plays discs
according to the disc contents the software producers
designed, some playback features may not be available. Also
refer to the instructions supplied with the discs.
07-343_NS-10PDVDD.fm Page 2 Monday, July 9, 2007 3:40 PM

3
Insignia NS-10PDVDD 10" Personal DVD Player
www.insignia-products.com
Features
Front
# Component Description
1 Power Lights green when your player is
on.
2 Remote control sensor Receives signals from the remote
control. Do not block.
3 Open button Press to open the disc tray.
123
07-343_NS-10PDVDD.fm Page 3 Monday, July 9, 2007 3:40 PM

4
Insignia NS-10PDVDD 10" Personal DVD Player
www.insignia-products.com

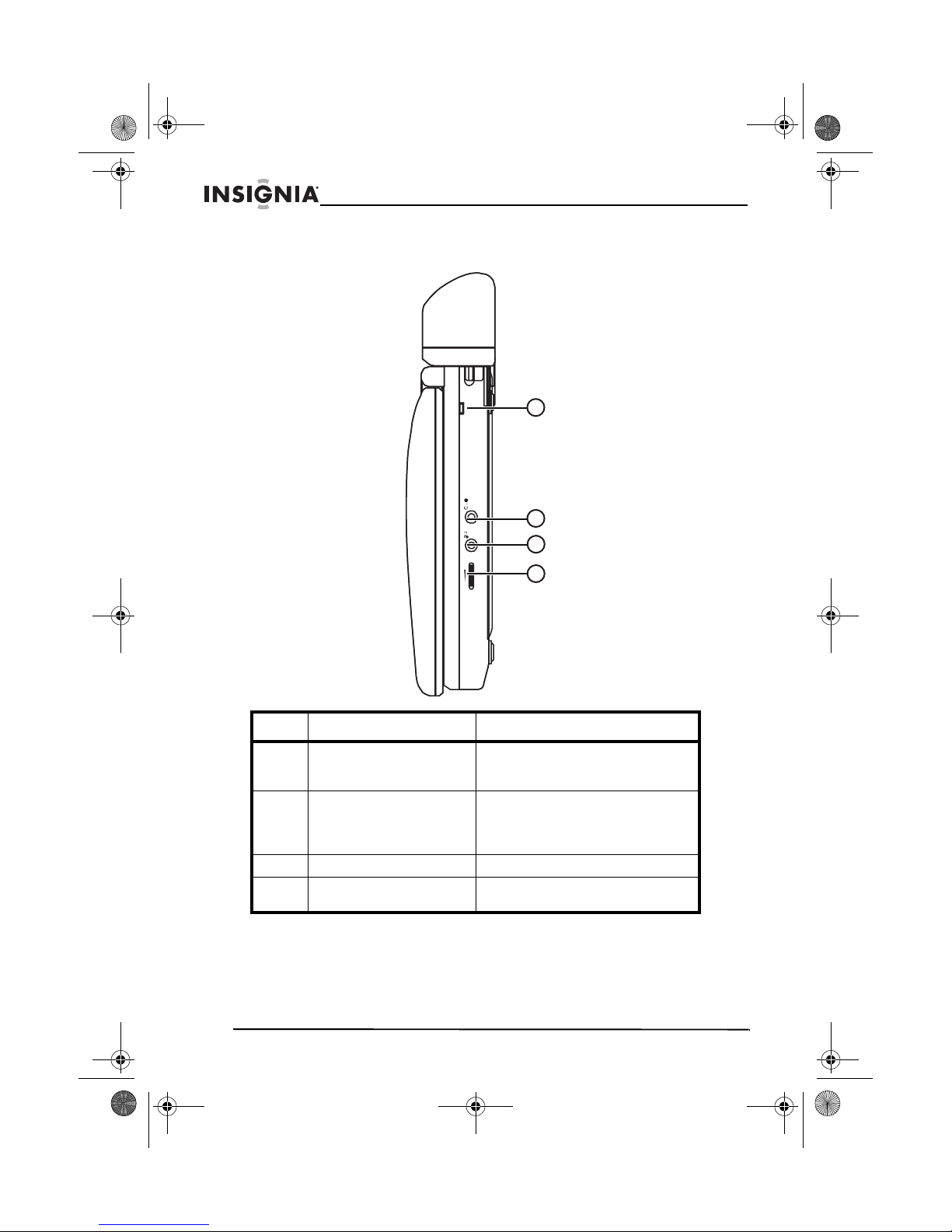

Right
# Component Description
1 Rechargeable battery
LED Lights red when the battery is charging. When the battery is fully
charged, this LED turns off.
2 Headphone 1 jack Plug headphones into this jack.
When headphones are plugged in,
sound does not come out of your
player’s speakers.
3 Headphone 2 jack Plug headphones into this jack.
4 Volume control Rotate to increase or decrease the
volume.
1
2
3
4
07-343_NS-10PDVDD.fm Page 4 Monday, July 9, 2007 3:40 PM

5
Insignia NS-10PDVDD 10" Personal DVD Player
www.insignia-products.com
Left
# Component Description
1 DC input jack Plug the AC to DC or cigarette
lighter adapter into this jack.
2 AV jack Plug an A/V device into this jack.
3 AV IN/OUT switch Slide this switch to select to IN
when the device connected to the
AV jack is sending a signal to your
player. Slide this switch to OUT
when your player is sending a
signal to the device connected to
the AV jack.
4 ON/OFF switch Slide this switch to turn your player
on or off.
1
2
3
4
07-343_NS-10PDVDD.fm Page 5 Monday, July 9, 2007 3:40 PM

6
Insignia NS-10PDVDD 10" Personal DVD Player
www.insignia-products.com
Inside
# Component Description
1 WIDE Press to switch the aspect ratio
between 4:3 and 16:9.
2 MENU Press to open the main DVD
menu.
3 Press to stop disc playback.
4 Press to start or pause playback.
5 Press to highlight options and
confirm selections.
6 Press to go to the previous
chapter, track, or scene during
disc playback.
7 Press to go to the next chapter,
track, or scene during disc
playback.
WIDE
STOP MENU
PRE NEXT
1
2
3
5
6
7
4
07-343_NS-10PDVDD.fm Page 6 Monday, July 9, 2007 3:40 PM

7
Insignia NS-10PDVDD 10" Personal DVD Player
www.insignia-products.com
Remote control
# Button Description
1 SETUP Press to open or close the Setup
menu.
2 DISPLAY Press to display information about
the disc, such as title, chapter
number, track number, and time.
1
2
3
4
5
6
7
8
10
13
14
15
16
17
18
19
20
21
22
23
9
11
12
07-343_NS-10PDVDD.fm Page 7 Monday, July 9, 2007 3:40 PM

8
Insignia NS-10PDVDD 10" Personal DVD Player
www.insignia-products.com
3 REW Press to fast reverse on the disc.
Each time you press this button,
the fast-reverse speed increase
from 2, to 4, to 8, to 16, to 32 times
the normal speed.
4 FF Press to fast-forward on the disc.
Each time you press this button,
the fast-forward speed increases
from 2, to 4, to 8, to 16, to 32 times
the normal speed.
5 SKIP– Press to go to the previous title,
chapter, or track.
6 SKIP+ Press to go to the next title,
chapter, or track.
7 PLAY/PAUSE Press to start or pause playback.
8 STOP Press once to stop playback. Your
player remembers where you
stopped. If you press
PLAY/PAUSE, your player starts
playing at the point where you
stopped.
Press twice to stop playback. If
you press PLAY/PAUSE, your
player starts playing at the
beginning of the disc.
9 BRIGHT – Press to decrease the brightness.
10 BRIGHT + Press to increase the brightness.
11 Press to navigate in menus.
12 ENTER Press to confirm selections.
13 Numbers Press to select menu items or to
enter the password.
14 SUBTITLE Press to turn subtitles on and off,
or press to select the subtitle
language. This option works only if
the DVD has subtitles.
15 AUDIO Press to select the DVD audio
language. This option works only if
the DVD has multiple audio
languages.
16 REPEAT Press to repeat the current title,
chapter, or track.
17 A-B Press to create a playback loop.
# Button Description
07-343_NS-10PDVDD.fm Page 8 Monday, July 9, 2007 3:40 PM

9
Insignia NS-10PDVDD 10" Personal DVD Player
www.insignia-products.com
Setting up your player
Package contents
Your box should contain:
• DVD player with 10" LCD monitor
• Remote control with battery
• AC to DC adapter
• Cigarette lighter adapter
• A/V cable
• Rechargeable Li-Polymer battery
• This user guide
18 MENU Press once to open the main DVD
menu. This option works only if the
DVD has a main menu.
Press twice to open the DVD title
menu. This option works only if the
DVD has a title menu.
19 TITLE Press to open the DVD title menu.
This option works only if the DVD
has a title menu.
20 RETURN Press once to return to the
previous menu. Press twice to
resume playback.
21 ZOOM Press to enlarge the display
image. You can enlarge the image
for 2 to 3 to 4 times the normal
size.
22 SLOW Press to play forward or backward
at 1/2, 1/4, 1/8, or 1/16 the normal
speed.
23 ANGLE Press to select the viewing angle
on a DVD. This option works only
if the DVD has multiple viewing
angles.
# Button Description
07-343_NS-10PDVDD.fm Page 9 Monday, July 9, 2007 3:40 PM

10
Insignia NS-10PDVDD 10" Personal DVD Player
www.insignia-products.com
Installing remote control batteries
To install remote control batteries:
1Remove the battery compartment cover.
2Insert the battery into the battery compartment. Make sure that the
+ and – symbols on the battery match the + and – symbols in the
battery compartment.
3Replace the battery compartment cover.

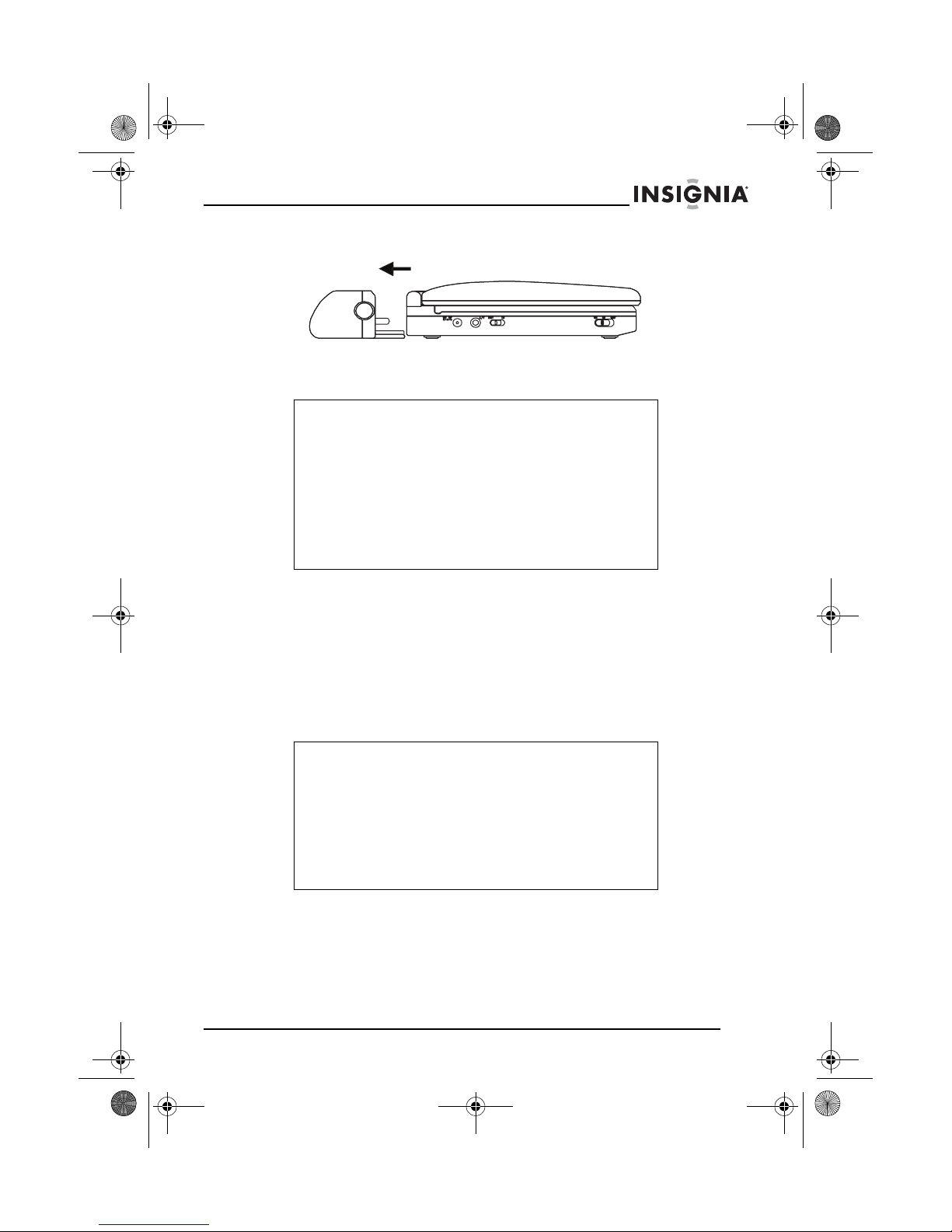

Installing the battery pack
To install the battery pack:
1Make sure that your player is turned off and the AC to DC adapter
is unplugged.
2Close the LCD screen.
3Press the battery pack into the back of your player until it locks
into place.
When the battery pack locks into place, you hear a click. The
battery pack should fit tightly against your player.
Removing the battery pack
To remove the battery pack:
1Make sure that your player is turned off and the AC to DC adapter
is unplugged.
2Close the LCD screen.
3Press the release button on the side of the battery.
07-343_NS-10PDVDD.fm Page 10 Monday, July 9, 2007 3:40 PM

11
Insignia NS-10PDVDD 10" Personal DVD Player
www.insignia-products.com
4Pull the battery away from your player.
Charging your player’s battery
To charge your player’s battery:
1Turn off your player.
2Plug one end of the AC to DC power adapter into the DC jack on
the side of your player. You cannot use the cigarette lighter
adapter to charge the battery.
3Plug the other end of the adapter into an AC outlet. The battery
charge indicator lights red. When the battery is fully charged, the
indicator turns off. You can unplug the adapter if you want.
NoteMake sure that you charge the battery pack at least eight
hours before using it the first time.
Recharging the battery takes approximately five hours. A
fully-charged battery can power your player for at least two
and one-half hours.
If you do not intend to use the battery pack for an extended
length of time, fully charge the battery pack, then remove it
and store it in a non-metal, airtight container with a
dehumidifying agent.
If you store the battery pack, recharge it every two months
to keep it in optimum condition.
Caution
Use the AC to DC adapter that came with your player to
recharge the battery pack.Do not use the cigarette lighter
adapter.
As soon as the battery pack is fully discharged, recharge it
to keep it in optimum condition.
Do not short the battery pack terminals.
Do not store the battery pack in a metal container.
Do not leave the battery pack in a humid or damp
environment.
07-343_NS-10PDVDD.fm Page 11 Monday, July 9, 2007 3:40 PM

12
Insignia NS-10PDVDD 10" Personal DVD Player
www.insignia-products.com
Connecting to AC power
To connect to AC power:
1Plug one end of the AC to DC power adapter into the DC jack on
the side of your player.
2Plug the other end of the adapter into an AC outlet.
Connecting to a car cigarette lighter
To connect to a car cigarette lighter:
1Plug one end of the cigarette lighter adapter into the DC jack on
the side of your player.
2Plug the other end of the adapter into a car cigarette lighter
socket.
07-343_NS-10PDVDD.fm Page 12 Monday, July 9, 2007 3:40 PM

13
Insignia NS-10PDVDD 10" Personal DVD Player
www.insignia-products.com
Connecting headphones
To connect headphones:
• Plug headphones (not included) into the Headphone 1 or
Headphone 2 jack. When headphones are plugged into the
Headphone 1 jack, no sound comes from the built-in
speakers.
Connecting a TV or monitor
You can connect your player to a TV or monitor so you can watch
DVDs on the TV or monitor.
To connect a TV or monitor:
1Slide the AV IN/OUT switch to the OUT position.
2Plug the end of the supplied A/V cable that has one black
connector into the AV jack on your player.
White=left audio
Red=right audio
Yellow=video
07-343_NS-10PDVDD.fm Page 13 Monday, July 9, 2007 3:40 PM

14
Insignia NS-10PDVDD 10" Personal DVD Player
www.insignia-products.com
3Plug the other end of the AV cable into the A/V jacks on the TV or
monitor. The white connector goes into the left audio jack. The red
connector goes into the right audio jack. The yellow connector
goes into the video jack.
Connecting an external input device
You can connect an external input device, such as a camcorder or
another DVD player to your player.
To connect an external input device:
1Slide the AV IN/OUT switch to the IN position.
2Plug the end of the supplied A/V cable that has one black
connector into the AV jack on your player.
3Plug the other end of the AV cable into the A/V jacks on the
external input device. The white connector goes into the left audio
jack. The red connector goes into the right audio jack. The yellow
connector goes into the video jack.
Using your player
Playing a DVD or audio CD
To play a disc:
1Make sure that your player is connected to power or that the
battery is charged.
2Slide the ON/OFF switch on the left side of your player to the ON
position.
3Press OPEN on the front of your player. The disc tray opens.
4Place a disc, label side up, in the disc tray, then press CLOSE to
close the tray. The disc starts playing automatically.
Caution
Do not connect an input device when the AV IN/OUT switch
is in the OUT position.
NoteMost DVDs and your player have region codes that help
control illegal distribution of DVDs. The region code for your
player is 1. You can only play DVDs with a region code of 1
or ALL. The region code for a DVD is printed on the DVD or
the DVD packaging.
07-343_NS-10PDVDD.fm Page 14 Monday, July 9, 2007 3:40 PM

15
Insignia NS-10PDVDD 10" Personal DVD Player
www.insignia-products.com
Controlling DVD or audio CD playback
To control disc playback:
• Press STOP once to stop playback. Your player remembers
where you stopped. If you press PLAY/PAUSE, your player
starts playing at the point where you stopped.
• Press STOP twice to stop playback. If you press
PLAY/PAUSE, your player starts playing at the beginning of
the disc.
• Press PLAY/PAUSE to pause playback. Press this button
again to resume playback.
• Press FF to fast-forward on the disc. Each time you press this
button, the fast-forward speed changes from 2 to 4 to 8 to 16 to
32 times the normal speed.
• Press REW to fast-reverse on the disc. Each time you press
this button, the fast-reverse speed changes from 2 to 4 to 8 to
16 to 32 times the normal speed.
• Press SKIP+ to go to the next title, chapter, or track.
• Press SKIP– to go to the previous title, chapter, or track.
Playing an MP3 disc
MP3 is a format for storing digital audio. Your player can play CD-Rs
and CD-RWs that contain MP3 files encoded in the MP3 format.
When you insert an MP3 disc, a menu opens so you can select the
songs you want to play.
To play an MP3 disc:
1Insert an MP3 disc into the disc tray, then close the tray. A menu
opens and a song begins to play automatically.
BBBBBBBBBB
CCCCCCCCCCC
DDDDDDDDDDD
EEEEEEEEEE
FFFFFFFFF
07-343_NS-10PDVDD.fm Page 15 Monday, July 9, 2007 3:40 PM

16
Insignia NS-10PDVDD 10" Personal DVD Player
www.insignia-products.com
2To go to the next song, press SKIP+, or to go to the previous
song, press SKIP– twice.
Playing a DivX disc
DivX is a compressed video format. Your player can play DVDs,
CD-Rs, and CD-RWs that contain videos encoded in the DivX format.
You play DivX discs in the same way that you play MP3 discs. For
more information, see “Playing an MP3 disc” on page 15.
Adjusting the volume
To adjust the volume:
• Rotate the volume control on the right side of your player.
Viewing DVD information
To view DVD information:
1During playback, press DISPLAY. The following display appears.
1 Current title number.
2 Total number of titles.
3 Current chapter number.
4 Total number of chapters.
5 Elapsed playing time for
the current title.
Title Elapsed
TT 01/01 CH 02/17 0:00:00
1
2
3
4
5
07-343_NS-10PDVDD.fm Page 16 Monday, July 9, 2007 3:40 PM

17
Insignia NS-10PDVDD 10" Personal DVD Player
www.insignia-products.com
2Press DISPLAY one or more times to view specific DVD
information. You can view:
•Title Elapsed–Shows the elapsed playing time for the title.
•Title Remain–Shows the remaining playing time for the title.
•Chapter Elapsed–Shows the elapsed playing time for the
chapter.
•Chapter Remain–Shows the remaining playing time for the
chapter.
•Display Off–Turns off the information display.
Viewing audio CD information
To view audio CD information:
1During playback, press DISPLAY. The following display appears.
2Press DISPLAY one or more times to view specific audio CD
information. You can view:
•Single Elapsed–Shows the currently playing track and the
elapsed playing time for the track.
•Single Remain–Shows the currently playing track and the
remaining playing time for the track.
•Total Elapsed–Shows the currently playing track and the
elapsed playing time for the CD.
•Total Remain–Shows the currently playing track and the
remaining playing time for the CD.
•Display Off–Turns off the information display.
NoteThe information display automatically turns off if you do not
press DISPLAY within three seconds.
Single Elapsed
Track 1/24 00:00
07-343_NS-10PDVDD.fm Page 17 Monday, July 9, 2007 3:40 PM

18
Insignia NS-10PDVDD 10" Personal DVD Player
www.insignia-products.com
Opening the DVD main menu
To open the DVD menu:
• During playback, press MENU. If the DVD has a main menu,
the menu opens.
Selecting a viewing angle
Some DVDs are recorded with multiple viewing angles for some
scenes. When a scene has multiple viewing angles, the angle icon
appears on the screen.
To select a viewing angle:
1During playback, press ANGLE. The angle display appears
showing the current angle and the total number of angles. In the
following example, the current angle is 1 and the total number of
angles is 3.
2Press ANGLE one or more times to select a different viewing
angle or to turn off the display and return to normal viewing.
NoteContents of DVD main menus vary from DVD to DVD.
Some DVDs only let you start playback from the main menu.
1 Current angle number.
2 Total number of angles.
1/3
1
2
07-343_NS-10PDVDD.fm Page 18 Monday, July 9, 2007 3:40 PM
