Insignia IS-PD101351 User manual

PORTABLE9"LCD MONITORAND DVDPLAYER
Owner s Manual
IS-PD101351
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

Notice:
1.This Productincorporates copyright protection technology that is pro-
tectedby methodclaims of certain U.S. Patents andotherintellectual
property rights ownedby Macrovision Corporationandother rights own-
ers. Use ofthiscopyright protectiontechnologymust be authorizedby
MacrovisionCorporation,andisintendedforhomeandotherlimitedview-
inguses onlyunless otherwise authorized byMacrovision Corporation.
Reverse engineeringor disassemblyis prohibited.
2.Apparatus Claims ofU.S. PatentNos. 4,631,603;4,577,216; 4,819,
098 and 4,907,093 licensed for limited viewinguses only.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

Content
A.Introduction............................................................................1
B.CautionsandWarnings........................................................ 1
C.Contents............................................................................... 3
D. Poweringandinstallation ..................................................... 3
E.Controls,Indicators,andConnectors ................................... 4
F. Loading andPlaying aDisc.................................................. 5
G. Setup.................................................................................. 6
H. BasicOperation....................................................................12
I. Menu ....................................................................................13
J. Display................................................................................ 13
K. Playing Audio CDS ..........................................................19
L. PlayingMP3Discs ........................................................... 21
M.PlayingJPGfile....................................................................23
N.ConnectingtoaTVoranothermonitor.................................24
O.Specifications......................................................................25
P.Rechargeable BatteryInstallationand Use ......................... 25
Q. Troubleshooting ................................................................. 28
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

1
A.Introduction
Thankyou for choosingthe IS-PD101351 portable DVD player. The
main featuresinclude a9" Wide Screen (16:9 Aspect Ratio) Liquid
Crystal Display(LCD) monitor anda DVD player. Theunit applies
the lateststate ofthe art electronicsand is designed foruse in hotels,
officesor your home. The unitisconstructed to provide years of
reliable, trouble-free service, andis compact so that youcan take it
with you anywhereand is designedforquick andeasyinstallation.
Please read the entireinstruction manual supplied with thisproduct
prior to using. The documentationwillassist you in installingthe sys-
temproperly to obtain thebest equipment performance. Pleasesave
this manual for later use.
B. Cautions and Warnings
1. Placement
Toprevent fireorelectric shock,donotexpose this appliance to
rain or moisture.Donot place the set on an unstable cart, stand,
tripod, bracket ortable toprevent it fromfalling. Keeptheunit away
from strongmagnets,heatsources,directsunlight, excessive dust.
Ifthe unit is brought directlyfrom a cold to a warm location, mois-
ture maycondense inside the unit. When you move it from a cold
toa warm location, wait forabout one hourbefore operating the
unit, or removethe discandleave theunitturnedonuntilthemois-
ture evaporates.
2. Installation
Ensure that the 9 portable DVD player isinstalled in accordance
with the instructions and illustrations provided in this manual.
3. Caution
Do not push objects ofany kindinto the unit throughopenings;
do not spill or sprayliquid ofanykind on or in the system (this
mayresult in a fire or electric shock). Do not place anything
heavy onthe unit. Toensure proper ventilation and proper
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

2
operation,never cover or blocktheslots and openings with acloth
or other material. Keepthe unit awayfrom an open flame such as
fire,candle etc. Itishazardous toreplacethe batteryincorrectly.
Replacethe batteryonly with thesame or equivalenttype, in order
to protect the enviromnent, please dispose the batteryproperly.
Do not use the unit in temperatures higher than 95 degrees Fahr-
enheit or 35 degrees Celsius.
4.Disassemble
Do not attempt to disassemble the cabinet. There is ariskofelec-
tricshock and/orexposure to LaserRadiation. Contact qualified
service personnel ifyour system needs repair.
5.Cleaning Unit
Whencleaning,makesurethesystem isunplugged fromthepower
source. Donotuseliquid cleaners or aerosolcleaners. Usea cloth
lightly dampenedwith waterfor cleaningtheexterior ofthe system
only.
6. Disc
Do not use irregularlyshaped discs such asheart orstar-shaped
discs as theymay cause the unittomalfunction.Donotstickpaper,
tapeor glue on the disc. Do not expose thedisc to direct sunlight
or heat sources. Do not touchthe surface ofdisc. Handle thedisc
by itsedge. Cleanthedisc bywipingthedisc from the center out
with acleaning cloth. Removethe disc from the unit and store it in
its case after playing. Some playbackoperationsofdiscs maybe
intentionally fixed bysoftwareproducers. Since this unitplays discs
according to the disc contentsthesoftwareproducers designed,
some playbackfeatures maynot be available. Also refer to the in-
structionssuppliedwiththediscs.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

3
7.RegionalCoding
Both theDVDplayer and disc are coded by region. These
regional codes must match inorder for thedisc toplay.Ifthe
codesdon’t match, the disc won’t play. This unit’s code is region
1. DVD is with other regional codes cannot be played in thisunit
C. Contents
1. 1 x 9’’ LCDMonitor &DVD Player Combo
2. 1 xRemote Control with battery(CR2025)
3. 1xAudio/Video Cable
4. 1 xAC to DCAdapter
5.1 XCigaretteLighterAdapter
6. 1x Instruction Manual
7. 1 X Rechargeable Battery
D. Powering and installation
1. Powering the system indoors (Refer to Figure 1)
Plug one end of theAC to DC adapterinto the DCinputjackon the
leftside ofthe mainunit, then plugthe otherendinto the120VAC
powerreceptacle.
2. Powering the systemin a car
Plugoneend ofthecigarette lighteradapter into the DC inputjack
on the unit, then plugthe otherendintothe cigarettelightersocket.
Figure1
Note: Unplugthe apparatus when not usingfor alongtime or
intent to disconnect from the Mains power.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

4
E. Controls, Indicators, and Connectors
1. UnitView (Refer to Figure2)
Figure 2
1)LCD Panel Shut Off Switch
2) Stop Button
3) Previous Button
4) NextButton
5) MENUButton
6) Wide Button
7) UpButton
8) RightButton
9) Play/OK Button
10) LeftButton
11) DownButton
12)DC9V Input Jack
13)AVJack
14)AV in/out SW
15)PowerOn/Off Switch
16) PowerLED
17) Remote Control Sensor
18)Open Switch
19) Brightness Up/Down Control
20) Volume Up/DownControl
21)HeadphoneJack 1
22)HeadphoneJack 2
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

5
2. Remote ControlView (Refer to Figure3)
1) DisplayButton
2) AngleButton
3) Subtitle Button
4) AudioButton
5) Zoom Button
6), , ,
ENTER Buttons
7) Return Button
8) A-BButton
9) Forward Button
10) Reverse Button
11)Slow Button
12) Stop Button
13) Numeric Keypad
14) Setup Button
15)MenuButton
16) Repeat Button
17) SKIP- (Previous) Button
18) SKIP+(Next) Button
19) Play Button Figure3
20)Pause Button
F. Loading and Playing a Disc
a.After connecting powerto theunit, poweron “DVDplayer with the
power switch. The powerindicator will light.
b. Open thedisc tray byswitching “OPEN , and place a disc intothe
traywith the label side facingup.
c. Close the tray.The unit will load the disc and start playing.
d.Rotate BRIGHTNESS andVOLUME toadjust theLCD’sbright-
nessand the DVD player’s volume.
e. To stopplaying adisc,pressSTOP.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

6
G. Setup
1. GeneralSetup Page
1)Withnodiscinsidetheplayer,press‘SETUP’todisplaythe Mainscreen
ofthe Setup Menu on the screen and “General Setup Page appears.At
the same time, “ ishighlighted. Press ‘SETUP’againto exitthe
Setup Menu and theunit will resume it’slast playbackmode.
Main SetupMenu Screen
2)Press the ENTER button, “TV Display ishighlighted.
3) Press the or buttonto select the the other menus in general
setuppage.
4) Press to enter the sub menu.
5) Press the or button to select the sub menu and press the
ENTER to confirm your selection.
6) Repeat steps 3-5 for other menus.
Note: Press to return the previous menu.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

7
a) TVDisplay
* Normal/PS: When the player outputs signal toa normal TV, a nor-
mal picture is shown on the full screen.
* Normal/LB: When the player outputs signal to a normal TV, a nor-
mal picture is shownon the screen withablackstripatboththetop
andbottom ofthescreen.
*Wide:When theplayeroutputs signal to awidescreenTV, a
wide picture is shown on the full screen.
b).TV Type
NTSC: The standard TV system used in the USA, Canada, Japan and
manyother countries.
PAL: The standard system used in Europe, Africa and the Middle East,
amongother places.
c).AngleMark
*On:Thescreenwillshow the angle mark icon.(*If an angle option is
available).
* Off:The screen will not display theAngle Mark
NOTE: Not all discs contain abovefeatures. The abovefeatures are
discdependent.
d). ScreenSaver
*On:Enables screensaver
*NOTE: The DVD playerwill enter the Screen Savermode after ap-
proximately fiveminutes ifthe same imageremains on thescreen.
*Off:Disables screen saver(off)
e). Last Memory
*On: The unit will return to the last position on the disc.
*Off: Theunit will not return to the last position on the disc.
Note: The Last position memoryfunction onlyeffect for OPEN
operation.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

8
2.Video QualitySetup
1)InSetup menu, Pressthe or button toselect“Video QualitySetup
and is highlighted.Press ENTER to enter thevideoqualitysetup
page.
2)Press the ENTER button, “Brightness is highlighted.
3)Press the or button to select the other menus in video quality
setuppage.
4) Press to enter the sub menu.
5) Press the or button to adjust the quantityand press the ENTER
to confirm your selection.
6) Repeat steps 3-5 for other menus.
Note: Press to return the previous menu.
a) Brightness b) Contrast
c) Hue d) Saturation
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

9
3.Password
In Setupmenu, Pressthe or button toselect “Password Setup
Page and is highlighted. Press ENTER to enter the password page.
Password Setup Page Screen Display
PressENTER twiceto enterthePasswordChangePage. Inputthe
Old Passwordor the Default Password, the New Password, and the
Confirmed NewPassword. PressENTER to confirm the change.
Password Change Page ScreenDisplay
Note: The default password is 3308.
4. Preference Page
1) In Setup menu, Pressthe or button toselect“PreferencePage and
ishighlighted. PressENTER to enter thepreferencepage.
2)Press theENTER button, “Audio ishighlighted.
3)Press the or button to select the other menus in preference
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

10
page.
4) Press to enter the sub menu.
PreferenceAudioLanguage
5) Press the or button to select the sub menu and press the
ENTER to confirm your selection.
6) Repeat steps 3-5 for other menus.
Note: Press to return the previous menu.
a)Audio b)Subtiltle
c) Disc Menu
Note: Language and subtitle selectionis onlyavailablefor discsthat
are recordedin theabovelistedlanguages.Iftheselected language
isnot available,theplayer willplayand displayonthe screenthe
original recordedlanguage containedinthedisc.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

11
d) Select ‘Parental’usingthe UP/DOWNbutton, then pressRIGHT to
enter thesubmenu.
Parental PreferenceScreenDisplay
Selectthe parentallevel you desireusing the UP/DOWNbutton fordiscs
with lock-out function or multiple ratinglevels. These arelistedfrom the
lowestlevel (1Kid Safe)tothehighestlevel (8Adult). Press ENTER and
input4digit password, thenpressENTERagaintoconfirm theparental
levelsetting.
NOTE: The levelof8Adult isthe factorydefault.
e)Select ‘Default’usingtheUP/DOWNbutton, then pressRIGHTtoen-
terthesubmenu.Press ENTER tomake the settingreturn tothe factory-
set mode.
NOTE:The parentalsettingis not affectedbythe default reset function.
Loading FactorySetting
NOTE: TheDefault Password is 3308.This password is alwayseffec-
tive even afteryou haveselected yourownpasswordand changed it. To
avoidthe possibilityofothers usingthe default password to set the
parental level andchange thepassword, you canrecordthis default
passwordin anotherareaand delete itfrom this manual. Somediscs
canbelimited dependingonthe ageofusers whilesomediscs cannot.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

12
H. Basic Operation Turnthe uniton/off
Remove/load the disc
Start Play/Execute item or setting
Play at 1/2, 1/4,1/8 or 1/16times speed
Still Picture
(1time) Stopatthepresentplaying point /
(2 times) Stop playing
Go tothe next chapter, trackor scenedur-
ing play back
Gobacktothe previous chapter, trackor
scene duringplay back
Scan forwardat 2,4,8,16or 32times speed
Scanbackwardat2,4, 8, 16 or32times
speed
Used forMenu Navigation
Execute item or confirm setting
Select item or setting
Display the mainmenu ofthe disc
Repeat playingtitle, chapter, or track
RepeataspecificportionfrompointAtopoint
B ofthe disc
Display information(title, chapter, track,
time, etc.).
Changethe viewingangles on thescene
Select the subtitle languageand turn it on/
off
Selecttheaudio language
Enlargean imageto 2, 3, or 4 times the
original size.
Displaythe setup menuto selectandset
items, and exit the setup menu.
POWER
OPEN
PLAY
SLOW
PAUSE
STOP
NEXT
PREVIOUS
FORWARD
REVERSE
LEFT/RIGHT/UP/DOWN
ENTER
NUMBERS
MENU
REPEAT
A-B
DISPLAY
ANGLE
SUBTITLE
AUDIO
ZOOM
SETUP
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

16
I.Menu
A DVD is divided into sections called titlesandchapters. When you
play a DVD,aroot menu ofthedisc will appearonthescreen ofyour
TV orMonitor. Thecontentsof themenu varyfrom disc todisc.Press
MENU duringplaybackto display the menu. Some DVDs onlyallow
you to select disc playbackoptionsusingtheDVD root menu.
J.Display
1. PLAYINGTIME AND REMAININGTIME
a. Duringplaybackpress the ‘DISPLAY’button to displaythe cur-
rent Title Number (1), the total Number ofTitles (2), the current
ChapterNumber (3), thetotal Numberof Chapters (4), andthe
Playing elapsedTimefor thetitle (5). Theheadingwill disappear
automaticallyafter 3 seconds ifDISPLAYbuttonis not pressed.
Title, Chapter Number, and TimeScreenDisplay
b.Press ‘DISPLAY’constantly tochoosethe options below circularly.
TitleElapsed: The elapsedtime ofthe title
Title Remain:The remaining time ofthe title
Chapter Elapsed: The elapsed time ofthe chapter
Chapter Remain: The remainingtime ofthe chapter
Display Off: The DVD’stime Information will not be displayed.
Title Elapsed
TitleRemain
Chapter Elapsed
Chapter Remain
DisplayOff
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

14
2. ANGLE
Duringplayback ofadisc,press‘ANGLE’todisplaythe availableangles
fordiscscontainingmulti-angles*, with the current angle number (1)
andthetotal numberof angles(2) displaying.Press‘ANGLE’toselect
another angle, thenpress again toexit andreturn to the normalview-
ingangle.The angle displaywill disappearautomaticallyifthe‘ANGLE’
button is not pressed again within3 seconds.
*NOTE: Notall discscontain this feature.

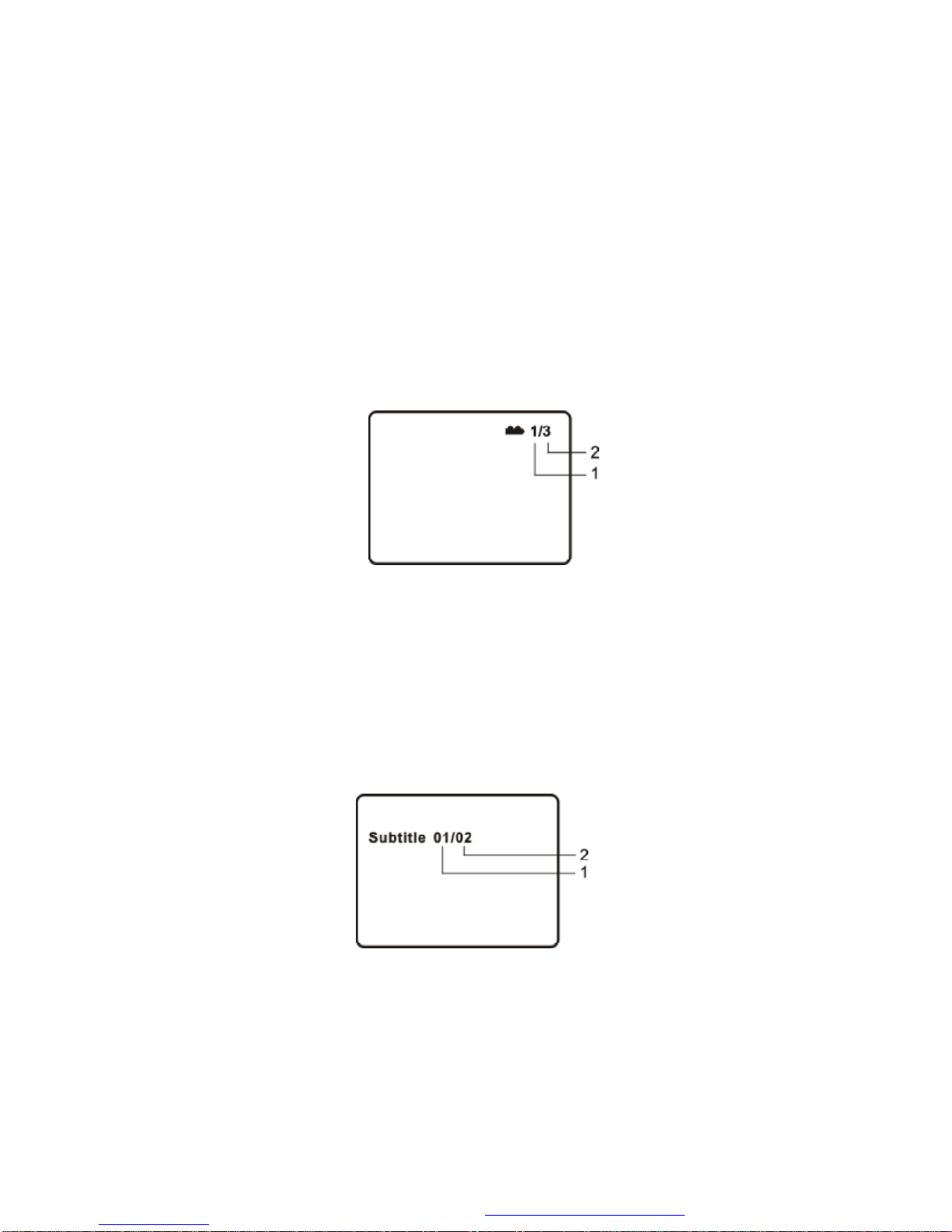

AngleScreenDisplay
3. SUBTITLE
Duringdisc playbackpress ‘SUBTITLE’toselectthe subtitle language
youdesire*,withthecurrentSubtitle LanguageNumber(1) andthe
total Number of Subtitle Languages(2)displayed. Ifthere are mul-
tiplelanguagespress ‘SUBTITLE’againto selectanother subtitlelan-
guage.Toturn subtitles OFF,press the ‘SUBTITLE’button until ‘Sub-
titleOff’isdisplayed.TheSubtitledisplay willdisappearautomatically
ifthe ‘SUBTITLE’button is not pressed again within 3 seconds.
SubtitleScreenDisplay
*Some DVDsonly allowaccessto this functionthrough theDVDmenu
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

15
4. AUDIO
Duringplaybackpress ‘AUDIO’to select the audio languageyou
desire*, withthecurrent AudioChannelNumber(1)and the total num-
ber of AudioChannels(2)displayed. Press AUDIO again to select
anotheraudio language.Theaudio display will disappearautomati-
callyifthe ‘AUDIO’button is not pressed within for 3 seconds.

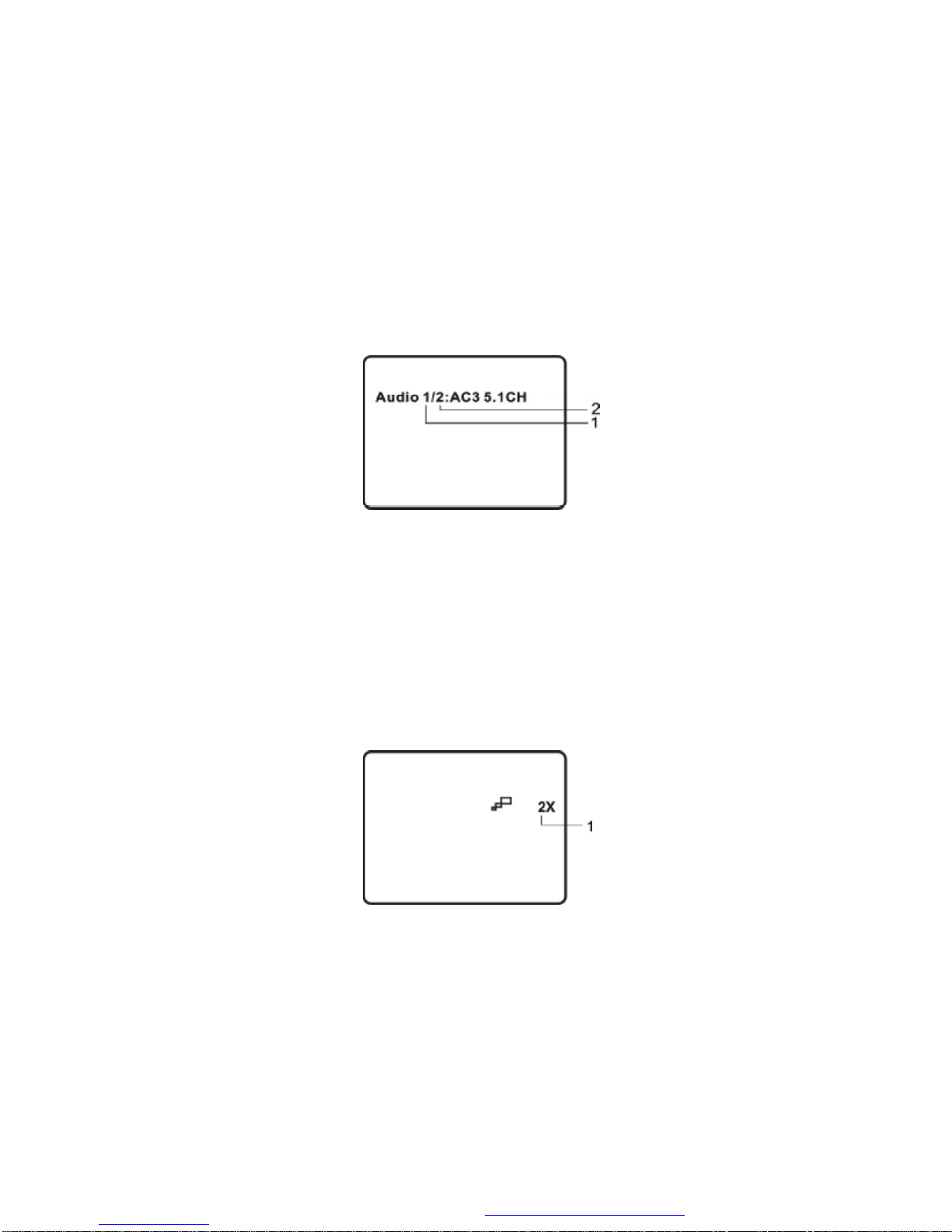

Audio Language Screen Display
*SomeDVDs onlyallowaccesstothis functionthrough the DVD
menu.
5.ZOOM
Duringplaybackpress ‘ZOOM’to enlargethe picture by2x, 3x or 4X
with thecurrent zoommultiple.(1)Press “zoom onetime ,thepicture
will beenlarged2X.(2)Press “zoom asecondtime ,thepicturewillbe
enlarged 3X.(3)Press “zoom a 3rd time ,the picture will be enlarged
4X.(4)Press “zoom a 4thtime ,the picture will return to normal size.
Zoom Screen Display
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

16
6. A-B REPEAT
a. Duringplayback pressa first time ‘A-B’to set the StartingPoint A.
A-B RepeatStarting PointScreen Display
b. Press ‘A-B’a secondtime to set the Ending PointBandtheplayer
willrepeatedlyplay the part betweenPoint A and Point B.
A-B RepeatEnding Point ScreenDisplay
c.Press ‘A-B’athirdtimeto cancelA-B repeatandresumenormal
playback.
A-BRepeat CancelledScreenDisplay
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

17
7.REPEAT
a.Duringplaybackpress ‘REPEAT’constantly tosee therepeatmode
as right.
Chapter: Repeat the current chapter
Title: Repeat the current title
All: Repeat all chapters and titles
Off: Resumenormal playback
The ‘Chapter’repeat displayshows belowfor example:
Chapter Repeat ScreenDisplay
K. Playing Audio CDS
Whenplayingan audio CDpressthe DISPLAYbuttonconstantly on
theremoteto viewtimeinformation.Theoptions belowappear on
screendisplay circularly toshow you what informationis available
usingthis function.
CD Display Mode
SingleElapsed: The current track playingand playingtime ofthat
trackwill displayon the screen.
Single Remain: The current trackplayingand the amount oftime
left.
Single Elapsed
SingleRemain
TotalElapsed
TotalRemain
Display Off
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com
