Welcome
Congratulations on your purchase of a high-quality Insignia product.
Your NS-CPDVD7 represents the state of the art in portable DVD
player design and is designed for reliable and trouble-free
performance.
Safety information
Placement
To prevent fire or electric shock, do not expose your player to rain or
moisture. Do not place your player on an unstable cart, stand, tripod,
bracket, or table to prevent it from falling. Keep your player away from
strong magnets, heat sources, direct sunlight, and excessive dust. If
your player is brought directly from a cold to a warm location,
moisture may condense inside your player. When you move your
player from a cold to a warm location, wait for about one hour before
operating your player, or remove the disc and leave your player turned
on until the moisture evaporates.
Installation
Make sure that your player is installed in accordance with the
instructions and illustrations provided in this guide.

2
I
ns
i
gn
i
a
NS
-
CPDVD
7
P
orta
bl
e
DVD
Pl
ayer
www.insignia-products.com
Cautions
• Do not push objects of any kind into your player through
openings in your player.
• Do not spill or spray liquid of any kind on or in your player
because liquid can cause a fire or electric shock.
• Do not place anything heavy on your player.
• To ensure correct ventilation and operation, never cover or
block openings on your player with a cloth or other material.
• Keep your player away from an open flame, such as fire or a
candle.
• In order to protect the environment, dispose the battery as
hazardous waste.
• Do not use your player in temperatures higher than 95°F
(35°C).
Disassembly
Do not attempt to disassemble your player. There is a risk of electric
shock and exposure to laser radiation. Contact qualified service
personnel if your player needs repair.
Cleaning
When cleaning, make sure that your player is unplugged from the
power source. Do not use liquid or aerosol cleaners. Use a cloth,
lightly dampened with water, for cleaning the exterior of your player.
Discs
• Do not use irregularly shaped discs, such as heart-shaped or
star-shaped discs, because they may cause your player to
malfunction.
• Do not stick paper, tape, or glue on a disc.
• Do not expose a disc to direct sunlight or heat sources.
• Do not touch the surface of a disc. Handle a disc by its edge.
• Clean a disc by wiping the disc from the center out with a
cleaning cloth.
• Remove a disc from your player and store it in its case after
playing.
• Some playback operations of discs may be intentionally limited
by software producers. Because your player plays discs
according to the disc contents the software producers
designed, some playback features may not be available. Refer
to the instructions supplied with the discs.

3
I
ns
i
gn
i
a
NS
-
CPDVD
7
P
orta
bl
e
DVD
Pl
ayer
www.insignia-products.com
Features
Package contents
• DVD player with 7" LCD monitor
• Remote control with battery
• Audio/Video cable
• AC power adapter
• Cigarette lighter adapter
• User guide
Front
# Component Description
1 Remote sensor Receives signals from the remote
control. Do not block.
2 OFF/ON switch Slide to the right to turn on your
player, or slide to the left to turn off
your player.
1
234

4
I
ns
i
gn
i
a
NS
-
CPDVD
7
P
orta
bl
e
DVD
Pl
ayer
www.insignia-products.com
Left
3 Power/battery charge
indicator Lights green when your player is on.
Lights red when the battery is
charging.
4 Open switch Slide to open the disc tray.

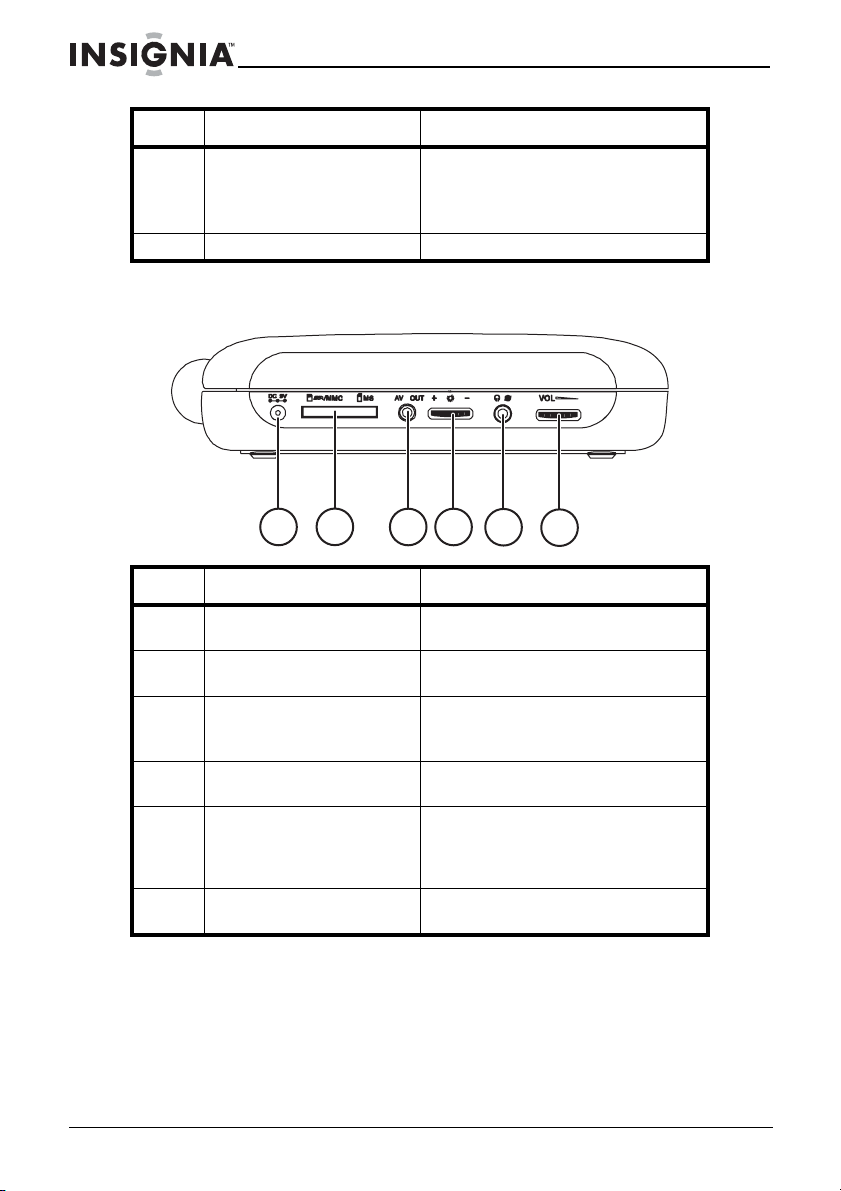

# Component Description
1 DC jack Plug the AC or cigarette lighter
adapter into this jack.
2 SD/MMC/MS slot Insert an SD, MMC, or MS
memory card into this slot.
3 AV OUT jack Plug the A/V cable into this jack
and into the A/V IN jacks on
another TV or monitor.
4 Brightness control Rotate to increase or decrease the
brightness.
5 Headphone jack Plug headphones into this jack.
When headphones are plugged in,
sound does not come out of your
player’s speakers.
6 Volume control Rotate to increase or decrease the
volume.
# Component Description
123456

5
I
ns
i
gn
i
a
NS
-
CPDVD
7
P
orta
bl
e
DVD
Pl
ayer
www.insignia-products.com
Inside
# Component Description
1 SETUP Press to open the Setup menu.
2 PREV Press to go to the previous
chapter, track, or scene during
disc playback.
3 NEXT Press to go to the next chapter,
track, or scene during disc
playback.
4 MENU Press to open the DVD menu.
5 STOP Press to stop disc playback.
6 PLAY/PAUSE Press to start or pause playback.
When an on-screen menu is open,
press to confirm a selection or
adjustment.
7 Press to navigate in on-screen
menus.
CL OS E
6
5
432
1
7

6
I
ns
i
gn
i
a
NS
-
CPDVD
7
P
orta
bl
e
DVD
Pl
ayer
www.insignia-products.com
Remote control
# Button Description
1 SETUP Press to open or close the Setup
menu.
2 REW Press to fast reverse on the disc.
Each time you press this button
the fast-reverse speed increases
from 2, to 4, to 8, to 16, to 32 times
the normal speed.
3 FF Press to fast-forward on the disc.
Each time you press this button,
the fast-forward speed increases
from 2, to 4, to 8, to 16, to 32 times
the normal speed.
1
2
13
14 15
16 17
18
19
20
21
22
34
56
7
8
9
10
11 12

7
I
ns
i
gn
i
a
NS
-
CPDVD
7
P
orta
bl
e
DVD
Pl
ayer
www.insignia-products.com
4 SKIP– Press to go to the previous
chapter, track, or sceen.
5 SKIP+ Press to go to the next chapter,
track, or sceen.
6 PLAY/PAUSE Press to start or pause playback.
7 Press once to stop playback. Your
player remembers where you
stopped. If you press , your
player starts playing at the point
where you stopped.
Press twice to stop playback. If
you press , your player starts
playing at the beginning of the
disc.
8 DVD/SD Press to select DVD mode or SD
(memory card) mode.
9 ENTER Press to confirm selections.
10 Numbers Press to select menu items or to
enter the password.
11 DISPLAY Press to display information about
the disc, such as title, chapter
number, track number, and time.
12 AUDIO Press to select the DVD audio
language. This option works only if
the DVD has multiple audio
languages.
13 SUBTITLE Press to turn subtitles on and off,
or press to select the subtitle
language. This option works only if
the DVD has subtitles.
14 REPEAT Press to repeat the current title,
chapter, or track.
15 A-B Press to create a playback loop.
16 MENU Press once to open the root DVD
menu. This option works only if the
DVD has a root menu.
Press twice to open the DVD title
menu. This option works only if the
DVD has a title menu.
17 TITLE Press to open the DVD title menu.
This option works only if the DVD
has a title menu.
18 RETURN Press once to return to the
previous menu. Press twice to
return to playback.
# Button Description

8
I
ns
i
gn
i
a
NS
-
CPDVD
7
P
orta
bl
e
DVD
Pl
ayer
www.insignia-products.com
Setting up your player
Installing remote control batteries
To install remote control batteries:
1Remove the battery compartment cover.
2Insert the battery into the battery compartment. Make sure that
the + and – symbols on the battery match the + and – symbols in
the battery compartment.
3Replace the battery compartment cover.
Connecting to AC power
To connect to AC power:

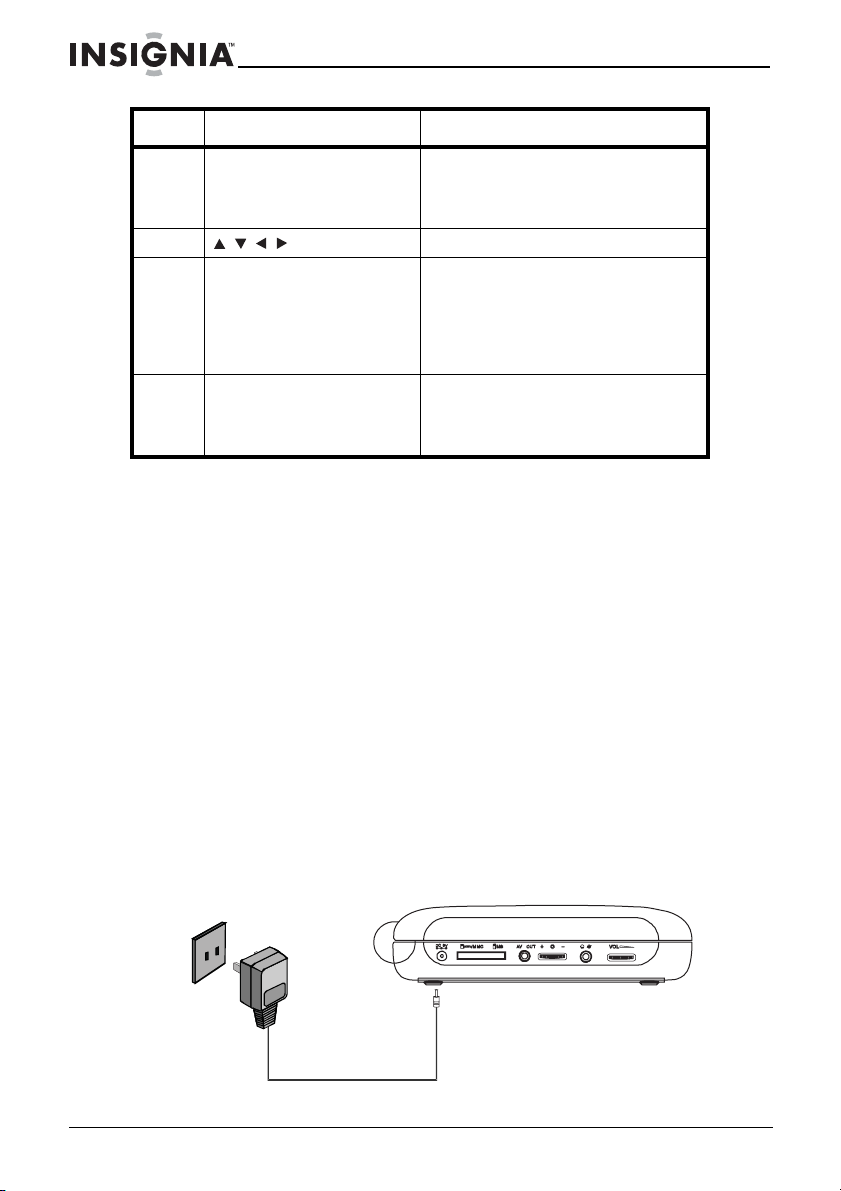

1Plug one end of the AC power adapter into the DC jack on the side
of your player.
2Plug the other end of the adapter into an AC outlet.
19 ZOOM Press to enlarge the display
image. You can enlarge the image
for 2 to 3 to 4 times the normal
size.
20 Press to navigate in menus.
21 SLOW Press one or more times to select
a slow playback speed. Each time
you press this button, the slow
speed chanes from 1/2, to 1/4, to
1/8, to 1/16 times the normal
speed.
22 ANGLE Press to select the viewing angle
on a DVD. This option works only if
the DVD has multiple viewing
angles.
# Button Description

9
I
ns
i
gn
i
a
NS
-
CPDVD
7
P
orta
bl
e
DVD
Pl
ayer
www.insignia-products.com
Connecting to a car cigarette lighter
To connect to a car cigarette lighter:
1Plug one end of the cigarette lighter adapter into the DC jack on
the side of your player.
2Plug the other end of the adapter into a car cigarette lighter
socket.
Connecting headphones
To connect headphones:
• Plug headphones into the headphone jack on the left side of
your player.
NoteThe built-in speakers are muted when headphones are
plugged in.

10
I
ns
i
gn
i
a
NS
-
CPDVD
7
P
orta
bl
e
DVD
Pl
ayer
www.insignia-products.com
Charging your player’s battery
To charge your player’s battery:
1Turn off your player.
2Plug one end of the AC power adapter into the DC jack on the side
of your player.
3Plug the other end of the adapter into a power outlet. The power/
battery charge indicator lights red. When the battery is fully
charged, the indicator turns off. You can unplug the adapter if you
want.
Connecting a TV or monitor

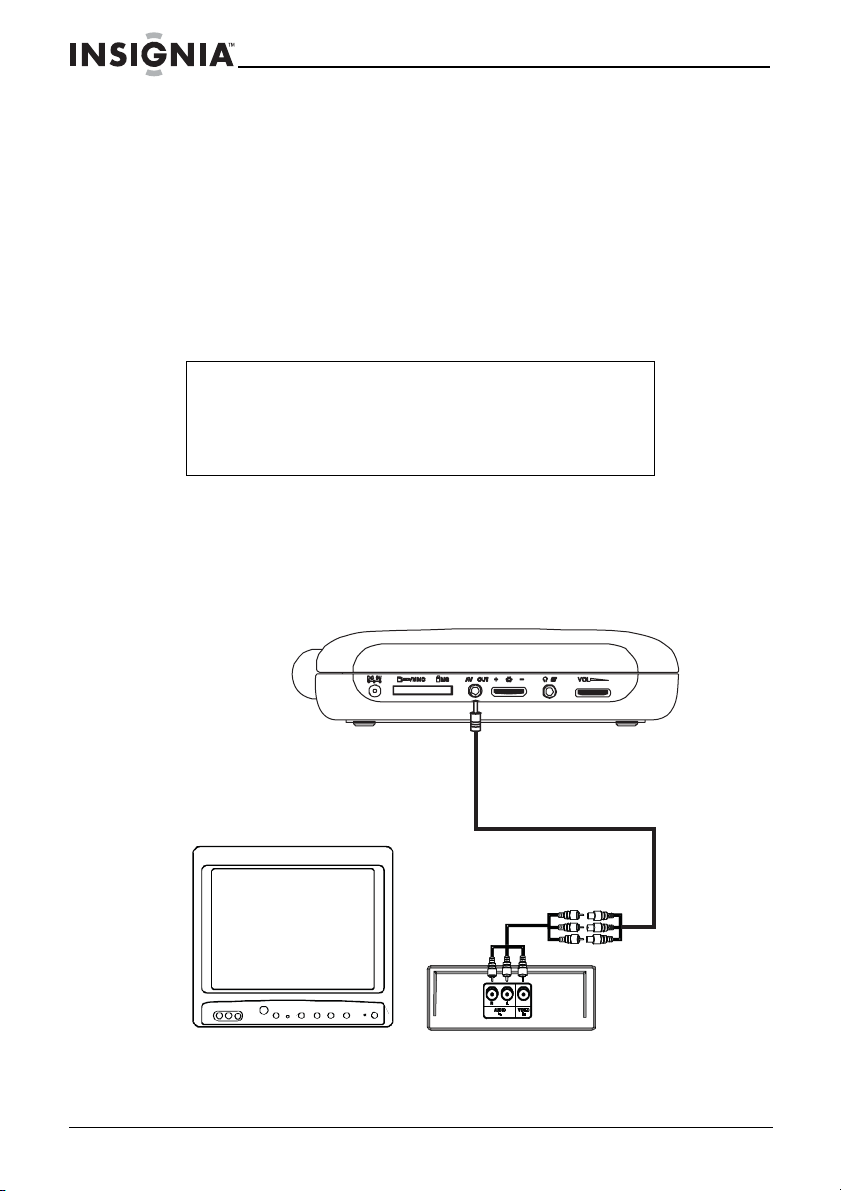

To connect a TV or monitor:
1Plug the end of the supplied A/V cable that has one black
connector into the AV jack on your player.
2Plug the connectors on an optional RCA cable into the connectors
on the other end of the supplied A/V cable. Make sure that the
colors on the connectors match.
NoteThe first time you charge the battery, make sure that you
charge it at least eight hours.
Recharging the battery takes about five hours. A
fully-charged battery can power your player for
approximately 2.5 hours.
White=left audio
Red=right audio
Yellow=video

11
I
ns
i
gn
i
a
NS
-
CPDVD
7
P
orta
bl
e
DVD
Pl
ayer
www.insignia-products.com
3Plug the other end of the optional RCA cable into the A/V jacks on
the TV or monitor. The white connector goes into the left audio
jack. The red connector goes into the right audio jack. The yellow
connector goes into the video jack.
Using your player
To play a disc:
1Make sure that your player is connected to power or that the
battery is charged.
2Slide the OFF/ON switch on the front side of your player to the ON
position.
3Slide the OPEN switch on the front of your player. The disc tray
opens.
4Place a disc, label side up, in the disc tray, then press down on the
area marked CLOSE to close the tray. The disc starts playing
automatically.
5If necessary, rotate the VOLUME control to adjust the volume.
6If necessary, rotate the BRIGHTNESS control to adjust the
brightness for a DVD.
7To stop playback, press .
Controlling DVD or audio CD playback
To control disc playback:
• Press once to stop playback. Your player remembers where
you stopped. If you press , your player starts playing at the
point where you stopped.
• Press twice to stop playback. If you press , your player
starts playing at the beginning of the disc.
• Press to pause playback. Press this button again to resume
playback.
• Press to fast-forward on the disc. Each time you press this
button, the fast-forward speed changes from 2 to 4 to 8 to 16 to
32 times the normal speed.
NoteYour player and most DVDs have region codes that help
control illegal distribution of DVDs. The region code for your
player is 1. You can only play DVDs with a region code of 1.
The region code for a DVD is printed on the DVD or the DVD
packaging.

12
I
ns
i
gn
i
a
NS
-
CPDVD
7
P
orta
bl
e
DVD
Pl
ayer
www.insignia-products.com
• Press to fast-reverse on the disc. Each time you press this
button, the fast-reverse speed changes from 2 to 4 to 8 to 16 to
32 times the normal speed.
• Press to go to the next title, chapter, or track.
• Press to go to the previous title, chapter, or track.

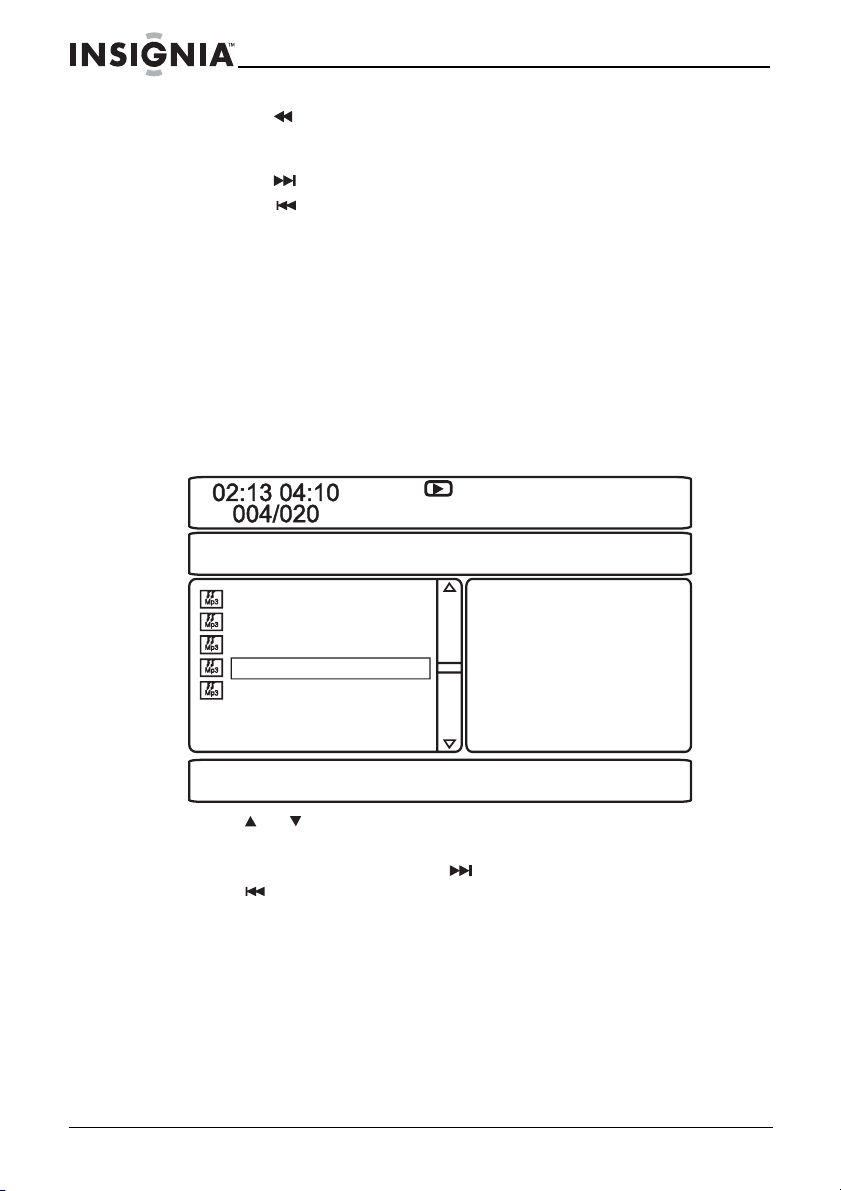

Playing an MP3 disc
MP3 is a format for storing digital audio. Your player can play CD-Rs
and CD-RWs that contain MP3 files encoded in the MP3 format.
When you insert an MP3 disc, a menu opens so you can select the
songs you want to play.
To play an MP3 disc:
1Insert an MP3 disc into the disc tray, then close the tray. A menu
opens and the first song begins to play automatically.
2Press or to select another song from the list, then press
ENTER to play the song.
3To go to the next song, press , or to go to the previous song,
press twice.
4Press MENU to return to the root menu or title menu.
Playing a memory card
Your DVD player has an SD/MMC/MS slot for SD, MMC, MS memory
cards.
To play a memory card:
1Insert a memory card into the SD/MMC/MS slot.
BBBBBBBBBB
CCCCCCCCCCC
DDDDDDDDDDD
EEEEEEEEEE
FFFFFFFFF

13
I
ns
i
gn
i
a
NS
-
CPDVD
7
P
orta
bl
e
DVD
Pl
ayer
www.insignia-products.com
2Press DVD/SD one or more times to select the type of memory
card you inserted. The files start playing automatically.
3Press MENU, then press to enter the file list.
4Press or to select a file that you want in the memory card.
5Press ENTER to confirm.
Adjusting the volume
To adjust the volume:
• Rotate the volume control on the left side of your player.
Adjusting the video
To adjust the video:
1Press SETUP. The
General Setup Page opens.
2Press or to select Video Quality Setup. The icon is
highlighted.
3Press ENTER. Brightness is highlighted.
4Press or to select the option you want to adjust, then press
. You can select:
•Brightness–Increases the brightness to add more light to dark
areas of the picture or decreases the brightness to add more
dark to light areas of the picture.
•Contrast–Increases the picture level to adjust the white areas
of the picture or decreases the picture level to adjust the black
areas of the picture.
•Hue–Increases the color level to add more green to skin tones
or decreases the color level to add more purple to skin tones.
•Saturation–Adjusts the color saturation.
5Press or to adjust the option, then press ENTER.

14
I
ns
i
gn
i
a
NS
-
CPDVD
7
P
orta
bl
e
DVD
Pl
ayer
www.insignia-products.com
Viewing DVD information
To view DVD information:
1During playback, press DISPLAY. The following display appears.
2Press DISPLAY one or more times to view specific DVD
information. You can view:
•Title Elapsed–Shows the elapsed playing time for the title.
•Title Remain–Shows the remaining playing time for the title.
•Chapter Elapsed–Shows the elapsed playing time for the
chapter.
•Chapter Remain–Shows the remaining playing time for the
chapter.
•Display Off–Turns off the information display.
1 Current title number.
2 Total number of titles.
3 Current chapter number.
4 Total number of chapters.
5 Elapsed playing time for
the current title.
NoteThe information display automatically turns off if you do not
press DISPLAY within three seconds.

15
I
ns
i
gn
i
a
NS
-
CPDVD
7
P
orta
bl
e
DVD
Pl
ayer
www.insignia-products.com

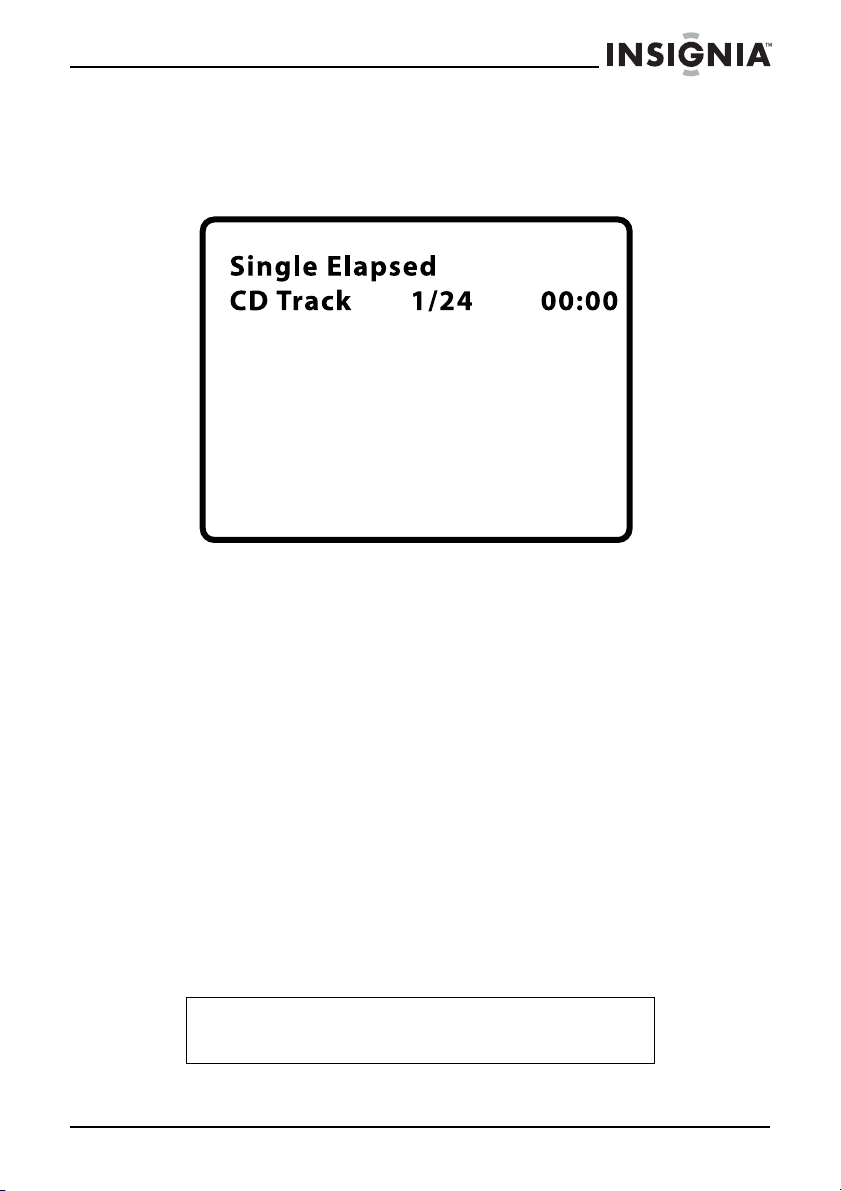

Viewing audio CD information
To view audio CD information:
1During playback, press DISPLAY. The following display appears.
2Press DISPLAY one or more times to view specific audio CD
information. You can view:
•Single Elapsed–Shows the currently playing track and the
elapsed playing time for the track.
•Single Remain–Shows the currently playing track and the
remaining playing time for the track.
•Total Elapsed–Shows the currently playing track and the
elapsed playing time for the CD.
•Total Remain–Shows the currently playing track and the
remaining playing time for the CD.
•Display Off–Turns off the information display.
Opening the DVD main or title menu
To open the DVD main menu:
• During playback, press MENU once to open the DVD main
menu. If the DVD has a main menu, the menu opens.
• During playback, press MENU twice to open the DVD title
menu. If the DVD has a title menu, the menu opens.
NoteContents of DVD main menus vary from DVD to DVD.
Some DVDs only let you start playback from the main menu.

16
I
ns
i
gn
i
a
NS
-
CPDVD
7
P
orta
bl
e
DVD
Pl
ayer
www.insignia-products.com
Selecting a viewing angle
To select a viewing angle:
• Press ANGLE one or more times to select a viewing angle or
to return to normal viewing.
Selecting an audio language
Some DVDs are recorded with multiple audio languages.
To select an audio language:
• Press AUDIO one or more times to select the audio language
you want. The number for the current langauge and the total
number of languages appear.
1 Current audio channel
2 Total number of audio channels
NoteThe audio language display turns off if you do not press
AUDIO within three seconds.
Some DVDs only let you select an audio language from the
DVD main menu.
Audio 1 2 Ac3 5 1Ch /: .
1
2

17
I
ns
i
gn
i
a
NS
-
CPDVD
7
P
orta
bl
e
DVD
Pl
ayer
www.insignia-products.com
Enlarging the display image
To enlarge the display image:
1Press ZOOM one or more times to enlarge the display image from
2 to 3 to 4 times the normal image size.
2Press ZOOM a fourth time to return to normal viewing.
3Press the arrow buttons to navigate through the enlarged image.
Creating a playback loop
You can create a playback loop by selecting the beginning and end of
the section of the disc that you want to play repeatedly.
To create a playback loop:
1During playback, find the starting point for the loop, then press
A-B.
A

18
I
ns
i
gn
i
a
NS
-
CPDVD
7
P
orta
bl
e
DVD
Pl
ayer
www.insignia-products.com
2Play the disc until you reach the stopping point for the loop, then
press A-B.
Your player repeatedly plays the loop you created.
3To cancel the loop and return to normal viewing, press A-B again.
AB
Repeat Off
