Welcome
Congratulations on your purchase of a high-quality Insignia product.
Your NS-B2114W represents the state of the art in boombox design
and is designed for reliable and trouble-free performance.

2
Insignia NS-B2114W CD Boombox with AM/FM Radio
www.insignia-products.com
Safety information
Read instructions
Read all the safety and operating instructions before you use your
boombox.
Retain instructions
Retain safety and operating instructions for future reference.
This symbol indicates that dangerous
voltage constituting a risk of electric shock
is present within your boombox. This label
is located on the back or bottom of your
boombox.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
your boombox.
Your boombox utilizes a Class 1 laser to
read Compact Discs. Your boombox is
equipped with safety switches to avoid
exposure when the CD door is open and
the safety interlocks are defeated.
Invisible laser radiation is present when
the CD slot's lid is open and the system's
interlock has failed or been defeated. You
should avoid direct exposure to the laser
beam at all times. Do not attempt to defeat
or bypass the safety switches.
Warning
To reduce the risk of fire or electric shock, do not expose
your boombox to rain or moisture.
Warning
Any use of the controls or an adjustment to the procedures
other than those specified herein may result in hazardous
radiation.
Warning
Ro reduce the risk of electric shock, do not remove the
cover or back. There are no user-serviceable parts inside.
Refere any servicing to qualified service personnel.

3
Insignia NS-B2114W CD Boombox with AM/FM Radio
www.insignia-products.com
Follow warnings and instructions
Follow all warnings on your boombox and in the operating
instructions. Follow all operating and use instructions.
Grounding or polarization
Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a grounding prong. The wide
blade or grounding prong are provided for your safety. If the plug
does not fit, contact an electrician to replace the obsolete outlet.
Placement
When placing your boombox on a lacquered or natural finish, protect
your furniture with a cloth or other protective material.
Avoid exposure to direct sunlight, temperature extremes, and
moisture.
Ventilation
Slots and openings in the cabinet and the back or bottom are
provided for ventilation, reliable operation, and protection from
overheating. These openings must not be blocked or covered. Do not
block the openings by placing your boombox on a bed, sofa, rug, or
other similar surface.
Water and moisture
Do not use your boombox near water. For example, do not use it near
a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet
basement, or near a swimming pool.
Do not let water slash or drip onto your boombox. Do not place
objects containing liquids, such as a vase, on top of your boombox.

4
Insignia NS-B2114W CD Boombox with AM/FM Radio
www.insignia-products.com

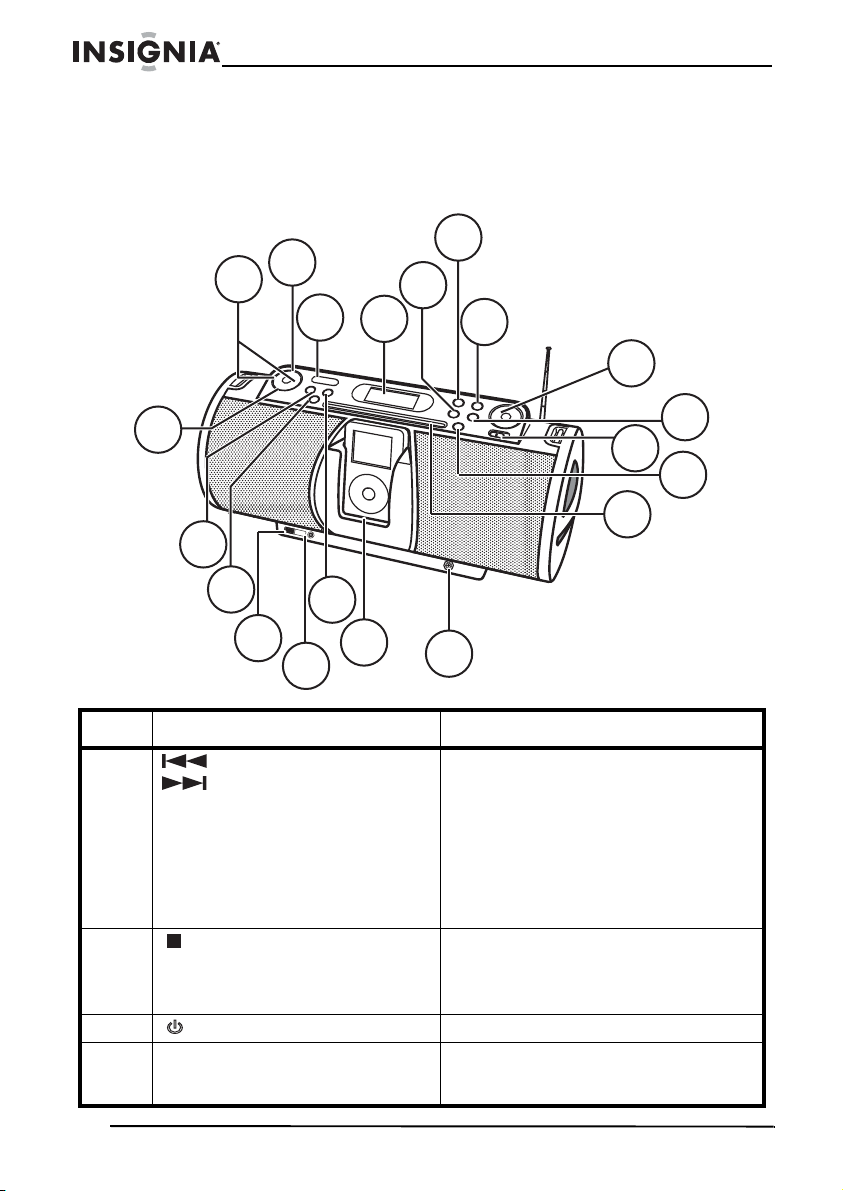

Features
Front
No. Feature Description
1 REV/TUNE DN control
FWD/TUNE UP control
When setting the time, press to set the
time display format (24-hour or
12-hour).
When listening to the radio, press to
select a radio station or program a
radio station into memory.
When playing to a CD or iPod, press to
fast-reverse or fast-forward, search for
a song, or select a song for a playlist.
2 STOP/BAND control In CD or iPod mode, press to stop
playback.
In RADIO mode, press to select AM or
FM.
3 POWER button Press to turn your boombox on and off.
4 LCD display Display information about your
boombox, such as play mode, track
information, and status information.
AUX
iPOD
FLE
SHUF
1
3
2
45
6
7
8
13
14
15
16
17
18
19
20 10 9
11
12

5
Insignia NS-B2114W CD Boombox with AM/FM Radio
www.insignia-products.com
5 SLEEP button Press to set the SLEEP timer.
6 MEM/CLK ADJ button When your boombox is turned off,
press to set the time.
7 REPEAT/M-DN button In CD mode, press to repeat a track or
CD.
In RADIO mode, press to select a
programmed station.
8VOLUME
VOLUME
Press to increase or decrease the
volume.
9 PRESET EQ (equalizer) button Press to select an equalizer mode. You
can select CLASSIC, JAZZ, ROCK, or
POP.
10 DBBS (dynamic bass boost
sound) switch Slide to select the DBBS mode. You can select LOW, MID, or HIGH.
11 EJECT button Press to eject the CD.
12 CD slot Insert a CD into this slot with the label
facing the display.
13 Headphone jack Plug headphones (not included) into
this jack.
14 iPod slot Insert the iPod into this slot with the
display facing out.
15 iPOD button Press to select iPod mode.
16 AUX jack Plug an external audio device into this
jack.
17 iPOD SHUFFLE jack Plug an iPod shuffle into this jack.
18 TIMER button Press to set the timer.
19 FUNCTION button Press to select the play mode. You can
select CD to play a CD, RADIO to play
the radio, or AUX to play the iPod
shuffle.
20 PLAY/PAUSE/M-UP control In CD mode, press to start or pause
playback.
In RADIO mode, press to select a
programmed station.
No. Feature Description

6
Insignia NS-B2114W CD Boombox with AM/FM Radio
www.insignia-products.com
Top panel
No. Component Description
1 STOP/BAND In CD or iPod mode, press to stop
playback.
In RADIO mode, press to select
AM or FM.
2 FUNCTION Press to select the play mode. You
can select CD to play a CD,
RADIO to play the radio, or AUX to
play the iPod.
3 POWER Press to turn your boombox on
and off.
4 iPOD Press to select iPod mode.
5 LCD display Display information about your
boombox, such as play mode,
track information, and status
information.
6 MEM/CLK ADJ When your boombox is turned off,
press to set the time.
7 REPEAT/M-DN In CD mode, press to repeat a
track or CD.
In RADIO mode, press to select a
programmed station.
8 VOLUME up Press to increase the volume.
9 VOLUME down Press to decrease the volume.
10 DBBS Slide to select the DBBS mode.
You can select LOW, MID, or
HIGH.
11 PRESET EQ In RADIO mode, press to program
a radio station into memory.
In CD mode, press to select an
equalizer mode. You can select
CLASSIC, JAZZ, ROCK, or POP.
12 EJECT Press to eject the CD.
POWER MEM/CLK ADJ REPEAT/M-DN
L
M
U
E
O
V
FUNCTION SLEEP PRESET EQ
TIMER
CD LABEL SIDE
F
W
D
/
T
U
N
E
U
P
N
D
E
N
U
T
/
V
E
R
A
/
B
P
N
O
D
T
S
P
L
P
A
U
Y
-
/
P
M
/
E
A
S
U
EJECT
LOW MID HIGH
FM
TUNER
MHz
ROCK
18
15
16
17
234
1
14
56
1311
12
7
10
8
9

7
Insignia NS-B2114W CD Boombox with AM/FM Radio
www.insignia-products.com
13 SLEEP Press to set the SLEEP timer.
14 CD slot Insert a CD into this slot with the
label facing the display.
15 TIMER Press to set the timer.
16 FWD/TUNE UP When setting the time, press to set
the time display format (24-hour or
12-hour).
When listening to the radio, press
to select a radio station or program
a radio station into memory.
When playing to a CD or iPod,
press to fast-forward, search for a
song, or select a song for a
playlist.
17 PLAY/PAUSE/M-UP Press to start or pause CD or iPod
playback.
18 REV/TUNE DN When setting the time, press to set
the time display format (24-hour or
12-hour).
When listening to the radio, press
to select a radio station or program
a radio station into memory.
When playing to a CD or iPod,
press to fast-reverse, search for a
song, or select a song for a
playlist.
No. Component Description

8
Insignia NS-B2114W CD Boombox with AM/FM Radio
www.insignia-products.com
Remote control
No. Button Description
1 POWER Press to turn your boombox on
and off.
2 FUNCTION Press to select the play mode. You
can select CD to play a CD,
RADIO to play the radio, or AUX to
play the iPod.
3 FM ST. Press to select the FM mode. You
can select stereo or mono.
4 DISPLAY In RADIO mode, press to display
the time.
VOL
VOL
POWER
FUNCTION
TUNE/SKIP BAND
CLK SET
MEM UP
MEM DN
EQ
SLEEP
REPEAT
DISPLAY
MEMTIMER
MUTE
FM ST.
EJECT
1
2
3
4
5
6
7
89
10
11
12
14
15 16
17
18
13

9
Insignia NS-B2114W CD Boombox with AM/FM Radio
www.insignia-products.com
5 TUNE/SKIP When setting the time, press to set
the time display format (24-hour or
12-hour).
When listening to the radio, press
to select a radio station or program
a radio station into memory.
When playing to a CD or iPod,
press to fast-forward, search for a
song, or select a song for a
playlist.
6 TUNE/SKIP When setting the time, press to set
the time display format (24-hour or
12-hour).
When listening to the radio, press
to select a radio station or program
a radio station into memory.
When playing to a CD or iPod,
press to fast-reverse, search for a
song, or select a song for a
playlist.
7 SLEEP Press to set the SLEEP timer.
8 TIMER Press to set the timer.
9 MEM/CLK SET When your boombox is turned off,
press to set the time.
10 REPEAT/MEM DN In CD mode, press to repeat a
track or CD.
In RADIO mode, press to select a
programmed station.
11 MEM UP Press to start or pause CD or iPod
playback.
12 BAND In CD or iPod mode, press to stop
playback.
In RADIO mode, press to select
AM or FM.
13 VOL Press to decrease the volume.
14 MUTE Press to mute the sound. Press
again to restore the sound.
15 EQ Press to select the equalizer
mode. You can select CLASSIC,
JAZZ, ROCK or POP.
16 VOL Press to increase the volume.
17 iPOD Press to select iPod mode.
18 EJECT Press to eject the CD.
No. Button Description

10
Insignia NS-B2114W CD Boombox with AM/FM Radio
www.insignia-products.com

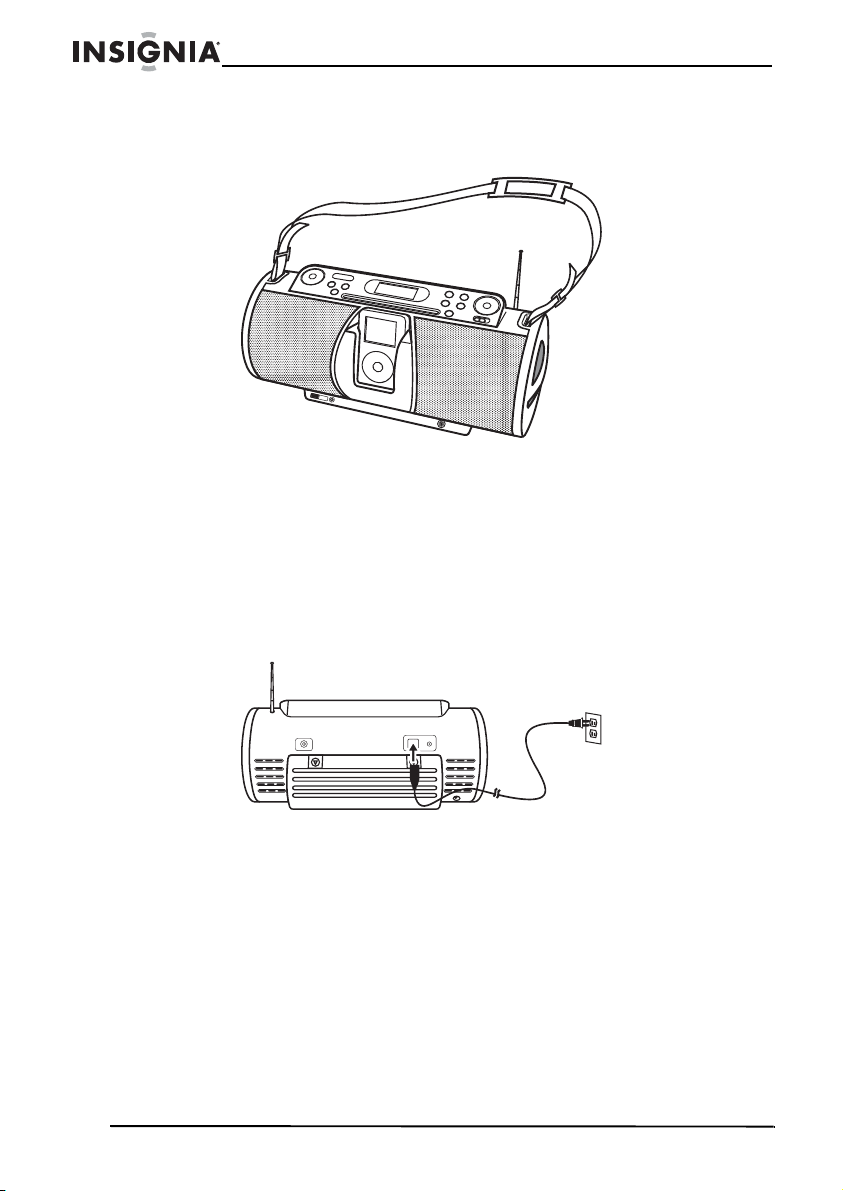

Attaching the shoulder strap
Attach the shoulder strap as shown in the following illustration:
Setting up your boombox
Connecting the AC power cord
To connect the AC power cord:
1Plug the power cord into the AC IN jack on the back of your
boombox.
2Plug the other end of the power cord into a 120V AC/60 HZ power
outlet.
AUX
PD
iO
SFL
HUFE
AUX
ACIN ~

11
Insignia NS-B2114W CD Boombox with AM/FM Radio
www.insignia-products.com
Connecting the DC power cord
You can use the DC power cord (not included) to connect your
boombox to an automobile cigarette lighter or power outlet.
To connect the DC power cord:
1Plug the power cord into the DC IN jack on the back of your
boombox.
2Plug the other end of the power cord into an automobile cigarette
lighter or power outlet.
Installing batteries
To install batteries:
1Make sure that power cord is unplugged.
2Remove the battery compartment cover.
To D C 1 2V J a c k

12
Insignia NS-B2114W CD Boombox with AM/FM Radio
www.insignia-products.com

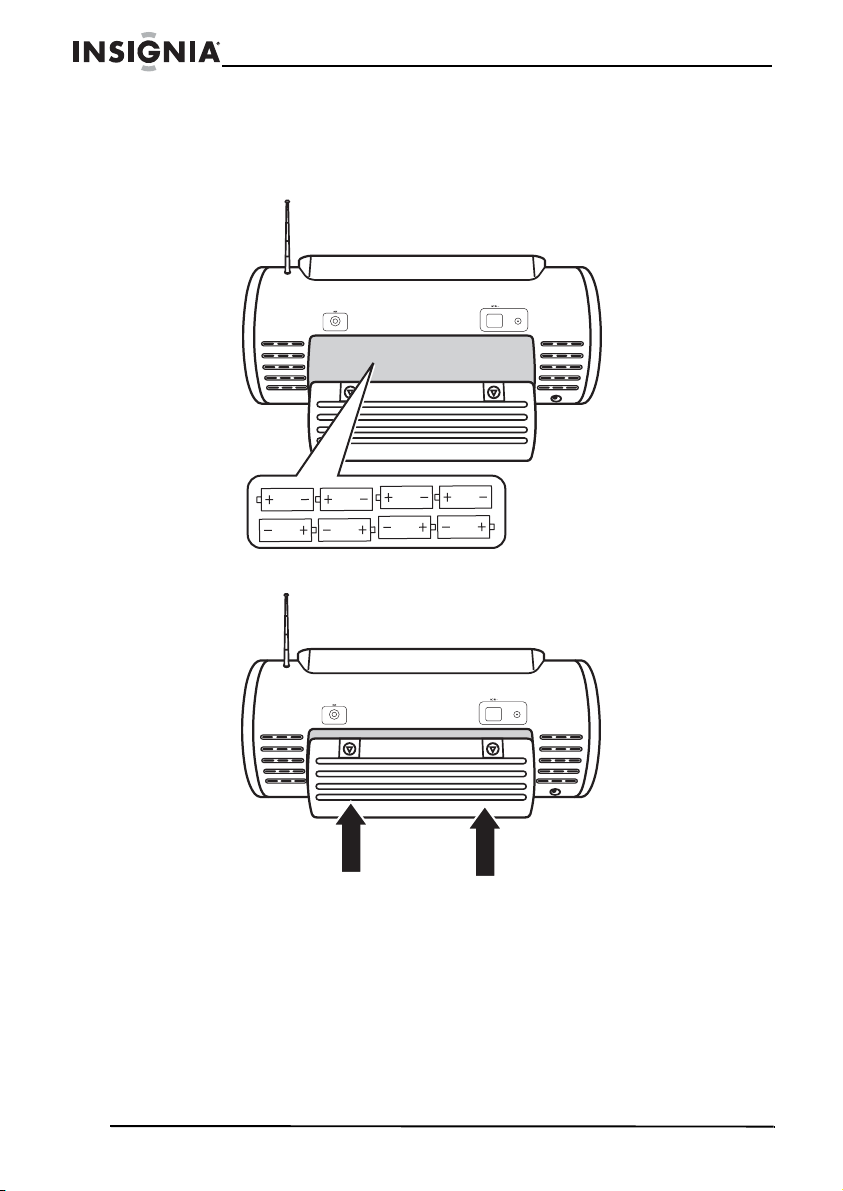

3Insert eight type D batteries (not included) into the battery
compartment. Make sure that you align the + and – symbols on
the batteries with the + and – symbols inside the battery
compartment.
4Replace the battery compartment cover.

13
Insignia NS-B2114W CD Boombox with AM/FM Radio
www.insignia-products.com
Connecting an iPod
You can connect an iPod (not included) to your boombox so you can
listen to the songs stored on your iPod
iPod Mini and iPod nano
To connect an iPod Mini or iPod nano:
1Make sure that you boombox is turned off.
2Slide the iPod bracket into the iPod slot on your boombox.
3Insert the iPod into the iPod bracket with the display facing out.
iPod shuffle
To connect the iPod shuffle:
1Make sure that your boombox is turned off.
2Plug the iPod shuffle into the iPod shuffle jack on the front of your
boombox.
iPod mini
bracket iPod nano bracket
U
AX
iO
DP
F
HUFLE
S

14
Insignia NS-B2114W CD Boombox with AM/FM Radio
www.insignia-products.com
All other iPods, including video and photo
To connect the iPod:
1Make sure that your boombox is turned off.
2Peel the backing off the back of the rubber bracket cushions.
3Place the square cushion in the center of the iPod slot, then place
a long cushion on each of the rails in the iPod slot.
4Insert the iPod into the iPod bracket with the display facing out.
For information about listening to the iPod, see “Listening to all other
audio iPods” on page 22.
AUX
iPOD
HUL
SFFE
.

15
Insignia NS-B2114W CD Boombox with AM/FM Radio
www.insignia-products.com
Connecting headphones
To connect headphones:
• Plug the headphones (not included) into the headphone jack
on the front of your boombox.
Using your boombox
Turning your boombox on and off
To turn your boombox on and off:
• Press the POWER button on your boombox or on the
remote control.
Setting the time
To set the time:
1Make sure that your boombox is turned off.
2Press and hold the MEM/CLOCK ADJ button on your boombox or
the MEN/CLK SET button on your remote control. When 12
appears on the display, release the button.
3Press the or button on your boombox or remote
control to select the time display format (24-hour or 12-hour), then
press the MEM/CLOCK ADJ button on your boombox or the
MEN/CLK SET button on your remote control. The hour flashes
on the display.
Warning
Listening to music with the volume too loud can damage
your hearing. Before you connect headphones, turn the
volume down. After you put on the headphones, gradually
increase the volume to a comfortable level.
I2:00
AM

16
Insignia NS-B2114W CD Boombox with AM/FM Radio
www.insignia-products.com
4Press the or button on your boombox or remote
control to select the hour, then press the MEM/CLOCK ADJ
button on your boombox or the MEN/CLK SET button on your
remote control. The minute flashes on the display.
5Press the or button on your boombox or remote
control to select the minute, then press the MEM/CLOCK ADJ
button on your boombox or the MEN/CLK SET button on your
remote control.
Listening to the radio
To listen to the radio:
1Make sure that your boombox is turned on.
2Press the FUNCTION button on your boombox or remote control
to select RADIO. Radio station information appears on the display
with RADIO is selected.
3Press the button on your boombox or remote control to select
AM or FM. AM or FM appears on the display.
4Press the or button on your boombox or remote
control to select a radio station. When you release the button, your
boombox tunes to the next station.
5If necessary, press the VOLUME up or down buttons on your
boombox or remote control to adjust the volume.
6(Optional) Press the PRESET EQ button on your boombox or the
EQ button on your remote control to select the equalizer mode.
You can select CLASSIC, JAZZ, ROCK, or POP. The equalizer
mode you select appears on the display.
Improving reception
To improve radio reception:
• AM reception–Rotate your boombox until the signal is clear.
• FM reception–Extend the FM antenna, then rotate it until the
signal is clear.
6:00
AM

17
Insignia NS-B2114W CD Boombox with AM/FM Radio
www.insignia-products.com
Programming radio stations
You can program 10 FM and 10 AM stations into memory.
To program a radio station:
1While the radio is playing, press the or button on your
boombox or remote control to select a radio station.
2Press and hold the MEM/CLK ADJ button on your boombox or
the MEM/CLK SET button on your remote control. When P01
appears on the display, release the button.
3Press the or button on your boombox or remote
control to select the number you want to assign to the station you
selected.
4Press the MEM/CLK ADJ button on your boombox or the MEM/
CLK SET button on the remote control to save your setting.
5Repeat Step 1 through Step 4 to program additional stations.
Listening to a programmed station
To listen to a programmed station:
• Press the or REPEAT/M-DN button on your boombox or
the or REPEAT/MEM DN button on your remote control
one or more times to select the number of the programmed
station you want to listen to. The number you assigned to the
station appears on the display.
Listening to a CD
To play a CD:
1Make sure that your boombox is turned on.
2Press the FUNCTION button on your boombox or remote control
to select CD. -- appears on the display.
NoteIn addition to audio CDs, your boombox can play CD-Rs
and CD-RWs. A CD-R or CD-RW must be finalized before
you can play it.

18
Insignia NS-B2114W CD Boombox with AM/FM Radio
www.insignia-products.com
3Insert a CD, with the label facing the display, into the CD slot.
4Press the button on your boombox or remote control to start
playback.
5If necessary, press the VOLUME up or down button on your
boombox or remote control to adjust the volume.
6(Optional) Press the PRESET EQ button on your boombox or the
EQ button on the remote control to select the equalizer mode. You
can select CLASSIC, JAZZ, ROCK, or POP. The equalizer setting
you select appears on the display.
7Press the button on your boombox or remote control to stop
playback.
8Press the button on your boombox or remote control to remove
the CD.
Controlling CD playback
To control CD playback:
• To pause playback, press the button on your boombox or
remote control. To resume playback, press this button again.
• To skip to the next track, press the button on your
boombox or remote control. To skip to the previous track,
press the button on your boombox or remote control.
• To search forward through the current song, press and hold
the button on your boombox or remote control. To
search backward through the current song, press and hold the
button on your boombox or remote control.
X
AU
iPOD
HFL
SUF E
