Welcome
Congratulations on your purchase of a high-quality Insignia product.
Your NS-B3112 represents the state of the art in boomboxes and is
designed for reliable and trouble-free performance.
Safety information
To prevent fire or shock hazard, do not plug the power adapter into an
extension cord, receptacle, or other outlet unless the blades can be
fully inserted to prevent blade exposure. To prevent fire or shock
hazard, do not expose this boombox to rain or moisture.
Surge protectors:
We recommend that you use a surge protector when you use the AC
adapter with this boombox. Lightning and power surges ARE NOT
covered under the warranty for this product.
CAUTION: To reduce the risk of electric
shock, do not remove cover (or back). No
user-serviceable parts inside. Refer
servicing to qualified service personnel.

4
I
ns
i
gn
i
a
NS
-
B3112
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
The lightning flash with arrowhead symbol within a
triangle is intended to alert you to the presence of
uninsulated dangerous voltage within your boombox’s
enclosure that may be of sufficient magnitude to
constitute risk of electric shock to persons.
The exclamation point within a triangle is intended to
alert you to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying your boombox.
Read instructions
Read all the safety and operating instructions before you use your
boombox.
Your boombox utilizes a Class 1 laser to
read Compact Discs. Your boombox is
equipped with safety switches to avoid
exposure when the CD door is open and
the safety interlocks are defeated. Invisible
laser radiation is present when the CD
door is open and the system's interlock
has failed or been defeated. You should
avoid direct exposure to the laser beam at
all times. Do not attempt to defeat or
bypass the safety switches.
Warning
To reduce the risk of fire or electric shock, do not expose
your boombox to rain or moisture.
Warning
Any use of the controls or an adjustment to the procedures
other than those specified herein may result in hazardous
radiation.
Caution
Any change or modification to your boombox not expressly
approved by Insignia or its authorized parties could void
your authority to operate your boombox.
Caution
Your boombox should not be exposed to water (dripping or
splashing) and no objects filled with liquids, such as vases,
should be placed on it.

5
I
ns
i
gn
i
a
NS
-
B3112
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
Retain instructions
Retain safety and operating instructions for future reference.
Follow warnings and instructions
Follow all warnings on your boombox and in the operating
instructions. Follow all operating and use instructions.
Grounding or polarization
Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a grounding prong. The wide
blade or grounding prong are provided for your safety. If the plug does
not fit, contact an electrician to replace the obsolete outlet.
Placement
When placing your boombox on a lacquered or natural finish, protect
your furniture with a cloth or other protective material.
Avoid exposure to direct sunlight, temperature extremes, and
moisture.
Ventilation
Slots and openings in the cabinet and the back or bottom are
provided for ventilation, reliable operation, and protection from
overheating. These openings must not be blocked or covered. Do not
block the openings by placing your boombox on a bed, sofa, rug, or
other similar surface.
Water and moisture
Do not use your boombox near water. For example, do not use it near
a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet
basement, or near a swimming pool.
Do not let water slash or drip onto your boombox. Do not place
objects containing liquids, such as a vase, on top of your boombox.
The AC power adapter is used as the disconnect device. It should
remain readily accessible and should not be obstructed during use.
To completely disconnect power, the AC power adapter should be
unplugged from the AC power outlet completely.
The marking plate of the AC adapter is located on the bottom of the
adapter.

6
I
ns
i
gn
i
a
NS
-
B3112
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
Features
Package contents:
•Boombox
• AC power adapter
•UserGuide
•iPod
®holders (5)
Top panel
# Description Function
1 STOP button Press to stop CD playback.
2 PLAY/PAUSE button Press to begin CD playback or iPod®playback
when your iPod®is connected to the boombox.
Press again to pause playback.
3 SKIP/TUNE DOWN button In radio mode, press to tune or scan the your
boombox to a lower frequency. In CD or iPod®
mode, press to skip to the previous track.
4 SKIP/TUNE UP button In radio mode, press to tune or scan the your
boombox to a higher frequency. In CD or iPod®
mode, press to skip to the next track.
5 FM antenna Telescoping antenna to improve FM reception.
6 FUNCTION button Press to select the function of your boombox.
Choices include AM, FM, CD, iPod®, or
Line-in.
5
6
7
8
9
10
1
3
2
4

7
I
ns
i
gn
i
a
NS
-
B3112
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com

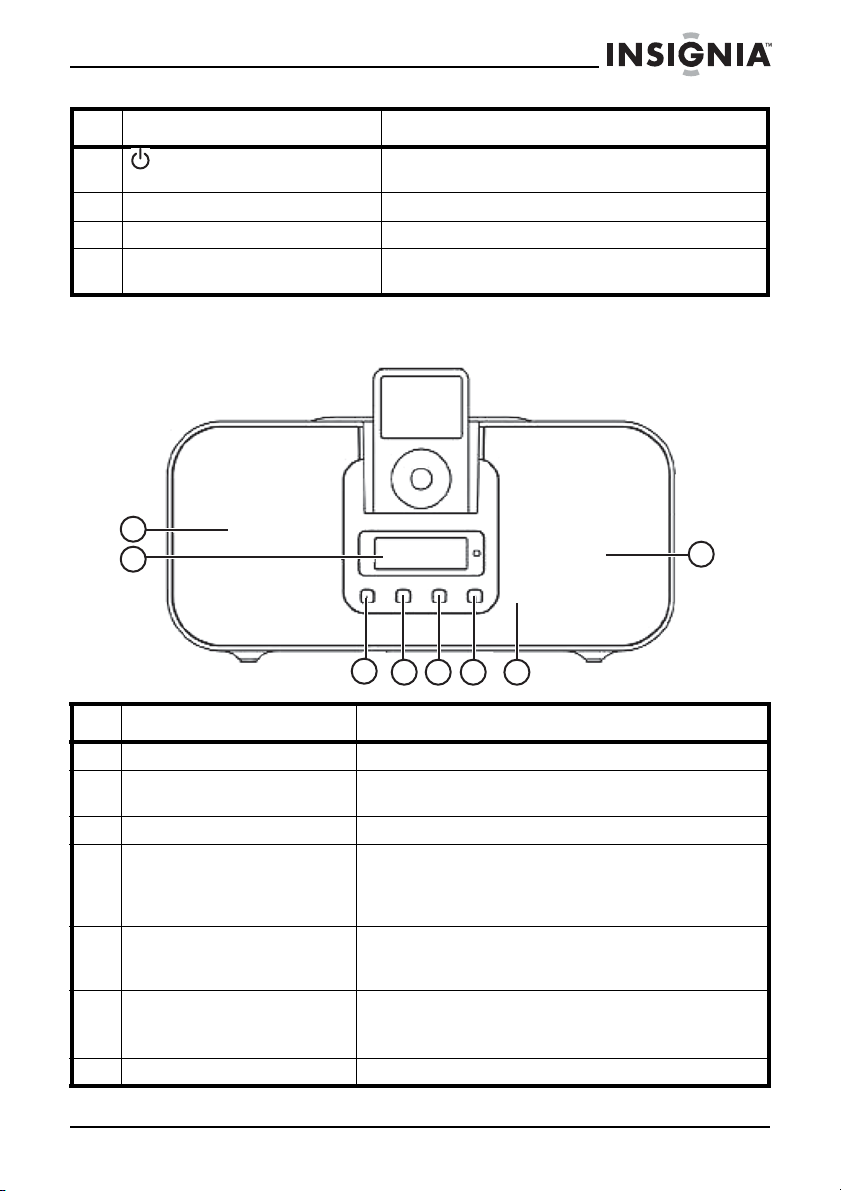

Front panel
7Standby/ON button Press to turn on your boombox. Press again to
return your boombox to standby mode.
8 Volume up button Press to increase the volume.
9 Volume down button Press to decrease the volume.
10 CD compartment Place a CD label side up in this compartment
to begin playback.
# Description Function
1 Left speaker Produces sound from left stereo channel.
2 LCD display Provides information about the radio and CD
functions.
3 Right speaker Produces sound from right stereo channel.
4 BASS/TREBLE button Press repeatedly to adjust the bass and treble
settings of your boombox. The settings will be
stored and shown on the bass or treble indicator
on the display (on the front of your boombox).
5 SOUND button Press to select a preset sound equalization
setting. Choices include JAZZ, POP, CLASSIC,
ROCK, or FLAT (no equalization and no display).
6 PRESET/PLAY MODE
button In radio mode, press to tune to a preset station.
In CD playback mode, press to cycle through
repeat, random, or intro options.
7 MEMORY button In radio mode, press to tune to a preset station.
# Description Function
1
23
45 6 7 8

8
I
ns
i
gn
i
a
NS
-
B3112
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
Back panel
8 Remote control sensor Receives the infrared signals from the remote
control. Do not block.
# Description Function
1 Line in jack Connect a cable from an external audio source to
this input jack to hear the sound through your
boombox.
2 Headphone jack Connect headphones to this jack.
3 DC IN jack Insert the small connector from the AC power
adapter here.

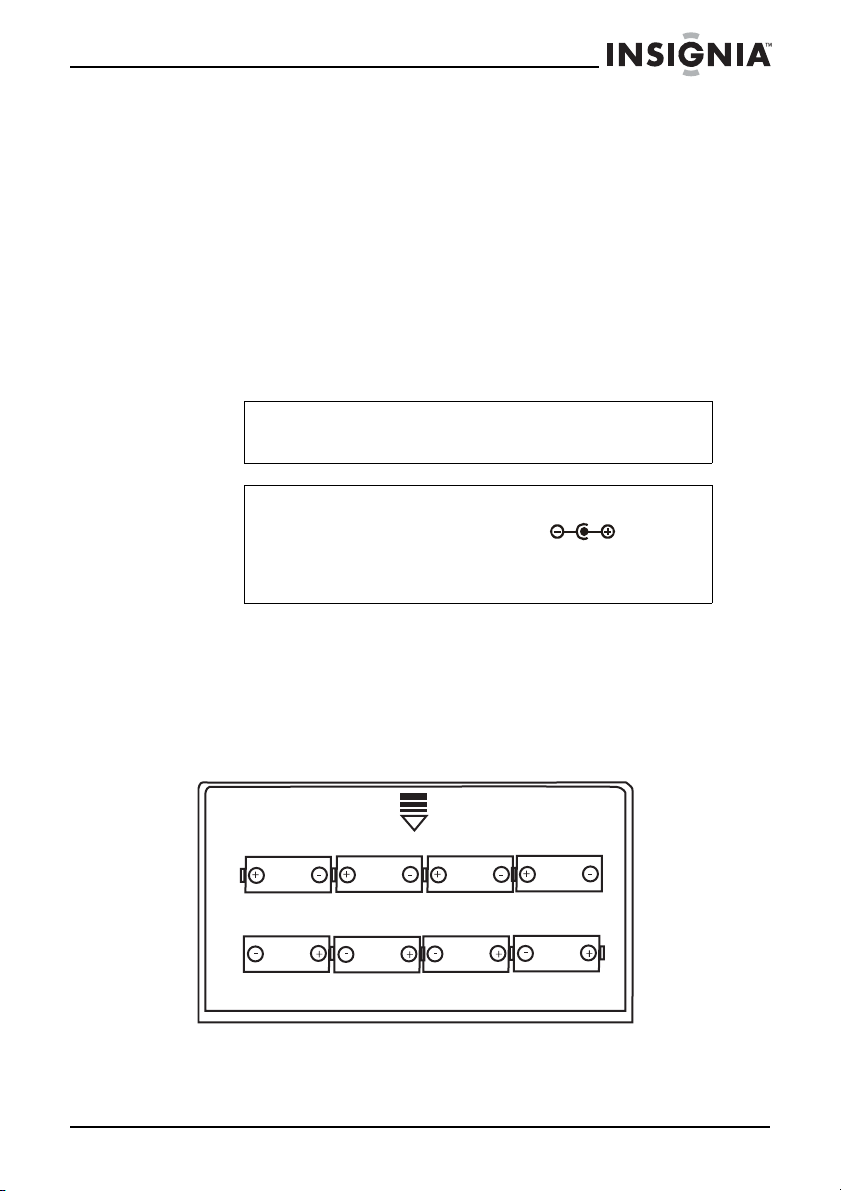

4 Battery compartment Install eight (8) “C” size batteries in this
compartment.
# Description Function

9
I
ns
i
gn
i
a
NS
-
B3112
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com

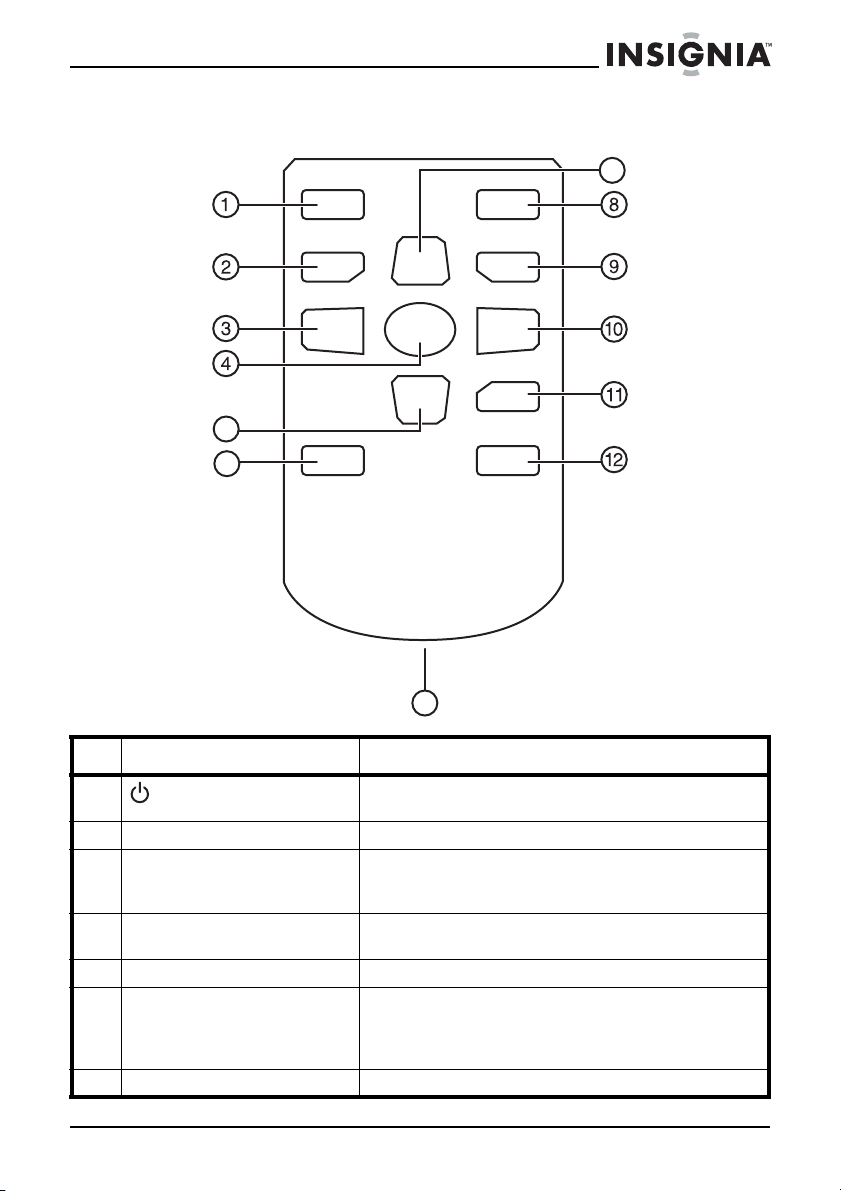

Remote control
# Description Function
1Standby/ON Press to turn on the boombox. Press again to
return the boombox to standby mode.
2 MEMORY button In radio mode, press to tune to a preset station.
3 SKIP/TUNE DOWN In radio mode, press to tune or scan your
boombox to a lower frequency. In CD or iPod®
mode, press to skip to the previous track.
4 PLAY/PAUSE Press to begin playback. Press again to pause
playback. Press again to resume playback.
5 VOLUME DOWN Press to decrease the volume of your boombox.
6 BASS/TREBLE Press repeatedly to adjust the bass and treble
settings of your boombox. The settings will be
stored and shown on the bass or treble indicator
on the display (on the front of your boombox).
7 VOLUME UP Press to increase the volume of your boombox.
5
6
13
7

10
I
ns
i
gn
i
a
NS
-
B3112
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
Installing remote control battery
To install the remote control batteries:
1Remove the battery holder from the remote control.
2Insert the CR2025 battery into the battery holder, positive (+) side up.
3Slide the battery holder back into the remote control.
8 FUNCTION button Press to select AM, FM, iPod®, CD, or Line-in.
9 PRESET/PLAY MODE In radio mode, press to tune to a preset station.
In CD playback mode, press to cycle through
repeat, random, or intro options.
10 SKIP/TUNE UP In radio mode, press to tune or scan your
boombox to a higher frequency. In CD or iPod®
mode, press to skip to the next track.
11 STOP Press to stop playback.
12 SOUND Press to select a preset sound equalization
setting. Choices include JAZZ, POP, CLASSIC,
ROCK, or FLAT (no equalization and no display).
13 Battery compartment Open to insert or change battery.
Notes
Battery chemicals can cause a rash. If the battery leaks,
clean the battery compartment with a cloth. If chemicals
touch your skin, wash immediately.
If the remote control is not going to be used for an extended
period of time, remove the battery.
# Description Function
Back view

11
I
ns
i
gn
i
a
NS
-
B3112
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
Setting up your boombox
Using the AC power adapter
To use the AC power adapter:
1Make sure that your local AC power source matches the voltage
shown on the plate located on the AC power adapter. If it does not,
consult your dealer or service center.
2Insert the small connector at the end of the AC power adapter
cable into the DC IN jack on the back of your boombox.
3Plug the AC power adapter into a wall power outlet.
Installing the batteries
To install the batteries:
1Turn your boombox over, then open and remove the door to the
battery compartment.
2Insert eight (8) “C” size batteries into the battery compartment.
Make sure that you match the + and – symbols on the batteries
with the + and – symbols in the battery compartment.
Caution
To protect your boombox during thunderstorms, unplug the
AC power adapter from the AC power outlet.
NoteOnly use the supplied AC power adapter, which has the
following specifications: DC=12V 2A
Unplug both the DC plug and the adapter when not in use.
The batteries are automatically bypassed when the AC
power adapter is used.

12
I
ns
i
gn
i
a
NS
-
B3112
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
3Reinstall and close the battery compartment door and return your
boombox to the upright position.
Connecting headphones
To connect headphones:
• Plug the headphones (not included) into the headphone jack
on the back of the unit.
Connecting an iPod®to your boombox
You can connect an iPod®(not included) to your boombox so you can
listen to the songs stored on your iPod®.
To connect an iPod®to your boombox:
1Make sure that your boombox is turned off.
2Select the appropriate iPod®holder (the universal dock number is
shown on the front of the holder, as shown on the “iPod® holders”
on page 17) to match your iPod®.
NoteThe AC power adapter must be disconnected from the
DC IN jack on the back of your boombox in order for your
boombox to operate on battery power.
When the battery indicator appears in the display, you
need to replace the batteries.
Caution
Follow these precautions when using batteries in this
device:
- Use only the size and type of batteries specified.
- Make sure that you follow the correct polarity as indicated
in the battery compartment when installing batteries.
Reversed batteries may cause damage to your boombox.
- Do not mix different types of batteries together (for
example, alkaline, rechargeable, and carbon zinc), or
semi-used batteries with fresh ones.
- If your boombox is not to be used for a long period of time,
remove the batteries to prevent damage or injury from
possible battery leakage.
- Do not try to recharge batteries not intended to be
recharged, because they can overheat and rupture. (Follow
battery manufacturer’s directions.)
- Do not throw batteries into a fire. Dispose of used batteries
as hazardous waste.
Caution
Listening to music with the volume too loud can damage
your hearing. Before you connect headphones, turn the
volume down. After you put on the headphones, gradually
increase the volume to a comfortable level.

13
I
ns
i
gn
i
a
NS
-
B3112
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
3Insert your iPod®into the iPod®holder, then insert the holder and
your iPod®(with the display facing out) into the iPod®dock on the
front of your boombox.
Listening to another audio device
To listen to another audio device:
1Make sure the boombox is turned off

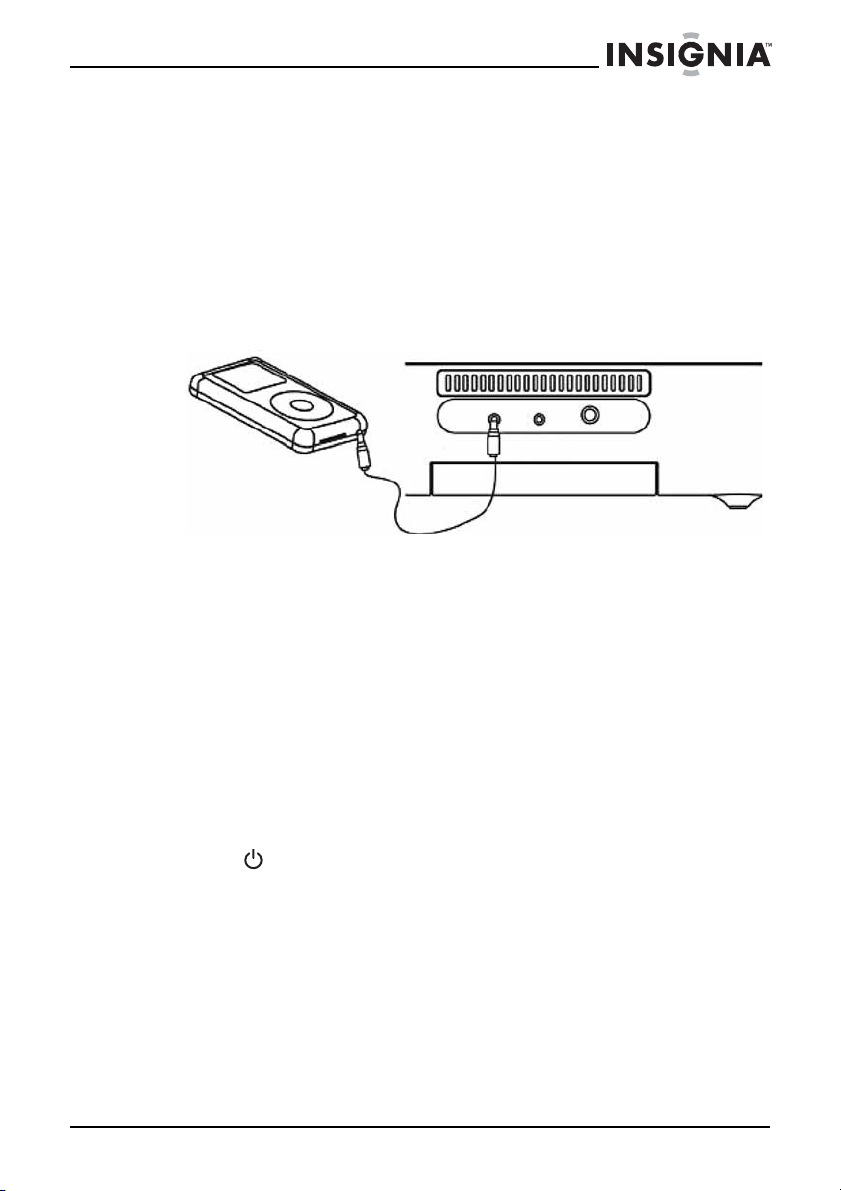

2Plug one end of the auxiliary line-in cable (not included) into the
Line-in jack on the back of your boombox.
3Plug the other end of the cord into the Line-out jack on the audio
device.
4Turn on the boombox.
5Press FUNCTION one or more times until Line-in appears on the
display.
6Use the controls on the audio device to control playback.
Using your boombox
Playing the radio
To play the radio:
1Press (Standby/on) to turn on the boombox.
2Press FUNCTION repeatedly to select the radio band you want to
listen to (AM or FM)
3Press SKIP/TUNE UP or SKIP/TUNE DOWN to tune the radio up
or down and select the station you want. When a strong FM signal
is received, Stereo appears on the display.
4Adjust the volume to a comfortable level by pressing either the
VOLUME UP or VOLUME DOWN button.
5To scan to a higher or lower frequency, press and hold SKIP/
TUNE UP or SKIP/TUNE DOWN for one second. The radio
automatically scans to the next station.
Line In jack

14
I
ns
i
gn
i
a
NS
-
B3112
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
6Press (Standby/on) to turn off the boombox.
To improve reception:
• For FM reception, raise and extended the FM antenna. You
may have to reposition the antenna for best reception.
• For AM reception, turn your boombox slightly until reception
improves.
• Move the AC power adapter 3 feet away from your boombox to
reduce interference to radio reception.
To use presets:
1Press (Standby/on) to turn on your boombox.
2Press FUNCTION repeatedly to select the radio band you want to
listen to (AM or FM).
3Press SKIP/TUNE UP or SKIP/TUNE DOWN to tune the radio up
or down and select the station you want.
4To save the station as a preset, press the MEMORY button. “P-01”
blinks on the display.
5Press SKIP/TUNE UP or SKIP/TUNE DOWN to select the preset
number (P01-P10) you want.
6Press the MEMORY button again to store the preset.
7Repeat Steps 3 to 5 to store as many as 10 AM presets and 10
FM presets.
8To select a preset station, briefly press PRESET/PLAY repeatedly
until you reach the station you want.
Playing CDs
You can play audio CDs, CD-Rs and CD-RWs.
To play CDs:
1Press (Standby/on) to turn on the boombox.
2Press the OPEN/CLOSE area on the CD door to open the lid.
3Insert a CD, label side up.
4Press the OPEN/CLOSE area on the CD door to close it. The total
number of tracks appears on the display.
5Press PLAY/PAUSE to begin playback. The current track appears
on the display. The CD stops when finished.
Caution
Do not try to play DVDs, VCDs, or data CDs. You may
damage your unit.

15
I
ns
i
gn
i
a
NS
-
B3112
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
6Press STOP to stop the CD before it is finished.
To pause CD playback:
1Press PLAY/PAUSE. Playback stops but the CD continues to spin
and the playback symbol blinks on the display.
2Press PLAY/PAUSE again to resume normal CD playback.
To repeat one track:
1Press PRESET/PLAY MODE while in play/pause mode. Repeat
appears on the display.
2To repeat another track, press SKIP/TUNING UP or SKIP/
TUNING DOWN.
3To cancel repeat single track, press PRESET/PLAY MODE four
times.
To repeat everything on the disc:
1Press PRESET/PLAY MODE twice while in play/pause mode.
Repeat All appears on the display and all tracks will repeat
continuously.
2To cancel repeat playback, press PRESET/PLAY MODE until the
repeat indicator disappears from the display.
To randomly play the tracks on a CD:
1Press PRESET/PLAY MODE three times while in play/pause
mode. Random appears on the display and the CD tracks will play
randomly.
2To cancel random play, press PRESET/PLAY MODE until the
random indicator disappears from the display.
To Intro all the tracks on the disc:
1Press PRESET/PLAY MODE four times while in play/pause mode.
Intro appears on the display and the first 10 seconds of all tracks
on the disc will be played.
2To cancel Intro playback, press PRESET/PLAY MODE until the
Intro indicator disappears from the display.
Notes
If a CD is inserted incorrectly, is dirty or damaged, or is not
present at all, NO appears on the display.
To prevent damage to the CD, never open the CD door while
the CD is rotating and never touch the lens.
Do not use the carrying handle when playing a CD. The CD
player should only be used on a steady surface.
Your CD boombox plays standard CDs and 3” CDs.

16
I
ns
i
gn
i
a
NS
-
B3112
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
Selecting the sound equalization
To change the sound equalization:
1Press SOUND to select the sound equalization you want. Choose
one of the following preset options: JAZZ, POP, CLASSIC,
ROCK, or FLAT (no equalization and no display).
2Briefly press BASS/TREBLE, then press SKIP/TUNING UP or
SKIP/TUNING DOWN to set bass and treble levels. The Bass or
Treble indicator is shown on the display.
Using an iPod®with your boombox
To listen to the iPod®:
1Make sure that your iPod®and the correct iPod®holder are
installed on your boombox.
2Turn on your boombox.
3Press PLAY/PAUSE to start playback.
4Adjust the volume to a comfortable level by pressing either the
VOLUME UP or VOLUME DOWN button.
5Press SKIP/TUNE UP or SKIP/TUNE DOWN to skip to the
beginning of the current, last, or next track.
To charge the iPod®battery:
1Make sure that you have installed the correct iPod®holder in the
iPod®dock on your boombox.
2Turn on your iPod®.
3Insert the iPod®. The battery charging indicator appears on the
iPod®display.
Notes
The default volume setting level is 6. If you adjust the
volume setting then turn off your boombox, it will resume the
default volume level of 6 when you turn it back on.

17
I
ns
i
gn
i
a
NS
-
B3112
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
iPod
®
holders
iPod®Type Memory Universal dock #
iPod®mini 4 and 6 GB 3
Fourth
generation
iPod®
20 GB/U2
Special Edition
20 GB
4
40 GB 5
iPod®Photo/
iPod®with
color display
20 GB
30 GB
U2 Special
Edition
6
40 and 60 GB 7
First and
second
generation
iPod®nano
2 and 4 GB Use the universal
dock included with
your iPod®.
Fifth
generation
iPod®(with
video)
30 GB
60 and 80 GB
NoteThe five iPod®holders provided with your boombox are for
use with this boombox only. They are not universal docks.
The universal dock number is shown on the front of each
dock (see the following).
5
5

18
I
ns
i
gn
i
a
NS
-
B3112
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com

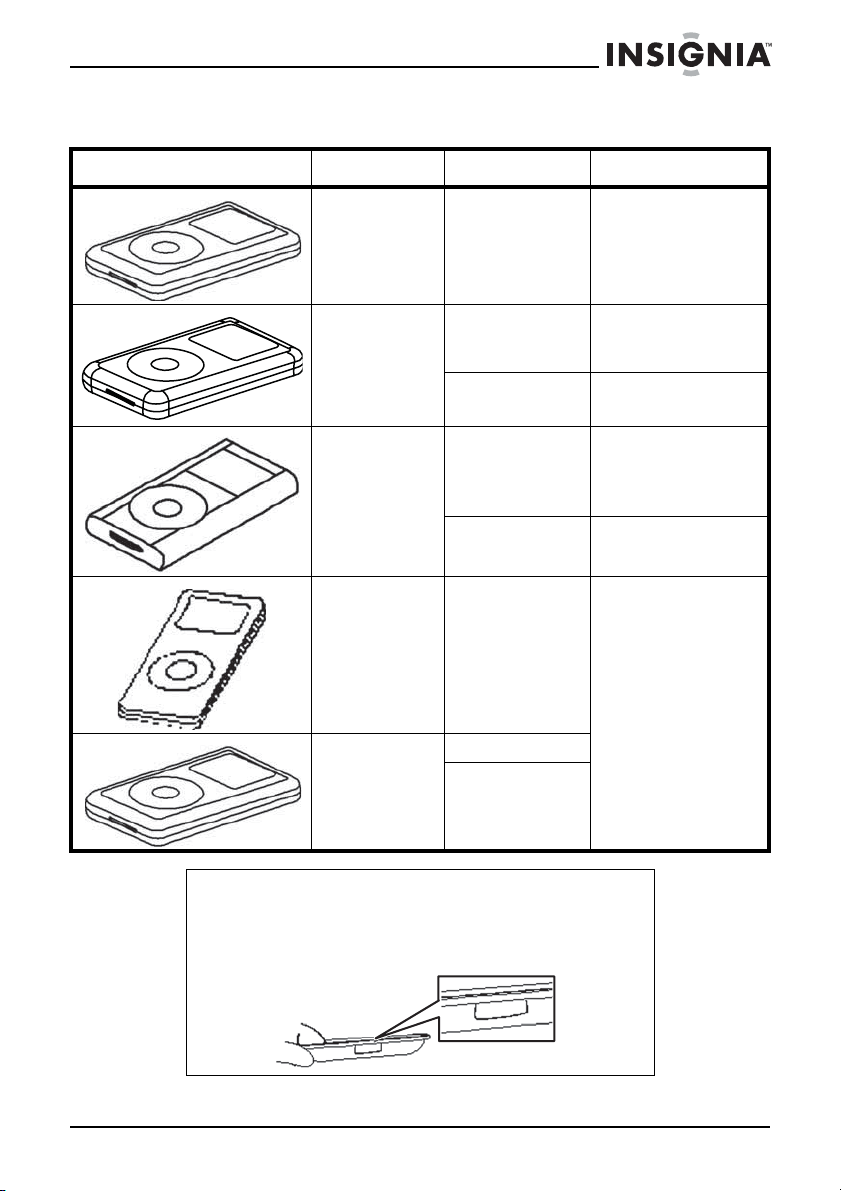

To remove your iPod®from the boombox, pull out the iPod®holder
with your finger, as shown in the illustration.
Troubleshooting
Caution
Do not try to repair the boombox yourself. Doing so will
invalidate your warranty.
Problem Possible cause Solution
CD player will
not play A CD is not inserted, or is inserted incorrectly. Insert the CD with the label facing up.
A CD skips
while playing The CD is dirty or scratched. Wipe the CD with a cloth to clean it, or use another CD.
Noise or sound
distorted on AM
or FM radio
broadcasts
FM—The antenna is not
extended. Extend the FM antenna.
AM—Your boombox is not
positioned correctly. Rotate your boombox until the best reception is obtained.
No sound The volume control is turned
down. Increase the volume.
The AC power adapter is
unplugged. Plug in the AC power adapter and press (Standby/on) to turn on
your boombox.
No batteries, dead batteries, or
batteries not installed correctly. Make sure that you have installed fresh batteries and that they are
installed correctly.
No sound in
iPod®mode The iPod is not connected correctly. Make sure that the connection is correct.
Your boombox is not in iPod®
mode. Press FUNCTION to select iPod® mode.
Not charging the
iPod®battery The AC power adapter is not
plugged in. Plug in the AC power adapter.

19
I
ns
i
gn
i
a
NS
-
B3112
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
Maintaining

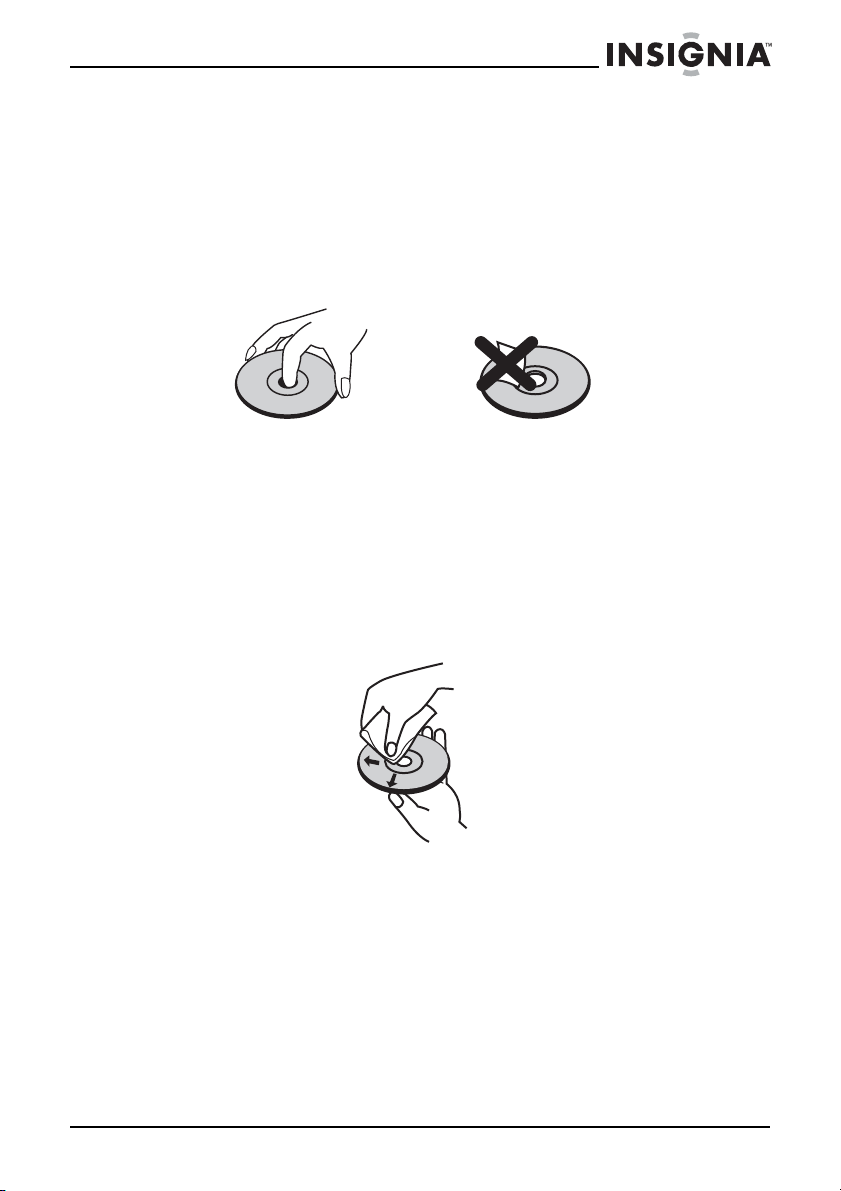

Care and handling of discs
Handling discs
Do not touch the playback side of the disc. Hold the disc by the edges so
that fingerprints do not get on the surface. Never stick paper or tape on
the disc.
Storing discs
After playing, store the disc in its case. Do not expose the disc to direct
sunlight or sources of heat and never leave it in a parked car exposed to
direct sunlight.
Cleaning discs
Fingerprints and dust on the disc can cause poor sound quality and
distortion. Before playing, clean the disc with a clean cloth. Wipe the disc
from the center out.
Do not use strong solvents such as alcohol, benzine, thinner,
commercially available cleaners, or anti-static spray intended for older
vinyl records.
Cleaning your boombox
To prevent fire or shock hazard, disconnect your CD boombox from
the AC power source when cleaning.
The finish on your CD boombox may be cleaned with a dust cloth and
cared for as other furniture. Use caution when cleaning and wiping
the plastic parts.
Mild soap and a damp cloth may be used on the front panel.

20
I
ns
i
gn
i
a
NS
-
B3112
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
Legal notices
FCC Part 15
This device complies with Part 15 of the FCC Rules. Operation of this product is
subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply within the limits for a class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced technician for help.
