Welcome
Congratulations on your purchase of a high-quality Insignia product.
Your NS-B3113 represents the state of the art in boomboxes and is
designed for reliable and trouble-free performance.
Safety information
To prevent fire or shock hazard, do not plug the power adapter into an
extension cord, receptacle, or other outlet unless the blades can be
fully inserted to prevent blade exposure. To prevent fire or shock
hazard, do not expose this boombox to rain or moisture.
Surge protectors:
We recommend that you use a surge protector when you use the AC
adapter with this boombox. Lightning and power surges ARE NOT
covered under the warranty for this product.
CAUTION: To reduce the risk of electric
shock, do not remove cover (or back). No
user-serviceable parts inside. Refer
servicing to qualified service personnel.

4
I
ns
i
gn
i
a
NS
-
B3113
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
The lightning flash with arrowhead symbol within a
triangle is intended to alert you to the presence of
uninsulated dangerous voltage within your boombox’s
enclosure that may be of sufficient magnitude to
constitute risk of electric shock to persons.
The exclamation point within a triangle is intended to
alert you to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying your boombox.
Read instructions
Read all the safety and operating instructions before you use your
boombox.
Your boombox utilizes a Class 1 laser to
read Compact Discs. Your boombox is
equipped with safety switches to avoid
exposure when the CD door is open and
the safety interlocks are defeated. Invisible
laser radiation is present when the CD
door is open and the system's interlock
has failed or been defeated. You should
avoid direct exposure to the laser beam at
all times. Do not attempt to defeat or
bypass the safety switches.
Warning
To reduce the risk of fire or electric shock, do not expose
your boombox to rain or moisture.
Warning
Any use of the controls or an adjustment to the procedures
other than those specified herein may result in hazardous
radiation.
Caution
Any change or modification to your boombox not expressly
approved by Insignia or its authorized parties could void
your authority to operate your boombox.
Caution
Your boombox should not be exposed to water (dripping or
splashing) and no objects filled with liquids, such as vases,
should be placed on it.

5
I
ns
i
gn
i
a
NS
-
B3113
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
Retain instructions
Retain safety and operating instructions for future reference.
Follow warnings and instructions
Follow all warnings on your boombox and in the operating
instructions. Follow all operating and use instructions.
Grounding or polarization
Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a grounding prong. The wide
blade or grounding prong are provided for your safety. If the plug does
not fit, contact an electrician to replace the obsolete outlet.
Placement
When placing your boombox on a lacquered or natural finish, protect
your furniture with a cloth or other protective material.
Avoid exposure to direct sunlight, temperature extremes, and
moisture.
Ventilation
Slots and openings in the cabinet and the back or bottom are
provided for ventilation, reliable operation, and protection from
overheating. These openings must not be blocked or covered. Do not
block the openings by placing your boombox on a bed, sofa, rug, or
other similar surface.
Water and moisture
Do not use your boombox near water. For example, do not use it near
a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet
basement, or near a swimming pool.
Do not let water slash or drip onto your boombox. Do not place
objects containing liquids, such as a vase, on top of your boombox.
The AC power adapter is used as the disconnect device. It should
remain readily accessible and should not be obstructed during use.
To completely disconnect power, the AC power adapter should be
unplugged from the AC power outlet completely.
The marking plate of the AC adapter is located on the bottom of the
adapter.

6
I
ns
i
gn
i
a
NS
-
B3113
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
Features
Package contents:
•Boombox
• AC power adapter
• Remote control and CR2025 battery
•UserGuide
•iPod
®holders (5)
Front panel
# Description Function
1 Left and right speakers Produces sound from left and right stereo
channels.
2 PLAY/PAUSE/PRESET button Press to begin CD playback or iPod®playback
when your iPod®is connected to the boombox.
Press again to pause playback.
In radio mode, press to go to a preset station.
3 STOP/BAND/TIME SET button In CD mode, press to stop playback.
In radio mode, press to change frequency
bands (for example, AM to FM).
In standby mode, press to set the time.

7
I
ns
i
gn
i
a
NS
-
B3113
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
4 MEMORY/ALBUM button In radio mode, press to save to a preset station.
In CD mode, when playing MP3 or WMA discs,
press to skip to the next album.
5 BASS/TREBLE Press to adjust the bass and treble settings of
your boombox. The settings will be stored and
shown on the bass or treble indicator on the
display (on the front of your boombox).
6 SKIP/TUNE UP button In radio mode, press to tune or scan the your
boombox to a higher frequency. In CD or iPod®
mode, press to skip to the next track.
7 SKIP/TUNE DOWN button In radio mode, press to tune or scan the your
boombox to a lower frequency. In CD or iPod®
mode, press to skip to the previous track.
8Standby/ON button Press to turn on your boombox. Press again to
return your boombox to standby mode.
9 FUNCTION button Press to select the function of your boombox.
Choices include AM, FM, CD, iPod®, or
Line-in.
10 PLAY MODE/MONO/STEREO In radio mode, press to change from Mono
sound to Stereo sound.
In CD playback mode, press to cycle through
repeat, random, and intro options.
11 SOUND button Press to select a preset sound equalization
setting. Choices include JAZZ, POP,
CLASSIC, ROCK, or FLAT (no equalization
and no display)
12 Volume up button Press to increase the volume.
13 Volume down button Press to decrease the volume.
14 Headphone jack Plug headphones into this jack.
15 LCD display Displays time, radio, and CD information.
16 Remote control sensor Receives the infrared signals from the remote
control. Do not block.
# Description Function

8
I
ns
i
gn
i
a
NS
-
B3113
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
Bottom panel
# Description Function
1iPod
®connector Plug your iPod®and holder into this connector.
2 Battery compartment for
clock backup battery Install one CR2025 battery into this slot.
Note: We recommend that you open this compartment
with a coin, because it is very difficult to open by hand.
3 Battery compartment for
boombox Install eight (8) “D” size batteries in this compartment.
Battery
compartment
cover

9
I
ns
i
gn
i
a
NS
-
B3113
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com

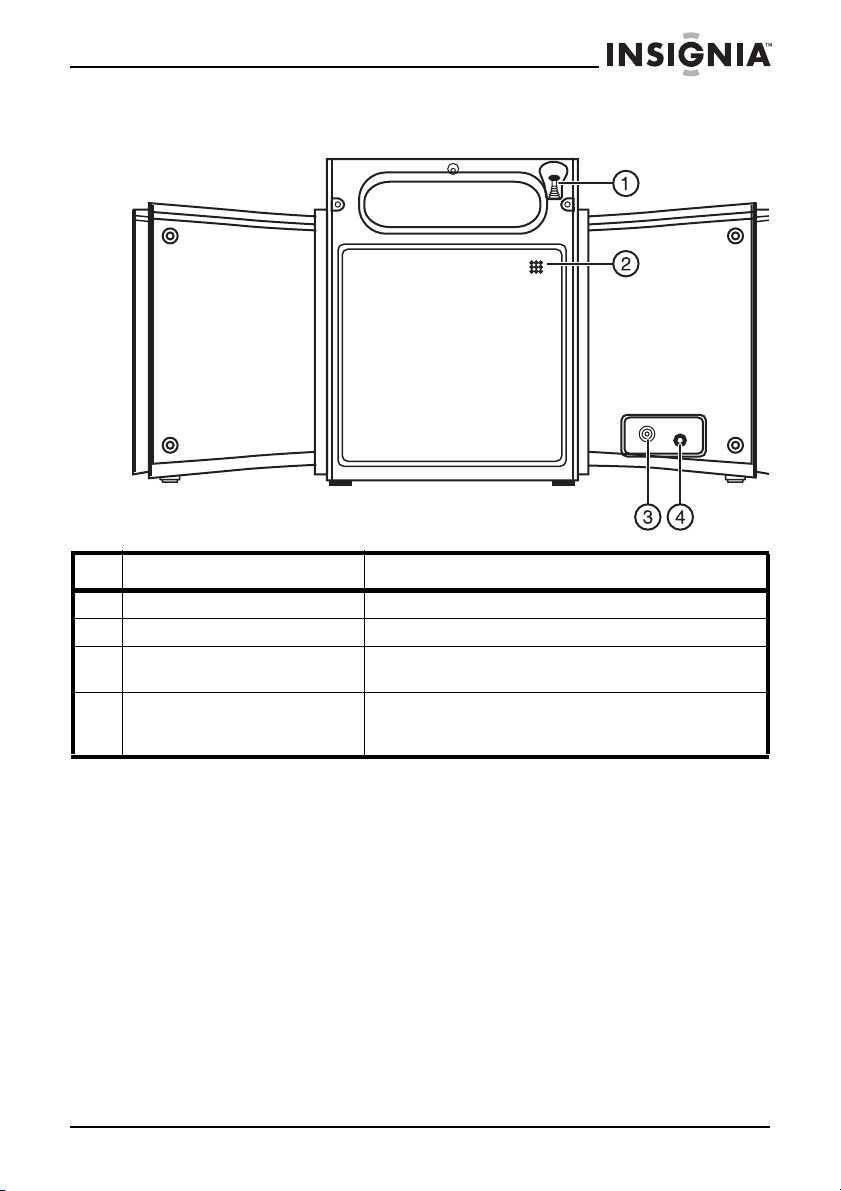

Back panel
# Description Function
1 FM antenna Telescoping antenna to improve FM reception.
2 OPEN/CLOSE button Press to open or close the CD tray.
3 DC IN jack Insert the small connector from the AC power
adapter here.
4 LINE IN jack Connect a cable from an external audio source to
this input jack to hear the sound through your
boombox.

10
I
ns
i
gn
i
a
NS
-
B3113
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com

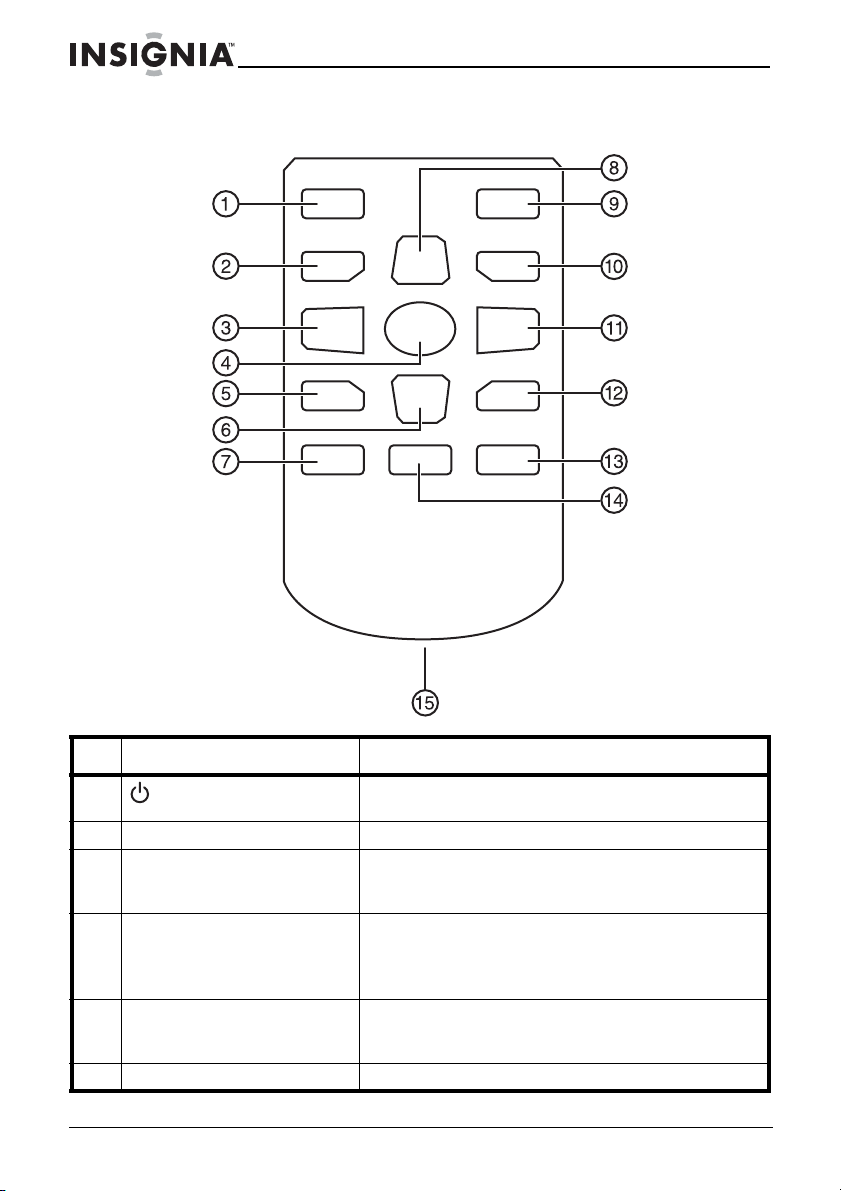

Remote control
# Description Function
1Standby/ON Press to turn on the boombox. Press again to
return the boombox to standby mode.
2 MEMORY/ALBUM In radio mode, press to tune to a preset station.
3 SKIP/TUNE DOWN In radio mode, press to tune or scan your
boombox to a lower frequency. In CD or iPod®
mode, press to skip to the previous track.
4 PLAY/PAUSE/PRESET In CD or iPod®mode, press to begin playback.
Press again to pause playback. Press again to
resume playback.
In radio mode, press to go to a preset station.
5 SOUND Press to select a preset sound equalization
setting. Choices include JAZZ, POP, CLASSIC,
ROCK, or FLAT (no equalization and no display).
6 VOLUME DOWN Press to decrease the volume of your boombox.

11
I
ns
i
gn
i
a
NS
-
B3113
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com

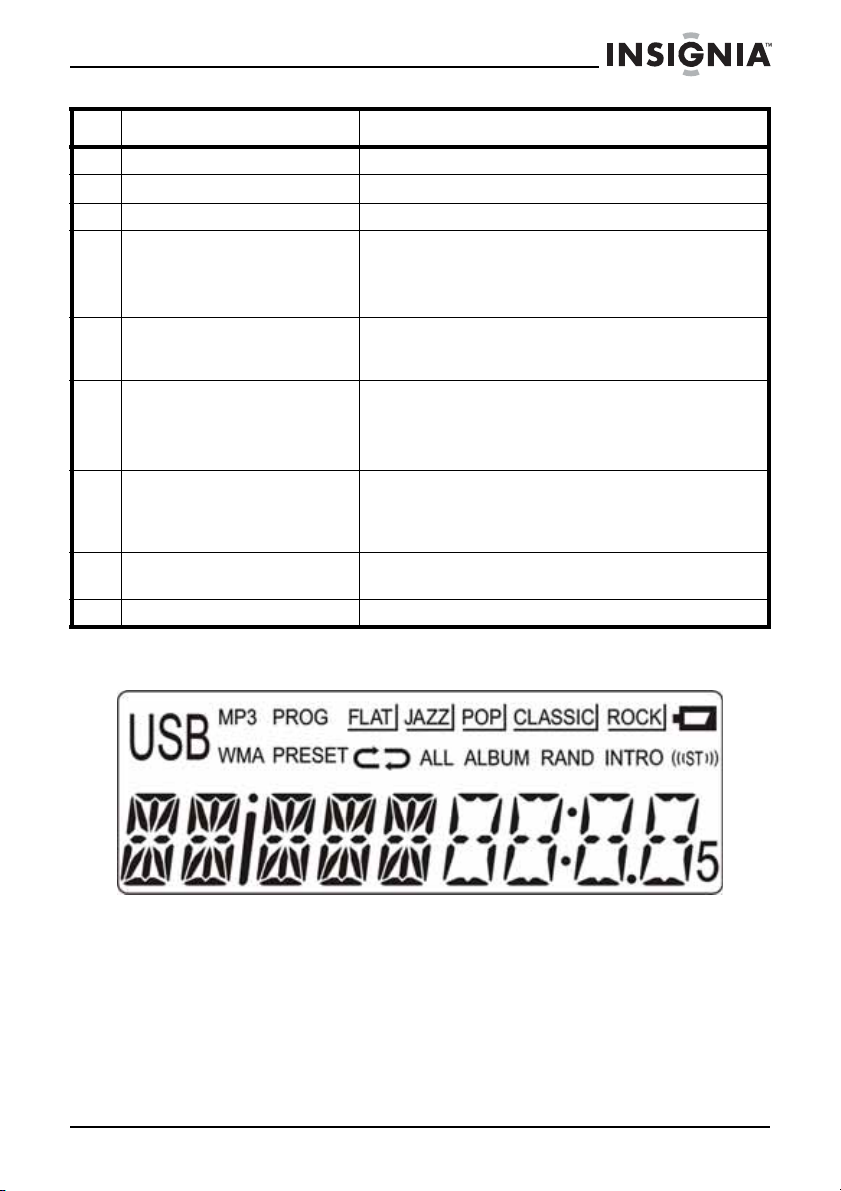

LCD display
7 DISPLAY Press to display information about the CD.
8 VOLUME UP Press to increase the volume of your boombox.
9 FUNCTION button Press to select AM, FM, iPod®, CD, or Line-in.
10 PLAY MODE/MONO/
STEREO In radio mode, press to change from Mono sound to Stereo sound.
In CD playback mode, press to cycle through
repeat, random, and intro options.
11 SKIP/TUNE UP In radio mode, press to tune or scan your
boombox to a higher frequency. In CD or iPod®
mode, press to skip to the next track.
12 STOP/BAND/TIME SET In CD or iPod®mode, press to stop playback.
In radio mode, press to change frequency bands
(for example, AM to FM).
In standby mode, press to set the time.
13 BASS/TREBLE Press to adjust the bass and treble settings of
your boombox. The settings will be stored and
shown on the bass or treble indicator on the
display (on the front of your boombox).
14 MUTE Press to mute the sound. Press again to resume
normal sound.
15 Battery compartment Open to insert or change battery.
# Description Function

12
I
ns
i
gn
i
a
NS
-
B3113
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
Installing remote control battery

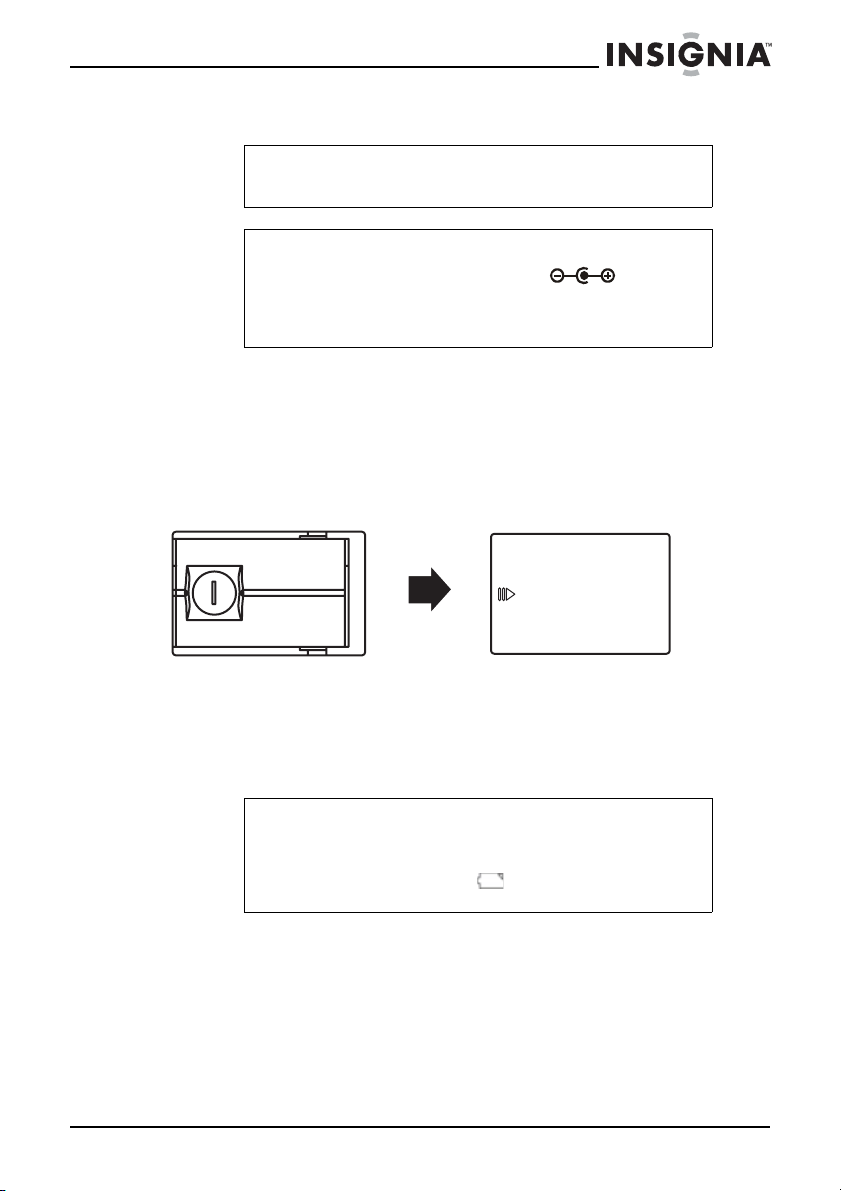

To install the remote control batteries:
1Remove the battery holder from the remote control.
2Insert the CR2025 battery into the battery holder, positive (+) side up.
3Slide the battery holder back into the remote control.
Setting up your boombox
Using the AC power adapter
To use the AC power adapter:
1Make sure that your local AC power source matches the voltage
shown on the plate located on the AC power adapter. If it does not,
consult your dealer or service center.
2Insert the small connector at the end of the AC power adapter
cable into the DC IN jack on the back of your boombox.
Notes
Battery chemicals can cause a rash. If the battery leaks,
clean the battery compartment with a cloth. If chemicals
touch your skin, wash immediately.
If the remote control is not going to be used for an extended
period of time, remove the battery.
Back view

13
I
ns
i
gn
i
a
NS
-
B3113
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
3Plug the AC power adapter into a wall power outlet.
Installing the batteries
To install the batteries:
1Turn your boombox over, then open and remove the door to the
battery compartment.
2Insert eight (8) “D” size batteries into the battery compartment.
Make sure that you match the + and – symbols on the batteries
with the + and – symbols in the battery compartment.
3Reinstall and close the battery compartment door and return your
boombox to the upright position.
Caution
To protect your boombox during thunderstorms, unplug the
AC power adapter from the AC power outlet.
NoteOnly use the supplied AC power adapter, which has the
following specifications: DC=12V 2A
Unplug both the DC plug and the adapter when not in use.
The batteries are automatically bypassed when the AC
power adapter is used.
NoteThe AC power adapter must be disconnected from the
DC IN jack on the back of your boombox in order for your
boombox to operate on battery power.
When the battery indicator appears in the display, you
need to replace the batteries.

14
I
ns
i
gn
i
a
NS
-
B3113
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
Using the remote control
When there is an obstacle between your boombox and the
transmitter, the transmitter may not operate.
When direct sunlight, an incandescent lamp, fluorescent lamp or any
other strong light shines on the remote sensor of the unit, the remote
control operation may be unstable.
Connecting headphones
To connect headphones:
• Plug the headphones (not included) into the headphone jack
on the back of the unit.
Connecting an iPod®to your boombox
You can connect an iPod®(not included) to your boombox so you can
listen to the songs stored on your iPod®.
To connect an iPod®to your boombox:
1Make sure that your boombox is turned off.

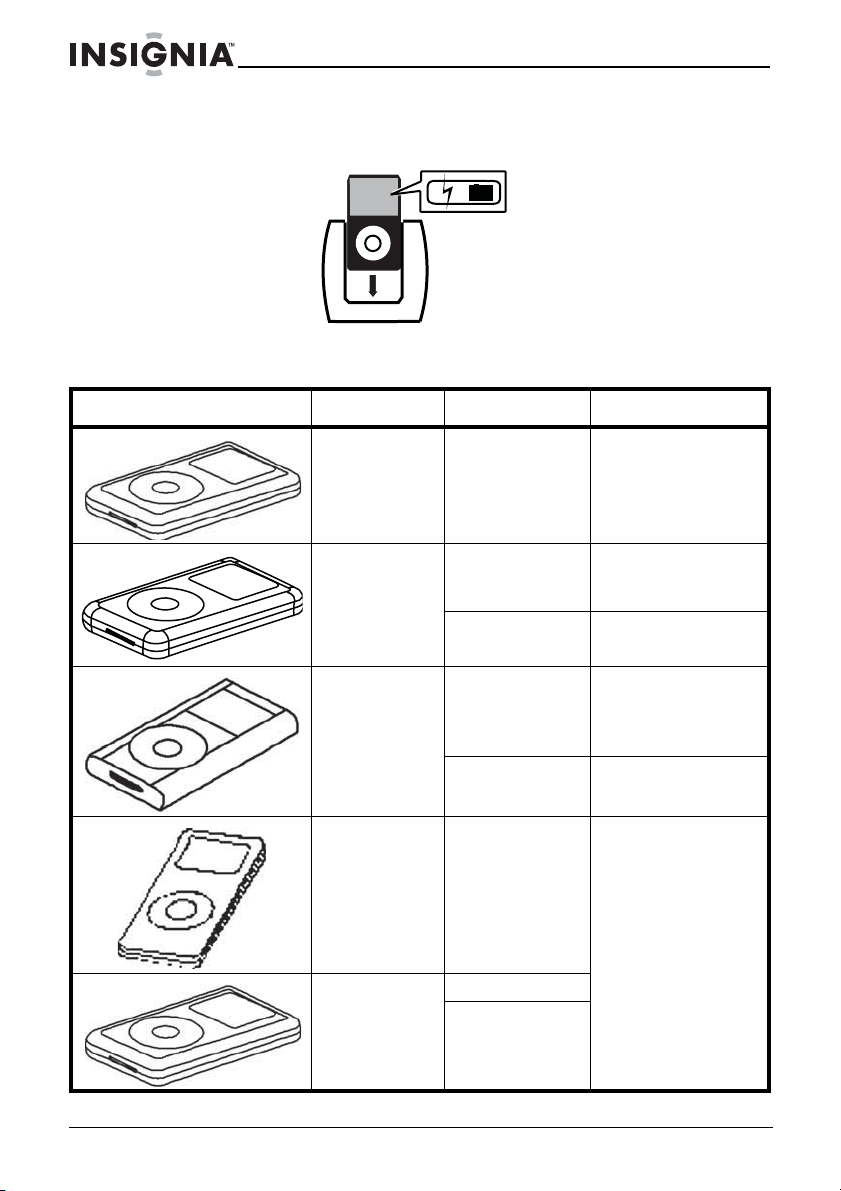

2Select the appropriate iPod®holder (the universal dock number is
shown on the front of the holder, as shown on the “iPod® holders”
on page 20) to match your iPod®.
Caution
Follow these precautions when using batteries in this
device:
- Use only the size and type of batteries specified.
- Make sure that you follow the correct polarity as indicated
in the battery compartment when installing batteries.
Reversed batteries may cause damage to your boombox.
- Do not mix different types of batteries together (for
example, alkaline, rechargeable, and carbon zinc), or
semi-used batteries with fresh ones.
- If your boombox is not to be used for a long period of time,
remove the batteries to prevent damage or injury from
possible battery leakage.
- Do not try to recharge batteries not intended to be
recharged, because they can overheat and rupture. (Follow
battery manufacturer’s directions.)
- Do not throw batteries into a fire. Dispose of used batteries
as hazardous waste.
Caution
Listening to music with the volume too loud can damage
your hearing. Before you connect headphones, turn the
volume down. After you put on the headphones, gradually
increase the volume to a comfortable level.

15
I
ns
i
gn
i
a
NS
-
B3113
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
3Insert your iPod®into the iPod®holder, then insert the holder and
your iPod®(with the display facing out) into the iPod®dock on the
front of your boombox.
Listening to another audio device
To listen to another audio device:
1Make sure the boombox is turned off
2Plug one end of the auxiliary line-in cable (not included) into the
LINE IN jack on the back of your boombox.
3Plug the other end of the cord into the Line-out jack on the audio
device.
4Turn on your boombox.
5Press FUNCTION one or more times until LINE appears on the
display.
6Use the controls on the audio device to control playback.
Setting the sound characteristics
To change the sound characteristics:
1Press SOUND to select the sound equalization you want. Choose
one of the following preset options: JAZZ, POP, CLASSIC,
ROCK, or FLAT (no equalization).
2Briefly press BASS/TREBLE. The BASS icon and the current
bass setting are displayed.
3Press TUNE to change the bass setting from -14 to +14 dB.
4Briefly press BASS/TREBLE again. The TREBLE icon and the
current treble setting are displayed.
5Press TUNE to change the treble setting from -14 to +14 dB.
The display
To view the display:
• Press DISPLAY during iPod®/CD/TUNER/LINE IN mode. The
boombox shows real time for 5 seconds.
The display backlight will always be turned if the unit is operating
from its AC/DC Adaptor. If the boombox is operating on batteries,
backlight will be activated for 10 seconds after any button is
pressed.

16
I
ns
i
gn
i
a
NS
-
B3113
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
Setting the clock
To set the clock:
1Press STOP/BAND/TIME SET. The HOUR digits begin flashing.
2Press SKIP/TUNING UP or SKIP/TUNING DOWN to set the hour.
3Press STOP/BAND/TIME SET. The HOUR digits stop flashing
and MIN digits start flashing.
4Press SKIP/TUNING UP or SKIP/TUNING DOWN to set the
minutes, then press STOP/BAND/TIME SET to confirm the time
setting and go back to standby mode. The display now shows real
time.
Using your boombox
Playing the radio
To play the radio:
1Press (Standby/on) to turn on the boombox.
2Press STOP/BAND/TIME SET to select the radio band you want
to listen to (AM or FM). In FM mode, press PLAY MODE/MONO/
ST. to select FM MONO or FM STEREO.
3Press SKIP/TUNE UP or SKIP/TUNE DOWN to tune the radio up
or down and select the station you want. When a strong FM signal
is received, Stereo appears on the display.
4Adjust the volume to a comfortable level by pressing either the
VOLUME UP or VOLUME DOWN button.
5To scan to a higher or lower frequency, press and hold SKIP/
TUNE UP or SKIP/TUNE DOWN for one second. The radio
automatically scans to the next station.
6Press (Standby/on) to turn off the boombox.
To improve reception:
• For FM reception, raise and extended the FM antenna. You
may have to reposition the antenna for best reception.
• For AM reception, turn your boombox slightly until reception
improves.
• Move the AC power adapter 3 feet away from your boombox to
reduce interference to radio reception.

17
I
ns
i
gn
i
a
NS
-
B3113
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
To use presets:
1Press (Standby/on) to turn on your boombox.
2Press STOP/BAND/TIME SET to select the radio band you want
to listen to (AM or FM).
3Press SKIP/TUNE UP or SKIP/TUNE DOWN to tune the radio up
or down and select the station you want.
4To save the station as a preset, press MEMORY/ALBUM.
PRESET and 00 flash on the display.
5Press MEMORY/ALBUM again to confirm the setting and return
to play mode.
6Repeat Steps 3 to 5 to store as many as 10 AM presets and 10
FM presets.
7To select a preset station, briefly press PLAY/PAUSE/PRESET
repeatedly until you reach the station you want. The PRESET icon
lights and the preset number is shown on the display.
To recall the presets in memory:
1Press MEMORY/ALBUM in radio mode. The PRESET icon
flashes for 5 seconds and the frequency of the preset station is
displayed. The radio plays the preset station.
2The preset station can also be selected by pressing SKIP/TUNE
UP or SKIP/TUNE DOWN while the PRESET icon is flashing.
Playing CDs
You can play audio CDs, CD-Rs and CD-RWs.
To play CDs:
1Press (Standby/on) to turn on your boombox.
2Slide the CD OPEN/CLOSE switch to open the CD compartment
door.
3Insert a CD, label side up and close the door. The total number of
tracks appears on the display.
4Press FUNCTION to select CD mode. The CD begins playback
automatically. The current track appears on the display. The CD
stops when completed.
Caution
Do not try to play DVDs, VCDs, or data CDs. You may
damage your unit.

18
I
ns
i
gn
i
a
NS
-
B3113
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
5Adjust the volume to a comfortable level by pressing either the
VOLUME UP or VOLUME DOWN button. You can also mute the
volume by pressing MUTE. Press again to resume normal
playback.
6Press SKIP/TUNING UP or SKIP/TUNING DOWN to skip forward
or backward a track. Press and hold to search through a track.
7During playback of an MP3 disc, press MEMORY/ALBUM to skip
up to next album and play the first track in the album. Press and
hold MEMORY/ALBUM to skip forward tracks one by one within
the album and from one album to the next album. (For MP3/WMA
format playback only).
8Press STOP/BAND/TIME SET to stop the CD before it is finished.
To pause CD playback:
1Press PLAY/PAUSE/PRESET. Playback stops but the CD
continues to spin and the playback symbol blinks on the display.
2Press PLAY/PAUSE/PRESET again to resume normal CD
playback.
To repeat one track:
1If a CD is playing, press STOP.
2Press PLAY MODE/MONO/ST. while the track you want to repeat
is playing. Repeat appears on the display.
3To repeat another track, press SKIP/TUNING UP or SKIP/
TUNING DOWN.
4To cancel repeat single track, press PRESET/PLAY MODE four
times.
To repeat everything on the disc:
1Press PLAY MODE/MONO/ST. twice while in Stop mode. Repeat
All appears on the display.
On MP3 or WMA discs, all tracks repeat within the album.
2Press PLAY/PAUSE/PRESET to begin playback. All the tracks on
the CD will repeat continuously.
3To cancel repeat playback, press PLAY MODE/MONO/ST. until
the repeat indicator disappears from the display.
Notes
If a CD is inserted incorrectly, is dirty or damaged, or is not
present at all, NO appears on the display.
To prevent damage to the CD, never open the CD door while
the CD is rotating and never touch the lens.
Do not use the carrying handle when playing a CD. The CD
player should only be used on a steady surface.
Your CD boombox plays standard CDs and 3” CDs.

19
I
ns
i
gn
i
a
NS
-
B3113
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
To Intro all the tracks on the disc:
1Press PLAY MODE/MONO/ST. three times while in the stop
mode. Intro appears on the display.
2Press PLAY/PAUSE/PRESET to begin playback. The first 10
seconds of all the tracks on the disc will be played.
3To cancel Intro playback, press PLAY MODE/MONO/ST. until the
Intro indicator disappears from the display.
To randomly play the tracks on a CD:
1If a CD is playing, press STOP.
2Press PLAY MODE/MONO/ST. four times. Random appears on
the display.
3Press PLAY/PAUSE/PRESET to begin random play.
4To cancel random play, press PLAY MODE/MONO/ST. until the
random indicator disappears from the display.
Using an iPod®with your boombox
To listen to the iPod®:
1Make sure that your iPod®and the correct iPod®holder are
installed on your boombox.
2Turn on your boombox.
3Press FUNCTION to select iPod®mode. Playback begins
automatically.
4Adjust the volume to a comfortable level by pressing either the
VOLUME UP or VOLUME DOWN button.
5Press SKIP/TUNE UP or SKIP/TUNE DOWN briefly to skip to the
beginning of the current, last, or next track.
6Press and hold SKIP/TUNE UP or SKIP/TUNE DOWN to search
forward or backward through a track.
To charge the iPod®battery:
1Make sure that you have installed the correct iPod®holder in the
iPod®dock on your boombox.
2Turn on your iPod®.

20
I
ns
i
gn
i
a
NS
-
B3113
B
oom
b
ox w
i
t
h
iP
o
d
®
D
oc
k
www.insignia-products.com
3Insert the iPod®. The battery charging indicator appears on the
iPod®display.
iPod
®
holders
iPod®Type Memory Universal dock #
iPod®mini 4 and 6 GB 3
Fourth
generation
iPod®
20 GB/U2
Special Edition
20 GB
4
40 GB 5
iPod®Photo/
iPod®with
color display
20 GB
30 GB
U2 Special
Edition
6
40 and 60 GB 7
First and
second
generation
iPod®nano
2 and 4 GB Use the universal
dock included with
your iPod®.
Fifth
generation
iPod®(with
video)
30 GB
60 and 80 GB
